The New QIF Standard: What Is It, and Why is it Important to my Organization? Lyle Fischer Technical Marketing Director, Capvidia DMSC Chair - QIF MBD WG, Chair - QIF Marketing & Membership © Honeywell Federal Manufacturing & Technologies LLC, 2013, Created under Contract No. DE-NA-0000622 with the U. S. Department of Energy. BOEING is a trademark of Boeing Management Company Copyright © 2014 Boeing. All rights reserved. Copyright © 2014 Northrop Grumman Corporation. All rights reserved. GPDIS_2015. ppt | 1

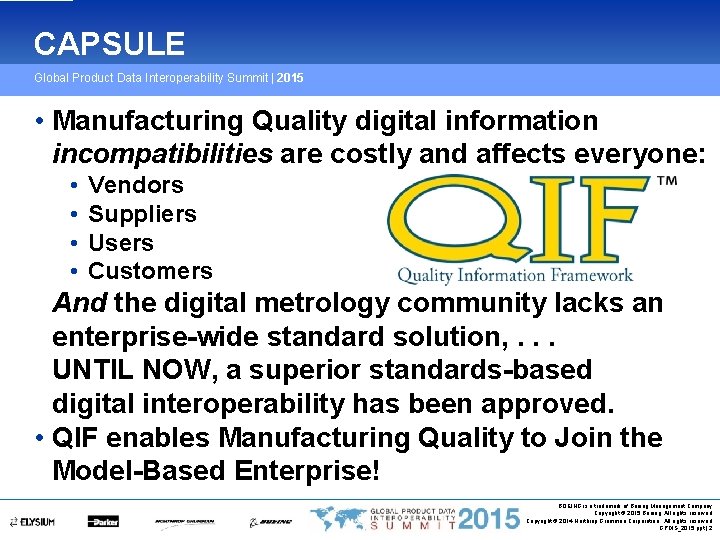

CAPSULE Global Product Data Interoperability Summit | 2015 • Manufacturing Quality digital information incompatibilities are costly and affects everyone: • • Vendors Suppliers Users Customers And the digital metrology community lacks an enterprise-wide standard solution, . . . UNTIL NOW, a superior standards-based digital interoperability has been approved. • QIF enables Manufacturing Quality to Join the Model-Based Enterprise! BOEING is a trademark of Boeing Management Company Copyright © 2015 Boeing. All rights reserved. Copyright © 2014 Northrop Grumman Corporation. All rights reserved. GPDIS_2015. ppt | 2

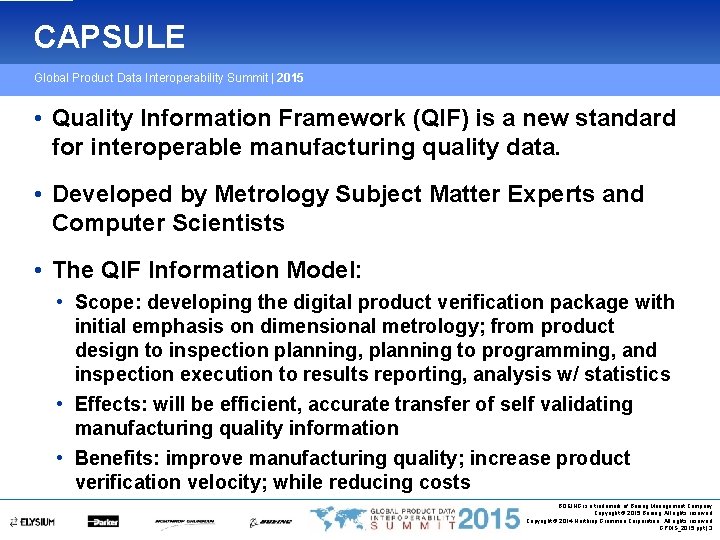

CAPSULE Global Product Data Interoperability Summit | 2015 • Quality Information Framework (QIF) is a new standard for interoperable manufacturing quality data. • Developed by Metrology Subject Matter Experts and Computer Scientists • The QIF Information Model: • Scope: developing the digital product verification package with initial emphasis on dimensional metrology; from product design to inspection planning, planning to programming, and inspection execution to results reporting, analysis w/ statistics • Effects: will be efficient, accurate transfer of self validating manufacturing quality information • Benefits: improve manufacturing quality; increase product verification velocity; while reducing costs BOEING is a trademark of Boeing Management Company Copyright © 2015 Boeing. All rights reserved. Copyright © 2014 Northrop Grumman Corporation. All rights reserved. GPDIS_2015. ppt | 3

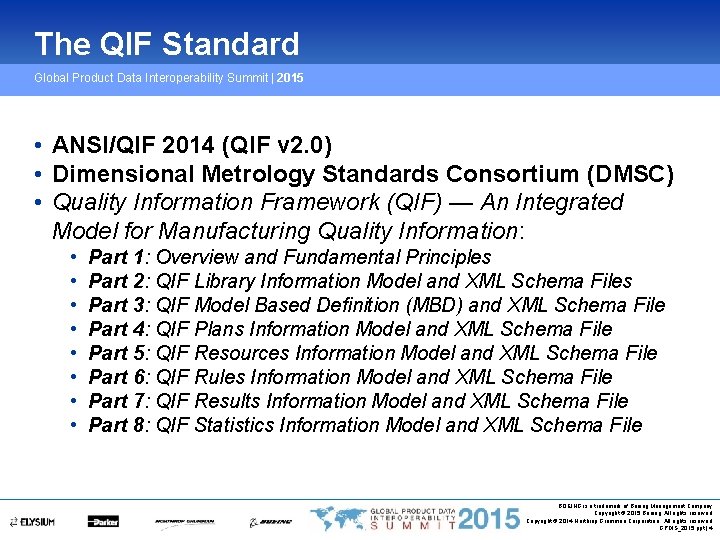

The QIF Standard Global Product Data Interoperability Summit | 2015 • ANSI/QIF 2014 (QIF v 2. 0) • Dimensional Metrology Standards Consortium (DMSC) • Quality Information Framework (QIF) — An Integrated Model for Manufacturing Quality Information: • • Part 1: Overview and Fundamental Principles Part 2: QIF Library Information Model and XML Schema Files Part 3: QIF Model Based Definition (MBD) and XML Schema File Part 4: QIF Plans Information Model and XML Schema File Part 5: QIF Resources Information Model and XML Schema File Part 6: QIF Rules Information Model and XML Schema File Part 7: QIF Results Information Model and XML Schema File Part 8: QIF Statistics Information Model and XML Schema File BOEING is a trademark of Boeing Management Company Copyright © 2015 Boeing. All rights reserved. Copyright © 2014 Northrop Grumman Corporation. All rights reserved. GPDIS_2015. ppt | 4

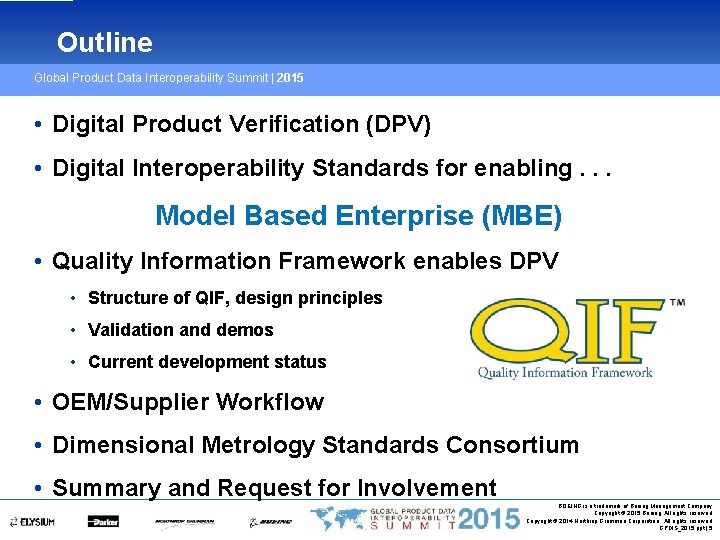

Outline Global Product Data Interoperability Summit | 2015 • Digital Product Verification (DPV) • Digital Interoperability Standards for enabling. . . Model Based Enterprise (MBE) • Quality Information Framework enables DPV • Structure of QIF, design principles • Validation and demos • Current development status • OEM/Supplier Workflow • Dimensional Metrology Standards Consortium • Summary and Request for Involvement BOEING is a trademark of Boeing Management Company Copyright © 2015 Boeing. All rights reserved. Copyright © 2014 Northrop Grumman Corporation. All rights reserved. GPDIS_2015. ppt | 5

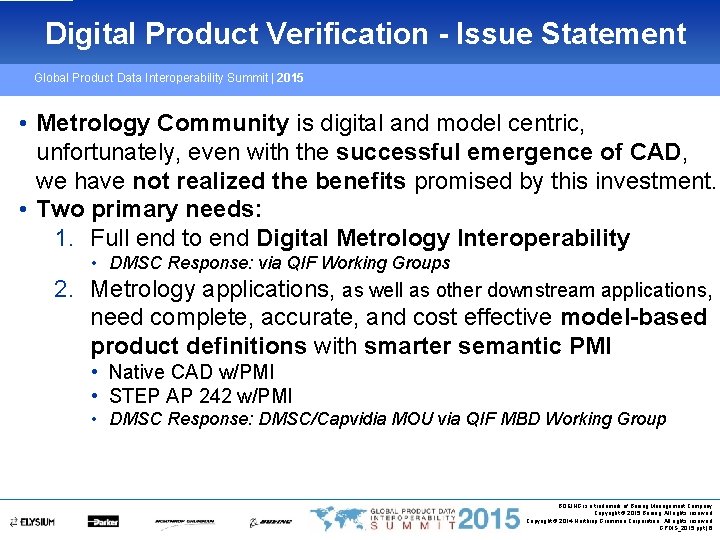

Digital Product Verification - Issue Statement Global Product Data Interoperability Summit | 2015 • Metrology Community is digital and model centric, unfortunately, even with the successful emergence of CAD, we have not realized the benefits promised by this investment. • Two primary needs: 1. Full end to end Digital Metrology Interoperability • DMSC Response: via QIF Working Groups 2. Metrology applications, as well as other downstream applications, need complete, accurate, and cost effective model-based product definitions with smarter semantic PMI • Native CAD w/PMI • STEP AP 242 w/PMI • DMSC Response: DMSC/Capvidia MOU via QIF MBD Working Group BOEING is a trademark of Boeing Management Company Copyright © 2015 Boeing. All rights reserved. Copyright © 2014 Northrop Grumman Corporation. All rights reserved. GPDIS_2015. ppt | 6

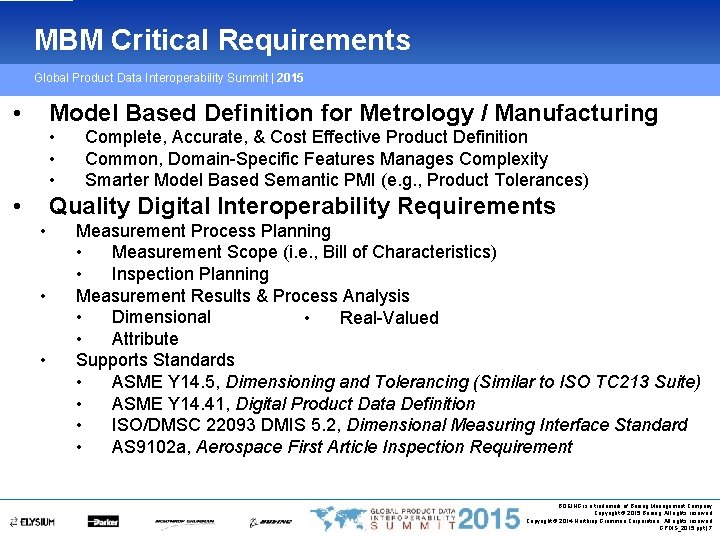

MBM Critical Requirements Global Product Data Interoperability Summit | 2015 • Model Based Definition for Metrology / Manufacturing • • Complete, Accurate, & Cost Effective Product Definition Common, Domain-Specific Features Manages Complexity Smarter Model Based Semantic PMI (e. g. , Product Tolerances) Quality Digital Interoperability Requirements • • • Measurement Process Planning • Measurement Scope (i. e. , Bill of Characteristics) • Inspection Planning Measurement Results & Process Analysis • Dimensional • Real-Valued • Attribute Supports Standards • ASME Y 14. 5, Dimensioning and Tolerancing (Similar to ISO TC 213 Suite) • ASME Y 14. 41, Digital Product Data Definition • ISO/DMSC 22093 DMIS 5. 2, Dimensional Measuring Interface Standard • AS 9102 a, Aerospace First Article Inspection Requirement BOEING is a trademark of Boeing Management Company Copyright © 2015 Boeing. All rights reserved. Copyright © 2014 Northrop Grumman Corporation. All rights reserved. GPDIS_2015. ppt | 7

Product Verification Activity Workflow Global Product Data Interoperability Summit | 2015 Customer Requirements Tolerance Quality Standards Requirements Define Product Model (CAD, STEP) Manufacturing Process Metrology Resources Product Definition w/ PMI & Determine Product Criticalities Measurement Drawing Quality Metrology Enterprise Metrology Knowledge Requirements Measurement Scope (whats) Work Activity Part Report & Analysis Define Measurement Process Inspection Plan (whats & hows) Control Perform CNC DME Program Perform Other Verification Execute Measurement Process Evaluation Results Analyze & Report Quality Data BOEING is a trademark of Boeing Management Company Copyright © 2015 Boeing. All rights reserved. Copyright © 2014 Northrop Grumman Corporation. All rights reserved. GPDIS_2015. ppt | 8

Digital Product Verification Process with QIF Global Product Data Interoperability Summit | 2015 Customer Requirements Tolerance Standards Define Product Model (CAD, STEP) QIF Resources QIF Plans Requirements Measurement Scope (whats) Metrology Knowledge Define Measurement Process ANSI QIF V 2. 0 Standard - 2014 I++ DME Perform CNC DME Program Perform Other Verification Part Report & Analysis QIF Plans (whats & hows) Inspection Plan (whats & hows) Control QIF Statistics QIF-Rules ISO / DMIS V 5. 2 Standard - 2009 ANSI QIF V 1. 0 Standard - 2013 w/ QPIds Metrology Resources QIF MBD Product Definition w/ PMI & Determine Product Criticalities Measurement Drawing DMSC ANSI / ISO Standards Quality Metrology Enterprise Quality Requirements Manufacturing Process Execute Measurement Process DMIS QIF Results Evaluation Results Analyze & Report Quality Data BOEING is a trademark of Boeing Management Company Copyright © 2015 Boeing. All rights reserved. Copyright © 2014 Northrop Grumman Corporation. All rights reserved. GPDIS_2015. ppt | 9

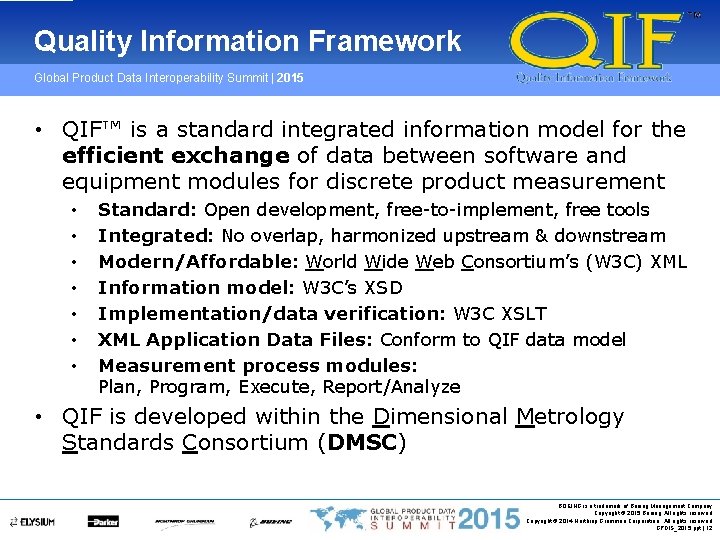

Quality Information Framework Global Product Data Interoperability Summit | 2015 • QIF™ is a standard integrated information model for the efficient exchange of data between software and equipment modules for discrete product measurement • • Standard: Open development, free-to-implement, free tools Integrated: No overlap, harmonized upstream & downstream Modern/Affordable: World Wide Web Consortium’s (W 3 C) XML Information model: W 3 C’s XSD Implementation/data verification: W 3 C XSLT XML Application Data Files: Conform to QIF data model Measurement process modules: Plan, Program, Execute, Report/Analyze • QIF is developed within the Dimensional Metrology Standards Consortium (DMSC) BOEING is a trademark of Boeing Management Company Copyright © 2015 Boeing. All rights reserved. Copyright © 2014 Northrop Grumman Corporation. All rights reserved. GPDIS_2015. ppt | 12

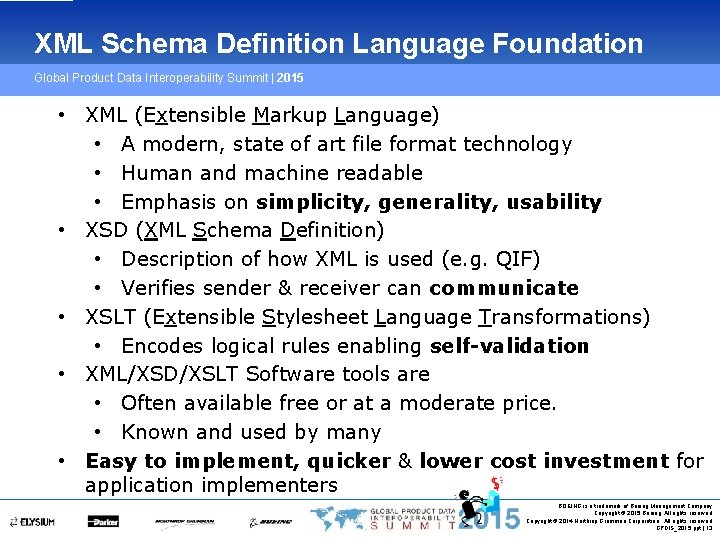

XML Schema Definition Language Foundation Global Product Data Interoperability Summit | 2015 XML Schema • XML (Extensible Markup Language) • A modern, state of art file format technology • Human and machine readable • Emphasis on simplicity, generality, usability • XSD (XML Schema Definition) • Description of how XML is used (e. g. QIF) • Verifies sender & receiver can communicate • XSLT (Extensible Stylesheet Language Transformations) • Encodes logical rules enabling self-validation • XML/XSD/XSLT Software tools are • Often available free or at a moderate price. • Known and used by many • Easy to implement, quicker & lower cost investment for application implementers BOEING is a trademark of Boeing Management Company Copyright © 2015 Boeing. All rights reserved. Copyright © 2014 Northrop Grumman Corporation. All rights reserved. GPDIS_2015. ppt | 13

QIF Metrology ‘Life Saver’ Architecture Global Product Data Interoperability Summit | 2015 XML Schema QIF Plan Product Hows Whats Model Based QIF Definition QM QIF (Native CAD, Directives QIF MBD Library Resources STEP) (PDPMI) QIF Rules Statistics QIF Results QIF Execution (DMIS) Complete QIF Roadmap BOEING is a trademark of Boeing Management Company Copyright © 2015 Boeing. All rights reserved. Copyright © 2014 Northrop Grumman Corporation. All rights reserved. GPDIS_2015. ppt | 14

QIF Model Suite Global Product Data Interoperability Summit | 2015 Common QIF Library XML Schema Information Models QIF Plans QIF Application Information Models (use the QIF Library) Hows Whats Model Based • QIF Document ( Parent structure) Definition QIF (Native CAD, • QIF MBD ( Product Definition w/Feature-Based PMI ) Library QIF MBD Resources STEP AP 242) QIF • QIF Plans QIF Rules • QIF Resources Statistics QIF • QIF Rules Execution (DMIS) QIF Results • QIF Statistics BOEING is a trademark of Boeing Management Company Copyright © 2015 Boeing. All rights reserved. Copyright © 2014 Northrop Grumman Corporation. All rights reserved. GPDIS_2015. ppt | 15

QIF Library Global Product Data Interoperability Summit | 2015 • Common Data Framework assures Interoperability • XSD Schemas Files for • • • • Auxiliary Characteristics (e. g. , Tolerances) Expressions Feature Types (Metrology/Measurement) Generic Expressions Geometry Intermediates. PMI Primitives. PD Primitives. PMI Statistics Topology Traceability Information Units Visualization QIF Library • Supports all QIF Application Models • Benefits • • • Avoid Multiple and Conflicting Definitions Reuse of common / shared data elements Eliminate Point-to-Point Harmonization and Mapping with other specs. BOEING is a trademark of Boeing Management Company Copyright © 2015 Boeing. All rights reserved. Copyright © 2014 Northrop Grumman Corporation. All rights reserved. GPDIS_2015. ppt | 16

Quality’s Purpose is to Verify Product’s Characteristics (e. g. , Tolerances) Global Product Data Interoperability Summit | 2015 • Dimensional. Characteristic. Base. Type – Coordinate. Characteristic. Base. Type … – Angular. Characteristic. Base. Type … – Linear. Characteristic. Base. Type … +/- • Geometric. Characteristic. Base. Type – – – • • Form. Characteristic. Base. Type … Location. Characteristic. Base. Type … Orientation. Characteristic. Base. Type … Profile. Characteristic. Base. Type … Runout. Characteristic. Base. Type … User. Defined. Attribute. Characteristic. Type User. Defined. Variable. Characteristic. Type Surface. Texture. Characteristic. Type Thread. Characteristic. Type BOEING is a trademark of Boeing Management Company Copyright © 2015 Boeing. All rights reserved. Copyright © 2014 Northrop Grumman Corporation. All rights reserved. GPDIS_2015. ppt | 17

QPIds – A Persistent UUID used within QIF Global Product Data Interoperability Summit | 2015 QIF Persistent Identifier (QPId) • Important Mechanism that helps facilitate full lifecycle MBE • Universally Unique Identifier (UUID) (aka GUID within Microsoft) • ISO/IEC 9834 -8 • 550 e 8400 -e 29 b-41 d 4 -a 716 -446655440000 • 3. 4 x 1038 possible UUIDs • Chances of generating two that are the same within the universe are practically nil. • Many software development libraries generate UUIDs • Allows information to be combined later without resolving identifier conflicts • QPIds uniquely identify • QIF Plan • QIF Result • QIF Rule Set • • Feature Item Characteristic Item Product Item Resource Item BOEING is a trademark of Boeing Management Company Copyright © 2015 Boeing. All rights reserved. Copyright © 2014 Northrop Grumman Corporation. All rights reserved. GPDIS_2015. ppt | 18

Digital Product Verification Process with QIF QPIds Global Product Data Interoperability Summit | 2015 Customer Requirements Tolerance Standards Define Product Model (CAD, STEP) QIF Resources QIF Plans Requirements Measurement Scope (whats) Metrology Knowledge Define Measurement Process ANSI QIF V 2. 0 Standard - 2014 I++ DME Perform CNC DME Program Perform Other Verification Part Report & Analysis QIF Plans (whats & hows) Inspection Plan (whats & hows) Control QIF Statistics QIF-Rules ISO / DMIS V 5. 2 Standard - 2009 ANSI QIF V 1. 0 Standard - 2013 w/ QPIds Metrology Resources QIF MBD Product Definition Product w/ PMI & Determine Drawing Criticalities Measurement DMSC ANSI / ISO Standards Quality Metrology Enterprise Quality Requirements Manufacturing Process Execute Measurement Process DMIS QIF Results Evaluation Results Analyze & Report Quality Data BOEING is a trademark of Boeing Management Company Copyright © 2015 Boeing. All rights reserved. Copyright © 2014 Northrop Grumman Corporation. All rights reserved. GPDIS_2015. ppt | 19

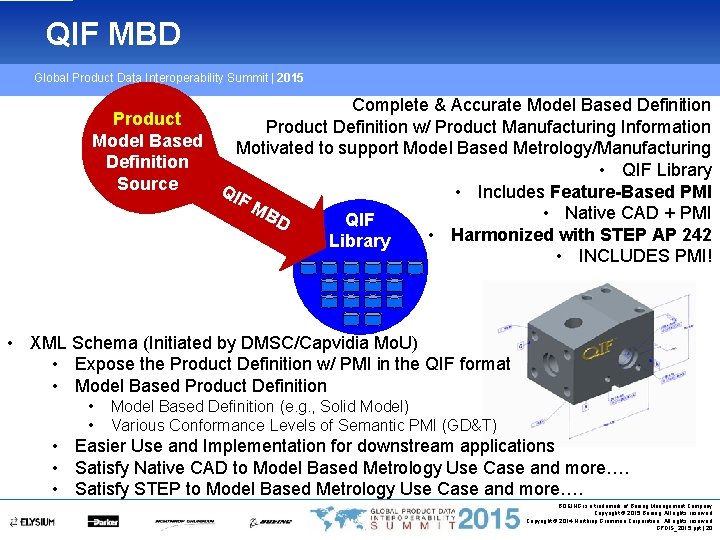

QIF MBD Global Product Data Interoperability Summit | 2015 Complete & Accurate Model Based Definition Product Definition w/ Product Manufacturing Information Model Based Motivated to support Model Based Metrology/Manufacturing Definition • QIF Library Source QI • Includes Feature-Based PMI F M • Native CAD + PMI BD QIF • Harmonized with STEP AP 242 Library • INCLUDES PMI! • XML Schema (Initiated by DMSC/Capvidia Mo. U) • Expose the Product Definition w/ PMI in the QIF format • Model Based Product Definition • • Model Based Definition (e. g. , Solid Model) Various Conformance Levels of Semantic PMI (GD&T) • Easier Use and Implementation for downstream applications • Satisfy Native CAD to Model Based Metrology Use Case and more…. • Satisfy STEP to Model Based Metrology Use Case and more…. BOEING is a trademark of Boeing Management Company Copyright © 2015 Boeing. All rights reserved. Copyright © 2014 Northrop Grumman Corporation. All rights reserved. GPDIS_2015. ppt | 20

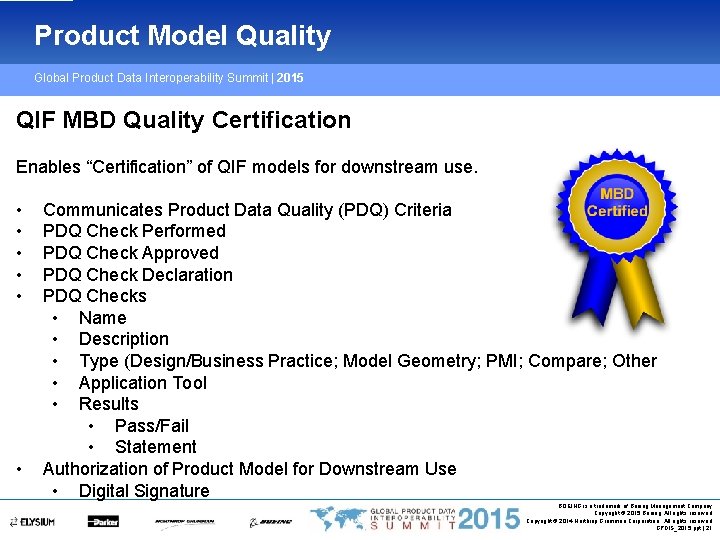

Product Model Quality Global Product Data Interoperability Summit | 2015 QIF MBD Quality Certification MBD Enables “Certification” of QIF models for downstream use. Certified • Communicates Product Data Quality (PDQ) Criteria • PDQ Check Performed • PDQ Check Approved • PDQ Check Declaration • PDQ Checks • Name • Description • Type (Design/Business Practice; Model Geometry; PMI; Compare; Other • Application Tool • Results • Pass/Fail • Statement • Authorization of Product Model for Downstream Use • Digital Signature BOEING is a trademark of Boeing Management Company Copyright © 2015 Boeing. All rights reserved. Copyright © 2014 Northrop Grumman Corporation. All rights reserved. GPDIS_2015. ppt | 21

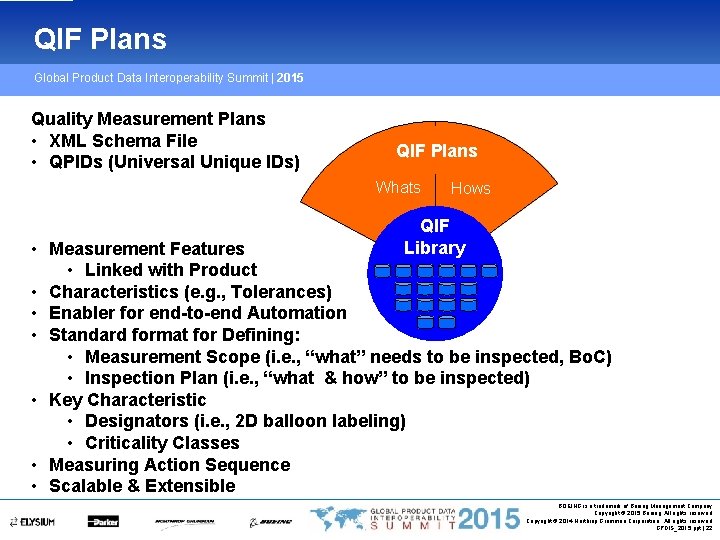

QIF Plans Global Product Data Interoperability Summit | 2015 Quality Measurement Plans • XML Schema File • QPIDs (Universal Unique IDs) QIF Plans Whats Hows QIF Library • Measurement Features • Linked with Product • Characteristics (e. g. , Tolerances) • Enabler for end-to-end Automation • Standard format for Defining: • Measurement Scope (i. e. , “what” needs to be inspected, Bo. C) • Inspection Plan (i. e. , “what & how” to be inspected) • Key Characteristic • Designators (i. e. , 2 D balloon labeling) • Criticality Classes • Measuring Action Sequence • Scalable & Extensible BOEING is a trademark of Boeing Management Company Copyright © 2015 Boeing. All rights reserved. Copyright © 2014 Northrop Grumman Corporation. All rights reserved. GPDIS_2015. ppt | 22

Measurement Resources & Rules Global Product Data Interoperability Summit | 2015 BOEING is a trademark of Boeing Management Company Copyright © 2015 Boeing. All rights reserved. Copyright © 2014 Northrop Grumman Corporation. All rights reserved. GPDIS_2015. ppt | 23

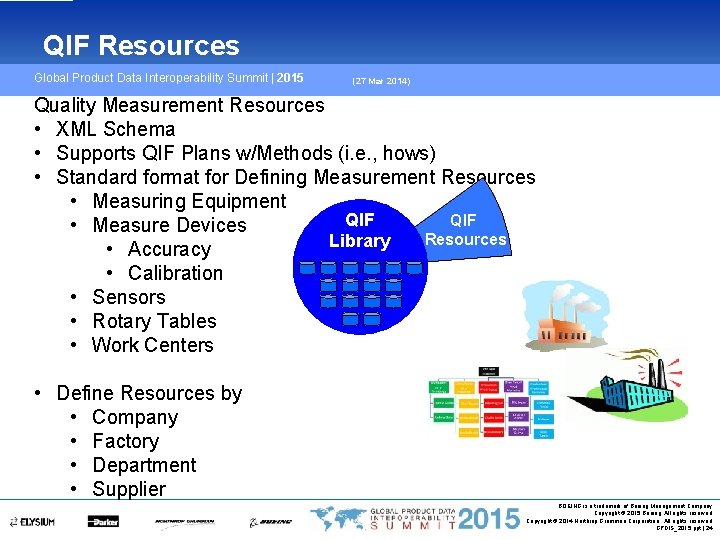

QIF Resources Global Product Data Interoperability Summit | 2015 (27 Mar 2014) Quality Measurement Resources • XML Schema • Supports QIF Plans w/Methods (i. e. , hows) • Standard format for Defining Measurement Resources • Measuring Equipment QIF • Measure Devices Resources Library • Accuracy • Calibration • Sensors • Rotary Tables • Work Centers • Define Resources by • Company • Factory • Department • Supplier BOEING is a trademark of Boeing Management Company Copyright © 2015 Boeing. All rights reserved. Copyright © 2014 Northrop Grumman Corporation. All rights reserved. GPDIS_2015. ppt | 24

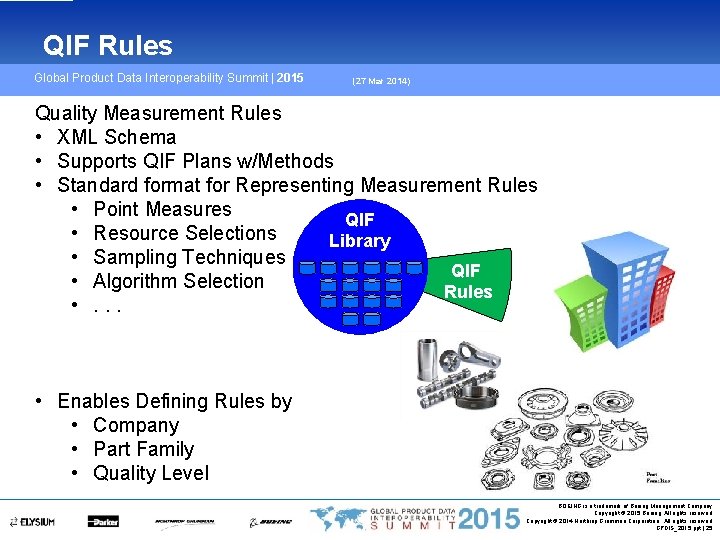

QIF Rules Global Product Data Interoperability Summit | 2015 (27 Mar 2014) Quality Measurement Rules • XML Schema • Supports QIF Plans w/Methods • Standard format for Representing Measurement Rules • Point Measures QIF • Resource Selections Library • Sampling Techniques QIF • Algorithm Selection Rules • . . . • Enables Defining Rules by • Company • Part Family • Quality Level BOEING is a trademark of Boeing Management Company Copyright © 2015 Boeing. All rights reserved. Copyright © 2014 Northrop Grumman Corporation. All rights reserved. GPDIS_2015. ppt | 25

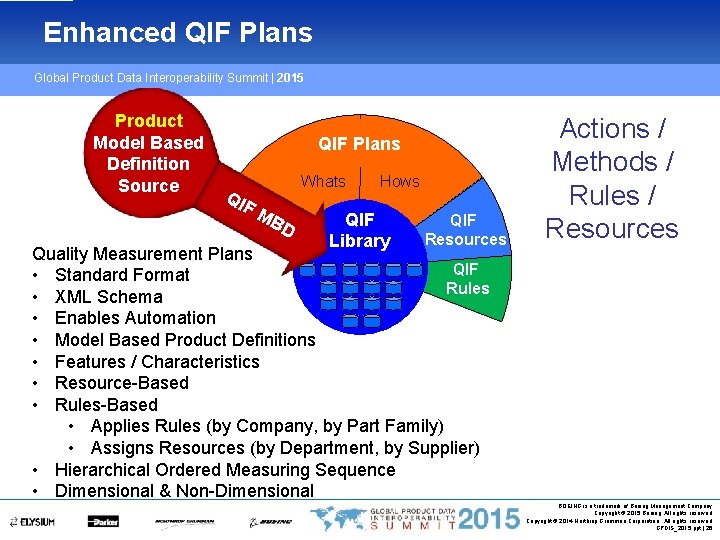

Enhanced QIF Plans Global Product Data Interoperability Summit | 2015 Product Model Based Definition Source QIF Plans QI Whats F M BD Hows QIF Library QIF Resources Quality Measurement Plans QIF • Standard Format Rules • XML Schema • Enables Automation • Model Based Product Definitions • Features / Characteristics • Resource-Based • Rules-Based • Applies Rules (by Company, by Part Family) • Assigns Resources (by Department, by Supplier) • Hierarchical Ordered Measuring Sequence • Dimensional & Non-Dimensional Actions / Methods / Rules / Resources BOEING is a trademark of Boeing Management Company Copyright © 2015 Boeing. All rights reserved. Copyright © 2014 Northrop Grumman Corporation. All rights reserved. GPDIS_2015. ppt | 26

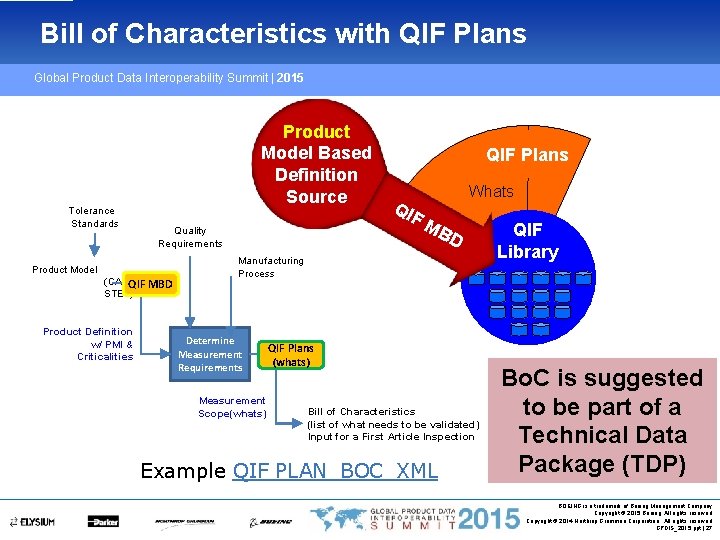

Bill of Characteristics with QIF Plans Global Product Data Interoperability Summit | 2015 Tolerance Standards Product Model Based Definition Source Quality Requirements Product Model (CAD, QIF MBD STEP) Product Definition w/ PMI & Criticalities QIF Plans QI Whats F M BD Manufacturing Process Determine Measurement Requirements Measurement Scope(whats) QIF Plans (whats) Bill of Characteristics (list of what needs to be validated) Input for a First Article Inspection Example QIF PLAN_BOC_XML QIF Library Bo. C is suggested to be part of a Technical Data Package (TDP) BOEING is a trademark of Boeing Management Company Copyright © 2015 Boeing. All rights reserved. Copyright © 2014 Northrop Grumman Corporation. All rights reserved. GPDIS_2015. ppt | 27

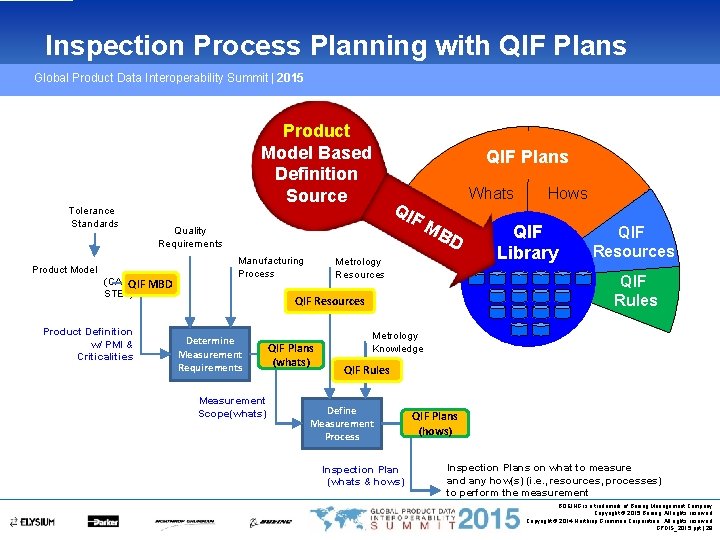

Inspection Process Planning with QIF Plans Global Product Data Interoperability Summit | 2015 Tolerance Standards Product Model Based Definition Source (CAD, QIF MBD STEP) Product Definition w/ PMI & Criticalities Whats QI F M Quality Requirements Product Model QIF Plans Manufacturing Process BD Metrology Resources Measurement Scope(whats) QIF Plans (whats) QIF Library QIF Resources QIF Rules QIF Resources Determine Measurement Requirements Hows Metrology Knowledge QIF Rules Define Measurement Process Inspection Plan (whats & hows) QIF Plans (hows) Inspection Plans on what to measure and any how(s) (i. e. , resources, processes) to perform the measurement BOEING is a trademark of Boeing Management Company Copyright © 2015 Boeing. All rights reserved. Copyright © 2014 Northrop Grumman Corporation. All rights reserved. GPDIS_2015. ppt | 28

QIF Results and Statistics Global Product Data Interoperability Summit | 2015 QIF Results and Statistics • Analyzing Single and Multiple Part Inspection • First Article, Capability, SPC, MSA • Explicit Statistical Tolerances • • • Identify Trends Trace Anomalies Provide Feedback Improve Production Assess Performance Judge Quality & Efficiency of Processes QIF Library QIF Statistics QIF Results BOEING is a trademark of Boeing Management Company Copyright © 2015 Boeing. All rights reserved. Copyright © 2014 Northrop Grumman Corporation. All rights reserved. GPDIS_2015. ppt | 29

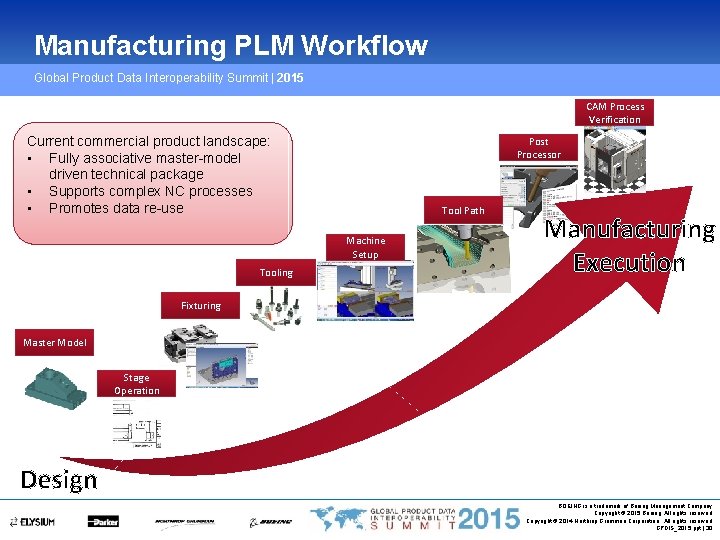

Manufacturing PLM Workflow Global Product Data Interoperability Summit | 2015 CAM Process Verification Current commercial product landscape: • Fully associative master-model driven technical package • Supports complex NC processes • Promotes data re-use Post Processor Tool Path Machine Setup Tooling Manufacturing Execution Fixturing Master Model Stage Operation Design BOEING is a trademark of Boeing Management Company Copyright © 2015 Boeing. All rights reserved. Copyright © 2014 Northrop Grumman Corporation. All rights reserved. GPDIS_2015. ppt | 30

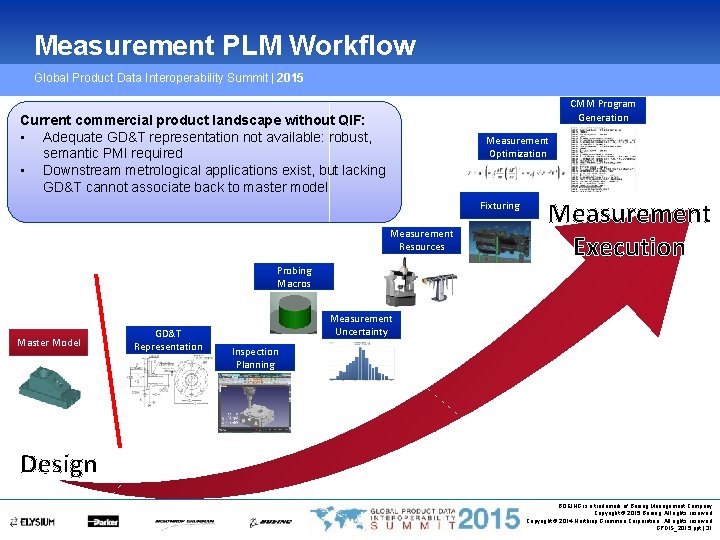

Measurement PLM Workflow Global Product Data Interoperability Summit | 2015 CMM Program Generation Current commercial product landscape without QIF: • Adequate GD&T representation not available: robust, semantic PMI required • Downstream metrological applications exist, but lacking GD&T cannot associate back to master model Measurement Optimization Fixturing Measurement Resources Probing Macros Master Model GD&T Representation Measurement Execution Measurement Uncertainty Inspection Planning Design BOEING is a trademark of Boeing Management Company Copyright © 2015 Boeing. All rights reserved. Copyright © 2014 Northrop Grumman Corporation. All rights reserved. GPDIS_2015. ppt | 31

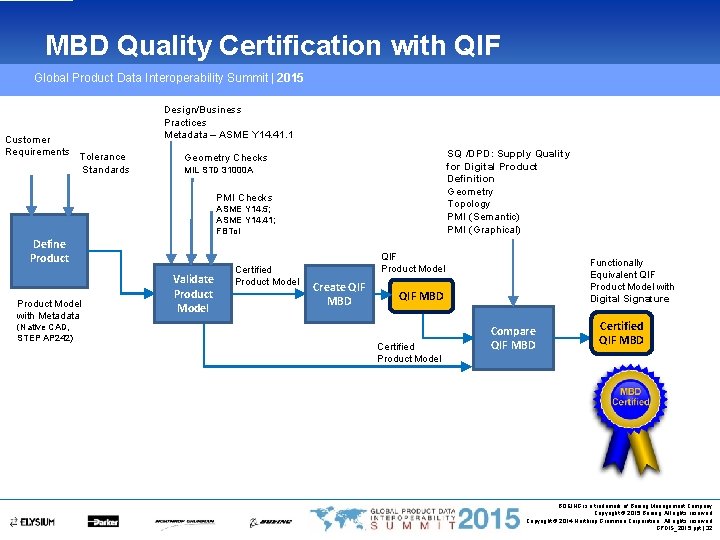

MBD Quality Certification with QIF Global Product Data Interoperability Summit | 2015 Customer Requirements Tolerance Standards Design/Business Practices Metadata – ASME Y 14. 41. 1 SQ /DPD: Supply Quality for Digital Product Definition Geometry Topology PMI (Semantic) PMI (Graphical) Geometry Checks MIL STD 31000 A PMI Checks ASME Y 14. 5; ASME Y 14. 41; FBTol Define Product Model with Metadata (Native CAD, STEP AP 242) Validate Product Model Certified Product Model QIF Product Model Create QIF MBD Functionally Equivalent QIF Product Model with Digital Signature QIF MBD Certified Product Model Compare QIF MBD Certified QIF MBD BOEING is a trademark of Boeing Management Company Copyright © 2015 Boeing. All rights reserved. Copyright © 2014 Northrop Grumman Corporation. All rights reserved. GPDIS_2015. ppt | 32

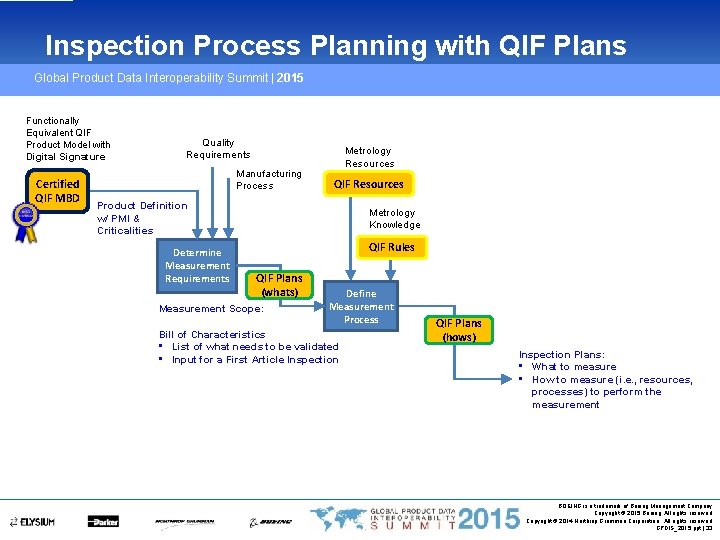

Inspection Process Planning with QIF Plans Global Product Data Interoperability Summit | 2015 Functionally Equivalent QIF Product Model with Digital Signature Certified QIF MBD Quality Requirements Manufacturing Process Metrology Resources QIF Resources Product Definition w/ PMI & Criticalities Determine Measurement Requirements Metrology Knowledge QIF Rules QIF Plans (whats) Measurement Scope: Define Measurement Process Bill of Characteristics • List of what needs to be validated • Input for a First Article Inspection QIF Plans (hows) Inspection Plans: • What to measure • How to measure (i. e. , resources, processes) to perform the measurement BOEING is a trademark of Boeing Management Company Copyright © 2015 Boeing. All rights reserved. Copyright © 2014 Northrop Grumman Corporation. All rights reserved. GPDIS_2015. ppt | 33

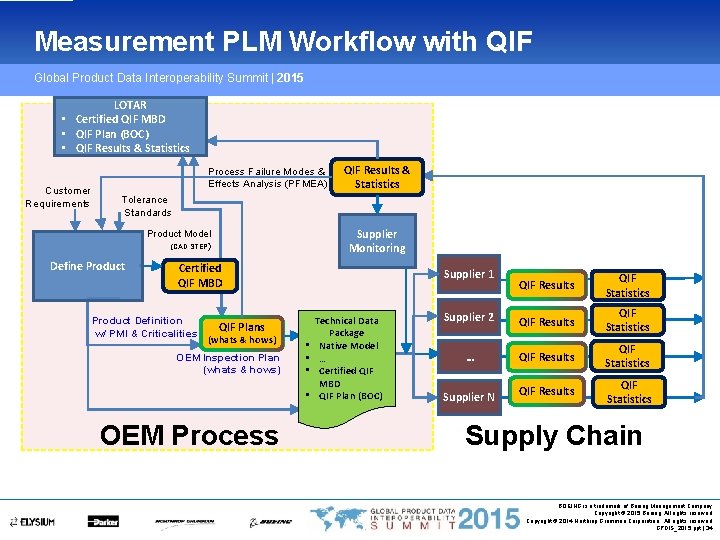

Measurement PLM Workflow with QIF Global Product Data Interoperability Summit | 2015 LOTAR • Certified QIF MBD • QIF Plan (BOC) • QIF Results & Statistics Customer Requirements Process Failure Modes & Effects Analysis (PFMEA) QIF Results & Statistics Tolerance Standards Supplier Monitoring Product Model (CAD, STEP) Define Product Certified QIF MBD Product Definition w/ PMI & Criticalities Supplier 1 QIF Plans (whats & hows) OEM Inspection Plan (whats & hows) • • OEM Process Technical Data Package Native Model … Certified QIF MBD QIF Plan (BOC) QIF Results QIF Statistics Supplier 2 QIF Results QIF Statistics … QIF Results QIF Statistics Supplier N Supply Chain BOEING is a trademark of Boeing Management Company Copyright © 2015 Boeing. All rights reserved. Copyright © 2014 Northrop Grumman Corporation. All rights reserved. GPDIS_2015. ppt | 34

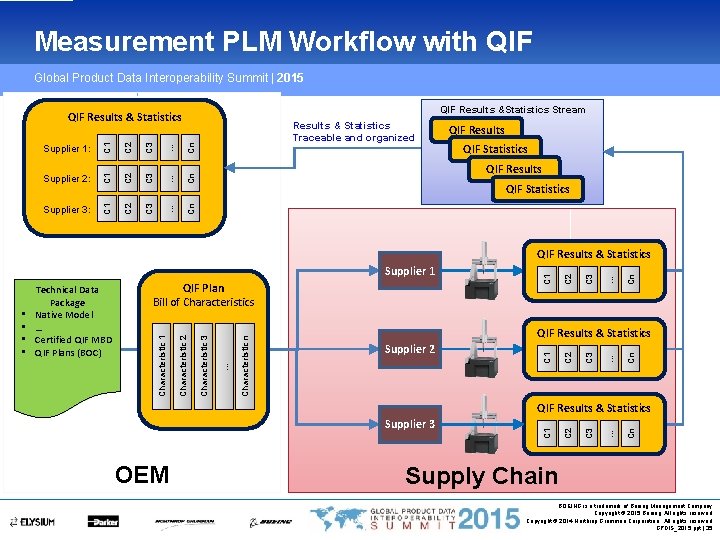

Measurement PLM Workflow with QIF Global Product Data Interoperability Summit | 2015 QIF Results &Statistics Stream Results & Statistics Traceable and organized … Cn Cn C 3 … C 2 Supplier 3: C 2 C 3 C 1 C 2 Supplier 2: C 1 Supplier 1: C 1 QIF Results & Statistics QIF Results QIF Statistics Cn … C 3 Supplier 2 C 2 QIF Results & Statistics C 1 Characteristic n … Characteristic 3 Characteristic 2 QIF Plan Bill of Characteristics Characteristic 1 OEM Cn … C 3 Supplier 3 C 2 QIF Results & Statistics C 1 • • Technical Data Package Native Model … Certified QIF MBD QIF Plans (BOC) C 2 Supplier 1 C 1 QIF Results & Statistics Supply Chain BOEING is a trademark of Boeing Management Company Copyright © 2015 Boeing. All rights reserved. Copyright © 2014 Northrop Grumman Corporation. All rights reserved. GPDIS_2015. ppt | 35

QIF Benefits for OEM and Suppliers Global Product Data Interoperability Summit | 2015 QIF offers the following benefits: • Traceability • Better control of supply chain • Possible to now monitor suppliers in real time • Smooth flow of information to/from supply chain • Increase overall quality of the process • Minimize costs • Reduce risk of human errors • Reduce risk of information loss due to translations BOEING is a trademark of Boeing Management Company Copyright © 2015 Boeing. All rights reserved. Copyright © 2014 Northrop Grumman Corporation. All rights reserved. GPDIS_2015. ppt | 36

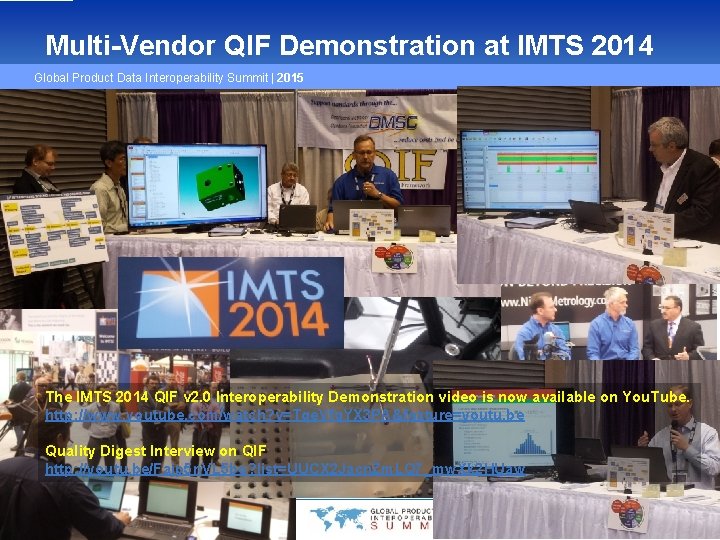

Multi-Vendor QIF Demonstration at IMTS 2014 Global Product Data Interoperability Summit | 2015 The IMTS 2014 QIF v 2. 0 Interoperability Demonstration video is now available on You. Tube. http: //www. youtube. com/watch? v=Tqe. Vfq. YX 3 PA&feature=youtu. be Quality Digest Interview on QIF http: //youtu. be/Fajp 5 n. VL 5 bo? list=UUCX 2 Jacn. Zm. LQ 7_mw. Xk 2 HUaw BOEING is a trademark of Boeing Management Company Copyright © 2015 Boeing. All rights reserved. Copyright © 2014 Northrop Grumman Corporation. All rights reserved. GPDIS_2015. ppt | 37

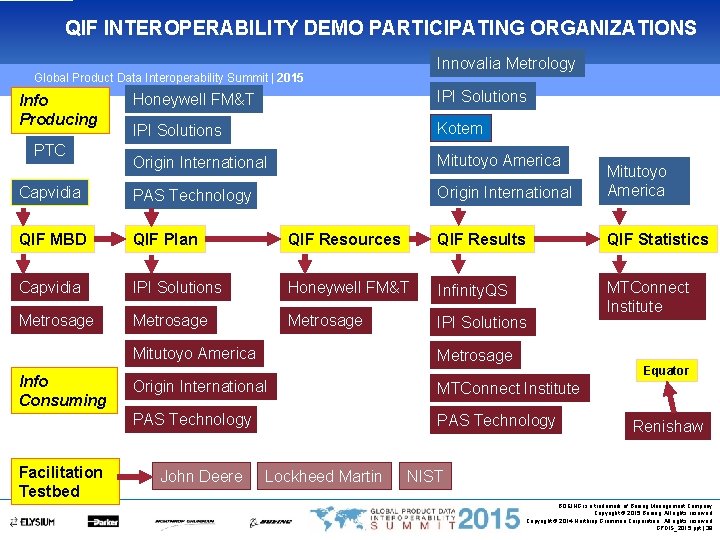

QIF INTEROPERABILITY DEMO PARTICIPATING ORGANIZATIONS Innovalia Metrology Global Product Data Interoperability Summit | 2015 Honeywell FM&T IPI Solutions Kotem Origin International Mitutoyo America Capvidia PAS Technology Origin International Mitutoyo America QIF MBD QIF Plan QIF Resources QIF Results QIF Statistics Capvidia IPI Solutions Honeywell FM&T Infinity. QS Metrosage IPI Solutions MTConnect Institute Info Producing PTC Mitutoyo America Info Consuming Facilitation Testbed Metrosage Equator Origin International MTConnect Institute PAS Technology John Deere Lockheed Martin Renishaw NIST BOEING is a trademark of Boeing Management Company Copyright © 2015 Boeing. All rights reserved. Copyright © 2014 Northrop Grumman Corporation. All rights reserved. GPDIS_2015. ppt | 38

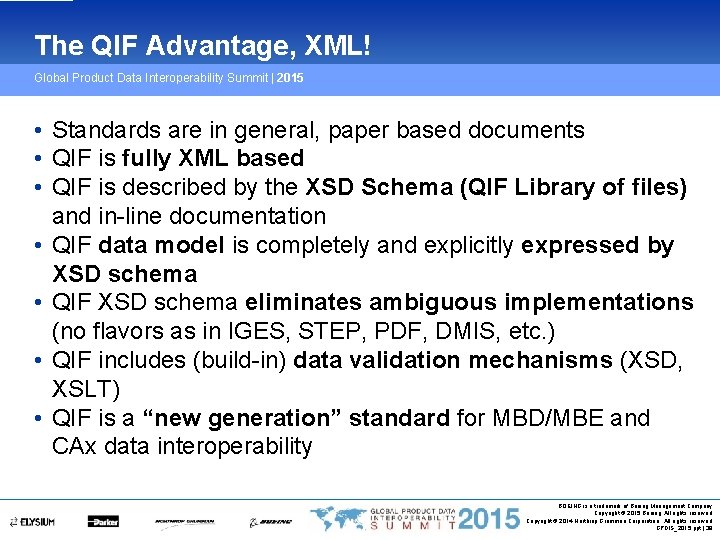

The QIF Advantage, XML! Global Product Data Interoperability Summit | 2015 • Standards are in general, paper based documents • QIF is fully XML based • QIF is described by the XSD Schema (QIF Library of files) and in-line documentation • QIF data model is completely and explicitly expressed by XSD schema • QIF XSD schema eliminates ambiguous implementations (no flavors as in IGES, STEP, PDF, DMIS, etc. ) • QIF includes (build-in) data validation mechanisms (XSD, XSLT) • QIF is a “new generation” standard for MBD/MBE and CAx data interoperability BOEING is a trademark of Boeing Management Company Copyright © 2015 Boeing. All rights reserved. Copyright © 2014 Northrop Grumman Corporation. All rights reserved. GPDIS_2015. ppt | 39

NIST – Smart Manufacturing Operations Planning and Control Program Global Product Data Interoperability Summit | 2015 NIST is a member of the DMSC and participates in all aspects of the QIF standard development efforts: • • Maintains the XML schema files Prepares data dictionaries Leads two subgroups Oversees preparation of testing artifacts and provides test files • Collaborates with industry and establishes test bed to support verification tests and demos • Researches its integration in the manufacturing enterprise • Ensures its overall high quality BOEING is a trademark of Boeing Management Company Copyright © 2015 Boeing. All rights reserved. Copyright © 2014 Northrop Grumman Corporation. All rights reserved. GPDIS_2015. ppt | 40

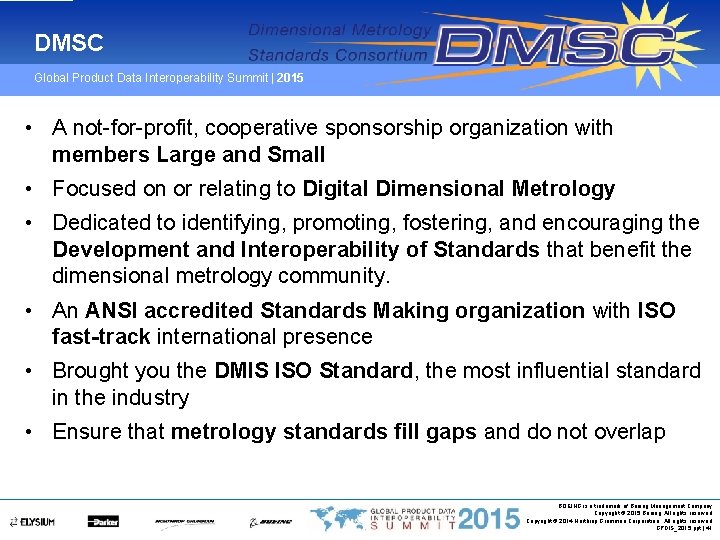

DMSC Global Product Data Interoperability Summit | 2015 • A not-for-profit, cooperative sponsorship organization with members Large and Small • Focused on or relating to Digital Dimensional Metrology • Dedicated to identifying, promoting, fostering, and encouraging the Development and Interoperability of Standards that benefit the dimensional metrology community. • An ANSI accredited Standards Making organization with ISO fast-track international presence • Brought you the DMIS ISO Standard, the most influential standard in the industry • Ensure that metrology standards fill gaps and do not overlap BOEING is a trademark of Boeing Management Company Copyright © 2015 Boeing. All rights reserved. Copyright © 2014 Northrop Grumman Corporation. All rights reserved. GPDIS_2015. ppt | 41

Participants Global Product Data Interoperability Summit | 2015 DMSC Consortium Members • Advanced Dimensional Management • Applied Automation Technologies • Capvidia • Deere & Company • Honeywell FM&T • Innovalia Metrology • Kotem • Lockheed Martin • MBD 360 LLC • Metro. Sage LLC * November, 2014 • • • Mitutoyo America Corp Nikon Metrology NIST Origin International, Inc PAS Technology PS DMIS Renishaw Siemens PLM Software UNC Charlotte BOEING is a trademark of Boeing Management Company Copyright © 2015 Boeing. All rights reserved. Copyright © 2014 Northrop Grumman Corporation. All rights reserved. GPDIS_2015. ppt | 42

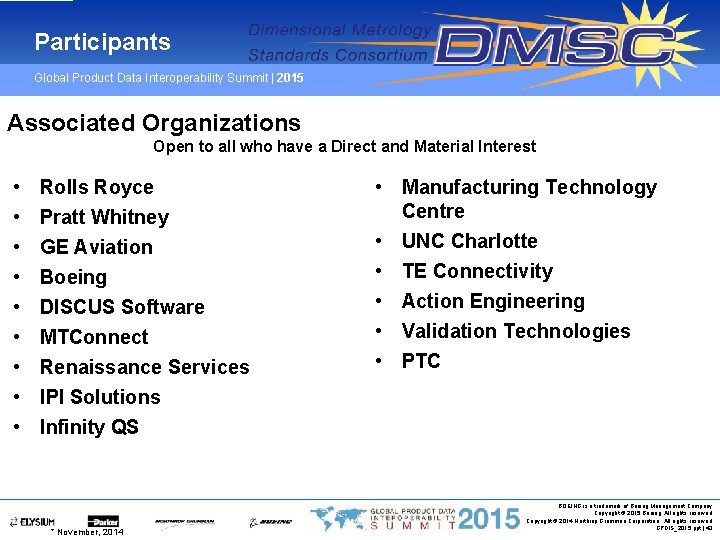

Participants Global Product Data Interoperability Summit | 2015 Associated Organizations Open to all who have a Direct and Material Interest • • • Rolls Royce Pratt Whitney GE Aviation Boeing DISCUS Software MTConnect Renaissance Services IPI Solutions • Manufacturing Technology Centre • UNC Charlotte • TE Connectivity • Action Engineering • Validation Technologies • PTC Infinity QS * November, 2014 BOEING is a trademark of Boeing Management Company Copyright © 2015 Boeing. All rights reserved. Copyright © 2014 Northrop Grumman Corporation. All rights reserved. GPDIS_2015. ppt | 43

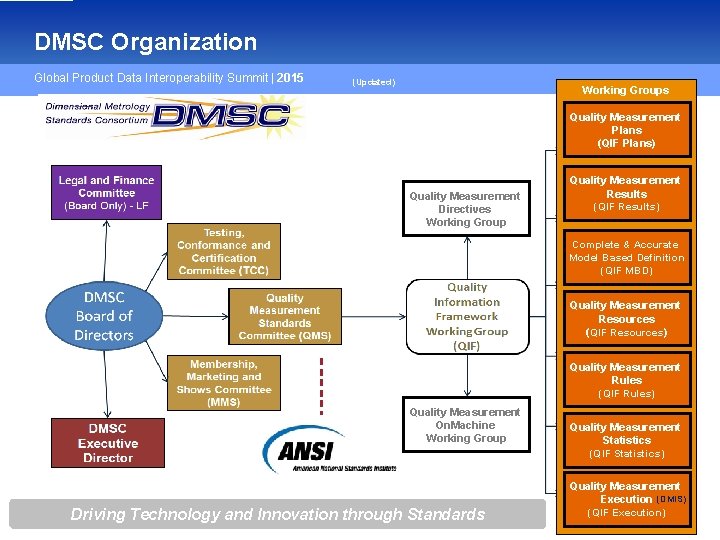

DMSC Organization Global Product Data Interoperability Summit | 2015 (Updated) Working Groups Quality Measurement Plans (QIF Plans) Quality Measurement Directives Working Group Quality Measurement Results (QIF Results) Complete & Accurate Model Based Definition (QIF MBD) Quality Measurement Resources (QIF Resources) Quality Measurement Rules (QIF Rules) Quality Measurement On. Machine Working Group Driving Technology and Innovation through Standards Quality Measurement Statistics (QIF Statistics) Quality Measurement Execution (DMIS) BOEING is a trademark of Boeing Management Company Copyright © 2015 Boeing. All rights reserved. (QIF Execution) Copyright © 2014 Northrop Grumman Corporation. All rights reserved. GPDIS_2015. ppt | 44

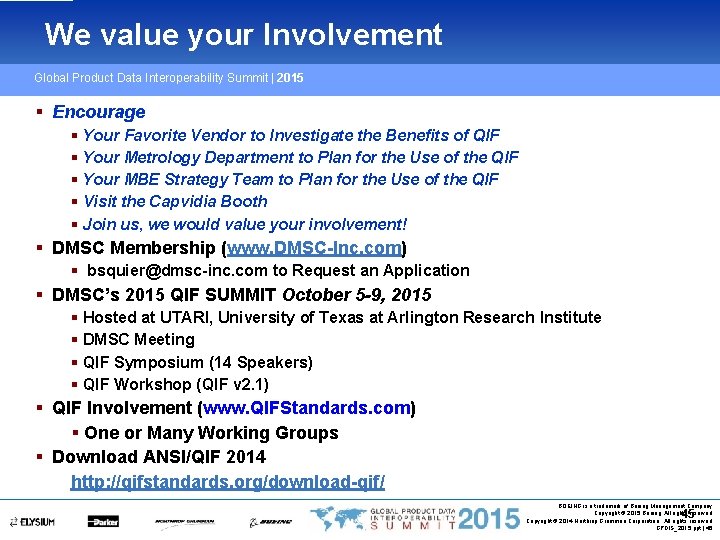

We value your Involvement Global Product Data Interoperability Summit | 2015 Encourage Your Favorite Vendor to Investigate the Benefits of QIF Your Metrology Department to Plan for the Use of the QIF Your MBE Strategy Team to Plan for the Use of the QIF Visit the Capvidia Booth Join us, we would value your involvement! DMSC Membership (www. DMSC-Inc. com) bsquier@dmsc-inc. com to Request an Application DMSC’s 2015 QIF SUMMIT October 5 -9, 2015 Hosted at UTARI, University of Texas at Arlington Research Institute DMSC Meeting QIF Symposium (14 Speakers) QIF Workshop (QIF v 2. 1) QIF Involvement (www. QIFStandards. com) One or Many Working Groups Download ANSI/QIF 2014 http: //qifstandards. org/download-qif/ BOEING is a trademark of Boeing Management Company Copyright © 2015 Boeing. All rights reserved. Copyright © 2014 Northrop Grumman Corporation. All rights reserved. GPDIS_2015. ppt | 45 45
