The new Husqvarna 455 Rancher Three main reasons

The new Husqvarna 455 Rancher

Three main reasons to buy • More power where it is needed. • Drastically reduced emissions and fuel consumption. • Tough built for a longer working life.

The new Husqvarna 455 Rancher Features and benefits

Introducing Husqvarna X-TORQ Technology • Optimized capacity. • High torque over an extremely wide rpm range. • Maximal cutting power – more power available.

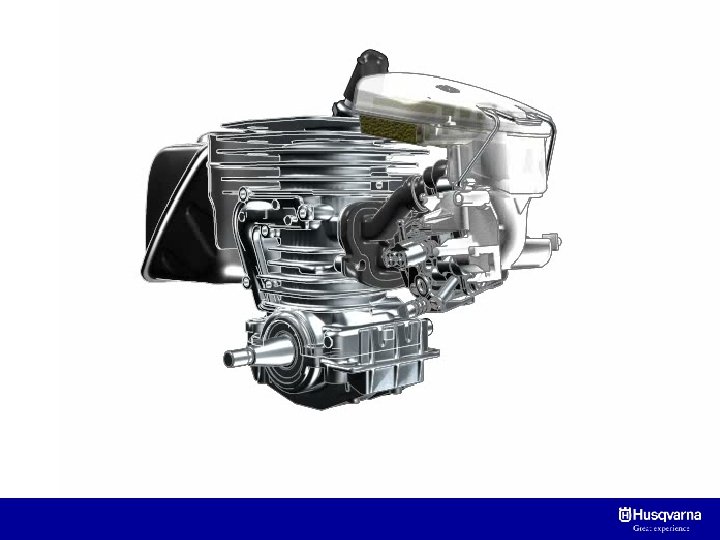

Traditional Two-stroke

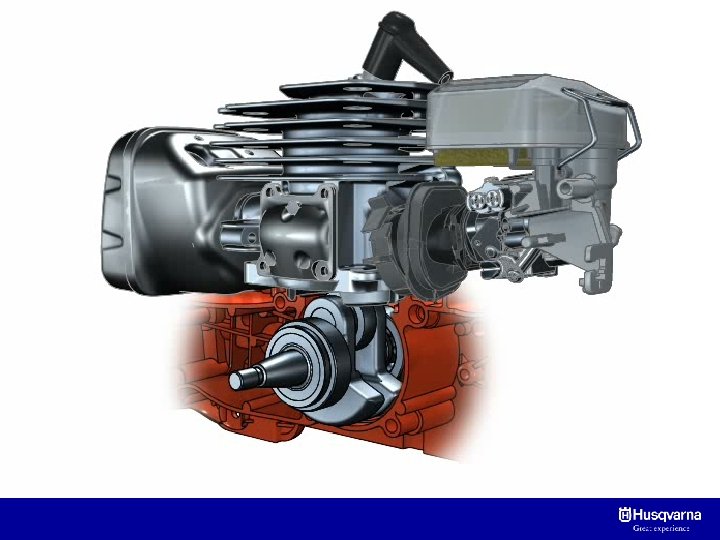

Husqvarna X-TORQ Technology

E-TECH II Technology Husqvarna engine technology ensures particularly low emission levels. 180 160 140 120 100 80 60 40 20 0 55 Rancher 455 Rancher

Efficient cooling • Large air intake openings. • Optimized fan system for more efficient cooling of engine.

Easy to start • Smart start decompression valve reduces the required pulling force by 40%. • New starter handle provides a solid, firm grip. • Combined choke/stop control makes starting easier and reduces risk of flooding the engine.

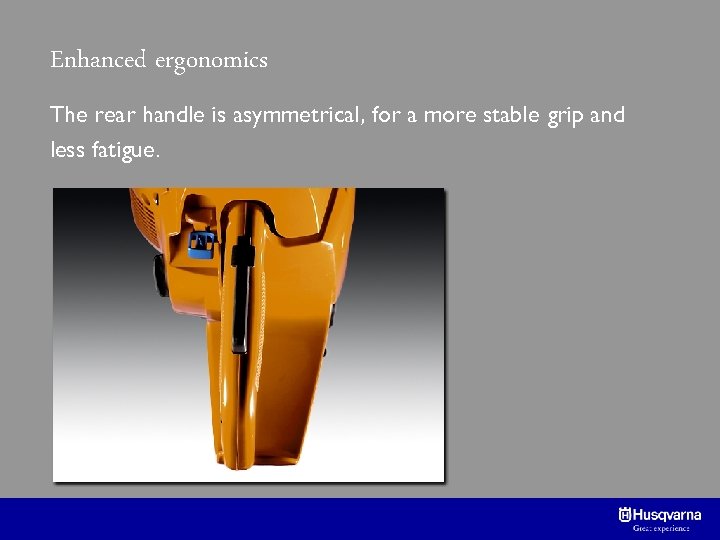

Enhanced ergonomics The rear handle is asymmetrical, for a more stable grip and less fatigue.

Enhanced ergonomics Handle ergonomics • New starter handle provides a solid and firm grip. • Broad rounded trigger and throttle latch. • Anti-slip handle structure.

Enhanced ergonomics Convenient, controlled handling thanks to the high centre of gravity in relation to the handles.

Optimized saw body Husqvarna 455 Rancher is handy and forgiving to operate thanks to: • • • A saw body without projecting parts. Smooth underside. Rounded cover for the starter and protected controls. This also reduces the risk of it getting stuck on branches etc.

Husqvarna Low. Vib Long-life steel springs. Resistant to oil, fuel, temperature changes and UV light.

Comparing Vibrations: 455 Rancher - 55 Rancher Vibration levels: 8 6 4 2 Rear handle Front handle 0 55 Rancher 455 Rancher (according to ANSI B 175. 1 -2000)

Husqvarna Air Injection technology • Effectively cleans the intake air. • Reduces wear. • Extends period between filter cleanings.

Air filter with toolless attachment • Quicker and easier filter cleaning.

Side-mounted chain tensioner • Reliable construction. • Easy and quick to access.

Vibration-dampened carburetor • Smoother operation. • Better fuel economy.

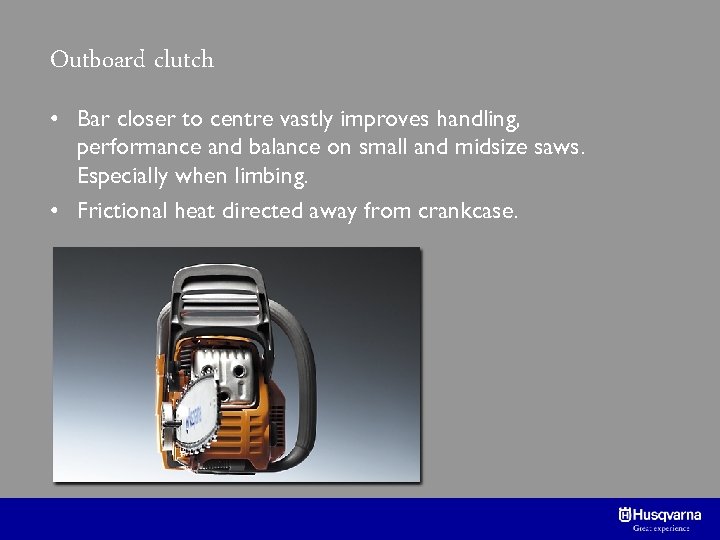

Outboard clutch • Bar closer to centre vastly improves handling, performance and balance on small and midsize saws. Especially when limbing. • Frictional heat directed away from crankcase.

Forged three-piece crankshaft • Designed for max. strength and durability by Husqvarna’s own manufacturing facility. • Solid and rigid crankshaft.

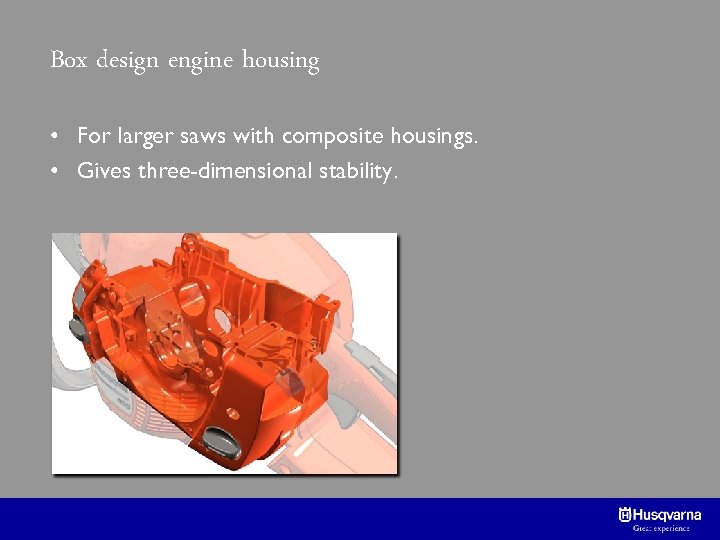

Box design engine housing • For larger saws with composite housings. • Gives three-dimensional stability.

Solid design Robust muffler with sturdy mount.

Oil pump with zero flow at idle • Self-regulating, rpmcontrolled oil flow. • The pump doesn’t provide oil at idle or when the chain is not moving.

Husqvarna’s safety concept • • • Inertia-activated chain brake. Right-hand guard. Replaceable chain catcher of aluminum. Chain brake guard with dual pivot points. Easy to reach stop switch.

The new Husqvarna 455 Rancher Diagram's and overviews

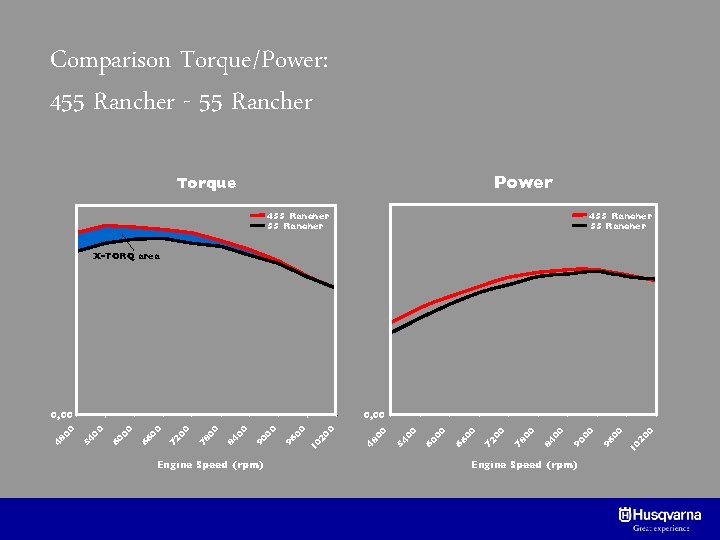

Comparison Torque/Power: 455 Rancher - 55 Rancher Power Torque 455 Rancher X-TORQ area Engine Speed (rpm) 0 20 10 00 96 00 90 00 84 00 78 00 72 00 66 00 60 00 54 00 48 0 20 10 00 96 00 90 00 84 00 78 00 72 00 66 00 60 00 0, 00 54 48 00 0, 00

Comparison Emissions: 455 Rancher - 55 Rancher Emission levels HC + NOx 55 Rancher 161 g/k. Wh 455 Rancher 65 g/k. Wh

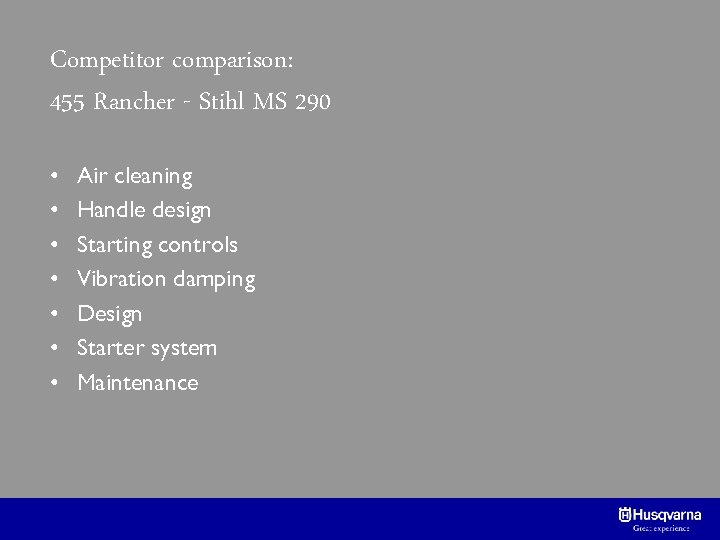

Competitor comparison: 455 Rancher - Stihl MS 290 • • Air cleaning Handle design Starting controls Vibration damping Design Starter system Maintenance

Competitor comparison Air cleaning Husqvarna 455 Rancher Stihl MS 290 • Air Injection minimizes need for • Frequent need for cleaning. • Attached with two screws. • Easy detachable filter. • Standing filter area. • Filtering area facing downwards.

Competitor comparison Handle design Husqvarna 455 Rancher Stihl MS 290 • Assymetric, full-hand shape. • Anti-slip structure. • Broad, rounded controls. • Skinny design. • Slippery. • Thin, sharp controls.

Competitor comparison Starting controls Husqvarna 455 Rancher Stihl MS 290 • Combined choke/stop-control. • Air Purge. • Decompression valve. • Combined choke/stop-control.

Competitor comparison Vibration damping Husqvarna 455 Rancher Stihl MS 290 • Sturdy steel springs. • Withstands fuel, oil and UV-light. • Very slow aging. • Rubber AV-elements.

Competitor comparison Design Husqvarna 455 Rancher Stihl MS 290 • Slim saw body. • Smooth, rounded design. • Flush underside with few openings. • Square shape with protruding corners and segmented underside.

Competitor comparison The starter system Husqvarna 455 Rancher Stihl MS 290 • Two starter pawls. • Scrench required. • Captured screws. • One starter pawl. • Special tool required. • Loose screws.

Competitor comparison Cleaning the cylinder Husqvarna 455 Rancher Stihl MS 290 • Loosen three screws to dismantle the cylinder cover. • Dismantle lots of parts to get beneath the cylinder cover.

Communicating the new Husqvarna 455 Rancher

Main focus in communicating the new Husqvarna 455 Rancher More power where it is needed. The X-TORQ engine delivers substantially more lower-end-power compared with standard 2 -stroke engines. Drastically reduced emissions and fuel consumption. The patented X-TORQ engine´s reduce emissions means less strain on the environment. Tough built for a longer working life The sturdy and reliable design withstands demanding use and ensures a long service life. The new 455 Rancher has been developed based firstly on a huge target group’s requirements for engine characteristics, reliability and product life, and secondly on the increasingly strict environmental requirements put in place by governments. From now on, Husqvarna will own the concept of the Rancher chain saw. THE HUSQVARNA BRAND KEYWORDS PROFESSIONAL. LEADING AUTHORITY. USER FOCUS. INTELLIGENT SOLUTIONS. We constantly develop and improve our products and solutions, based on the requirements of the most demanding professional users. This benefits all our users. We utilize our knowledge of the user´s situation and our practical expertise to maximize both efficiency and user friendliness. Our unique history coupled with our long experience is an invaluable asset that we must manage properly, so that we always lead and advance the industry. By taking o comprehensive view and an innovative approach, we continually develop products and solutions in order to optimize both the user’s results and the utilization of resources.

Target group Ambitious and capable landowners. Self reliant, structured and economical. People who invest in reliable tools, that will help them get things done professionally, and that save them time and effort. Quality guides all choices and generates personal satisfaction. Oscar Barrales , Master horse trainer , Charro , Rancher. Stieler Ranch, Comfort Texas. . THE HUSQVARNA BRAND LOYALIST KEYWORDS FORWARD THINKING. RESPONSIBLE. INTELLIGENT. EXPECTS THE BEST. Takes a comprehensive open-minded approach. Is enterprising, purposeful and wellorganized. Has the self-confidence to be receptive to new perpectives. Is clearsighted, seeks knowledge in order to be well informed. Is conscientious and fulfils his or her commitments. Is social, conciderate and thougtful. Constantly places high expectations on himself/herself and the surrounding world.

Image mood board, Husqvarna 455 Rancher

Launch campaign material Husqvarna 455 Rancher

Dealer catalogue Product binder Product launch presentation with X-TORQ animation State of the art ads – Product launch Sales promotion ads Husqvarna website ( Additional Unit planned 2006) X-TORQ special course Launch case Dealer meetings Product sheet Instore tag Instore posters 50 x 70 PR Husqvarna special edition Rancher hat Direct mailer Rancher floorstand Husqvarna catalogue 2006

Launch campaign – Husqvarna 455 Rancher • Activity plan • Media plan Activity plan to be completed by sales company
