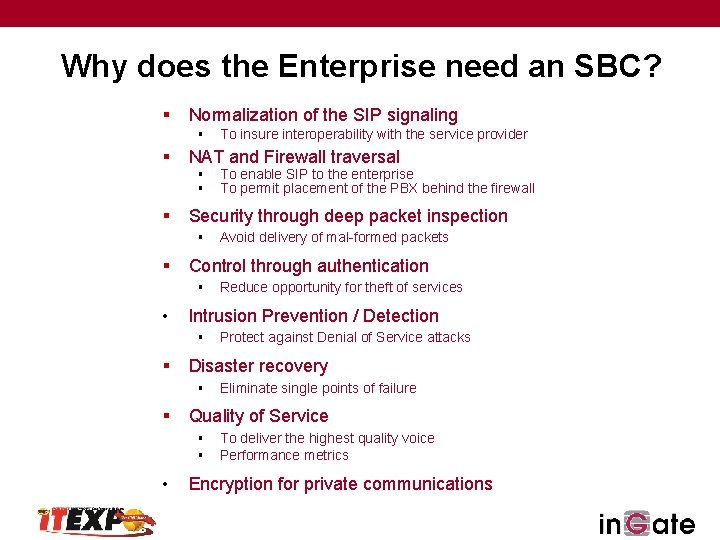

Why does the Enterprise need an SBC? § Normalization of the SIP signaling § § NAT and Firewall traversal § § § Eliminate single points of failure Quality of Service § § • Protect against Denial of Service attacks Disaster recovery § § Reduce opportunity for theft of services Intrusion Prevention / Detection § § Avoid delivery of mal-formed packets Control through authentication § • To enable SIP to the enterprise To permit placement of the PBX behind the firewall Security through deep packet inspection § § To insure interoperability with the service provider To deliver the highest quality voice Performance metrics Encryption for private communications

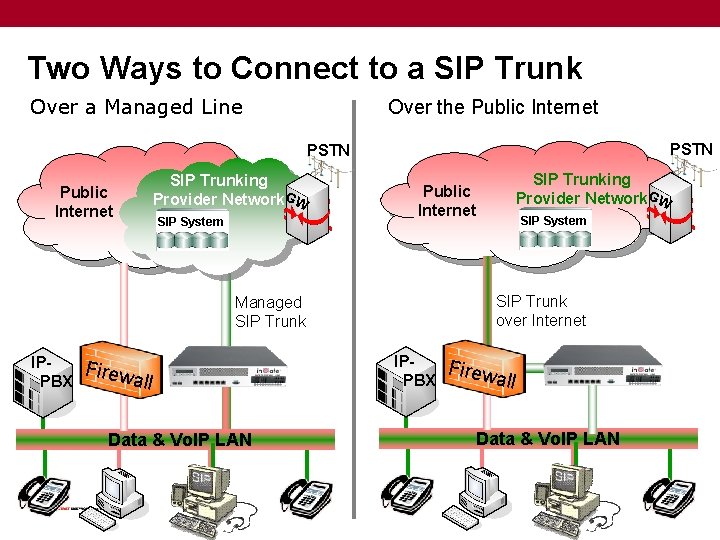

Two Ways to Connect to a SIP Trunk Over a Managed Line Over the Public Internet PSTN SIP Trunking Provider Network. GW Public Internet SIP System Firew all Data & Vo. IP LAN SIP System SIP Trunk over Internet Managed SIP Trunk IPPBX SIP Trunking Provider Network. GW Public Internet IPPBX Firew all Data & Vo. IP LAN

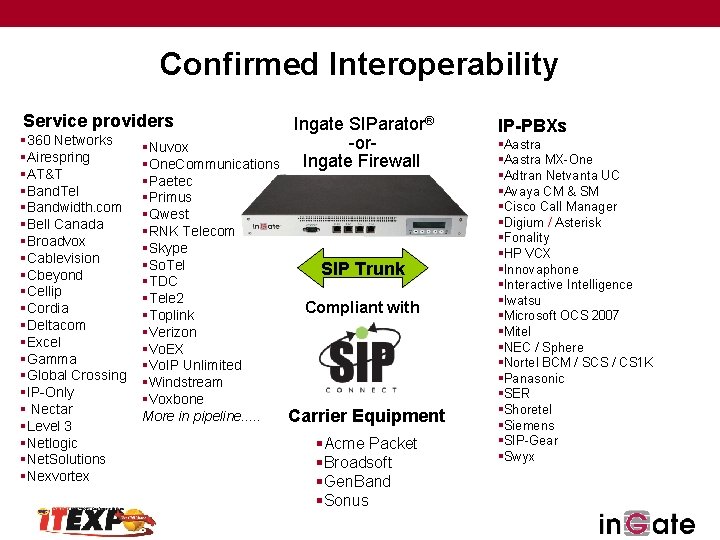

Confirmed Interoperability Service providers § 360 Networks §Airespring §AT&T §Band. Tel §Bandwidth. com §Bell Canada §Broadvox §Cablevision §Cbeyond §Cellip §Cordia §Deltacom §Excel §Gamma §Global Crossing §IP-Only § Nectar §Level 3 §Netlogic §Net. Solutions §Nexvortex §Nuvox §One. Communications §Paetec §Primus §Qwest §RNK Telecom §Skype §So. Tel §TDC §Tele 2 §Toplink §Verizon §Vo. EX §Vo. IP Unlimited §Windstream §Voxbone More in pipeline. . . Ingate SIParator® -or. Ingate Firewall SIP Trunk Compliant with Carrier Equipment §Acme Packet §Broadsoft §Gen. Band §Sonus IP-PBXs §Aastra MX-One §Adtran Netvanta UC §Avaya CM & SM §Cisco Call Manager §Digium / Asterisk §Fonality §HP VCX §Innovaphone §Interactive Intelligence §Iwatsu §Microsoft OCS 2007 §Mitel §NEC / Sphere §Nortel BCM / SCS / CS 1 K §Panasonic §SER §Shoretel §Siemens §SIP-Gear §Swyx

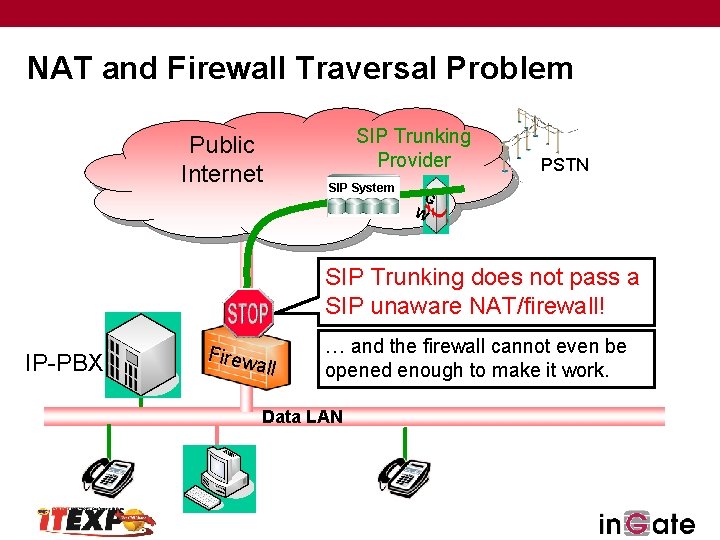

NAT and Firewall Traversal Problem Public Internet SIP Trunking Provider SIP System PSTN G W SIP Trunking does not pass a SIP unaware NAT/firewall! IP-PBX Firew all … and the firewall cannot even be opened enough to make it work. Data LAN

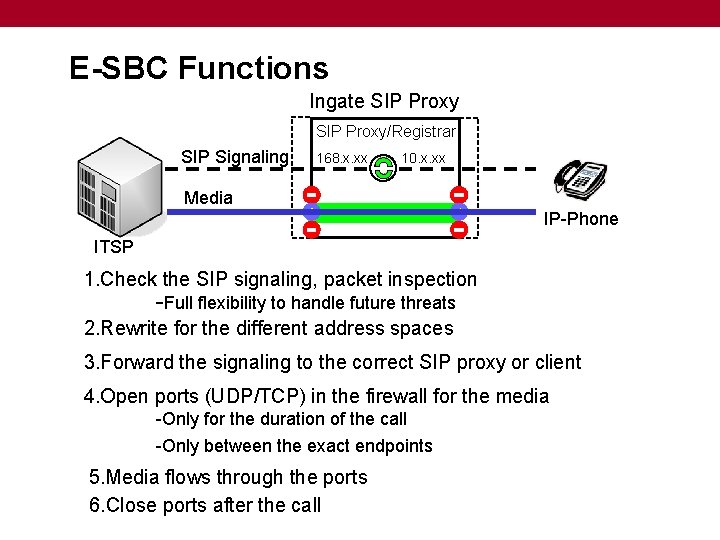

E-SBC Functions Ingate SIP Proxy/Registrar SIP Signaling 168. x. xx 10. x. xx Media IP-Phone ITSP 1. Check the SIP signaling, packet inspection -Full flexibility to handle future threats 2. Rewrite for the different address spaces 3. Forward the signaling to the correct SIP proxy or client 4. Open ports (UDP/TCP) in the firewall for the media -Only for the duration of the call -Only between the exact endpoints 5. Media flows through the ports 6. Close ports after the call

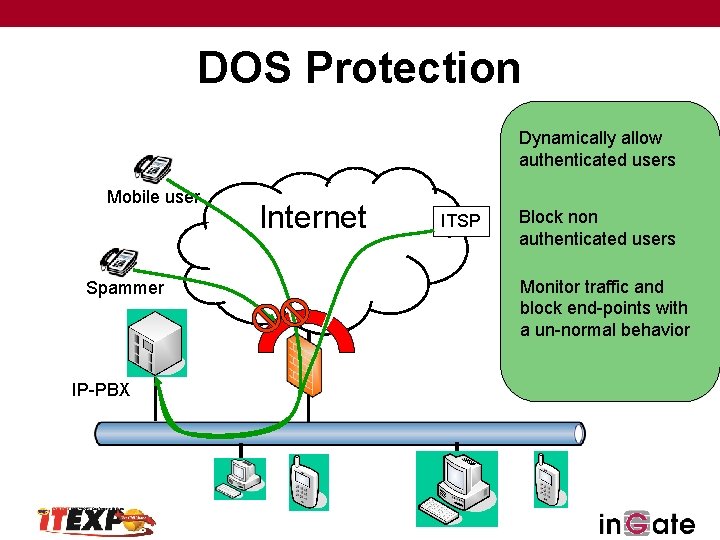

DOS Protection Dynamically allow authenticated users Mobile user Spammer IP-PBX Internet ITSP Block non authenticated users Monitor traffic and block end-points with a un-normal behavior

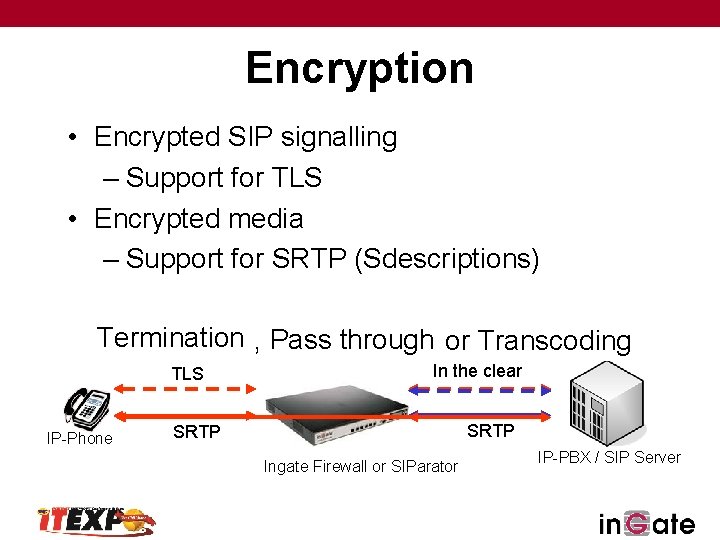

Encryption • Encrypted SIP signalling – Support for TLS • Encrypted media – Support for SRTP (Sdescriptions) Termination , Pass through or Transcoding IP-Phone TLS In. Inthe clear SRTP RTP SRTP __SRTP__ Ingate Firewall or SIParator IP-PBX / SIP Server

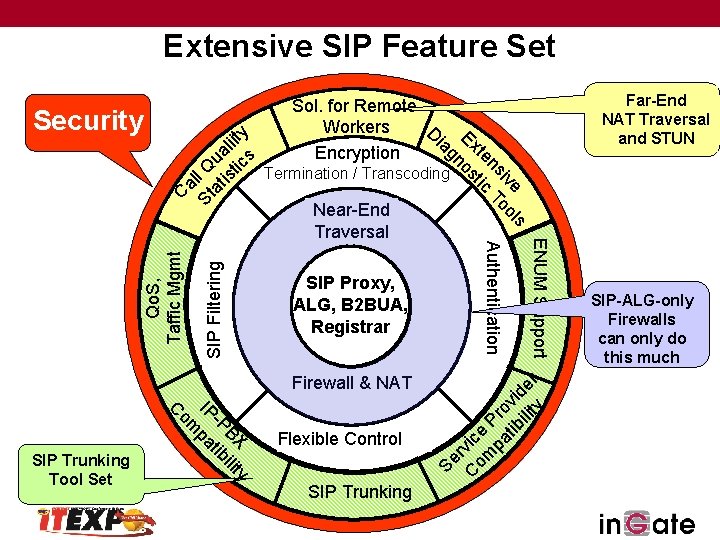

Near-End Traversal SIP Proxy, ALG, B 2 BUA, Registrar y BX ilit -P tib IP pa om C Flexible Control SIP Trunking Se r C vic om e pa Pro tib vid ilit e y r SIP Filtering Qo. S, Taffic Mgmt Far-End NAT Traversal and STUN Termination / Transcoding Firewall & NAT SIP Trunking Tool Set ENUM Support e ls iv oo Authentication ns T te tic Ex os gn ia Sol. for Remote Workers Encryption D Security C al St l Q at ua is lii tic ty s Extensive SIP Feature Set SIP-ALG-only Firewalls can only do this much

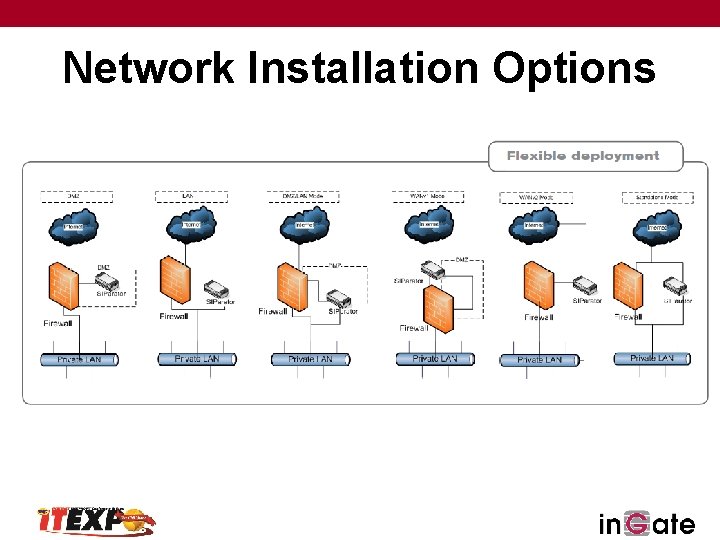

Network Installation Options

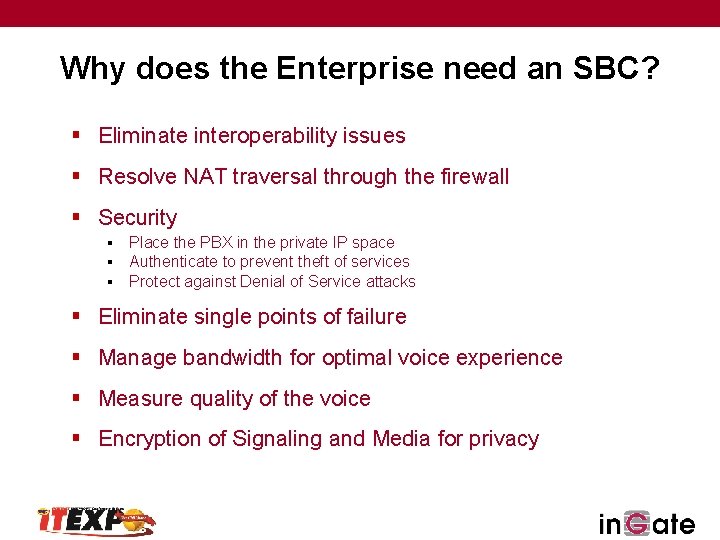

Why does the Enterprise need an SBC? § Eliminate interoperability issues § Resolve NAT traversal through the firewall § Security § § § Place the PBX in the private IP space Authenticate to prevent theft of services Protect against Denial of Service attacks § Eliminate single points of failure § Manage bandwidth for optimal voice experience § Measure quality of the voice § Encryption of Signaling and Media for privacy
