The Muscular System Textbook Chapter 8 The Muscular
The Muscular System Textbook Chapter 8

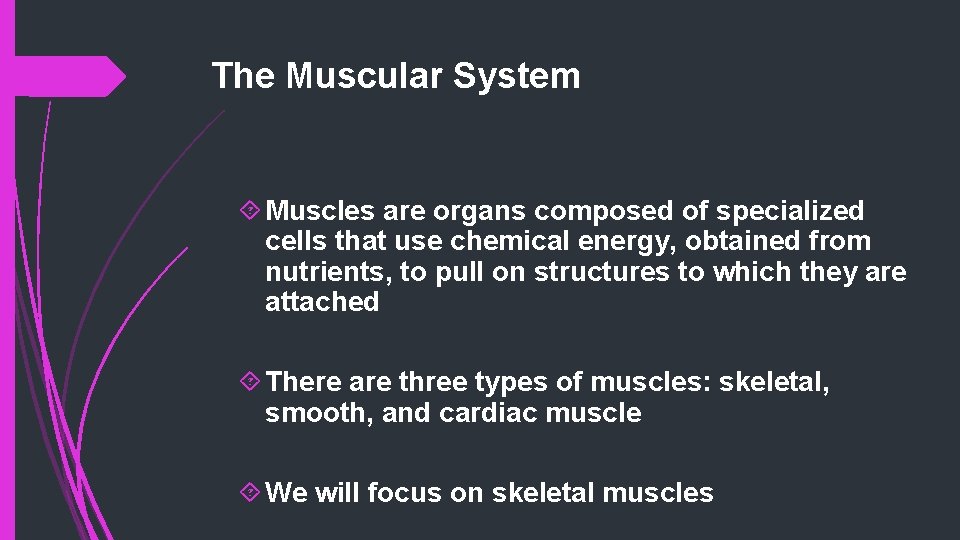

The Muscular System Muscles are organs composed of specialized cells that use chemical energy, obtained from nutrients, to pull on structures to which they are attached There are three types of muscles: skeletal, smooth, and cardiac muscle We will focus on skeletal muscles

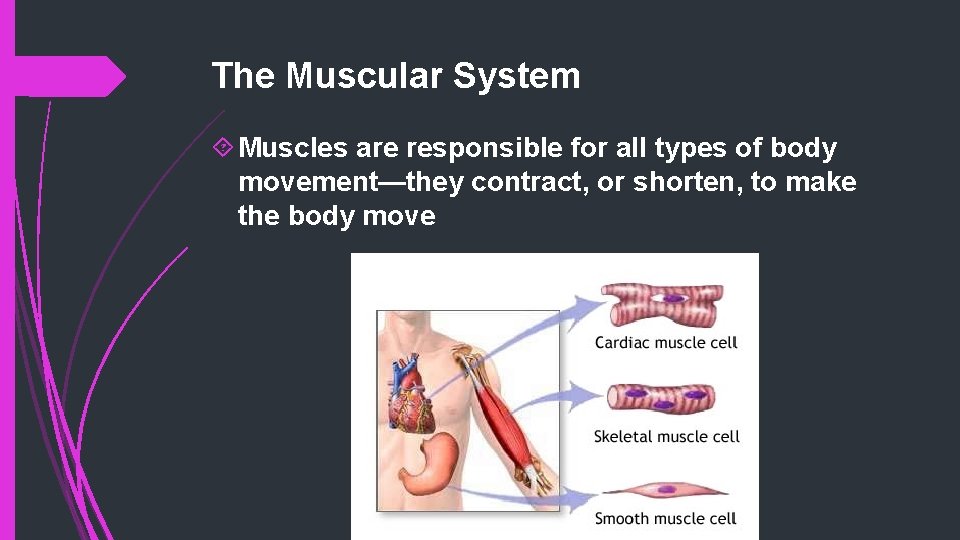

The Muscular System Muscles are responsible for all types of body movement—they contract, or shorten, to make the body move

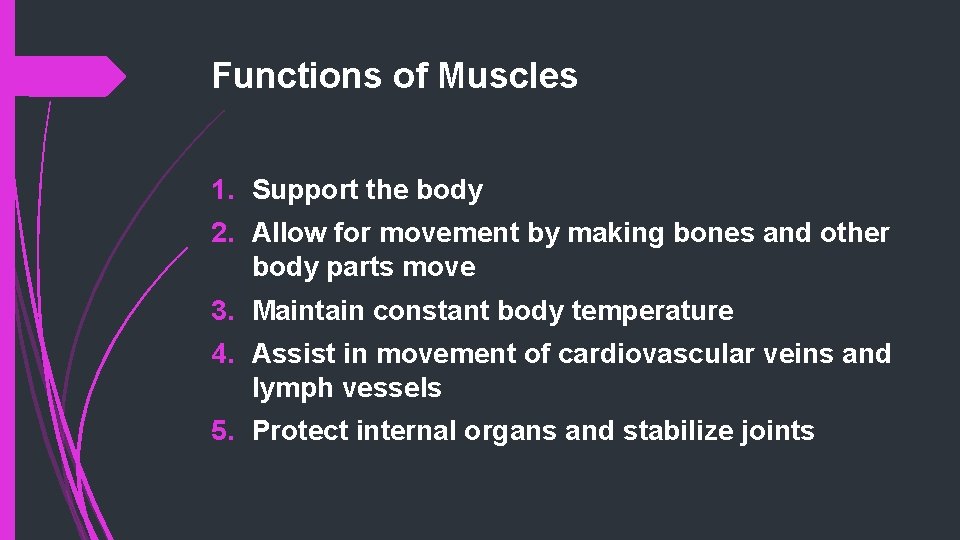

Functions of Muscles 1. Support the body 2. Allow for movement by making bones and other body parts move 3. Maintain constant body temperature 4. Assist in movement of cardiovascular veins and lymph vessels 5. Protect internal organs and stabilize joints
Body System Connections Integumentary System The skin increases heat loss during skeletal muscle activity Lymphatic System Muscle action pumps lymph through the lymphatic vessels

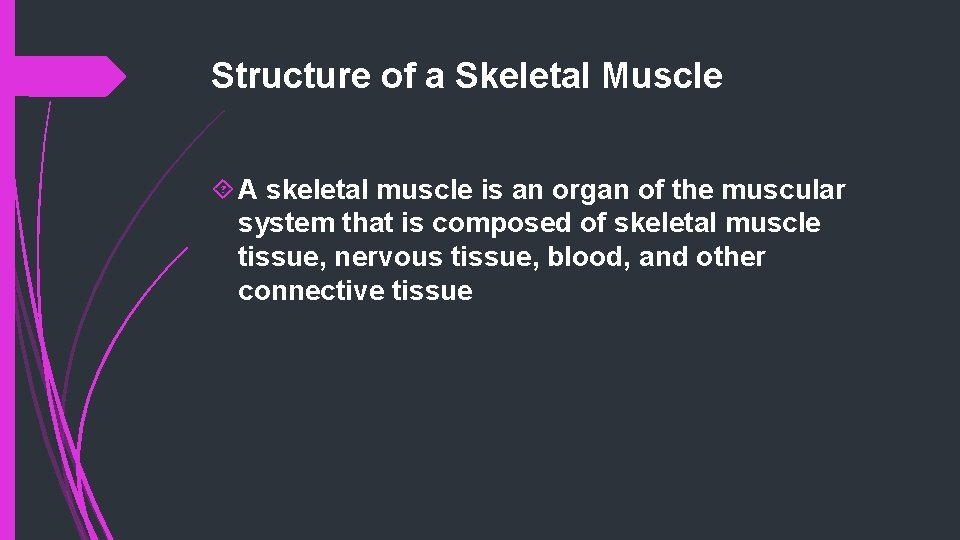

Structure of a Skeletal Muscle A skeletal muscle is an organ of the muscular system that is composed of skeletal muscle tissue, nervous tissue, blood, and other connective tissue

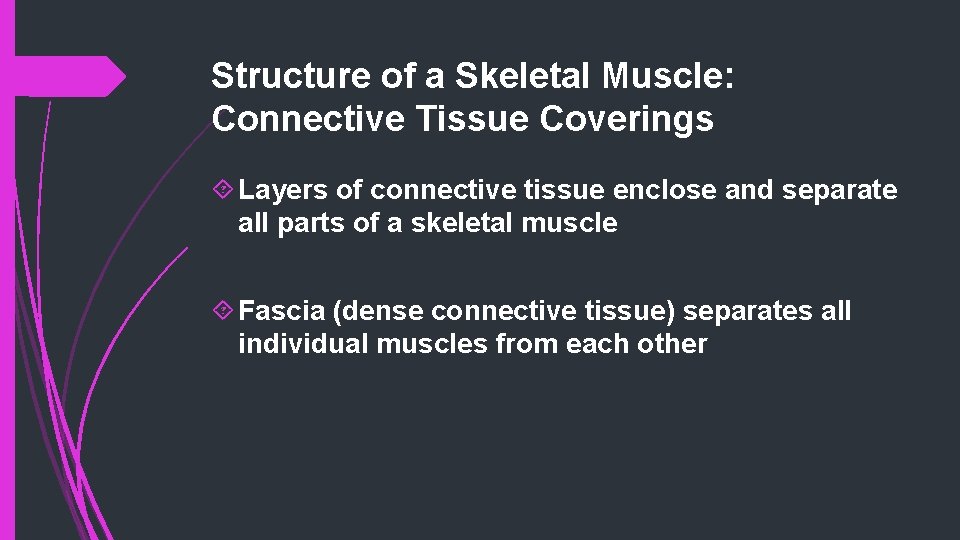

Structure of a Skeletal Muscle: Connective Tissue Coverings Layers of connective tissue enclose and separate all parts of a skeletal muscle Fascia (dense connective tissue) separates all individual muscles from each other

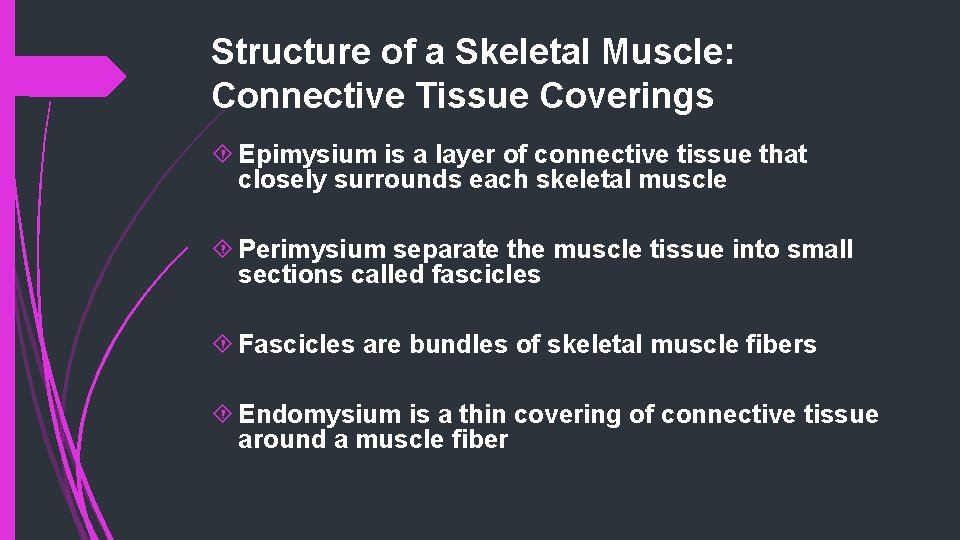

Structure of a Skeletal Muscle: Connective Tissue Coverings Epimysium is a layer of connective tissue that closely surrounds each skeletal muscle Perimysium separate the muscle tissue into small sections called fascicles Fascicles are bundles of skeletal muscle fibers Endomysium is a thin covering of connective tissue around a muscle fiber

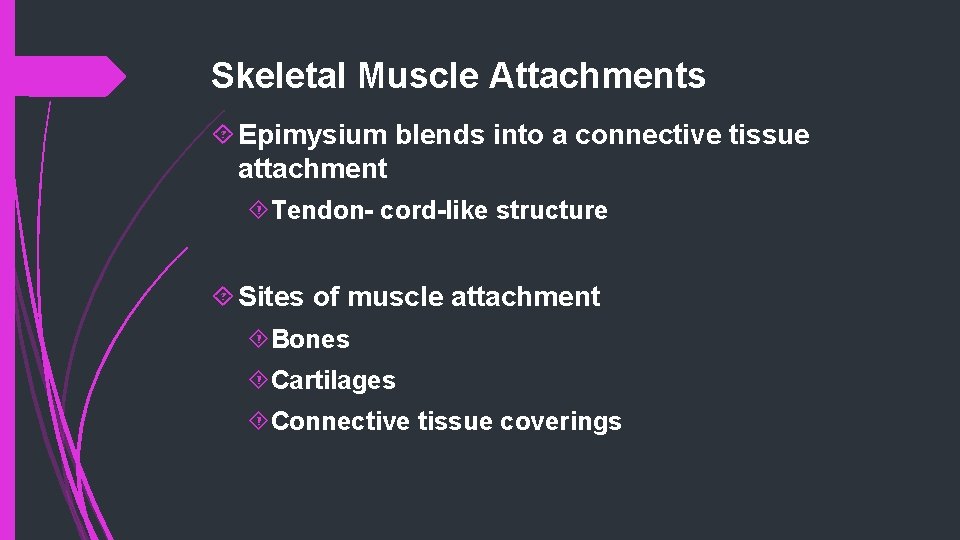

Skeletal Muscle Attachments Epimysium blends into a connective tissue attachment Tendon- cord-like structure Sites of muscle attachment Bones Cartilages Connective tissue coverings
The Muscular System: Tendonitis In tendonitis, a tendon becomes painfully inflamed and swollen following injury or repeated stress of athletic activity The tendons most commonly affected are those associated with the joint capsules of the shoulder, elbow, and hip and those that move the hand, thigh, and foot
Structure of a Skeletal Muscle: Skeletal Muscle Fibers A skeletal muscle fiber is a single cell that contracts in response to stimulation and then relaxes when the stimulation ends Skeletal muscle fibers contain many threadlike myofibrils that lie parallel to one another

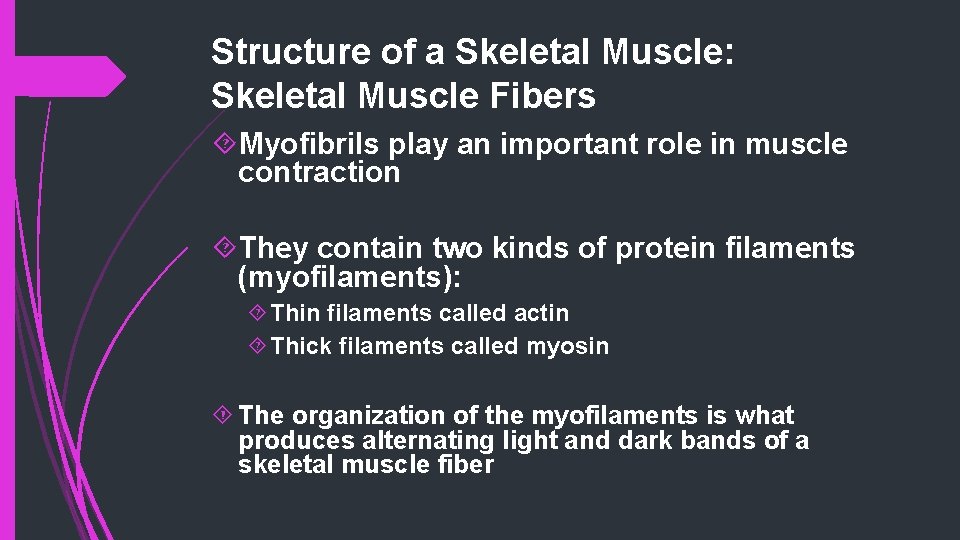

Structure of a Skeletal Muscle: Skeletal Muscle Fibers Myofibrils play an important role in muscle contraction They contain two kinds of protein filaments (myofilaments): Thin filaments called actin Thick filaments called myosin The organization of the myofilaments is what produces alternating light and dark bands of a skeletal muscle fiber

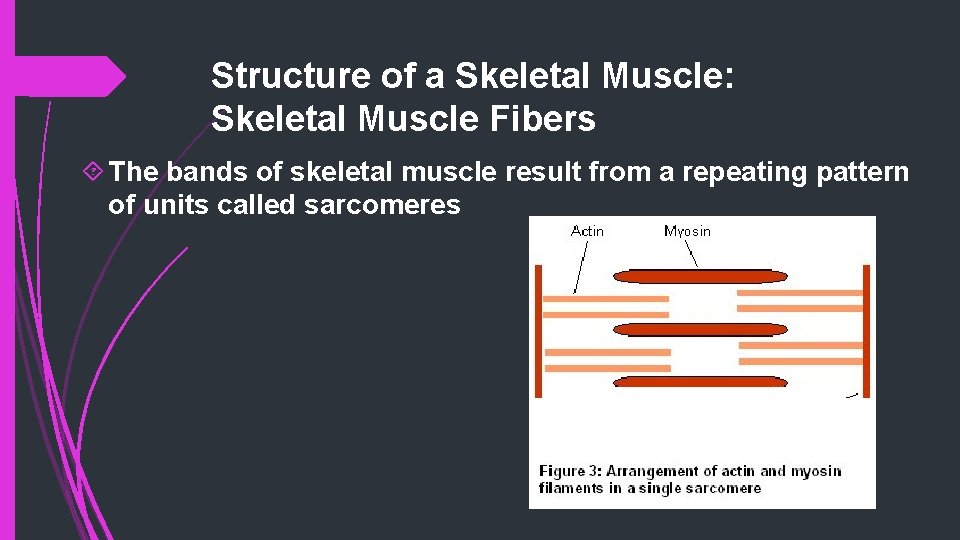

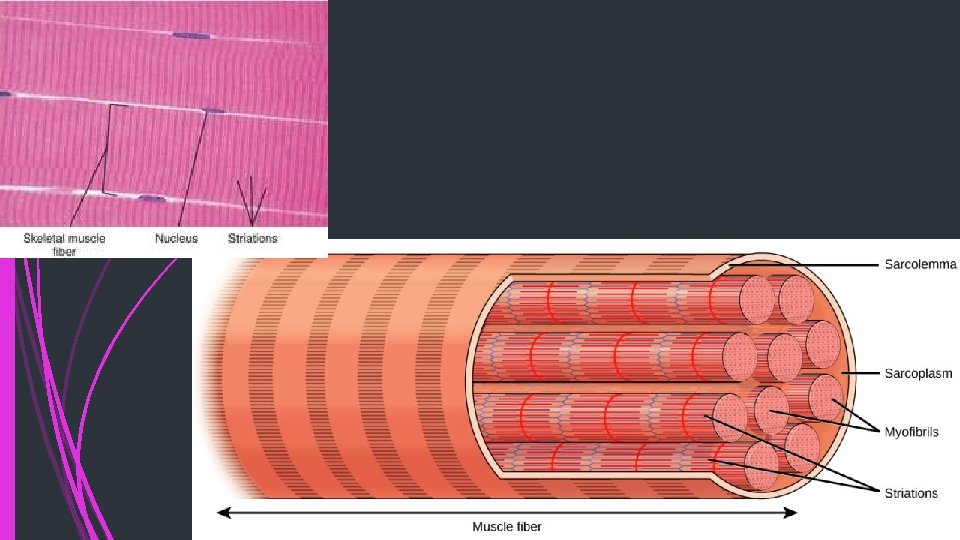

Structure of a Skeletal Muscle: Skeletal Muscle Fibers The bands of skeletal muscle result from a repeating pattern of units called sarcomeres

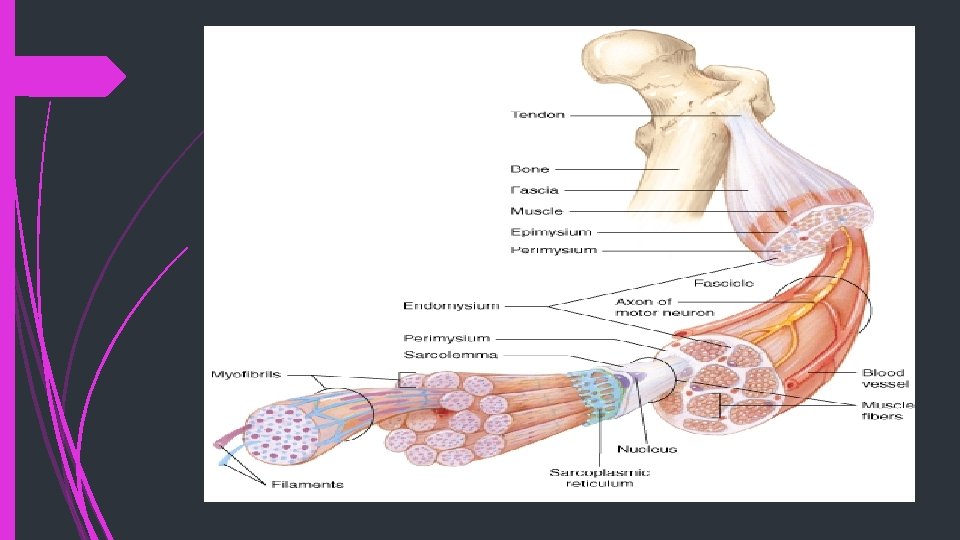

Organization of Skeletal Muscle belly Fascicle: a bundle of muscle fibers Myosin: thick filaments Actin: thin filaments Muscle fiber: muscle cell Myofilament: protein filaments that make up a sacromere Sarcomere: units of myofibrils responsible for the striated appearance Myofibrils: structures that make up a muscle fiber

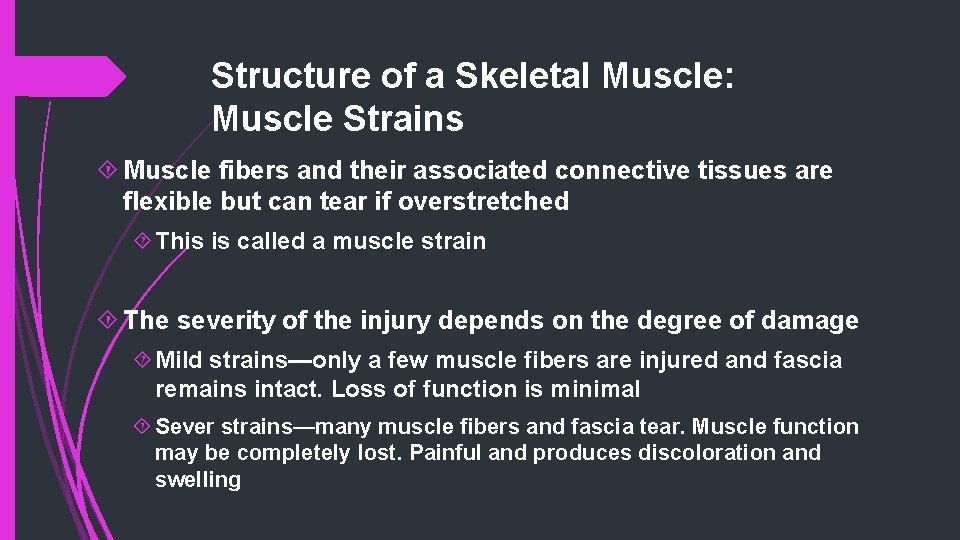

Structure of a Skeletal Muscle: Muscle Strains Muscle fibers and their associated connective tissues are flexible but can tear if overstretched This is called a muscle strain The severity of the injury depends on the degree of damage Mild strains—only a few muscle fibers are injured and fascia remains intact. Loss of function is minimal Sever strains—many muscle fibers and fascia tear. Muscle function may be completely lost. Painful and produces discoloration and swelling
Structure of a Skeletal Muscle: Neuromuscular Junction Remember that neurons paly a role in communication within the body Motor neurons are neurons that control the muscles in the body Muscle fibers contract when they receive a stimulus from a motor neuron

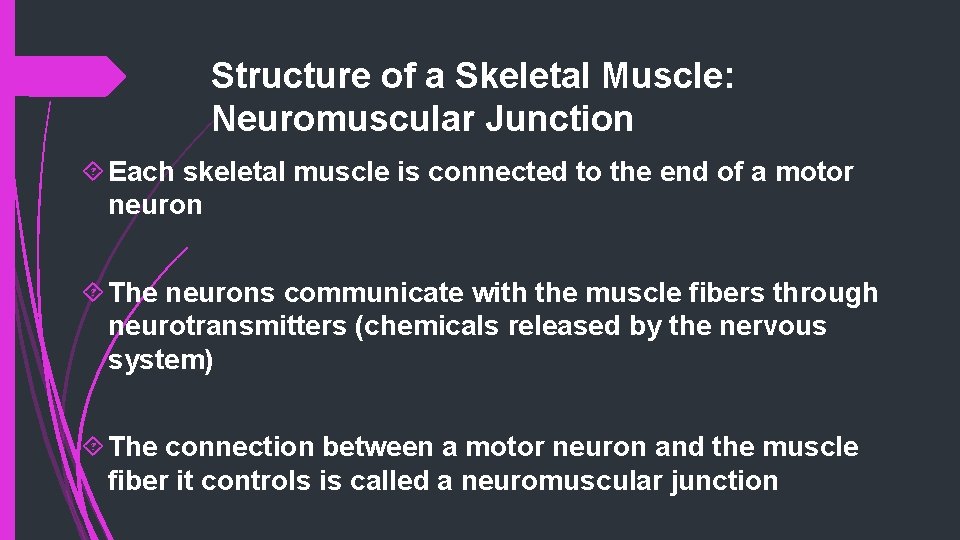

Structure of a Skeletal Muscle: Neuromuscular Junction Each skeletal muscle is connected to the end of a motor neuron The neurons communicate with the muscle fibers through neurotransmitters (chemicals released by the nervous system) The connection between a motor neuron and the muscle fiber it controls is called a neuromuscular junction

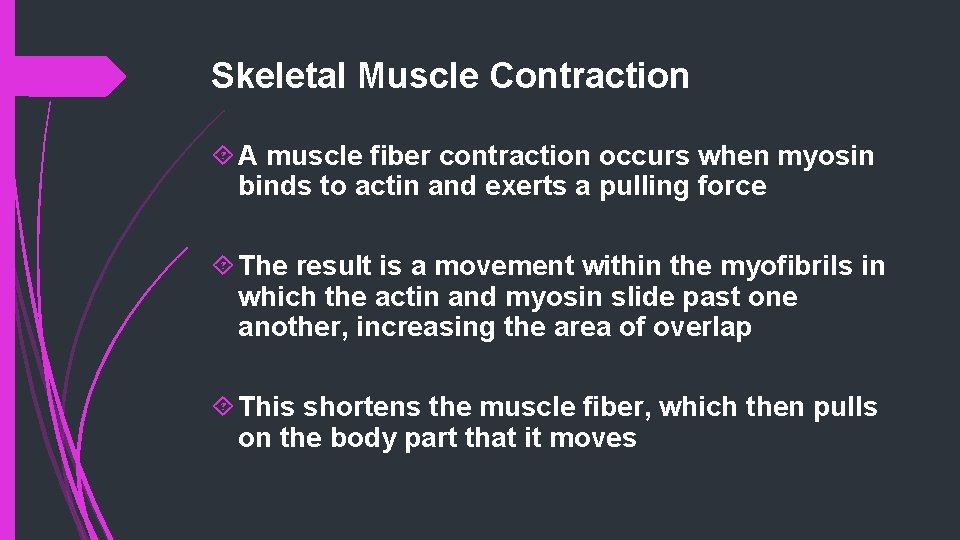

Skeletal Muscle Contraction A muscle fiber contraction occurs when myosin binds to actin and exerts a pulling force The result is a movement within the myofibrils in which the actin and myosin slide past one another, increasing the area of overlap This shortens the muscle fiber, which then pulls on the body part that it moves
Skeletal Muscle Contractions Myosin contains “heads” projecting from one end Actin contains binding sites for the myosin heads to attach Actin is often shaped like a double helix—proteins troponin and tropomyosin are part of this helix A myosin head can attach to a binding site on actin and pull The myosin then releases the actin and combines with a binding site further down the actin filament
Skeletal Muscle Contraction The sliding filament model of muscle contraction is based on these actin-myosin interactions The filaments do not change length, they slide past one another, with the thin filaments moving toward the center of the sarcomere Acetylcholine serves as the stimulation needed for muscle contraction to begin Once acetylcholine breaks down and the stimulus to the muscle fiber ends, the muscle relaxes

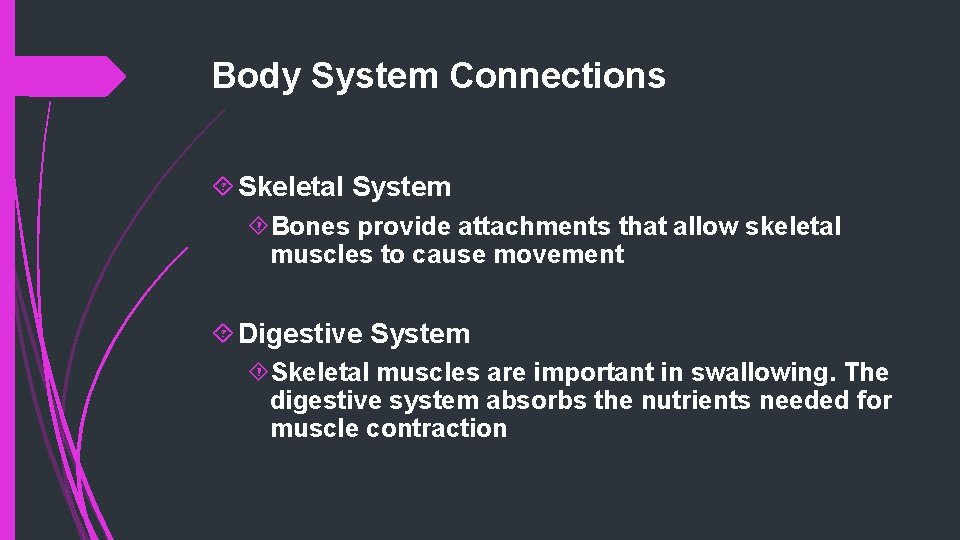

Body System Connections Skeletal System Bones provide attachments that allow skeletal muscles to cause movement Digestive System Skeletal muscles are important in swallowing. The digestive system absorbs the nutrients needed for muscle contraction

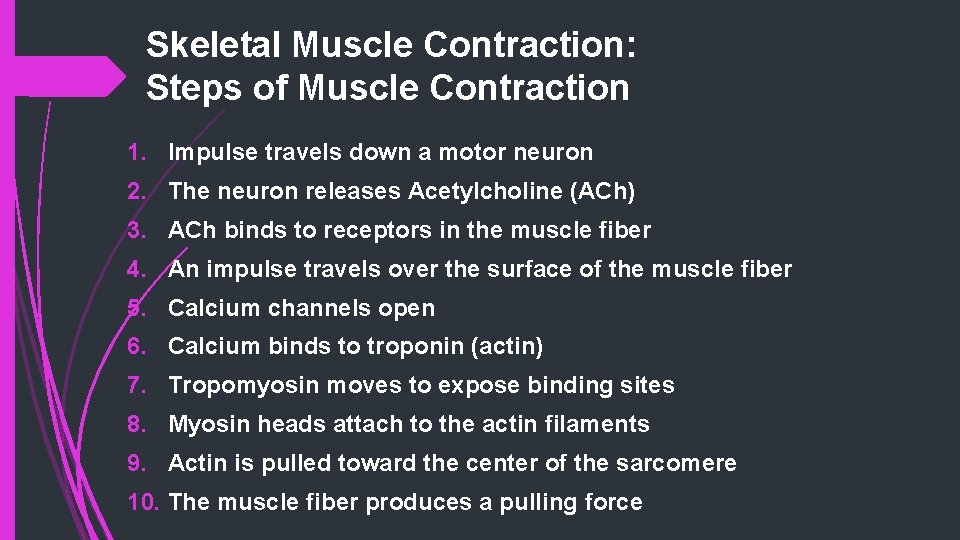

Skeletal Muscle Contraction: Steps of Muscle Contraction 1. Impulse travels down a motor neuron 2. The neuron releases Acetylcholine (ACh) 3. ACh binds to receptors in the muscle fiber 4. An impulse travels over the surface of the muscle fiber 5. Calcium channels open 6. Calcium binds to troponin (actin) 7. Tropomyosin moves to expose binding sites 8. Myosin heads attach to the actin filaments 9. Actin is pulled toward the center of the sarcomere 10. The muscle fiber produces a pulling force

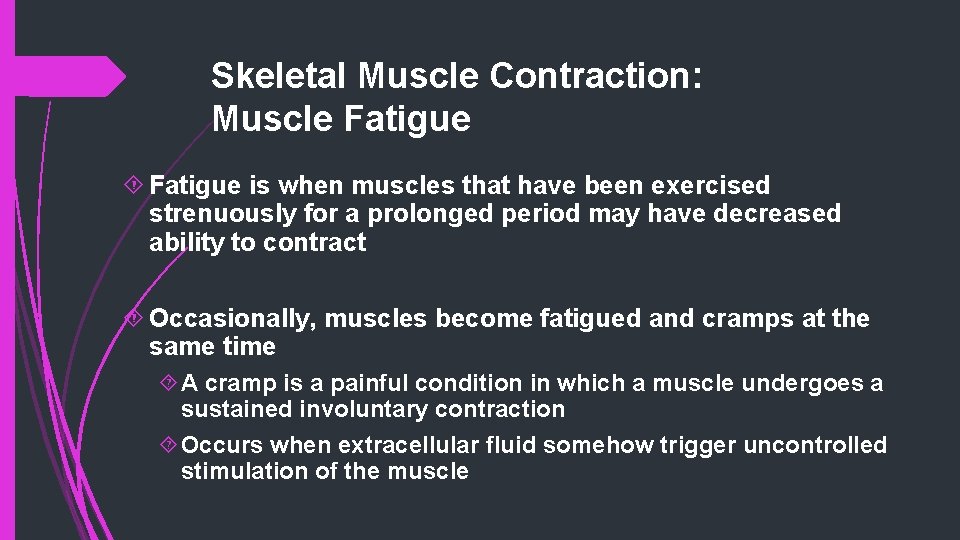

Skeletal Muscle Contraction: Muscle Fatigue is when muscles that have been exercised strenuously for a prolonged period may have decreased ability to contract Occasionally, muscles become fatigued and cramps at the same time A cramp is a painful condition in which a muscle undergoes a sustained involuntary contraction Occurs when extracellular fluid somehow trigger uncontrolled stimulation of the muscle

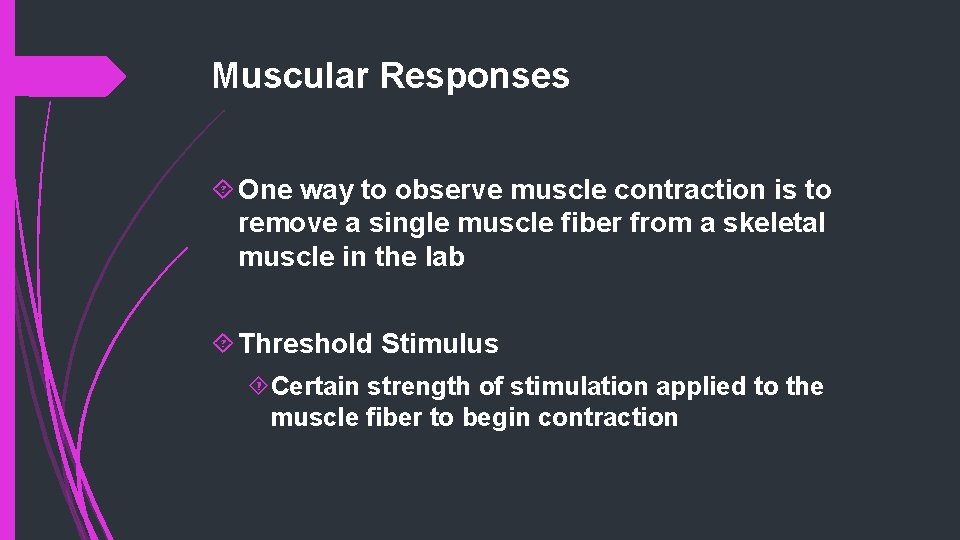

Muscular Responses One way to observe muscle contraction is to remove a single muscle fiber from a skeletal muscle in the lab Threshold Stimulus Certain strength of stimulation applied to the muscle fiber to begin contraction

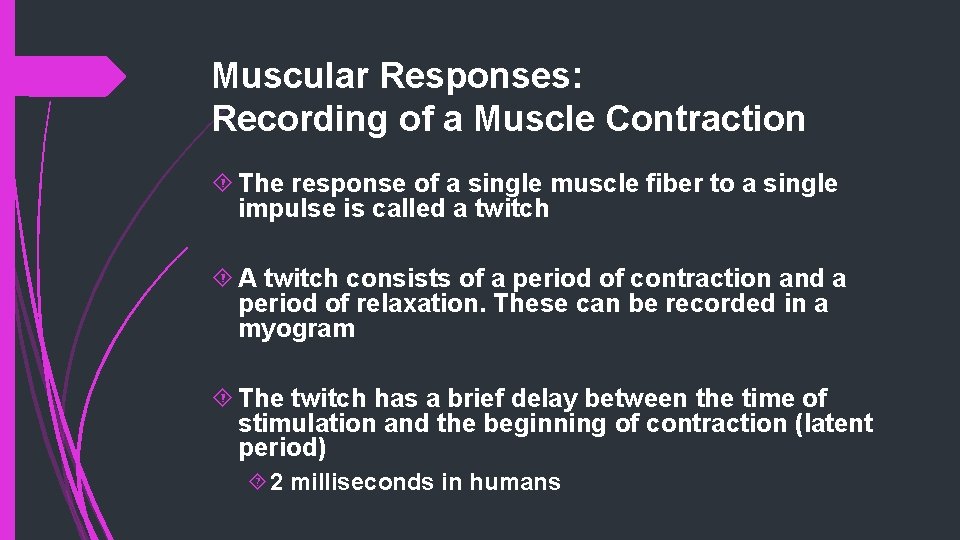

Muscular Responses: Recording of a Muscle Contraction The response of a single muscle fiber to a single impulse is called a twitch A twitch consists of a period of contraction and a period of relaxation. These can be recorded in a myogram The twitch has a brief delay between the time of stimulation and the beginning of contraction (latent period) 2 milliseconds in humans
Muscular Responses: Recording of a Muscle Contraction

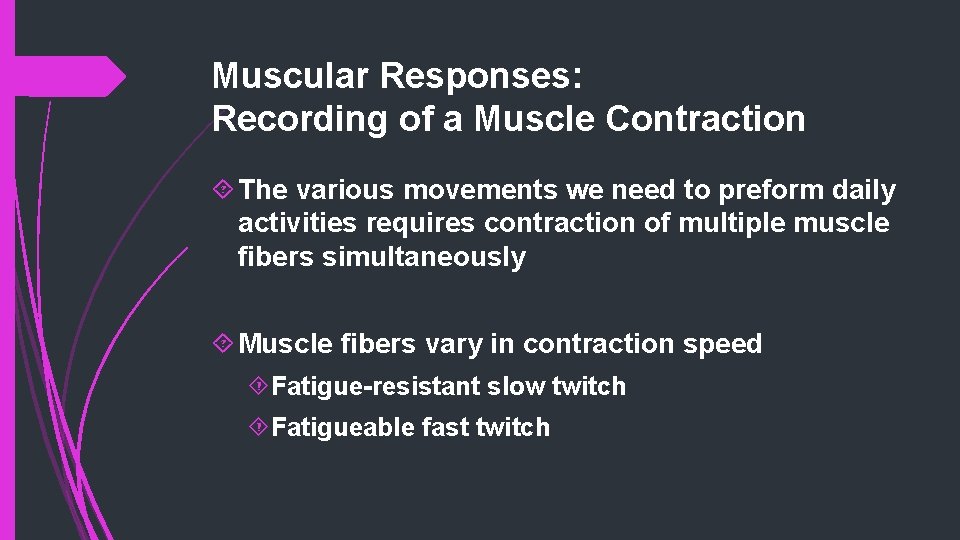

Muscular Responses: Recording of a Muscle Contraction The various movements we need to preform daily activities requires contraction of multiple muscle fibers simultaneously Muscle fibers vary in contraction speed Fatigue-resistant slow twitch Fatigueable fast twitch

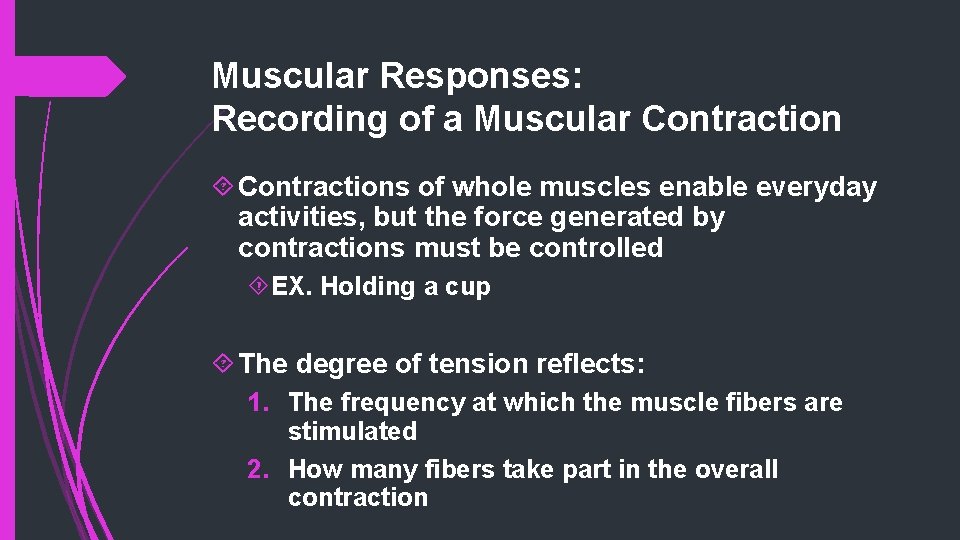

Muscular Responses: Recording of a Muscular Contractions of whole muscles enable everyday activities, but the force generated by contractions must be controlled EX. Holding a cup The degree of tension reflects: 1. The frequency at which the muscle fibers are stimulated 2. How many fibers take part in the overall contraction
Muscular Responses: Summation When a muscle fiber is exposed to a series of stimuli of increasing frequency, it is unable to relax between twitches When the force of the individual twitches combines, it is called summation
Smooth Muscle The contraction of smooth muscle is very similar to the contraction of skeletal muscle There are some important structural and functional differences between smooth and skeletal muscles
Smooth Muscle: Smooth Muscle Cells Smooth muscles are elongated with tapered ends Also contain thin and thick filaments, but they are randomly organized Not striated
Smooth Muscle: Smooth Muscle Cells There are 2 kinds of smooth muscle cells: Multiunit smooth muscle Visceral smooth muscle
Smooth Muscle: Smooth Muscle Cells In multiunit smooth muscle, the cells are separate from one another Found in the irises of the eyes and in the walls of blood vessels Typically contract only in response to stimulation by neurons or certain hormones

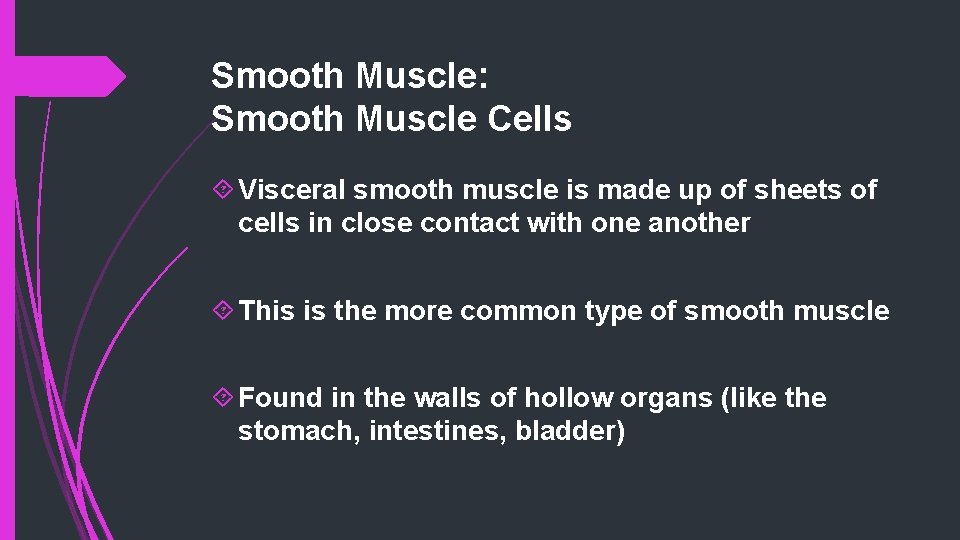

Smooth Muscle: Smooth Muscle Cells Visceral smooth muscle is made up of sheets of cells in close contact with one another This is the more common type of smooth muscle Found in the walls of hollow organs (like the stomach, intestines, bladder)

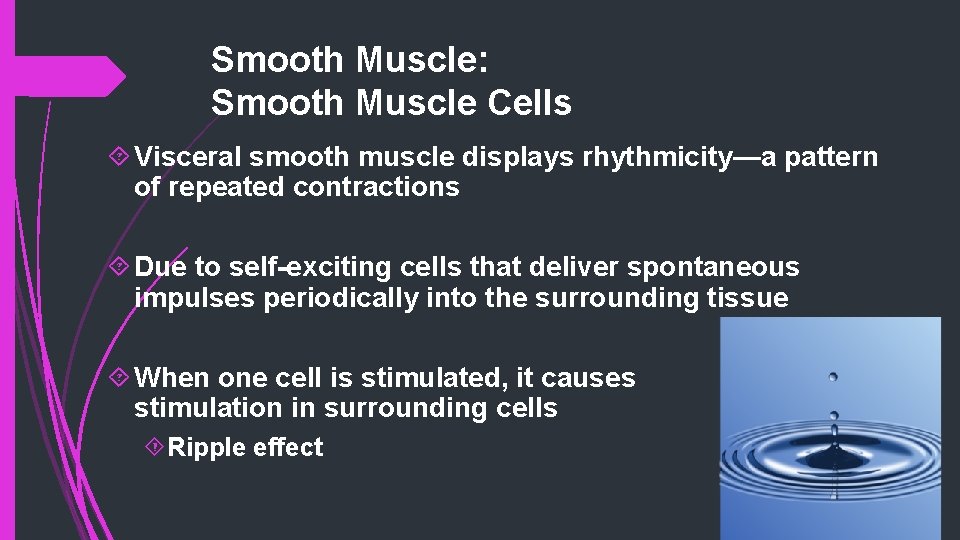

Smooth Muscle: Smooth Muscle Cells Visceral smooth muscle displays rhythmicity—a pattern of repeated contractions Due to self-exciting cells that deliver spontaneous impulses periodically into the surrounding tissue When one cell is stimulated, it causes stimulation in surrounding cells Ripple effect

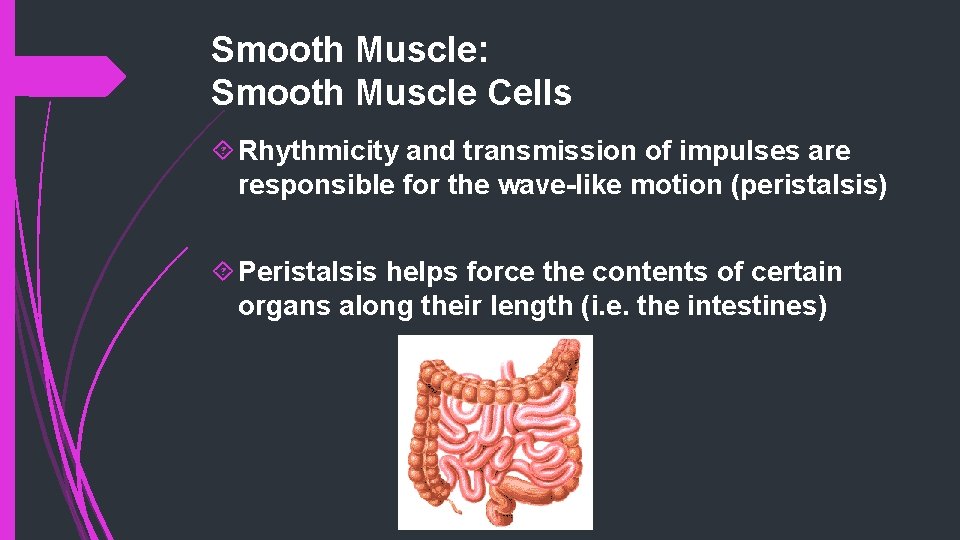

Smooth Muscle: Smooth Muscle Cells Rhythmicity and transmission of impulses are responsible for the wave-like motion (peristalsis) Peristalsis helps force the contents of certain organs along their length (i. e. the intestines)
Smooth Muscle: Smooth Muscle Contraction Smooth muscle is slower to contract than skeletal muscle Can maintain a forceful contraction longer than skeletal muscle Smooth muscle can stretch as organs fill, yet maintain a constant pressure inside the organs
Cardiac Muscle Cardiac muscle is found only in the heart Contraction is the same as skeletal and smooth There are some important differences

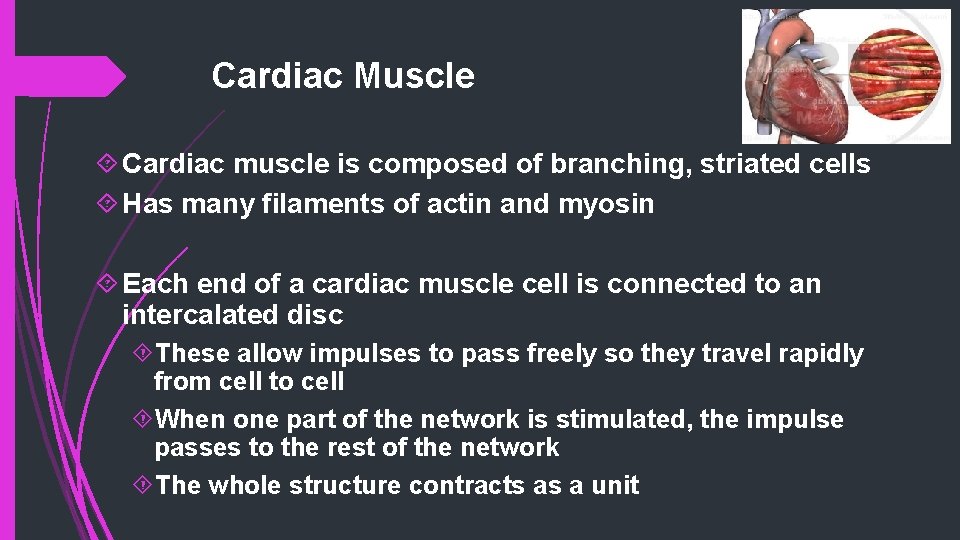

Cardiac Muscle Cardiac muscle is composed of branching, striated cells Has many filaments of actin and myosin Each end of a cardiac muscle cell is connected to an intercalated disc These allow impulses to pass freely so they travel rapidly from cell to cell When one part of the network is stimulated, the impulse passes to the rest of the network The whole structure contracts as a unit
Cardiac Muscle Cardiac muscle is also selfexciting and rhythmic A pattern of contraction and relaxation repeats, causing the pattern of the heartbeat

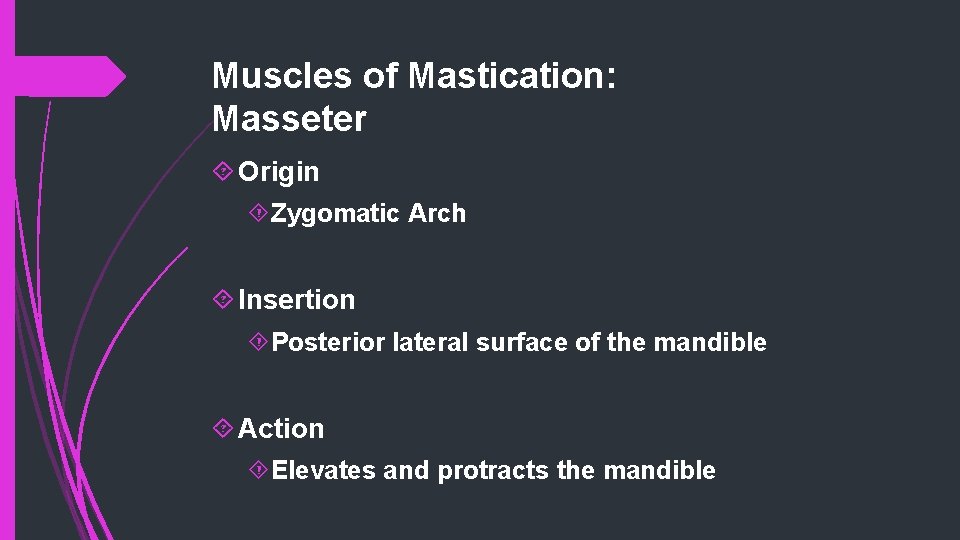

Muscles of Mastication: Masseter Origin Zygomatic Arch Insertion Posterior lateral surface of the mandible Action Elevates and protracts the mandible

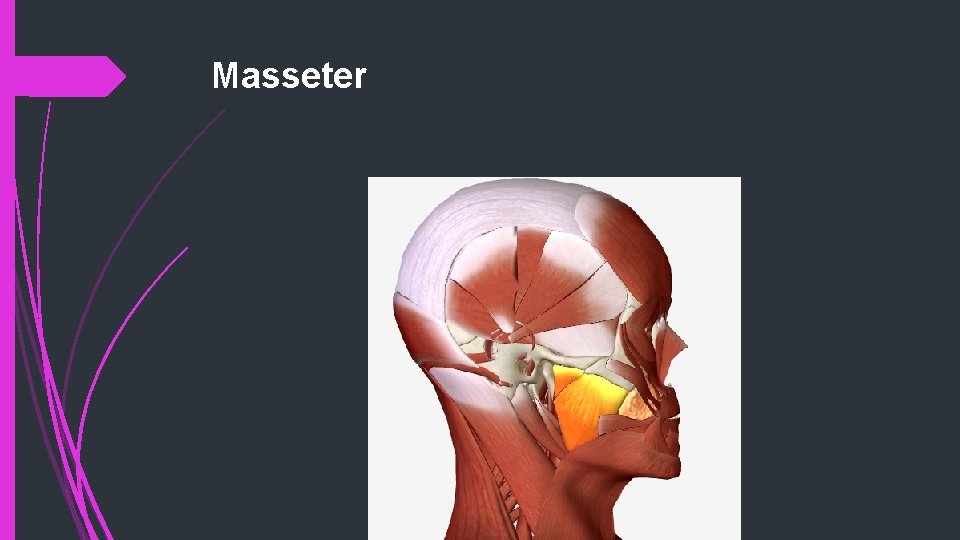

Masseter

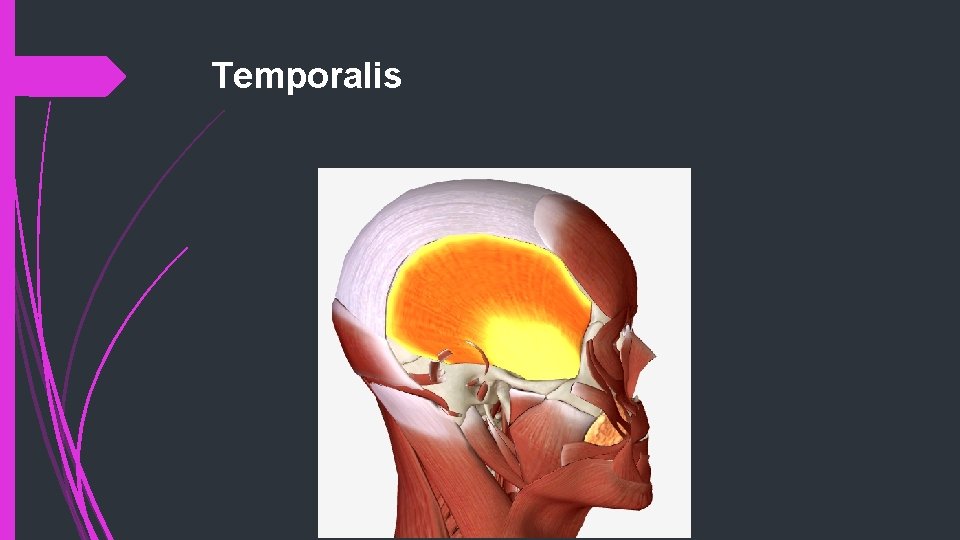

Muscles of Mastication: Temporalis Origin Temporal bone Insertion Mandible Action Elevates and retracts the mandible
Temporalis

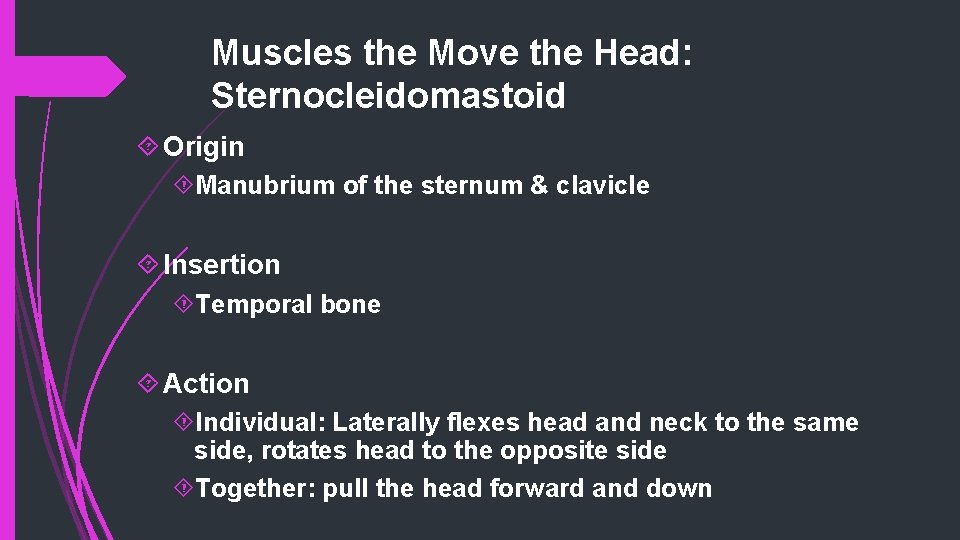

Muscles the Move the Head: Sternocleidomastoid Origin Manubrium of the sternum & clavicle Insertion Temporal bone Action Individual: Laterally flexes head and neck to the same side, rotates head to the opposite side Together: pull the head forward and down
Sternocleidomastoid

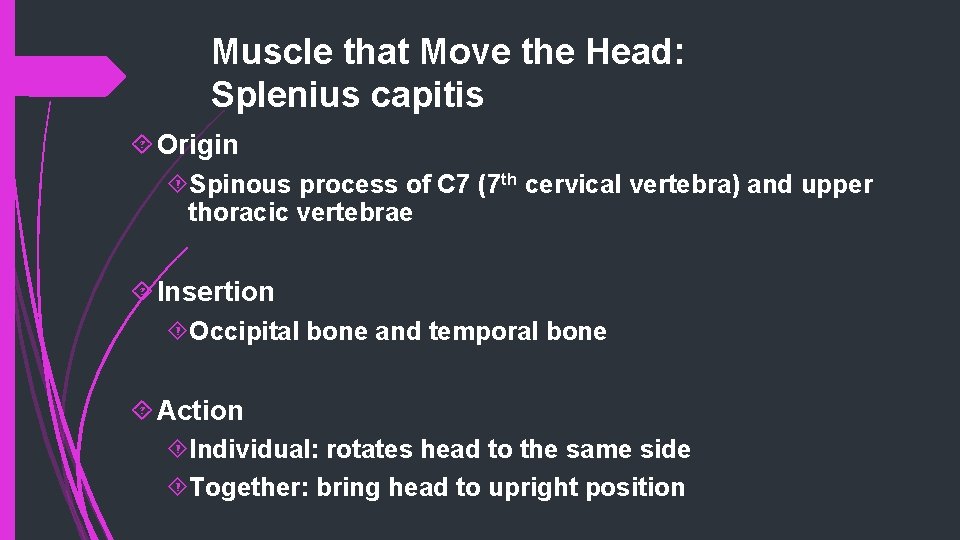

Muscle that Move the Head: Splenius capitis Origin Spinous process of C 7 (7 th cervical vertebra) and upper thoracic vertebrae Insertion Occipital bone and temporal bone Action Individual: rotates head to the same side Together: bring head to upright position

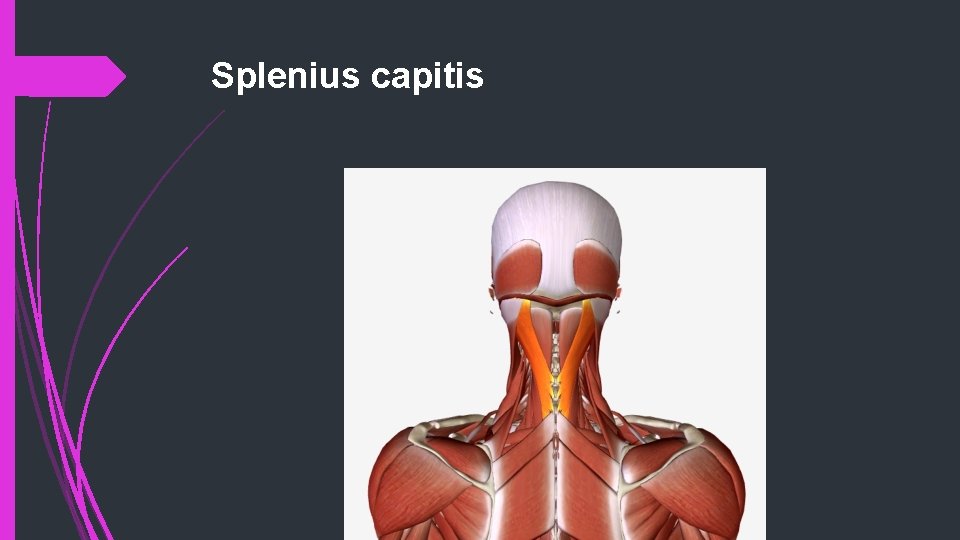

Splenius capitis
Muscles that Move the Head: Semispinalis capitis Origin Lower cervical vertebrae; transverse processes of upper thoracic vertebrae Insertion Occipital bone Action Individual: rotate head to the opposite side Together: extend the head and neck

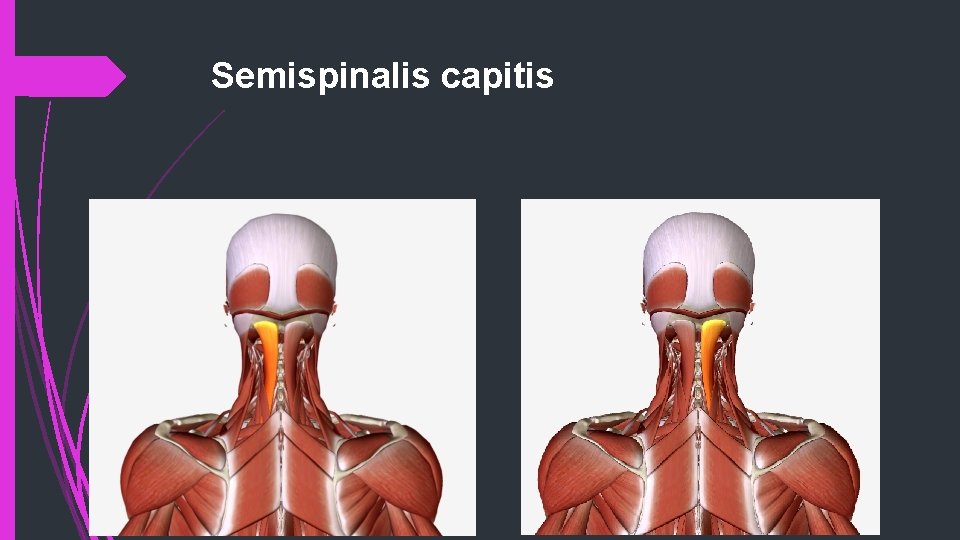

Semispinalis capitis
Muscles that Move the Head: Scalenes Origin Transverse processes of cervical vertebrae Insertion Superior and lateral surfaces of the first two ribs Action Individual: Laterally flexes the head and neck to the same side Together: Elevate the first 2 ribs during forceful inhalation

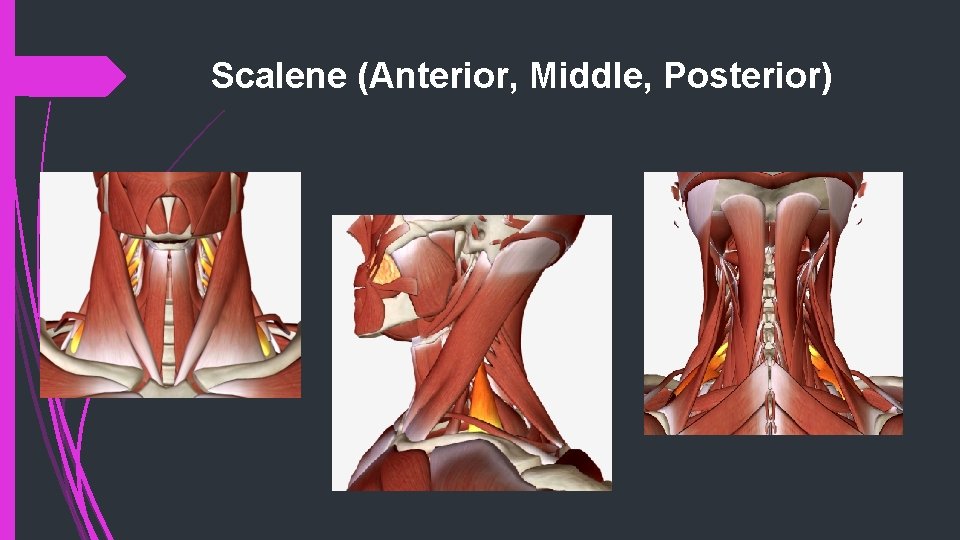

Scalene (Anterior, Middle, Posterior)

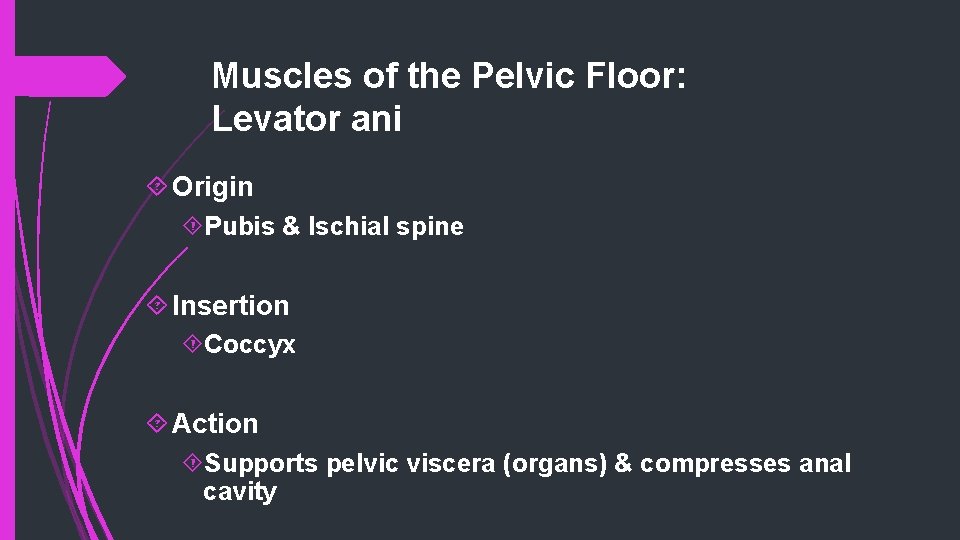

Muscles of the Pelvic Floor: Levator ani Origin Pubis & Ischial spine Insertion Coccyx Action Supports pelvic viscera (organs) & compresses anal cavity

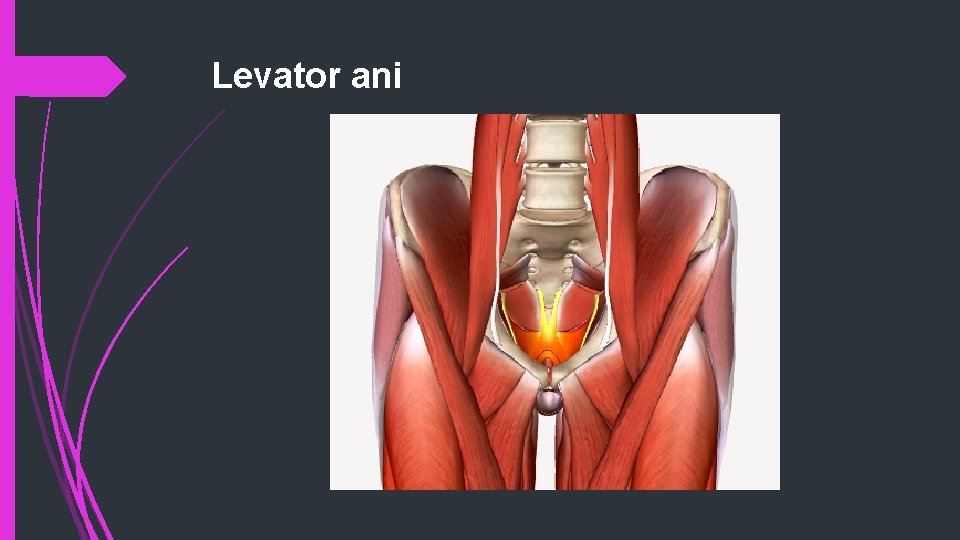

Levator ani

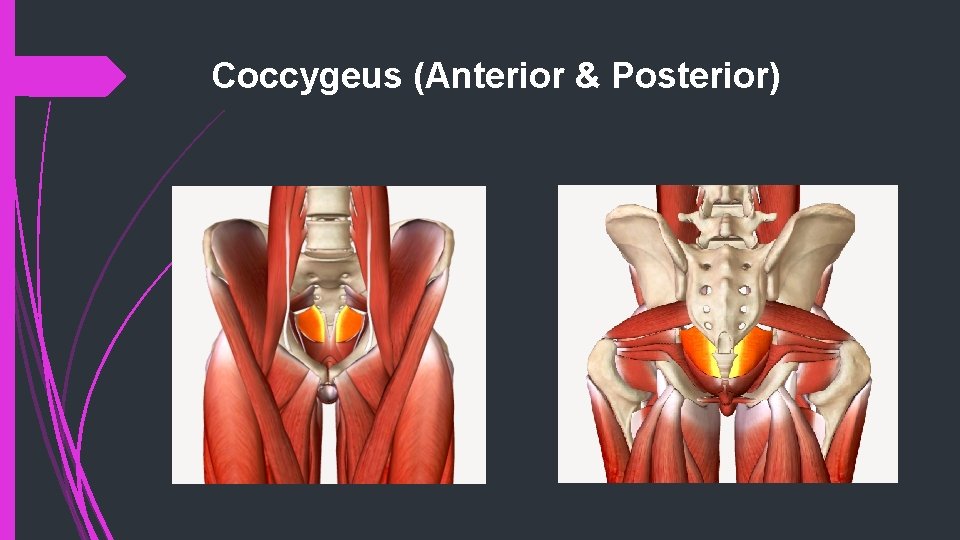

Muscles of the Pelvic Floor: Coccygeus Origin Ischial spine Insertion Sacrum & Coccyx Action Supports pelvic viscera & compresses anal cavity
Coccygeus (Anterior & Posterior)
Muscles of the Pelvic Floor: Superficial transversus perinei Origin Ischium of the pelvic bone Insertion Central tendon Action Supports pelvic viscera
Muscles that Move the Thigh: Psoas major Origin Transverse processes of lumbar vertebrae Insertion Lesser trochanter of femur Action Flexes thigh at hip

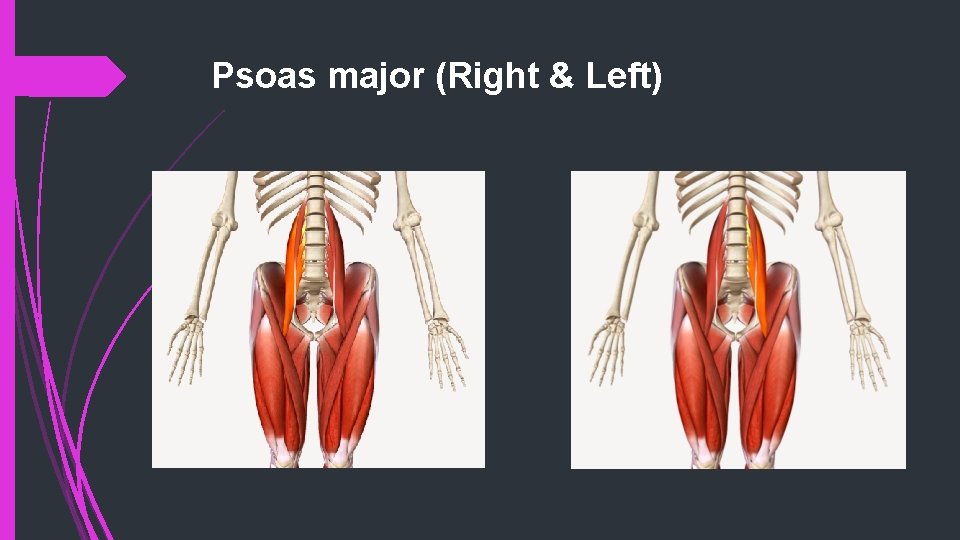

Psoas major (Right & Left)
Muscles that Move the Thigh: Iliacus Origin Ilium of the pelvic bone Insertion Lesser trochanter of femur Action Flexes thigh at hip
Iliacus (Right & Left)
Muscles that Move the Thigh: Gluteus Maximus Origin Sacrum, coccyx, ilium of the pelvic bone Insertion Posterior surface of femur Action Extends thigh at hip, laterally rotates thigh
Gluteus Maximus
Muscles that Move the Thigh: Gluteus Medius Origin Ilium of the pelvic bone Insertion Greater trochanter of femur Action Abducts thigh, medially rotates thigh
Gluteus Medius

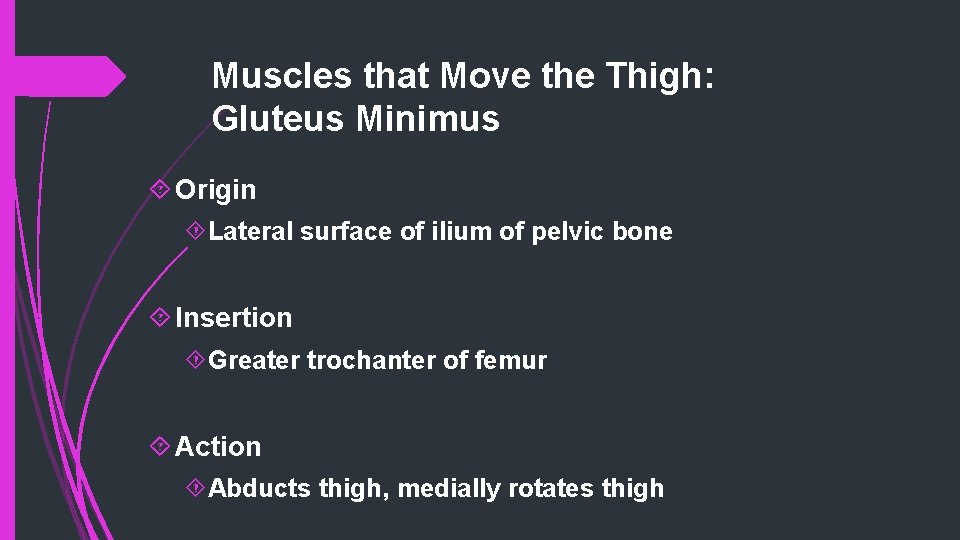

Muscles that Move the Thigh: Gluteus Minimus Origin Lateral surface of ilium of pelvic bone Insertion Greater trochanter of femur Action Abducts thigh, medially rotates thigh
Gluteus Minimus

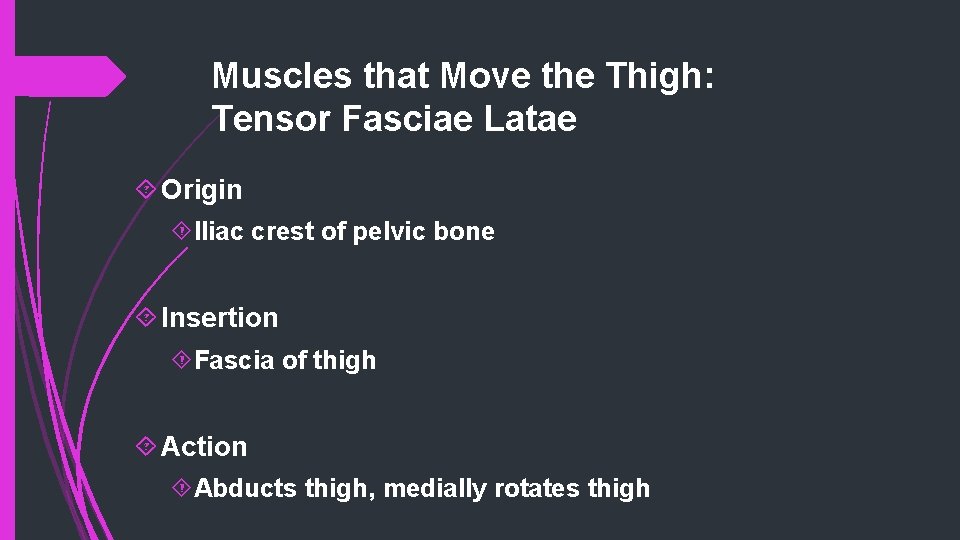

Muscles that Move the Thigh: Tensor Fasciae Latae Origin Iliac crest of pelvic bone Insertion Fascia of thigh Action Abducts thigh, medially rotates thigh
Tensor Fasciae Latae
Muscles that Move the Thigh: Adductor Longus Origin Pubic bone near pubic symphysis of the pelvic bone Insertion Posterior surface of femur Action Adducts thigh, flexes thigh at hip
Adductor Longus

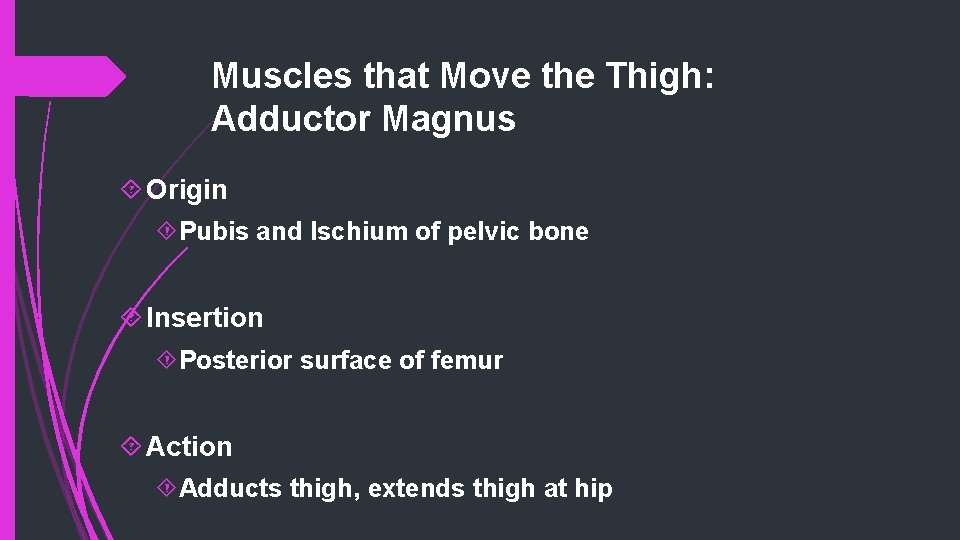

Muscles that Move the Thigh: Adductor Magnus Origin Pubis and Ischium of pelvic bone Insertion Posterior surface of femur Action Adducts thigh, extends thigh at hip
Adductor Magnus

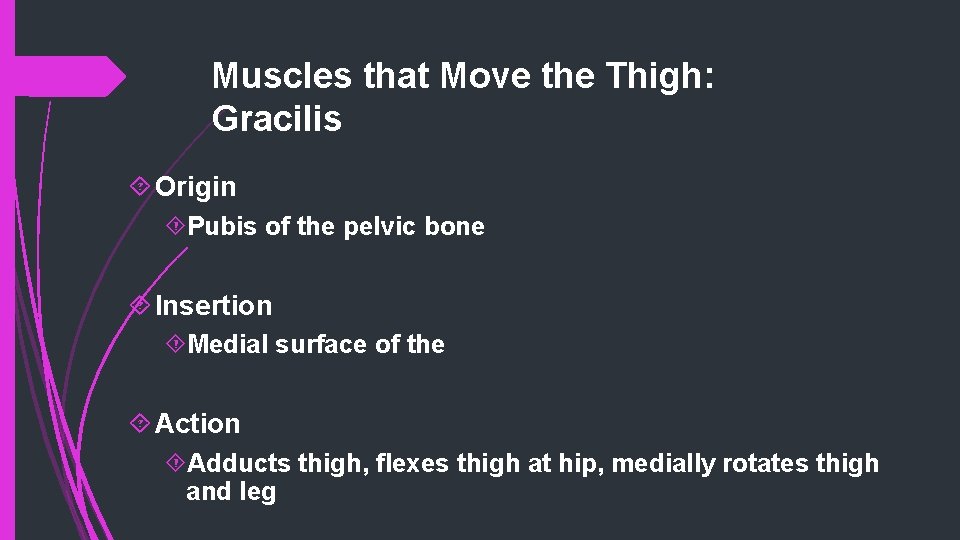

Muscles that Move the Thigh: Gracilis Origin Pubis of the pelvic bone Insertion Medial surface of the Action Adducts thigh, flexes thigh at hip, medially rotates thigh and leg

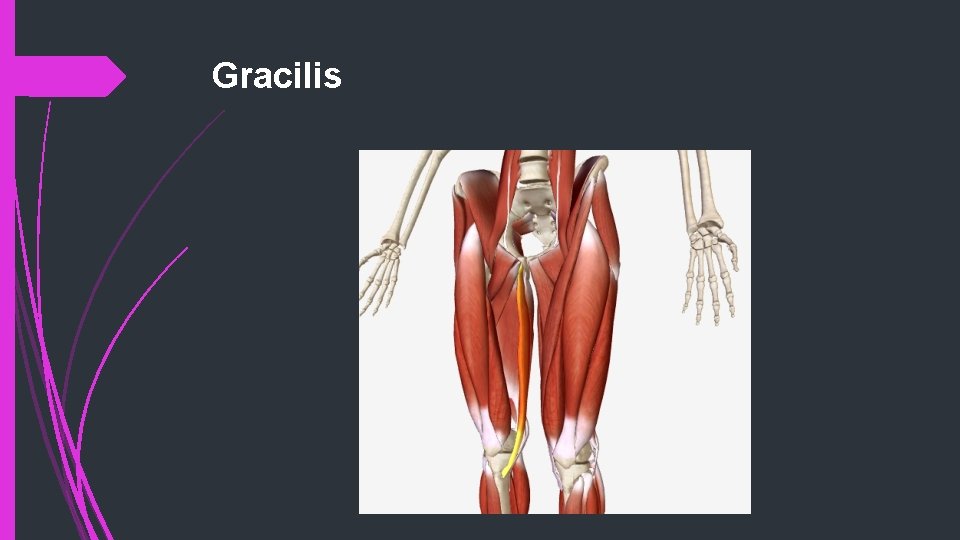

Gracilis
Body System Connections Endocrine System Hormones help increase blood flow to exercising skeletal muscles Urinary System Skeletal muscles help control expulsion of urine from the urinary bladder

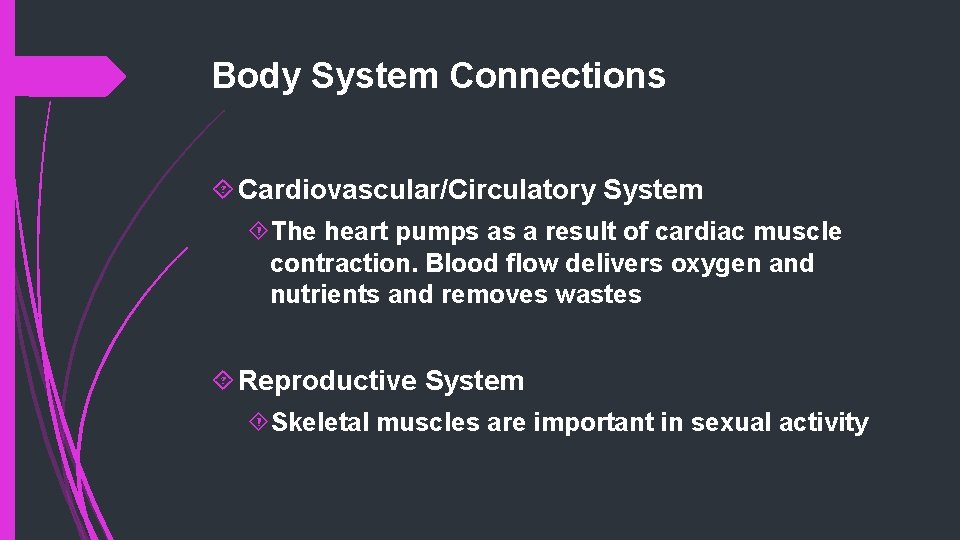

Body System Connections Cardiovascular/Circulatory System The heart pumps as a result of cardiac muscle contraction. Blood flow delivers oxygen and nutrients and removes wastes Reproductive System Skeletal muscles are important in sexual activity
