The most important thing we build is trust ADVANCED ELECTRONIC SOLUTIONS AVIATION SERVICES COMMUNICATIONS AND CONNECTIVITY SAILOR SP 3500 Portable ATEX Tough jobs – Tough Conditions – Tough equipment MISSION SYSTEMS

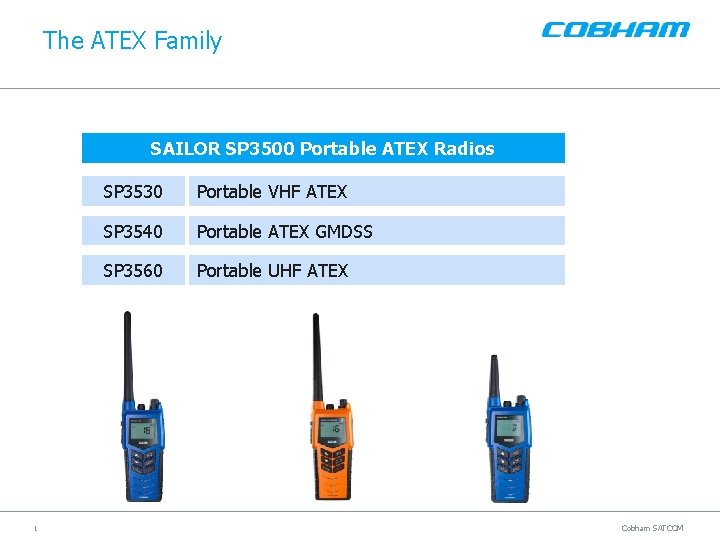

The ATEX Family SAILOR SP 3500 Portable ATEX Radios 1 SP 3530 Portable VHF ATEX SP 3540 Portable ATEX GMDSS SP 3560 Portable UHF ATEX Cobham SATCOM

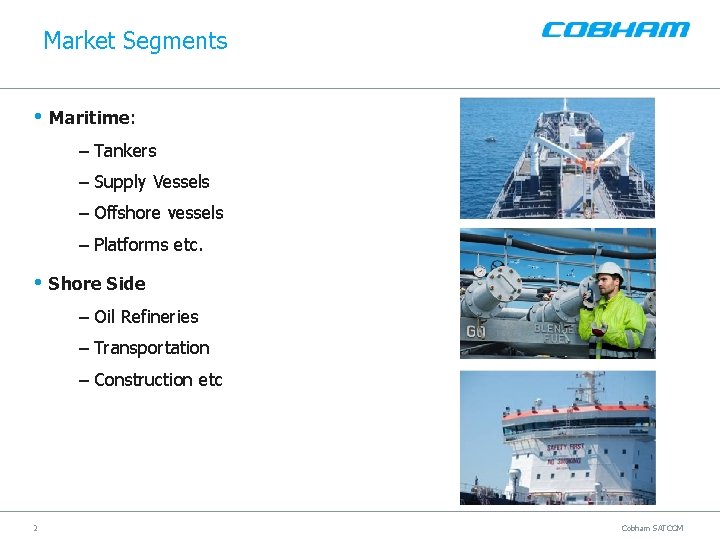

Market Segments • Maritime: – Tankers – Supply Vessels – Offshore vessels – Platforms etc. • Shore Side – Oil Refineries – Transportation – Construction etc 2 Cobham SATCOM
Designed for the professional user • Unique design: – Large tactile buttons to ensure easy operation even with gloves – Large display for easy read and red backlight to reduce disturbance of night vision – Powerful loudspeaker for high quality communication – Ribbed grip to ensure good grip even when wet • Waterproof (IP 67) • Powerful Li-Ion battery • Dedicated ATEX approved SAILOR accessories 3 Cobham SATCOM
Designed for the professional user • Dual watch, Tri-Watch and Scanning • Pre-programmed with all relevant channels: – SAILOR SP 3530 Portable VHF ATEX -> International, US, Canadian and Inland (BI) Waterways channel tables. Selectable by the user. – SAILOR SP 3540 Portable VHF ATEX GMDSS ->GMDSS channels – SAILOR SP 3560 Portable UHF ATEX -> 16 Maritime UHF channels • Keypad: Lock, beep on/off, auto light on • Display: Dimming and contrast control • Battery save mode 4 Cobham SATCOM
SAILOR SP 3540 Portable VHF ATEX GMDSS WORLD FIRST GMDSS AND ATEX VHF • First combined VHF GMDSS and ATEX • Ideal as GMDSS VHF on board all vessels • This product gives you and us a unique opportunity to address these customers! 5 Cobham SATCOM
SAILOR SP 3530 & SP 3560 Portable radios Complete packages - All in one box! • Part numbers: 403530 A and 403560 A: – Transceiver – Antenna – Li-Ion battery – rechargeable ATEX – Battery charger – AC/DC converter (adaptor) – 12/24 V DC connection – Belt clip – Lanyard – Operator manual 6 Cobham SATCOM
SAILOR SP 3540 Portable VHF ATES GMDSS Complete package - All in one box! • Part number: 403540 B – Transceiver – Antenna – Li-Ion rechargeable battery – Battery charger – Lithium battery NOT DANGEROUS GOODS shipping – AC/DC converter (adaptor) – 12/24 V DC connection – Belt clip – Lanyard – Operator manual 7 Cobham SATCOM
Size The SAILOR SP 3500 Portable ATEX radios are slightly deeper than the rest of the radios in the SAILOR SP 3500 Portable series: – 55 mm instead of 52 MM – Carrying cases cannot be used for both standard and ATEX 8 Cobham SATCOM
Optional Accessories 9 Part Number Product Name 403595 A SAILOR 3595 Hand Microphone ATEX 403500 -958 Service cable SAILOR SP 3500 series 403500 -207 ATEX Leather Carrying Case w. shoulder strap for SP 3500 ATEX 403500 -952 Interface Cable PELTOR FL 5261 ATEX 403504 A ATEX Li-Ion battery - Rechargeable battery 403536 A ATEX Single charger kit - rechargeable battery, charger and AC/DC converter 403538 A ATEX Dual charger kit - rechargeable battery, charger and AC/DC converter Cobham SATCOM
Type Approvals ATEX Approval: II 2 G Ex ib IIC T 4 SAILOR SP 3530 & SP 3560 Portable radio R&TTE (CE) and ATEX approved SAILOR SP 3540 Portable VHF ATEX GMDSS MED-B (Wheelmark) and ATEX approved For further approvals contact your Cobham SATCOM sales contact 10 Cobham SATCOM
Questions? 11 Cobham SATCOM
