The most important thing we build is trust
![The most important thing we build is trust ADVANCED ELECTRONIC SOLUTIONS AVIATION SERVICES COMMUNICATIONS The most important thing we build is trust ADVANCED ELECTRONIC SOLUTIONS AVIATION SERVICES COMMUNICATIONS](https://slidetodoc.com/presentation_image_h/19c93a9d98fd95435fff62b5321c1e88/image-1.jpg)
The most important thing we build is trust ADVANCED ELECTRONIC SOLUTIONS AVIATION SERVICES COMMUNICATIONS AND CONNECTIVITY SAILOR 656 X / 657 X GNSS / DGNSS System MISSION SYSTEMS
![SAILOR 656 X / 657 X GNSS / DGNSS System GNSS fundamentals • A SAILOR 656 X / 657 X GNSS / DGNSS System GNSS fundamentals • A](http://slidetodoc.com/presentation_image_h/19c93a9d98fd95435fff62b5321c1e88/image-2.jpg)
SAILOR 656 X / 657 X GNSS / DGNSS System GNSS fundamentals • A Global Navigation Satellite System (GNSS) involves a constellation of satellites orbiting at about twenty thousand kilometers altitude over the earth surface, continuously transmitting signals that enable users to determine their threedimensional position with global coverage. • The receiver for GNSS calculates the position, speed and time for the vessel and provides this to the navigator and onboard systems such as integrated navigations systems etc. • Using Differential Global Navigation Satellite System (DGNSS) increases accuracy of position and speed for narrow navigation and critical operations of the vessel. Slide 1 Cobham plc
![SAILOR 656 X / 657 X GNSS / DGNSS System Introducing the NEW…. . SAILOR 656 X / 657 X GNSS / DGNSS System Introducing the NEW…. .](http://slidetodoc.com/presentation_image_h/19c93a9d98fd95435fff62b5321c1e88/image-3.jpg)
SAILOR 656 X / 657 X GNSS / DGNSS System Introducing the NEW…. . Slide 2 Cobham plc
![SAILOR 656 X / 657 X GNSS / DGNSS System Background • GNSS applications SAILOR 656 X / 657 X GNSS / DGNSS System Background • GNSS applications](http://slidetodoc.com/presentation_image_h/19c93a9d98fd95435fff62b5321c1e88/image-4.jpg)
SAILOR 656 X / 657 X GNSS / DGNSS System Background • GNSS applications – According to the distinction provided by IMO Resolution A. 915(22), GNSS applications can be split into navigation and positioning. This presentation is concentrated on navigation since positioning in terms of IMO covers i. e. Traffic Management, EPIRBS, Vessel Monitoring System etc. • SOLAS vessels – All passenger ships and cargo ships larger than 500 gross tonnage (300 tons for international voyages) are regulated and rely heavily on GNSS for navigation. At least two devices are typically fitted on vessels for redundancy reasons. • Non-SOLAS vessels – GNSS systems for maritime navigation are widespread across commercial and recreational vessels, both overseas and in high traffic areas • Inland Waterways (IWW) – GNSS is also used to ensure safe navigation in inland waterways (rivers, canals, lakes and estuaries) Slide 3 Cobham plc
![SAILOR 656 X / 657 X GNSS / DGNSS System Market • Global number SAILOR 656 X / 657 X GNSS / DGNSS System Market • Global number](http://slidetodoc.com/presentation_image_h/19c93a9d98fd95435fff62b5321c1e88/image-5.jpg)
SAILOR 656 X / 657 X GNSS / DGNSS System Market • Global number of vessel 1. Merchant Vessels 2. Fishing Vessels 3. IWW Vessels 4. Recreational Vessels 1. 2. 3. 4. Slide 4 81, 500 2, 700, 000 529, 000 Since not all vessels are passenger ships or cargo ships larger than 500 gross tonnage (300 tons for international voyages) market is estimated to total 80% of the above. Fishing vessels are not calculated as main target but for sure large factory trawlers, purse seiners or similar should be considered as market for precise navigation tools due to very sophisticated accurate fish finding equipment Inland Water Way vessels are not considered as main target but SAILOR GNSS / DGNSS is approved for these narrow waters as well. Recreational vessels are huge in numbers but targets would be limited to luxury yachts / super yachts. Cobham plc
![SAILOR 656 X / 657 X GNSS / DGNSS System Market Installed base of SAILOR 656 X / 657 X GNSS / DGNSS System Market Installed base of](http://slidetodoc.com/presentation_image_h/19c93a9d98fd95435fff62b5321c1e88/image-6.jpg)
SAILOR 656 X / 657 X GNSS / DGNSS System Market Installed base of GNSS devices by region (Information from European Global Navigation Satellite Systems Agency, Market Report March 2015) Slide 5 Cobham plc
![SAILOR 656 X / 657 X GNSS / DGNSS System Market Installed base of SAILOR 656 X / 657 X GNSS / DGNSS System Market Installed base of](http://slidetodoc.com/presentation_image_h/19c93a9d98fd95435fff62b5321c1e88/image-7.jpg)
SAILOR 656 X / 657 X GNSS / DGNSS System Market Installed base of GNSS devices by application (Information from European Global Navigation Satellite Systems Agency, Market Report March 2015) Slide 6 Cobham plc
![SAILOR 656 X / 657 X GNSS / DGNSS System Market Major manufacturers Slide SAILOR 656 X / 657 X GNSS / DGNSS System Market Major manufacturers Slide](http://slidetodoc.com/presentation_image_h/19c93a9d98fd95435fff62b5321c1e88/image-8.jpg)
SAILOR 656 X / 657 X GNSS / DGNSS System Market Major manufacturers Slide 7 • • • Merchant Navigation FURUNO (IMO) SAAB (IMO) KODEN (IMO) SIMRAD (IMO) • • • IWW Navigation FURUNO (IMO) SAAB (IMO) KODEN (IMO) SIMRAD (IMO) • • • Fishing Vessels FURUNO KODEN SIMRAD JRC JMC • • • • Recreational Navigation FURUNO KODEN SIMRAD JRC JMC GARMIN RAYMARINE SUZUKI HUMMINBIRD COMNAV SUNHANG MATSUTEC OVA Cobham plc
![The most important thing we build is trust ADVANCED ELECTRONIC SOLUTIONS AVIATION SERVICES COMMUNICATIONS The most important thing we build is trust ADVANCED ELECTRONIC SOLUTIONS AVIATION SERVICES COMMUNICATIONS](http://slidetodoc.com/presentation_image_h/19c93a9d98fd95435fff62b5321c1e88/image-9.jpg)
The most important thing we build is trust ADVANCED ELECTRONIC SOLUTIONS AVIATION SERVICES COMMUNICATIONS AND CONNECTIVITY SAILOR 656 X / 657 X GNSS / DGNSS System Configurations MISSION SYSTEMS
![SAILOR 656 X / 657 X GNSS / DGNSS System Configurations Variant SAILOR 6588 SAILOR 656 X / 657 X GNSS / DGNSS System Configurations Variant SAILOR 6588](http://slidetodoc.com/presentation_image_h/19c93a9d98fd95435fff62b5321c1e88/image-10.jpg)
SAILOR 656 X / 657 X GNSS / DGNSS System Configurations Variant SAILOR 6588 DGNSS Receiver SAILOR 6285 GNSS Antenna SAILOR 6286 DGNSS Antenna SAILOR 6004 Control Panel SAILOR 6560 System √ √ √ SAILOR 6561 Basic √ √ SAILOR 6570 System √ √ √ SAILOR 6571 Basic √ √ Slide 9 Cobham plc
![SAILOR 656 X / 657 X GNSS / DGNSS System Configuration Slide 10 Cobham SAILOR 656 X / 657 X GNSS / DGNSS System Configuration Slide 10 Cobham](http://slidetodoc.com/presentation_image_h/19c93a9d98fd95435fff62b5321c1e88/image-11.jpg)
SAILOR 656 X / 657 X GNSS / DGNSS System Configuration Slide 10 Cobham plc
![SAILOR 6560 GNSS System Configuration A full delivery of a SAILOR 6560 GNSS System SAILOR 6560 GNSS System Configuration A full delivery of a SAILOR 6560 GNSS System](http://slidetodoc.com/presentation_image_h/19c93a9d98fd95435fff62b5321c1e88/image-12.jpg)
SAILOR 6560 GNSS System Configuration A full delivery of a SAILOR 6560 GNSS System (order number 406560 A-00500) consists of: • • • Slide 11 SAILOR 6588 DGNSS Receiver SAILOR 6285 GNSS Active Antenna SAILOR 6004 Control Panel 5 m connection cable Power Cable Mounting screws User Manual Test sheet Thrane. LINK enabled Cobham plc
![SAILOR 6570 DGNSS System Configuration A full delivery of a SAILOR 6570 DGNSS System SAILOR 6570 DGNSS System Configuration A full delivery of a SAILOR 6570 DGNSS System](http://slidetodoc.com/presentation_image_h/19c93a9d98fd95435fff62b5321c1e88/image-13.jpg)
SAILOR 6570 DGNSS System Configuration A full delivery of a SAILOR 6570 DGNSS System (order number 406570 A-00500) consists of: • • • Slide 12 SAILOR 6588 DGNSS Receiver SAILOR 6286 DGNSS Active Antenna SAILOR 6004 Control Panel 5 m connection cable Power Cable Mounting screws User Manual Test sheet Thrane. LINK enabled Cobham plc
![SAILOR 6561 GNSS Basic Configuration A full delivery of a SAILOR 6561 GNSS Basic SAILOR 6561 GNSS Basic Configuration A full delivery of a SAILOR 6561 GNSS Basic](http://slidetodoc.com/presentation_image_h/19c93a9d98fd95435fff62b5321c1e88/image-14.jpg)

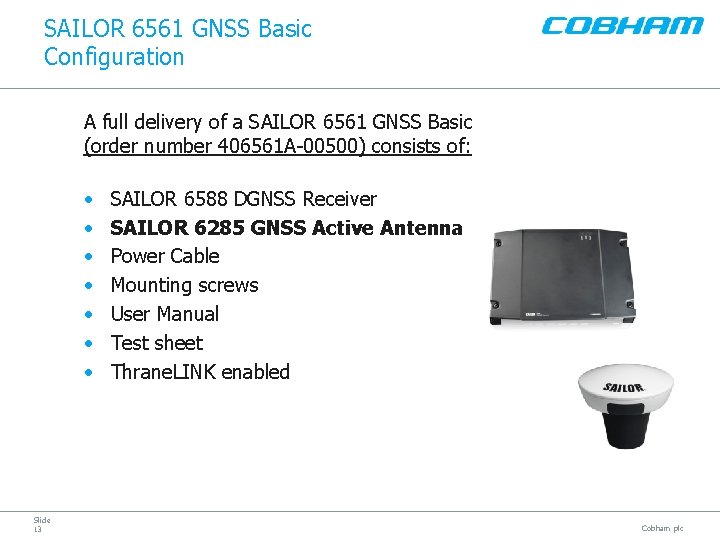

SAILOR 6561 GNSS Basic Configuration A full delivery of a SAILOR 6561 GNSS Basic (order number 406561 A-00500) consists of: • • Slide 13 SAILOR 6588 DGNSS Receiver SAILOR 6285 GNSS Active Antenna Power Cable Mounting screws User Manual Test sheet Thrane. LINK enabled Cobham plc
![SAILOR 6571 DGNSS Basic Configuration A full delivery of a SAILOR 6571 DGNSS Basic SAILOR 6571 DGNSS Basic Configuration A full delivery of a SAILOR 6571 DGNSS Basic](http://slidetodoc.com/presentation_image_h/19c93a9d98fd95435fff62b5321c1e88/image-15.jpg)
SAILOR 6571 DGNSS Basic Configuration A full delivery of a SAILOR 6571 DGNSS Basic (order number 406571 A-00500 consists of: • • Slide 14 SAILOR 6588 DGNSS Receiver SAILOR 6286 DGNSS Active Antenna Power Cable Mounting screws User Manual Test sheet Thrane. LINK enabled Cobham plc
![The most important thing we build is trust ADVANCED ELECTRONIC SOLUTIONS AVIATION SERVICES COMMUNICATIONS The most important thing we build is trust ADVANCED ELECTRONIC SOLUTIONS AVIATION SERVICES COMMUNICATIONS](http://slidetodoc.com/presentation_image_h/19c93a9d98fd95435fff62b5321c1e88/image-16.jpg)
The most important thing we build is trust ADVANCED ELECTRONIC SOLUTIONS AVIATION SERVICES COMMUNICATIONS AND CONNECTIVITY SAILOR 656 X / 657 X GNSS / DGNSS System Features MISSION SYSTEMS
![SAILOR GNSS / DGNSS Features • Position calculation with GPS and / or GLONASS. SAILOR GNSS / DGNSS Features • Position calculation with GPS and / or GLONASS.](http://slidetodoc.com/presentation_image_h/19c93a9d98fd95435fff62b5321c1e88/image-17.jpg)
SAILOR GNSS / DGNSS Features • Position calculation with GPS and / or GLONASS. • Reception and use of differential corrections from SBAS, RTCM SC-104 via serial interface or the integrated beacon receiver (DGNSS only). • RAIM calculation estimates the calculated position accuracy and monitor signal integrity. • SBAS corrections from EGNOS, MSAS, WAAS, GAGAN and SDCM. • Automatic / manual radio beacon selection. • Selectable datum's including user defined. • Fully configurable serial output (IEC 61162 -1/2/450). • Configurable alerts (MSC. 302). • Support High Speed Craft (HSC) • Antenna offset correction Slide 16 Cobham plc
![SAILOR GNSS / DGNSS Features - continued • • • Slide Anchor watch Two SAILOR GNSS / DGNSS Features - continued • • • Slide Anchor watch Two](http://slidetodoc.com/presentation_image_h/19c93a9d98fd95435fff62b5321c1e88/image-18.jpg)
SAILOR GNSS / DGNSS Features - continued • • • Slide Anchor watch Two Trip Counters and one total counter Speed Log output PPS (Pulse Per Second) output Interface for Thrane. LINK and INS available 7” high resolution Touch screen SAILOR 6004 Control Panel Up to four Control Panels on same GNSS / DGNSS Receiver Redundancy setup with up to three GNSS / DGNSS Receivers Build-In-Self-Test (factory production test on-site) Cobham plc
![The most important thing we build is trust ADVANCED ELECTRONIC SOLUTIONS AVIATION SERVICES COMMUNICATIONS The most important thing we build is trust ADVANCED ELECTRONIC SOLUTIONS AVIATION SERVICES COMMUNICATIONS](http://slidetodoc.com/presentation_image_h/19c93a9d98fd95435fff62b5321c1e88/image-19.jpg)
The most important thing we build is trust ADVANCED ELECTRONIC SOLUTIONS AVIATION SERVICES COMMUNICATIONS AND CONNECTIVITY SAILOR 656 X / 657 X GNSS / DGNSS System Integration MISSION SYSTEMS
![SAILOR GNSS / DGNSS Integration Slide 19 Cobham plc SAILOR GNSS / DGNSS Integration Slide 19 Cobham plc](http://slidetodoc.com/presentation_image_h/19c93a9d98fd95435fff62b5321c1e88/image-20.jpg)
SAILOR GNSS / DGNSS Integration Slide 19 Cobham plc
![The most important thing we build is trust ADVANCED ELECTRONIC SOLUTIONS AVIATION SERVICES COMMUNICATIONS The most important thing we build is trust ADVANCED ELECTRONIC SOLUTIONS AVIATION SERVICES COMMUNICATIONS](http://slidetodoc.com/presentation_image_h/19c93a9d98fd95435fff62b5321c1e88/image-21.jpg)
The most important thing we build is trust ADVANCED ELECTRONIC SOLUTIONS AVIATION SERVICES COMMUNICATIONS AND CONNECTIVITY SAILOR 656 X / 657 X GNSS / DGNSS System Competition MISSION SYSTEMS
![SAILOR GNSS / DGNSS Competitor / comparison SAILOR 6560/6561 SAILOR 6570/6571 SIMRAD MX 521 SAILOR GNSS / DGNSS Competitor / comparison SAILOR 6560/6561 SAILOR 6570/6571 SIMRAD MX 521](http://slidetodoc.com/presentation_image_h/19c93a9d98fd95435fff62b5321c1e88/image-22.jpg)
SAILOR GNSS / DGNSS Competitor / comparison SAILOR 6560/6561 SAILOR 6570/6571 SIMRAD MX 521 A KODEN KGP-920 FURUNO GP-170 SAAB R 5 IMO Compliant √ √ √ GPS √ √ √ DGPS ÷ √ √ √ DGPS included in antenna ÷ √ √ ÷ ÷ ÷ DGPS included in receiver √ √ ÷ ÷ GLONASS √ √ ÷ ÷ SBAS √ √ √ Satellite Channels (= 30 or more) √ √ ÷ ÷ Display size (7" or more) √ √ ÷ ÷ ÷ √ Color Display √ √ ÷ ÷ √ √ Touch Display √ √ ÷ ÷ ÷ √ AIS Display Integration √ √ ÷ ÷ NAVTEX Display Integration √ √ ÷ ÷ I/O Ports (= 8 or more) √ √ ÷ ÷ ÷ √ Build-In-Self-Test √ √ ÷ ÷ Slide 21 Cobham plc
