The most important thing we build is trust
![The most important thing we build is trust ADVANCED ELECTRONIC SOLUTIONS AVIATION SERVICES COMMUNICATIONS The most important thing we build is trust ADVANCED ELECTRONIC SOLUTIONS AVIATION SERVICES COMMUNICATIONS](https://slidetodoc.com/presentation_image_h/f4ce2df2247f1a8f3b33026e2146bdcb/image-1.jpg)
The most important thing we build is trust ADVANCED ELECTRONIC SOLUTIONS AVIATION SERVICES COMMUNICATIONS AND CONNECTIVITY SOLAS Chapter II-2 Regulation 10. 4 Fire-fighter’s Communication MISSION SYSTEMS
![Fire-fighter’s Communication The requirement SOLAS Chapter II-2, Regulation 10. 4 For ships constructed on Fire-fighter’s Communication The requirement SOLAS Chapter II-2, Regulation 10. 4 For ships constructed on](http://slidetodoc.com/presentation_image_h/f4ce2df2247f1a8f3b33026e2146bdcb/image-2.jpg)
Fire-fighter’s Communication The requirement SOLAS Chapter II-2, Regulation 10. 4 For ships constructed on or after 1 July 2014, a minimum of two -way portable radiotelephone apparatus for each fire party for fire -fighter´s communication shall be carried on board. Those two-way radiotelephone apparatus shall be of an explosionproof type or intrinsically safe. Ships constructed before 1 July 2014 shall comply with the requirements of this paragraph not later than the first survey after 1 July 2018. 1 06 December 2020 Cobham plc
![Fire-fighter’s Communication The requirement SOLAS Chapter II-2, Regulation 10. 4 Elaborations: 1. …two two-way Fire-fighter’s Communication The requirement SOLAS Chapter II-2, Regulation 10. 4 Elaborations: 1. …two two-way](http://slidetodoc.com/presentation_image_h/f4ce2df2247f1a8f3b33026e2146bdcb/image-3.jpg)
Fire-fighter’s Communication The requirement SOLAS Chapter II-2, Regulation 10. 4 Elaborations: 1. …two two-way portable radiotelephone apparatus… 2. …each fire party for fire-fighter’s communication… 3. …explosion-proof type or intrinsically safe… 4. …on or after 1 July 2014… 5. …before 1 July 2014… 2 06 December 2020 Cobham plc
![The most important thing we build is trust ADVANCED ELECTRONIC SOLUTIONS Frequency band? AVIATION The most important thing we build is trust ADVANCED ELECTRONIC SOLUTIONS Frequency band? AVIATION](http://slidetodoc.com/presentation_image_h/f4ce2df2247f1a8f3b33026e2146bdcb/image-4.jpg)
The most important thing we build is trust ADVANCED ELECTRONIC SOLUTIONS Frequency band? AVIATION SERVICES COMMUNICATIONS AND CONNECTIVITY MISSION SYSTEMS
![Fire-Fighter Radio The requirement SOLAS Chapter II-2, Regulation 10. 4 – “…two-way portable radiotelephone Fire-Fighter Radio The requirement SOLAS Chapter II-2, Regulation 10. 4 – “…two-way portable radiotelephone](http://slidetodoc.com/presentation_image_h/f4ce2df2247f1a8f3b33026e2146bdcb/image-5.jpg)
Fire-Fighter Radio The requirement SOLAS Chapter II-2, Regulation 10. 4 – “…two-way portable radiotelephone apparatus…” Frequency band: • VHF frequency mainly used for ship-ship/ship-shore communication • VHF frequency exposed to disruptive interference from many other radios • UHF frequency internationally acknowledged as onboard communication • UHF frequency known to have better propagation inside metal structures • UHF frequency known to have shorter range outside vessel • UHF frequency less affected by disruptive interference from other radios 4 06 December 2020 Cobham plc
![The most important thing we build is trust ADVANCED ELECTRONIC SOLUTIONS Design AVIATION SERVICES The most important thing we build is trust ADVANCED ELECTRONIC SOLUTIONS Design AVIATION SERVICES](http://slidetodoc.com/presentation_image_h/f4ce2df2247f1a8f3b33026e2146bdcb/image-6.jpg)
The most important thing we build is trust ADVANCED ELECTRONIC SOLUTIONS Design AVIATION SERVICES COMMUNICATIONS AND CONNECTIVITY MISSION SYSTEMS
![Fire-fighter’s Communication The requirement SOLAS Chapter II-2, Regulation 10. 4 – “…two-way portable radiotelephone Fire-fighter’s Communication The requirement SOLAS Chapter II-2, Regulation 10. 4 – “…two-way portable radiotelephone](http://slidetodoc.com/presentation_image_h/f4ce2df2247f1a8f3b33026e2146bdcb/image-7.jpg)
Fire-fighter’s Communication The requirement SOLAS Chapter II-2, Regulation 10. 4 – “…two-way portable radiotelephone apparatus…” Performance standards: • Considerations for use in marine environment: • High humidity / salt water • Oil & chemicals • Ingress Protection • Sturdy design 6 06 December 2020 Cobham plc
![Fire-fighter’s Communication The requirement SOLAS Chapter II-2, Regulation 10. 4 – “…two-way portable radiotelephone Fire-fighter’s Communication The requirement SOLAS Chapter II-2, Regulation 10. 4 – “…two-way portable radiotelephone](http://slidetodoc.com/presentation_image_h/f4ce2df2247f1a8f3b33026e2146bdcb/image-8.jpg)
Fire-fighter’s Communication The requirement SOLAS Chapter II-2, Regulation 10. 4 – “…two-way portable radiotelephone apparatus…” Performance standards: • Effective use of the radio spectrum • Fitted with sufficient channels for satisfactory operation • Continuous Tone Coded Squelch Systems (CTCSS) or Digital Coded Squelch (DCS) 7 06 December 2020 Cobham plc
![Fire-fighter’s Communication The requirement SOLAS Chapter II-2, Regulation 10. 4 – “…two-way portable radiotelephone Fire-fighter’s Communication The requirement SOLAS Chapter II-2, Regulation 10. 4 – “…two-way portable radiotelephone](http://slidetodoc.com/presentation_image_h/f4ce2df2247f1a8f3b33026e2146bdcb/image-9.jpg)
Fire-fighter’s Communication The requirement SOLAS Chapter II-2, Regulation 10. 4 – “…two-way portable radiotelephone apparatus…” Performance standards: • Examples of standards to be carefully considered: • EN 60945 • (as for all other marine communication electronics) • IEC/ISO test standards • R&TTE Directive • (being replaced by the Radio Equipment Directive (RED)) 8 06 December 2020 Cobham plc
![The most important thing we build is trust ADVANCED ELECTRONIC SOLUTIONS AVIATION SERVICES COMMUNICATIONS The most important thing we build is trust ADVANCED ELECTRONIC SOLUTIONS AVIATION SERVICES COMMUNICATIONS](http://slidetodoc.com/presentation_image_h/f4ce2df2247f1a8f3b33026e2146bdcb/image-10.jpg)
The most important thing we build is trust ADVANCED ELECTRONIC SOLUTIONS AVIATION SERVICES COMMUNICATIONS AND CONNECTIVITY . . for fire-fighter’s communication… MISSION SYSTEMS
![Fire-fighter’s Communication The requirement SOLAS Chapter II-2, Regulation 10. 4 – “…two-way portable radiotelephone Fire-fighter’s Communication The requirement SOLAS Chapter II-2, Regulation 10. 4 – “…two-way portable radiotelephone](http://slidetodoc.com/presentation_image_h/f4ce2df2247f1a8f3b33026e2146bdcb/image-11.jpg)
Fire-fighter’s Communication The requirement SOLAS Chapter II-2, Regulation 10. 4 – “…two-way portable radiotelephone apparatus…” Performance standards: • Requirements for safety: • • • 10 Intuitive and easy operation Use with fire-fighter outfit Avoidance of faulty or unintended operation Connection to breathing apparatus mask or helmets Connection to RSM, PTT and headset 06 December 2020 Cobham plc
![Fire-fighter’s Communication The requirement SOLAS Chapter II-2, Regulation 10. 4 – “…for fire-fighter´s communication…” Fire-fighter’s Communication The requirement SOLAS Chapter II-2, Regulation 10. 4 – “…for fire-fighter´s communication…”](http://slidetodoc.com/presentation_image_h/f4ce2df2247f1a8f3b33026e2146bdcb/image-12.jpg)
Fire-fighter’s Communication The requirement SOLAS Chapter II-2, Regulation 10. 4 – “…for fire-fighter´s communication…” Performance standards: • Considerations for use by Fire Party • Direct Mode Operation & Trunked Mode Operation capabilities 11 06 December 2020 Cobham plc
![Fire-fighter’s Communication The requirement SOLAS Chapter II-2, Regulation 10. 4 – “…for fire-fighter´s communication…” Fire-fighter’s Communication The requirement SOLAS Chapter II-2, Regulation 10. 4 – “…for fire-fighter´s communication…”](http://slidetodoc.com/presentation_image_h/f4ce2df2247f1a8f3b33026e2146bdcb/image-13.jpg)

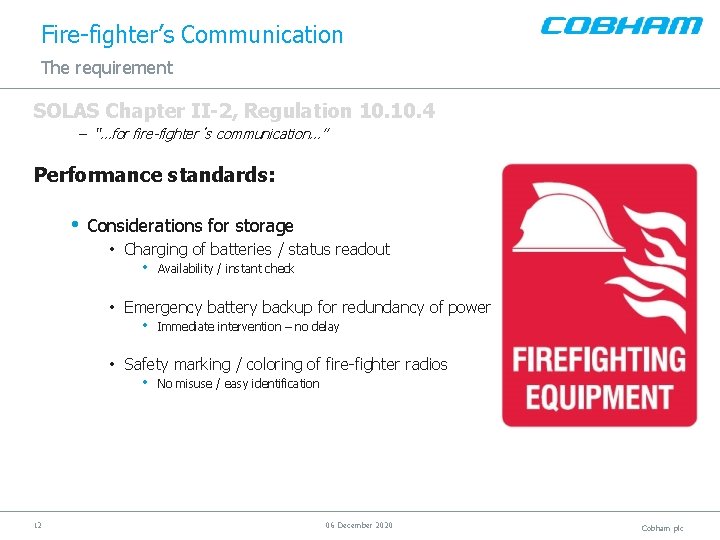

Fire-fighter’s Communication The requirement SOLAS Chapter II-2, Regulation 10. 4 – “…for fire-fighter´s communication…” Performance standards: • Considerations for storage • Charging of batteries / status readout • Availability / instant check • Emergency battery backup for redundancy of power • Immediate intervention – no delay • Safety marking / coloring of fire-fighter radios • No misuse / easy identification 12 06 December 2020 Cobham plc
![The most important thing we build is trust ADVANCED ELECTRONIC SOLUTIONS AVIATION SERVICES COMMUNICATIONS The most important thing we build is trust ADVANCED ELECTRONIC SOLUTIONS AVIATION SERVICES COMMUNICATIONS](http://slidetodoc.com/presentation_image_h/f4ce2df2247f1a8f3b33026e2146bdcb/image-14.jpg)
The most important thing we build is trust ADVANCED ELECTRONIC SOLUTIONS AVIATION SERVICES COMMUNICATIONS AND CONNECTIVITY …explosion-proof type or intrinsically safe… MISSION SYSTEMS
![Fire-fighter’s Communication The requirement SOLAS Chapter II-2, Regulation 10. 4 – “…explosion-proof type or Fire-fighter’s Communication The requirement SOLAS Chapter II-2, Regulation 10. 4 – “…explosion-proof type or](http://slidetodoc.com/presentation_image_h/f4ce2df2247f1a8f3b33026e2146bdcb/image-15.jpg)
Fire-fighter’s Communication The requirement SOLAS Chapter II-2, Regulation 10. 4 – “…explosion-proof type or intrinsically safe…” • Explosion proof standards • Temperature classification for radio • Zone classification for radio • Explosion group • Ingress protection rating • Example: II 2 G Ex ib IIB T 4 • Class II: • 2 G: • ib: • IIB: • T 4: 14 Occasional occurrence of gas, mist vapor ATEX Category protection level “High” Limit the energy of the spark and the surface temperature Explosion Group (Gas) 135ºC 06 December 2020 Cobham plc
![The most important thing we build is trust ADVANCED ELECTRONIC SOLUTIONS AVIATION SERVICES …on The most important thing we build is trust ADVANCED ELECTRONIC SOLUTIONS AVIATION SERVICES …on](http://slidetodoc.com/presentation_image_h/f4ce2df2247f1a8f3b33026e2146bdcb/image-16.jpg)
The most important thing we build is trust ADVANCED ELECTRONIC SOLUTIONS AVIATION SERVICES …on or after 1 July 2014… COMMUNICATIONS AND CONNECTIVITY MISSION SYSTEMS
![Fire-fighter’s Communication The requirement • SOLAS Chapter II-2, Regulation 10. 4 • For ships Fire-fighter’s Communication The requirement • SOLAS Chapter II-2, Regulation 10. 4 • For ships](http://slidetodoc.com/presentation_image_h/f4ce2df2247f1a8f3b33026e2146bdcb/image-17.jpg)
Fire-fighter’s Communication The requirement • SOLAS Chapter II-2, Regulation 10. 4 • For ships constructed on or after 1 July 2014 • Average new buildings per year is 2, 000 • Number of new vessels to worldwide fleet est. 5, 300 until July 2018 16 06 December 2020 Cobham plc
![The most important thing we build is trust ADVANCED ELECTRONIC SOLUTIONS AVIATION SERVICES …before The most important thing we build is trust ADVANCED ELECTRONIC SOLUTIONS AVIATION SERVICES …before](http://slidetodoc.com/presentation_image_h/f4ce2df2247f1a8f3b33026e2146bdcb/image-18.jpg)
The most important thing we build is trust ADVANCED ELECTRONIC SOLUTIONS AVIATION SERVICES …before 1 July 2014… COMMUNICATIONS AND CONNECTIVITY MISSION SYSTEMS
![Fire-fighter’s Communication The requirement • SOLAS Chapter II-2, Regulation 10. 4 • For ships Fire-fighter’s Communication The requirement • SOLAS Chapter II-2, Regulation 10. 4 • For ships](http://slidetodoc.com/presentation_image_h/f4ce2df2247f1a8f3b33026e2146bdcb/image-19.jpg)
Fire-fighter’s Communication The requirement • SOLAS Chapter II-2, Regulation 10. 4 • For ships constructed before 1 July 2014 • Number of merchant worldwide merchant fleet est. 89, 000 • Number of SOLAS worldwide vessels est. 65, 000 18 06 December 2020 Cobham plc
![SOLAS implementations • 2015 19 • 2016 • 2017 • 2018 16. September 2015 SOLAS implementations • 2015 19 • 2016 • 2017 • 2018 16. September 2015](http://slidetodoc.com/presentation_image_h/f4ce2df2247f1a8f3b33026e2146bdcb/image-20.jpg)
SOLAS implementations • 2015 19 • 2016 • 2017 • 2018 16. September 2015 • 2019 • 2020 • 2021 Cobham plc
![The most important thing we build is trust ADVANCED ELECTRONIC SOLUTIONS AVIATION SERVICES SAILOR The most important thing we build is trust ADVANCED ELECTRONIC SOLUTIONS AVIATION SERVICES SAILOR](http://slidetodoc.com/presentation_image_h/f4ce2df2247f1a8f3b33026e2146bdcb/image-21.jpg)
The most important thing we build is trust ADVANCED ELECTRONIC SOLUTIONS AVIATION SERVICES SAILOR Fire Fighter Radio’s Cobham SATCOM – Maritime Business Unit COMMUNICATIONS AND CONNECTIVITY MISSION SYSTEMS
![SAILOR 3965 UHF Fire Fighter radio 21 06 December 2020 Cobham plc SAILOR 3965 UHF Fire Fighter radio 21 06 December 2020 Cobham plc](http://slidetodoc.com/presentation_image_h/f4ce2df2247f1a8f3b33026e2146bdcb/image-22.jpg)
SAILOR 3965 UHF Fire Fighter radio 21 06 December 2020 Cobham plc
![SAILOR UHF ATEX & Fire Fighter The Solution SAILOR UHF ATEX & Fire Fighter SAILOR UHF ATEX & Fire Fighter The Solution SAILOR UHF ATEX & Fire Fighter](http://slidetodoc.com/presentation_image_h/f4ce2df2247f1a8f3b33026e2146bdcb/image-23.jpg)
SAILOR UHF ATEX & Fire Fighter The Solution SAILOR UHF ATEX & Fire Fighter Radio • IEC 60945 Approved Maritime Radio • Heavy duty rugged IP 67 Portable Radio • Large display for radio and channel identification • UHF frequency for optimal indoor coverage • CTCSS for use with repeater system • Logical tactile buttons for intuitive and safe operation • ATEX Class II 2 G Ex ib IIB T 4 • Complete package solution for SOLAS Chapter II-2, 10. 4 • Red colour for identification of purpose • Options for ATEX non-rechargeable emergency battery • Options for ATEX RSM and PTT 22 06 December 2020 Cobham plc
![SAILOR 3965 UHF Fire Fighter radio • Audio in feedback to headset of channel SAILOR 3965 UHF Fire Fighter radio • Audio in feedback to headset of channel](http://slidetodoc.com/presentation_image_h/f4ce2df2247f1a8f3b33026e2146bdcb/image-24.jpg)

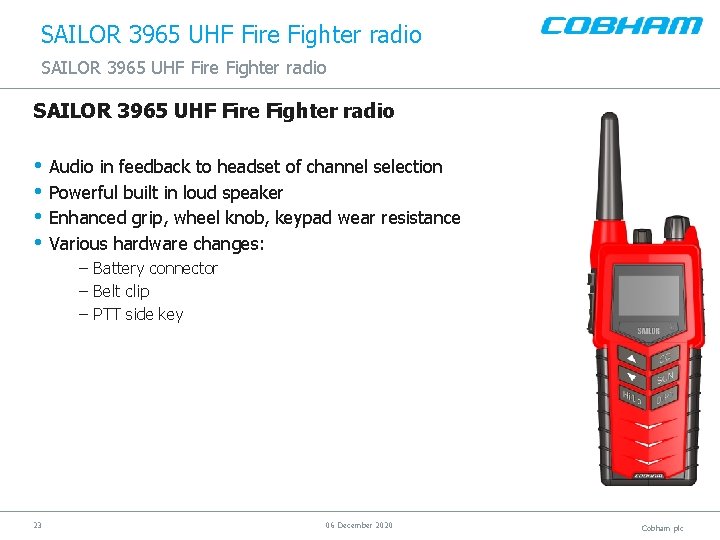

SAILOR 3965 UHF Fire Fighter radio • Audio in feedback to headset of channel selection • Powerful built in loud speaker • Enhanced grip, wheel knob, keypad wear resistance • Various hardware changes: – Battery connector – Belt clip – PTT side key 23 06 December 2020 Cobham plc
![SAILOR 3965 UHF ATEX Fire-Fighter Radio ATEX Accessories • ATEX Accessories from 3 rd. SAILOR 3965 UHF ATEX Fire-Fighter Radio ATEX Accessories • ATEX Accessories from 3 rd.](http://slidetodoc.com/presentation_image_h/f4ce2df2247f1a8f3b33026e2146bdcb/image-25.jpg)
SAILOR 3965 UHF ATEX Fire-Fighter Radio ATEX Accessories • ATEX Accessories from 3 rd. Party – – – – 24 SAVOX C-C 500 Remote Speaker Microphone SAVOX C-C 440 Push-To-Talk unit SAVOX HC-E Headset w/integrated electret mike SAVOX HC-1 Headset w/bone-conductive speaker/microphone PELTOR FL 5261 Push-To-Talk unit PELTOR ATEX Headset PELTOR ATEX Tactical Dynamic Headset 06 December 2020 Cobham plc
