SAILOR 900 VSAT – A NEW STANDARD CONTENT ü References ü Performance ü Cost advantages ü What is special about this antenna? ü Dual Antenna Operation ü SNMP SAILOR VSAT - A new standard 24 November 2020 Cobham SATCOM
SAILOR 900 VSAT – A NEW STANDARD SUCCESS • SAILOR 900 VSAT is a high performance Ku-band antenna system • Fastest selling new maritime VSAT antenna • More than 2, 000 units in the field already • Top tier customers • Full serviceability worldwide SAILOR VSAT - A new standard 24 November 2020 Cobham SATCOM
SAILOR 900 VSAT – A NEW STANDARD REFERENCES Installed on a variety of vessels: ü ü ü ü ü Container liners Tankers Heavy lift vessels Passenger vessels Fishing trawlers Offshore supply vessels Tug boats Jack-up rigs Super. Yachts SAILOR VSAT - A new standard 24 November 2020 Shipping Companies Maersk Line Maersk Tankers Maersk Supply Services Multra Tugs Hansa Heavy Lift De Poli Tankers Besiktas Shipping and many more… Cobham SATCOM
PERFORMANCE 4 SAILOR VSAT - A new standard 24 November 2020 Cobham plc
SAILOR 900 VSAT Superior Design • • • A world-class SAILOR® product. In-house design. Scientific approach to R&D. Standardized, simplified antenna. All Ku-band networks, global or regional. Robust construction, top performance. Simple & easy set-up. Service-minded. Remote diagnostics. SAILOR VSAT - A new standard Cobham plc
SAILOR 900 VSAT Superior mechanical performance • • • 3 -axis (plus auto skew) stabilised tracking antenna with integrated GPS Yaw Elevation Range: -25° to +125° Unlimited Azimuth Range Sway – Rotary Joint • Surge Ship motion, angular: – Roll ± 30° – Pitch ± 15° – Yaw ± 10° • Pitch Roll Ship, turning rate and acceleration: – 15°/s and 15°/s 2 • ADU motion, linear: – Linear accelerations ± 2. 5 g max any direction 6 SAILOR VSAT - A new standard 24 November 2020 Heave Cobham plc
SAILOR 900 VSAT Superior RF Performance Antenna Dish size G/T EIRP TX Gain RX Gain SAILOR 900 VSAT 103 cm 19. 9 db/K 40 d. BW 41. 9 d. Bi 40. 1 d. Bi KNS Super. Track Z 10 100 cm 18. 65 d. B/K TBD 40. 5 d. Bi 39. 5 d. Bi SAILOR 800 VSAT 83 cm 18. 2 db/K 47. 9 d. BW 40. 6 d. Bi 38. 8 d. Bi Intellian V 100 103 cm 18. 3 db/K 40. 3 d. BW 41. 7 d. Bi 39. 8 d. Bi SAILOR VSAT - A new standard 24 November 2020 Cobham SATCOM
SAILOR 900 VSAT Comparison of Mechanical Performance SAILOR 900 VSAT Intellian v 100 KNS Super. Track Z 10 -25° to +125° -15° to +120° -20º to +105º Roll ± 30° ± 25° ± 35° Pitch ± 15° Yaw ± 10° ± 8° Not disclosed 15°/s and 15°/s 2 12°/s and 5°/s 2 Not disclosed Elevation Turning rate DISCLAIMER: Competitive data is retrieved from publicly available information. SAILOR VSAT - A new standard 24 November 2020 Cobham SATCOM
COST ADVANTAGES 10 SAILOR VSAT - A new standard 24 November 2020 Cobham plc
SAILOR 900 VSAT Workshop Preparations Traditional VSAT • Prior to installation: modifications, tests. LNBs fitted? BUC pre-installed? Any safety straps? Balancing required? Calibration required? Electrical wiring work? RX & TX cabling needed? 11 SAILOR 900 VSAT SAILOR VSAT - A new standard • • Drop ship directly to port of installation. No safety brackets or straps! No balancing or calibration required. Easy access to antenna connector through transportation box. Time & cost savings: • Hours/days saved in preparation work • Minimum shipping cost • Shortest delivery time to customer • Less antennas in stock 24 November 2020 Cobham plc
SAILOR 900 VSAT Balancing Traditional VSAT • 12 SAILOR 900 VSAT 15+ interacting balancing points – Dependent on RF configuration. – Time consuming task! SAILOR VSAT - A new standard • 24 November 2020 No action required! – Global RF package from factory – 100% balanced from factory. Cobham plc
SAILOR 900 VSAT Less Preparation Traditional VSAT • • SAILOR 900 VSAT Step 1 – Remove radome Step 2 – Remove web strap and tie wrap from the pedestal Step 3 – Remove buckle Step 4 – Reverse process for shipping • No action required! – No safety brackets and strips to be removed – Brakes when power is OFF • UPS is not a requirement • Shipped as is! DC motor brake. Patent pending! 13 SAILOR VSAT - A new standard 24 November 2020 Cobham plc
SAILOR 900 VSAT Reduce installation cost Traditional VSAT • • • 14 3 cables 3 times work 3 points of failure SAILOR VSAT - A new standard SAILOR 900 VSAT • • • 24 November 2020 One cable Less work Same cable type as Fleet. Broadband Cobham plc
SAILOR 900 VSAT Reduced Cost of Cabling Traditional VSAT • SAILOR 900 VSAT • Recommended cables @ 50 m – RX • RG-11 or LMR-400 -75 – • • RG-11 or LMR-400 -75 – 5. 08/3. 60 USD MSRP per meter – BUC power • 2 x 2 mm² – • 15 – 5. 08/3. 60 USD MSRP per meter – TX 1. 55 USD MSRP per meter Total cost MSRP = $ 437. 50 SAILOR VSAT - A new standard Recommended cable @ 50 m – RX/TX, power and control • RG-214 2. 95 USD MSRP per meter Total cost MSRP = $ 147. 50 Cost benefits: • Less cable needed • Low-cost, high-loss coax cable – Longer and/or less expensive • Faster and easier to deploy • Less installation work at new installs and retrofit 24 November 2020 Cobham plc
SAILOR 900 VSAT Save Shipping Cost & Time Example: Air freight from London to Perth … Traditional VSAT • • • SAILOR 900 VSAT Transport box: if >160 cm on any side Delivery time: 2 -5 days Cost: $7, 400 USD • • • Transport box: 159, 5 x 145 cm Delivery time: 2 -3 days Cost: $2, 250 USD London Alternatively air freight to Sydney and then by truck to Perth. Delivery time: 3 weeks Cost: $5, 500 USD 16 SAILOR VSAT - A new standard Perth 24 November 2020 Cobham plc

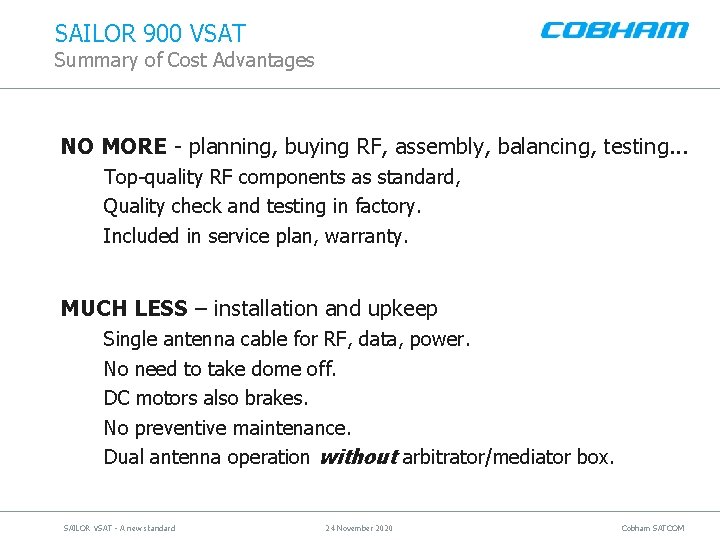

SAILOR 900 VSAT Summary of Cost Advantages NO MORE - planning, buying RF, assembly, balancing, testing. . . • Top-quality RF components as standard, • Quality check and testing in factory. • Included in service plan, warranty. MUCH LESS – installation and upkeep • • • Single antenna cable for RF, data, power. No need to take dome off. DC motors also brakes. No preventive maintenance. Dual antenna operation without arbitrator/mediator box. SAILOR VSAT - A new standard 24 November 2020 Cobham SATCOM
WHAT IS SPECIAL ABOUT THIS ANTENNA? 18 SAILOR VSAT - A new standard 24 November 2020 Cobham plc
SAILOR 900 VSAT A new standard – achieved through innovation Dynamic Motor Brakes Compact RF design Automatic Azimuth Calibration Fixed TX gain Modules back up each other Global RF Configuration: 8 W BUC, x-pol, co-pol Rotary joint Single coax cable SAILOR VSAT - A new standard Cobham plc
SAILOR 900 VSAT Global RF Configuration • Rx & Tx needs separation – Diplexer (Co-Pol) – OMT (X-Pol) • LNBs needs protection against Tx power – Rx rejection filters LNB 1 X-Pol LNB 2 Co-Pol SAILOR VSAT - A new standard RX Rejection Filter 1 50 -60 d. B isolation RX Rejection Filter 2 50 -60 d. B isolation Ortho Mode Transducer (OMT) RX Diplexer TX Low pass 40 d. B isolation BUC P 1 d. B = +39 d. Bm High pass Cobham plc
SAILOR 900 VSAT LNB Converter • 2 pcs Dual band LNBs (X-Pol / Co-Pol) – Hardware LOs: 9. 75 GHz, 10. 75 GHz – Input: 10. 7 GHz to 12. 75 GHz – Output: 950 MHz – 2150 MHz • • • Designed to Cobham SATCOM specifications. Cobham SATCOM part owns the supplier. LNBs comes with 2 years warranty and are available in stock globally! • SAILOR VSAT supported LOs by modem: – – – i. Direct: Comtech: ROSS Server: Gilat Sky. Edge II: STM 2900: G 5 Inmarsat: SAILOR VSAT - A new standard Low-Noise Block Any LNB LO frequency 9. 75 GHz, 10. 25 GHz, 10. 75 GHz & 11. 25 GHz 9. 75 GHz & 10. 75 GHz 10. 00 GHZ, 10. 75 GHz, 11. 30 GHz and 9. 75 GHz Cobham plc
SAILOR 900 VSAT Any LNB LO - How is it possible? Example 1 SAILOR VSAT - A new standard Example 2 Cobham plc
SAILOR 900 VSAT Compact RF Package Traditional VSAT • • • SAILOR 900 VSAT BUC & other units placed on the sides. All repair must be done inside antenna. Very stiff and heavy design. • • Compact RF package. Easy to free. . . turn and pull – Bring it below deck for repair jobs • Lightweight and centred – Minimum added weight to balance dish. RF Packag e 23 SAILOR VSAT - A new standard 24 November 2020 Cobham plc

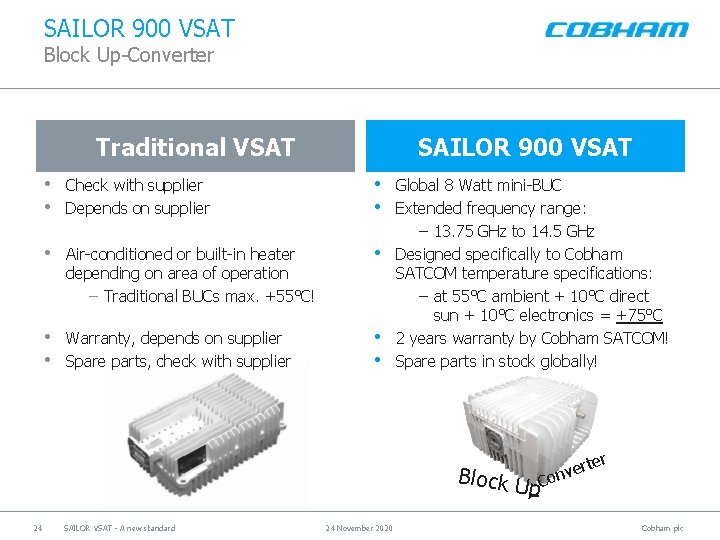

SAILOR 900 VSAT Block Up-Converter Traditional VSAT SAILOR 900 VSAT • • Check with supplier Depends on supplier • • • Air-conditioned or built-in heater depending on area of operation – Traditional BUCs max. +55°C! • • • Warranty, depends on supplier Spare parts, check with supplier • • Global 8 Watt mini-BUC Extended frequency range: – 13. 75 GHz to 14. 5 GHz Designed specifically to Cobham SATCOM temperature specifications: – at 55°C ambient + 10°C direct sun + 10°C electronics = +75°C 2 years warranty by Cobham SATCOM! Spare parts in stock globally! rter e v Con Block U p – 24 SAILOR VSAT - A new standard 24 November 2020 Cobham plc
SAILOR 900 VSAT Fixed gain in TX-chain • • Fixed TX gain independent of temperature, frequency and antenna cable loss. Always the same modem TX power at each installation. Full utilisation of the BUC. Automatic calibration. SAILOR 900 ADU VSAT Modem SAILOR 900 ACU TX port • • • 25 Cable loss Interface Module Fixed gain ~ 44 d. B (independent of frequency, BUC variation & cable loss) BUC output P 1 d. B = 39 d. Bm BUC P 1 d. B = +39 d. Bm SAILOR 900 VSAT gain = 44 d. Bm Modem P 1 d. B = +39 - 44 = -5 d. Bm SAILOR VSAT - A new standard 24 November 2020 Cobham plc
SAILOR 900 VSAT Fixed Gain - Why? Traditional VSAT • • • SAILOR 900 VSAT P 1 d. B compression point will change when changing satellite or frequency. A cable loss of 3 d. B will allow only ½ output power of the BUC. Degrading of the coax cable over time. • • Output Power Same P 1 d. B after roaming to another satellite! Same TX power at all TX frequencies! Same TX output regardless of cable type and length! Result … always optimal performance. Output Power BUC saturated! Falling output power due to TX cable loss 8 Watt P 1 d. B test with hub Less power! 950 MHz 26 SAILOR VSAT - A new standard 1450 MHz 1700 Freq. MHz 24 November 2020 950 MHz 1450 MHz 1700 Freq. MHz Cobham plc
SAILOR 900 VSAT Fixed gain - how? • OMT has built-in coupler to measure BUC output power - unique SAILOR VSAT feature • Measures cable characteristics when performing cable calibration. • OMT and Diplexer built together. – Very compact RF design – Low loss waveguide interface between the feed-horn, BUC and the two LNBs. • Orthomod e Transduc er Built-in temperature sensor in OMT. – Runtime gain calibration – Monitoring BUC temperature NOTE: Cobham SATCOM engineers develops own specialized OMT, Diplexer, RF rejection filters, feed horn and rotary joint. SAILOR VSAT - A new standard Cobham plc
SAILOR 900 VSAT Antenna cable calibration • • • 28 SAILOR 900 VSAT automatically compensates for antenna cable loss. Measures delay and cable loss over frequency and stores cable characteristics. Ensures a fixed gain of 44 d. B over frequency: – From modem TX port to BUC output • Antenna cable specification: – 50Ω impedance – Max. 20 d. B loss @ 2000 MHz – Up to 1Ω DC resistance • Examples of antenna cables: – RG-223 up to 75 feet – RG-214 up to 150 feet – LMR-600 up to 300 feet • Connector type: N-male • Same cable as for Fleet. Broadband! SAILOR VSAT - A new standard 24 November 2020 Cobham plc
SAILOR 900 VSAT Rotary Joint • • • 29 Rotary joint 100% in-house R&D! 1 x 50 Ω single cable solution! >100. 000 rotation @ 50 RPM No cable unwrap! No slip rings! SAILOR VSAT - A new standard • • 24 November 2020 Feeds 10 MHz ref. , DC power, RF and modem communication Self lubricating material +10 years lifetime Cobham plc
SAILOR 900 VSAT Quick Test Fixed heading Azimuth calibration – LNBs • Cable Calibration – BUC SAILOR VSAT - A new standard Cobham plc
QUESTIONS ? SAILOR VSAT - A new standard 24 November 2020 Cobham plc
INTERACTION VSAT <=> FB 32 SAILOR VSAT - A new standard 24 November 2020 Cobham plc
ADVANTAGE: BUNDLES Remote Management Statistics Remote SMS activation Diagnostics Standard Data (pay-per-MB) Configuration Remote Access User Group SAILOR VSAT - A new standard Firmware upload 24 November 2020 Cobham SATCOM
QUESTIONS ? SAILOR VSAT - A new standard 24 November 2020 Cobham plc
GLOBAL SERVICE & SUPPORT Cobham SATCOM
SAILOR 900 VSAT Successful Service - The First Time • Easy troubleshooting – Power & status LED on each module. • Service friendly – Easy accessible modules. – Four pcs. 4 -HEX with safety washers. • Quick swap – No re-balancing required. • Back-up of all vital data – Restore vital calibration data with a click in the SAILOR web interface. SAILOR VSAT - A new standard Cobham plc
SAILOR 900 VSAT Service Features • • Closed modules. Service only with supplied Allen Key! All other 4 -HEX 37 SAILOR VSAT - A new standard 24 November 2020 Cobham plc
SAILOR 900 VSAT Statistics Tool • 38 SAILOR VSAT - A new standard 24 November 2020 Upload and view your statistic reports here http: //esupport. thrane. com/TT/s 900 Stats/index. php Cobham plc
SAILOR 900 VSAT Features & Benefits Ø Performance – Superior RF performance: G/T – Superior motion performance – IEC EN 60721 -4 -6 Ø Cost savings – – – – 100% factory balanced Ship directly to vessel Only 1 antenna cable Configured in minutes via webserver Automatic cable and home-flag calibration Global Service & Support Service friendly design Ø Gyro free operation support Ø Dynamic Motor Brakes, no UPS required! Ø Operational up to ambient of +55˚C, no Aircon required! Ø Fixed gain at all frequencies and temperatures Ø 1 month statistic logging and SNMP support. SAILOR VSAT - A new standard Cobham plc
