OUTLINE • The Mediterranean Operational Oceanography Network (MOON) and the GMES European Marine Service: system design and implementation • Specific products of INGV • The regional experience of ADRICOSM, and the Adriatic Observing System • Conclusions

Operational oceanography in the Mediterranean Sea: 1995 -today Real Time Observing System from satellites and in situ platforms Numerical models for shelf and coastal areas Numerical models of hydrodynamics and biochemistry at basin scale End-User applications Downstream services MOON: Mediterranean Operational Oceanography Network 16 nations involved, 36 institutions http: //www. moon-oceanforecasting. eu

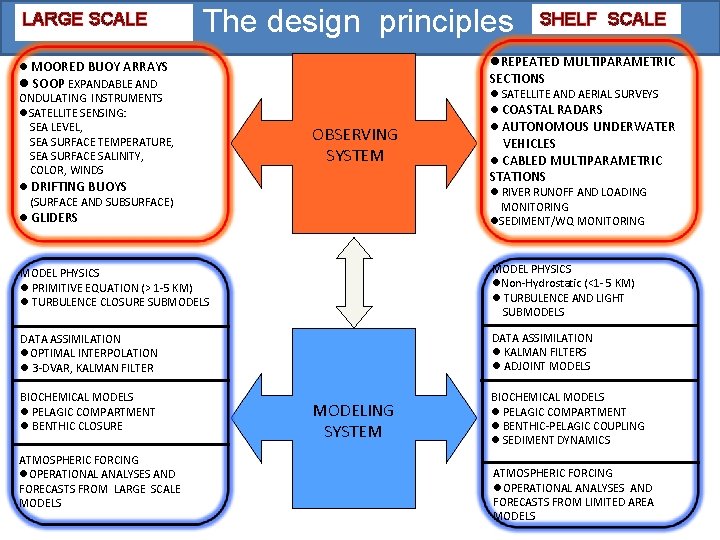

LARGE SCALE The design principles MOORED BUOY ARRAYS SOOP EXPANDABLE AND ONDULATING INSTRUMENTS SATELLITE SENSING: SEA LEVEL, SEA SURFACE TEMPERATURE, SEA SURFACE SALINITY, COLOR, WINDS DRIFTING BUOYS (SURFACE AND SUBSURFACE) GLIDERS SHELF SCALE REPEATED MULTIPARAMETRIC SECTIONS OBSERVING SYSTEM SATELLITE AND AERIAL SURVEYS COASTAL RADARS AUTONOMOUS UNDERWATER VEHICLES CABLED MULTIPARAMETRIC STATIONS RIVER RUNOFF AND LOADING MONITORING SEDIMENT/WQ MONITORING MODEL PHYSICS PRIMITIVE EQUATION (> 1 -5 KM) TURBULENCE CLOSURE SUBMODELS MODEL PHYSICS Non-Hydrostatic (<1 - 5 KM) TURBULENCE AND LIGHT SUBMODELS DATA ASSIMILATION OPTIMAL INTERPOLATION 3 -DVAR, KALMAN FILTER DATA ASSIMILATION KALMAN FILTERS ADJOINT MODELS BIOCHEMICAL MODELS PELAGIC COMPARTMENT BENTHIC CLOSURE ATMOSPHERIC FORCING OPERATIONAL ANALYSES AND FORECASTS FROM LARGE SCALE MODELS MODELING SYSTEM BIOCHEMICAL MODELS PELAGIC COMPARTMENT BENTHIC-PELAGIC COUPLING SEDIMENT DYNAMICS ATMOSPHERIC FORCING OPERATIONAL ANALYSES AND FORECASTS FROM LIMITED AREA MODELS

MOON data collection system: Basin scale and real time Click click XBT VOS/SOOP high resolution (12 nm along track and full profile transmission, few hours delay) 20 ARGO floats deployed from VOS (few hours delay) ENVISAT JASON GFO ERS Multiparametric buoys in: Ligurian Sea, Adriatic Sea and Cretan Sea (few hours delay) Scatterometer DAILY winds analysis, 1/2 x 1/2 (one week delay) T/¨P Daily satellite SST interpolated in RT on model grid (one day delay) click Open ocean monitoring by gliders (few hours delay) JASON-1, GFO, ENVISAT, T/P Sea Level Anomalies (few days delay)

My. Ocean: The European GMES Marine Core Service functions Satellite and in situ data Geoportal For Data Access The Marine Core Service delivers regular and systematic reference information on the state of the oceans and regional seas of known quality and accuracy

A catalogue of « common denominator » data • • Currents, Temperature, Salinity Sea Level, Sea Ice, Surface winds Biogeochemistry DISCOVER VIEW DOWNLOAD Open & Free • 239 products Slide taken from My. Ocean Coordinator

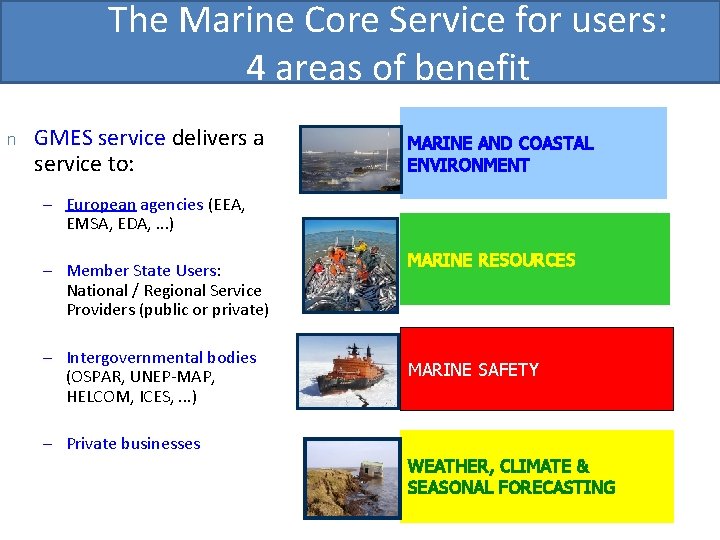

The Marine Core Service for users: 4 areas of benefit n GMES service delivers a service to: MARINE AND COASTAL ENVIRONMENT – European agencies (EEA, EMSA, EDA, . . . ) – Member State Users: National / Regional Service Providers (public or private) – Intergovernmental bodies (OSPAR, UNEP-MAP, HELCOM, ICES, . . . ) MARINE RESOURCES MARINE SAFETY – Private businesses WEATHER, CLIMATE & SEASONAL FORECASTING

My. Ocean catalogue www. myocean. eu • Sea Surface Height • Temperature • Salinity • Currents daily: 10 -day forecast weekly: 15 -day analysis once: reanalysis • Stokes drift currents • Wavenumber Med-MFC-currents ✔ • Chlorophyll • Nutrients • Dissolved Oxygen conc. • Primary production • Phytoplankton biomass Med-MFC-biogeochemistry ✔ ✔ ✔ bi-weekly: 10 -day ✔ forecast once: analysis

A regional experience: ADRICOSM • The Italian Ministry of Environment and Territory started an ADRICOSM Pilot Project in October 2001 to develop the monitoring and modelling of the Adriatic currents and ecosystem in order to detect changes and mitigate impacts • Other Projects will start in 2004 that will continue the ADRICOSM developments • The last ended of these projects is ADRICOSM-STAR: ADRICOSM INTEGRATED RIVER BASIN AND COASTAL ZONE MANAGEMENT SYSTEM: MONTENEGRO COASTAL AREA AND BOJANA RIVER CATCHMENT • The last on-going project is Adricosm-Intermediate

ADRICOSM APPROACH Coastal water cycle integrated strategy Numerical Multidisciplinary models of the Multi-platform atmosphere, Observing system marine and river (satellites, hydrodynamcs, atmospheric underground waters and coupled to water oceanographic stations, quality and river, urban sediment and underground water transport monitoring) Climate change scenario simulations coupled to regional/local models Production of generic high quality data for environmental managers and policy makers

Enhancement and continuation of the monitoring system Daily Ocean Color derived parameters have been produced for the study area since 1998 based on Sea. Wi. FS data (CNR-ISAC): • Total Suspended Matter (TSM) • Colored Dissolved Organic Matter (CDOM) • Attenuation coefficient (K_490) • Chlorophyll (Chl_a) March 4 th 2004

Enhancement and continuation of the monitoring system Wind Measurements and Data Statistics (OGS) A Meteo domain A B XBT domain Continuation of VOS Program (OGS) along the Trieste – Durres – Bari Track (XBTs) B

New monitoring stations in Montenegro Kotor • water quality Renewal of several hydromet stations Port of Bar • water level Fraskanjel • water level • flow

Adriatic Forecasting System http: //gnoo. bo. ingv. it/afs

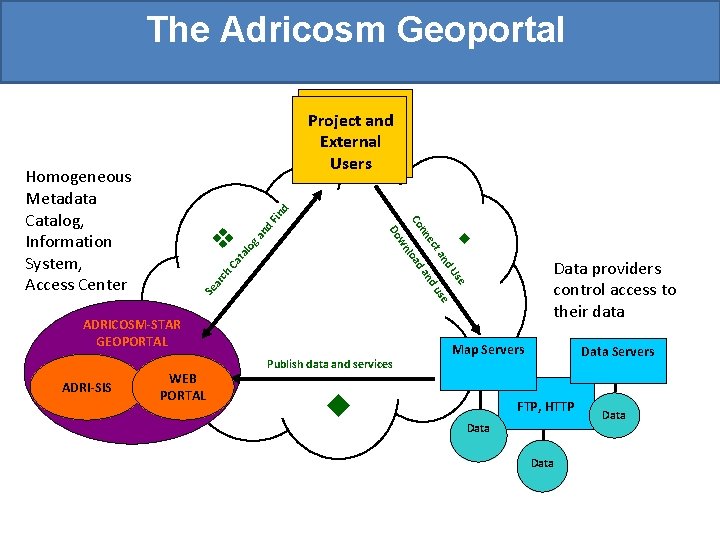

The Adricosm Geoportal ta lo ga Ca ch ar e Us u nd se Se Data providers control access to their data nd ta da WEB PORTAL ec a nlo ADRICOSM-STAR GEOPORTAL ADRI-SIS nn nd Co w Do Homogeneous Metadata Catalog, Information System, Access Center Fin d Project and External Users Publish data and services Map Servers Data Servers FTP, HTTP Data

The Adricosm Geoportal THEMES DISCOVERY SERVICE CENTERS NETWORK

The Adriatic Observing System (Italian side) Multiparametric Buoys/Stations ITA LY MAMBO (OGS) PALOMA (OGS) Acqua Alta (CNR) S 1 (CNR-ISMAR) E 2 M 3 A (OGS) HF Radars Lagrangian profilers Surface drifters Several Baros/Batos Installations on ferries and research vessels

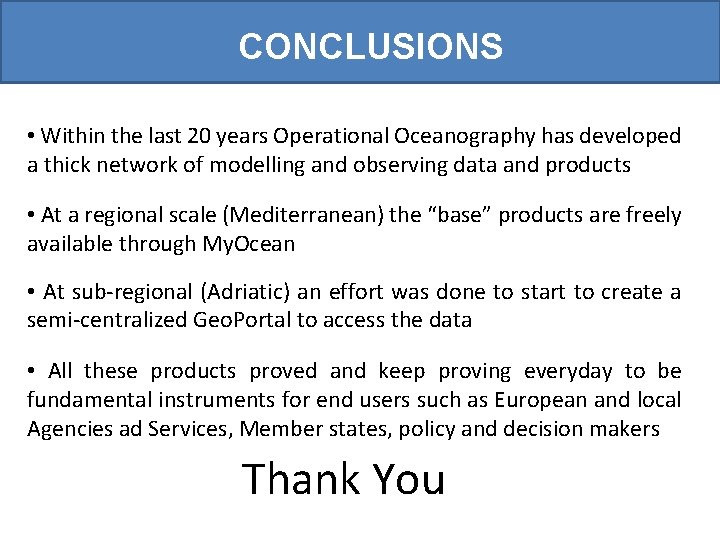

CONCLUSIONS • Within the last 20 years Operational Oceanography has developed a thick network of modelling and observing data and products • At a regional scale (Mediterranean) the “base” products are freely available through My. Ocean • At sub-regional (Adriatic) an effort was done to start to create a semi-centralized Geo. Portal to access the data • All these products proved and keep proving everyday to be fundamental instruments for end users such as European and local Agencies ad Services, Member states, policy and decision makers Thank You
