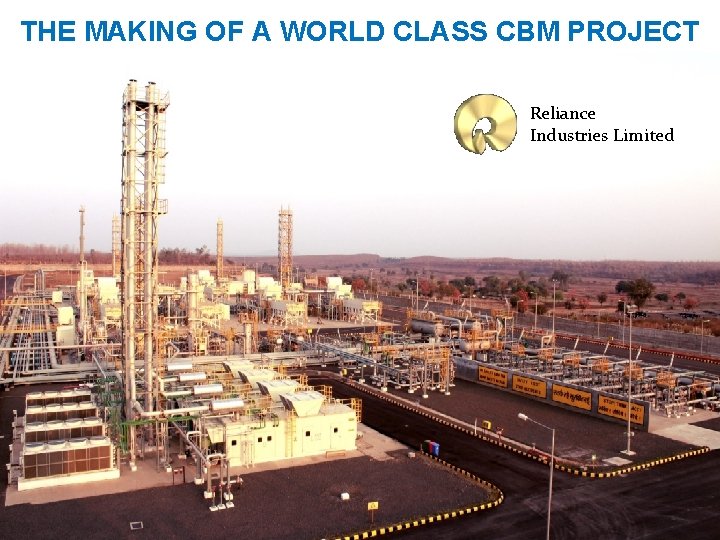

THE MAKING OF A WORLD CLASS CBM PROJECT

THE MAKING OF A WORLD CLASS CBM PROJECT Reliance Industries Limited

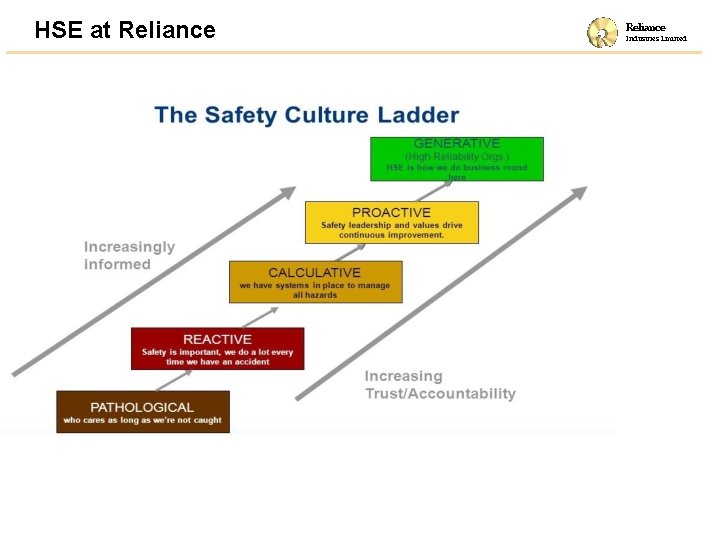

HSE at Reliance Industries Limited

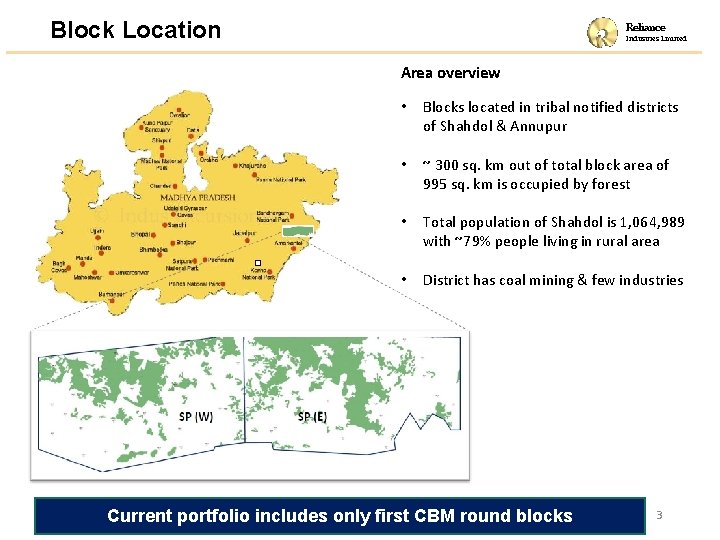

Block Location Reliance Industries Limited Area overview • Blocks located in tribal notified districts of Shahdol & Annupur • ~ 300 sq. km out of total block area of 995 sq. km is occupied by forest • Total population of Shahdol is 1, 064, 989 with ~79% people living in rural area • District has coal mining & few industries Current portfolio includes only first CBM round blocks 3

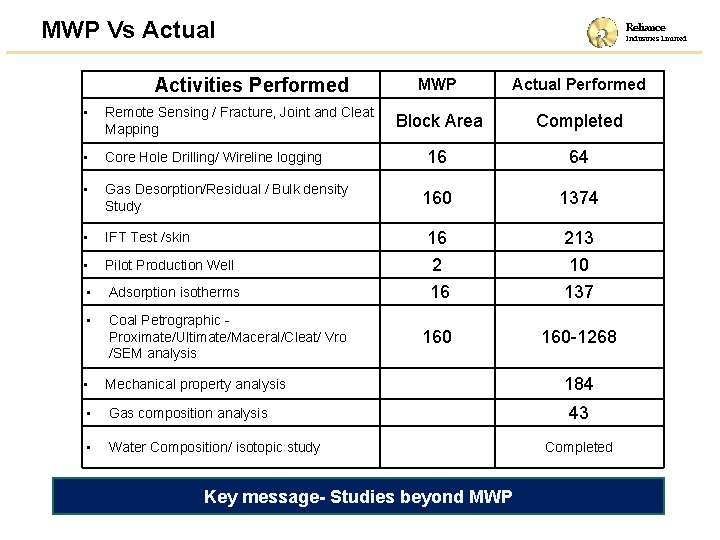

MWP Vs Actual Activities Performed Reliance Industries Limited MWP Actual Performed Block Area Completed 16 64 160 1374 16 213 • Remote Sensing / Fracture, Joint and Cleat Mapping • Core Hole Drilling/ Wireline logging • Gas Desorption/Residual / Bulk density Study • IFT Test /skin • Pilot Production Well 2 10 • Adsorption isotherms 16 137 • Coal Petrographic - Proximate/Ultimate/Maceral/Cleat/ Vro /SEM analysis 160 -1268 • Mechanical property analysis 184 • Gas composition analysis 43 • Water Composition/ isotopic study Completed Key message- Studies beyond MWP

World Class Find Reliance Industries Limited • Geological assessment of the area from information of data package • Surface Studies: • Lineament Studies from satellite images by ARI-USA. • Structural delineation (fractures, joints and faults). • Cleat, joint and fracture mapping. • Subsurface Studies: • Exploratory core holes located and preliminary CBM fairways identified • Geological modelling and risk assessment • Resource estimation and validation by RIL and external agencies • Fairway delineation CBM experts of ARI and Higgs Technologies after working with Sohagpur field termed it as a ‘’World Class Find”.

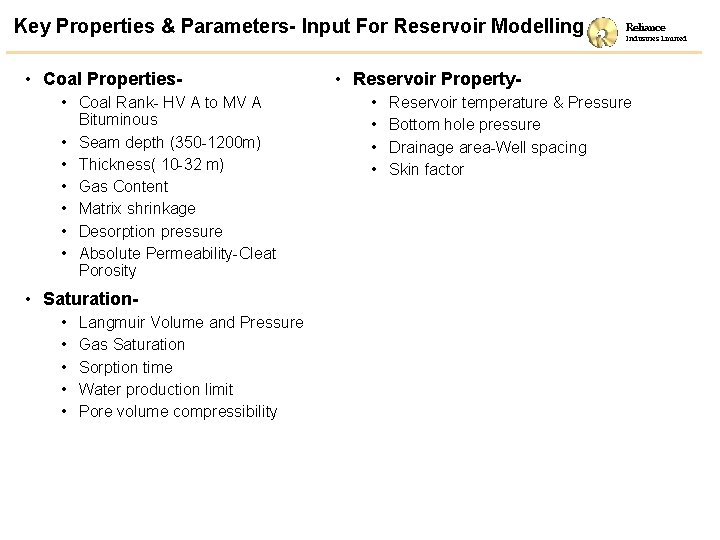

Key Properties & Parameters- Input For Reservoir Modelling • Coal Properties • Coal Rank- HV A to MV A Bituminous • Seam depth (350 -1200 m) • Thickness( 10 -32 m) • Gas Content • Matrix shrinkage • Desorption pressure • Absolute Permeability-Cleat Porosity • Saturation • • • Langmuir Volume and Pressure Gas Saturation Sorption time Water production limit Pore volume compressibility Reliance Industries Limited • Reservoir Property • • Reservoir temperature & Pressure Bottom hole pressure Drainage area-Well spacing Skin factor

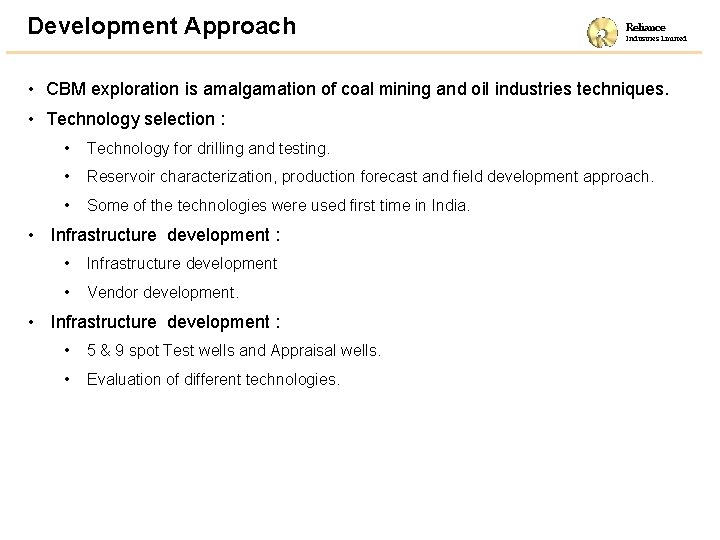

Development Approach Reliance Industries Limited • CBM exploration is amalgamation of coal mining and oil industries techniques. • Technology selection : • Technology for drilling and testing. • Reservoir characterization, production forecast and field development approach. • Some of the technologies were used first time in India. • Infrastructure development : • Infrastructure development • Vendor development. • Infrastructure development : • 5 & 9 spot Test wells and Appraisal wells. • Evaluation of different technologies.

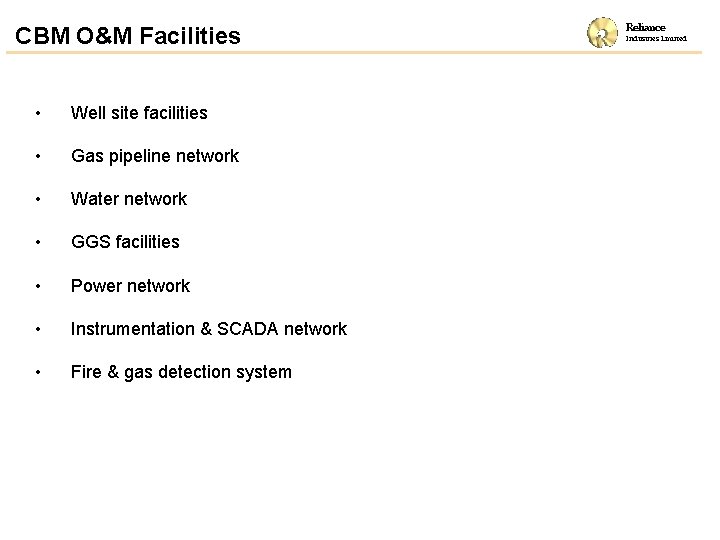

CBM O&M Facilities • Well site facilities • Gas pipeline network • Water network • GGS facilities • Power network • Instrumentation & SCADA network • Fire & gas detection system Reliance Industries Limited

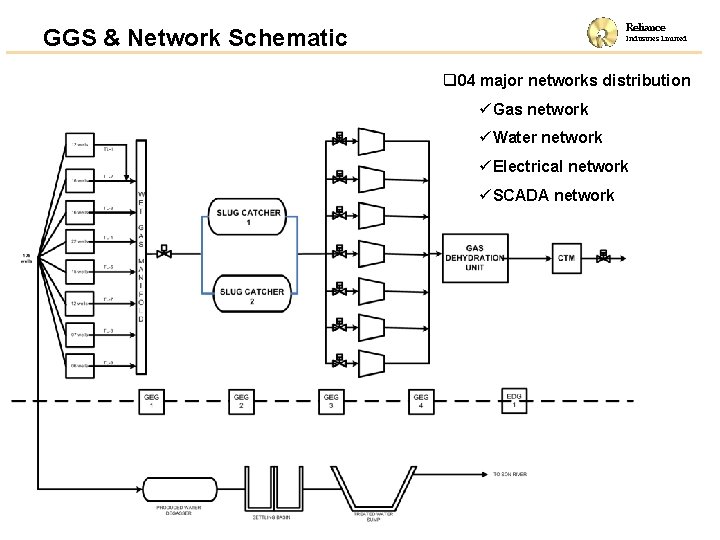

Reliance GGS & Network Schematic Industries Limited q 04 major networks distribution ü Gas network ü Water network ü Electrical network ü SCADA network

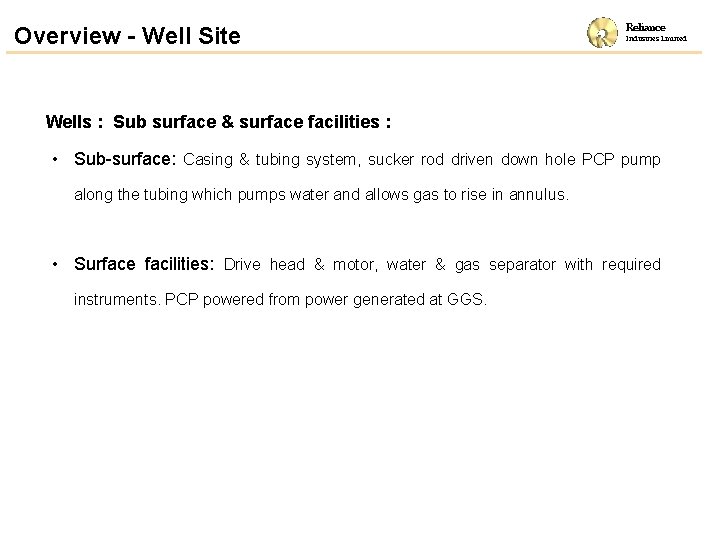

Overview - Well Site Reliance Industries Limited Wells : Sub surface & surface facilities : • Sub-surface: Casing & tubing system, sucker rod driven down hole PCP pump along the tubing which pumps water and allows gas to rise in annulus. • Surface facilities: Drive head & motor, water & gas separator with required instruments. PCP powered from power generated at GGS.

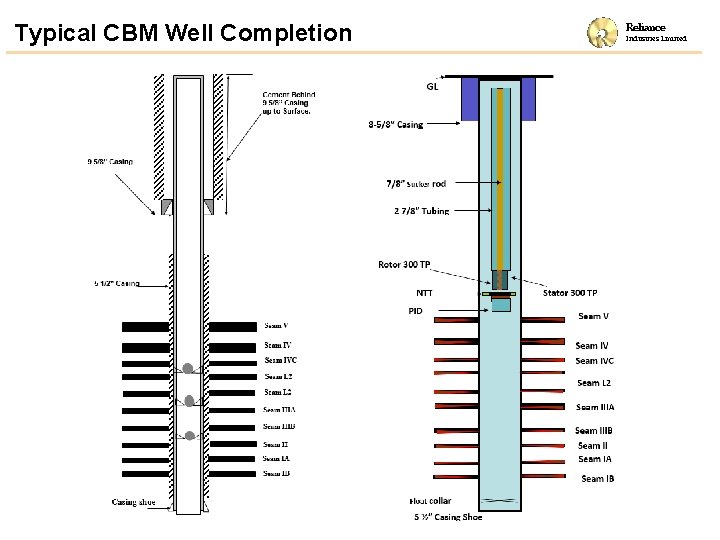

Typical CBM Well Completion Reliance Industries Limited

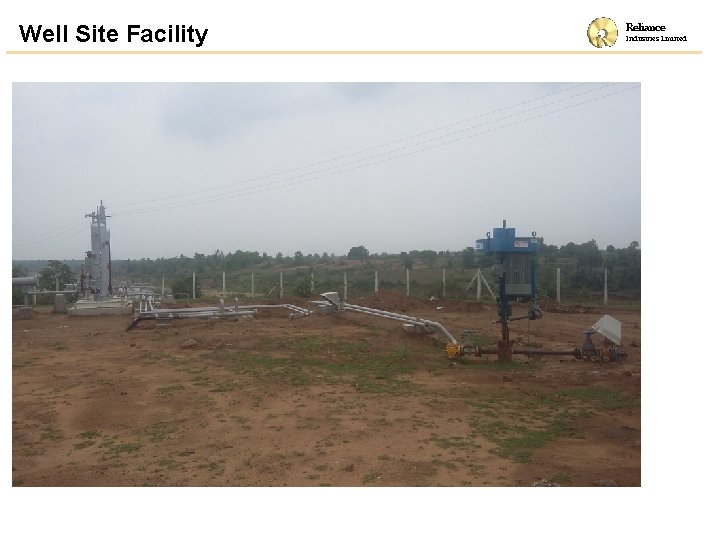

Well Site Facility Reliance Industries Limited

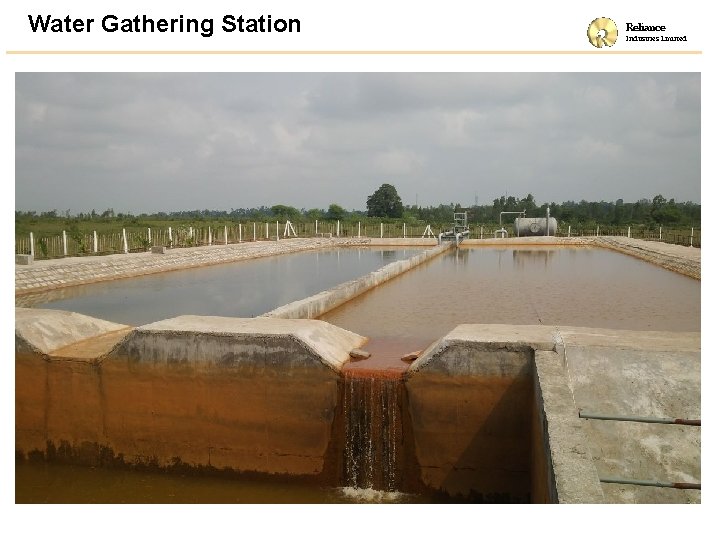

Water Gathering Station Reliance Industries Limited

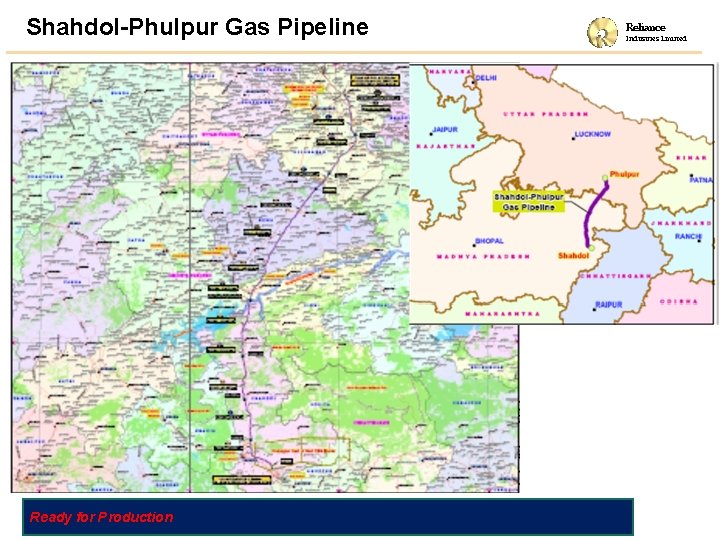

Shahdol-Phulpur Gas Pipeline Ready for Production Reliance Industries Limited

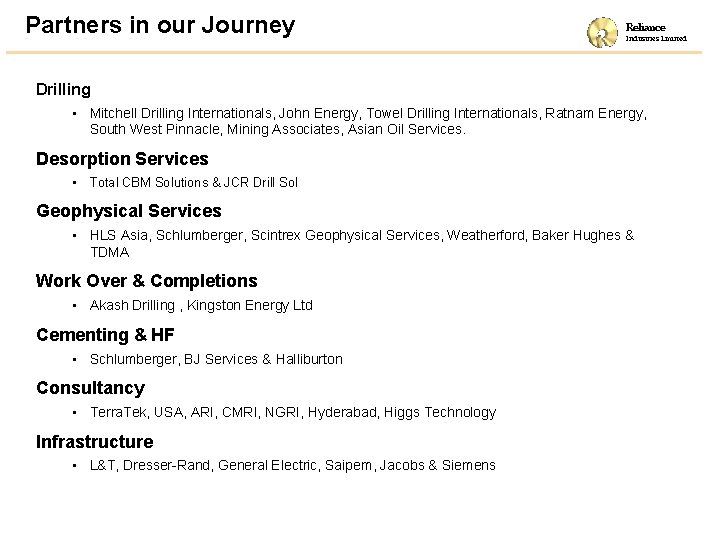

Partners in our Journey Reliance Industries Limited Drilling • Mitchell Drilling Internationals, John Energy, Towel Drilling Internationals, Ratnam Energy, South West Pinnacle, Mining Associates, Asian Oil Services. Desorption Services • Total CBM Solutions & JCR Drill Sol Geophysical Services • HLS Asia, Schlumberger, Scintrex Geophysical Services, Weatherford, Baker Hughes & TDMA Work Over & Completions • Akash Drilling , Kingston Energy Ltd Cementing & HF • Schlumberger, BJ Services & Halliburton Consultancy • Terra. Tek, USA, ARI, CMRI, NGRI, Hyderabad, Higgs Technology Infrastructure • L&T, Dresser-Rand, General Electric, Saipem, Jacobs & Siemens

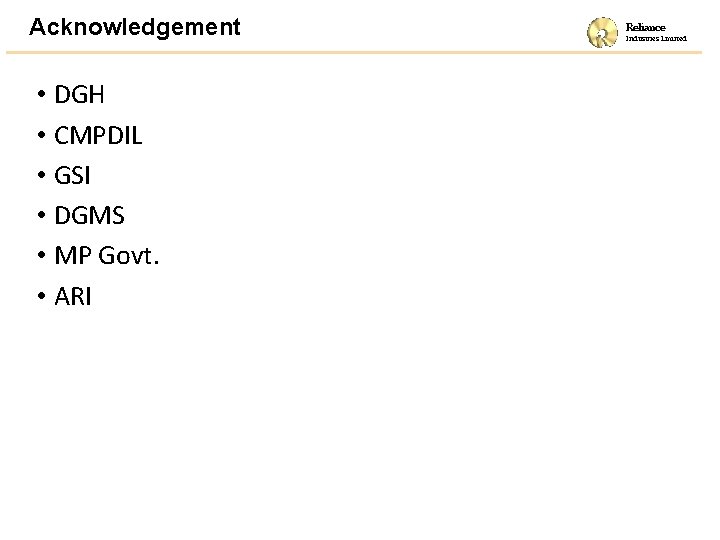

Acknowledgement • DGH • CMPDIL • GSI • DGMS • MP Govt. • ARI Reliance Industries Limited
