The long-term sequestration of CO 2 in solid form: the application of nesquehonite VINCENZO

The long-term sequestration of CO 2 in solid form: the application of nesquehonite VINCENZO FERRINI, CATERINA DE VITO, SILVANO MIGNARDI Dipartimento di Scienze della Terra, Università di Roma “La Sapienza”, P. le A. Moro, 5 – 00185 Roma, Italy vincenzo. [email protected] 1. it, [email protected] 1. it, silvano. [email protected] 1. it 1

Our option… We describe here encouraging results of our experiments on the synthesis of

Our option… We describe here encouraging results of our experiments on the synthesis of nesquehonite [Mg. CO 3· 3 H 2 O]* by flushing CO 2 in a Mg. Cl 2 solution with a view to investigate a possible role for nesquehonite in a “CO 2 sequestering process”. Our option could result a cost-effective niche CO 2 mineral sequestration process *Nesquehonite is a rare low-temperature carbonate encountered in alkaline soils and in cave deposits. It generally forms euhedral prismatic crystals, but also is found in fibroradial and botryoidal arrays. Ideal formula contains 29. 13% Mg. O, 39. 06% H 2 O, 31. 81% CO 2 2

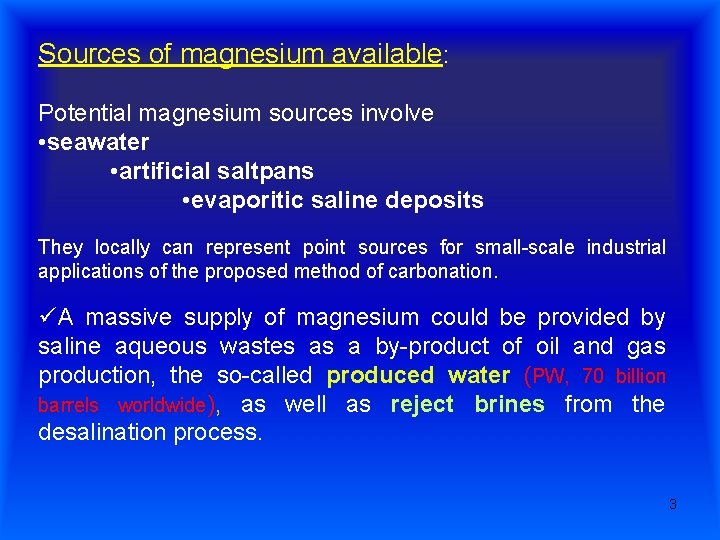

Sources of magnesium available: Potential magnesium sources involve • seawater • artificial saltpans •

Sources of magnesium available: Potential magnesium sources involve • seawater • artificial saltpans • evaporitic saline deposits They locally can represent point sources for small-scale industrial applications of the proposed method of carbonation. üA massive supply of magnesium could be provided by saline aqueous wastes as a by-product of oil and gas production, the so-called produced water (PW, 70 billion barrels worldwide), as well as reject brines from the desalination process. 3

The experiments in the first step: ü using both doubly distilled and tap water,

The experiments in the first step: ü using both doubly distilled and tap water, compressed CO 2 from SAPIO (Italy) ü analytical grade reagents (Mg. Cl 2· 6 H 2 O and NH 3, Merck p. a. ) ü the suitable range of p. H for the optimum formation of nesquehonite in our experimental conditions (7. 8– 8. 2) was adjusted by adding about 2% of ammonia solution ü in thirty-two experiments, we synthesized nesquehonite by sparging CO 2 at a rate of ~100 m. L/min through 200 m. L of a Mg. Cl 2· 6 H 2 O solution (~ 7 g/L of Mg) at 20 ± 2ºC ü the suspension was filtered using 0. 20 µm Nucleopore polycarbonate membrane filters, and washed with doubly distilled water and dried in air 4

Results The kinetics of the formation of the solid products were followed by sampling

Results The kinetics of the formation of the solid products were followed by sampling the solution at appropriate time intervals and measuring the concentration of Mg Fig. 2 Fig. 3 b Fig. 3 a The reaction rate is rapid, with carbonate deposition almost complete in about 10 minutes (Fig. 2). Nesquehonite exhibits well-formed needles up to 0. 5 mm in length and 30 m Ø (Fig. 3 a, b). 5

…. . results Fig. 4 shows a typical XRD pattern (sample AC 12); the

…. . results Fig. 4 shows a typical XRD pattern (sample AC 12); the precipitate has a very high degree of crystallinity. All patterns are in agreement with those reported in JCPDS card 20– 669 for nesquehonite. The TG-DTG curves (Fig. 5) document thermal decomposition of nesquehonite during gradual heating, proceeding via dehydration at low temperature (below 350°C) and, above that threshold, complete loss of CO 2 (427°C). 6

The efficiency of the CO 2 mineralization process ü On the basis of these

The efficiency of the CO 2 mineralization process ü On the basis of these experimental data, 81. 7 0. 7% of the sparged CO 2 was captured to form nesquehonite ü About 5% of the starting concentration of Mg was left in the solution after the carbonate formation 7

Thermal behavior of nesquehonite üThe results of our study, by in situ using real-time

Thermal behavior of nesquehonite üThe results of our study, by in situ using real-time laboratory parallel-beam Xray powder diffraction, show that nesquehonite appears to be stable up to 373 K suggesting that its storage as “sequestering medium of CO 2” remains stable under the temperature conditions that prevail at the Earth's surface ü At temperature above 373 K the process of thermal decomposition of nesquehonite (via intermediate hydrated magnesium carbonate phases) ultimately produces magnesite in the range 423 – 483 K. üThis sequence involves the formation of carbonate minerals thermodynamically more stable than nesquehonite, resulting in a CO 2 storage stable for millions of years. üTherefore, if the decomposition of nesquehonite would occur into underground storage facilities, this process further on would increase the safety of CO 2 disposal. 8

Possible uses for the nesquehonite and by-products üThe sequestration of CO 2 via carbonation

Possible uses for the nesquehonite and by-products üThe sequestration of CO 2 via carbonation produces a solid material that can be utilized as aggregate in bricks, blocks, mortars, and other building materials. üThis mineral can be used in the production of eco-cement* concretes because it contributes to strength of the concrete. üThe ammonium chloride solution produced in the process could be treated for recoverying the salt or decomposed by heat (~ 350°C) to obtain NH 3 and HCl. * F. Pearce, Green Foundations, New Scientist 175 (2002) 39 -40. J. Harrison, Tececo eco-cement masonry product update. www. tececo. com. 9

Why nesquehonite option merits further research ? ü our method as complementary solution could

Why nesquehonite option merits further research ? ü our method as complementary solution could be applied in the countries where the other solutions are not applicable and in those where suitable Mg. Cl 2 sources exist, also as by-product of several industrial processes ü the process is rapid, simple and environmentally friendly ü nesquehonite is a light, thermodynamically stable solid product allowing for the long-term storage of CO 2 ü the starting reactants are easy to be found ü nesquehonite can be used for industrial and agricultural purposes, and its near surface or underground disposal involves limited environmental risks ü by-products of the process are sought for a large number of industrial applications 10

Work in progress § Aqueous saline wastes having different salinities and pollutants (e. g.

Work in progress § Aqueous saline wastes having different salinities and pollutants (e. g. , Fe, Pb, Cu, Zn, etc. ) § CO 2 fluxes with different amount of the greenhouse gas § Tests of the process at power plants 11

“Nesquehonite solution” Ø Uses hazardous wastes (CO 2, saline wastewaters, PW) Ø Produces solid

“Nesquehonite solution” Ø Uses hazardous wastes (CO 2, saline wastewaters, PW) Ø Produces solid products stable for millions of years Ø Recycles by-products of other industrial processes 12

…our idea in a “naïve image” 13

…our idea in a “naïve image” 13

Main relevant products of the research Ferrini V. , De Vito C. , Mignardi

Main relevant products of the research Ferrini V. , De Vito C. , Mignardi S. (2009) Synthesis of nesquehonite by reaction of gaseous CO 2 with Mg chloride solution: Its potential role in the sequestration of carbon dioxide, J. Hazard. Mater. 168, 832 -837. Ballirano P. , De Vito C. , Ferrini V. , Mignardi S. (2010) The thermal behavior and structural stability of nesquehonite, Mg. CO 3· 3 H 2 O, evaluated by in situ laboratory parallel-beam X-ray powder diffraction: New constraints on CO 2 sequestration within minerals. J. Hazard. Mater. 178, 522– 528. 14
