The Lightcycler Carousel with capacity for 32 samples

The Lightcycler

Carousel with capacity for 32 samples

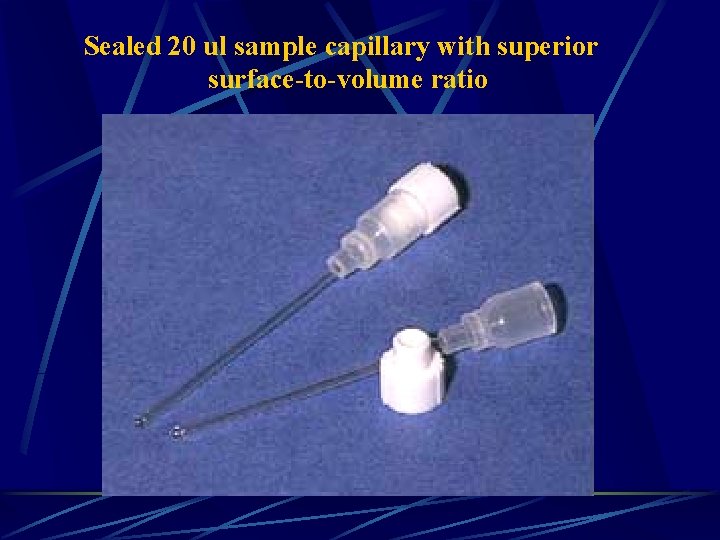

Sealed 20 ul sample capillary with superior surface-to-volume ratio

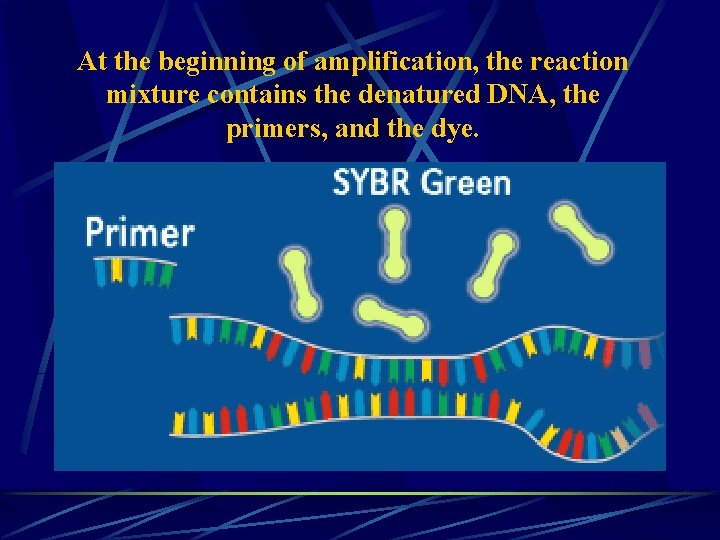

At the beginning of amplification, the reaction mixture contains the denatured DNA, the primers, and the dye.

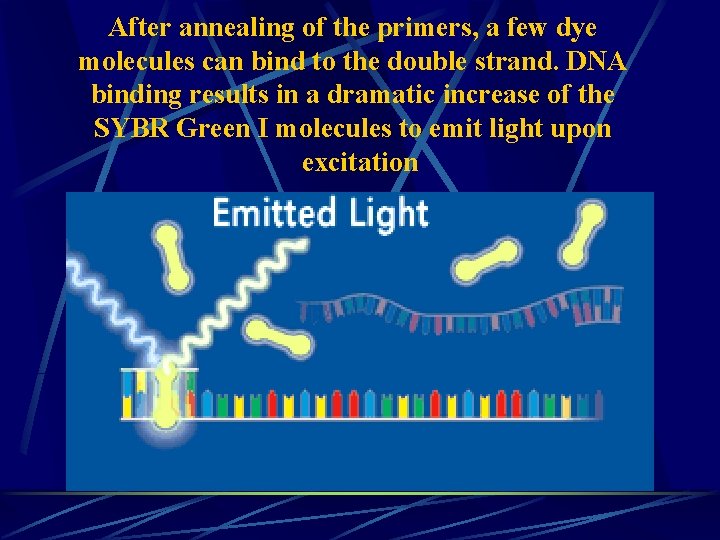

After annealing of the primers, a few dye molecules can bind to the double strand. DNA binding results in a dramatic increase of the SYBR Green I molecules to emit light upon excitation

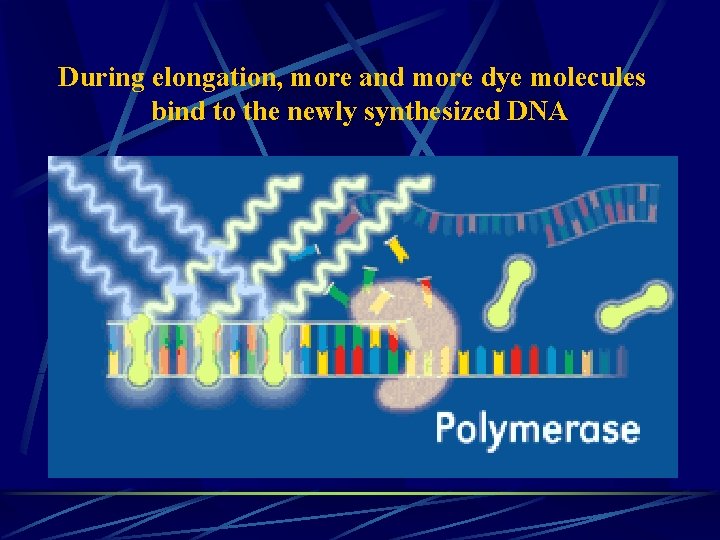

During elongation, more and more dye molecules bind to the newly synthesized DNA

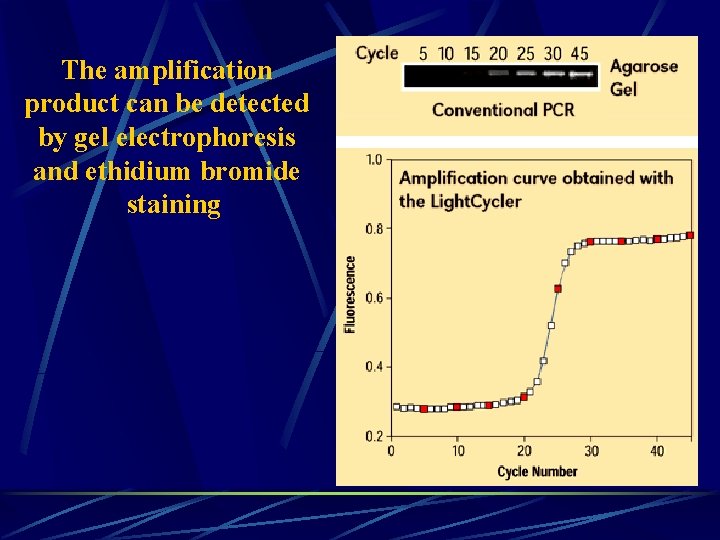

The amplification product can be detected by gel electrophoresis and ethidium bromide staining

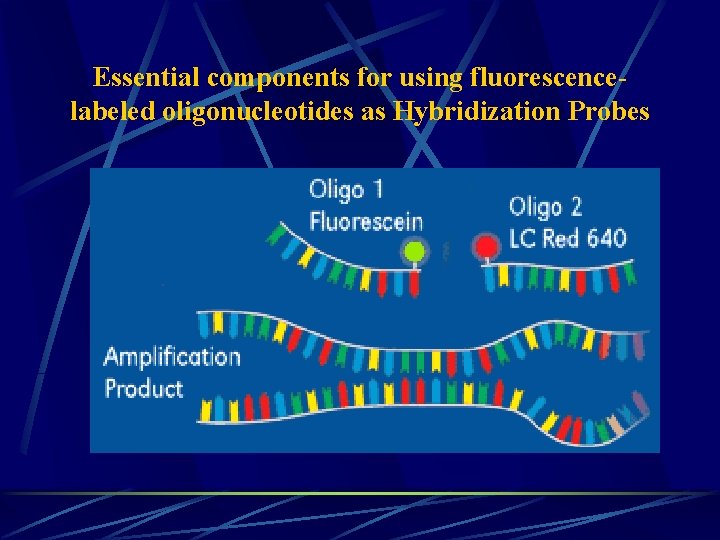

Essential components for using fluorescencelabeled oligonucleotides as Hybridization Probes

The first dye (fluorescein) is excited by the light. Cycler’s LED ( light Emitting Diode) filtered light source , and emits green fluorescent light at a slightly longer wavelength (middle figure)

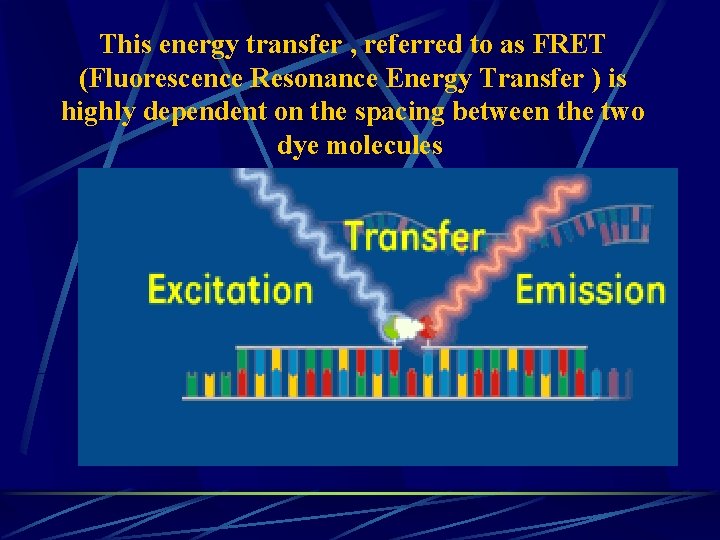

This energy transfer , referred to as FRET (Fluorescence Resonance Energy Transfer ) is highly dependent on the spacing between the two dye molecules

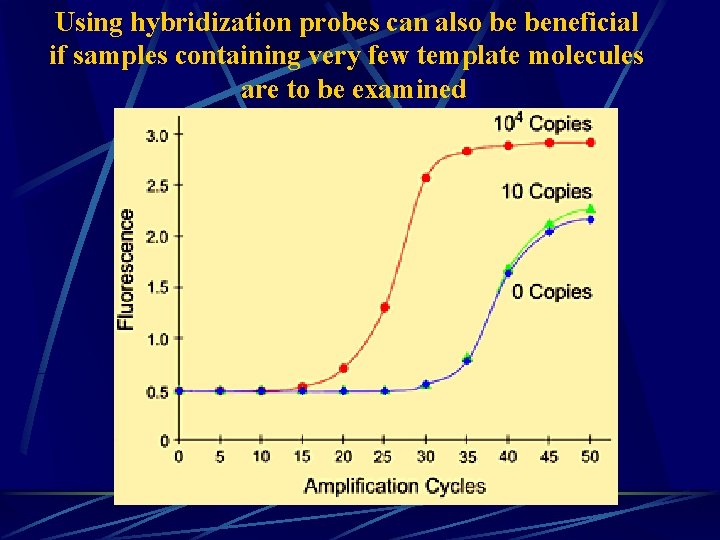

Using hybridization probes can also be beneficial if samples containing very few template molecules are to be examined

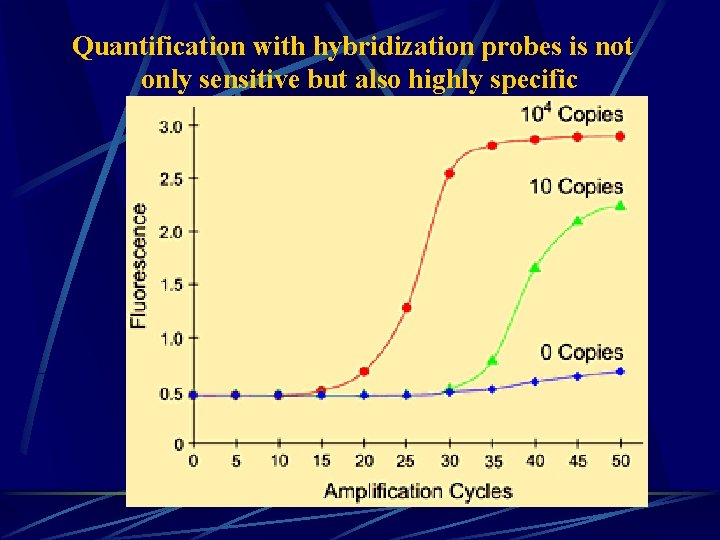

Quantification with hybridization probes is not only sensitive but also highly specific

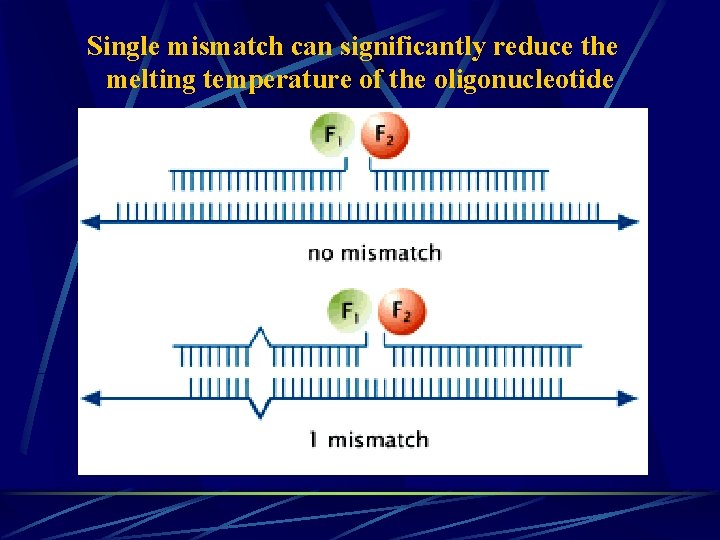

Single mismatch can significantly reduce the melting temperature of the oligonucleotide

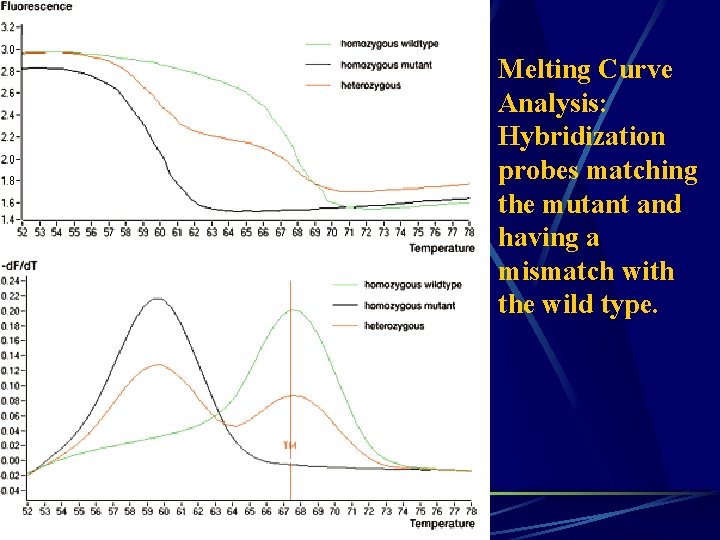

Melting Curve Analysis: Hybridization probes matching the mutant and having a mismatch with the wild type.

Philadelphia translocation t(9; 22) that is found is about 95% cases of chronic myelocytic leukemia (CML)

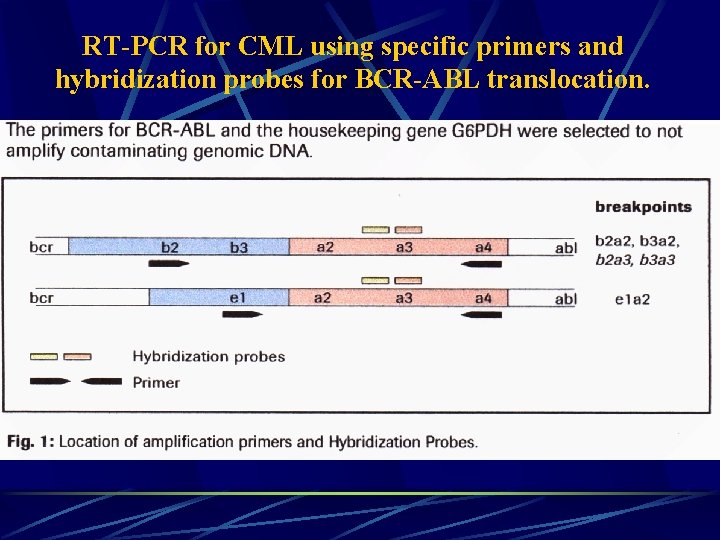

RT-PCR for CML using specific primers and hybridization probes for BCR-ABL translocation.
