- Slides: 18
![The LC and the Cosmos Connections in Supersymmetry Jonathan Feng UC Irvine American Linear The LC and the Cosmos: Connections in Supersymmetry Jonathan Feng UC Irvine American Linear](https://slidetodoc.com/presentation_image_h2/f55e19f342bfb296dbc48d9652016e9c/image-1.jpg)
The LC and the Cosmos: Connections in Supersymmetry Jonathan Feng UC Irvine American Linear Collider Physics Group Seminar 20 February 2003 ALCPG Seminar
![The ParticleCosmo Interface Many Grand Questions Baryogenesis Why is there more matter The Particle/Cosmo Interface Many Grand Questions: • Baryogenesis – Why is there more matter](https://slidetodoc.com/presentation_image_h2/f55e19f342bfb296dbc48d9652016e9c/image-2.jpg)

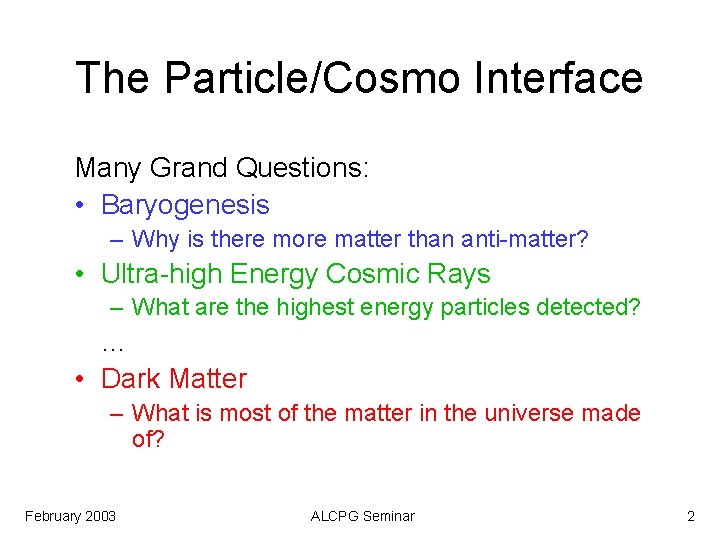

The Particle/Cosmo Interface Many Grand Questions: • Baryogenesis – Why is there more matter than anti-matter? • Ultra-high Energy Cosmic Rays – What are the highest energy particles detected? … • Dark Matter – What is most of the matter in the universe made of? February 2003 ALCPG Seminar 2
![Dark Matter The dawn of precision cosmology t 0 13 7 0 Dark Matter • The dawn of precision cosmology: t 0 = 13. 7 0.](https://slidetodoc.com/presentation_image_h2/f55e19f342bfb296dbc48d9652016e9c/image-3.jpg)

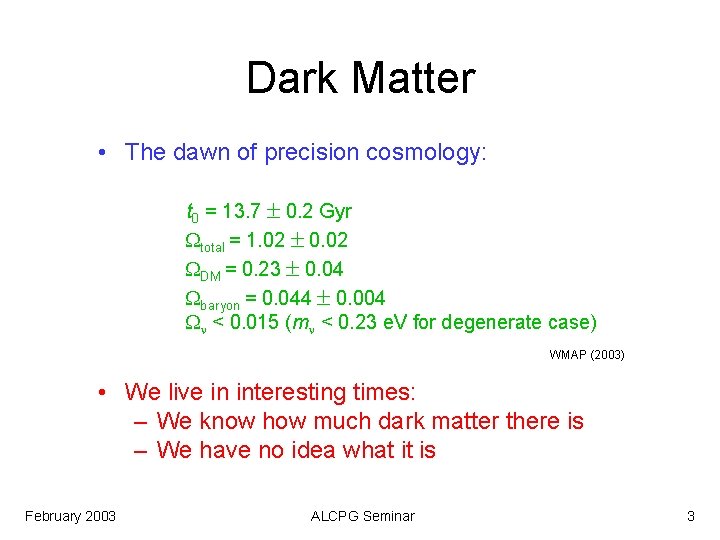

Dark Matter • The dawn of precision cosmology: t 0 = 13. 7 0. 2 Gyr Wtotal = 1. 02 0. 02 WDM = 0. 23 0. 04 Wbaryon = 0. 044 0. 004 Wn < 0. 015 (mn < 0. 23 e. V for degenerate case) WMAP (2003) • We live in interesting times: – We know how much dark matter there is – We have no idea what it is February 2003 ALCPG Seminar 3
![WIMPs Weaklyinteracting particles with weakscale masses naturally provide WDM Either a WIMPs • Weakly-interacting particles with weak-scale masses naturally provide WDM • Either – a](https://slidetodoc.com/presentation_image_h2/f55e19f342bfb296dbc48d9652016e9c/image-4.jpg)

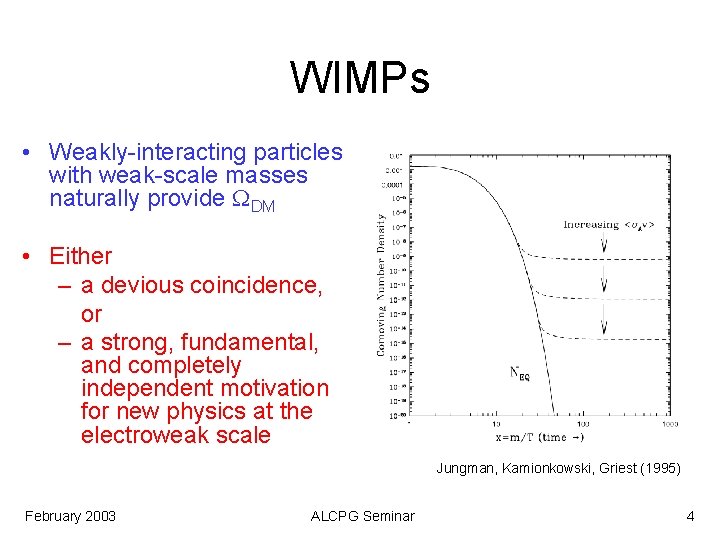

WIMPs • Weakly-interacting particles with weak-scale masses naturally provide WDM • Either – a devious coincidence, or – a strong, fundamental, and completely independent motivation for new physics at the electroweak scale Jungman, Kamionkowski, Griest (1995) February 2003 ALCPG Seminar 4
![Limitations of Separate Approaches Dark matter experiments cannot discover SUSY can only Limitations of Separate Approaches • Dark matter experiments cannot discover SUSY – can only](https://slidetodoc.com/presentation_image_h2/f55e19f342bfb296dbc48d9652016e9c/image-5.jpg)

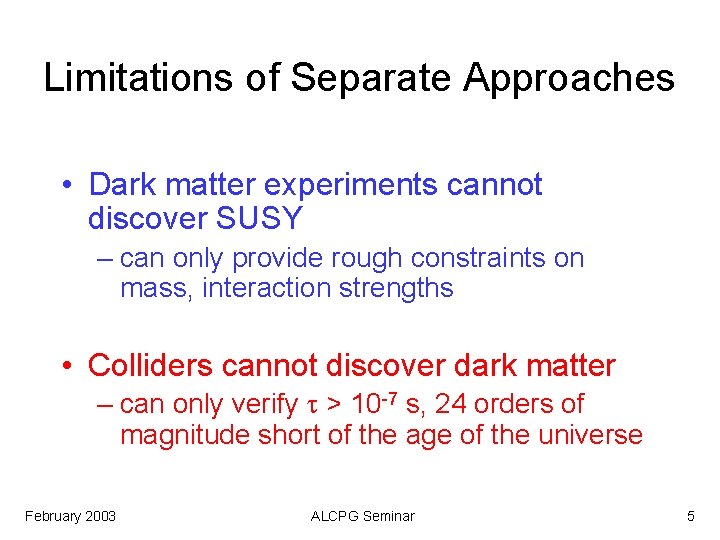

Limitations of Separate Approaches • Dark matter experiments cannot discover SUSY – can only provide rough constraints on mass, interaction strengths • Colliders cannot discover dark matter – can only verify t > 10 -7 s, 24 orders of magnitude short of the age of the universe February 2003 ALCPG Seminar 5
![Synergy Feng Nojiri 2002 Collider Inputs SUSY Parameters cc Annihilation Relic Density c N Synergy Feng, Nojiri (2002) Collider Inputs SUSY Parameters cc Annihilation Relic Density c. N](https://slidetodoc.com/presentation_image_h2/f55e19f342bfb296dbc48d9652016e9c/image-6.jpg)

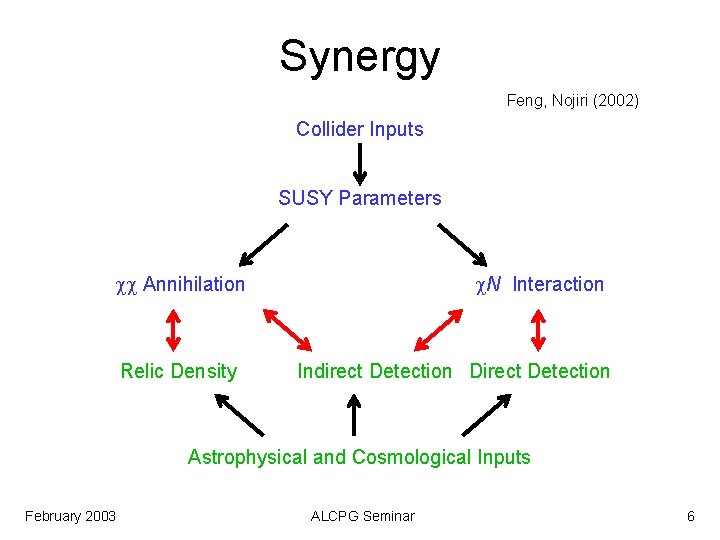

Synergy Feng, Nojiri (2002) Collider Inputs SUSY Parameters cc Annihilation Relic Density c. N Interaction Indirect Detection Direct Detection Astrophysical and Cosmological Inputs February 2003 ALCPG Seminar 6
![cc Annihilation Neutralino annihilation sensitive to most SUSY parameters Top diagram vanishes cc Annihilation • Neutralino annihilation: sensitive to most SUSY parameters • Top diagram vanishes](https://slidetodoc.com/presentation_image_h2/f55e19f342bfb296dbc48d9652016e9c/image-7.jpg)

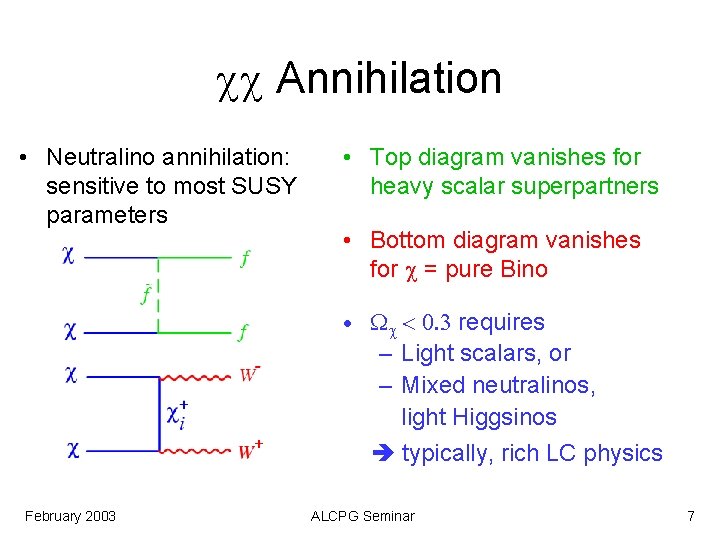

cc Annihilation • Neutralino annihilation: sensitive to most SUSY parameters • Top diagram vanishes for heavy scalar superpartners • Bottom diagram vanishes for c = pure Bino · Wc < 0. 3 requires – Light scalars, or – Mixed neutralinos, light Higgsinos typically, rich LC physics February 2003 ALCPG Seminar 7
![Relic Density Extreme sensitivity to neutralino mixing Extreme sensitivity to degeneracies Relic Relic Density • Extreme sensitivity to neutralino mixing • Extreme sensitivity to degeneracies Relic](https://slidetodoc.com/presentation_image_h2/f55e19f342bfb296dbc48d9652016e9c/image-8.jpg)

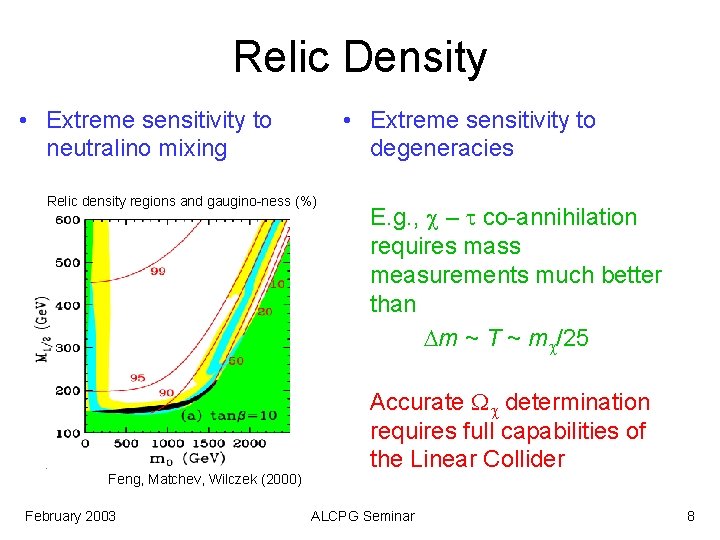

Relic Density • Extreme sensitivity to neutralino mixing • Extreme sensitivity to degeneracies Relic density regions and gaugino-ness (%) Feng, Matchev, Wilczek (2000) February 2003 E. g. , c – t co-annihilation requires mass measurements much better than Dm ~ T ~ mc/25 Accurate Wc determination requires full capabilities of the Linear Collider ALCPG Seminar 8
![Many handles at colliders E g gauginoness measurements LC 500 Rightpolarized • Many handles at colliders. E. g. , gaugino-ness measurements: LC 500 Right-polarized](https://slidetodoc.com/presentation_image_h2/f55e19f342bfb296dbc48d9652016e9c/image-9.jpg)

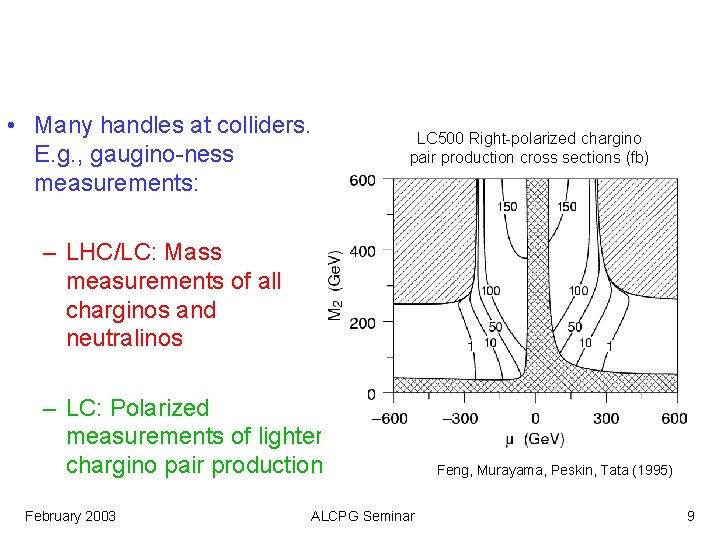

• Many handles at colliders. E. g. , gaugino-ness measurements: LC 500 Right-polarized chargino pair production cross sections (fb) – LHC/LC: Mass measurements of all charginos and neutralinos – LC: Polarized measurements of lighter chargino pair production February 2003 ALCPG Seminar Feng, Murayama, Peskin, Tata (1995) 9
![Dark Matter Detection Direct detection depends on c N scattering Indirect detection Dark Matter Detection • Direct detection depends on c. N scattering • Indirect detection](https://slidetodoc.com/presentation_image_h2/f55e19f342bfb296dbc48d9652016e9c/image-10.jpg)

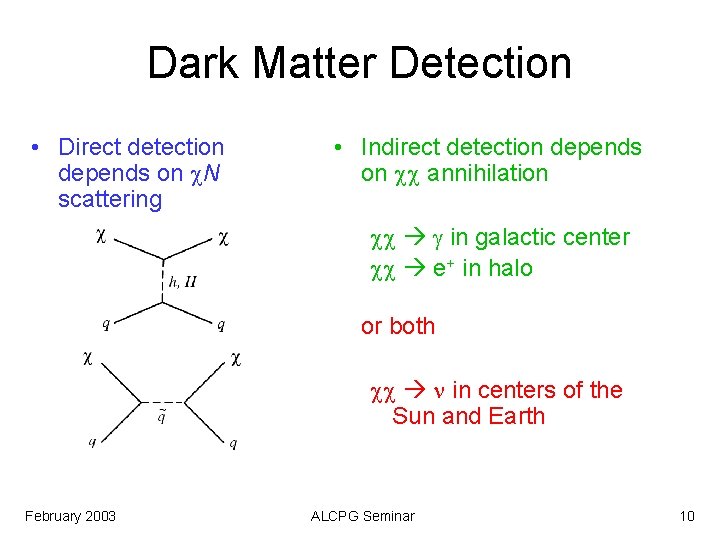

Dark Matter Detection • Direct detection depends on c. N scattering • Indirect detection depends on cc annihilation cc g in galactic center cc e+ in halo or both cc n in centers of the Sun and Earth February 2003 ALCPG Seminar 10
![Indirect Detection Experiments February 2003 ALCPG Seminar 11 Indirect Detection Experiments February 2003 ALCPG Seminar 11](https://slidetodoc.com/presentation_image_h2/f55e19f342bfb296dbc48d9652016e9c/image-11.jpg)

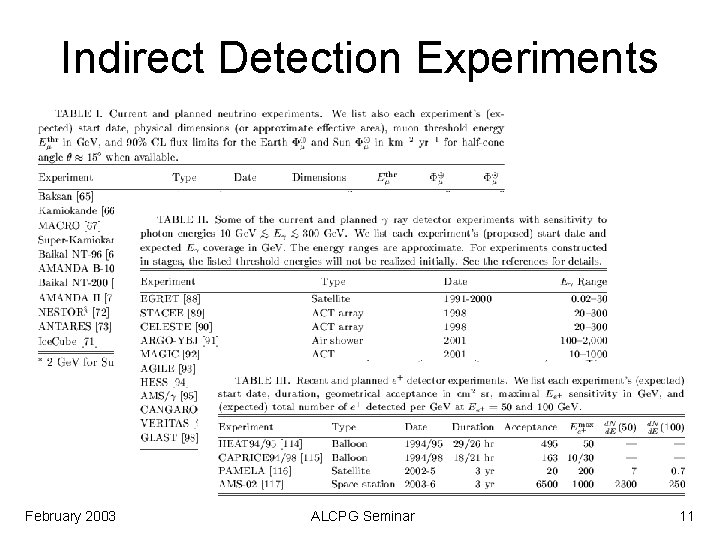

Indirect Detection Experiments February 2003 ALCPG Seminar 11
![Dark Matter Detection Particle probes Direct DM detection Indirect DM detection Astrophysical and Dark Matter Detection Particle probes Direct DM detection Indirect DM detection • Astrophysical and](https://slidetodoc.com/presentation_image_h2/f55e19f342bfb296dbc48d9652016e9c/image-12.jpg)

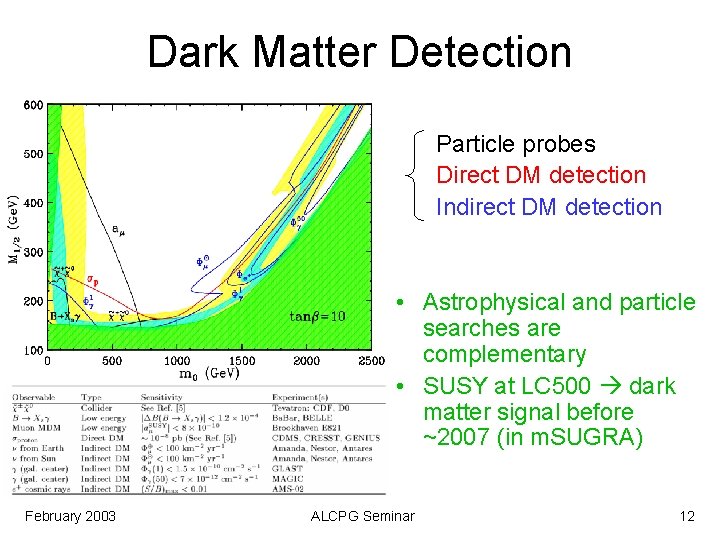

Dark Matter Detection Particle probes Direct DM detection Indirect DM detection • Astrophysical and particle searches are complementary • SUSY at LC 500 dark matter signal before ~2007 (in m. SUGRA) February 2003 ALCPG Seminar 12
![ParticleCosmo Interface Particle Physics standard cosmology predictions for Wc Direct detection rates Particle/Cosmo Interface • Particle Physics + standard cosmology predictions for Wc Direct detection rates](https://slidetodoc.com/presentation_image_h2/f55e19f342bfb296dbc48d9652016e9c/image-13.jpg)

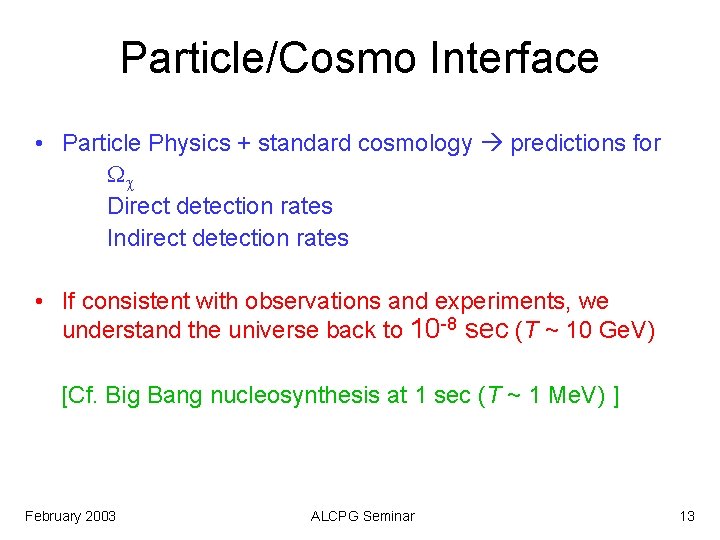

Particle/Cosmo Interface • Particle Physics + standard cosmology predictions for Wc Direct detection rates Indirect detection rates • If consistent with observations and experiments, we understand the universe back to 10 -8 sec (T ~ 10 Ge. V) [Cf. Big Bang nucleosynthesis at 1 sec (T ~ 1 Me. V) ] February 2003 ALCPG Seminar 13
![What if there are discrepancies Thermal relic density need not be the actual What if there are discrepancies? • Thermal relic density need not be the actual](https://slidetodoc.com/presentation_image_h2/f55e19f342bfb296dbc48d9652016e9c/image-14.jpg)

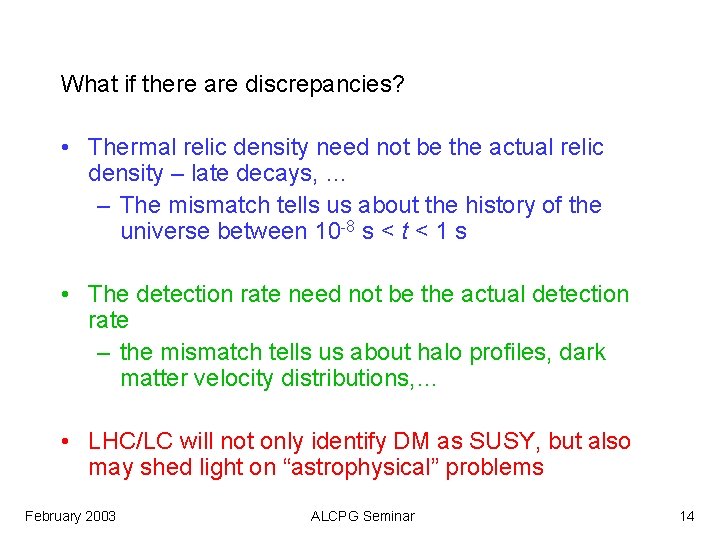

What if there are discrepancies? • Thermal relic density need not be the actual relic density – late decays, … – The mismatch tells us about the history of the universe between 10 -8 s < t < 1 s • The detection rate need not be the actual detection rate – the mismatch tells us about halo profiles, dark matter velocity distributions, … • LHC/LC will not only identify DM as SUSY, but also may shed light on “astrophysical” problems February 2003 ALCPG Seminar 14
![Example Halo profile at the galactic center Halo profiles are currently not wellknown Example: Halo profile at the galactic center • Halo profiles are currently not well-known](https://slidetodoc.com/presentation_image_h2/f55e19f342bfb296dbc48d9652016e9c/image-15.jpg)

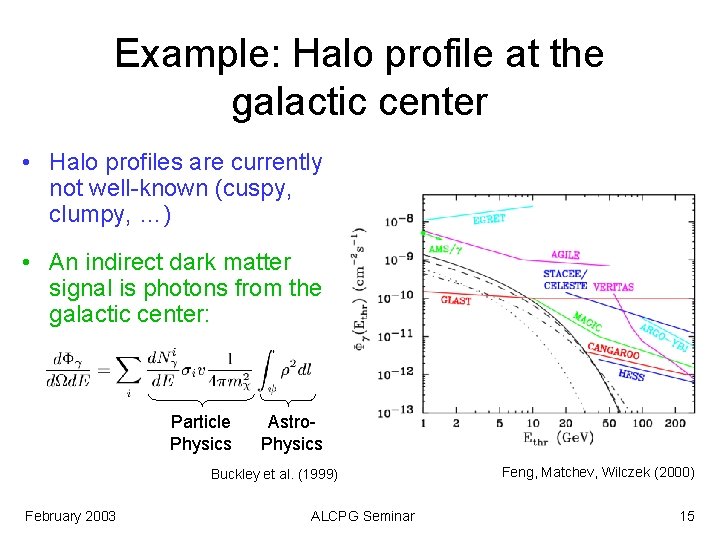

Example: Halo profile at the galactic center • Halo profiles are currently not well-known (cuspy, clumpy, …) • An indirect dark matter signal is photons from the galactic center: Particle Physics Astro. Physics Buckley et al. (1999) February 2003 ALCPG Seminar Feng, Matchev, Wilczek (2000) 15
![super WIMPs Feng Rajaraman Takayama 2003 WIMP motivations are strong suggest optimism for super. WIMPs Feng, Rajaraman, Takayama (2003) • WIMP motivations are strong, suggest optimism for](https://slidetodoc.com/presentation_image_h2/f55e19f342bfb296dbc48d9652016e9c/image-16.jpg)

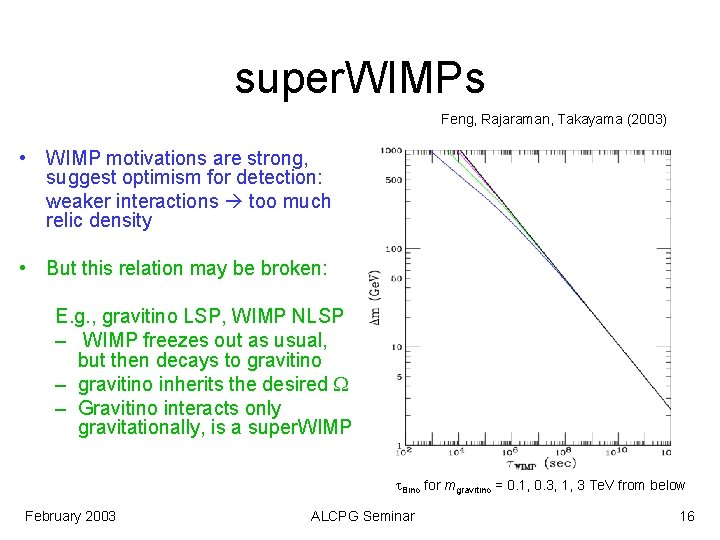

super. WIMPs Feng, Rajaraman, Takayama (2003) • WIMP motivations are strong, suggest optimism for detection: weaker interactions too much relic density • But this relation may be broken: E. g. , gravitino LSP, WIMP NLSP – WIMP freezes out as usual, but then decays to gravitino – gravitino inherits the desired W – Gravitino interacts only gravitationally, is a super. WIMP t. Bino for mgravitino = 0. 1, 0. 3, 1, 3 Te. V from below February 2003 ALCPG Seminar 16
![Implications Gravitino dark matter escapes all dark matter experiments Astrophysical super WIMP Implications • Gravitino dark matter escapes all dark matter experiments • Astrophysical super. WIMP](https://slidetodoc.com/presentation_image_h2/f55e19f342bfb296dbc48d9652016e9c/image-17.jpg)

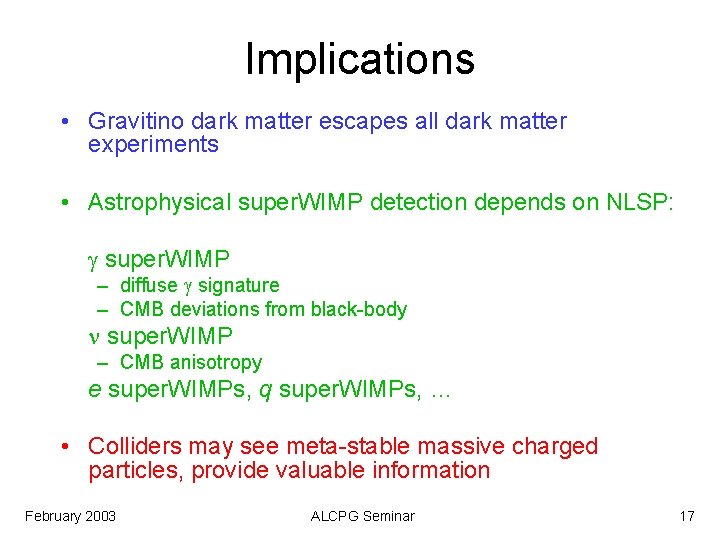

Implications • Gravitino dark matter escapes all dark matter experiments • Astrophysical super. WIMP detection depends on NLSP: g super. WIMP – diffuse g signature – CMB deviations from black-body n super. WIMP – CMB anisotropy e super. WIMPs, q super. WIMPs, … • Colliders may see meta-stable massive charged particles, provide valuable information February 2003 ALCPG Seminar 17
![Conclusions Dark matter and EWSB are independent motivations for new physics both point Conclusions • Dark matter and EWSB are independent motivations for new physics; both point](https://slidetodoc.com/presentation_image_h2/f55e19f342bfb296dbc48d9652016e9c/image-18.jpg)

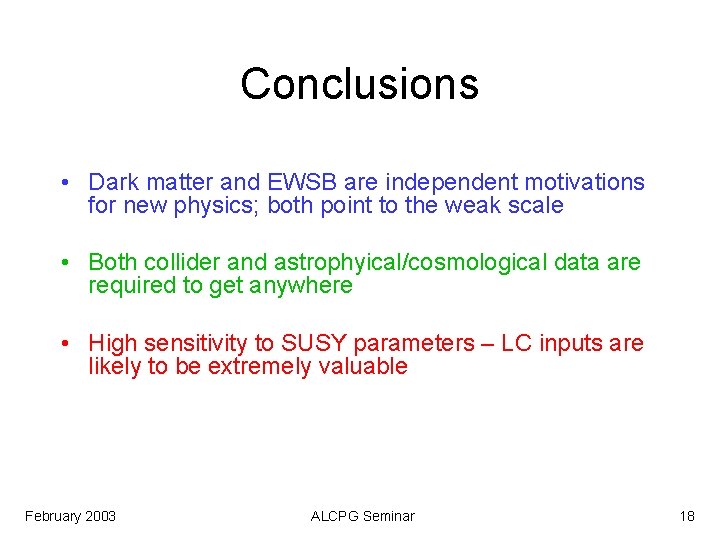

Conclusions • Dark matter and EWSB are independent motivations for new physics; both point to the weak scale • Both collider and astrophyical/cosmological data are required to get anywhere • High sensitivity to SUSY parameters – LC inputs are likely to be extremely valuable February 2003 ALCPG Seminar 18
