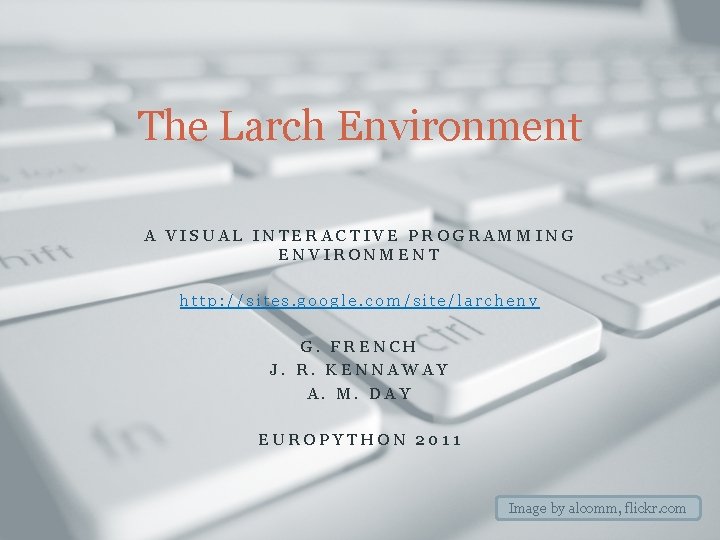

The Larch Environment A VISUAL INTERACTIVE PROGRAMMING ENVIRONMENT http: //sites. google. com/site/larchenv G. FRENCH J. R. KENNAWAY A. M. DAY EUROPYTHON 2011 Image by alcomm, flickr. com

Motivation

We look at three problems

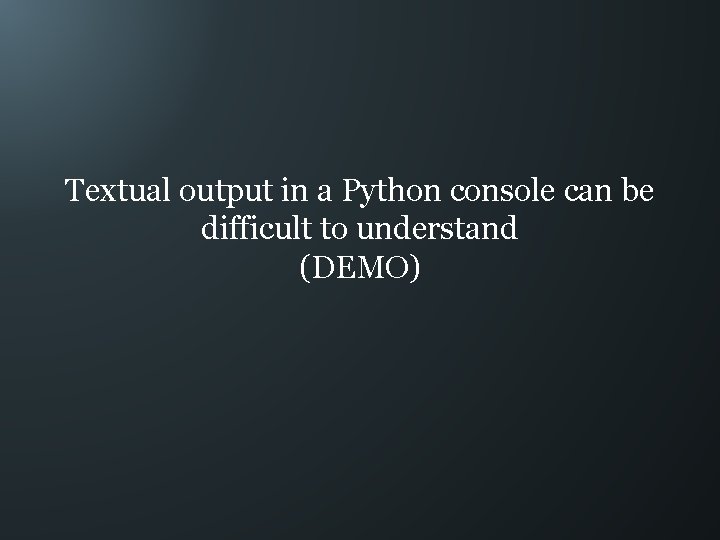

Textual output in a Python console can be difficult to understand (DEMO)

Source code in a text editor is not interactive enough Consoles are only good for a few lines at a time

Textual source code can be difficult to understand comprehend (think the vertices of a polygon in code form)

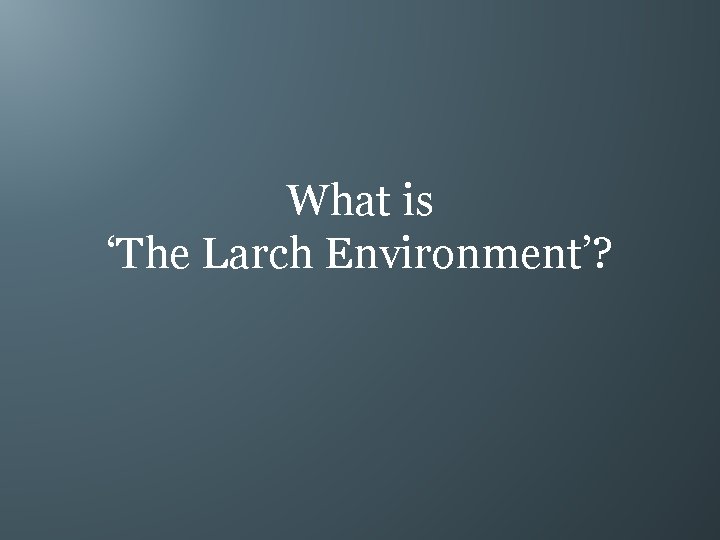

What is ‘The Larch Environment’?

A visual interactive programming environment

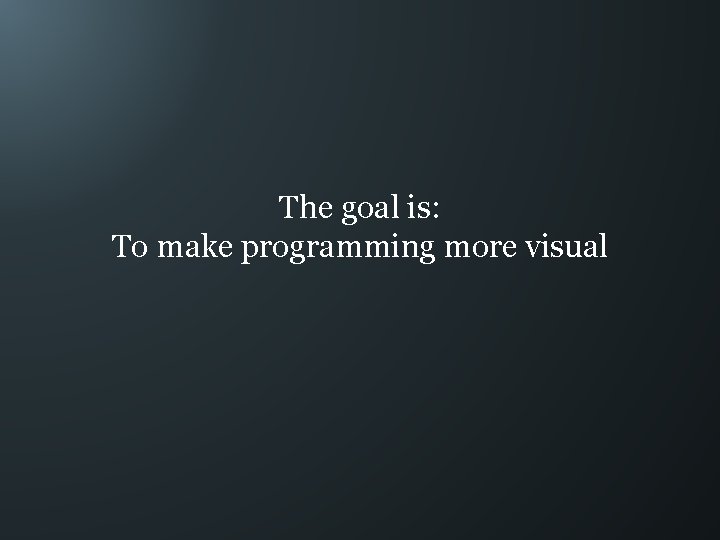

The goal is: To make programming more visual

How do we do that? • Visual object presentation • Programming environment – Visual console – Worksheets • Visual programming via embedded objects

Visual object presentation

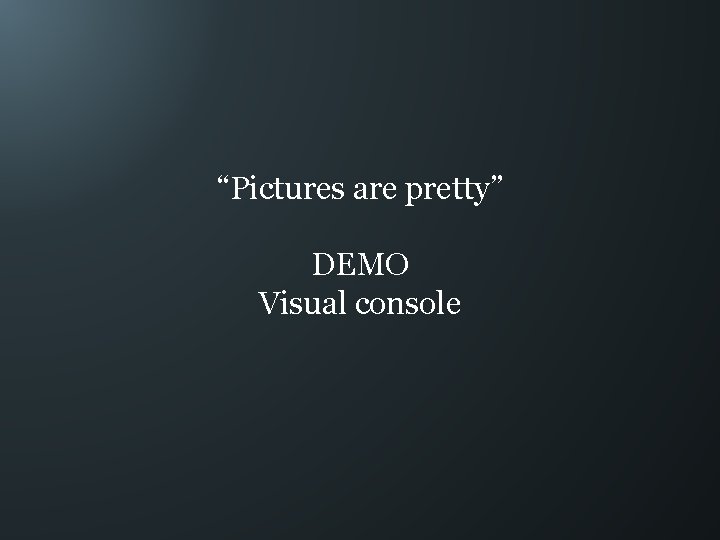

“Pictures are pretty” DEMO Visual console

What design pattern do we commonly use for developing GUI apps?

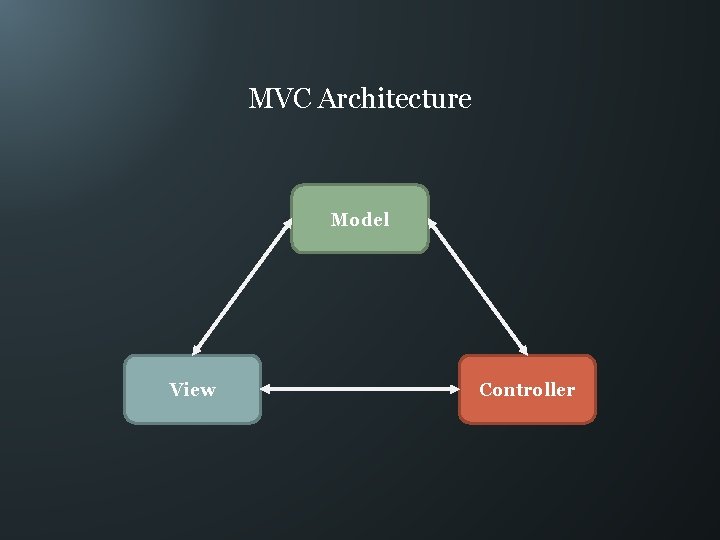

MVC Architecture Model View Controller

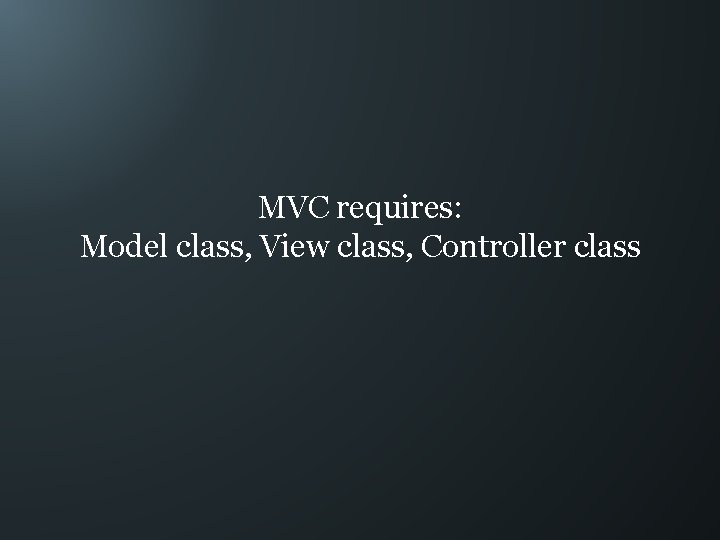

MVC requires: Model class, View class, Controller class

Our approach: Type coercion: coerce an object to another type.

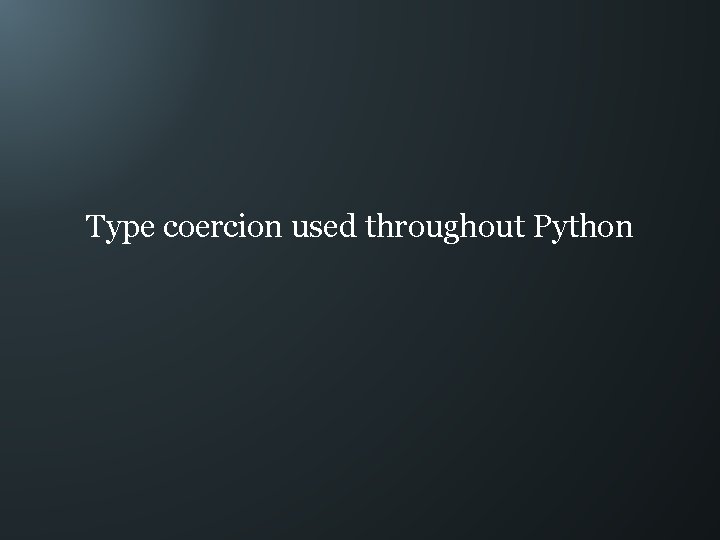

Type coercion used throughout Python

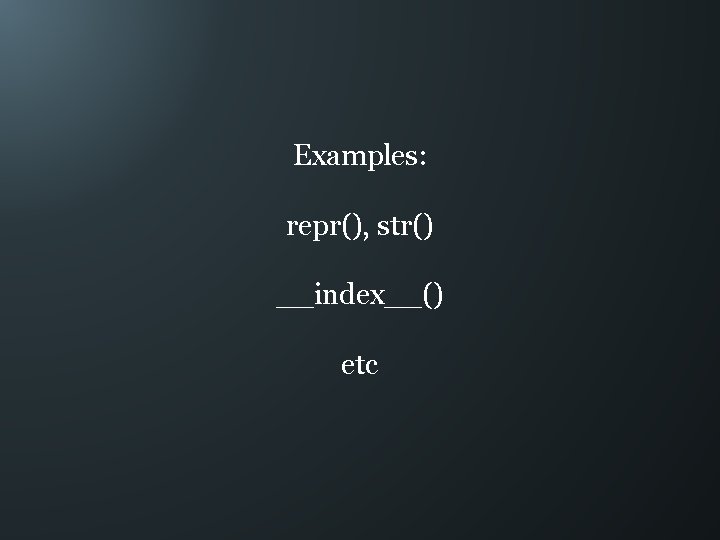

Examples: repr(), str() __index__() etc

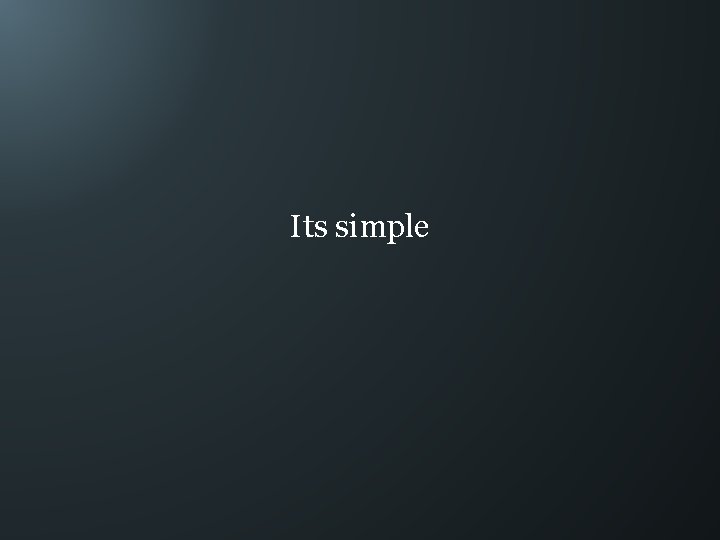

Its simple

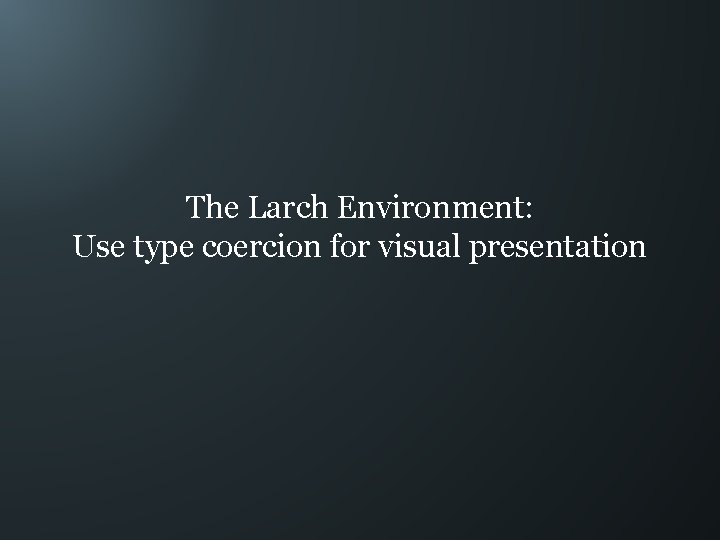

The Larch Environment: Use type coercion for visual presentation

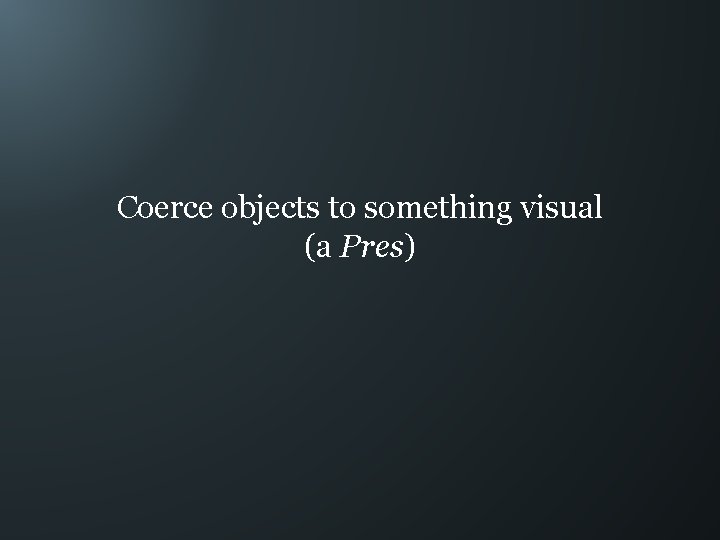

Coerce objects to something visual (a Pres)

HOWTO: The simplified version

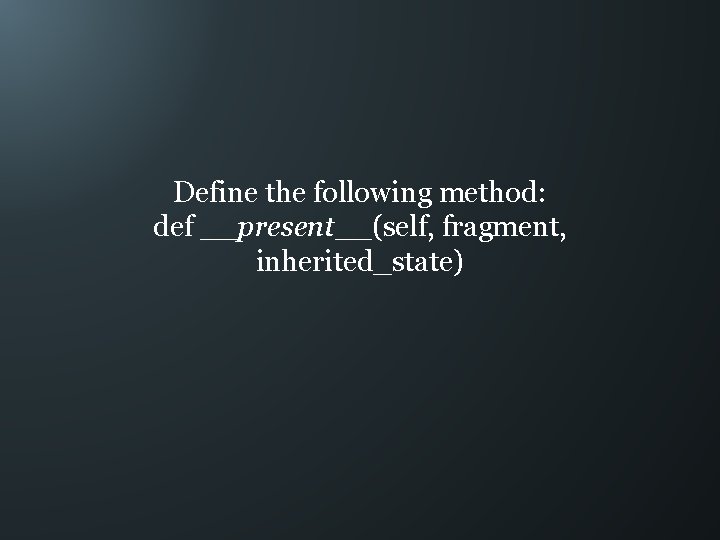

Define the following method: def __present__(self, fragment, inherited_state)

For Java objects: Implement Presentable interface

Presentations constructed using a combinatorial API

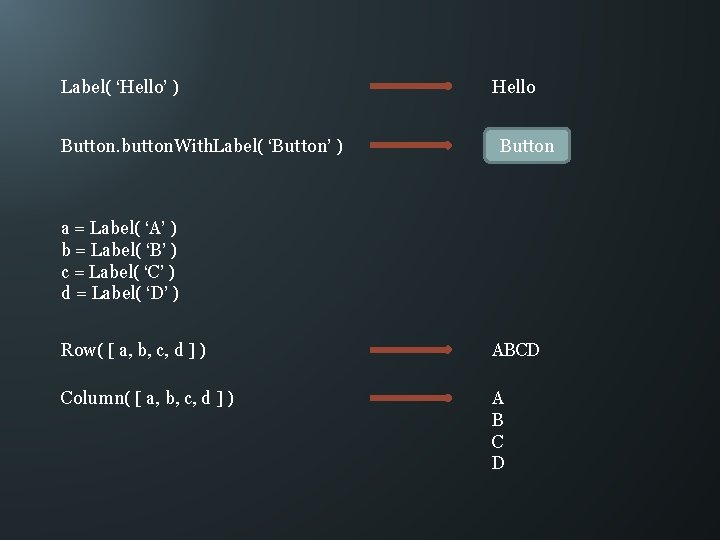

Label( ‘Hello’ ) Button. button. With. Label( ‘Button’ ) Hello Button a = Label( ‘A’ ) b = Label( ‘B’ ) c = Label( ‘C’ ) d = Label( ‘D’ ) Row( [ a, b, c, d ] ) ABCD Column( [ a, b, c, d ] ) A B C D

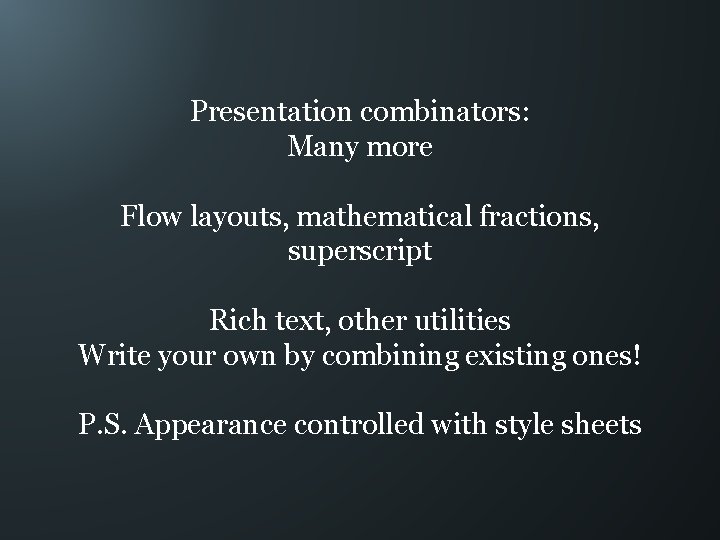

Presentation combinators: Many more Flow layouts, mathematical fractions, superscript Rich text, other utilities Write your own by combining existing ones! P. S. Appearance controlled with style sheets

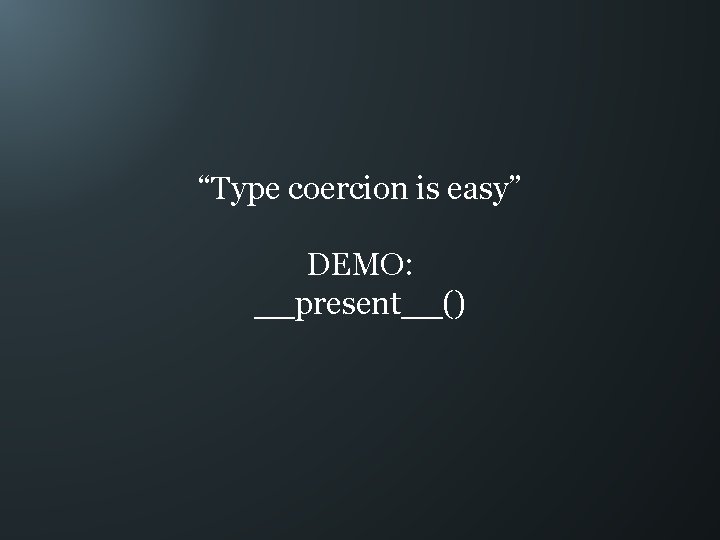

“Type coercion is easy” DEMO: __present__()

Can also handle objects in the Java or Python standard libraries

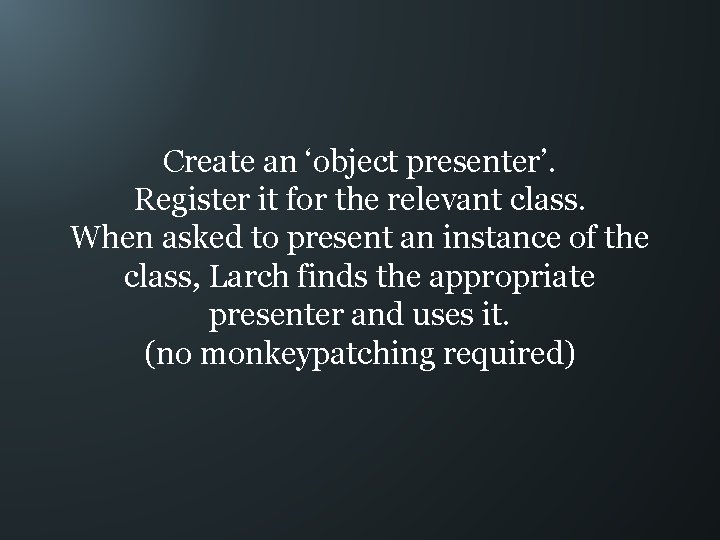

Create an ‘object presenter’. Register it for the relevant class. When asked to present an instance of the class, Larch finds the appropriate presenter and uses it. (no monkeypatching required)

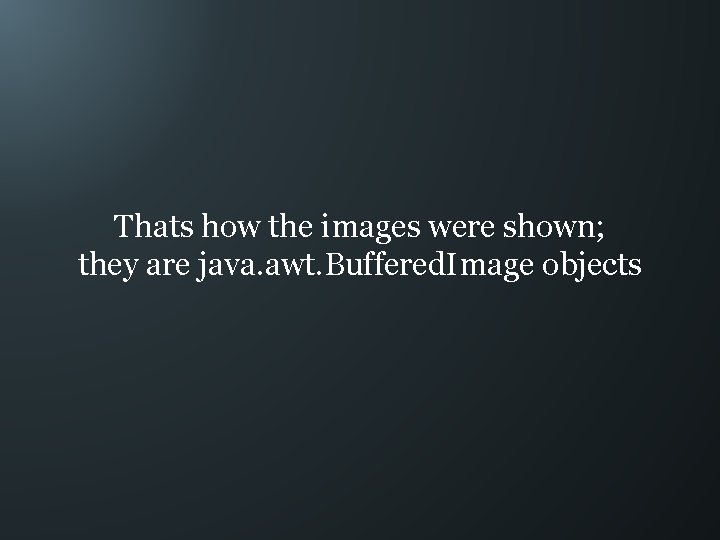

Thats how the images were shown; they are java. awt. Buffered. Image objects

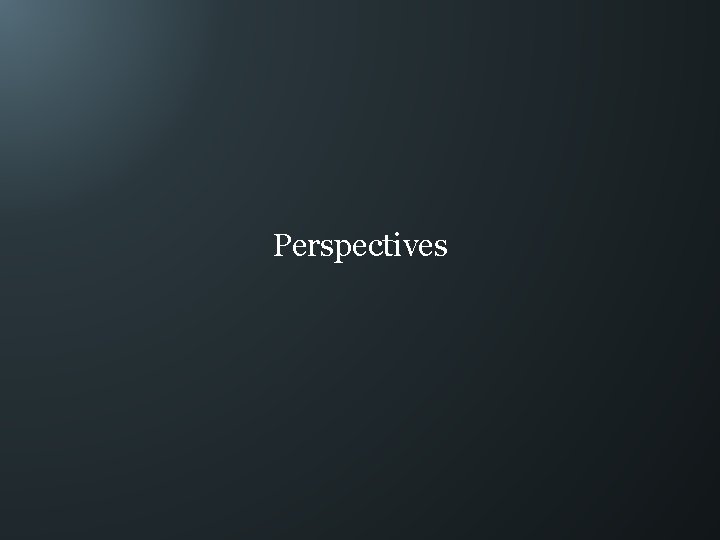

Perspectives

Different perspectives present an object in different ways

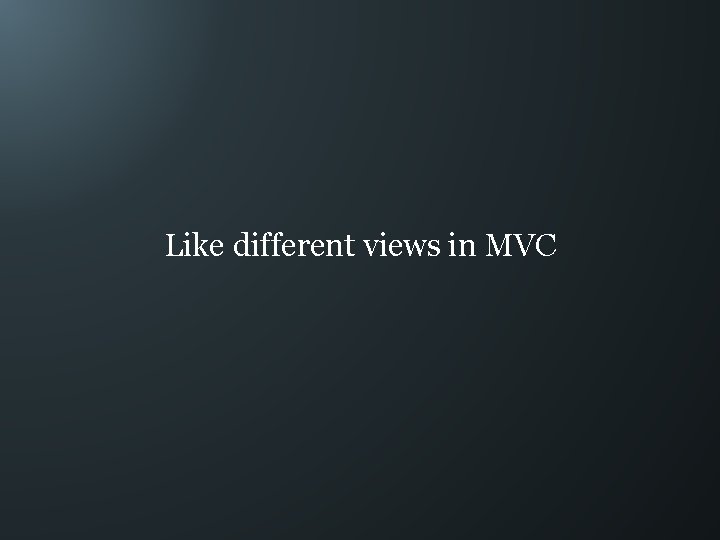

Like different views in MVC

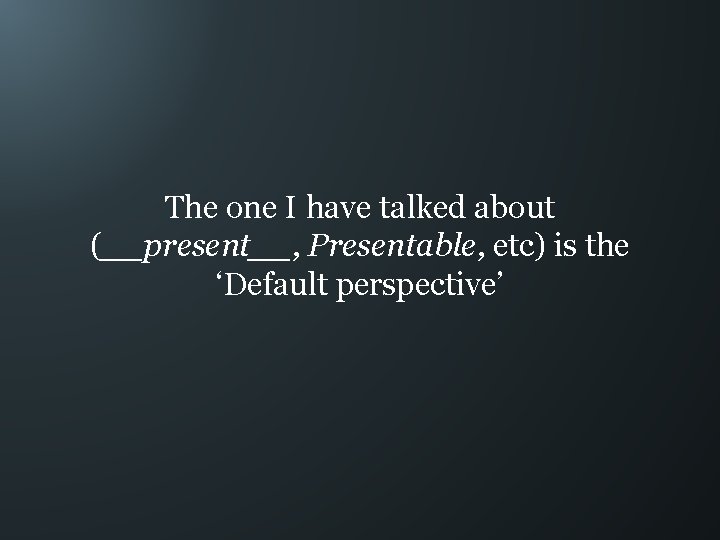

The one I have talked about (__present__, Presentable, etc) is the ‘Default perspective’

There are other perspectives

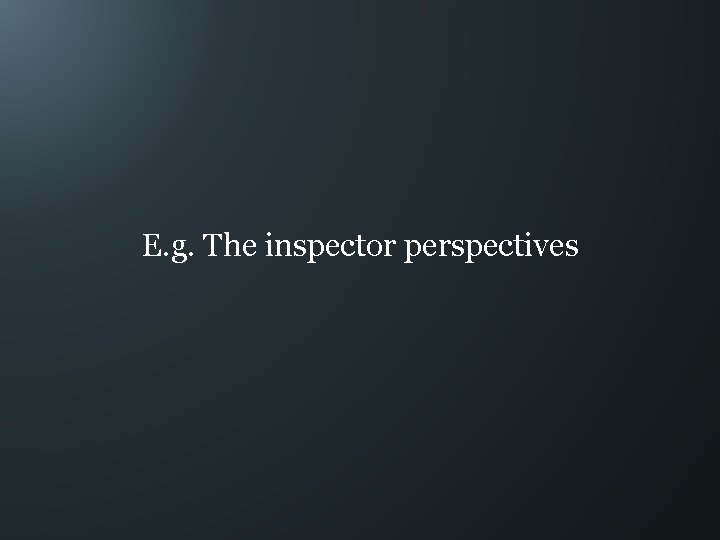

E. g. The inspector perspectives

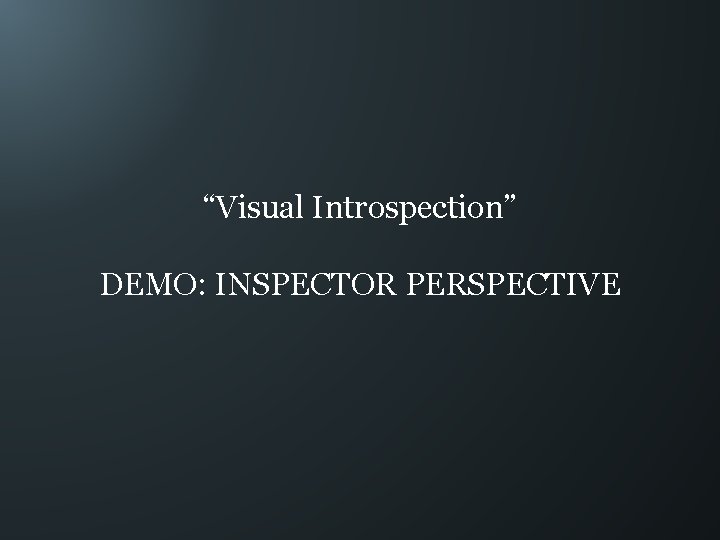

“Visual Introspection” DEMO: INSPECTOR PERSPECTIVE

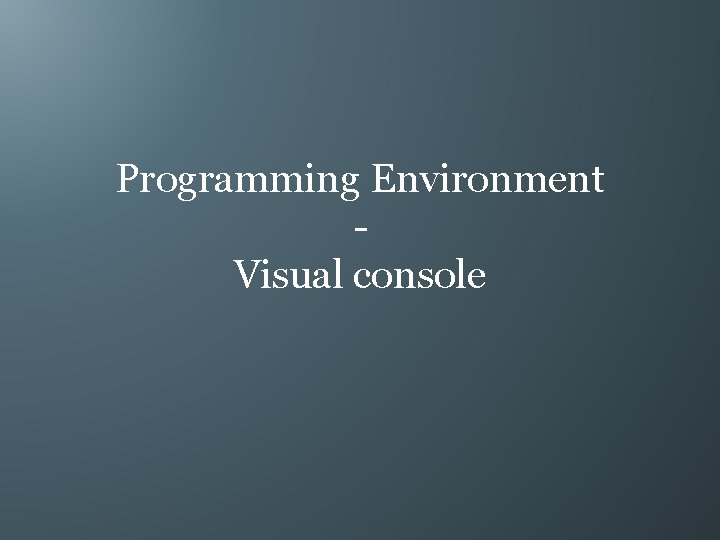

Programming Environment Visual console

You’ve seen most of it

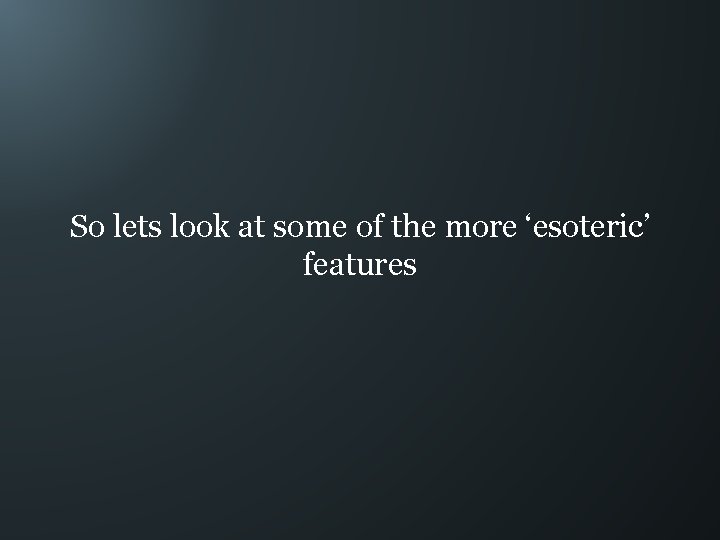

So lets look at some of the more ‘esoteric’ features

Model dragging

Everything in Larch is an object being presented (via type coercion)

The home page Projects The console itself!

What if we want to manipulate an object that we can see?

CTRL+ALT +drag it!

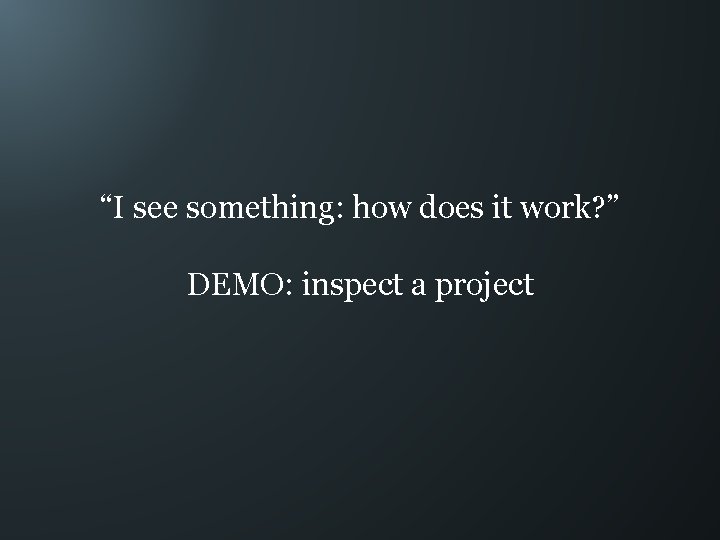

“I see something: how does it work? ” DEMO: inspect a project

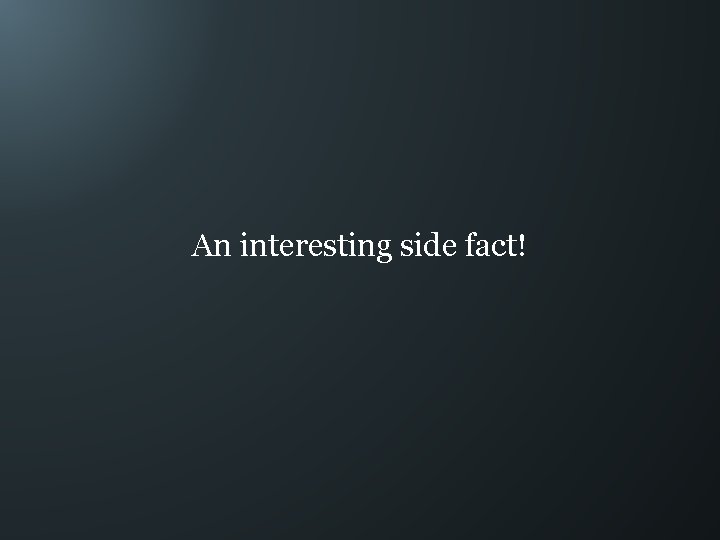

An interesting side fact!

Our source code editor does not edit text

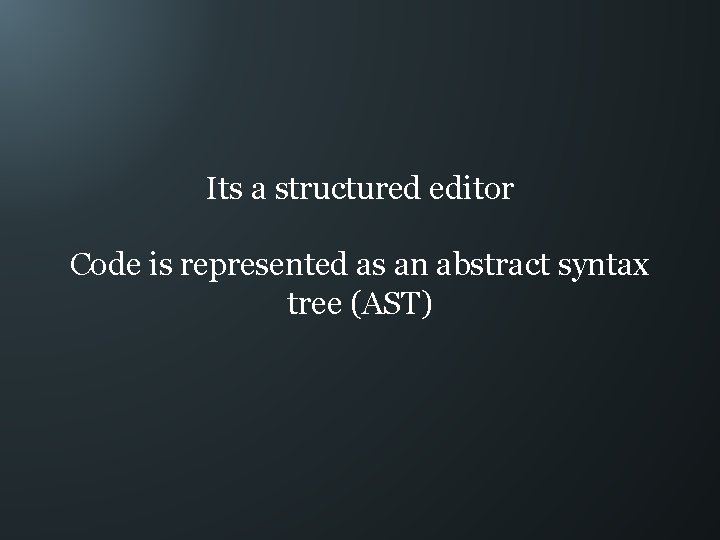

Its a structured editor Code is represented as an abstract syntax tree (AST)

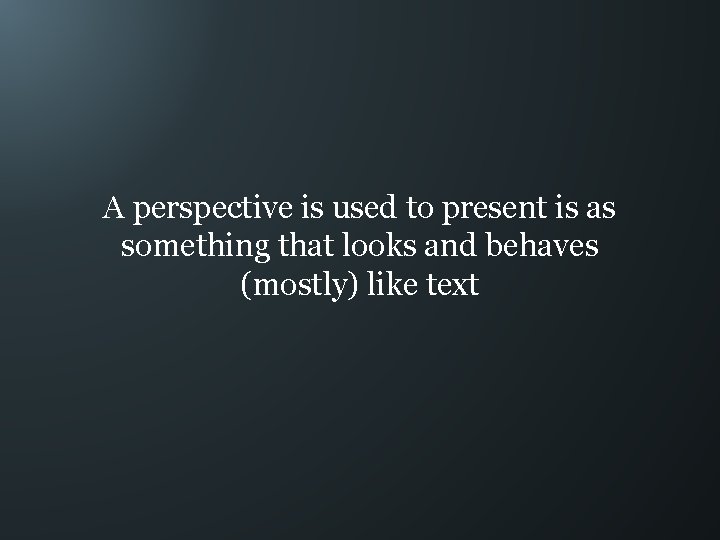

A perspective is used to present is as something that looks and behaves (mostly) like text

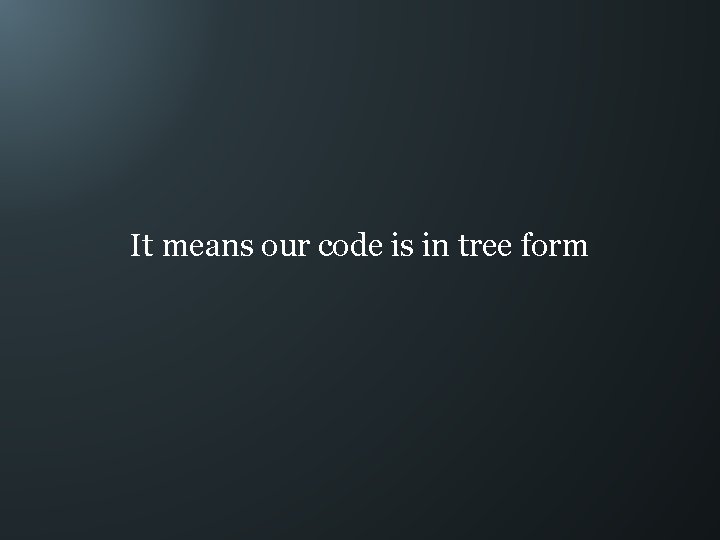

It means our code is in tree form

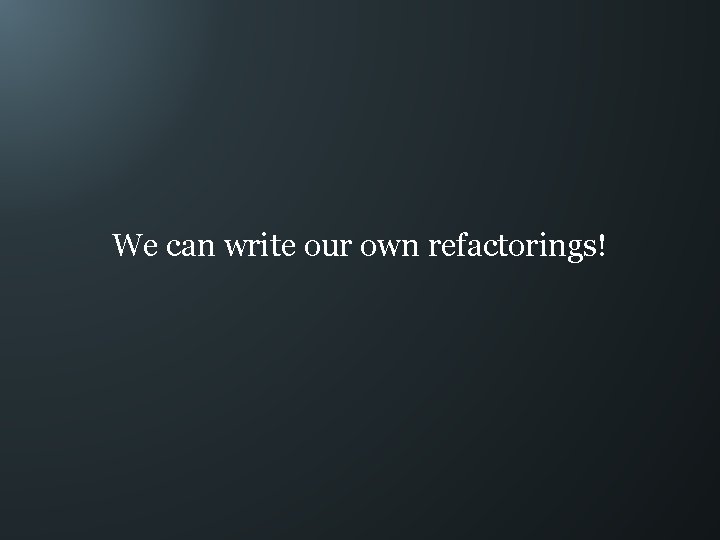

We can write our own refactorings!

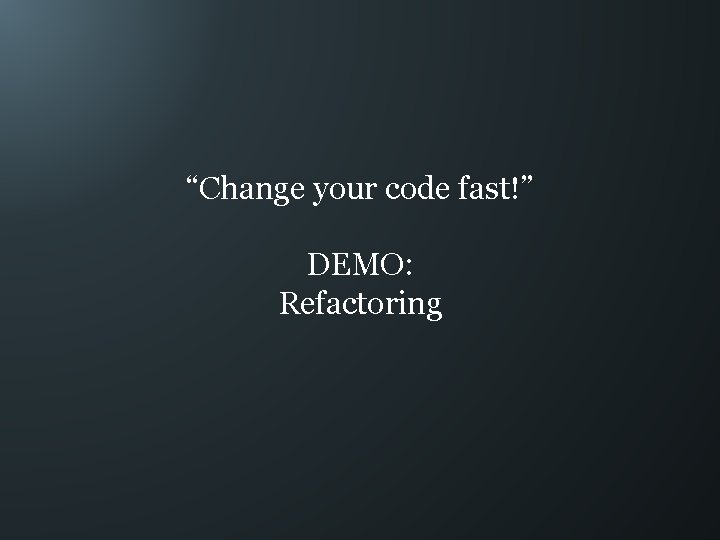

“Change your code fast!” DEMO: Refactoring

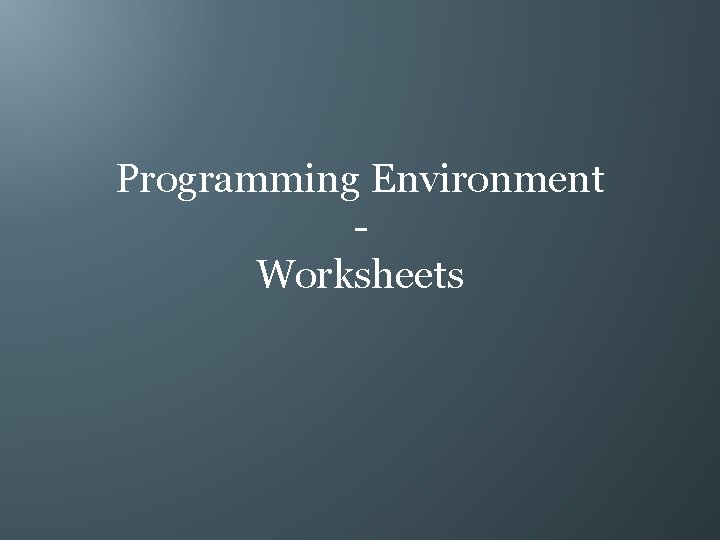

Programming Environment Worksheets

Interactive consoles are great. Caveat: gets difficult when working with more than a few lines of code at a time E. g. Whole modules

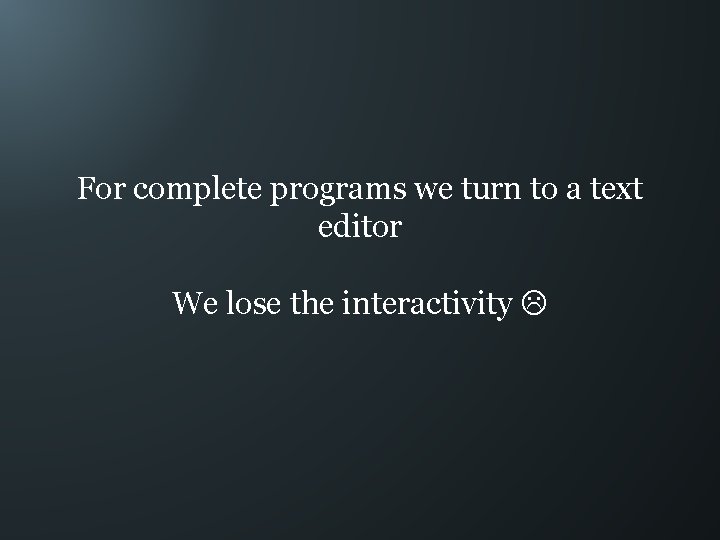

For complete programs we turn to a text editor We lose the interactivity

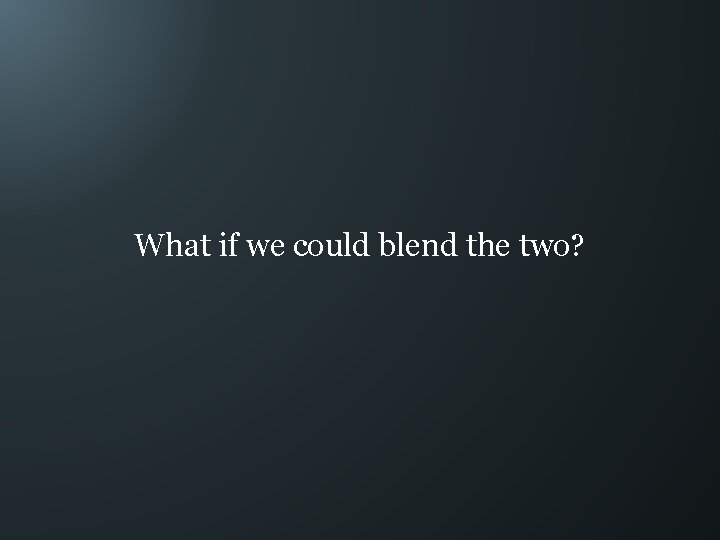

What if we could blend the two?

“Python modules. With pictures. ” DEMO: WORKSHEET (with cellular automata)

Act as modules Can import code from other worksheets within the project

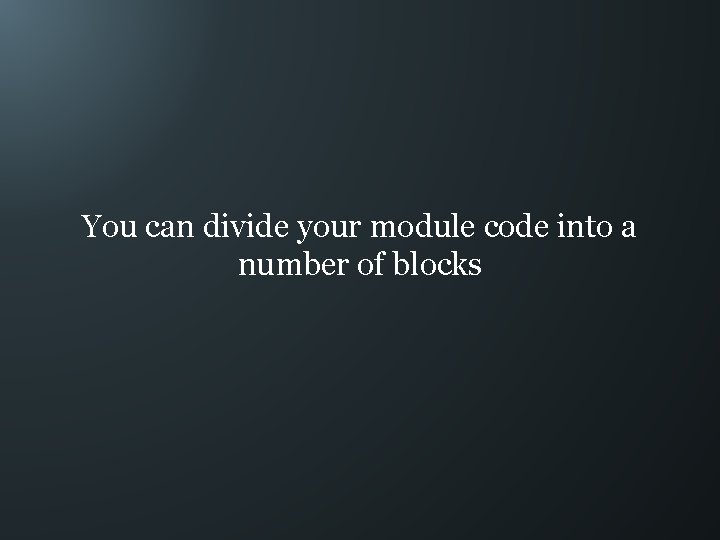

You can divide your module code into a number of blocks

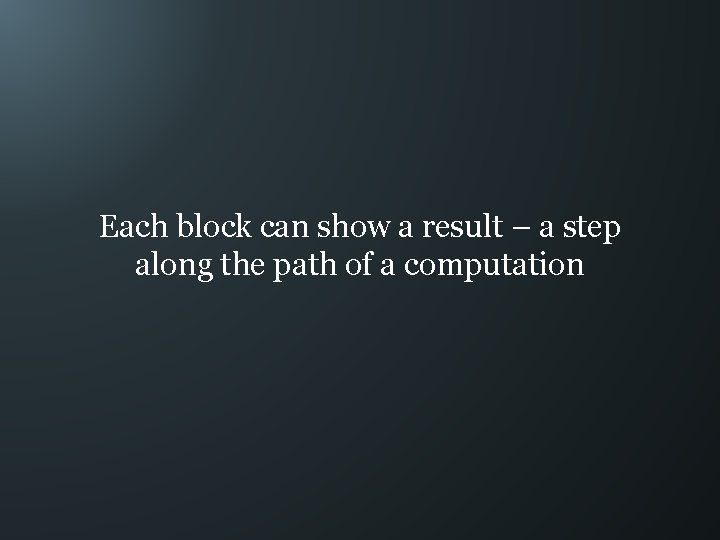

Each block can show a result – a step along the path of a computation

To refresh results: hit F 5

Rapid Edit-Run-Debug cycle: Alter code F 5 Repeat

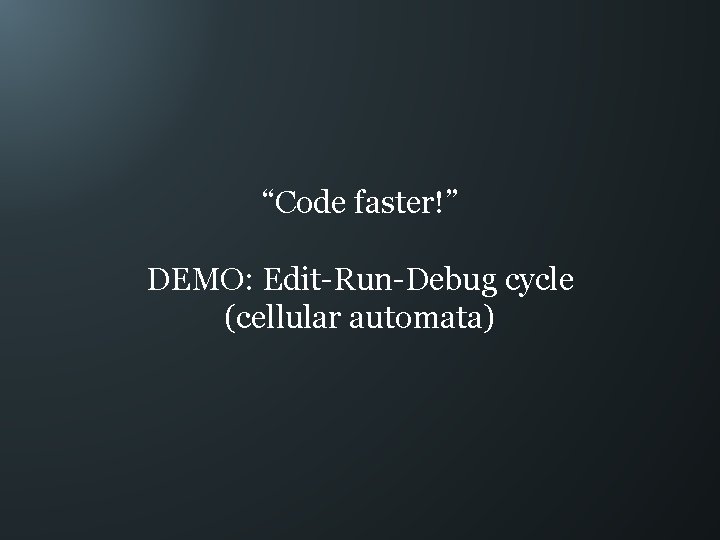

“Code faster!” DEMO: Edit-Run-Debug cycle (cellular automata)

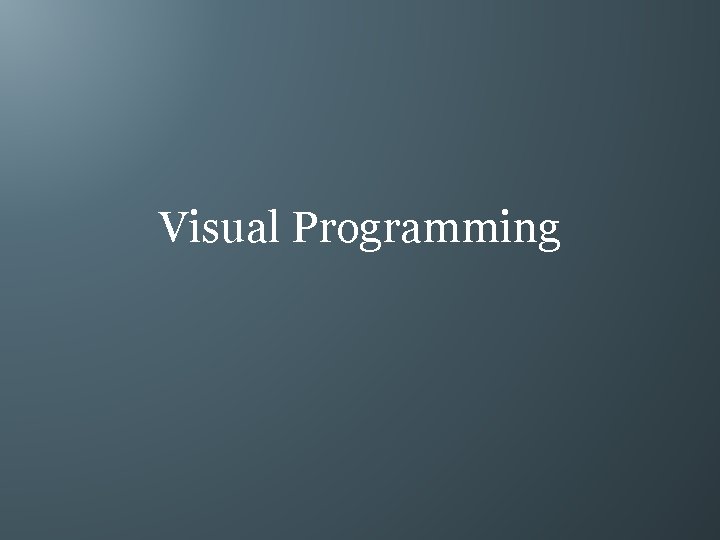

Visual Programming

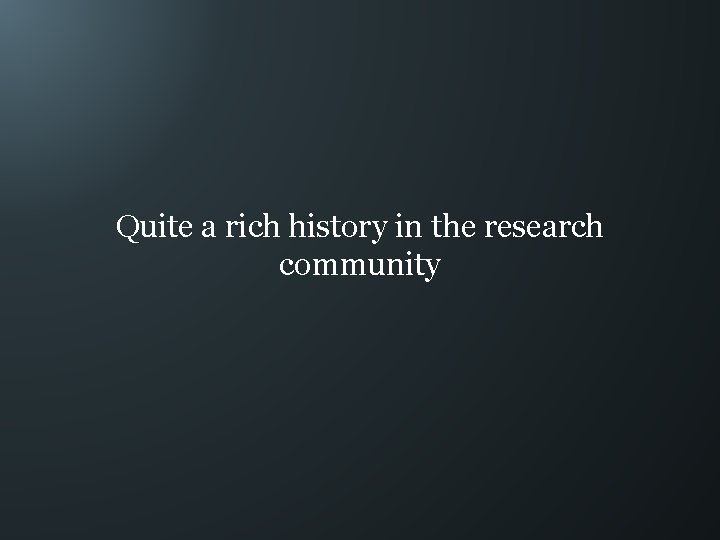

Quite a rich history in the research community

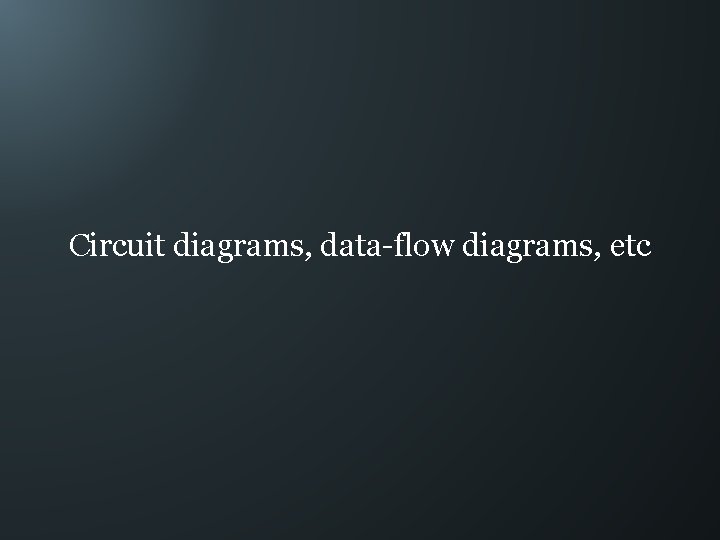

Circuit diagrams, data-flow diagrams, etc

Nice for small simple programs

Large programs look like rat’s nests Not practical

Text remains the dominant medium for source code

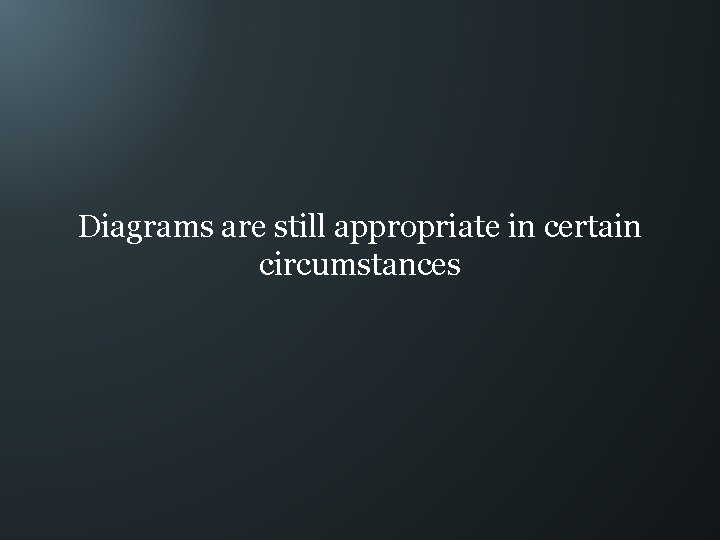

Diagrams are still appropriate in certain circumstances

Lets use diagrams (or visual layout) where we need them!

“Play God. ” DEMO: Orrery Sub-demos: Table editors Embedded table

“Drawings. Inside code. ” DEMO: Polygon

Embedded objects can use a protocol to customise their behaviour

__py_eval__ Act like an expression - return the result of evaluating __py_evalmodel__ Act like an expression - return an AST __py_exec__ Act like a statement – called at runtime __py_execmodel__ Act like a statement – return an AST

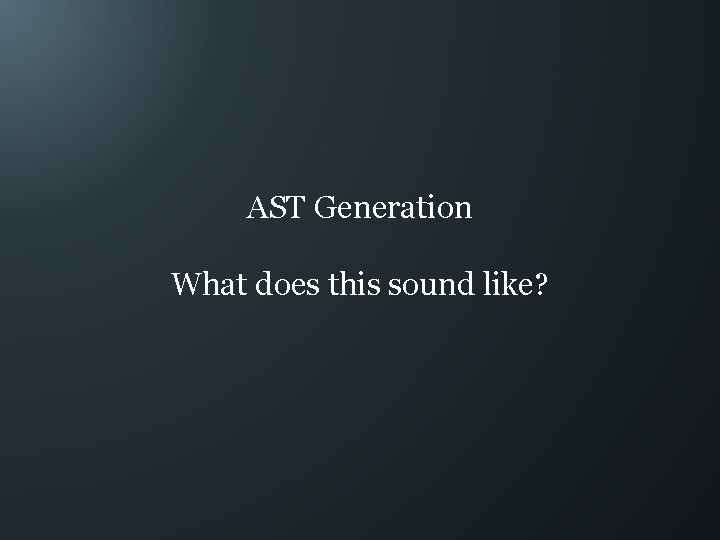

AST Generation What does this sound like?

AST Generation ~= Visual LISP macros

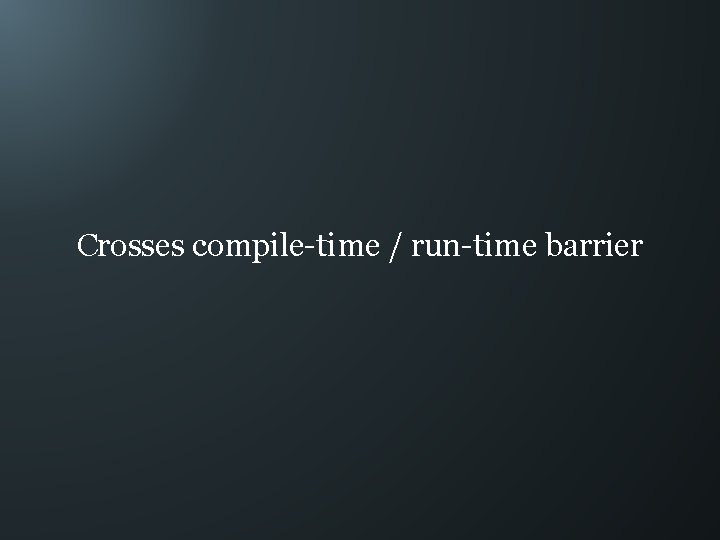

Crosses compile-time / run-time barrier

Compile-time (edit-time) objects available at run time

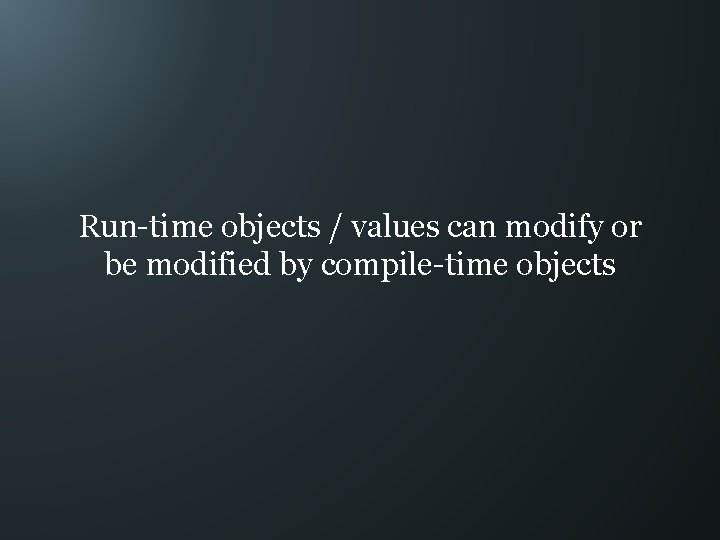

Run-time objects / values can modify or be modified by compile-time objects

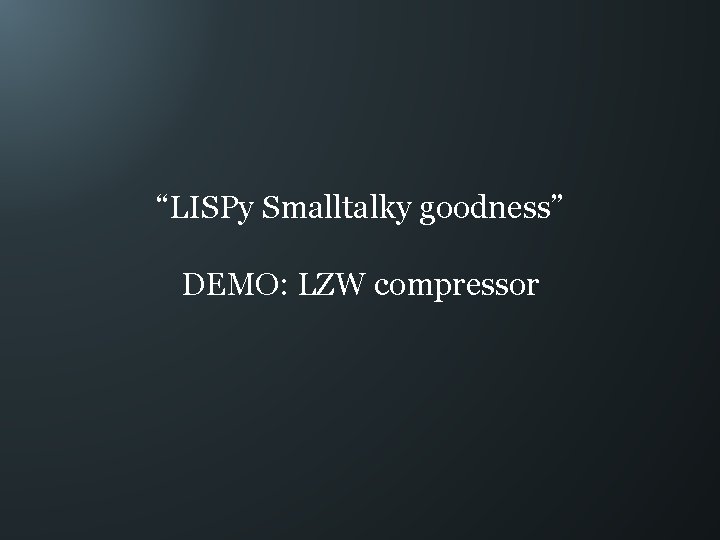

“LISPy Smalltalky goodness” DEMO: LZW compressor

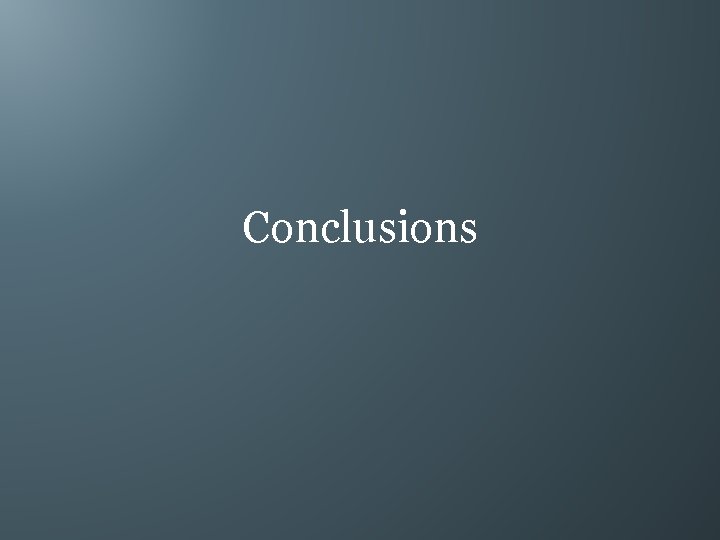

Conclusions

Visual object presentation by typecoercion

Encourages a functional approach to UI composition

State changes: Just throw UI elements away and re-create. DON’T MUTATE

Visual representation of values is a BIG EPIC WIN

Even if you use only visual cues (e. g. borders around text)

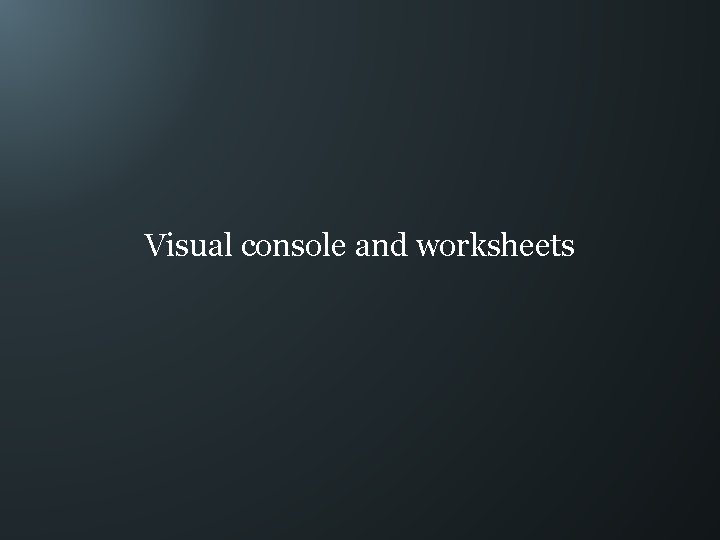

Visual console and worksheets

Worksheets expand on the rapid edit-run cycle of the console

Allow for rapid development of visual interactive applications

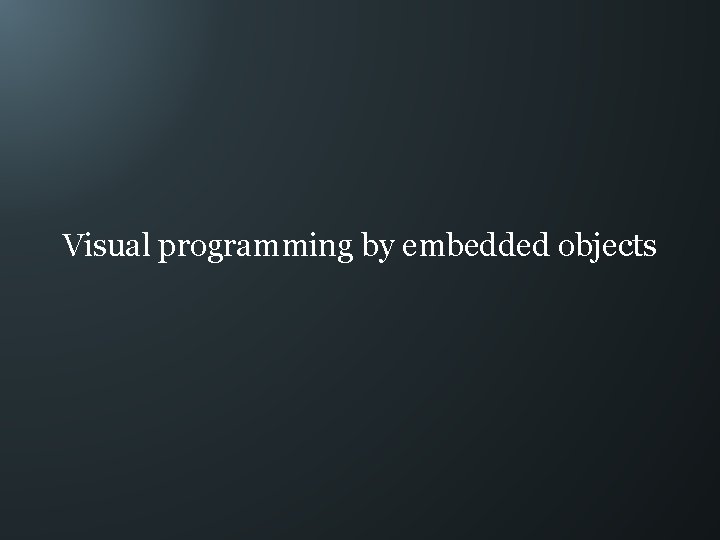

Visual programming by embedded objects

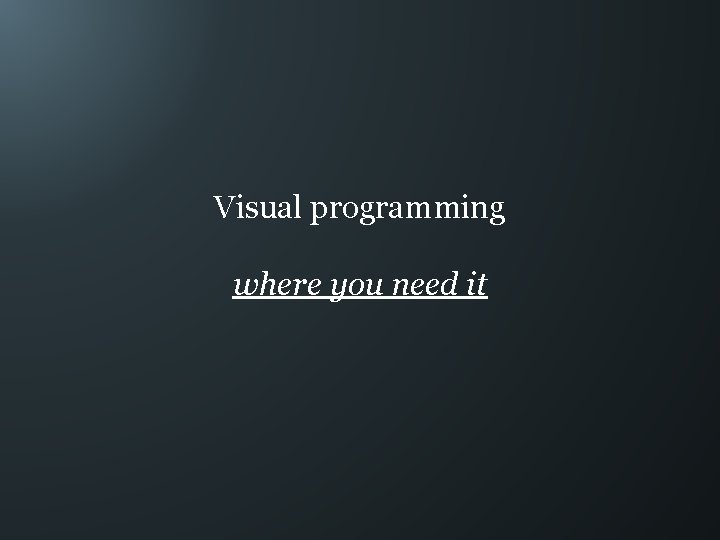

Visual programming where you need it

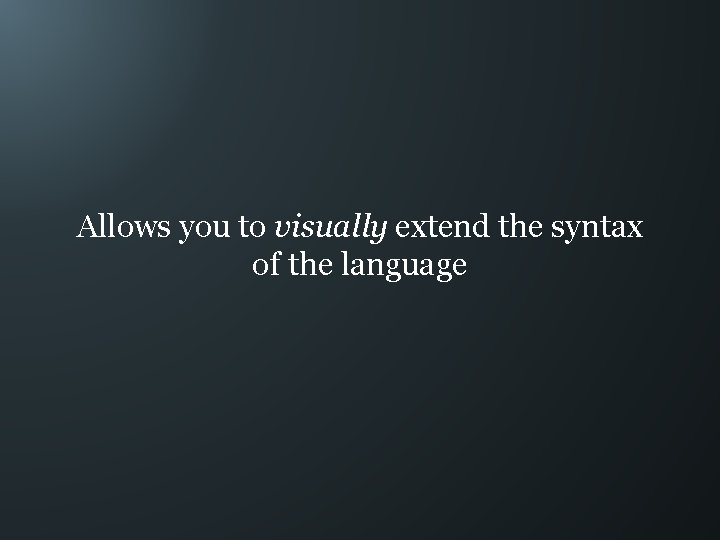

Allows you to visually extend the syntax of the language

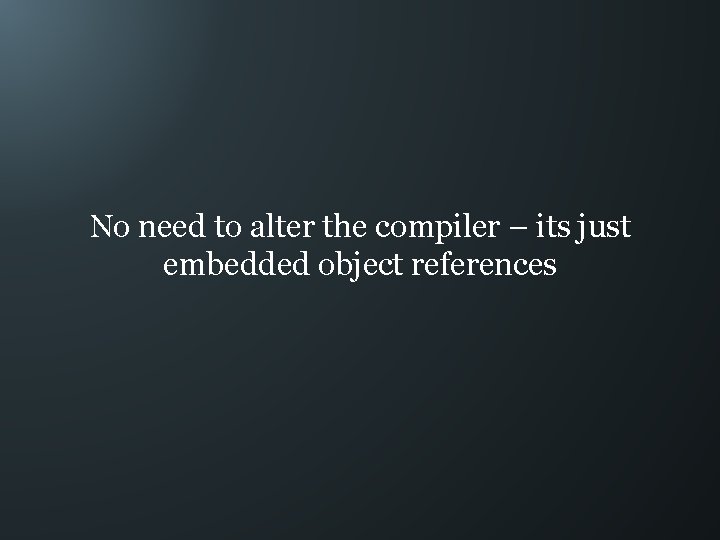

No need to alter the compiler – its just embedded object references

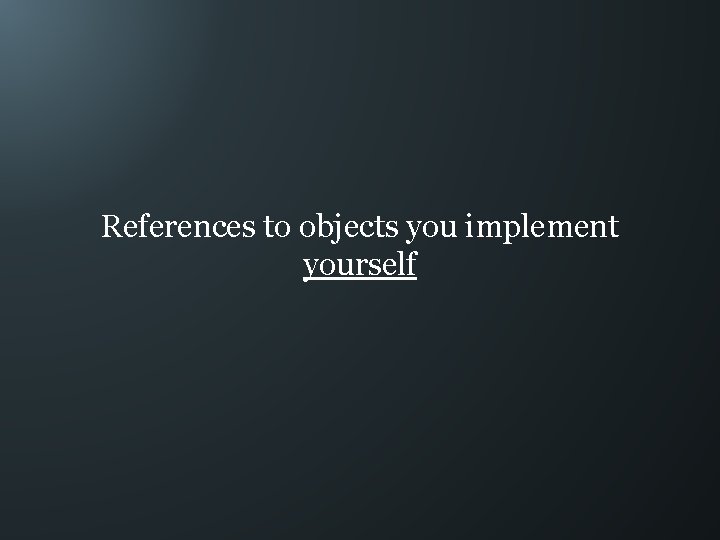

References to objects you implement yourself

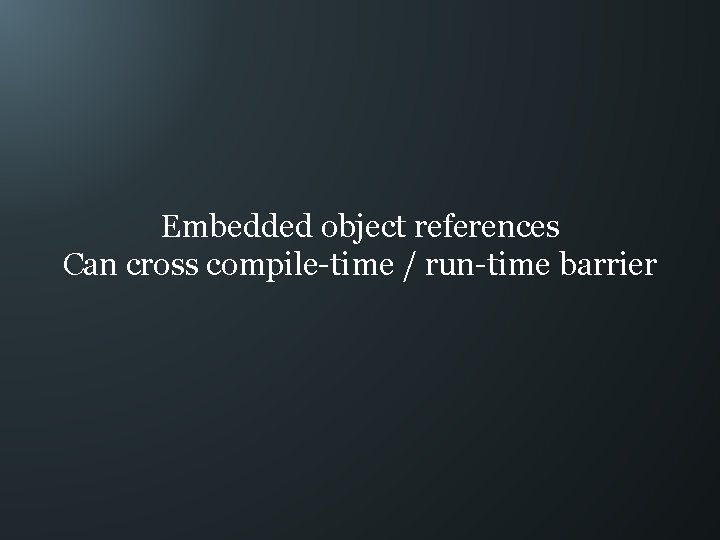

Embedded object references Can cross compile-time / run-time barrier

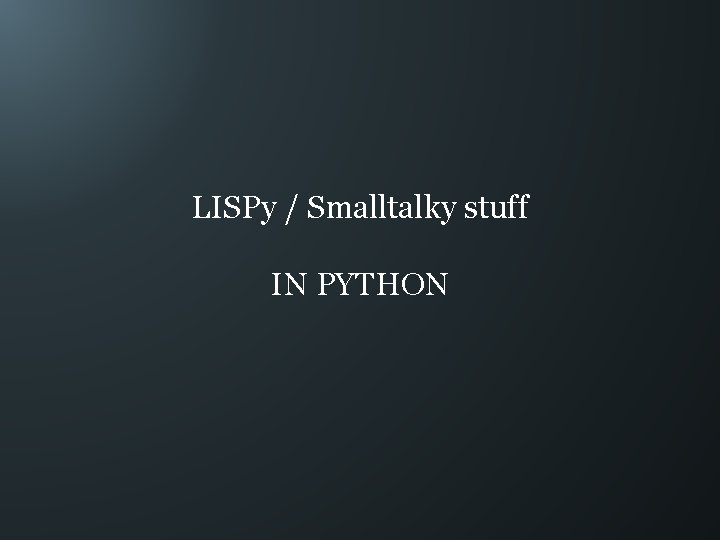

LISPy / Smalltalky stuff IN PYTHON

PROJECT STATUS

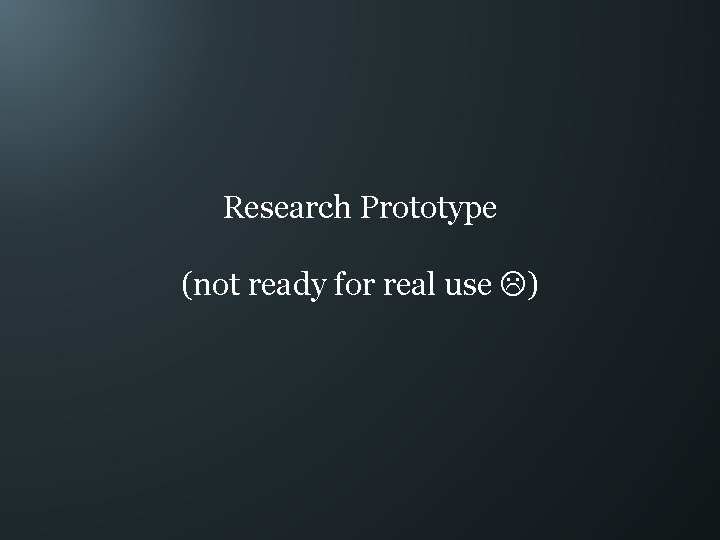

Research Prototype (not ready for real use )

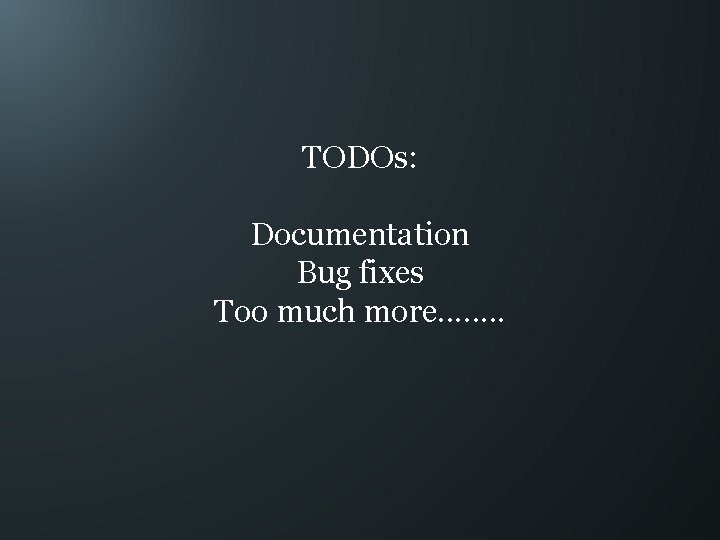

TODOs: Documentation Bug fixes Too much more. . . .

Acknowledgements

Academic supervisory team Dr. Richard Kennaway Prof. Andy Day University of East Anglia, Norwich, UK

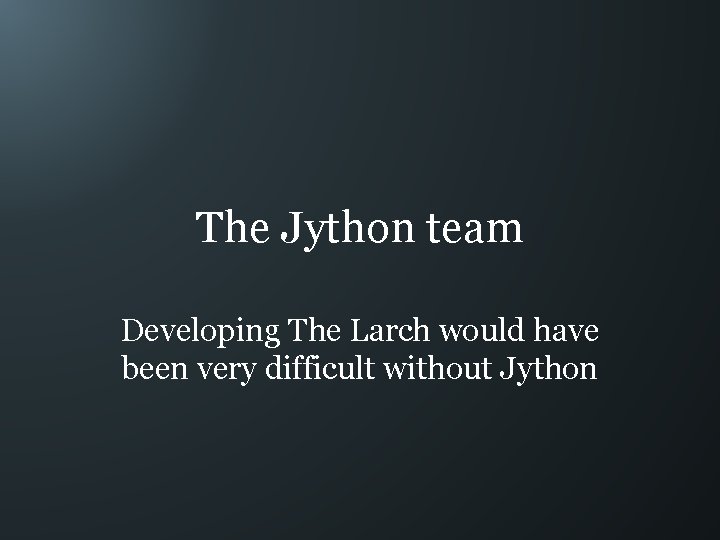

The Jython team Developing The Larch would have been very difficult without Jython

IF TIME ALLOWS: DEMO: KD-Tree

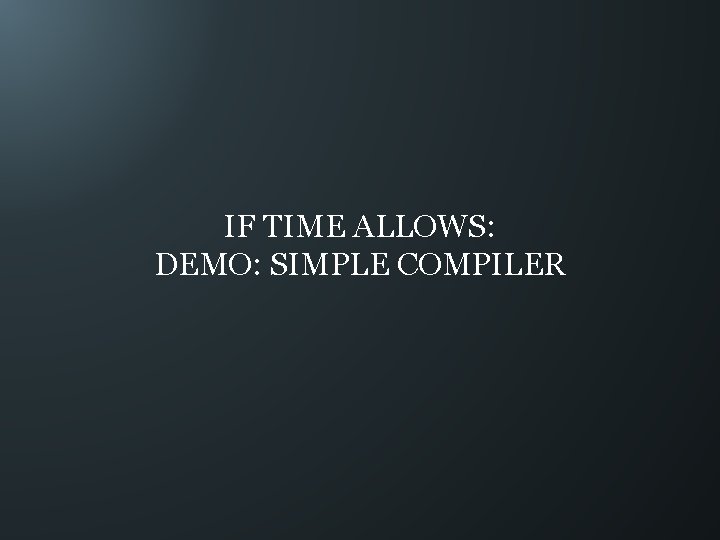

IF TIME ALLOWS: DEMO: SIMPLE COMPILER

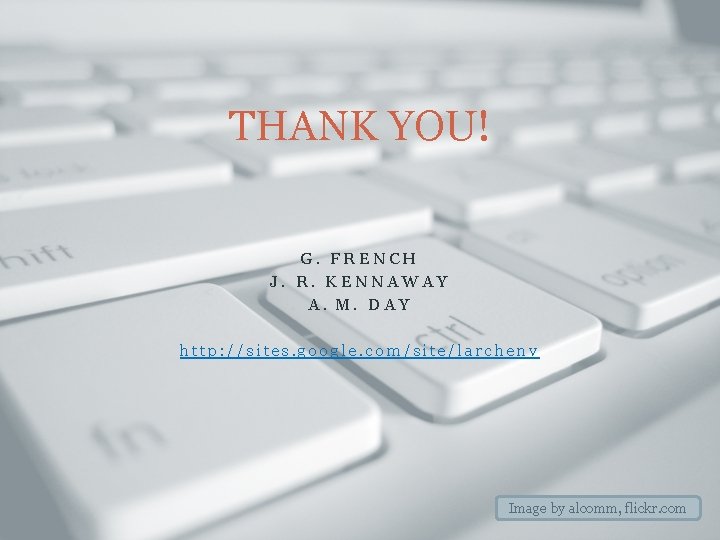

THANK YOU! G. FRENCH J. R. KENNAWAY A. M. DAY http: //sites. google. com/site/larchenv Image by alcomm, flickr. com
