The Knee Anatomy of the Knee on You

The Knee

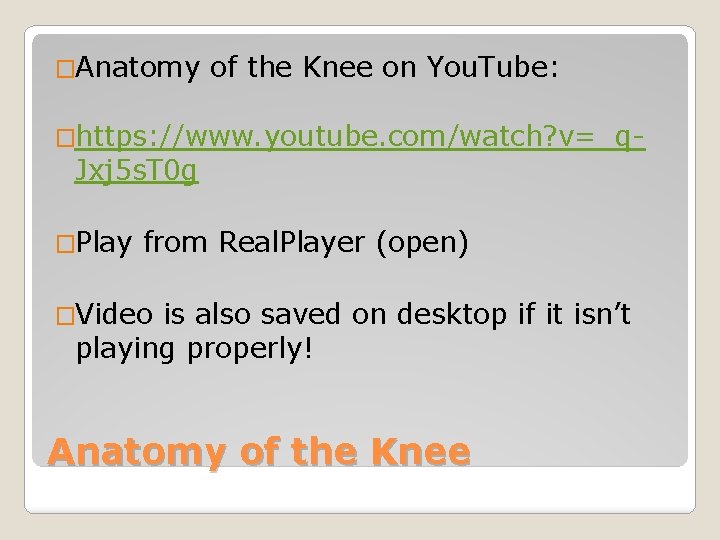

�Anatomy of the Knee on You. Tube: �https: //www. youtube. com/watch? v=_q- Jxj 5 s. T 0 g �Play from Real. Player (open) �Video is also saved on desktop if it isn’t playing properly! Anatomy of the Knee

Labelling Structures of the Knee

�Bones: femur, tibia, patella �Muscles: quadriceps (anterior), gastrocnemius and hamstrings (posterior) �Ligaments: ◦ Anterior Cruciate Ligament: stops anterior mov’t of tibia relative to the femur ◦ Posterior Cruciate Ligament: prevents posterior mov’t of the tibia relative to the femur ◦ Medial Collateral Ligament: reinforces the joint capsule medially ◦ Lateral Collateral Ligament: reinforces the joint capsule laterally Key Structures

Menisci: � The end of the femur is covered with articulating cartilage which rests at the end of the tibia � There lie two thick fibrocartilage articular discs called the menisci (meniscus-singular): the lateral meniscus & medial meniscus � They sit on the tibial condyles and help increase the stability of the knee joint Key Structures

�The knee joint is made up of the articulation of the femur and the tibia. The femur however does not come in contact with the fibula, but the fibula interacts with the tibia. What is the Knee Joint?

�The knee joint was first thought to be a hinge joint because it was believed to be responsible for only flexion and extension �However, the knee can rotate the leg medially and laterally to a small degree �Therefore, the knee is considered to be a modified ellipsoid joint which is a type of synovial joint Type of Joint

�Because of the poor stability in the knee, as well as all the structures involved in the knee joint, discomfort and injuries are unfortunately, quite common! �Ligament Tears: ◦ ACL – look at Q angle ◦ PCL ◦ Unhappy Triad �Patellofemoral Syndrome �Patellar Tendinitis �Osgood Schlatter �Bursitis KNEE INJURIES

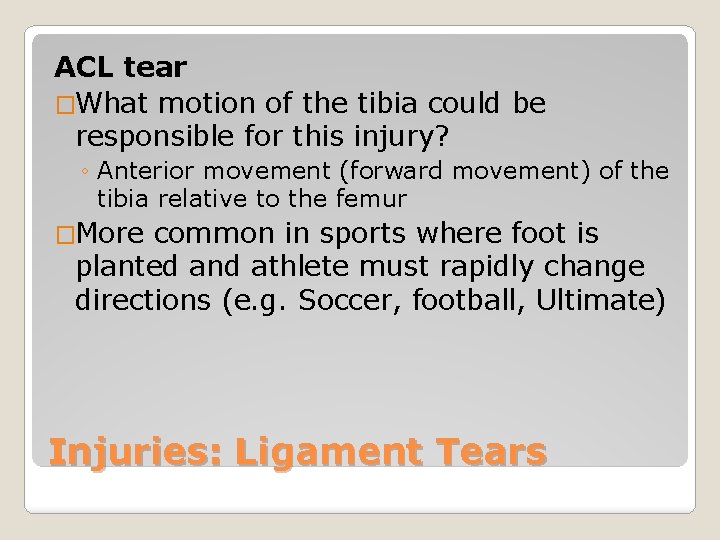

ACL tear �What motion of the tibia could be responsible for this injury? ◦ Anterior movement (forward movement) of the tibia relative to the femur �More common in sports where foot is planted and athlete must rapidly change directions (e. g. Soccer, football, Ultimate) Injuries: Ligament Tears

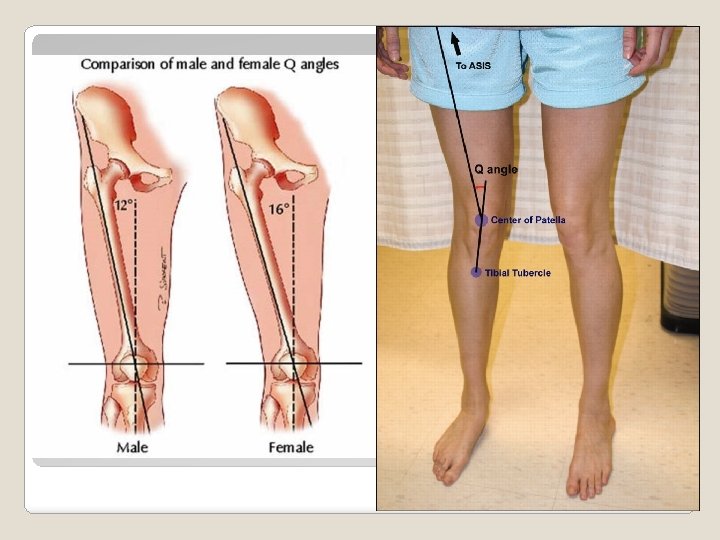

�Q-angle stands for the quadriceps angle �The Q angle is formed by two lines drawn: 1. From the Anterior Superior Illiac Spine (ASIS) through the centre of the patella 2. From the tibial tuberosity through the centre of the patella � Research indicates that a Q-angle greater than 20 increases the risk of knee injuries The Q-Angle

�Find a friend �Locate their ASIS, tibial tuberosity and the centre of their patella �Create two lines to form your Q-angle – use string or rulers to visualize this! Measuring Your Q-Angle

Question: Who are more prone to knee injuries, based on their Q-angle - men or women? Answer: Generally, because a woman’s pelvis is wider, her Q-angle will be larger than a man’s. This predisposes her to knee ligament tears, among other knee injuries. An NCAA study showed that women suffered ACL injuries four times more often in basketball; three times more often in gymnastics; and two-and-a-half times more often in soccer. Q-Angle Results

�PCL tears can occur when a football or soccer player falls on a bent knee. �Motor vehicle accidents are another common cause of injury to the PCL. When the driver or passenger strikes the bent knee just below the kneecap (patella) against the dashboard, the force can tear the PCL and damage other ligaments, bones and muscles. Posterior Cruciate Sprain

Signs and symptoms üMarked, immediate swelling (within three hours of the injury) üDifficulty walking after the injury üPainful to move the knee üOccasionally, a feeling of instability, or the knee "giving way“ PCL Injury

�When the knee suffers a blow to the lateral side, the medial side of the knee is affected: the medial meniscus is torn, the MCL is torn and the ACL is torn. �These three traumas were coined: the Unhappy Triad �This injury is commonplace in football, rugby and soccer where lateral blows to the knee are possible The Unhappy Triad

Medial

�Gradual onset of anterior knee pain or pain around the patella �More common in adolescents, young adults and females are more prone than males �Often aggravated by sports such as running, volleyball and basketball �There is quite a bit of disagreement in the sport medicine community as to its cause Patellofemoral Syndrome

�Overuse/Overload: ◦ repeated weight bearing impact, landing from jumps �Biomechanical Instability: ◦ flat feet (pronation) causes internal rotation of tibia and femur which stresses the PF joint ◦ high arches puts undue stress on PF joint ◦ Q-angle? �Muscles ◦ Muscle weakness or imbalance (especially quads: hammies) Factors Contributing to PFS

What is patellar tendonitis? � Patellar tendonitis, also called jumper's knee, is inflammation in the band of tissue (the patellar tendon) that connects the patella to the tibia. How does it occur? � The most common activity causing patellar tendonitis is too much jumping. Other repeated activities such as running, walking, or bicycling may lead to patellar tendonitis. All of these activities put repeated stress on the patellar tendon, causing it to be inflamed. Patellar Tendonitis

“Jumper’s Knee”

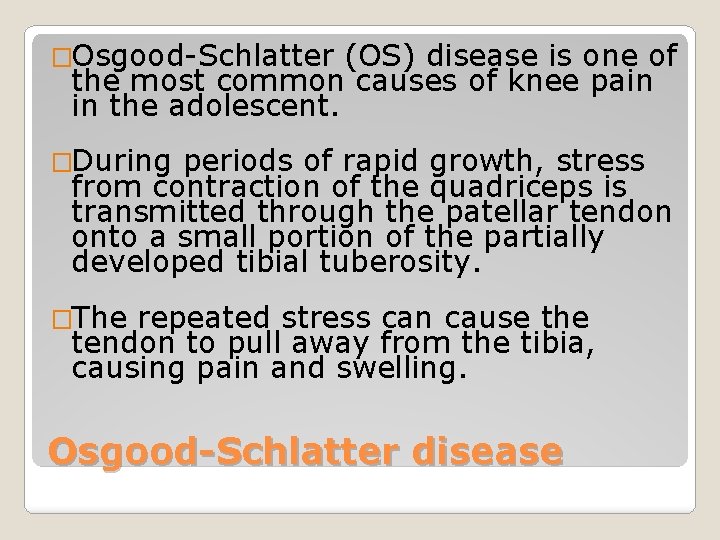

�Osgood-Schlatter (OS) disease is one of the most common causes of knee pain in the adolescent. �During periods of rapid growth, stress from contraction of the quadriceps is transmitted through the patellar tendon onto a small portion of the partially developed tibial tuberosity. �The repeated stress can cause the tendon to pull away from the tibia, causing pain and swelling. Osgood-Schlatter disease

Osgood-Schlatter disease

Bursitis �“Carpet knee. �This Layer’s” is caused by direct trauma.

�Thanks for your patience and attention today! �Tomorrow, and the rest of the week, please bring materials to create a model of a joint. See page in workbook for material suggestions: �Tennis balls �Rubber bands/exercise bands �Balloons �Rods or dowels �Toilet paper rolls �Modelling clay Tomorrow/Thursday/Friday
