The JAS 150 s Digital Airborne Scanner ASPRS

The JAS 150 s Digital Airborne Scanner ASPRS 2008

Jena Airborne Scanner JAS 150 s The System Pictures shows IGI CCNS 4 Flight Management System/Operations • Operations of JAS through Camera Control Unit or • IGI CCNS 4 operates JAS Mass Memory • 1. 1 TB hot swappable solid states Stabilized Mount: • Somag GSM 3000 or • Intergraph T-AS or • Leica PAV 30 Inertial Navigation System • IGI AEROControl or • Applanix POS/AV 510 Data Download station JAS 150 © Jena-Optronik Gmb. H Any disclosure, use or duplication of this document is expressly prohibited. 2

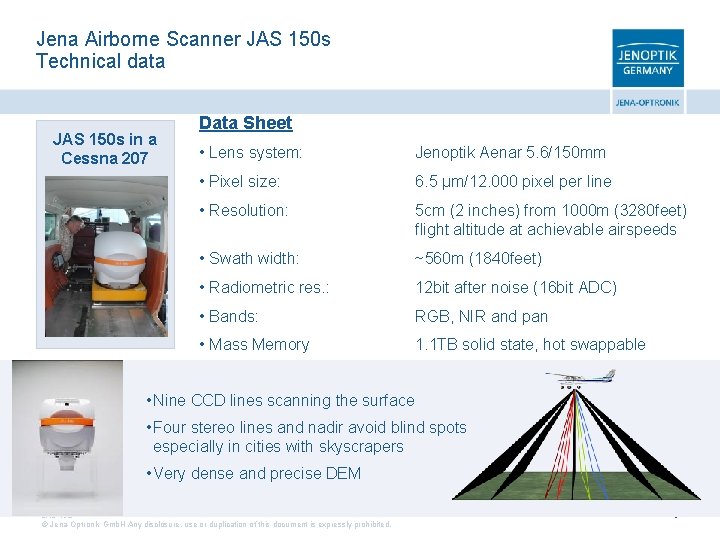

Jena Airborne Scanner JAS 150 s Technical data JAS 150 s in a Cessna 207 Data Sheet • Lens system: Jenoptik Aenar 5. 6/150 mm • Pixel size: 6. 5 µm/12. 000 pixel per line • Resolution: 5 cm (2 inches) from 1000 m (3280 feet) flight altitude at achievable airspeeds • Swath width: ~560 m (1840 feet) • Radiometric res. : 12 bit after noise (16 bit ADC) • Bands: RGB, NIR and pan • Mass Memory 1. 1 TB solid state, hot swappable • Safety/Environment: DO 160 b/Ro. HS/CE designed • Nine CCD lines scanning the surface • Four stereo lines and nadir avoid blind spots especially in cities with skyscrapers • Very dense and precise DEM JAS 150 © Jena-Optronik Gmb. H Any disclosure, use or duplication of this document is expressly prohibited. 3

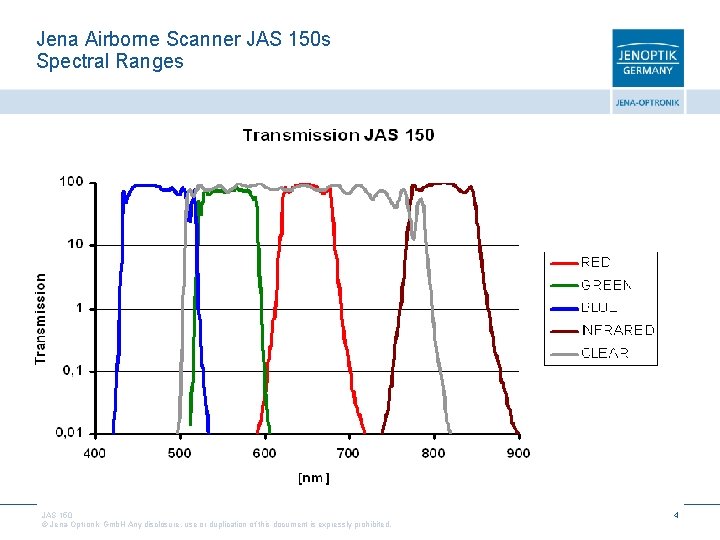

Jena Airborne Scanner JAS 150 s Spectral Ranges JAS 150 © Jena-Optronik Gmb. H Any disclosure, use or duplication of this document is expressly prohibited. 4

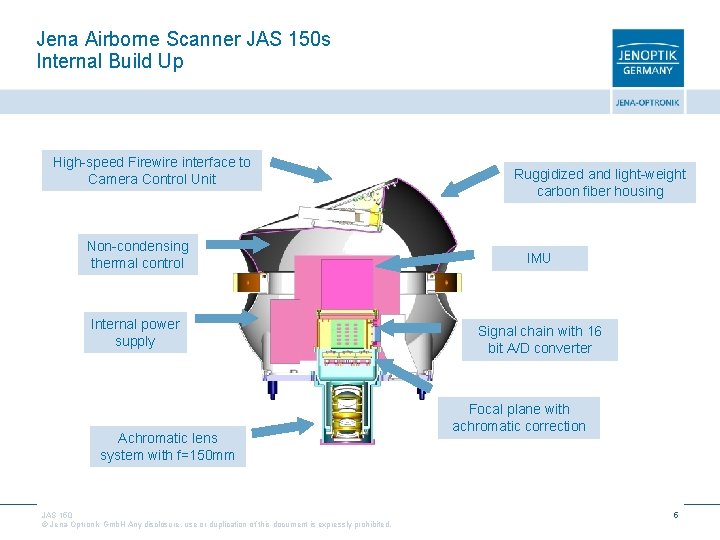

Jena Airborne Scanner JAS 150 s Internal Build Up High-speed Firewire interface to Camera Control Unit Non-condensing thermal control Internal power supply Achromatic lens system with f=150 mm JAS 150 © Jena-Optronik Gmb. H Any disclosure, use or duplication of this document is expressly prohibited. Ruggidized and light-weight carbon fiber housing IMU Signal chain with 16 bit A/D converter Focal plane with achromatic correction 5

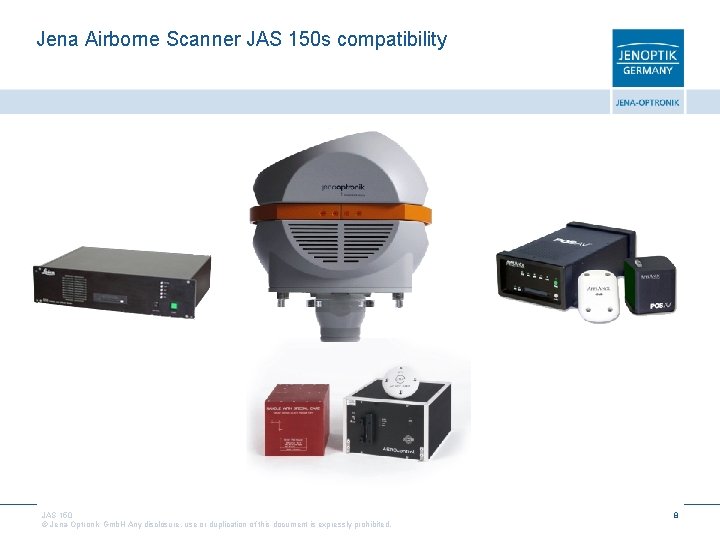

Jena Airborne Scanner JAS 150 s compatibility JAS 150 © Jena-Optronik Gmb. H Any disclosure, use or duplication of this document is expressly prohibited. 6

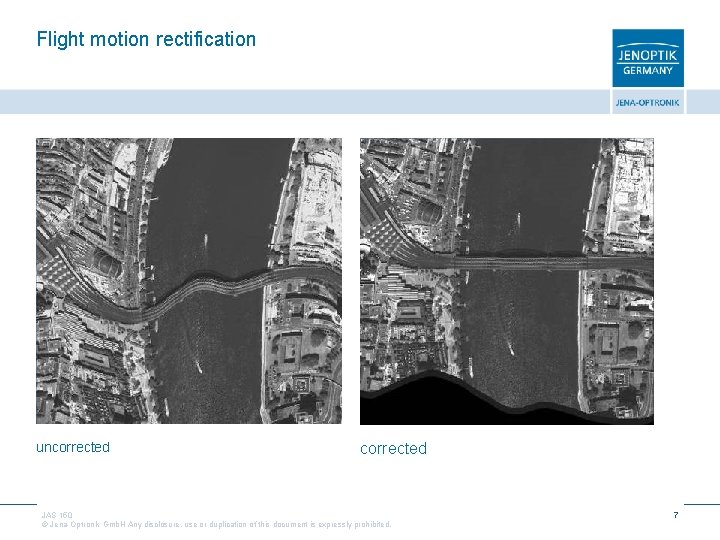

Flight motion rectification uncorrected JAS 150 © Jena-Optronik Gmb. H Any disclosure, use or duplication of this document is expressly prohibited. 7

Jena Airborne Scanner JAS 150 s compatibility JAS 150 © Jena-Optronik Gmb. H Any disclosure, use or duplication of this document is expressly prohibited. 8

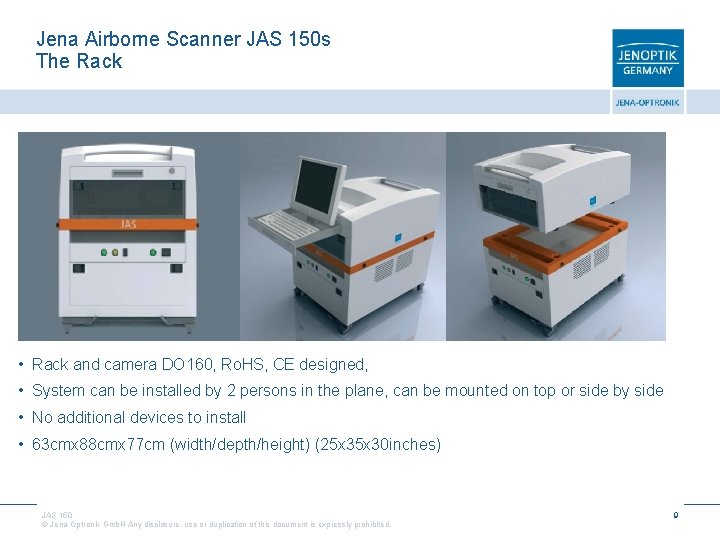

Jena Airborne Scanner JAS 150 s The Rack • Rack and camera DO 160, Ro. HS, CE designed, • System can be installed by 2 persons in the plane, can be mounted on top or side by side • No additional devices to install • 63 cmx 88 cmx 77 cm (width/depth/height) (25 x 30 inches) JAS 150 © Jena-Optronik Gmb. H Any disclosure, use or duplication of this document is expressly prohibited. 9

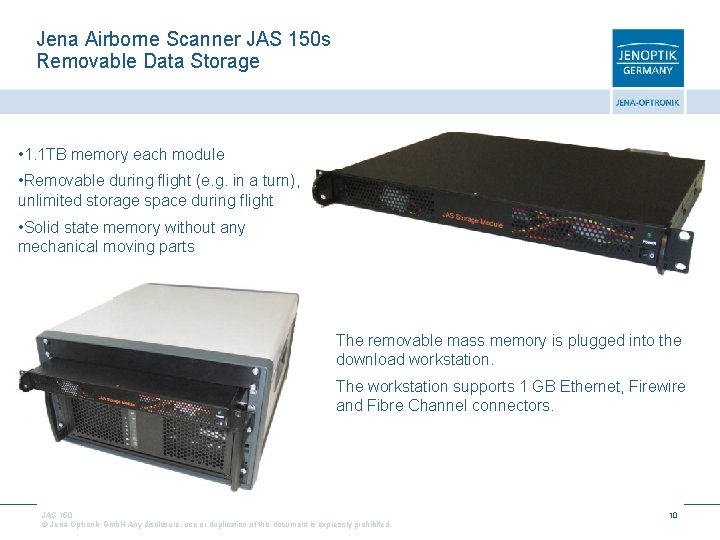

Jena Airborne Scanner JAS 150 s Removable Data Storage • 1. 1 TB memory each module • Removable during flight (e. g. in a turn), unlimited storage space during flight • Solid state memory without any mechanical moving parts The removable mass memory is plugged into the download workstation. The workstation supports 1 GB Ethernet, Firewire and Fibre Channel connectors. JAS 150 © Jena-Optronik Gmb. H Any disclosure, use or duplication of this document is expressly prohibited. 10

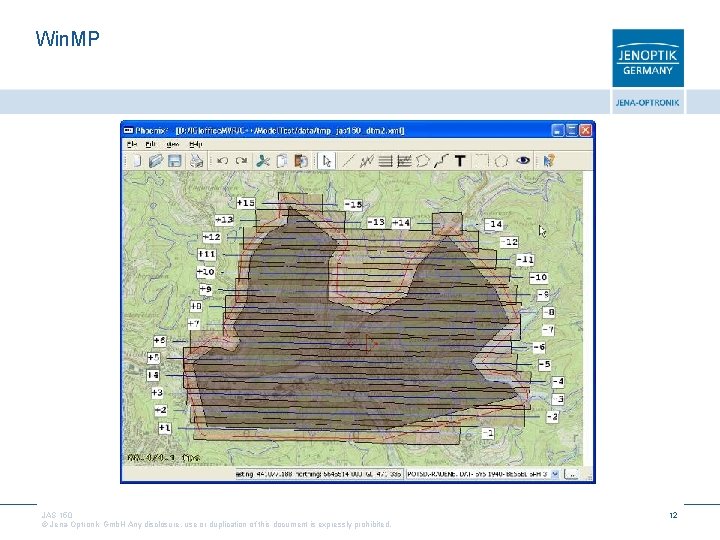

Win. MP Flights can be planned Using Win. MP JAS 150 © Jena-Optronik Gmb. H Any disclosure, use or duplication of this document is expressly prohibited. 11

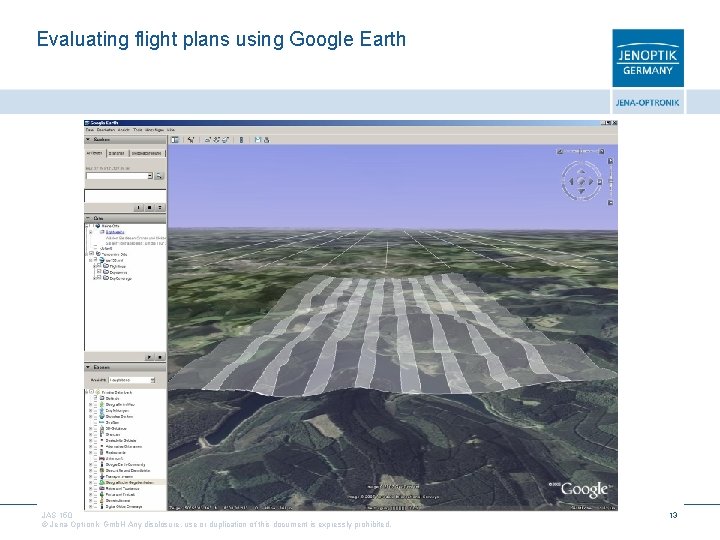

Evaluating flight plans using Google Earth JAS 150 © Jena-Optronik Gmb. H Any disclosure, use or duplication of this document is expressly prohibited. 13

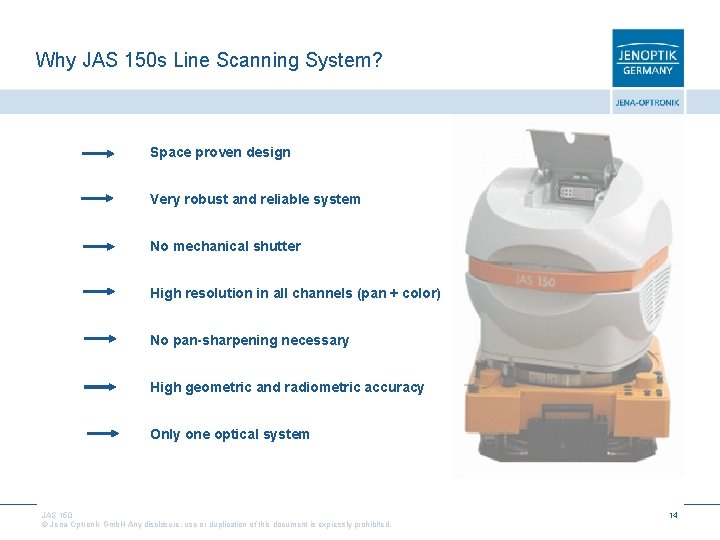

Why JAS 150 s Line Scanning System? Space proven design Very robust and reliable system No mechanical shutter High resolution in all channels (pan + color) No pan-sharpening necessary High geometric and radiometric accuracy Only one optical system JAS 150 © Jena-Optronik Gmb. H Any disclosure, use or duplication of this document is expressly prohibited. 14
