The Islamic University of Gaza Faculty of Engineering Civil Engineering Department Numerical Analysis ECIV 3306 Chapter 23 Numerical Differentiation

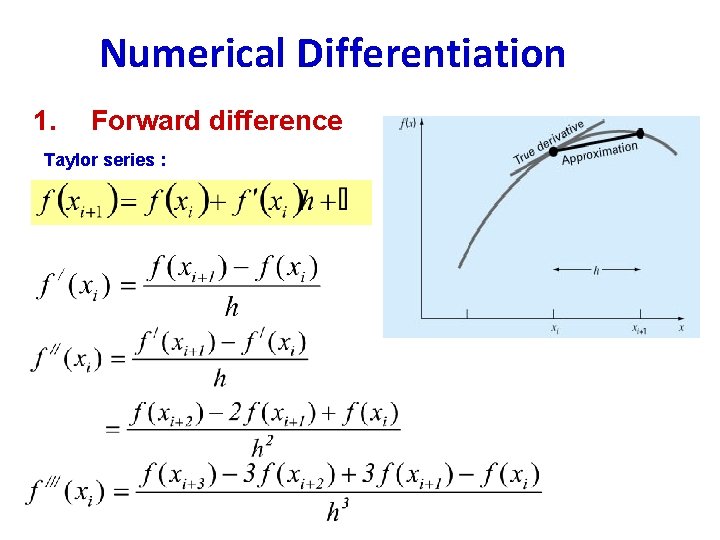

Numerical Differentiation 1. Forward difference Taylor series :

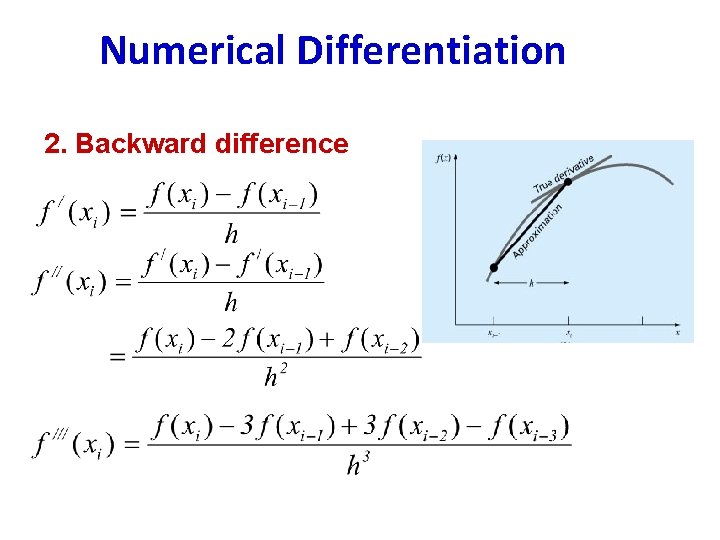

Numerical Differentiation 2. Backward difference

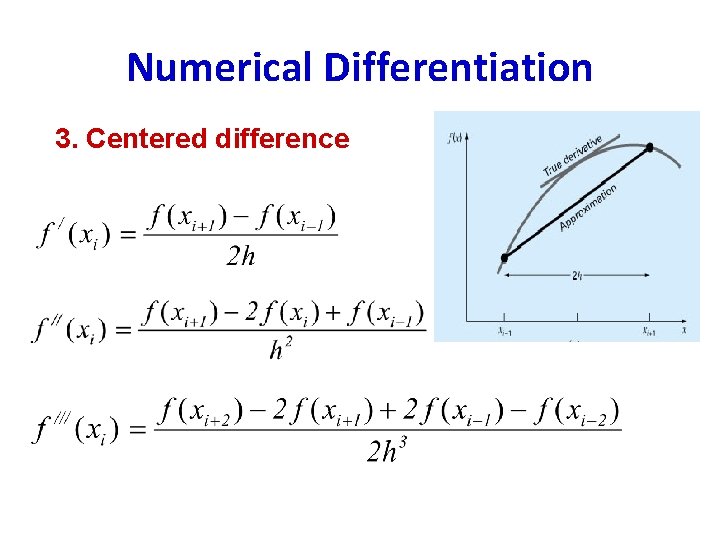

Numerical Differentiation 3. Centered difference

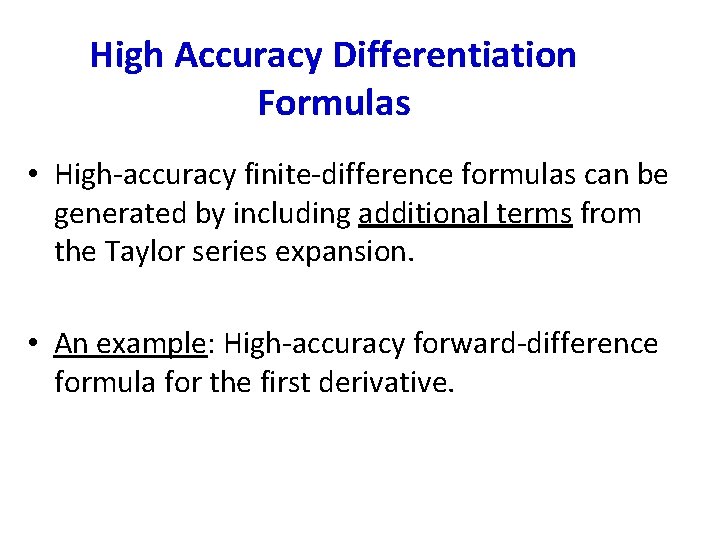

High Accuracy Differentiation Formulas • High-accuracy finite-difference formulas can be generated by including additional terms from the Taylor series expansion. • An example: High-accuracy forward-difference formula for the first derivative.

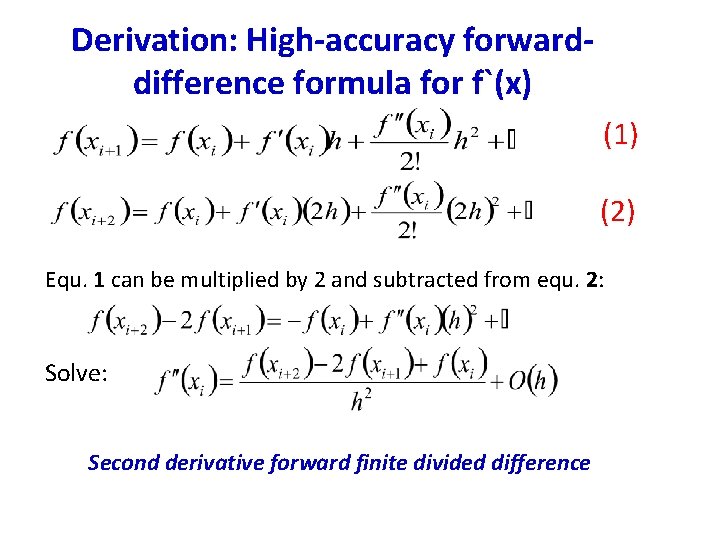

Derivation: High-accuracy forwarddifference formula for f`(x) (1) (2) Equ. 1 can be multiplied by 2 and subtracted from equ. 2: Solve: Second derivative forward finite divided difference

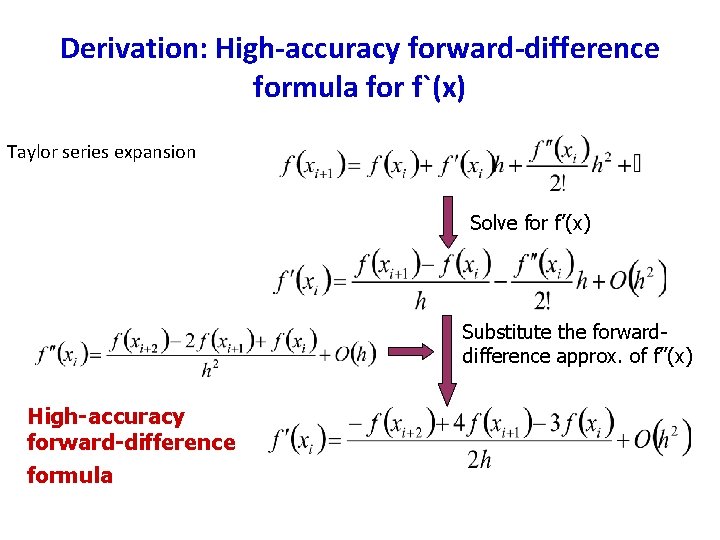

Derivation: High-accuracy forward-difference formula for f`(x) Taylor series expansion Solve for f’(x) Substitute the forwarddifference approx. of f”(x) High-accuracy forward-difference formula

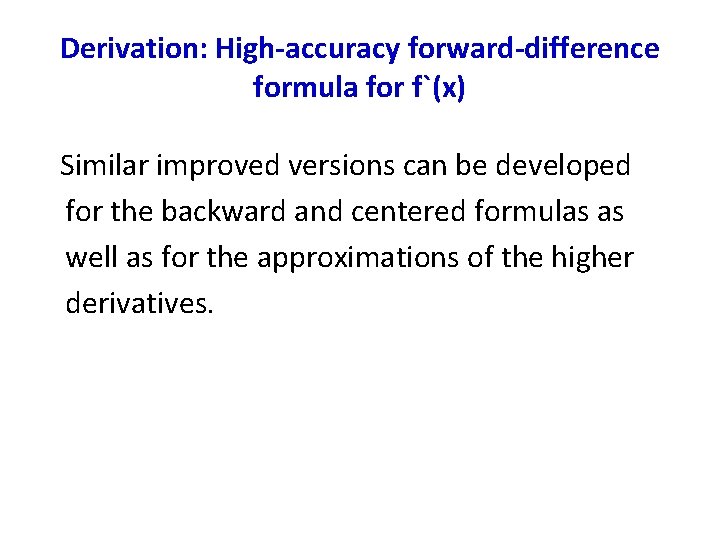

Derivation: High-accuracy forward-difference formula for f`(x) Similar improved versions can be developed for the backward and centered formulas as well as for the approximations of the higher derivatives.

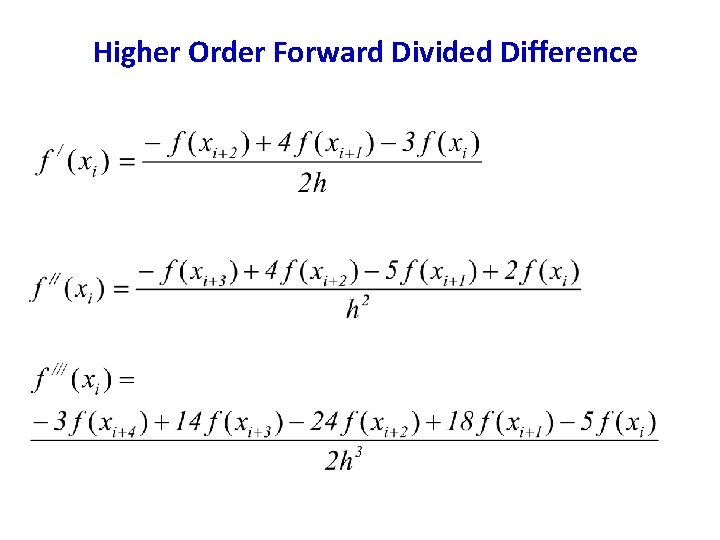

Higher Order Forward Divided Difference

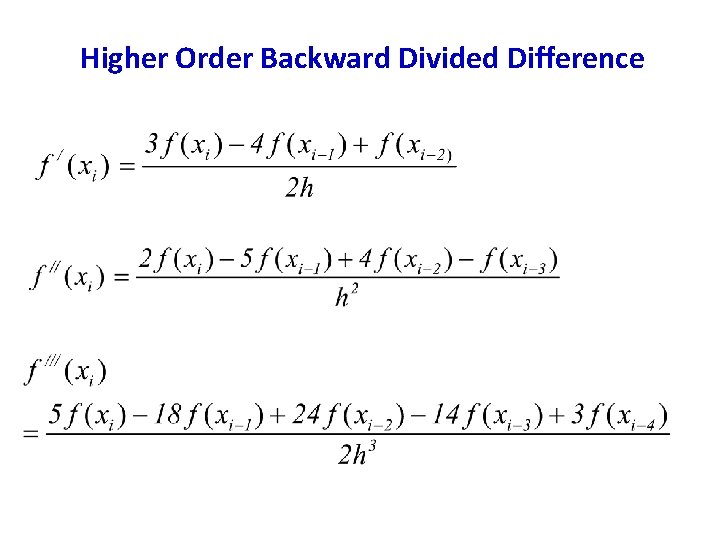

Higher Order Backward Divided Difference

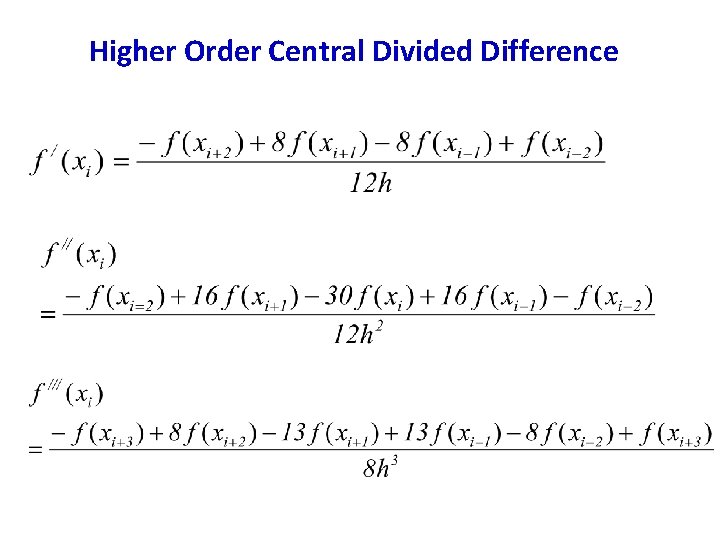

Higher Order Central Divided Difference

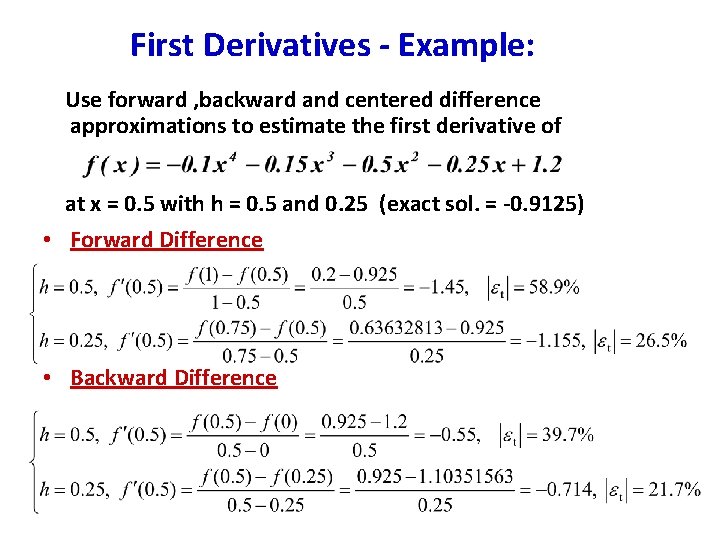

First Derivatives - Example: Use forward , backward and centered difference approximations to estimate the first derivative of at x = 0. 5 with h = 0. 5 and 0. 25 (exact sol. = -0. 9125) • Forward Difference • Backward Difference

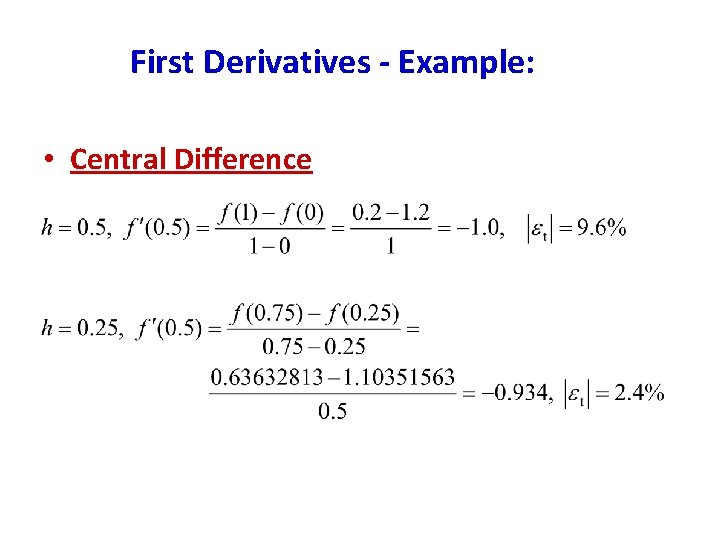

First Derivatives - Example: • Central Difference

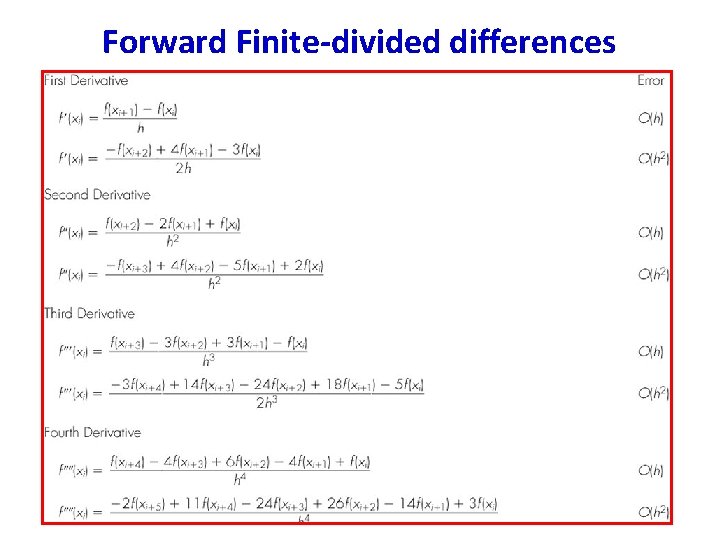

Forward Finite-divided differences

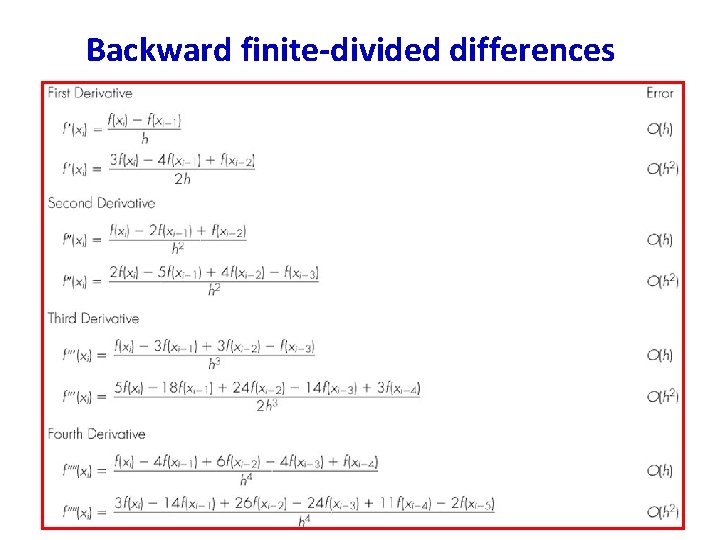

Backward finite-divided differences

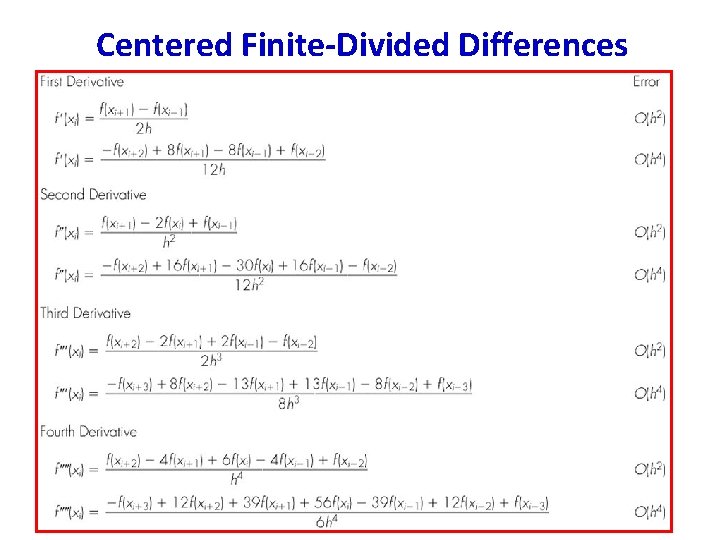

Centered Finite-Divided Differences

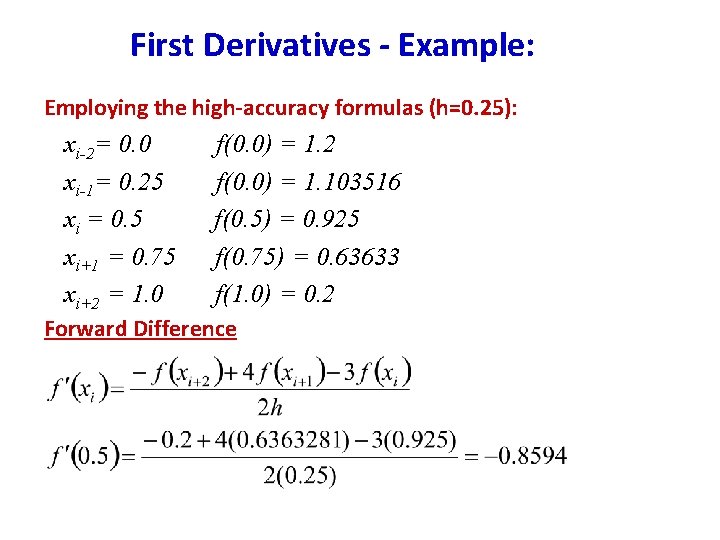

First Derivatives - Example: Employing the high-accuracy formulas (h=0. 25): xi-2= 0. 0 xi-1= 0. 25 xi = 0. 5 xi+1 = 0. 75 xi+2 = 1. 0 f(0. 0) = 1. 2 f(0. 0) = 1. 103516 f(0. 5) = 0. 925 f(0. 75) = 0. 63633 f(1. 0) = 0. 2 Forward Difference

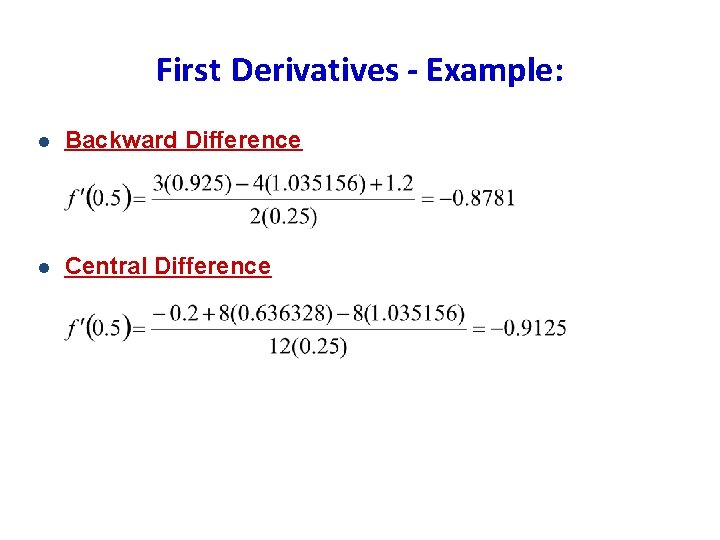

First Derivatives - Example: l Backward Difference l Central Difference

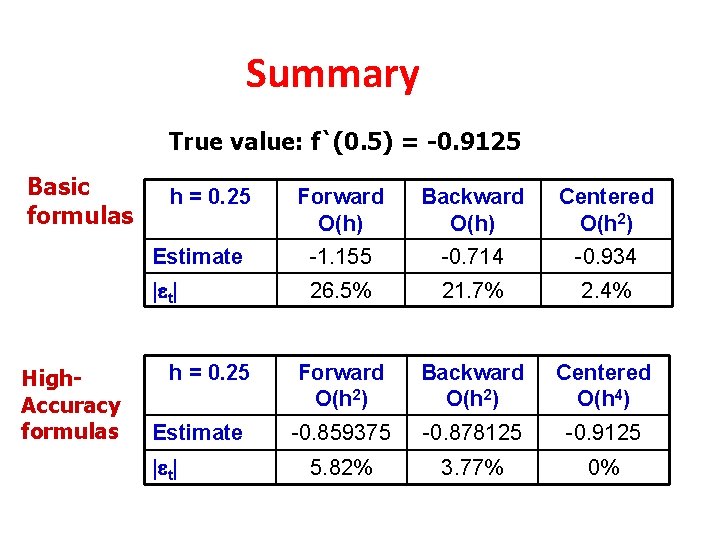

Summary True value: f`(0. 5) = -0. 9125 Basic formulas High. Accuracy formulas h = 0. 25 Forward O(h) Backward O(h) Centered O(h 2) Estimate -1. 155 -0. 714 -0. 934 | t| 26. 5% 21. 7% 2. 4% Forward O(h 2) Backward O(h 2) Centered O(h 4) -0. 859375 -0. 878125 -0. 9125 5. 82% 3. 77% 0% h = 0. 25 Estimate | t|
