The integrated learning factory solutions for Mechatronics training

The integrated learning factory solutions for Mechatronics training MPS 500 Micro. FMS Multi. FMS i. CIM MES n MPS based integrated system n Maximum you can do with PLC control N. Abu-Sinni / Solution Center n FMS integrated system of CNC and robotics n Maximum you can do with robot controller n Combines MPS 500 and Micro. FMS to one system n The maximum on integrated tech. you can get in one system n Computer integrated factory n MES based for maximum flexibility and performance in factory management 11/27/2020 page 1

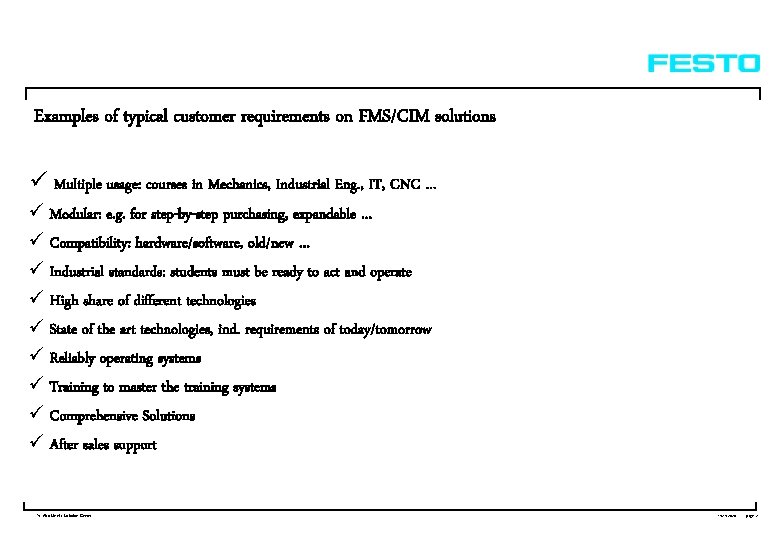

Examples of typical customer requirements on FMS/CIM solutions ü Multiple usage: courses in Mechanics, Industrial Eng. , IT, CNC … ü Modular: e. g. for step-by-step purchasing, expandable … ü Compatibility: hardware/software, old/new … ü Industrial standards: students must be ready to act and operate ü High share of different technologies ü State of the art technologies, ind. requirements of today/tomorrow ü Reliably operating systems ü Training to master the training systems ü Comprehensive Solutions ü After sales support N. Abu-Sinni / Solution Center 11/27/2020 page 2

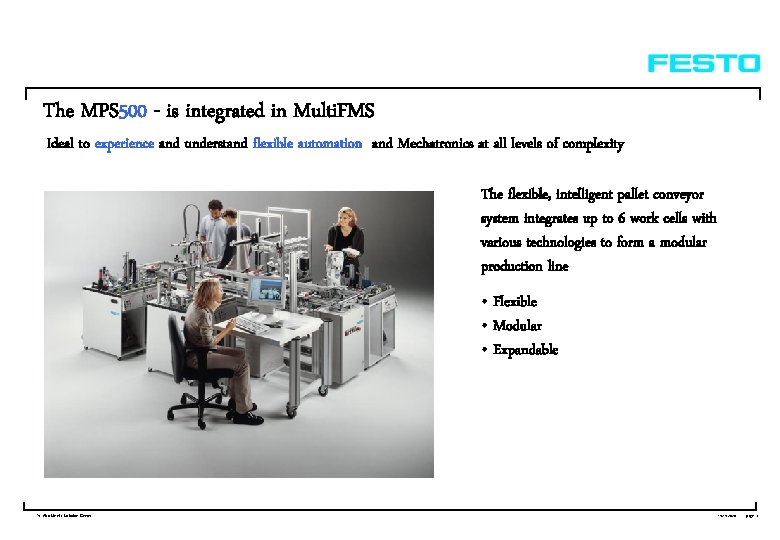

The MPS 500 - is integrated in Multi. FMS Ideal to experience and understand flexible automation and Mechatronics at all levels of complexity The flexible, intelligent pallet conveyor system integrates up to 6 work cells with various technologies to form a modular production line • Flexible • Modular • Expandable N. Abu-Sinni / Solution Center 11/27/2020 page 3

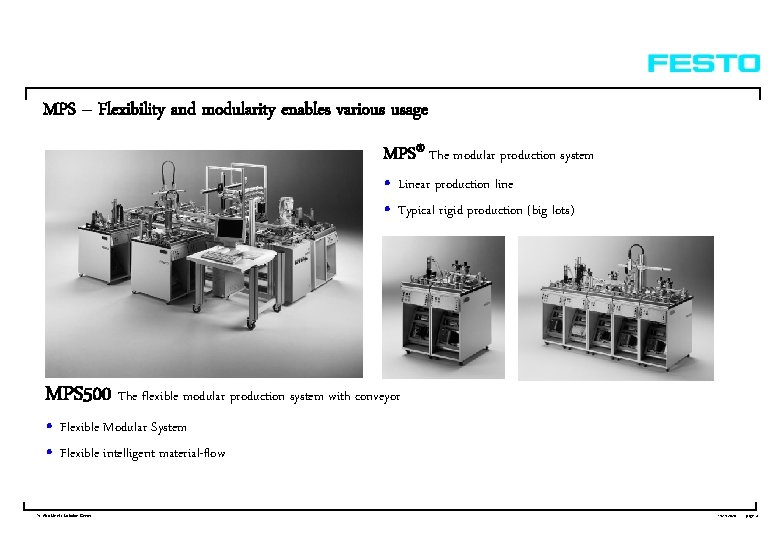

MPS – Flexibility and modularity enables various usage MPS® The modular production system • Linear production line • Typical rigid production (big lots) MPS 500 The flexible modular production system with conveyor • Flexible Modular System • Flexible intelligent material-flow N. Abu-Sinni / Solution Center 11/27/2020 page 4

Micro. FMS – is integrated in Multi. FMS Ideal to experience and understand automation of Flexible Manufacturing Systems N. Abu-Sinni / Solution Center l Designed for training in FMS and all related technologies l Covers all key sequences of integrated advanced Mechatronics systems l Components, communication and control concept corresponding to industrial standards l Cost effective l Designed to be easy to handle and understand l Modular l Expandable in many directions 11/27/2020 page 5

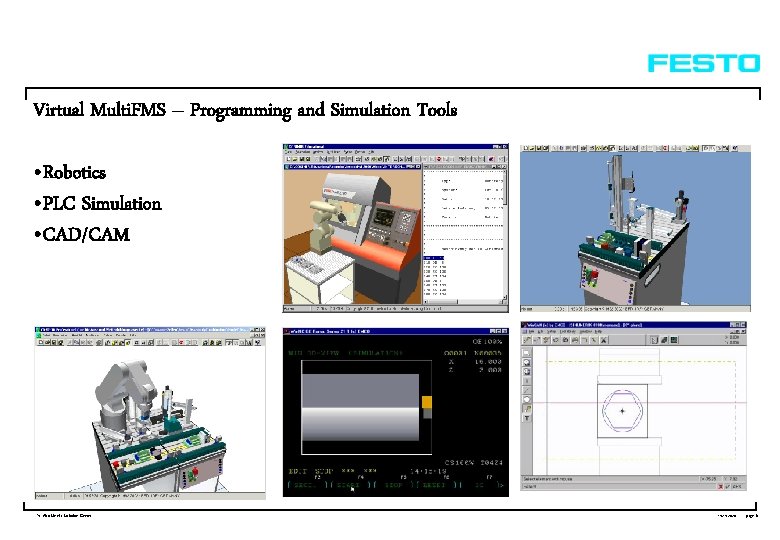

Virtual Multi. FMS – Programming and Simulation Tools • Robotics • PLC Simulation • CAD/CAM N. Abu-Sinni / Solution Center 11/27/2020 page 6

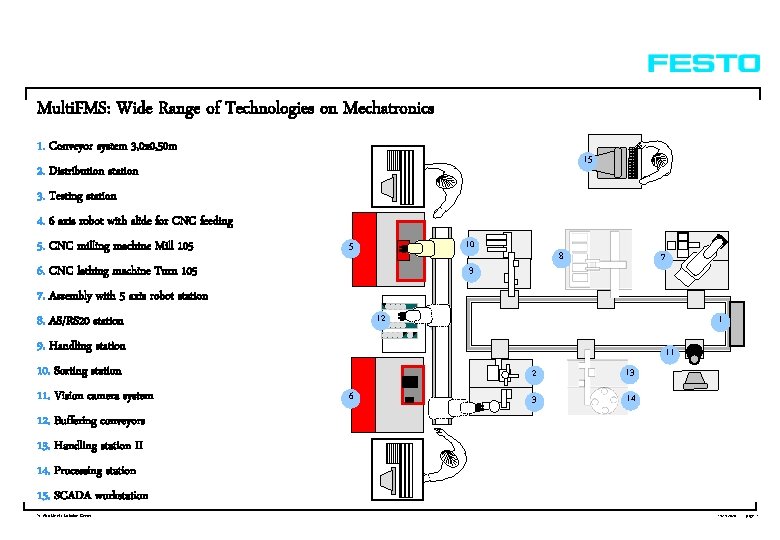

Multi. FMS: Wide Range of Technologies on Mechatronics 1. Conveyor system 3, 0 x 0, 50 m 15 2. Distribution station 3. Testing station 4. 6 axis robot with slide for CNC feeding 5. CNC milling machine Mill 105 10 5 6. CNC lathing machine Turn 105 8 9 7 7. Assembly with 5 axis robot station 12 8. AS/RS 20 station 1 4 9. Handling station 11 10. Sorting station 11. Vision camera system 6 2 13 3 14 12. Buffering conveyors 13. Handling station II 14. Processing station 15. SCADA workstation N. Abu-Sinni / Solution Center 11/27/2020 page 7

Multi. FMS - Integrated Stations 1. Conveyor system 3, 0 x 0, 50 m 2. MPS Distribution Station 3. MPS Testing Station 4. MPS Handling Station 5. MPS Processing Station 6. Quality Vision system 7. MPS Robot Station 8. MPS Assembly Station 9. AS/RS 20 Station 10. MPS Handling Station (II) 11. MPS Sorting Station 12. Robot with slide for CNC feeding 13. CNC Milling machine 14. CNC Lathing machine 15. Buffering conveyors 16. Programming & Simulation Workstation N. Abu-Sinni / Solution Center 14 13 15 12 2 3 5 16 6 4 11 1 10 9 7 8 11/27/2020 page 8

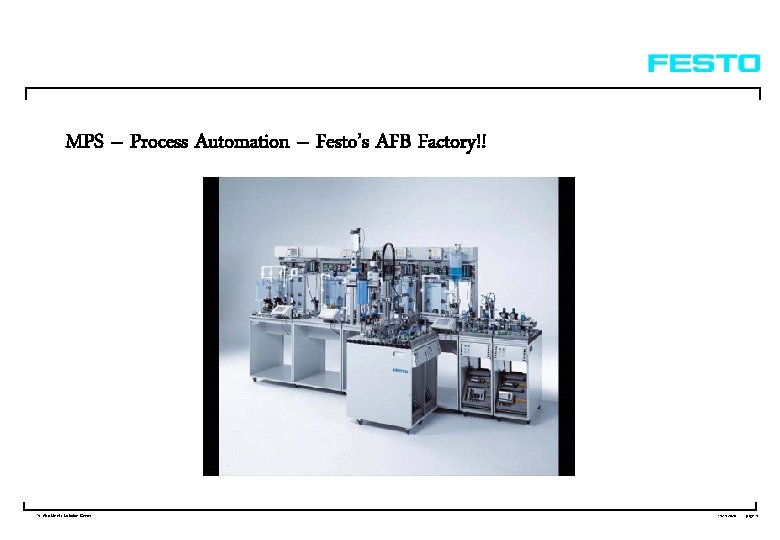

MPS – Process Automation – Festo’s AFB Factory!! N. Abu-Sinni / Solution Center 11/27/2020 page 9

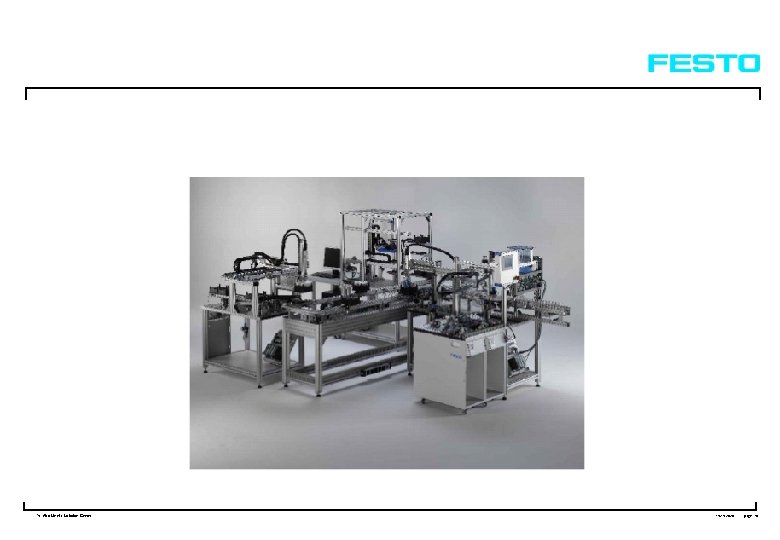

N. Abu-Sinni / Solution Center 11/27/2020 page 10

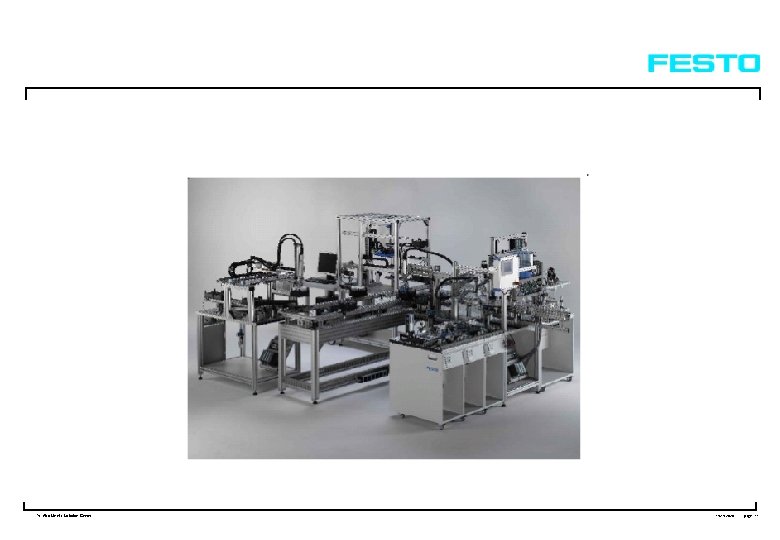

N. Abu-Sinni / Solution Center 11/27/2020 page 11

N. Abu-Sinni / Solution Center 11/27/2020 page 12

N. Abu-Sinni / Solution Center 11/27/2020 page 13

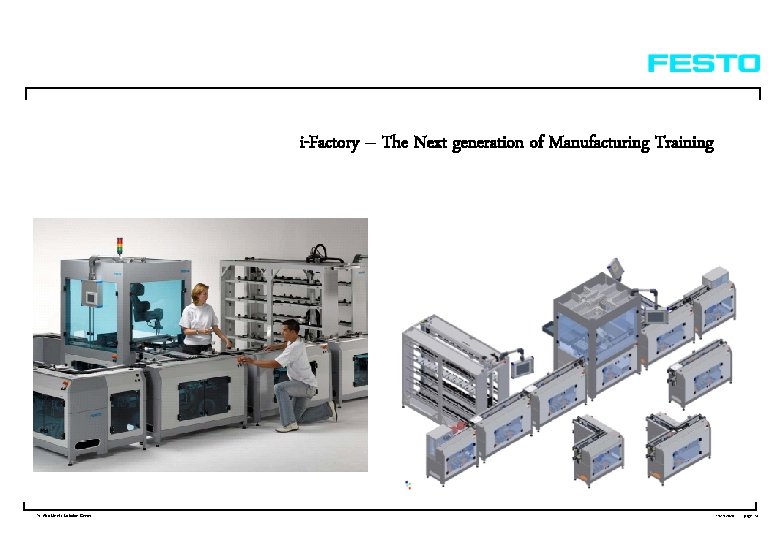

i-Factory – The Next generation of Manufacturing Training N. Abu-Sinni / Solution Center 11/27/2020 page 14
