THE INDUS BASIN AN OVERVIEW THE INDUS WATERS

THE INDUS BASIN – AN OVERVIEW THE INDUS WATERS TREATY – 1960 26 AUGUST 2015

INDUS BASIN MAP Facts: Area 1. 16 M km 2 Runoff 211 BCM Rainfall 10 to 200 cm

FLOW AVAILABILITY OF INDUS AND ITS TRIBUTARIES River at Rim Station Average Annual Runoff in MAF (BCM) Indus at Kalabagh (incudes flow of Kabul River) 90 (111) Jhelum at Mangla 23 (28) Chenab at Marala 25 (31) Total Western Rivers Ravi at Madhopur 138 (170) 6 (8) Beas at Mandi Plain 13 (16) Sutlej at Rupar 14 (17) Total Eastern Rivers Total Indus Basin 33 (41) 171 (211)

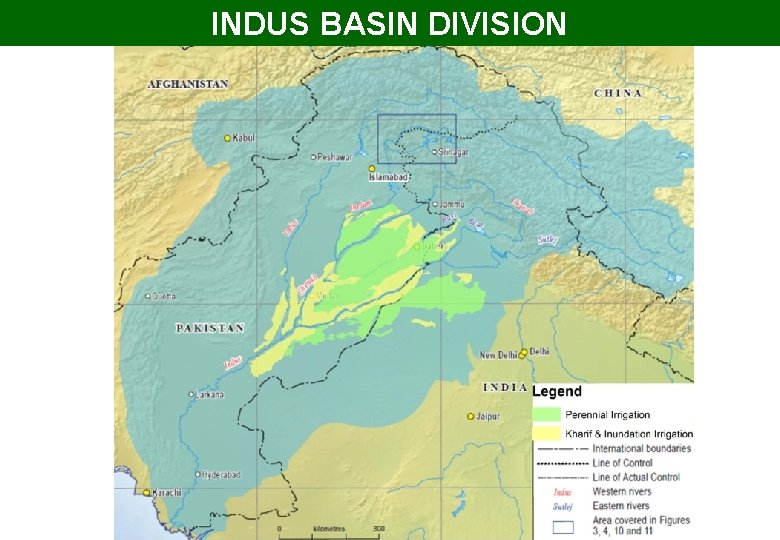

INDUS BASIN DIVISION

AGRICULTURAL AREAS IN INDIA AND PAKISTAN 1947 Irrigated Area on IBRS: 26 million acres In Pakistan 21 million acres In India: 05 million acres Now 66 million acres 45 million acres 21 million acres

WATER DISTRIBUTION AS PER THE IWT EASTERN RIVERS i. All the water of the Eastern Rivers is available for the unrestricted use of India

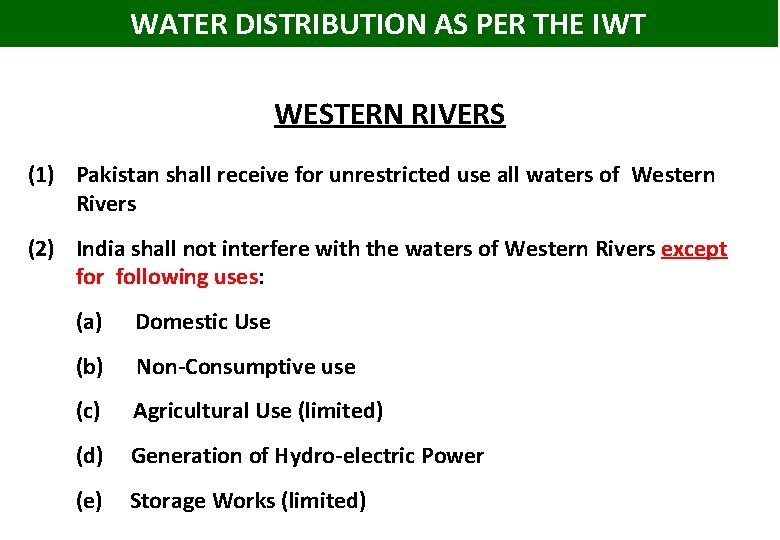

WATER DISTRIBUTION AS PER THE IWT WESTERN RIVERS (1) Pakistan shall receive for unrestricted use all waters of Western Rivers (2) India shall not interfere with the waters of Western Rivers except for following uses: (a) Domestic Use (b) Non-Consumptive use (c) Agricultural Use (limited) (d) Generation of Hydro-electric Power (e) Storage Works (limited)

FLOW ALLOCATIONS AS PER IWT River at Rim Station Average Annual Runoff in MAF (BCM) Indus at Kalabagh (incudes flow of Kabul River) 90 (111) Jhelum at Mangla 23 (28) Chenab at Marala 25 (31) Total Western Rivers Ravi at Madhopur 138 (170) 6 (8) Beas at Mandi Plain 13 (16) Sutlej at Rupar 14 (17) Total Eastern Rivers Total Indus Basin 33 (41) 171 (211)

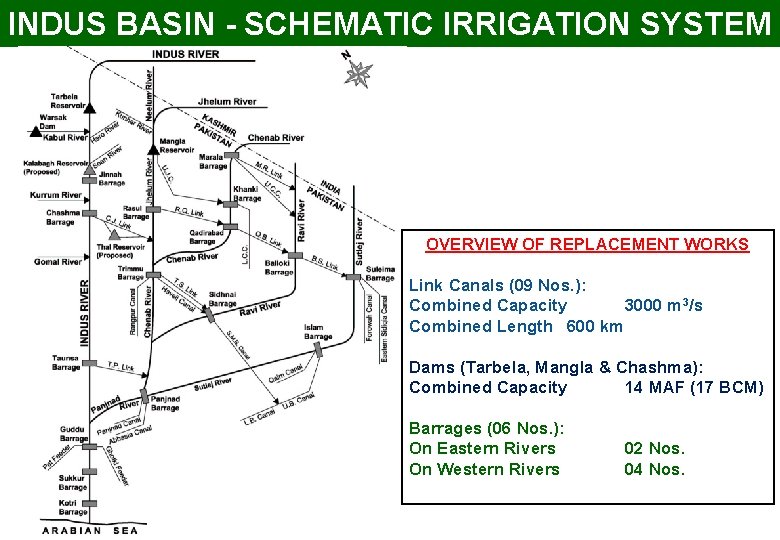

INDUS BASIN - SCHEMATIC IRRIGATION SYSTEM OVERVIEW OF REPLACEMENT WORKS Link Canals (09 Nos. ): Combined Capacity 3000 m 3/s Combined Length 600 km Dams (Tarbela, Mangla & Chashma): Combined Capacity 14 MAF (17 BCM) Barrages (06 Nos. ): On Eastern Rivers On Western Rivers 02 Nos. 04 Nos.

MUHAMMAD AYUB KHAN WORDS & EFFORTS FOR THE TREATY “But before I write of the negotiations with Eugene Black, I should like to describe the confrontation I had with our own technical experts and administrators. I sensed that they did not fully realize the gravity of the situation and were asking for the moon when we were in a position of weakness all along the line. They were also trying to dictate policy and were taking up extreme positions. Some thirty or forty of them were assembled in a Government House, Lahore, where I addressed them. I said:

MUHAMMAD AYUB KHAN WORDS & EFFORTS FOR THE TREATY Gentlemen, this problem is of far-reaching consequences to us. Let me tell you that every factor is against Pakistan. I am not saying that we should surrender our rights but, at the same time, I will say this: that if we can get a solution which we can live with, we shall be very foolish not to accept it. Now when I say that, I am in fact saying it to myself because I shall have to take the responsibility for the solution. ” Ref: Friends, Not Masters by Muhammad Ayub Khan, President of Pakistan

MUHAMMAD AYUB KHAN WORDS & EFFORTS FOR THE TREATY “The responsibility does not lie on any of you, so let me tell you very plainly that the policy is going to be mine. I shall consult you whenever I am in doubt regarding technical details, but if anyone of you interferes with my policy, I shall deal with him myself. This problem, if not tackled properly, may well mean the end of the country. I mean every word of it. So, don’t let anyone make any mistake about it. ” Ref: Friends, Not Masters by Muhammad Ayub Khan, President of Pakistan

MUHAMMAD AYUB KHAN WORDS & EFFORTS FOR THE TREATY “What we were being called upon to this is to barter away natural flowing waters into our canals, for storage water, and the history of storage is that it begins to silt the moment it is completed. Besides, we are going to put back by about ten years or so by building these storages and link-canals. All this efforts could have been put to more constructive effort. So, we are making great sacrifices. ” Ref: Friends, Not Masters by Muhammad Ayub Khan, President of Pakistan

MUHAMMAD AYUB KHAN WORDS & EFFORTS FOR THE TREATY “As I explained to my people at the time of signing the Treaty, the solution that we had finally arrived at was not the ideal one but it was the best we could get under the circumstances. ” Ref: Friends, Not Masters by Muhammad Ayub Khan, President of Pakistan

MUHAMMAD AYUB KHAN WORDS & EFFORTS FOR THE TREATY “After years of negotiations of the utmost complexity, heart-breaking delays and frequent stalemates, we had, I felt, been able to obtain a solution which was adequate. So, whereas there was no cause for rejoicing at the signing of the Treaty, there was certainly cause for satisfaction that a possibly very ugly situation had been averted. ” Ref: Friends, Not Masters by Muhammad Ayub Khan, President of Pakistan

MUHAMMAD AYUB KHAN WORDS & EFFORTS FOR THE TREATY “With the signing of the Treaty, a chapter of long and uneasy negotiations and suspense in our national affairs came to an end. We entered a period of sustained hard work to provide the huge storages and immensely long link-canals for the alternative sources of water. By 1970 we hope to have completed these works, and when that is done we shall be independent of India in the matter of water supply. ” Ref: Friends, Not Masters by Muhammad Ayub Khan, President of Pakistan

LONG-TERM TEMPORAL VARIATION OF FLOWS OF WESTERN RIVERS Annual Volume in MAF (BCM) Sr. No. River Stations Pre-Treaty (1922 -1960) Post-Treaty (1960 -2013) 1 Indus at Kalabagh 90 (111) 88 (108) 2 Jhelum at Mangla 23 (28) 22 (27) 3 Chenab at Marala 25 (31) 138 (170) 135 (166) Total

Article-II Provisions Regarding Eastern Rivers (Ravi, Sutlej and Beas) (1) All the waters of the Eastern Rivers shall be available for the unrestricted use of India, except as otherwise expressly provided in this Article. (2) Except for Domestic Use and Non-Consumptive Use, Pakistan shall be under an obligation to let flow, and shall not permit any interference with, the waters of the Sutlej Main and the Ravi Main in the reaches where these rivers flow in Pakistan and have not yet finally crossed into Pakistan. (3) Except for Domestic Use, Non-Consumptive Use and Agricultural Use (as specified in Annexure B), Pakistan shall be under an obligation to let flow, and shall not permit any interference with, the waters (while flowing in Pakistan) of any Tributary which in its natural course joins the Sutlej Main or the Ravi Main before these rivers have finally crossed into Pakistan.

Article-III Provisions Regarding Western Rivers (Indus, Jhelum and Chenab) (1) Pakistan shall receive for unrestricted use all those waters of the Western Rivers which India is under obligation to let flow under the provisions of Paragraph (2) India shall be under an obligation to let flow all the waters of the Western Rivers, and shall not permit any interference with these waters, except for the following uses, restricted (except as provided in item (c) (ii) of Paragraph 5 of Annexure C) in the case of each of the rivers, The Indus, The Jhelum and The Chenab, to the drainage basin thereof: (a) Domestic Use; (b) Non-Consumptive Use; (c) Agricultural Use, as set out in Annexure C; and (d) Generation of hydro-electric power, as set out in Annexure D. (3) ……… (4) Except as provided in Annexures D and E, India shall not store any water of, or construct any storage works on, the Western Rivers.

Annexure-D Generation of Hydroelectric Power by India on the Western Rivers [Article III (2) (d)] The provisions of this Annexure shall apply with respect to the use by India of the waters of the Western River for the generation of hydroelectric power under the provisions of Article III (2) (d) and, subject to the provisions of this Annexure, such use shall be unrestricted: provided that the construction and operation of new hydroelectric plants which are incorporated in a Storage Work (as defined in Annexure E) shall be governed by the relevant provisions of Annexure E.

SUMMARY OF PROJECTS BY INDIA ON WESTERN RIVERS 1. Number of Projects (a) Indus (b) Jhelum (c) Chenab 16 24 20 Total: 2. Installed Capacity (MW) (a) Indus (b) Jhelum (c) Chenab (including Pakal Dul) 114 1488 4091 Total: 3. 5693 Pondage (Acre-ft) (a) Indus (b) Jhelum (c) Chenab 8076 7553 53534 Total: 4. 60 69163 Storage (Acre-ft) (a) Chenab 88000

Annexure D Design Criteria Provisions Regarding Sediment Outlets, Spillway and Intakes for Turbines Paragraph 8 (d) There shall be no outlets below the dead storage level, unless necessary for sediment control or any other technical purpose; any such outlet if provided shall be of minimum size, and located at the highest level, consistent with sound and economical design and with satisfactory operation of the works.

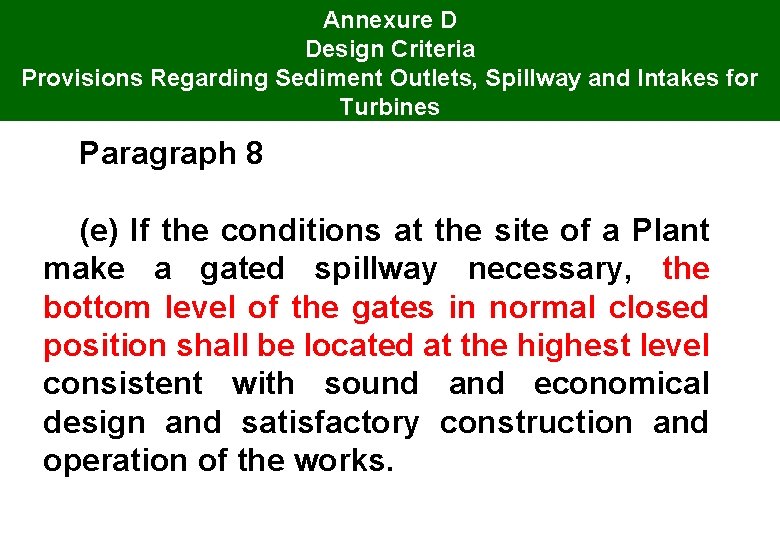

Annexure D Design Criteria Provisions Regarding Sediment Outlets, Spillway and Intakes for Turbines Paragraph 8 (e) If the conditions at the site of a Plant make a gated spillway necessary, the bottom level of the gates in normal closed position shall be located at the highest level consistent with sound and economical design and satisfactory construction and operation of the works.

Annexure D Design Criteria Provisions Regarding Sediment Outlets, Spillway and Intakes for Turbines Paragraph 14 The filling of Dead Storage shall be carried out in accordance with the provisions of Paragraph 18 or 19 of Annexure E

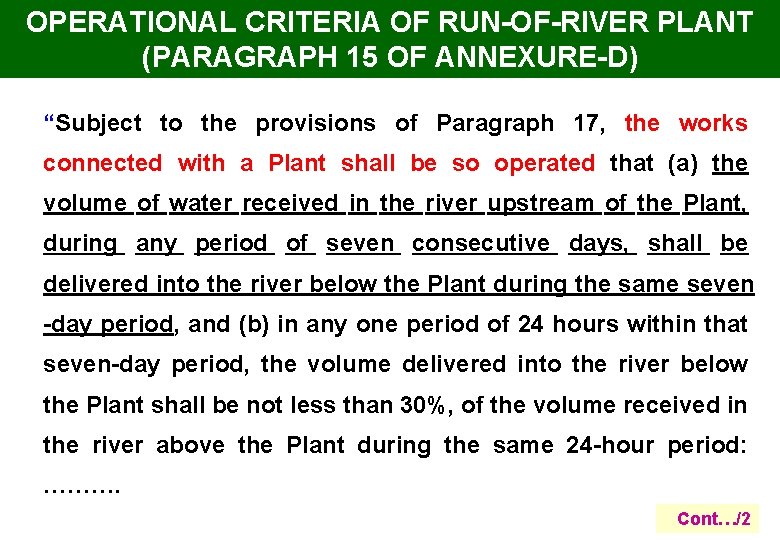

OPERATIONAL CRITERIA OF RUN-OF-RIVER PLANT (PARAGRAPH 15 OF ANNEXURE-D) “Subject to the provisions of Paragraph 17, the works connected with a Plant shall be so operated that (a) the volume of water received in the river upstream of the Plant, during any period of seven consecutive days, shall be delivered into the river below the Plant during the same seven -day period, and (b) in any one period of 24 hours within that seven-day period, the volume delivered into the river below the Plant shall be not less than 30%, of the volume received in the river above the Plant during the same 24 -hour period: ………. Cont…/2

Annexure-E Initial Filling 18. The annual filling of Conservation Storage and the initial filling below the Dead Storage Level, at any site, shall be carried out at such times and in accordance with such rules as may be agreed upon between the Commissioners. In case the Commissioners are unable to reach agreement, India may carry out the filling as follows: (a) if the site is on the Indus, between 1 st July and 20 th August; (b) if the site is on the Jhelum, between 21 st June and 20 th August; and (c) if the site is on the Chenab, between 21 st June and 31 st August at such rate as not to reduce, on account of this filling, the flow in the Chenab Main above Marala to less than 55, 000 cusecs.

Annexure-E Depletion of Dead Storage 19. The Dead Storage shall not be depleted except in an unforeseen emergency. If so depleted it will be refilled in accordance with the conditions of its initial filling.

Article-VII (2) If either Party plans to construct any engineering work which would cause interference with the waters of any of the Rivers and which, in its opinion, would affect the other Party materially, it shall notify the other Party of its plans and shall supply such data relating to the work as may be available and as would enable the other Party to inform itself of the nature, magnitude and effect of the work. If a work would cause interference with the waters of any of the Rivers but would not, in the opinion of the Party planning it, affect the other Party materially, nevertheless the Party planning the work shall, on request, supply the other Party with such data regarding the nature, magnitude and effect, if any, of the work as may be available.

Resolution of disputes Name of Project Salal Dam Period of Dispute Resolution 1970 -1978 (8 Years) Baglihar HEP 1992 – 2007 (15 Years) Kishenganga HEP 1994 – 2013 (19 Years)

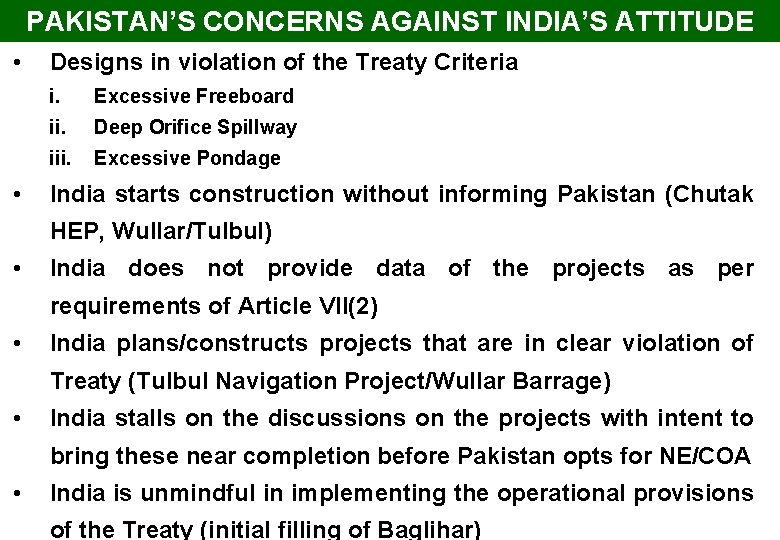

PAKISTAN’S CONCERNS AGAINST INDIA’S ATTITUDE • • Designs in violation of the Treaty Criteria i. Excessive Freeboard ii. Deep Orifice Spillway iii. Excessive Pondage India starts construction without informing Pakistan (Chutak HEP, Wullar/Tulbul) • India does not provide data of the projects as per requirements of Article VII(2) • India plans/constructs projects that are in clear violation of Treaty (Tulbul Navigation Project/Wullar Barrage) • India stalls on the discussions on the projects with intent to bring these near completion before Pakistan opts for NE/COA • India is unmindful in implementing the operational provisions of the Treaty (initial filling of Baglihar)

WAYFORWARD FOR SMOOTH IMPLEMENTATION OF IWT A need to bilaterally agree upon: (i) to improve the data quality by following the internationally accepted practices; (ii) to disseminate the real-time quality-assured gauge and discharge data by employing the modern equipment like telemetry; (iii) to improve the management of upper watersheds;

WAYFORWARD FOR SMOOTH IMPLEMENTATION OF IWT (iv) to ensure the sharing of future projects’ plans and designs at inception stage; (v) to formulate the procedures for determining various parameters of the new projects consistent with sound and economical design and satisfactory construction and operation of the works while remaining within the statutory regulation of the IWT.

INTERPROVINCIAL ATER APPORTIONMENT ACCORD (WAA

WATER APPORTIONMENT ACCORD - 1991 • Water Apportionment Accord was mutually agreed by the four provinces and signed in 1991 • This accord defines the water sharing formula for distribution of Indus Basin flows among the provinces • 1977 -82 historic canal diversions (102 MAF) were made basis for allocation of the waters of the Western Rivers (Indus, Jhelum and Chenab) to the provinces; contributions from Eastern Rivers are negligible • The Accord also defines the water allocations corresponding to various water availability scenarios (dry, average and wet conditions)

INDUS RIVER SYSTEM AUTHORITY • Indus River System Authority (IRSA) was established in 1992 by the Government of Pakistan for implementation of the Accord • IRSA is responsible for determining the seasonal water allocations and also for regulation of the reservoirs, link canals and headworks in the sense that the distribution is as per provincial shares and shortage to the system is evenly distributed • Indus River System Authority (IRSA) comprises five (05) members; four from the provincial irrigation departments and one as a federal member. • Chairman of the Authority is appointed for one year, on rotational basis.

OPERATION OF IRSA • Knowledge base i. e. observed gauge and discharge data, is provided by provincial irrigation departments • Seasonal water availability scenarios and system operation are planned by IRSA in consultation with provincial irrigation departments and WAPDA; due considerations are given to storage available in the reservoirs • Seasonal water allocation plans are made by IRSA before start of the winter and summer crop seasons i. e. Rabi and Kharif.

OPERATION OF IRSA • Anticipated shortages in the system are also communicated in seasonal plans so that provinces could mange their water demands within their allocation. • Day to day operation is monitored by IRSA through collection of observed flows at rim stations and diversion to various canal commands through barrages. • Anticipated seasonal allocations are revisited in the middle of season to update/revise the allocations.
