THE INDEXING MECHANISM OF GEAR HOBBING MACHINE Gears

THE INDEXING MECHANISM OF GEAR HOBBING MACHINE

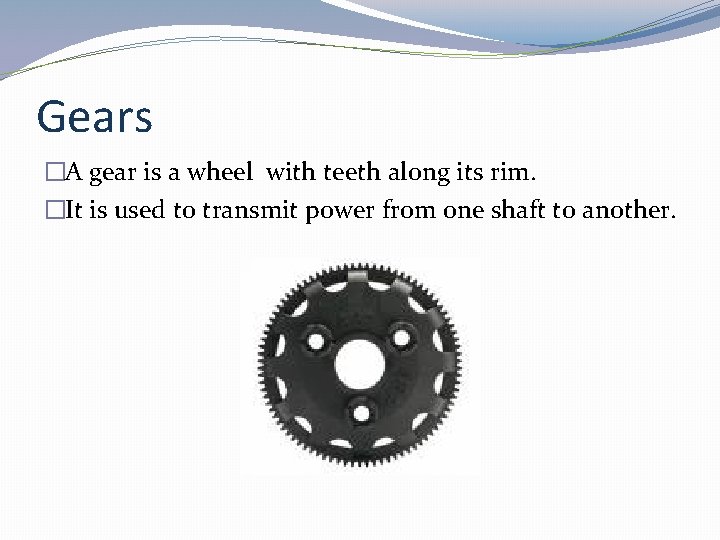

Gears �A gear is a wheel with teeth along its rim. �It is used to transmit power from one shaft to another.

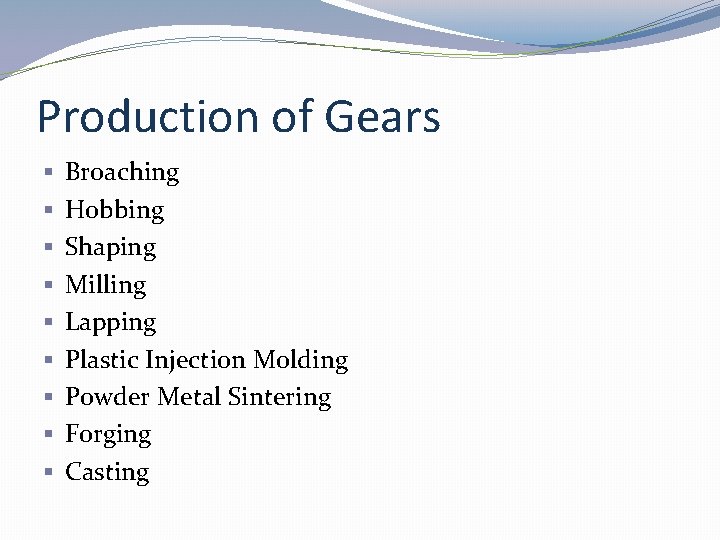

Production of Gears § § § § § Broaching Hobbing Shaping Milling Lapping Plastic Injection Molding Powder Metal Sintering Forging Casting

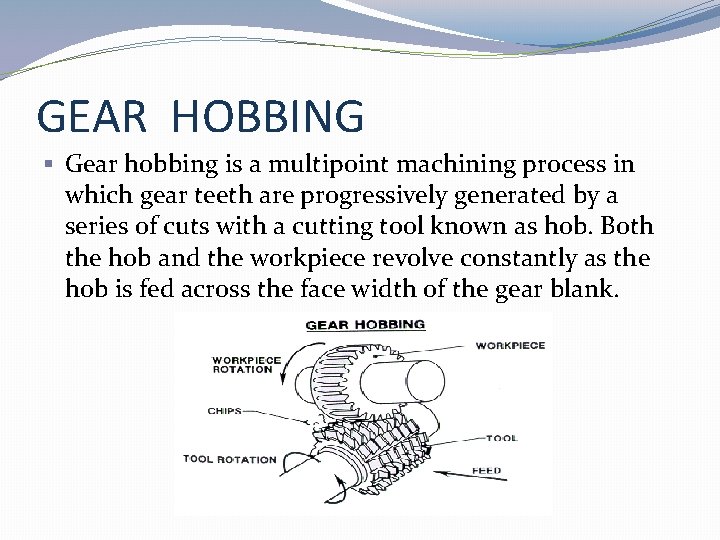

GEAR HOBBING § Gear hobbing is a multipoint machining process in which gear teeth are progressively generated by a series of cuts with a cutting tool known as hob. Both the hob and the workpiece revolve constantly as the hob is fed across the face width of the gear blank.

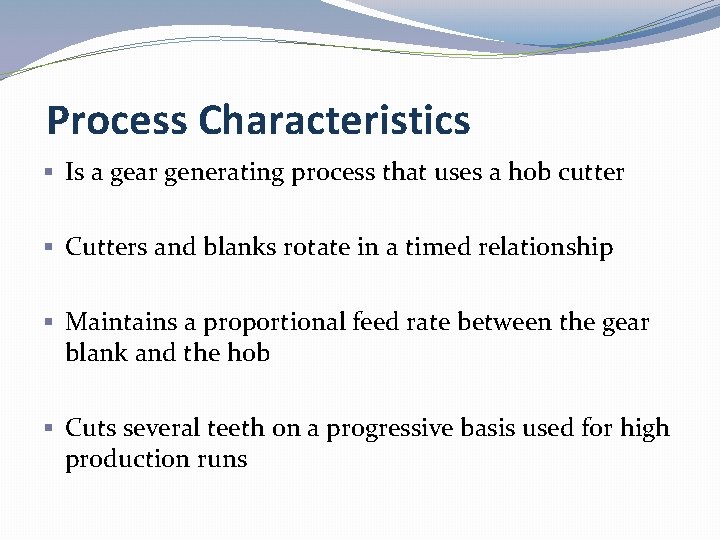

Process Characteristics § Is a gear generating process that uses a hob cutter § Cutters and blanks rotate in a timed relationship § Maintains a proportional feed rate between the gear blank and the hob § Cuts several teeth on a progressive basis used for high production runs

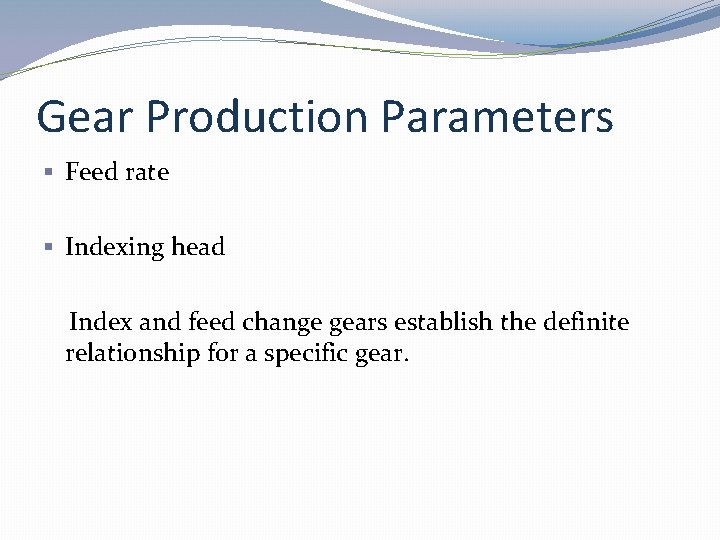

Gear Production Parameters § Feed rate § Indexing head Index and feed change gears establish the definite relationship for a specific gear.

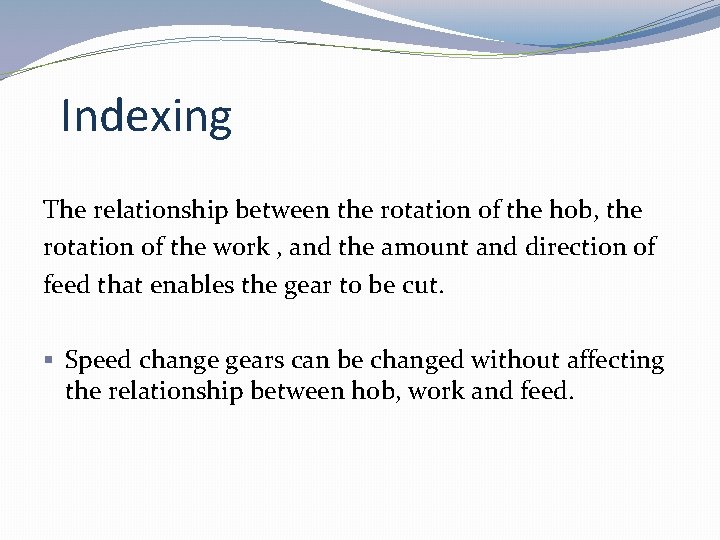

Indexing The relationship between the rotation of the hob, the rotation of the work , and the amount and direction of feed that enables the gear to be cut. § Speed change gears can be changed without affecting the relationship between hob, work and feed.

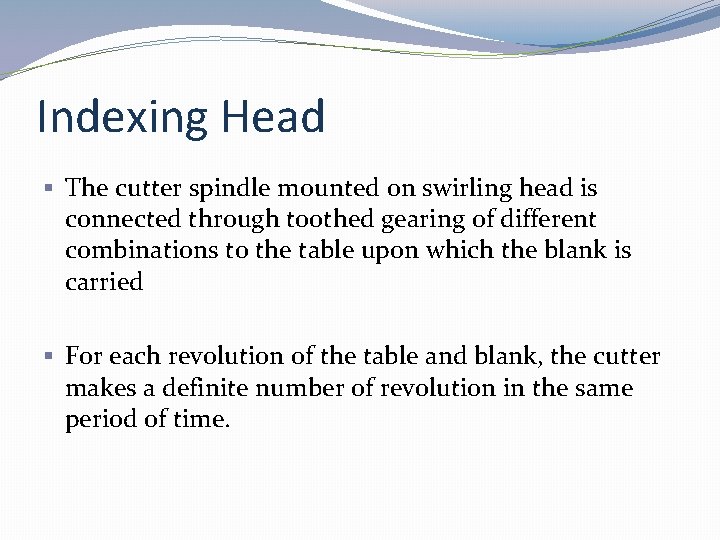

Indexing Head § The cutter spindle mounted on swirling head is connected through toothed gearing of different combinations to the table upon which the blank is carried § For each revolution of the table and blank, the cutter makes a definite number of revolution in the same period of time.

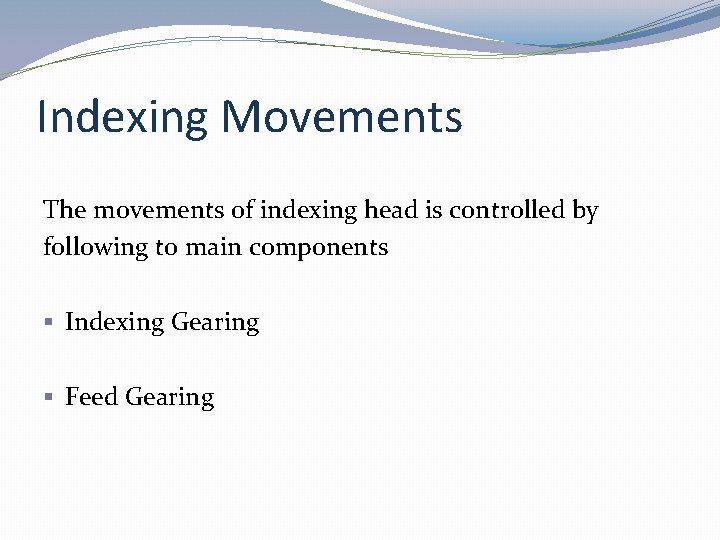

Indexing Movements The movements of indexing head is controlled by following to main components § Indexing Gearing § Feed Gearing

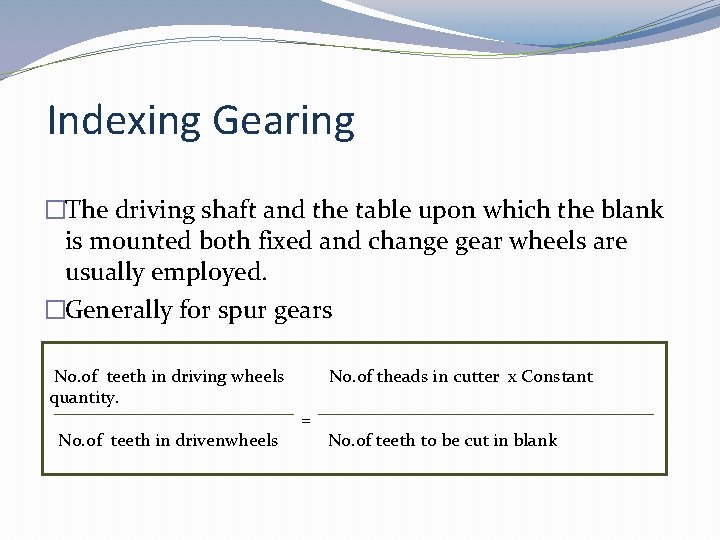

Indexing Gearing �The driving shaft and the table upon which the blank is mounted both fixed and change gear wheels are usually employed. �Generally for spur gears No. of teeth in driving wheels quantity. No. of teeth in drivenwheels No. of theads in cutter x Constant = No. of teeth to be cut in blank

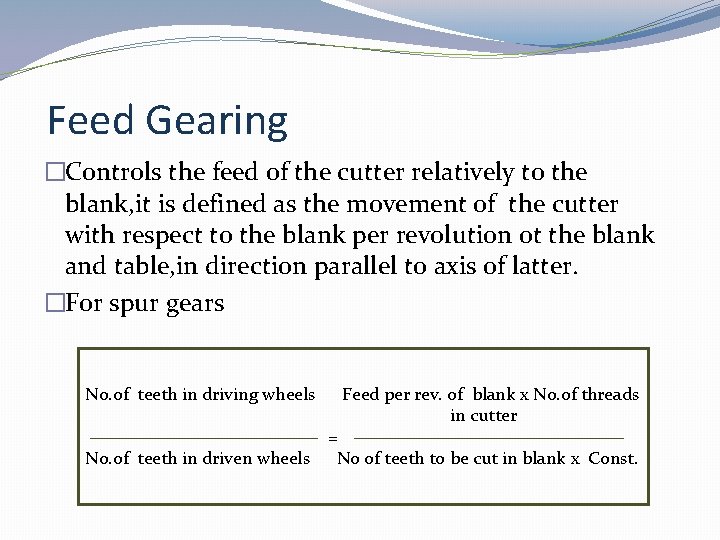

Feed Gearing �Controls the feed of the cutter relatively to the blank, it is defined as the movement of the cutter with respect to the blank per revolution ot the blank and table, in direction parallel to axis of latter. �For spur gears No. of teeth in driving wheels No. of teeth in driven wheels Feed per rev. of blank x No. of threads in cutter = No of teeth to be cut in blank x Const.

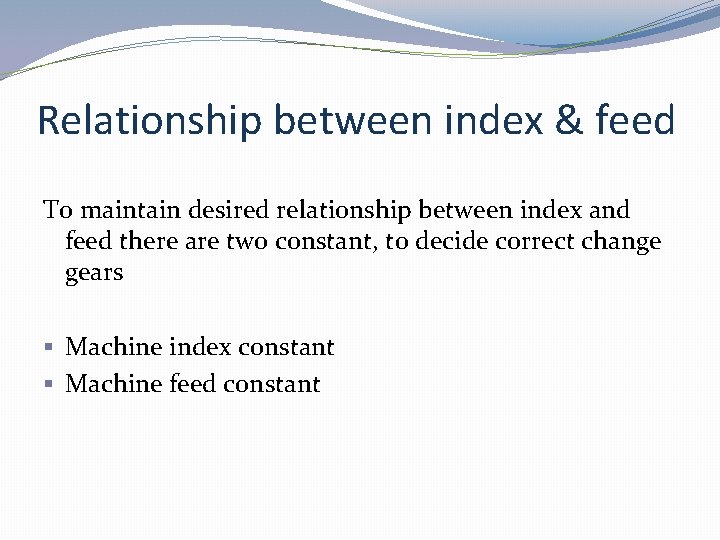

Relationship between index & feed To maintain desired relationship between index and feed there are two constant, to decide correct change gears § Machine index constant § Machine feed constant

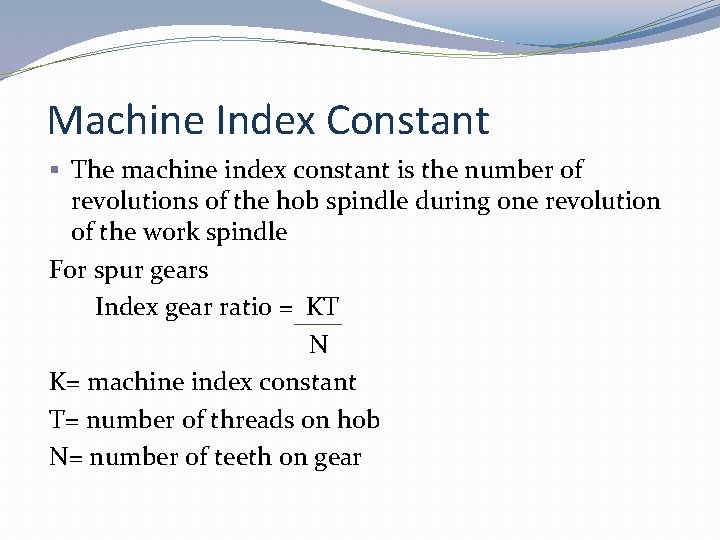

Machine Index Constant § The machine index constant is the number of revolutions of the hob spindle during one revolution of the work spindle For spur gears Index gear ratio = KT N K= machine index constant T= number of threads on hob N= number of teeth on gear

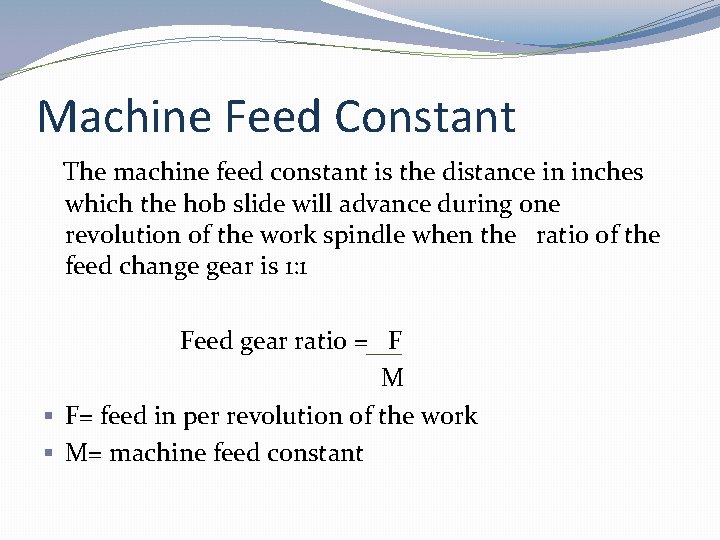

Machine Feed Constant The machine feed constant is the distance in inches which the hob slide will advance during one revolution of the work spindle when the ratio of the feed change gear is 1: 1 Feed gear ratio = F M § F= feed in per revolution of the work § M= machine feed constant

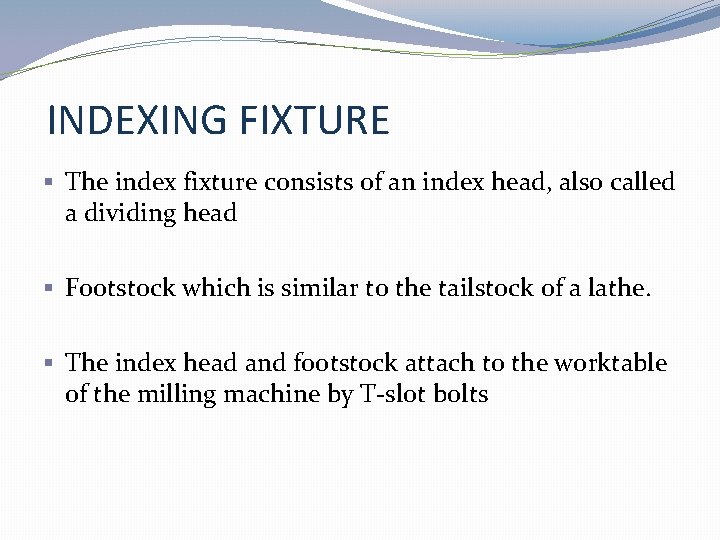

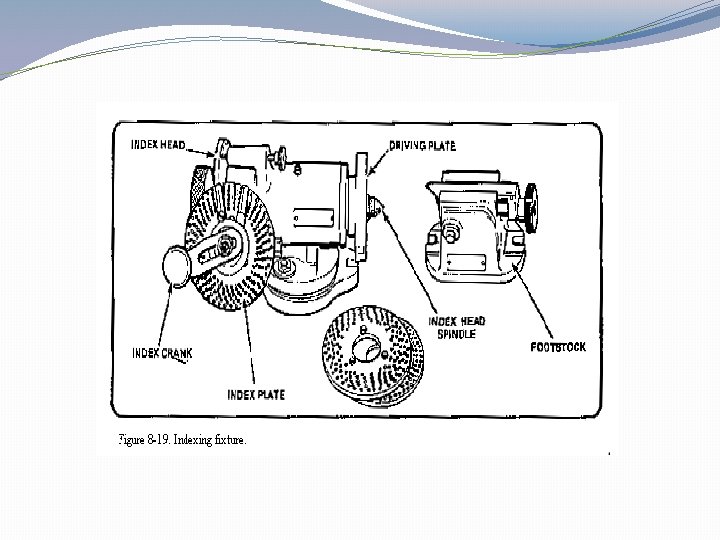

INDEXING FIXTURE § The index fixture consists of an index head, also called a dividing head § Footstock which is similar to the tailstock of a lathe. § The index head and footstock attach to the worktable of the milling machine by T-slot bolts

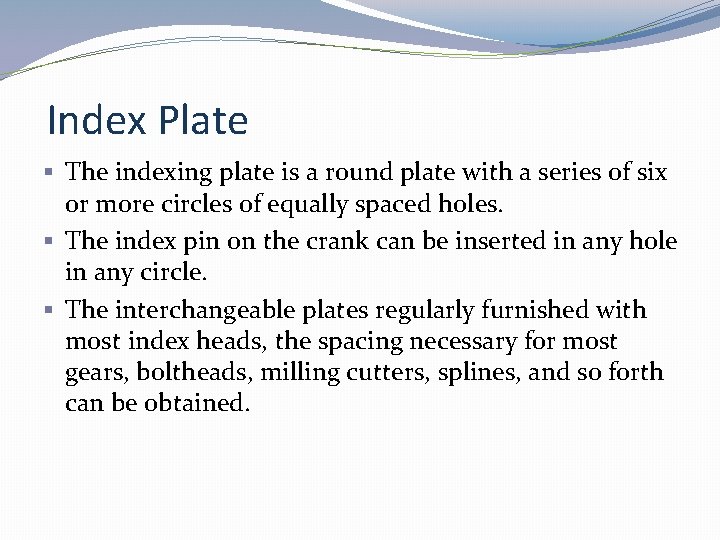

Index Plate § The indexing plate is a round plate with a series of six or more circles of equally spaced holes. § The index pin on the crank can be inserted in any hole in any circle. § The interchangeable plates regularly furnished with most index heads, the spacing necessary for most gears, boltheads, milling cutters, splines, and so forth can be obtained.

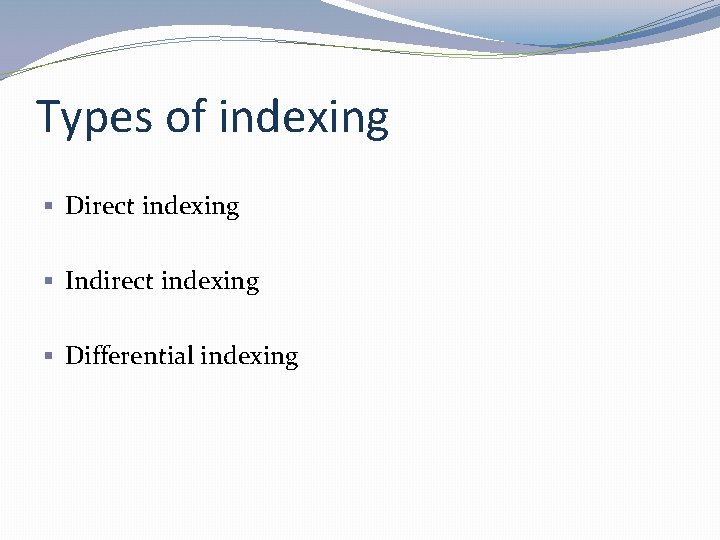

Types of indexing § Direct indexing § Indirect indexing § Differential indexing

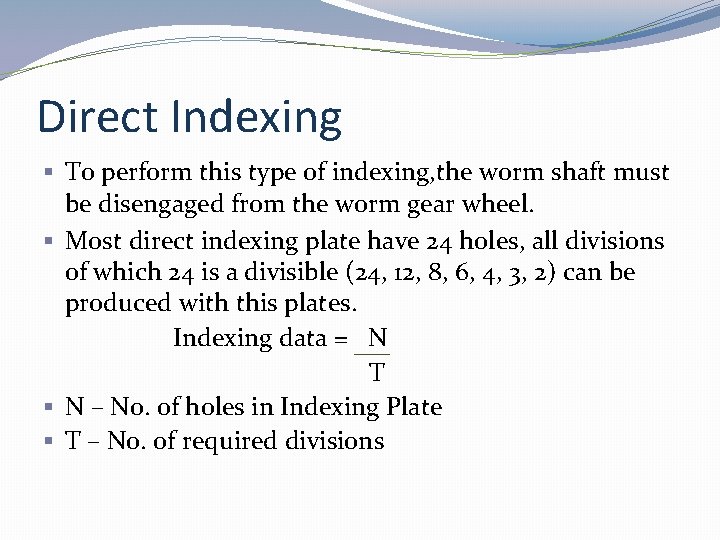

Direct Indexing § To perform this type of indexing, the worm shaft must be disengaged from the worm gear wheel. § Most direct indexing plate have 24 holes, all divisions of which 24 is a divisible (24, 12, 8, 6, 4, 3, 2) can be produced with this plates. Indexing data = N T § N – No. of holes in Indexing Plate § T – No. of required divisions

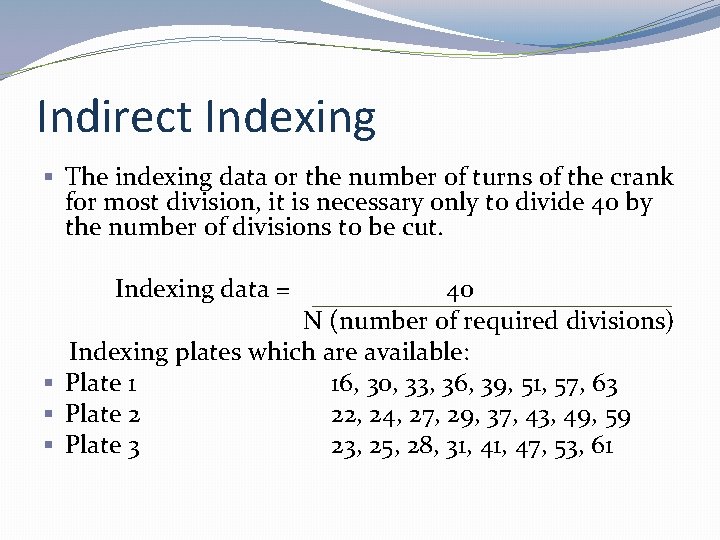

Indirect Indexing § The indexing data or the number of turns of the crank for most division, it is necessary only to divide 40 by the number of divisions to be cut. Indexing data = 40 N (number of required divisions) Indexing plates which are available: § Plate 1 16, 30, 33, 36, 39, 51, 57, 63 § Plate 2 22, 24, 27, 29, 37, 43, 49, 59 § Plate 3 23, 25, 28, 31, 47, 53, 61

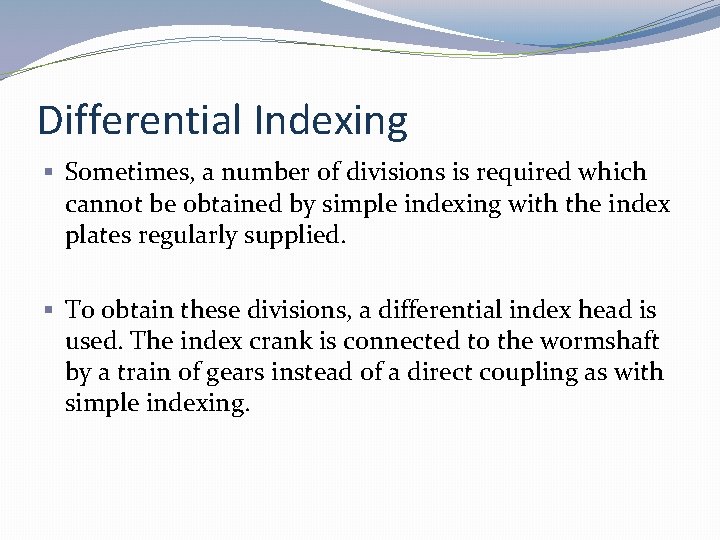

Differential Indexing § Sometimes, a number of divisions is required which cannot be obtained by simple indexing with the index plates regularly supplied. § To obtain these divisions, a differential index head is used. The index crank is connected to the wormshaft by a train of gears instead of a direct coupling as with simple indexing.

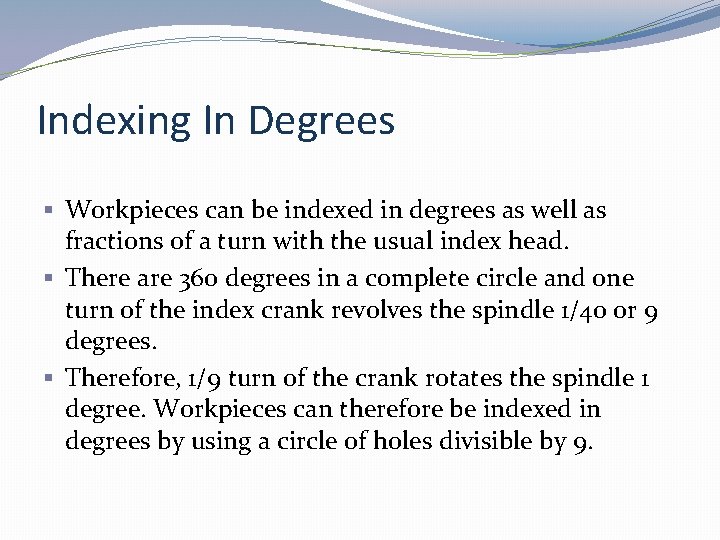

Indexing In Degrees § Workpieces can be indexed in degrees as well as fractions of a turn with the usual index head. § There are 360 degrees in a complete circle and one turn of the index crank revolves the spindle 1/40 or 9 degrees. § Therefore, 1/9 turn of the crank rotates the spindle 1 degree. Workpieces can therefore be indexed in degrees by using a circle of holes divisible by 9.

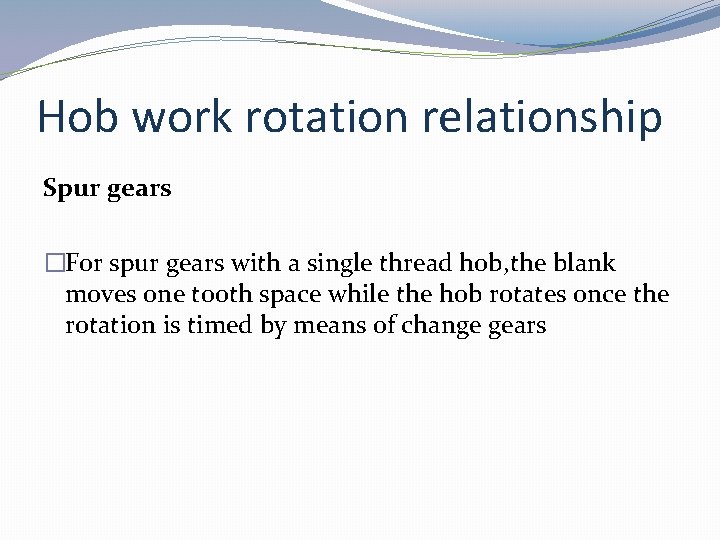

Hob work rotation relationship Spur gears �For spur gears with a single thread hob, the blank moves one tooth space while the hob rotates once the rotation is timed by means of change gears

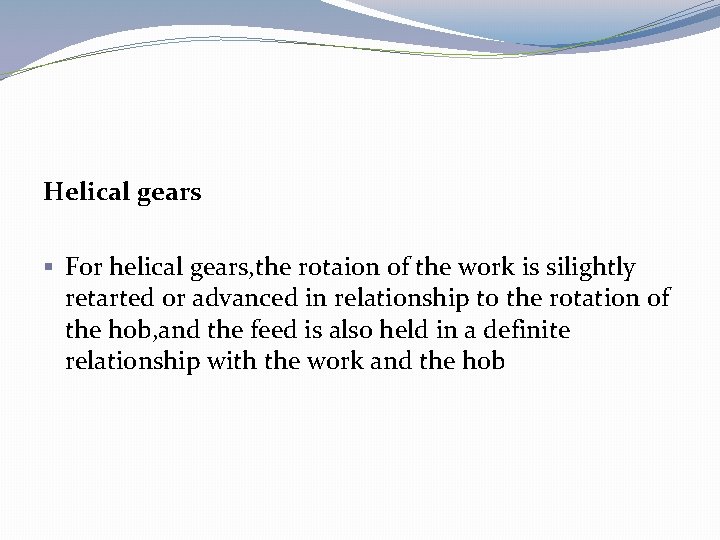

Helical gears § For helical gears, the rotaion of the work is silightly retarted or advanced in relationship to the rotation of the hob, and the feed is also held in a definite relationship with the work and the hob

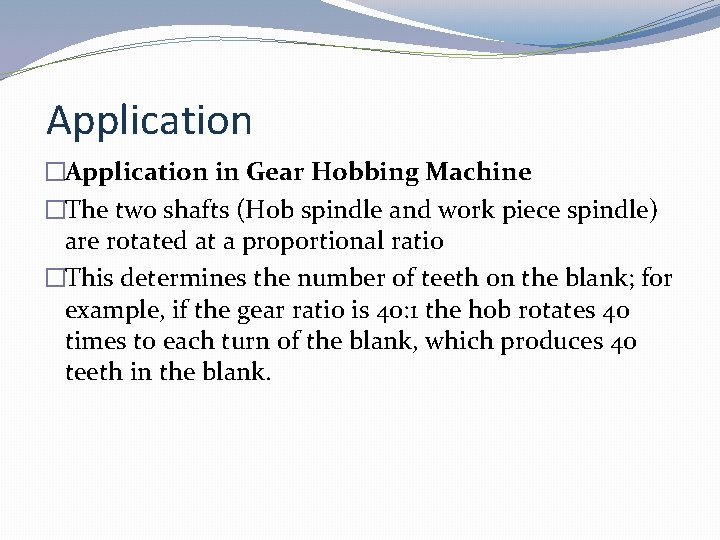

Application �Application in Gear Hobbing Machine �The two shafts (Hob spindle and work piece spindle) are rotated at a proportional ratio �This determines the number of teeth on the blank; for example, if the gear ratio is 40: 1 the hob rotates 40 times to each turn of the blank, which produces 40 teeth in the blank.
