The Importance of Specification Writing Neil Pittman Sr

The Importance of Specification Writing Neil Pittman Sr. Corrosion Engineer Lake Superior Consulting npittman@lsconsulting. com

WHY? �A specification becomes a legal part of the contract. �Defines what is to be done. �Identifies what coating to use. �Removes assumptions and miscommunication. �Promotes Cooperation. �Good paints fail. 4: 10 AM 2

WHO? �Employ a coating engineer. �Hire a consultant. �Send an employee to NACE CIP 1. �Have a corrosion engineer write it. �Plagiarize � Munger, Charles – Corrosion Prevention by Protective Coatings, Houston: NACE International, 1999. � NACE International � SSPC � Coating manufacturers’ literature 4: 10 AM 3

WHEN? �Send specification out with bid package. �Review at pre-bid meeting. �Review at prejob meeting. �Train inspectors and applicators. 4: 10 AM 4

What? Purpose* Scope* Definitions References Safety Requirements Coating Material* Surface Preparation* Coating Application* Inspection* Repairs* Daily Production Report 4: 10 AM 5

PURPOSE This section describes what items/assets are covered by this painting specification and when to use this specification. It also covers what generic types of coatings are applicable: �Epoxies �Urethanes �Zinc rich �Galvanizing �Powders �Multi-coat systems 4: 10 AM 6

SCOPE The Scope is different than the purpose. The scope goes into details about operating temperatures, locations and desired results. 4: 10 AM 7

DEFINITIONS �Should �Shall �May �Can �NACE, SSPC �DFT �WFT �Etc. 4: 10 AM 8

REFERENCES �NACE �ISO �ASTM �API �CSA �SSPC �Proprietary Procedures 4: 10 AM 9

SAFETY �PPE �Glasses �Hard hats �Shoes �Fall protection �Respirators �Abrasive blasting �Guards �MSDS �LOTO 4: 11 AM 10

REQUIREMENTS �Applicator qualification �Proprietary �NACE �SSPC �Applicator furnished equipment, consumables and labor �Inspection �Quality program 4: 11 AM 11

COATING SELECTION �How? �Service life �Service Conditions � Temperature � Water � Onshore/Offshore � UV � Chemicals � Substrate �Constraints 4: 11 AM 12

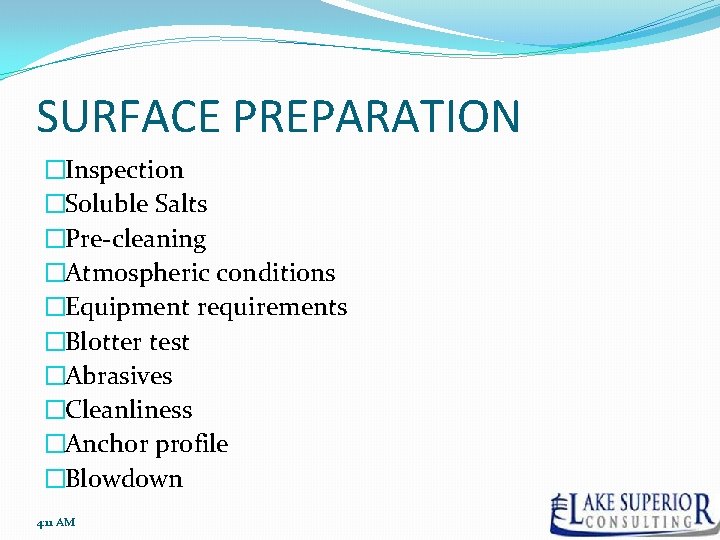

SURFACE PREPARATION �Inspection �Soluble Salts �Pre-cleaning �Atmospheric conditions �Equipment requirements �Blotter test �Abrasives �Cleanliness �Anchor profile �Blowdown 4: 11 AM 13

COATING APPLICATION � Storage � Preheating � Dehydration � Mixing and thinning � Pot life � Method � Stripe coat � WFT � Overlap � Visual inspection � Curing � Recoat window � DFT � Holiday detection 4: 11 AM 14

INSPECTION The inspection section will outline what measurements must be taken and what are acceptable results. �ITP �Surface preparation �Application �Visual �DFT �Cure �Holiday detection 4: 11 AM 15

ITP 4: 11 AM 16

REPAIRS �Size �Low DFT areas �Repair material �Stripping �Surface preparation �Cure �Heating 4: 11 AM 17

DAILY PRODUCTION REPORT �Every measurement that is required by the specification �Dates and times �Tally �Signed by 3 rd party inspector �Checklist �Benefits the applicator 4: 11 AM 18

CONCLUSION �Is this a large task? �Is it an important task? �How much does a specification cost? �Now �Later �Is it OK to plagiarize ideas? 4: 11 AM 19

QUESTIONS 4: 11 AM 20
