The ICRF, ITRF and VLBA Chopo Ma NASA’s Goddard Spaceflight Center

International Celestial Reference System (ICRS) The ICRS is the idealized barycentric coordinate system to which celestial positions are referred. It is kinematically nonrotating with respect to the ensemble of distant extragalactic objects. It has no intrinsic orientation but was aligned close to the mean equator and dynamical equinox of J 2000. 0 for continuity with previous fundamental reference systems. Its orientation is independent of epoch, ecliptic or equator and is realized by a list of adopted coordinates of extragalactic sources.

International Celestial Reference Frame (ICRF) The ICRF is a set of extragalactic objects whose adopted positions and uncertainties realize the ICRS axes and give the uncertainties of the axes. Note that the orientation of the ICRF catalog was carried over from earlier IERS radio catalogs and was within the errors of the standard stellar and dynamical frames at the time of adoption. Successive revisions of the ICRF are intended to minimize rotation from its original orientation. Other realizations of the ICRS have specific names (e. g. , the Hipparcos Celestial Reference Frame). The current realization is designated ICRF 2.

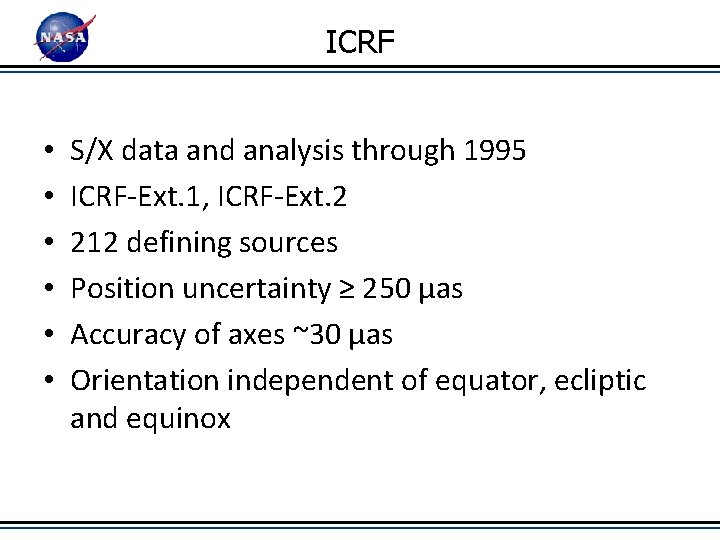

ICRF • • • S/X data and analysis through 1995 ICRF-Ext. 1, ICRF-Ext. 2 212 defining sources Position uncertainty ≥ 250 µas Accuracy of axes ~30 µas Orientation independent of equator, ecliptic and equinox

ICRF 2 • • S/X data through March 2009 4540 sessions, 6. 5 million observations 3414 total sources 295 defining sources Position uncertainty ≥ 40 µas Accuracy of axes ~10 µas Orientation independent of equator, ecliptic and equinox

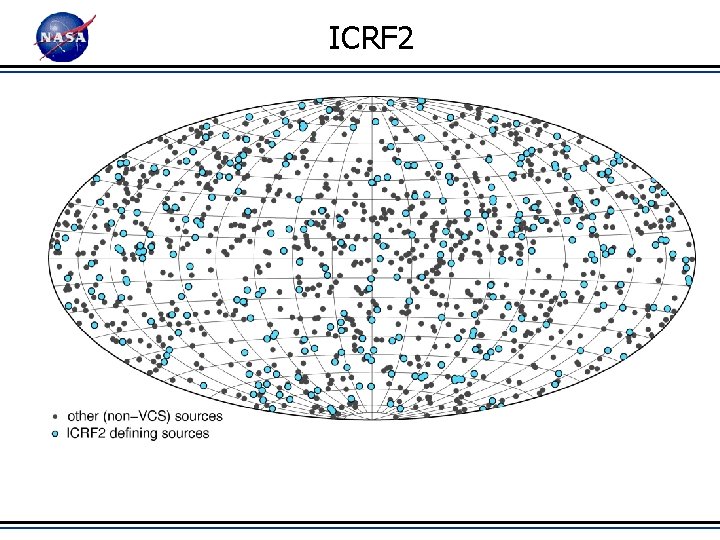

ICRF 2

600 500 Thousands VLBA Data Very Important Contribution of RDVs to IVS Data 400 300 200 100 0 2010 2009 2008 2007 2006 2005 2004 2003 2002 2001 2000 1999 1998 1997 1996 1995 1994 1993 1992 1991 1990 1989 1988 1987 1986 1985 1984 1983 1982 1981 1980 Other R 1&R 4 T 2 RDV

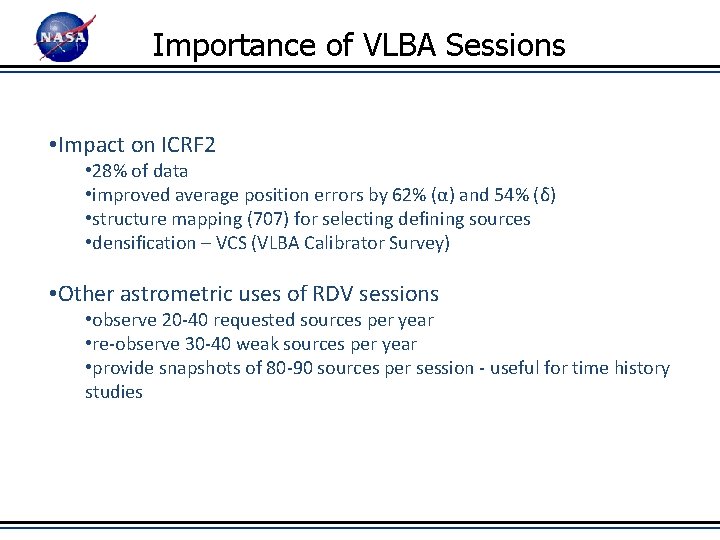

Importance of VLBA Sessions • Impact on ICRF 2 • 28% of data • improved average position errors by 62% (α) and 54% (δ) • structure mapping (707) for selecting defining sources • densification – VCS (VLBA Calibrator Survey) • Other astrometric uses of RDV sessions • observe 20 -40 requested sources per year • re-observe 30 -40 weak sources per year • provide snapshots of 80 -90 sources per session - useful for time history studies

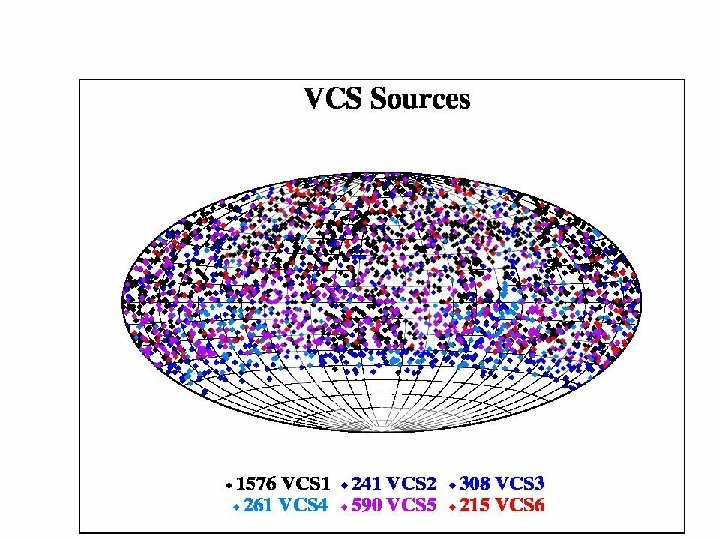

Another Slide

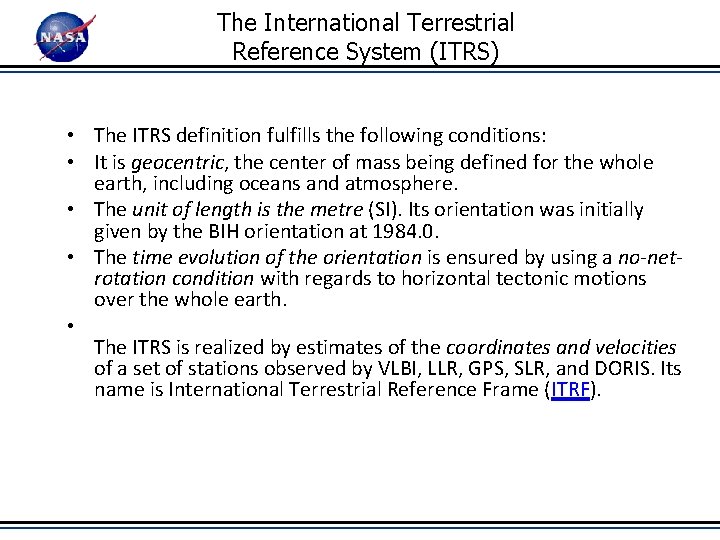

The International Terrestrial Reference System (ITRS) • The ITRS definition fulfills the following conditions: • It is geocentric, the center of mass being defined for the whole earth, including oceans and atmosphere. • The unit of length is the metre (SI). Its orientation was initially given by the BIH orientation at 1984. 0. • The time evolution of the orientation is ensured by using a no-netrotation condition with regards to horizontal tectonic motions over the whole earth. • The ITRS is realized by estimates of the coordinates and velocities of a set of stations observed by VLBI, LLR, GPS, SLR, and DORIS. Its name is International Terrestrial Reference Frame (ITRF).

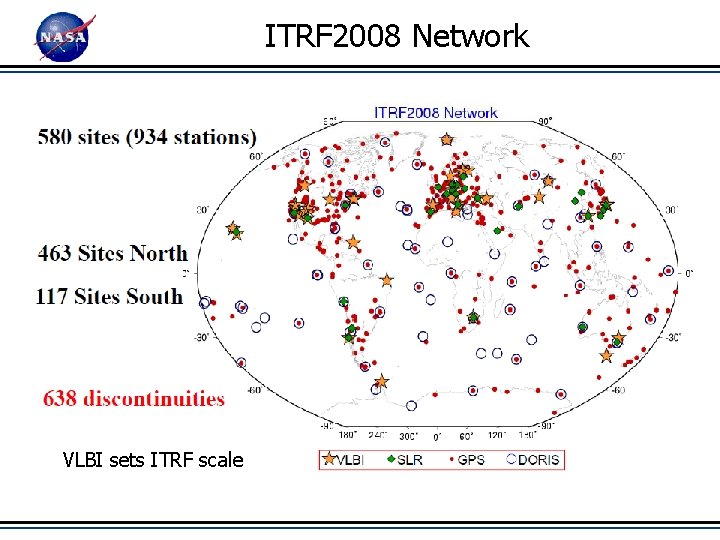

ITRF 2008 Network VLBI sets ITRF scale

ITRF 2008: Site distribution by Technique

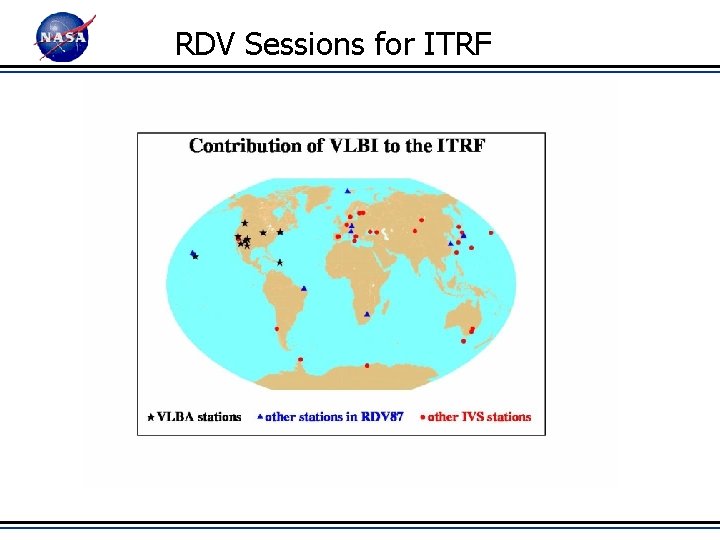

RDV Sessions for ITRF

Precision of VLBA Results VLBA Non-VLBA Baseline Length Precision: VLBA baselines have the lower scatter than non-VLBA baselines especially for long baselines. mean length = 3, 623, 021. 2526 m HN-FD wrms =3. 7 mm mean length = 8, 611, 584. 6972 m MK-SC wrms = 9. 2 mm mean length = 417, 009. 1252 m KP-PI Time evolution (relative to mean lengths) of various VLBA baselines. Curvature in last plot is due to antenna tilt at Pietown.

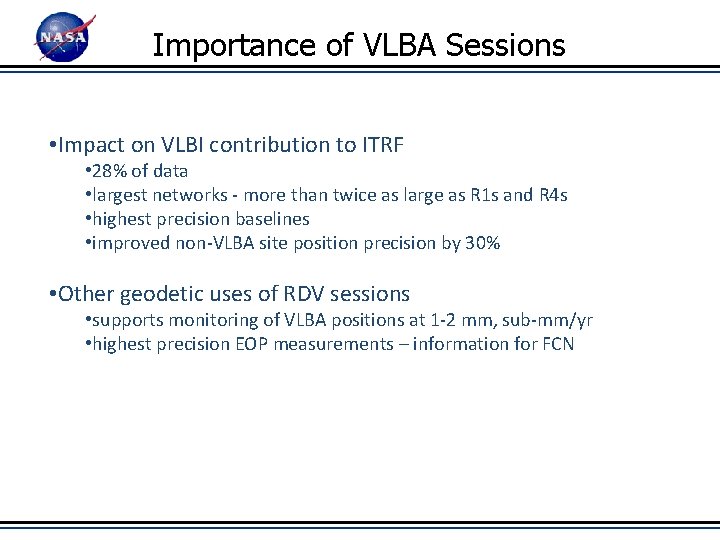

Importance of VLBA Sessions • Impact on VLBI contribution to ITRF • 28% of data • largest networks - more than twice as large as R 1 s and R 4 s • highest precision baselines • improved non-VLBA site position precision by 30% • Other geodetic uses of RDV sessions • supports monitoring of VLBA positions at 1 -2 mm, sub-mm/yr • highest precision EOP measurements – information for FCN

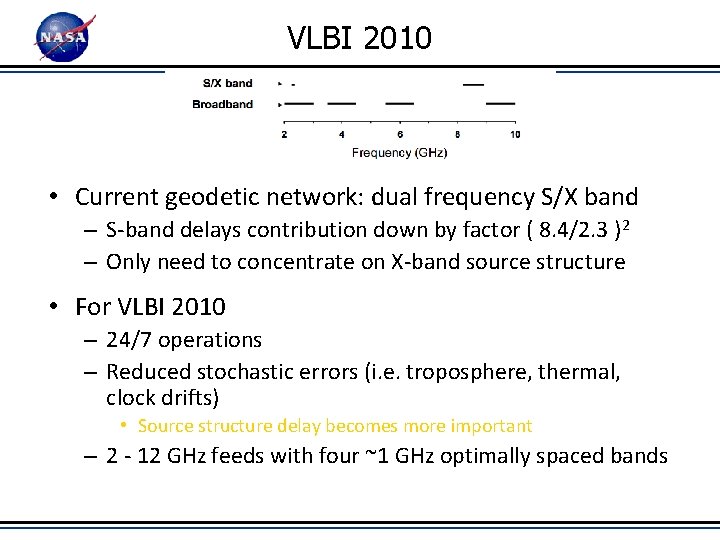

VLBI 2010 • Current geodetic network: dual frequency S/X band – S-band delays contribution down by factor ( 8. 4/2. 3 )2 – Only need to concentrate on X-band source structure • For VLBI 2010 – 24/7 operations – Reduced stochastic errors (i. e. troposphere, thermal, clock drifts) • Source structure delay becomes more important – 2 - 12 GHz feeds with four ~1 GHz optimally spaced bands

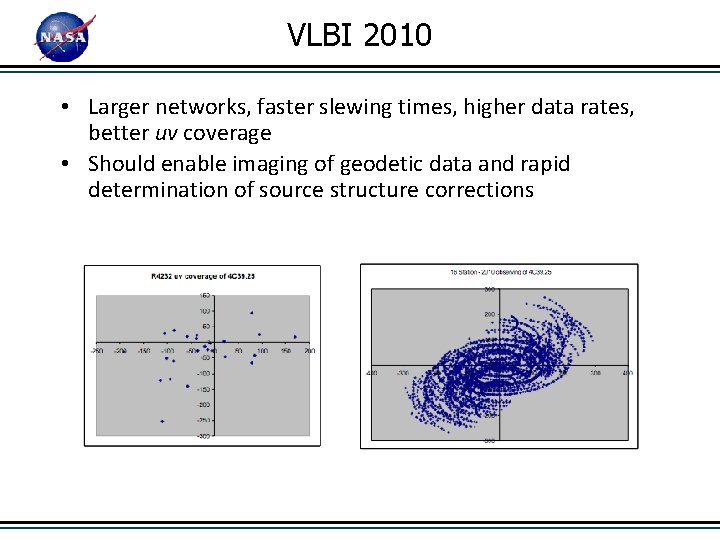

VLBI 2010 • Larger networks, faster slewing times, higher data rates, better uv coverage • Should enable imaging of geodetic data and rapid determination of source structure corrections
