The ICAN Coastal Erosion Use Case as a Model for Wisconsin and the Great Lakes David Hart GIS Specialist University of Wisconsin Sea Grant Institute ICAN – Great Lakes Madison, Wisconsin September 14, 2010
Coastal Erosion Risks Southern Ozaukee County, 2007 Source: David Mickelson, Lou
Coastal Flooding Risks Oconto County, 2007 Source: David Mickelson, Lou
Canal Park, Duluth, MN, November 26, 2 Source: http: //www. glerl. noaa. gov/seagrant/glwlphotos/Seiche/26 November 2001/26 November 2
WCMP Coastal Hazards Work Group formed in the early 1990 s Damages from 1985 -6 high lake levels Needs Assessment and Multi-year Strategy process. Membership Wisconsin Coastal Management Program Wisconsin Department of Natural Resources Wisconsin Emergency Management UW Sea Grant (coastal engineer, GIS specialist) UW-Madison – Civil Engineering, Geology
WCMP Coastal Hazards Work Group CHWG 2006 -10 Work Plan Expansion of technical tools and technology transfer Education and outreach Coordination with municipalities and agencies Projects (CZMA Section 309 Enhancement Funds) Lake Superior bluff/wave studies (Wu, Mickelson) Oblique photos/shore structure analysis (Mickelson) Erosion setback methodology (Lulloff, Keillor) Hazard mitigation planning guide (Bay-Lake RPC)
Wisconsin Coastal Atlas Goal 1: The WCA will serve as the portal to geospatial data for the Great Lakes coasts of Wisconsin Goal 2: The WCA will promote the development of a spatial data infrastructure for the Great Lakes coasts of Wisconsin through methods for cataloging, archiving, and semantic integration Initial focus on implementing the maps and search components for coastal hazards Synchronized with a two-year NOAA Coastal Management Fellow who will help build a Great Lakes spatial decision support toolbox for hazards resilience
ICAN Coastal Erosion Use Case Role/Client - Coastal Manager Uses an inventory to take regulatory action; helps form policy guidelines as potential statutes or regulatory rules What are the erosion rates along a geographically defined shoreline reach? Where/When/How has the shoreline been protected? Where is the socioeconomic infrastructure at greatest risk due to coastal erosion? Where is the potential for habitat loss due to coastal erosion a significant risk? Other Roles – Private Property Owners, Emergency Responders, Scientists, Local System
Key Datasets for Coastal Erosion Coastal access and recreation Coastal armoring Cadastral datasets with assessor attribution Geology Land use and zoning Current shoreline position Historic shoreline positions Permit tracking systems and a dynamic link to cadastral data Aerial imagery Bluff and dune fields Regulatory jurisdictions Community development Geomorphology profiles Erosion Risk study results – Risk Zones or Lines Topography Wave climate data Shallow water bathymetry Transportation networks Public utilities Public lands
Coastal Hazards Studies/Policies/Data Bluff Recession Shore Recession Studies Bluff Stability Studies NR 115 State Chapter 30 State GL Restoration Strategy GL Compact Orthophotos Shoreline Local Shoreline DNR Shoreline NOAA Flood Maps FEMA Benthic Studies Flood Studies Setback Ordinances Local Stormwater Ordinances Local Hazard Mitigation Plans Comprehensive Plans Satellite Imagery Topography – DEM Topography – Contour Mapping Bathymetry – Hydro Surveys Bathymetry – LIDAR Coastal Terrain Model - Lakebed Erosion Studies Wave Studies Oblique Photos Webca ms Animatio ns Panoram as Soils NRCS Parcel s Planimetric Mapping Infrastructure Mapping Hydrography – Local Land Use/Land
Wisconsin Coastal Atlas – SDI Objectives Objective 4 – Develop and implement a CWA geospatial data catalog with concurrent archiving capabilities. data catalog developed specifically for Great Lakes coastal issues (start with coastal hazards) document technical and institutional barriers to the development of a spatial data catalog of current and historic coastal data robust data archiving procedure to manage data sets over time Advance the development of domain spatial data infrastructures. work with coastal hazards stakeholders togeospatial promote the Development of effective methods for archive of digital data will help a critical facing custodians. use of resolve catalog openproblem access anddata archiving
Wisconsin Coastal Atlas – SDI Objectives Objective 5 – Develop ontologies for coastal hazards in Wisconsin to promote semantic integration Develop and conduct two spatial queries to test semantic interoperability for the entire the Great Lakes coasts of Wisconsin using data from local partners as it resides in the geospatial catalog l calculate the assessed value of land improvements of coastal parcels l calculate current land use by general zoning categories within the 1000 foot shoreland zoning jurisdiction for the Great Lakes

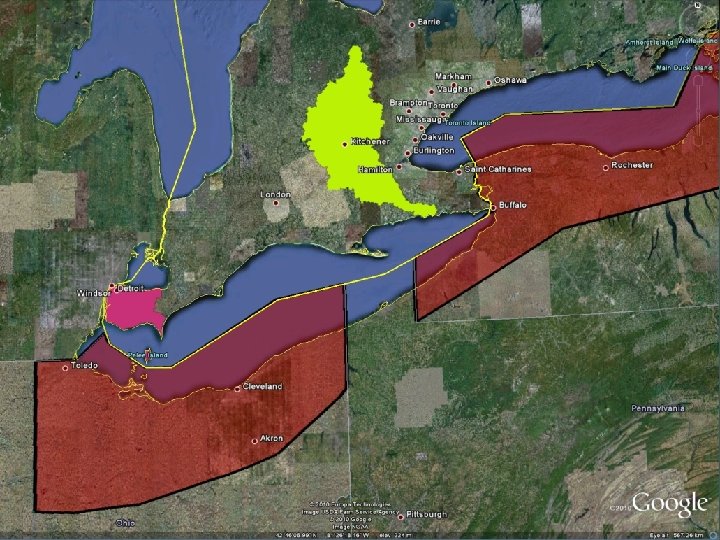

Coastal Atlases and the Coastal Erosion (and other) Use Cases – Lake Erie Examined four Coastal Atlases/Conservation Authority web mapping sites on Lake Erie related to whether questions in the ICAN coastal erosion use case could be answered. That wasn’t possible, but explored environmentally sensitive areas and locations of dams in coastal watersheds. Ohio Coastal Atlas (http: //www. ohiodnr. com/Lake. Erie/Maps/tabid/19562/Default. aspx) New York – Ocean and Great Lakes Atlas (http: //nyoglatlas. org/index. cfm? &user. Skin=4) Essex Region Conservation Authority 13
Location of Environmentally Sensitive Areas Coastal barrier resources Conservation areas; wildlife refuges Biota shellfish invasive species bird concentrations significant coastal fish and wildlife habitats
16
17
18
19
Dams in Coastal Watersheds • Dams 20
21
22
23
24
