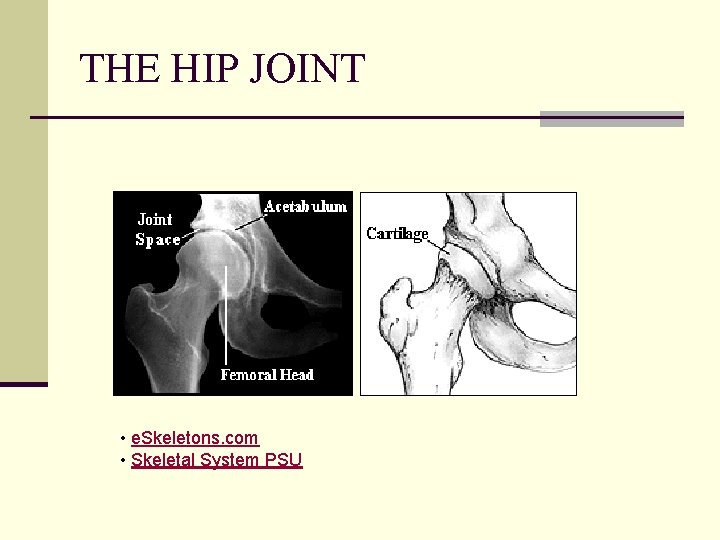

THE HIP JOINT • e. Skeletons. com • Skeletal System PSU

The Pelvis n The Pelvic bone is divided into THREE SECTIONS n n n Ilium Pubis Ischium

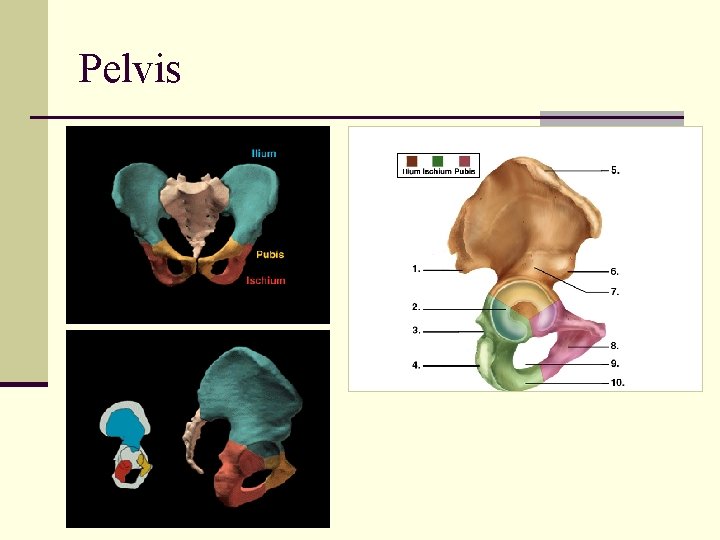

Pelvis

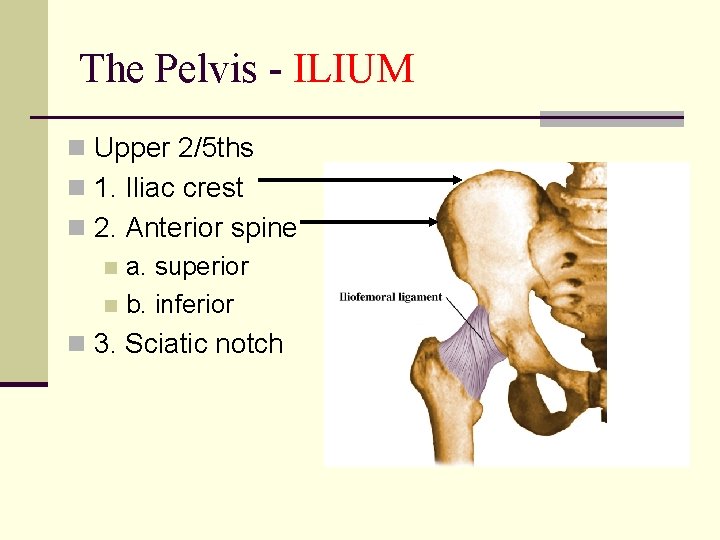

The Pelvis - ILIUM n Upper 2/5 ths n 1. Iliac crest n 2. Anterior spine n a. superior n b. inferior n 3. Sciatic notch

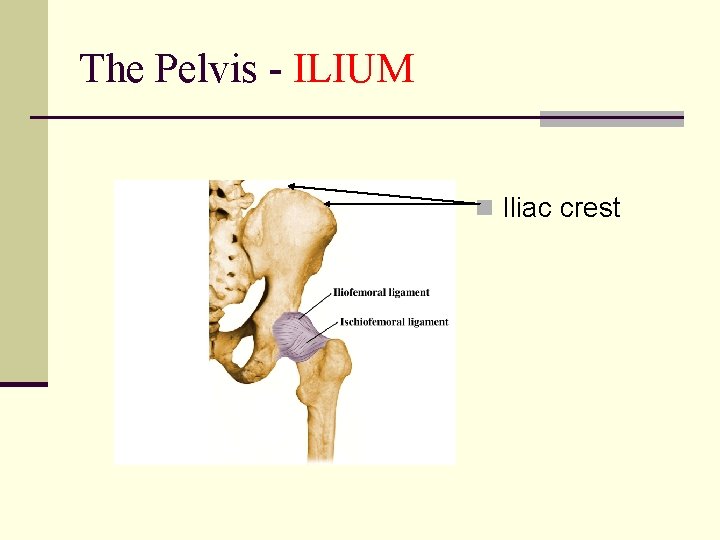

The Pelvis - ILIUM n Iliac crest

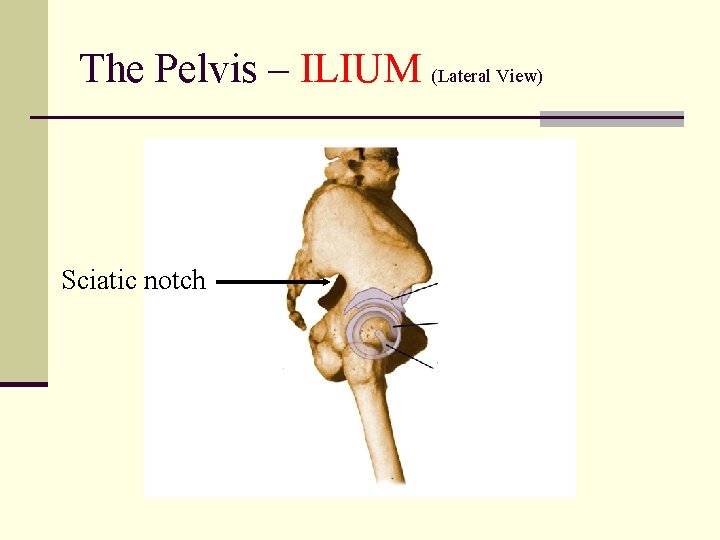

The Pelvis – ILIUM (Lateral View) Sciatic notch

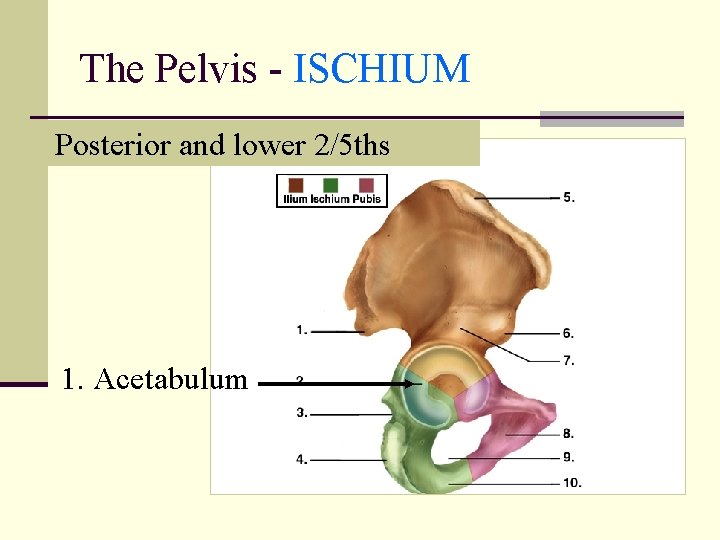

The Pelvis - ISCHIUM Posterior and lower 2/5 ths 1. Acetabulum

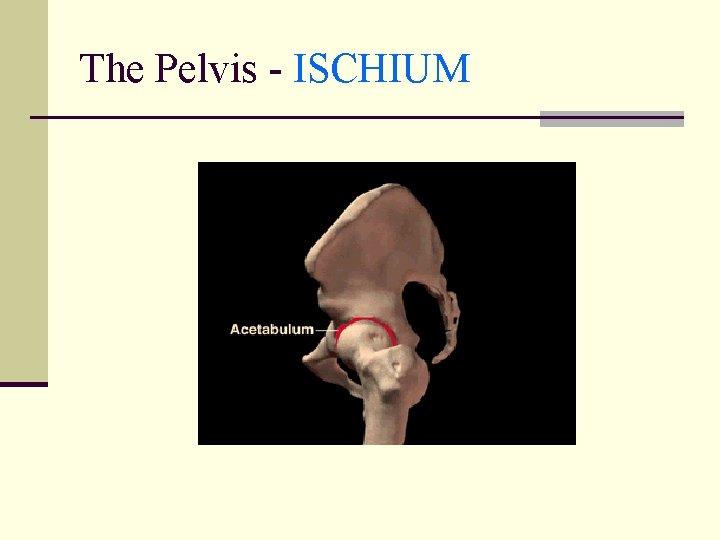

The Pelvis - ISCHIUM

The Pelvis - ISCHIUM n 2. Ischial tuberosity

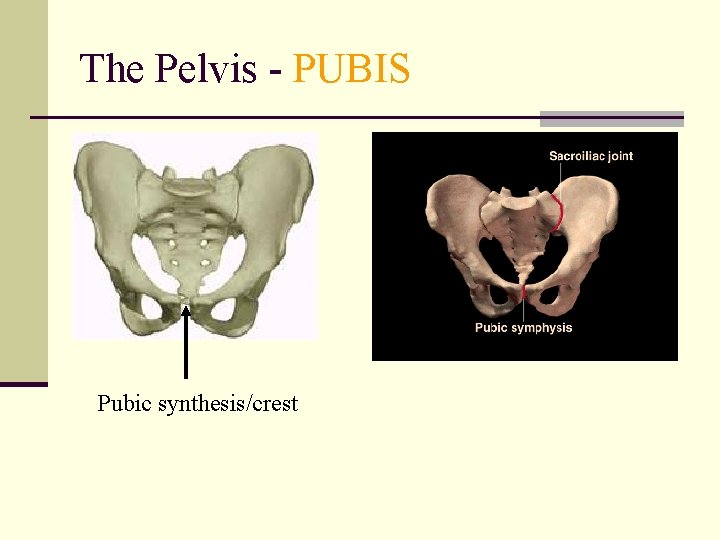

The Pelvis - PUBIS Pubic synthesis/crest

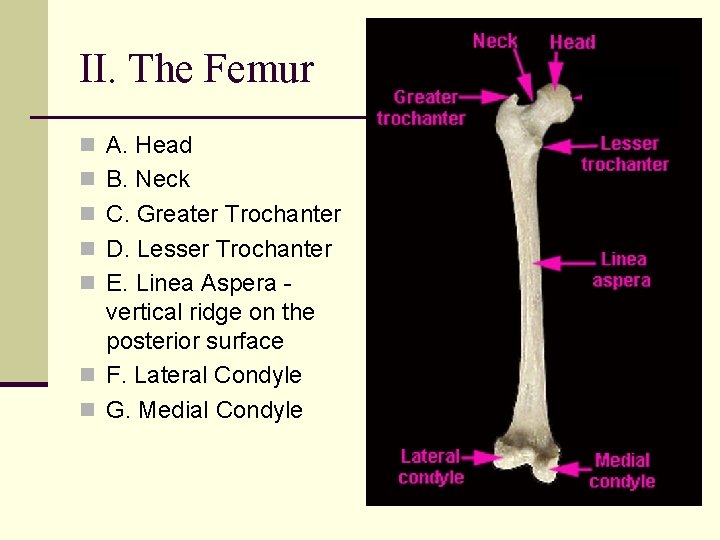

II. The Femur n A. Head n B. Neck n C. Greater Trochanter n D. Lesser Trochanter n E. Linea Aspera - vertical ridge on the posterior surface n F. Lateral Condyle n G. Medial Condyle

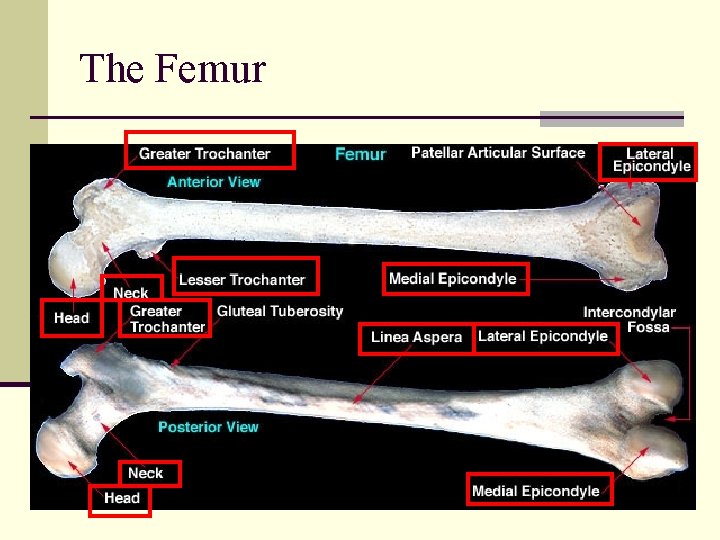

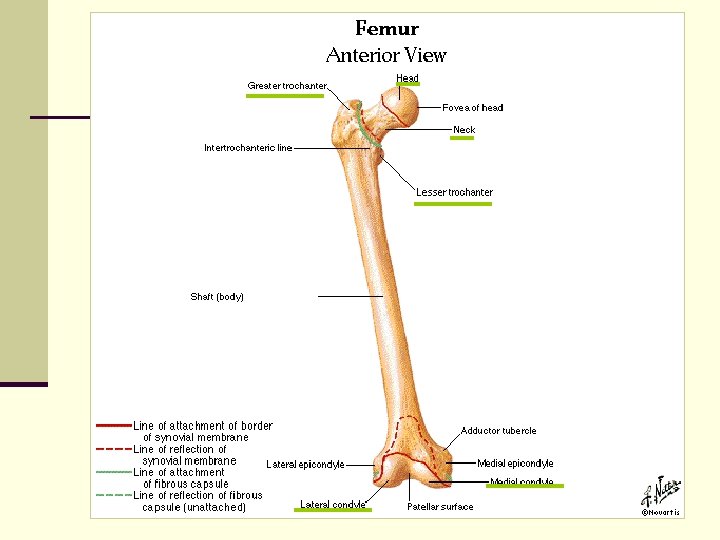

The Femur

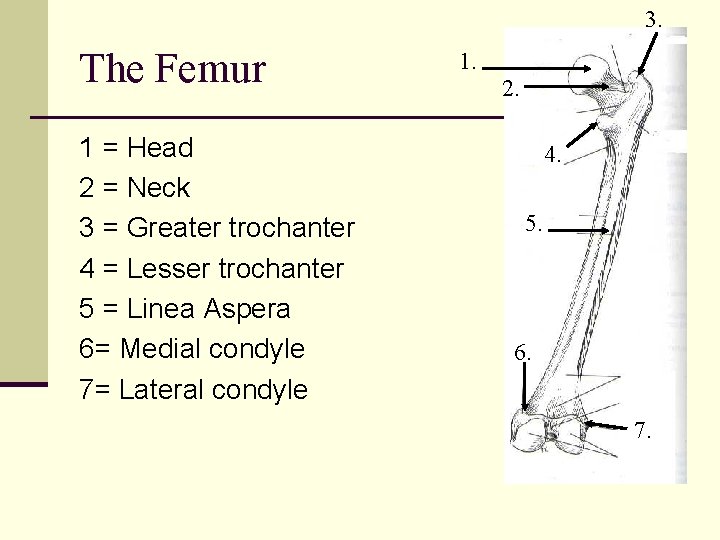

3. The Femur 1 = Head 2 = Neck 3 = Greater trochanter 4 = Lesser trochanter 5 = Linea Aspera 6= Medial condyle 7= Lateral condyle 1. 2. 4. 5. 6. 7.

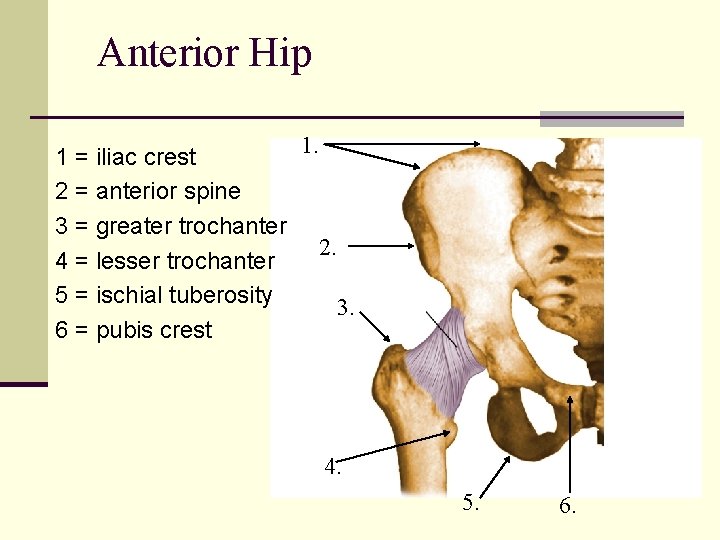

Anterior Hip 1 = iliac crest 2 = anterior spine 3 = greater trochanter 4 = lesser trochanter 5 = ischial tuberosity 6 = pubis crest 1. 2. 3. 4. 5. 6.

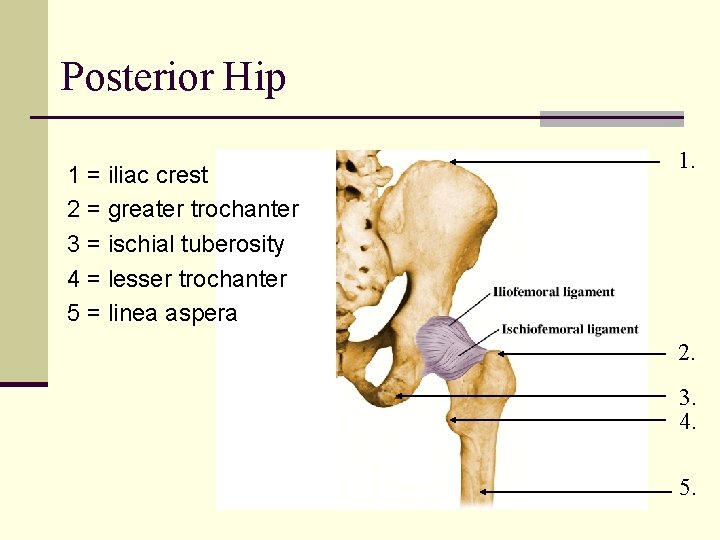

Posterior Hip 1 = iliac crest 2 = greater trochanter 3 = ischial tuberosity 4 = lesser trochanter 5 = linea aspera 1. 2. 3. 4. 5.

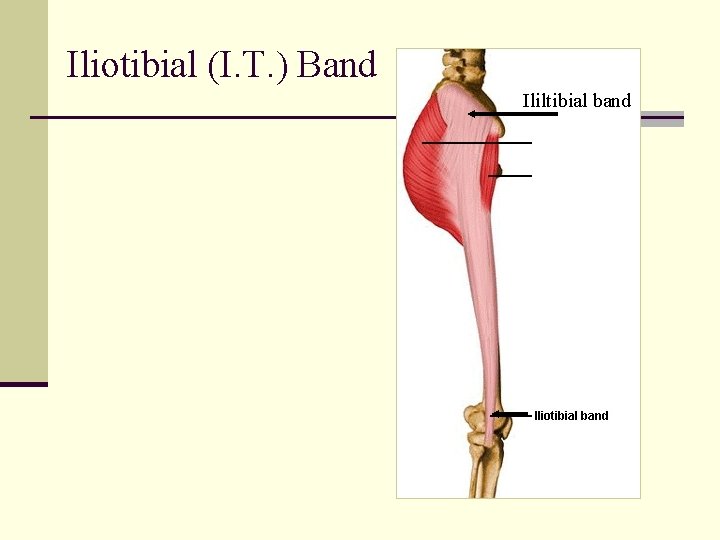

Iliotibial (I. T. ) Band Ililtibial band

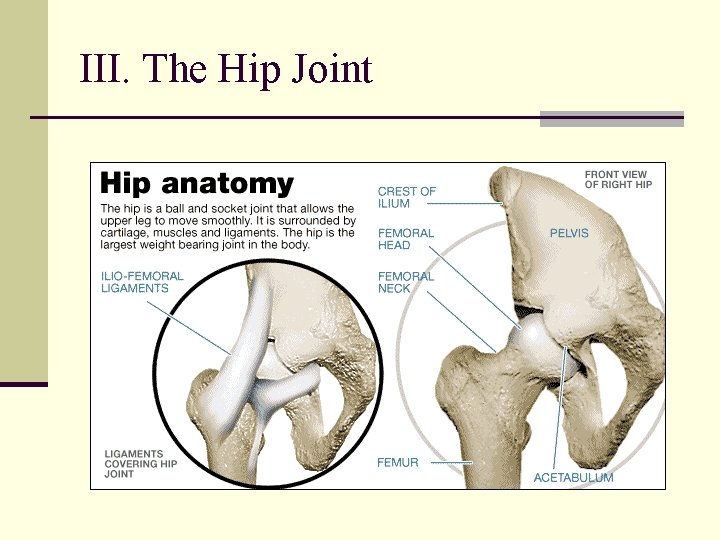

III. The Hip Joint

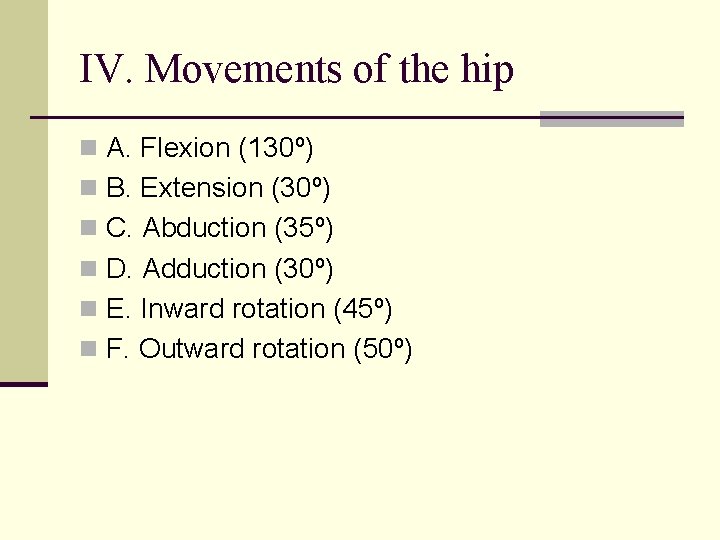

IV. Movements of the hip n A. Flexion (130º) n B. Extension (30º) n C. Abduction (35º) n D. Adduction (30º) n E. Inward rotation (45º) n F. Outward rotation (50º)

A. Flexion B. Extension

C. Abduction D. Adduction

E. Inward rotation F. Outward rotation

Movements of the Knee Flexion Extension

V. Movements of the pelvis n Anterior rotation – Iliac crest tilts forward n Posterior rotation – Iliac crest tilts backward n Right lateral rotation (or tilt) n Left lateral rotation (or tilt) n Right transverse rotation n Left transverse rotation

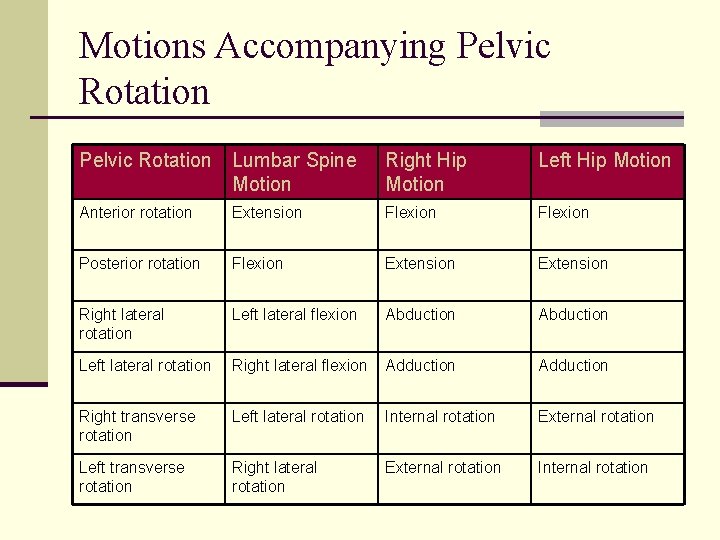

Motions Accompanying Pelvic Rotation Lumbar Spine Motion Right Hip Motion Left Hip Motion Anterior rotation Extension Flexion Posterior rotation Flexion Extension Right lateral rotation Left lateral flexion Abduction Left lateral rotation Right lateral flexion Adduction Right transverse rotation Left lateral rotation Internal rotation External rotation Left transverse rotation Right lateral rotation External rotation Internal rotation
