The Heart Circuits Chambers Valves onewayflow Myocardiocytes heart

The Heart • Circuits • Chambers • Valves (one-way-flow) • Myocardiocytes

heart –> lungs –> heart –> body –> heart Volumes? Pressures?

The Circulatory system is a "closed circulation" Systemic Circuit Pulmonary Circuit Systemic Circuit Artery = Vein =

Trace a RBC!

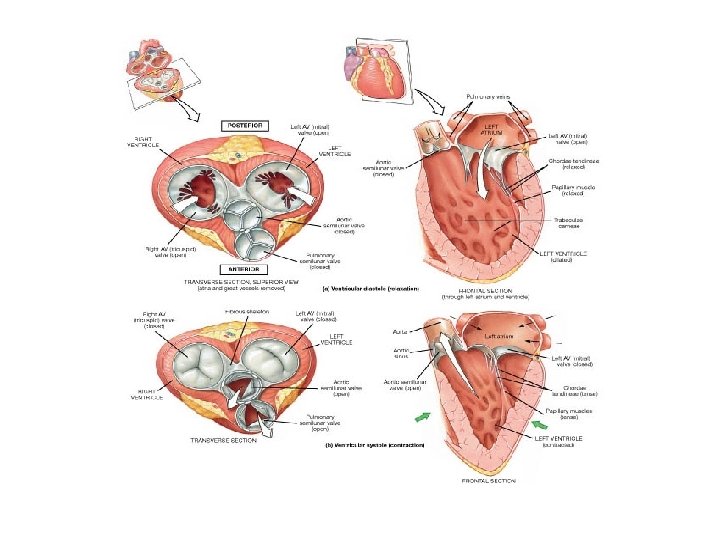

The Heart has 4 Valves To prevent retrograde flow of blood. 2 atrioventricular valves (AV) between the atria and ventricles. 1) Right AV (tricuspid) valve 2) Left AV (bicuspid/mitral) valve

2 semilunar valves between a ventricle and artery. 1) Aortic semilunar valve 2) Pulmonary semilunar valve Two heart sounds: “Lub” and “Dup” 1. Closure of AV valves = “Lub” 2. Closure of Semilunar valves = “Dup”

Disorders of Heart Valves Stenosis Prolapse Can lead to abnormal Heart sounds, e. g. , heart murmurs. Indicates: 1) turbulence 2) retrograde flow

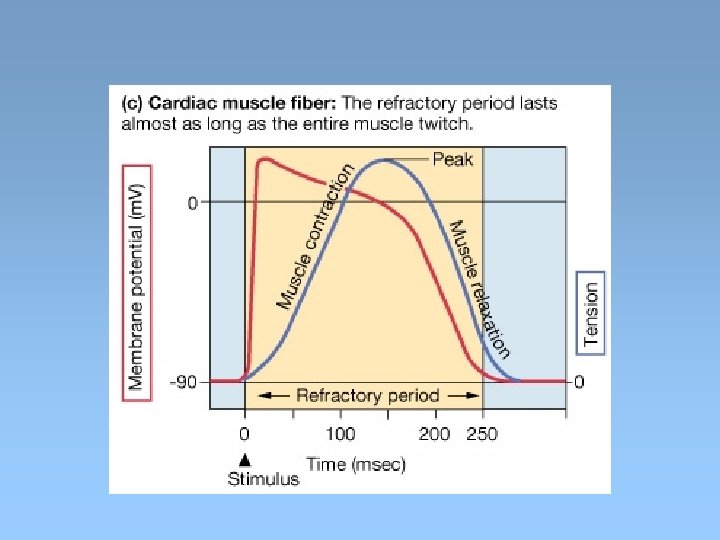

stimulus

Myocardiocytes: Calcium induced Calcium release

Graded Contraction of Heart Force generated by myocardiocyte contraction is: 1. Proportional to amount of Calcium ions (Ca 2+) [Ca 2+] => more crossbridges, more force & speed.

Graded Contraction of Heart Force generated by myocardiocyte contraction is: 1. Proportional to amount of Calcium ions (Ca 2+) [Ca 2+] => more crossbridges, more force & speed. 2. Modulated by Autonomic N. S. => Sym HR and Force => Para HR

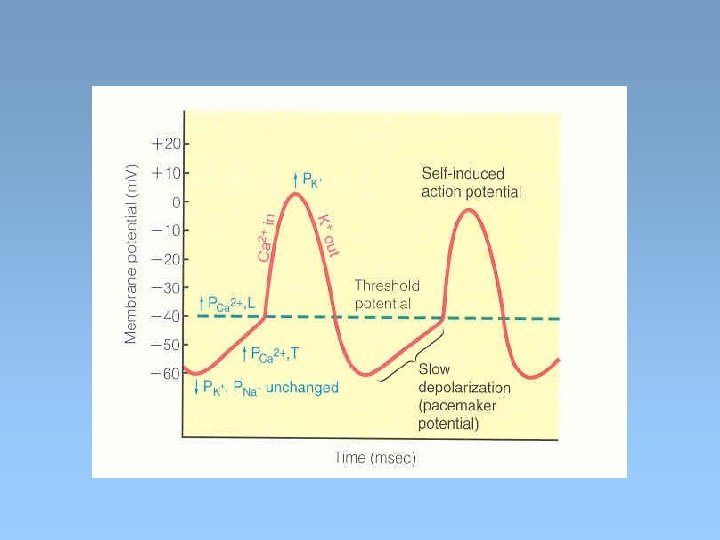

Sympathetic – speeds heart rate by Ca 2+ influx. Parasympathetic – slows rate by K+ efflux, Ca 2+ influx.

Graded Contraction of Heart Force generated by myocardiocyte contraction is: 1. Proportional to amount of Calcium ions (Ca 2+) [Ca 2+] => more crossbridges, more force & speed. 2. Modulated by Autonomic N. S. => Sym HR and Force => Para HR 3. Stretch-Length-Tension Relationship stretch, => Ca 2+ entering => contraction force

Factors Influencing Stroke Volume

The Cardiac Cycle

The Cardiac Cycle Mechanical Events of the Heart 1. Late Diastole: “Heart at rest” all chambers relaxed filling with blood (passive filling ~ 80% full). 2. Atrial Systole: atria contract, adds the last 20% of blood to ventricles (top off ventricles) Occurs after P-wave on EKG End Diastolic Volume (EDV) = Maximum ventricular volume

3. Ventricular Systole (part 1): Ventricular contraction begins - Pressure (P). Closure of AV valves = 1 st heart sound ("lub") Sealed Compartment – all valves are closed. Isovolumetric ventricular contraction: => pressure builds as volume stays the same.

4. Ventricular Systole (part 2): Ejection phase: P pushes open semilunar valves, blood forced out into artery leaving ventricle. Pulmonary Semilunar => 25 mm. Hg (minimum pressure) Aortic Semilunar => 80 mm. Hg (minimum pressure) End Systolic Volume (ESV) = volume remaining in heart after ejection (~½). Stroke Volume = EDV - ESV (ml/beat)

5. Ventricular Diastole: Relaxation of ventricles, artery back flow slams semilunar valves shut = 2 nd heart sound ("dup"). Sealed Compartment again – all valves are closed. Isovolumetric ventricular relaxation: => pressure as volume stays the same. The AV valves then open, refilling starts – back to start of cycle.

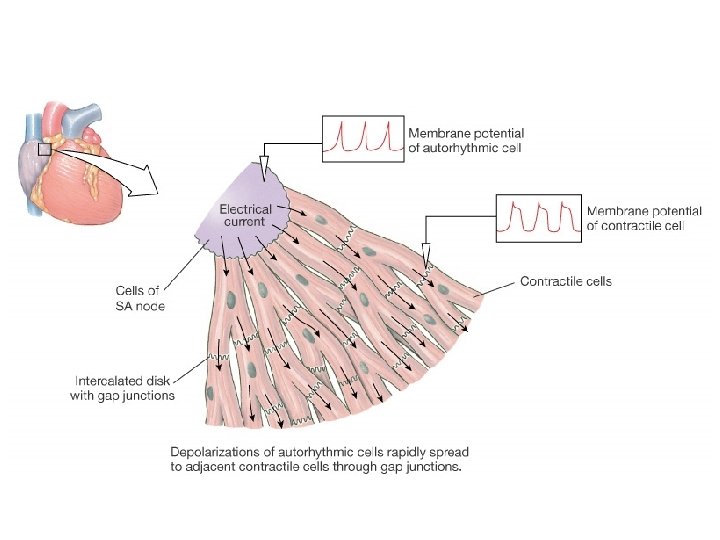

Electrical Conduction System Sino Atrial (SA) Node Atrial Ventricular (AV) Node AV Bundle (of His) L and R Bundle Branches Purkinje Fibers

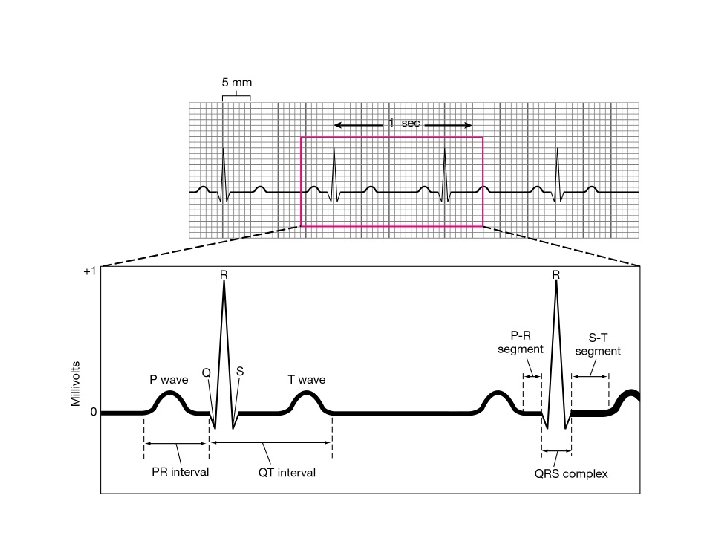

The ECG P wave: PR interval: QRS complex: T wave:
