The Graphy Doodle Game Matching Graphs to Situations

The Graphy Doodle Game! Matching Graphs to Situations: Interpreting Graphs Ms. Susinno – PPT inspired by Mrs. Gill Klesaris Set the PPT up to play as a slideshow. Click “slideshow” on tool bar above and then “from beginning” This will NOT work on a device! Use a laptop or desktop with Power. Point! Any questions… use Edmodo!

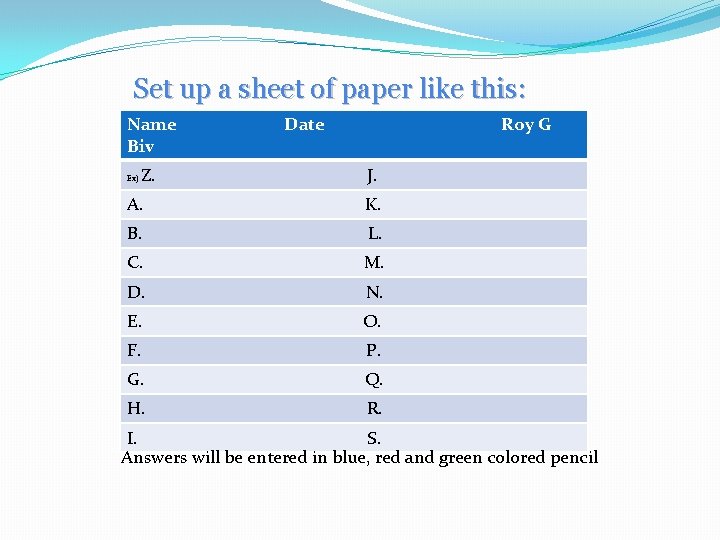

Set up a sheet of paper like this: Name Biv Ex) Z. Date Roy G J. A. K. B. L. C. M. D. N. E. O. F. P. G. Q. H. R. I. S. Answers will be entered in blue, red and green colored pencil

The following slides represent situations presented in graphic form. Read the situation carefully and decide which graph curve fits the situation best. Pay close attention to the independent and dependent variables to see which curve makes the MOST sense.

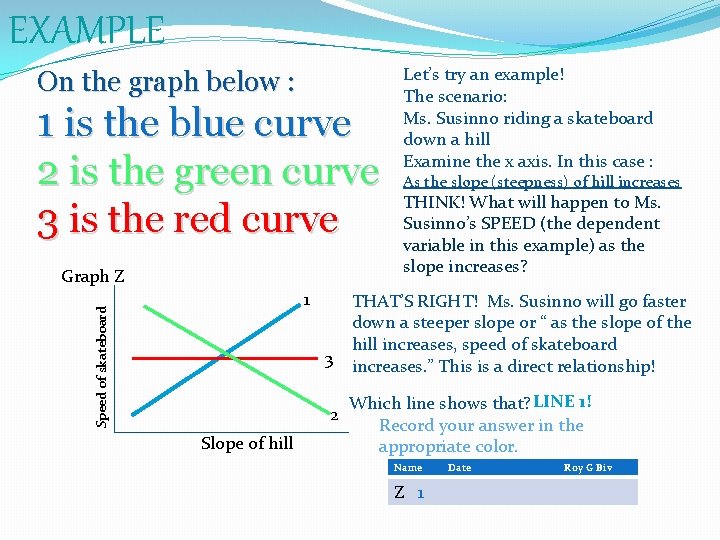

EXAMPLE On the graph below : 1 is the blue curve 2 is the green curve 3 is the red curve Graph Z Speed of skateboard 1 3 2 Slope of hill Let’s try an example! The scenario: Ms. Susinno riding a skateboard down a hill Examine the x axis. In this case : As the slope (steepness) of hill increases THINK! What will happen to Ms. Susinno’s SPEED (the dependent variable in this example) as the slope increases? THAT’S RIGHT! Ms. Susinno will go faster down a steeper slope or “ as the slope of the hill increases, speed of skateboard increases. ” This is a direct relationship! Which line shows that? LINE 1! Record your answer in the appropriate color. Name Z 1 Date Roy G Biv

Are you READY? Have your red and green pencils ready!!

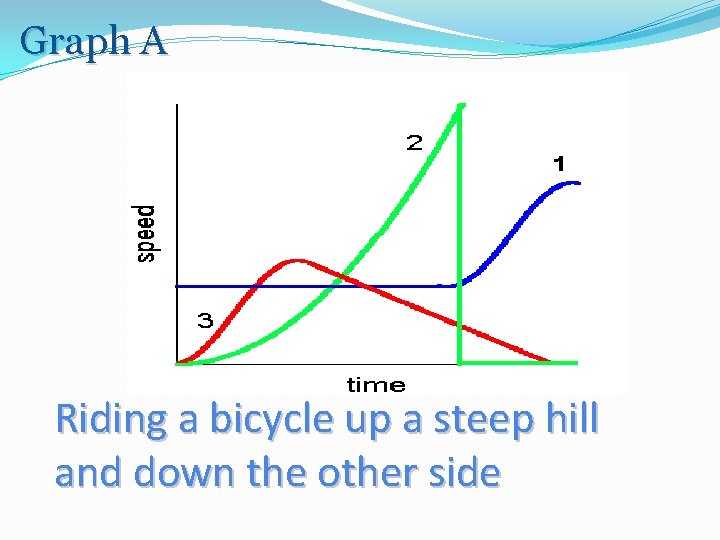

Graph A Riding a bicycle up a steep hill and down the other side

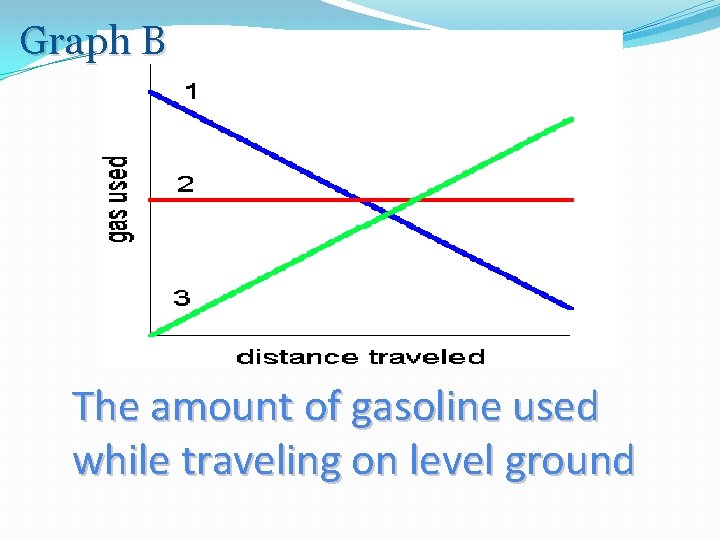

Graph B The amount of gasoline used while traveling on level ground

Graph C A candle burning

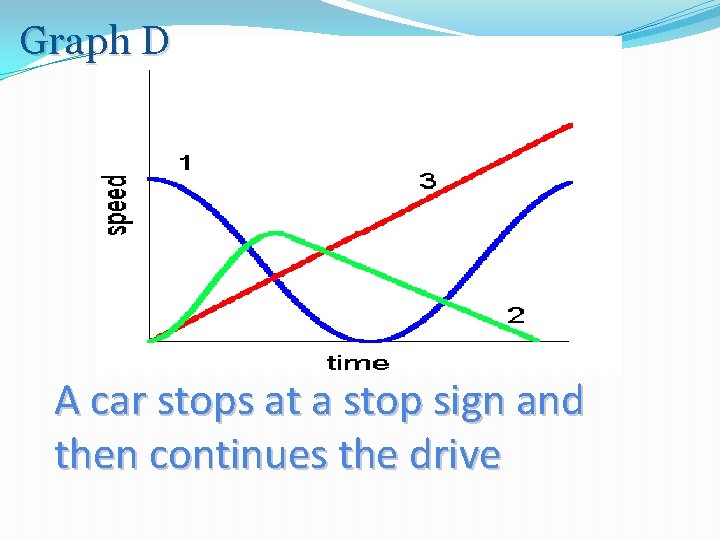

Graph D A car stops at a stop sign and then continues the drive

Graph E A wagon is pushed and then coasts to a stop

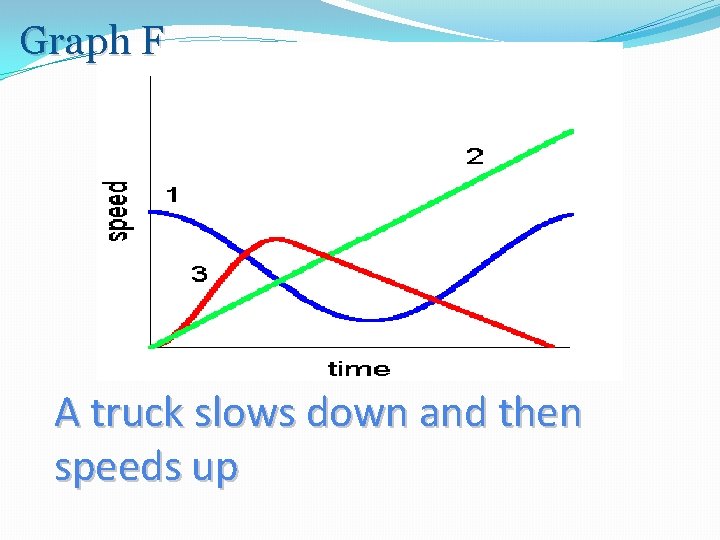

Graph F A truck slows down and then speeds up

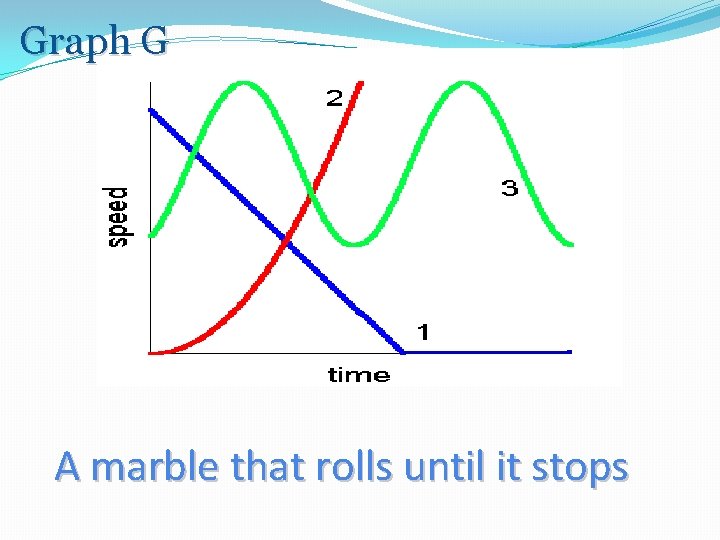

Graph G A marble that rolls until it stops

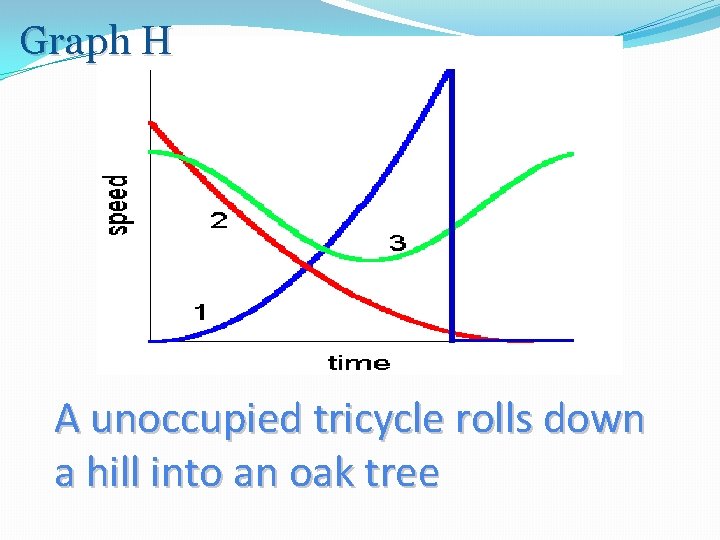

Graph H A unoccupied tricycle rolls down a hill into an oak tree

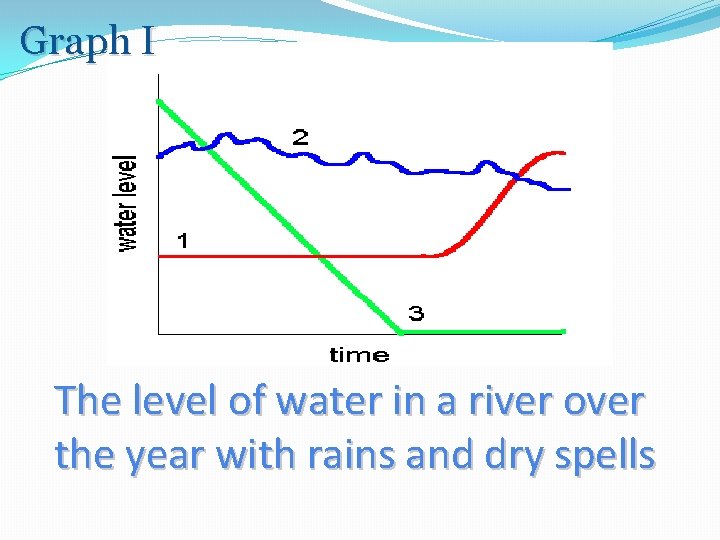

Graph I The level of water in a river over the year with rains and dry spells

Graph J A yo-yo moving rhythmically up and down

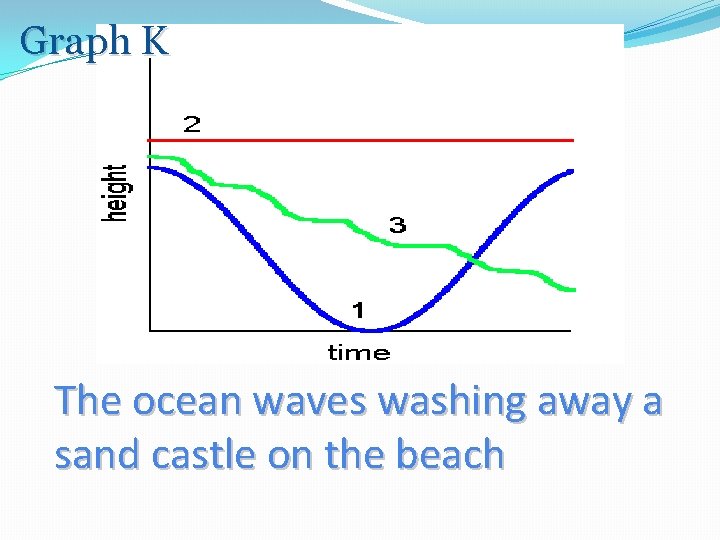

Graph K The ocean waves washing away a sand castle on the beach

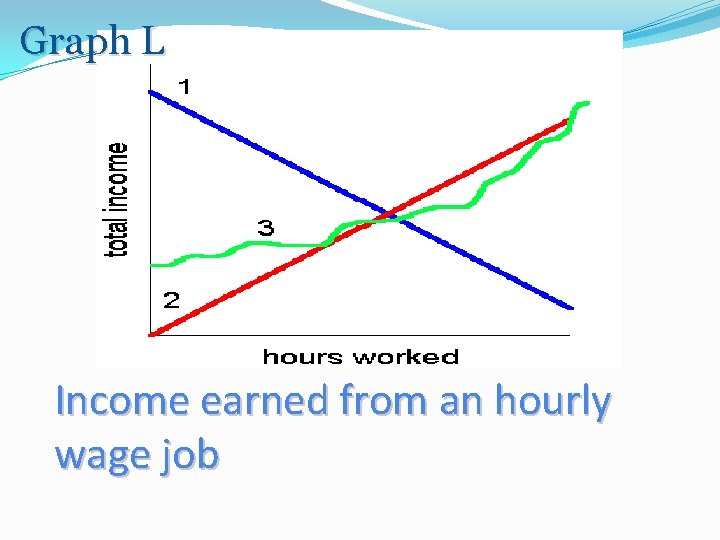

Graph L Income earned from an hourly wage job

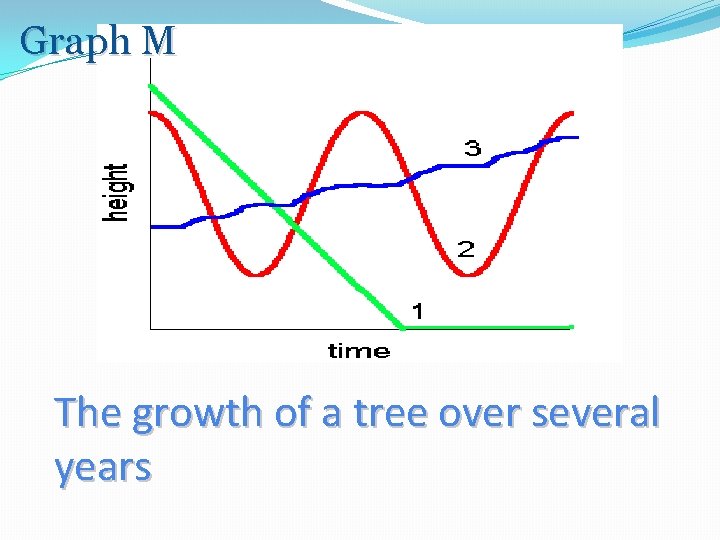

Graph M The growth of a tree over several years

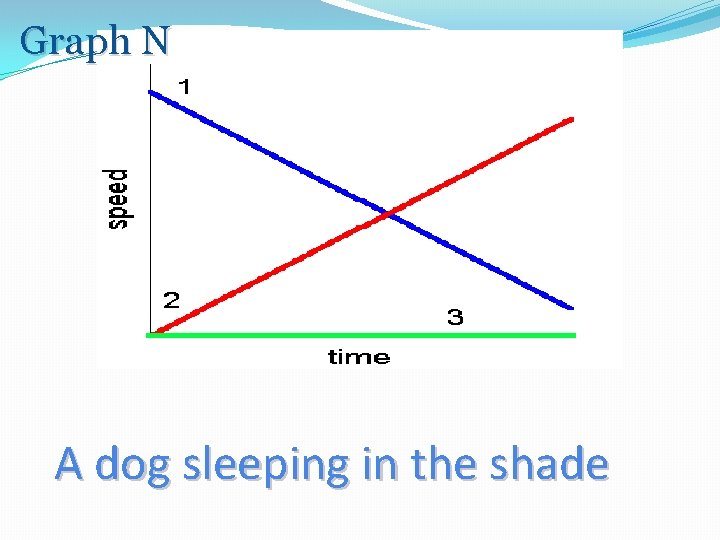

Graph N A dog sleeping in the shade

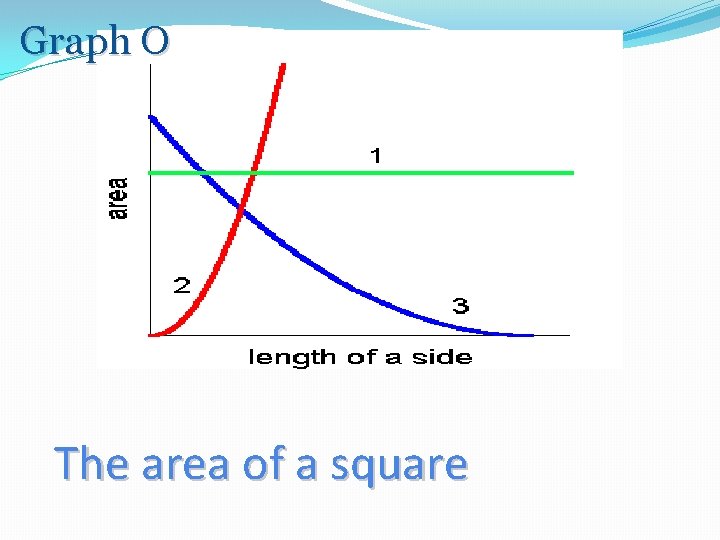

Graph O The area of a square

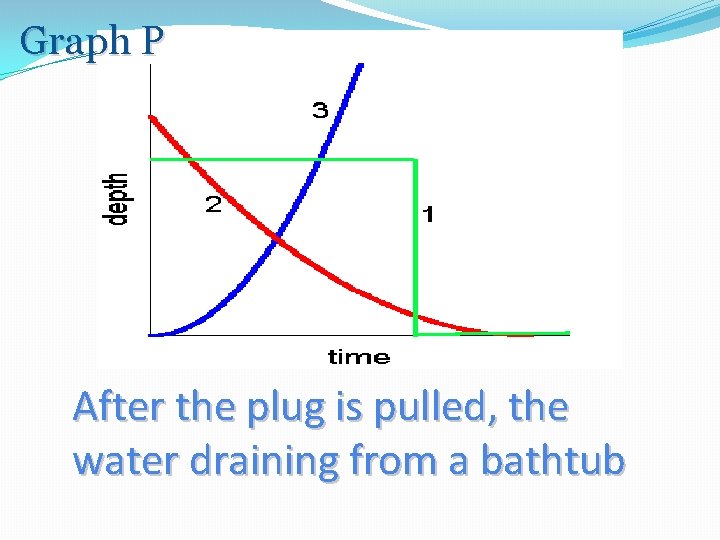

Graph P After the plug is pulled, the water draining from a bathtub

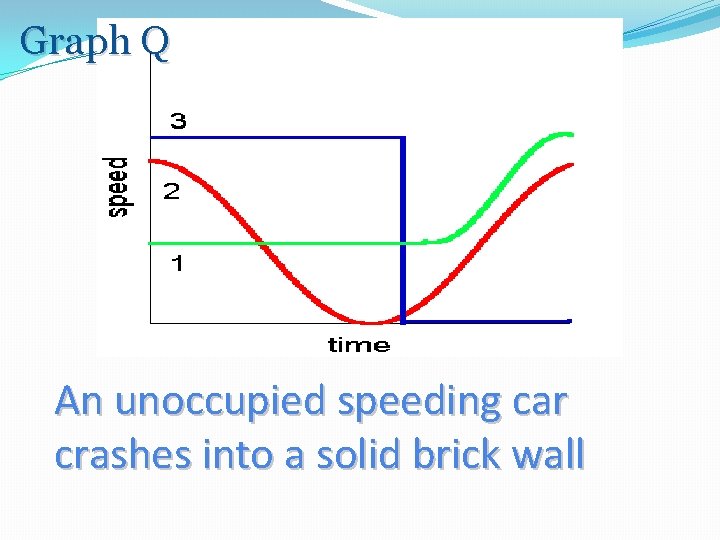

Graph Q An unoccupied speeding car crashes into a solid brick wall

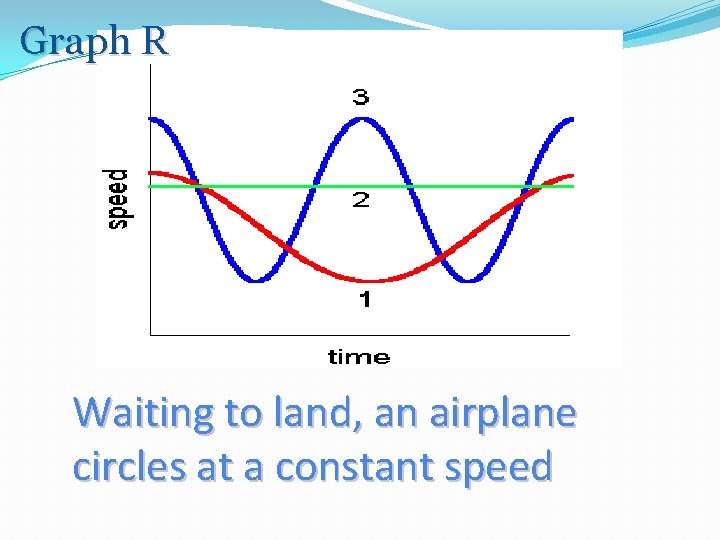

Graph R Waiting to land, an airplane circles at a constant speed

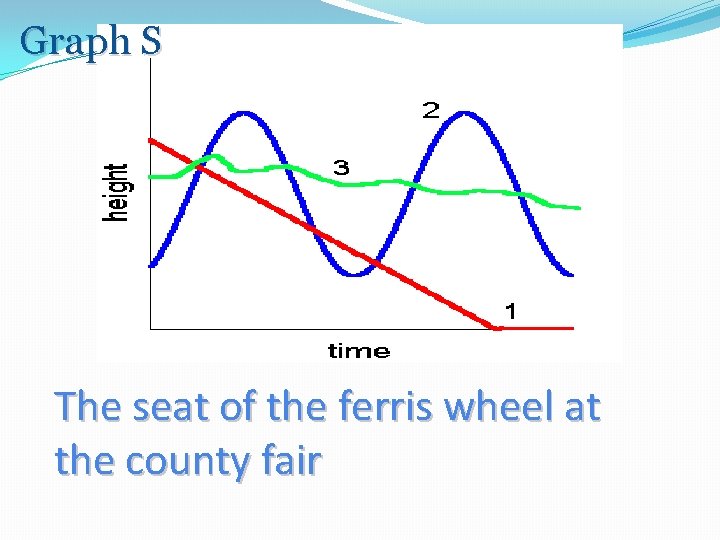

Graph S The seat of the ferris wheel at the county fair

Do you think you did well? Go back and check
