THE GOES-R SERIES ADVANCED BASELINE IMAGER (ABI) Timothy J. Schmit NOAA/NESDIS/ORA Advanced Satellite Products Team (ASPT) James J Gurka NOAA/NESDIS/OSD Mathew M. Gunshor, Jun Li, etc. Cooperative Institute for Meteorological Satellite Studies (CIMSS) Madison, WI GOES-R Users Conference May 2004 UW-Madison

Limitations of Current GOES Imagers – Missing spectral bands – Low spatial resolution – Regional/Hemispheric scan conflicts – Eclipse and related outages The ABI (Advanced Baseline Imager) is the next generation operational geostationary imager. The GOES-R/ABI era will begin in 2012.

The Advanced Baseline Imager: ABI Current 16 bands 5 bands Spectral Coverage Spatial resolution 0. 64 m Visible 0. 5 km Other Visible/near. IR 1. 0 km Bands (>2 m) 2 km Approx. 1 km n/a Approx. 4 km Spatial coverage Full disk CONUS 4 per hour 12 per hour Every 3 hours ~4 per hour Visible On-orbit calibration Low-light imaging Yes No No

ABI spatial coverage rate versus the current GOES Imager ABI coverage in ~5 minutes Current GOES coverage in 5 minutes There are two anticipated scan modes for the ABI: 1) full disk images every 15 minutes + CONUS images every 5 minutes + mesoscale. 2) Full disk every 5 minutes.

Visible and near-IR channels on the ABI ou ds Ve g. Cl Ha ze e siz rt. Pa w, Sn o Radiance Ci rru s Ph as e AVIRIS spectra The current GOES has only one visible band.

While there are differences, there also many similarities for the spectral bands on MET-8 and the Advanced Baseline Imager (ABI). Both the MET-8 and ABI have many more bands than the current operational imagers.

Weighting Functions for the IR channels on the ABI Weighting functions for the standard atmosphere at a local zenith angle of 40 degrees.

ABI Bands Based on experience from: Current GOES Imagers

ABI Bands Based on experience from: Current GOES Imagers MSG/AVHRR/ Sounder(s)

ABI Bands Based on experience from: Current GOES Imagers MSG/AVHRR/ Sounder(s) MODIS, Aircraft, etc

Select Products clouds/fog solar insolation aerosol products hurricane intensity cloud phase, cloud particle size snow, ice volcanic ash/ SO 2 land/sea surface temperature atmospheric motion fires cloud height/emissivity haze/dust NDVI (Normalized Difference Vegetation Index) severe weather signatures turbulence ozone radiances, cloud mask rainfall Products that are highlighted are included in this talk

Linden_haze_0. 47 µm (ABI spectral band from AVIRIS data) Smoke

Three-color composite (0. 64, 1. 6 and 11 µm) shows the low cloud over the snow and the water versus ice clouds. Snow Low cloud

Visible and near-IR channels on the ABI The ABI visible and near-IR bands have many uses.

Volcanic Ash Plume: 11 -12 and 8. 5 -11 μm images One day after the Mt. Cleveland eruption 20 February 2001, 0845 UTC Simulated ABI (11 -12 μm) Poster…Ellrod Simulated ABI (8. 5 -11 μm) UW/CIMSS

SO 2 calculations from F. Prata Slightly shift, toward larger wavenumbers, the two narrow ABI water vapor bands to better discriminate the SO 2 peak.

Upper-level SO 2 poster…Schreiner et al. Plume Simulated IR spectrums for “normal” and “SO 2 enriched” atmosphere and spectral response functions Simulated GOES-R ABI Image Difference and GOES-R ABI SRF TOMS Carn

GOES-R ABI will improve fire detection and characterization useful for air quality monitoring and forecasting FIRES GOES-8 Wildfire ABBA fire product for the Pacific Northwest Date: August 17, 2001 Time: 2200 UTC Smoke NAAPS Model Aerosol Analysis for the continental U. S. Date: August 18, 2001 Time: 1200 UTC Poster…Schmidt et al. and S. Kondragunta et al.

Poster…Schmidt; Miller ABI “Natural Color” Image (from MODIS) This represents a “best case” for generating an “natural color” Red-Green. Blue” composite image, given the MODIS 550 nm data from this image was used to build the Look Up Table (LUT) to simulate the “green” component from the other spectral bands. The HES-Coastal Water will have a 550 nm band. Hurricane Isabel on September 18, 2003 from MODIS

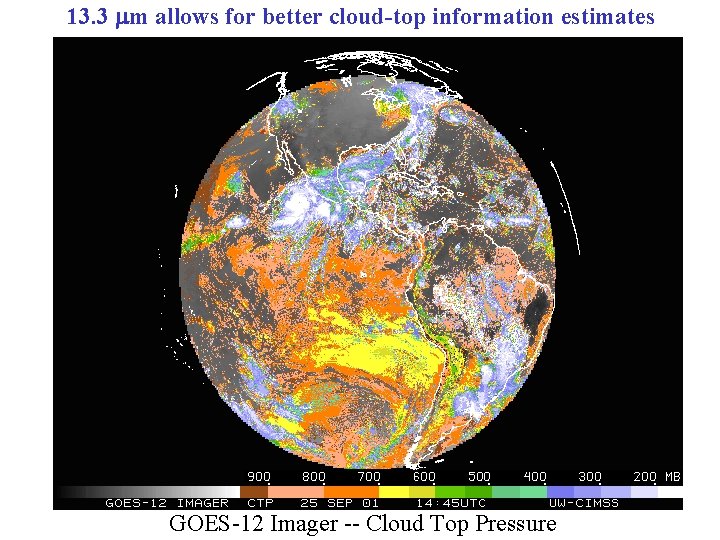

13. 3 m allows for better cloud-top information estimates GOES-12 Imager -- Cloud Top Pressure

Mountain Waves in WV channel (6. 7 µm) 7 April 2000, 1815 UTC Simulated ABI Actual GOES-8 Mountain waves over Colorado and New Mexico were induced by strong northwesterly flow associated with a pair of upper-tropospheric jet streaks moving across the elevated terrain of the southern and central Rocky Mountains. The mountain waves appear more well-defined over Colorado; in fact, several aircraft reported moderate to severe turbulence over that region. Both images are shown in GOES projection. UW/CIMSS

Fog -- Based on GOES Imager 3. 9 µm 5 March 2001 - Nocturnal Fog/Stratus Over the Northern Plains ABI 4 minus 11 μm Difference Both images are shown in the GOES projection. GOES-10 4 minus 11 μm Difference Fog UW/CIMSS ABI image (from MODIS) shows greater detail in structure of fog.

Higher Spatial Resolution GOES Channels Simulated ABI concentric anvil(from MODIS) layer waves Enhanced “V”: IR windows May 25, 2000 Enhanced “V” Actual GOES http: //cimss. ssec. wisc. edu/goes/misc/000525. html

Satellite-derived rainfall estimates Satellite-derived precipitation estimates will be improved for GOES-R: - higher spatial resolution (better depiction of cold cores) - more frequent images (offers cell growth information) - improved cloud height (with multiple bands and HES) - new ABI bands (phase information, better cloud detection) - better NEd. T’s - better navigation/registration Poster…Kuligowski

Radiances and Cloud Mask This includes both the navigated, calibrated pixels, as well as a clear-sky mask. For example, MODIS uses 17 of the 36 MODIS bands to identify the presence of clouds. For the ABI: Potentially all bands would be used, depending on the location and time of day. Plus, both clear and cloudy radiances can be used for Numerical Weather Prediction (NWP) – along with a host of products (winds, cloud-top information, snow cover, etc. ) Poster…Frey et al.

Sample: Combined GOES-8 & -10 Imager Water Vapor Band (6. 7 m) Clear-Sky Brightness Temperature (CSBT Image) Combined GOES-8 & -10 Imager Long Wave Band (11. 0 m)

Current routine GOES and ABI temporal sampling Regional View Poster…Wimmers ABI This simulated GOES-R ABI loop was created by morphing between two actual GOES images. "Morphing" describes a broad category of digital image algorithms used to create smooth, seamless transitions between two or more images.

MET-8 - The advanced multispectral geostationary operational imager, Met 8, can be used to prepare for the ABI.

Improved products will be realized from combinations of ABI and HES (Hyperspectral Environmental Suite) data (IR and Visible/near IR on the HES-Coastal Water)! Spatial resolution Temporal resolution Cloud clearing ABI HES Surface emissivity Spectral coverage Spectral resolution

Much improved spatial coverage with the HES Sounder Current GOES Sounder coverage in one hour GOES-R HES Sounder coverage in one hour Cloud Top Pressure CIMSS

GOES R Observational Requirements* Preliminary Instrument Allocation ABI – Advanced Baseline Imager HES – Hyperspectral Environmental Suite SEM – Space Environment Monitor * Does not reflect individual geographic coverage requirements. SXI – Solar X-Ray Imager GLM – GOES Lightning Mapper Prepared By: L. O’Connor 04/23/2004

Using MODIS, MET-8 and AIRS to simulate the spectral bands on the Advanced Baseline Imager (ABI) “ 0. 47 m” “ 0. 64 m” “ 0. 86 m” “ 1. 38 m” “ 1. 61 m” “ 2. 26 m” “ 3. 9 m” “ 6. 19 m” “ 6. 95 m” “ 7. 34 m” “ 8. 5 m” “ 9. 61 m” “ 10. 35 m” “ 11. 2 m” “ 12. 3 m” “ 13. 3 m”

Similar bands on the GOES-12 Imager “ 0. 47 m” “ 0. 64 m” “ 0. 86 m” “ 1. 38 m” “ 1. 61 m” “ 2. 26 m” “ 3. 9 m” “ 6. 19 m” “ 6. 95 m” “ 7. 34 m” “ 8. 5 m” “ 9. 61 m” “ 10. 35 m” “ 11. 2 m” “ 12. 3 m” “ 13. 3 m”

Summary -- ABI addresses Imager concerns by: • increasing spatial resolution - closer to NWS goal of 0. 5 km IR • scanning faster - temporal sampling improved - more regions scanned • adding bands - new and/or improved products enabled Simulations (from MODIS, AIRS, NAST-I, MSG and AVIRIS) show that the ABI addresses needs for cloud, moisture, air quality and surface products. Every product from the current GOES imager will be improved! Every band on the ABI will be used for a number of products. ABI will allow exciting new products from geostationary orbit, especially when combined with data from the HES.
