The Global Leader in Quality Automotive Parts Supply

The Global Leader in Quality Automotive Parts Supply Parts Distribution Center (Miami) September 2, 2010

Operations Team Motto “There’s always a way to do things better…. . …. Find it” Thomas A. Edison

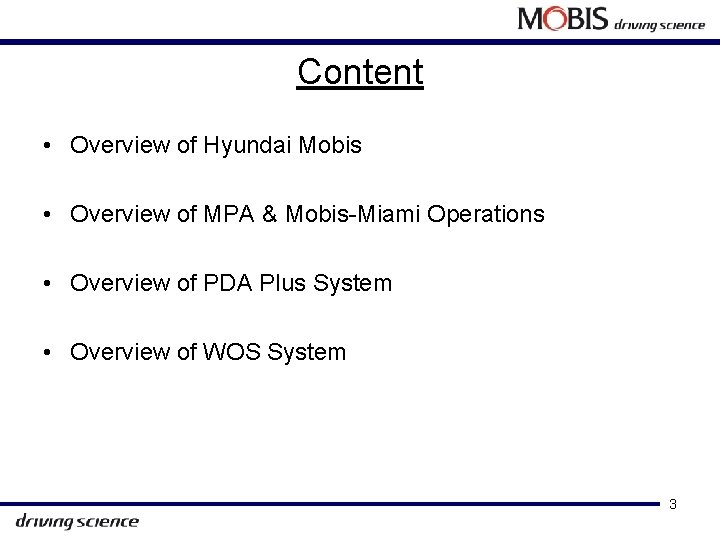

Content • Overview of Hyundai Mobis • Overview of MPA & Mobis-Miami Operations • Overview of PDA Plus System • Overview of WOS System 3

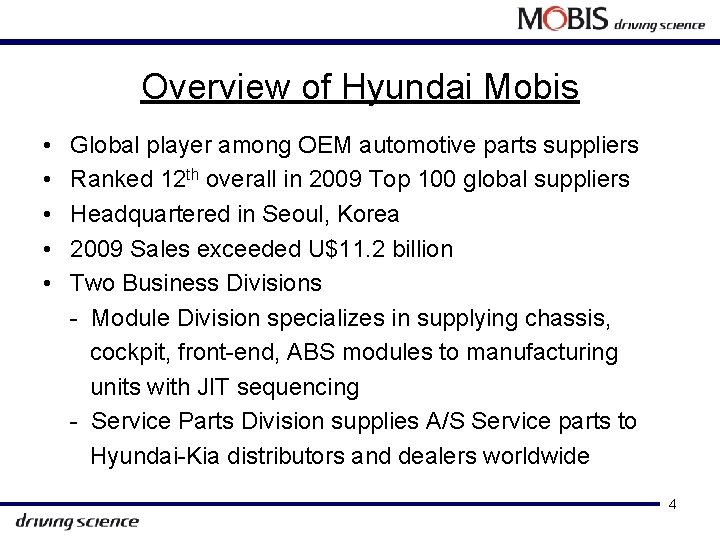

Overview of Hyundai Mobis • • • Global player among OEM automotive parts suppliers Ranked 12 th overall in 2009 Top 100 global suppliers Headquartered in Seoul, Korea 2009 Sales exceeded U$11. 2 billion Two Business Divisions - Module Division specializes in supplying chassis, cockpit, front-end, ABS modules to manufacturing units with JIT sequencing - Service Parts Division supplies A/S Service parts to Hyundai-Kia distributors and dealers worldwide 4

Hyundai-Kia Automotive Group • HMC & KMC - Vehicle Manufacturing - Vehicle Service - Share common design platform - Fastest growing auto manufacturer in the world • Hyundai Mobis - Module - A/S Parts distribution - Top performing stock in Korean stock exchange • Combined revenue of U$114 billion in 2009 HMC Hyundai Mobis KMC 5

Overview of Mobis Parts America • A/S Parts Sales turnover of $800 million • 7 PDC’s in Continental USA • Service both Hyundai & Kia Dealers • Miami PDC - 100% export business - Services 80 Distributors in 37 countries - Build to design PDC, opened in June 2009 6

Service Area Mobis services dealers in all 50 states with each PDC being responsible for servicing a particular region. Dealers refer to the PDC falling in their geographic area as their “facing” PDC. All orders dealers place through their DCS (Dealer Communication System) or Hyundai’s Internet based system will be automatically routed to their facing PDC. KIA PDC MIAMI PDC KIA & HYUNDAI

Miami PDC Service Territory Multiple Region Specifications: C 26 Countries 53 Distributors Caribbean B 7 Countries 21 Distributors A 4 Countries 5 Distributors

Ariel View of Miami PDC 9

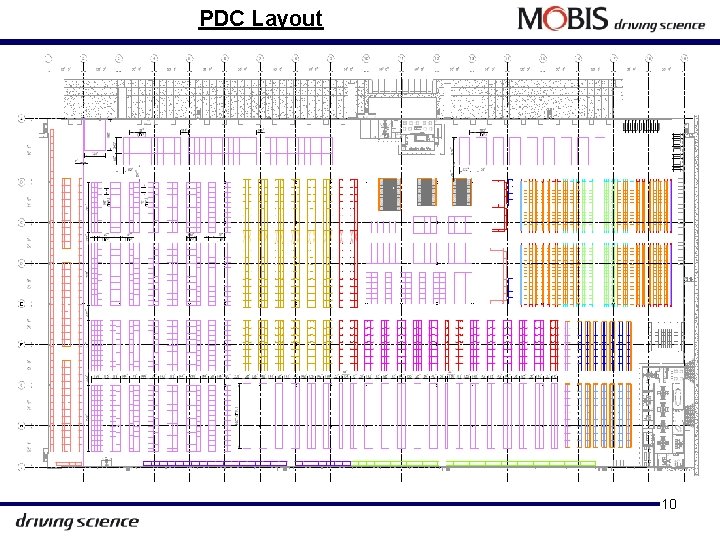

PDC Layout 10

Pick Path-Bin Section SLOTTING: A, B & D CLASS 11

Pick Path-Bin Section SLOTTING: C, E & D CLASS 12

Bin Location Dimensions

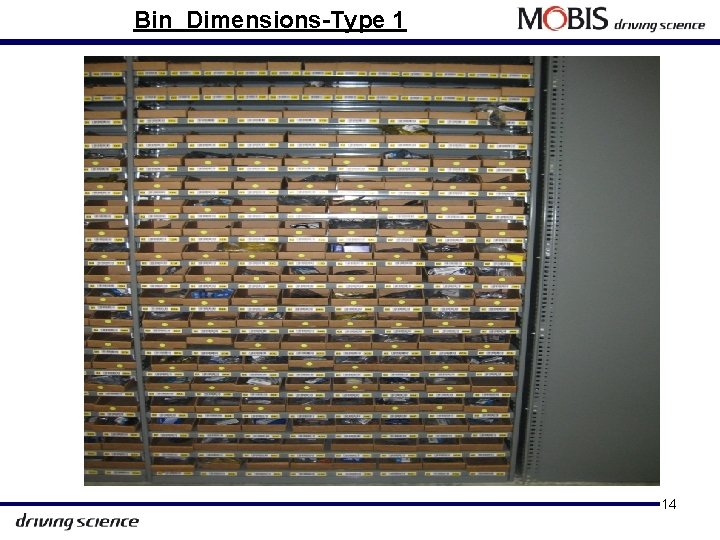

Bin Dimensions-Type 1 14

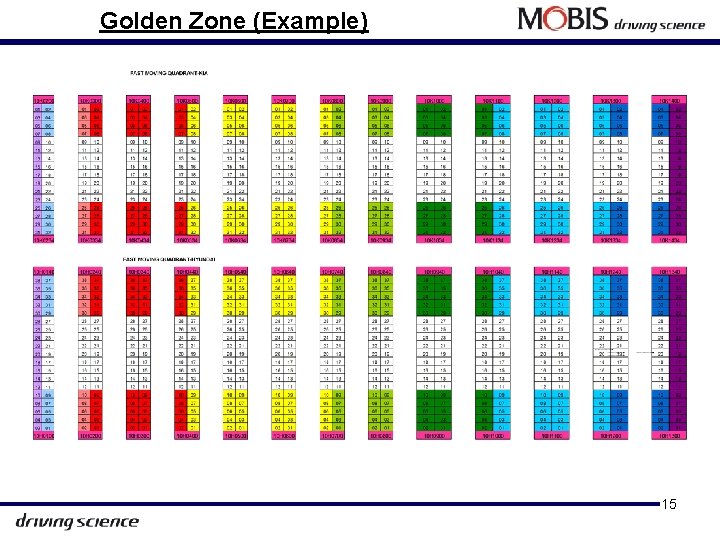

Golden Zone (Example) 15

Strike Zone (Example) 10 K 03~12 (KIA-FAST) 9 LEVEL 'D' CLASS 8 LEVEL 'D' CLASS 7 LEVEL 'D' CLASS 6 LEVEL 'A'~'B' CLASS 5 LEVEL 'A'~'B' CLASS 4 LEVEL 'A'~'B' CLASS 3 LEVEL 'A'~'B' CLASS 2 LEVEL 'A'~'B' CLASS 1 LEVEL 'D' CLASS

17

18

PLUS • PLUS – PDA based Logistics in the Ubiquitous System • Characteristics – Bar-code scanning – Network dependant – Ticket-less – Real-time

Main Menu

On-dock Reporting on-dock 1. Scan case No. 2. Check detail 3. Process (scan) case No. again (report) 4. Go on to the next case

On-dock sort Sorting parts (docked) 1. Scan case No. 2. Scan part No. (report) 3. Sort into Cross-dock and Put-away 4. Go on to the next part

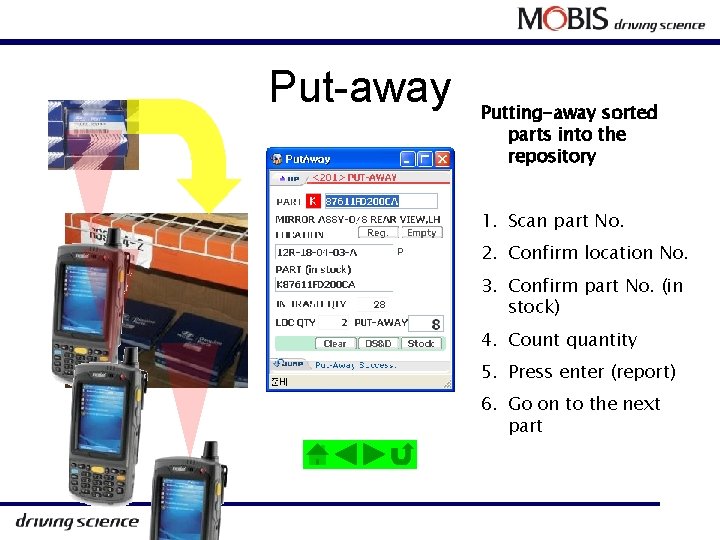

Put-away Putting-away sorted parts into the repository 1. Scan part No. 2. Confirm location No. 3. Confirm part No. (in stock) 4. Count quantity 5. Press enter (report) 6. Go on to the next part

In-line put-away Putting-away sorted parts into the repository orderly manner 1. Scan part No. (without sequence) 2. Click sort 3. Confirm location No. 4. Confirm part No. (in stock) 5. Count quantity 6. Press enter (report) 7. Move on to the next location

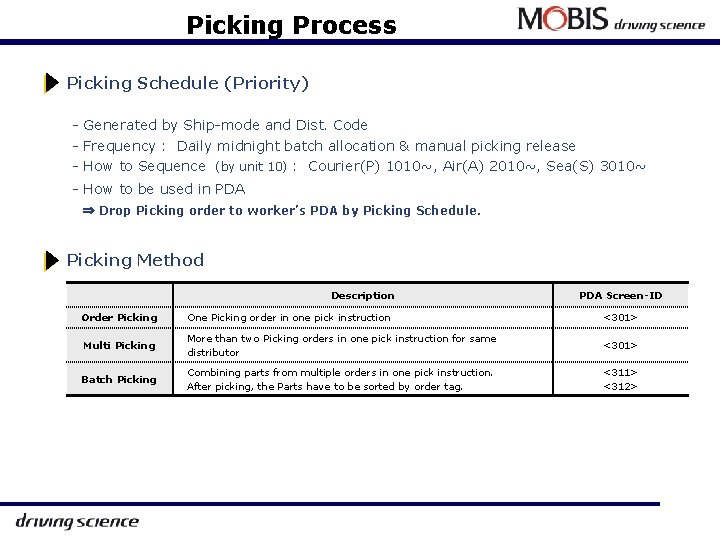

Picking Process 3) Picking Schedule (Priority) - Generated by Ship-mode and Dist. Code - Frequency : Daily midnight batch allocation & manual picking release - How to Sequence (by unit 10) : Courier(P) 1010~, Air(A) 2010~, Sea(S) 3010~ - How to be used in PDA ⇒ Drop Picking order to worker’s PDA by Picking Schedule. Picking Method Description PDA Screen-ID Order Picking One Picking order in one pick instruction <301> Multi Picking More than two Picking orders in one pick instruction for same distributor <301> Batch Picking Combining parts from multiple orders in one pick instruction. After picking, the Parts have to be sorted by order tag. <311> <312>

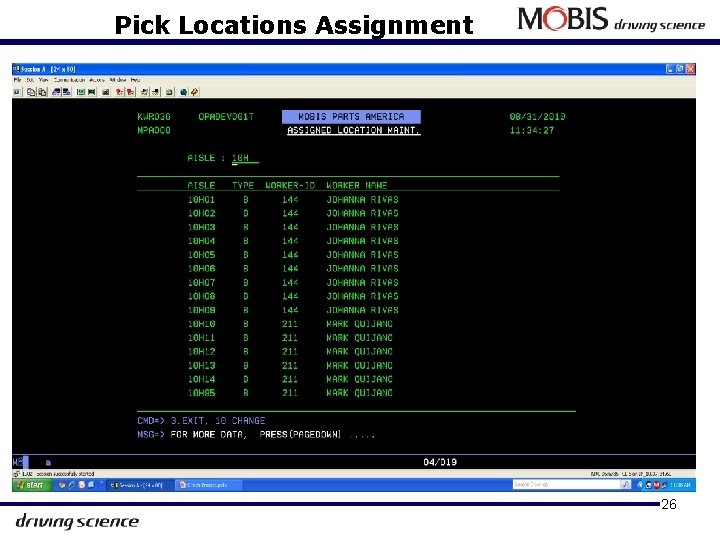

Pick Locations Assignment) 26

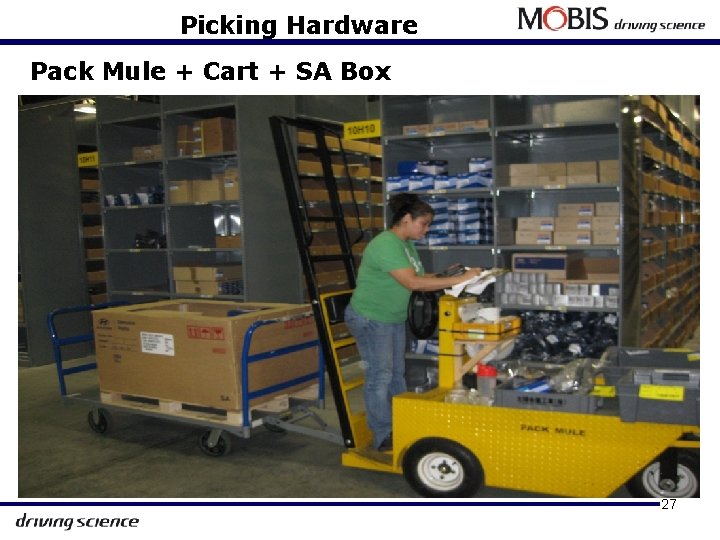

Picking Hardware Pack Mule + Cart + SA Box 27

Picking parts from the repository 1. Check instruction and go to the instructed location 2. Prepare order tag and scan it 3. Confirm location No. 4. Confirm part No. 5. Count quantity 6. Press enter (report) 7. Move on to the next instructed location
