The fourstroke engine Spark plug Exhaust valve Inlet
- Slides: 18
The four-stroke engine Spark plug Exhaust valve Inlet valve Cylinder Piston
The four-stroke engine Inlet valve open INDUCTION STROKE
The four-stroke engine Inlet valve open Piston down INDUCTION STROKE

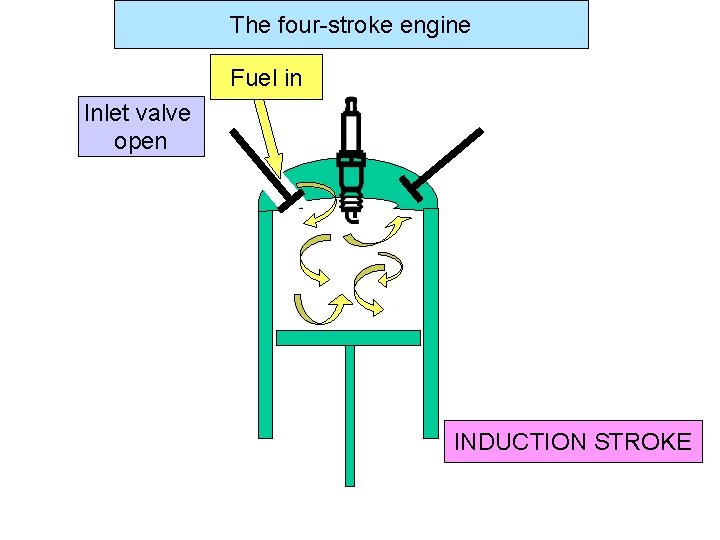

The four-stroke engine Fuel in Inlet valve open Piston down INDUCTION STROKE
The four-stroke engine Fuel in Inlet valve open Piston down INDUCTION STROKE
The four-stroke engine Fuel in Inlet valve open INDUCTION STROKE

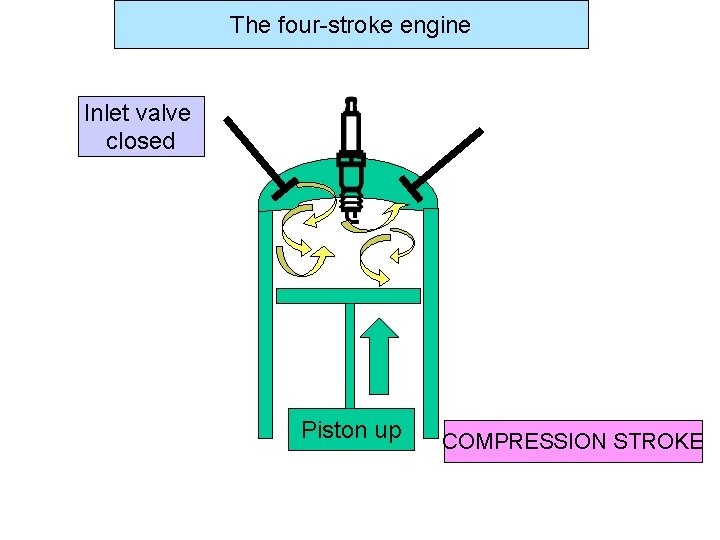

The four-stroke engine Inlet valve closed COMPRESSION STROKE Piston up
The four-stroke engine Inlet valve closed Piston up COMPRESSION STROKE
The four-stroke engine Inlet valve closed Piston up COMPRESSION STROKE
The four-stroke engine Inlet valve closed BANG POWER STROKE

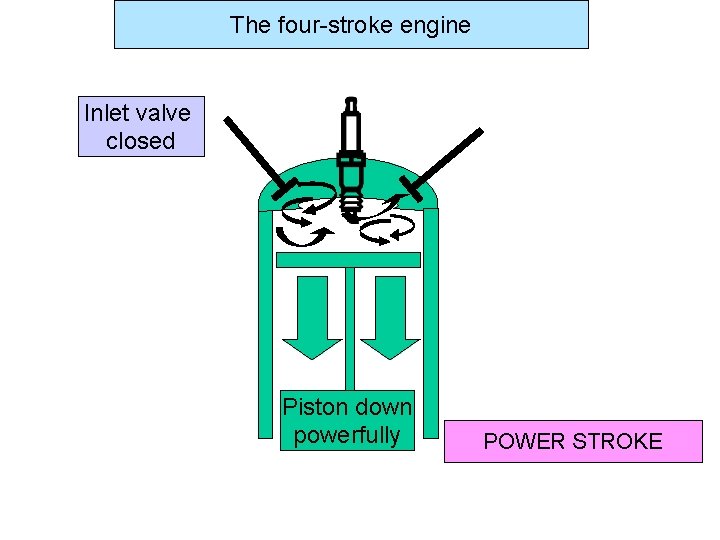

The four-stroke engine Inlet valve closed Piston down powerfully POWER STROKE
The four-stroke engine Inlet valve closed Piston down powerfully POWER STROKE

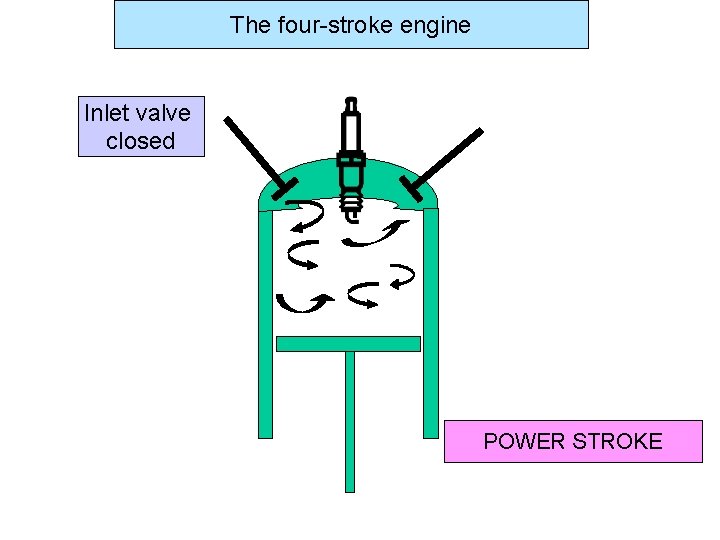

The four-stroke engine Inlet valve closed POWER STROKE

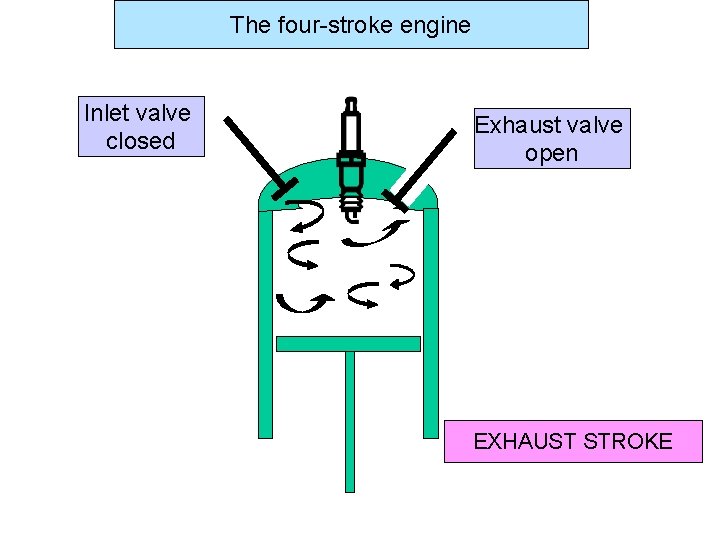

The four-stroke engine Inlet valve closed Exhaust valve open EXHAUST STROKE

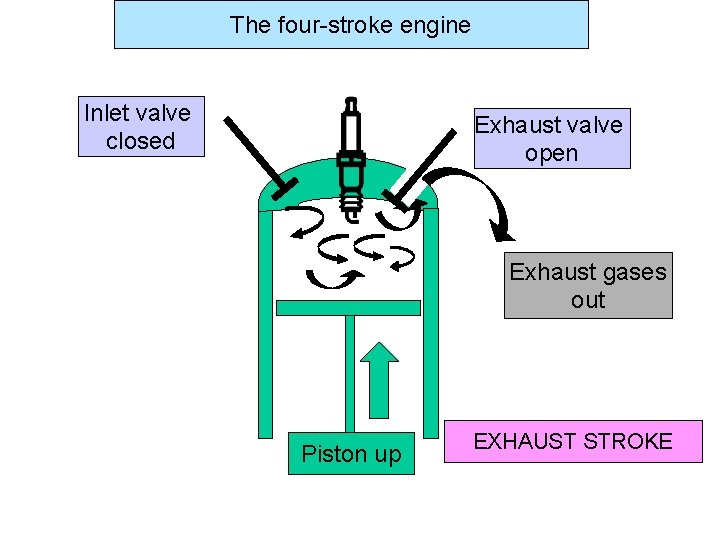

The four-stroke engine Inlet valve closed Exhaust valve open Exhaust gases out Piston up EXHAUST STROKE

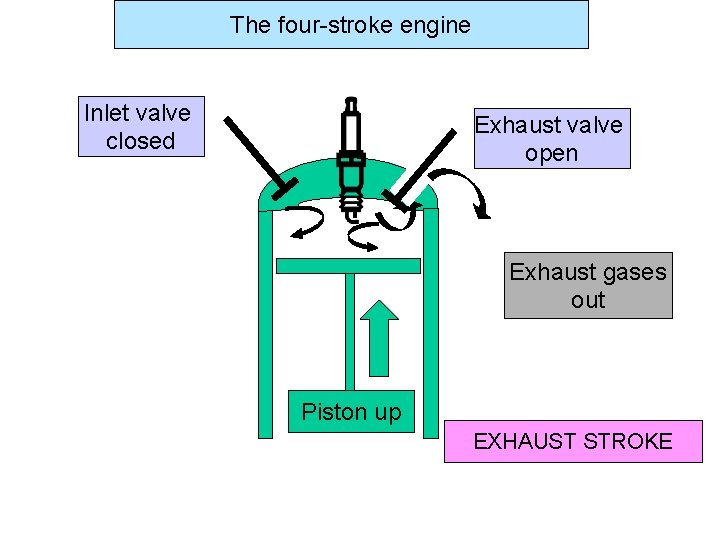

The four-stroke engine Inlet valve closed Exhaust valve open Exhaust gases out Piston up EXHAUST STROKE

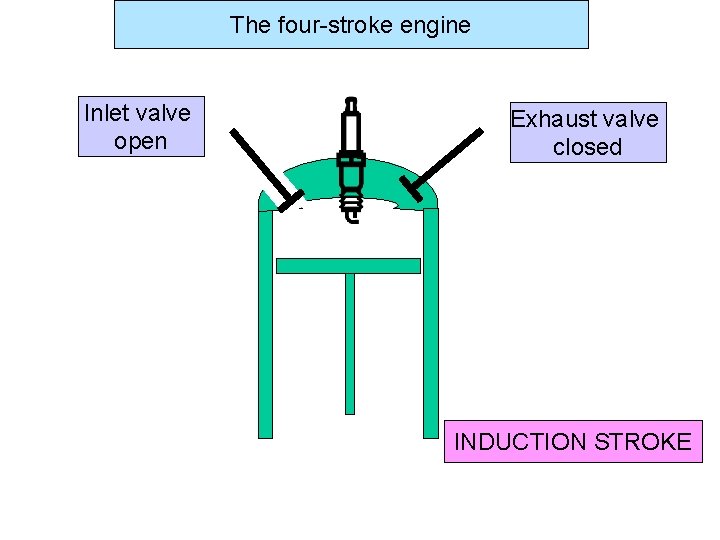

The four-stroke engine Inlet valve open Exhaust valve closed INDUCTION STROKE
And so the cycle continues!!
