The Flexible Wireless Interactive Classroom Ethan Sommer Gustavus

The Flexible Wireless Interactive Classroom Ethan Sommer Gustavus Adolphus College

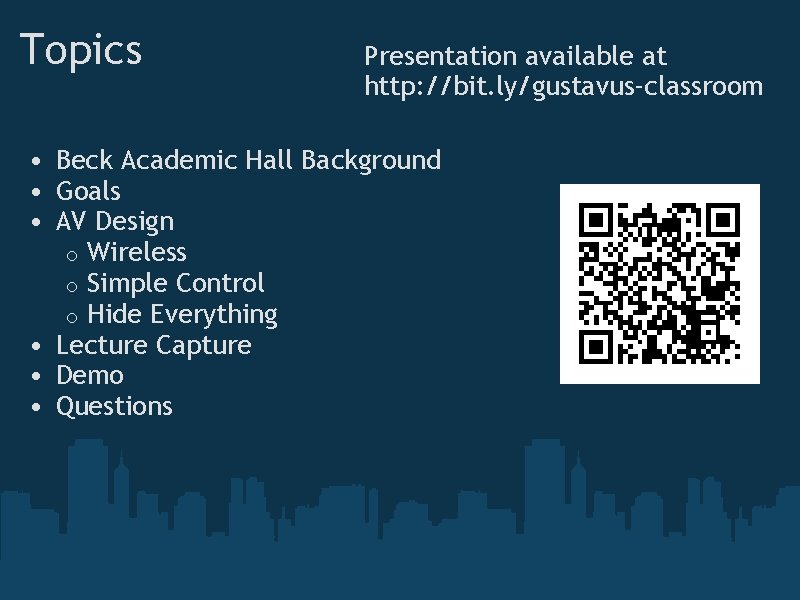

Topics Presentation available at http: //bit. ly/gustavus-classroom • Beck Academic Hall Background • Goals • AV Design o Wireless o Simple Control o Hide Everything • Lecture Capture • Demo • Questions

Beck Hall Background 125000 square foot academic building housing: • Economics & Management • Psycology • Sociology & Anthropology • Communications Studies • History

Beck Hall Background

Beck Academic Hall Classrooms 18 month development process Primary Goals 1. Flexibility of space 2. Ease of use 3. Flexibility of lighting 4. Difficult to mess up

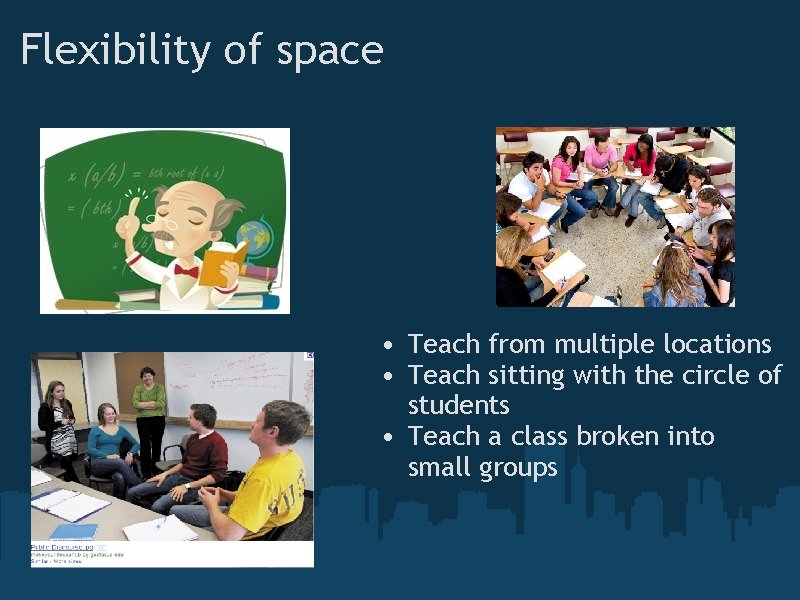

Flexibility of space • Teach from multiple locations • Teach sitting with the circle of students • Teach a class broken into small groups

Ease of use

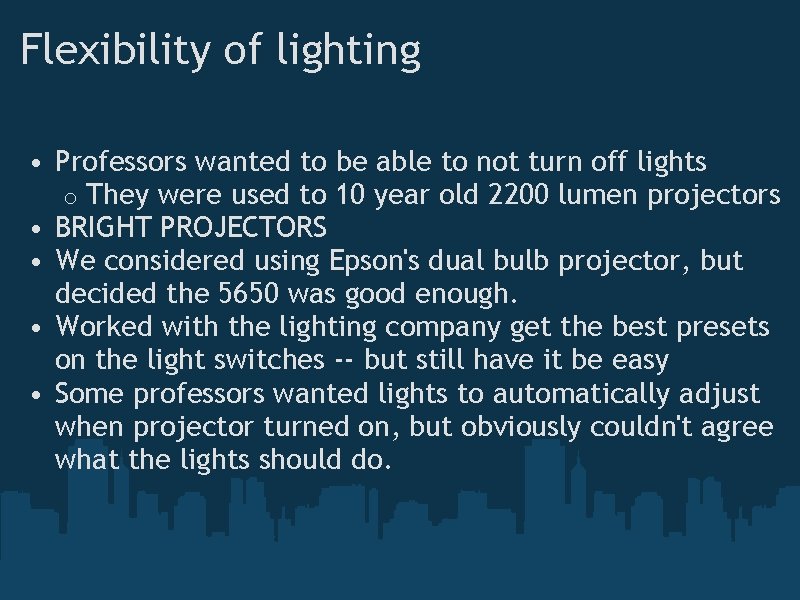

Flexibility of lighting • Professors wanted to be able to not turn off lights o They were used to 10 year old 2200 lumen projectors • BRIGHT PROJECTORS • We considered using Epson's dual bulb projector, but decided the 5650 was good enough. • Worked with the lighting company get the best presets on the light switches -- but still have it be easy • Some professors wanted lights to automatically adjust when projector turned on, but obviously couldn't agree what the lights should do.

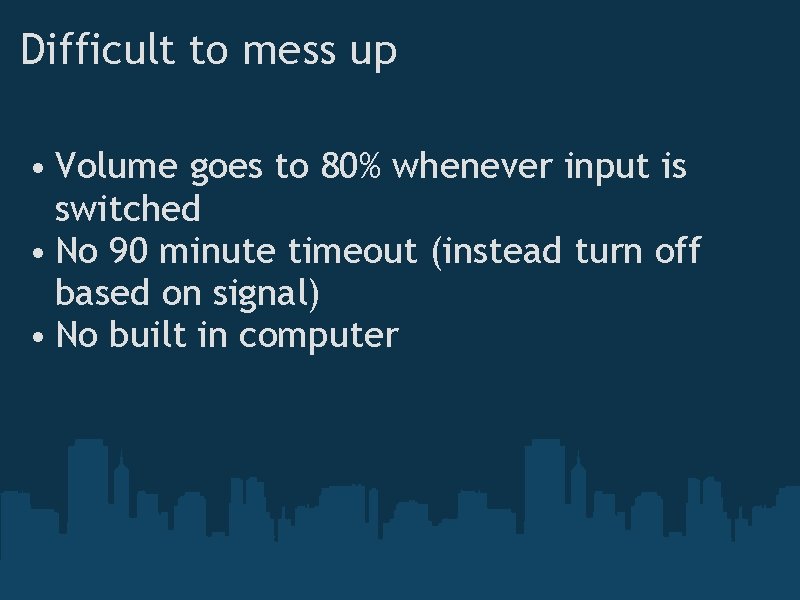

Difficult to mess up • Volume goes to 80% whenever input is switched • No 90 minute timeout (instead turn off based on signal) • No built in computer

Classroom Diagram

Epson 5650 WNL

Epson Bright. Link 455 Wi

Epson 450 WI

Three Projectors All three • support Easy. MP • WXGA (720 p) Model 1925 W $1699 5650 WNL 455 WI $2580 $1499 Lumens (normal/eco) 4000/2700 4500/3600 2500/1740 HDMI IN Yes No Interactive Whiteboard No No Yes Max Size Image NA NA 8' wide

Rapid. Run Cables Pros: Cables are easy to run through walls No soldering ports High quality Good guidance on distance limitations/mitigation Plenum cables available Available from amazon/random internet vendors (not just crestron/extron/etc vendors) Cons: Cost compared to traditional cables (typical cost per room was roughly $600 for HDMI/VGA+audio/Composite) Less future flexibility compared to Cat 6 based balums

Hide EVERYTHING/ Details Matter "High Security Projector Mount" White Projector Poll (Surprise! Hanging Lights!) Hides cables inside White Power Cables Amp above ceiling

Use the same design everywhere

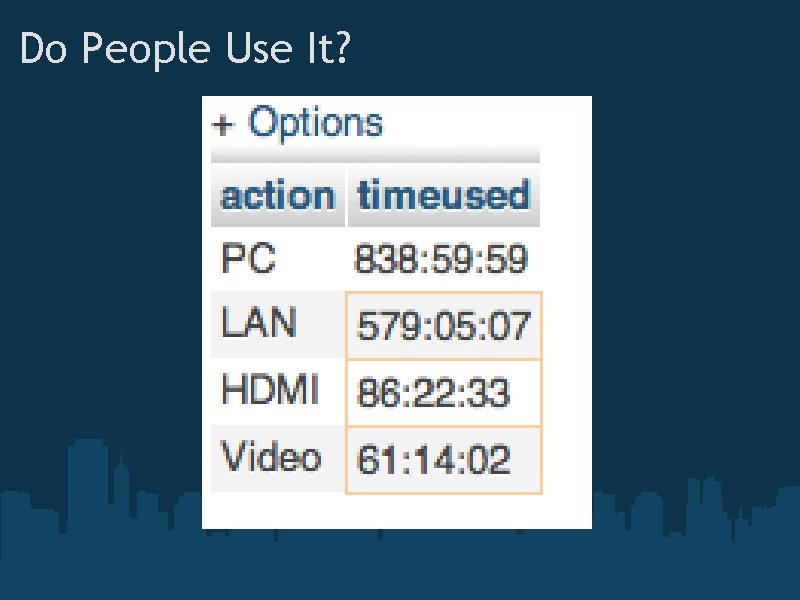

Do People Use It?

Lecture Capture Axis HD IP Security Camera Capable of 3 MP (more than 1080 p) Centralized web interface Can capture a window of the stream (eg, only the projector screen or only a person standing at the podium. ) H 264 encoded video files

Demo/Question? Presentation available at http: //bit. ly/gustavus-classroom Questions? Contact Ethan Sommer esommer@gac. edu Dan Oachs doachs@gac. edu Download Easy. MP: https: //gustavus. edu/gts/Wireless_Projectors
