The FG series of explosive and toxic gas

The FG series of explosive and toxic gas detectors and panels • State of the art technology • Full ATEX approvals • Comprehensive range

Gas detectors for all applications • Residential • Non classified commercial • Potentially explosive zone 2 Eex -n • Potentially explosive zone 1 & 2 Eex -d

Gas control panels • Conventional 4 – 8 detector • Addressable RS 485 bus up to 200 detectors, 132 outputs

On site maintenance • Handheld Calibration kit > Plug-in and infrared > Connect to test gas

Gas panel expansion boards • Addressable, 8 way, 4 – 20 m. A input boards • Addressable, 16 way, open collector output boards

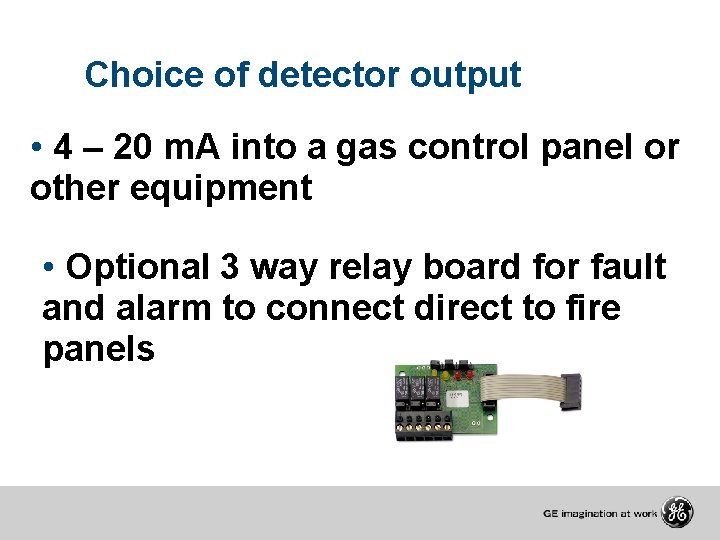

Choice of detector output • 4 – 20 m. A into a gas control panel or other equipment • Optional 3 way relay board for fault and alarm to connect direct to fire panels

Choosing the right product • By the approval requirement or environment • By the gas to be detected

By the approval requirement or environment • Residential – no ATEX classification • Dust proof IP 44 – non classified commercial and industrial areas – no ATEX • Potentially explosive zone 2 – ATEX Eex-n • Potentially explosive zone 1 and 2 – ATEX Eex-d

By the approval requirement or environment Residential – no ATEX classification > Methane, LPG or CO > 12 / 24 Vdc or 230 Vac > Type codes FGE 212/230 ME, LP FGT 212/230 CO

By the approval requirement or environment Non classified commercial and industrial areas – no ATEX > Petrol vapour or CO > Type codes FGE 90 VB FGT 90 CO

By the approval requirement or environment Potentially explosive zone 2 – ATEX Eex-n > Methane, Petrol vapour, LPG and CO > Type codes FGE 110 ME, VB, LP FGT 110 CO

By the approval requirement or environment Potentially explosive zone 1 or 2 – ATEX Eex-d > Methane, Hydrogen, LPG or CO > Type codes FGE 150/170 ME, LP, H 2 FGT 150/170 CO

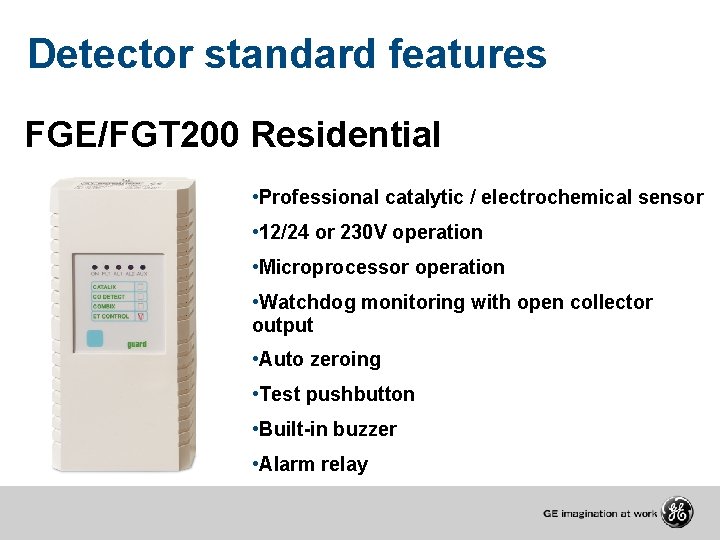

Detector standard features FGE/FGT 200 Residential • Professional catalytic / electrochemical sensor • 12/24 or 230 V operation • Microprocessor operation • Watchdog monitoring with open collector output • Auto zeroing • Test pushbutton • Built-in buzzer • Alarm relay

Detector standard features FGE/FGT 90 IP 44 • Professional catalytic / electrochemical sensor • 12/24 operation • Cost effective for non-classified areas • IP 44 • 4 -20 m. A output

Detector standard features FGE/FGT 110 ATEX Eex-n • Professional catalytic / electrochemical sensor • 12/24 Vdc • Microprocessor operation • Watchdog and self diagnostic features • Auto zeroing • Drift compensation • Digital filter • 4 -20 m. A or optional 3 relay board

Detector standard features FGE/FGT 150 ATEX Eex-d • Professional catalytic / electrochemical sensor • 12/24 Vdc • Microprocessor operation • Watchdog and self diagnostic features • Auto zeroing • Drift compensation • Digital filter • 4 -20 m. A or optional 3 relay board

Control panel standard features FGC 108 4 – 8 input gas panel • 4 -20 m. A inputs • Microprocessor based • 4 input, expandable to 8 (FGC 104 E) • Backlit LCD, 2 x 16 characters • Precise indication of gas concentration • Three alarm thresholds per detector • Five output relays • 16 open collector outputs available on FGC 104 E • Built-in battery charger

Control panel standard features FGC 1100 8 -104 input, 4 -68 output • 4 -20 m. A inputs • Microprocessor based • Multiscan RS 485 addressable bus • Backlit LCD, 256 x 64 pixel graphic LCD display • Programmable alarm thresholds per detector • Three alarm thresholds per detector • Powerful configuration software standard • RS 232 and Centronics parallel port for data logging and graphics – SIA protocol • Built-in 3. 5 Amp power supply

Control panel standard features FGC 1200 8 -200 input, 4 -132 output • 4 -20 m. A inputs • Microprocessor based • 2 x Multiscan RS 485 addressable bus • Backlit LCD, 256 x 64 pixel graphic LCD display • Programmable alarm thresholds per detector • Three alarm thresholds per detector • Powerful configuration software standard • RS 232 and Centronics parallel port for data logging and graphics – SIA protocol • Built-in 3. 5 Amp power supply

Control panel accessories Expansion boards FGC 104 E Adds 4 inputs and 16 open collector outputs to the FGC 108 gas panel FGC 1208 I Addressable RS 485 module adds 8 detector inputs to the FGC 1100/1200 FGC 1216 O Addressable RS 485 module adds 16 open collector outputs to the FGC 1100/1200

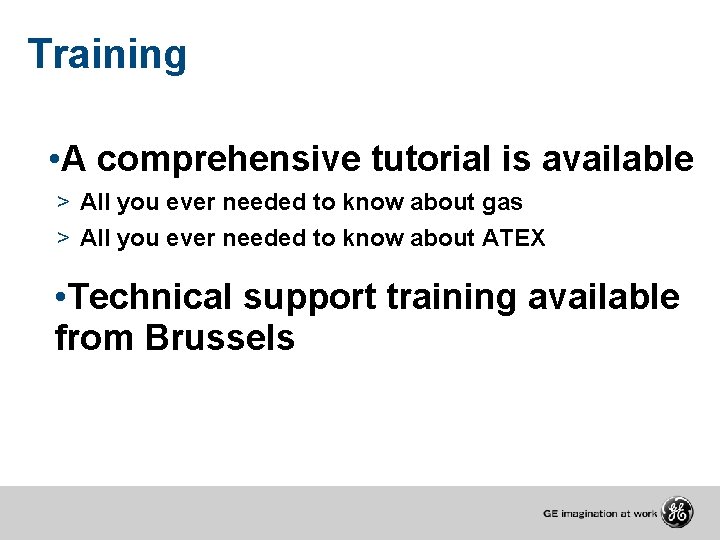

Training • A comprehensive tutorial is available > All you ever needed to know about gas > All you ever needed to know about ATEX • Technical support training available from Brussels

End of presentation
