The Evolving Federal PKI Gary Moore Entrust Technologies Richard Guida Chair, Federal PKI Steering Committee

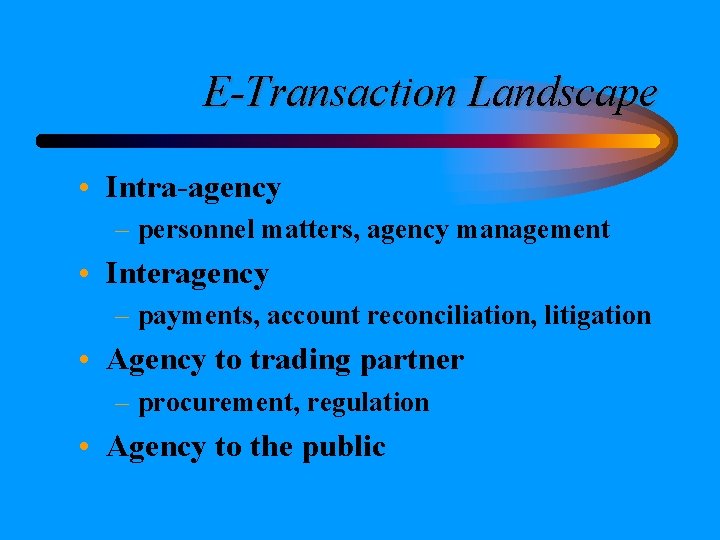

E-Transaction Landscape • Intra-agency – personnel matters, agency management • Interagency – payments, account reconciliation, litigation • Agency to trading partner – procurement, regulation • Agency to the public

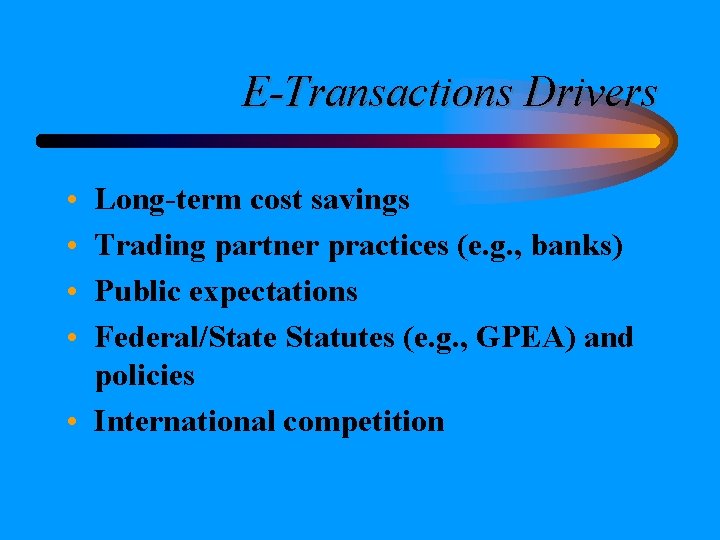

E-Transactions Drivers • • Long-term cost savings Trading partner practices (e. g. , banks) Public expectations Federal/State Statutes (e. g. , GPEA) and policies • International competition

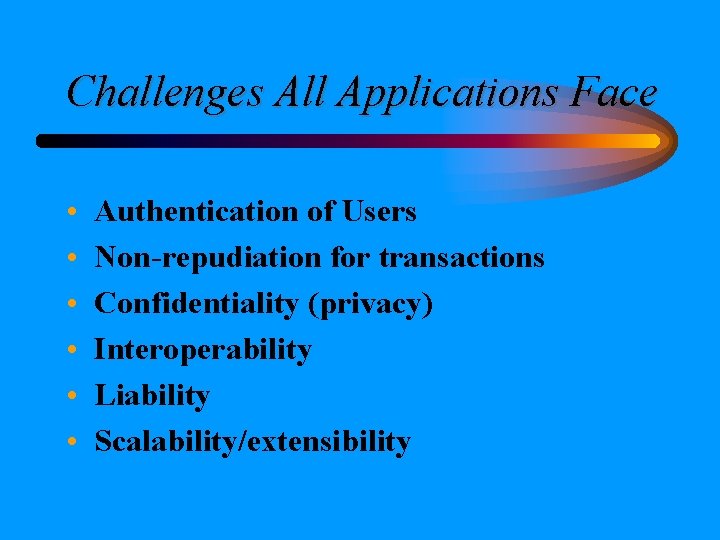

Challenges All Applications Face • • • Authentication of Users Non-repudiation for transactions Confidentiality (privacy) Interoperability Liability Scalability/extensibility

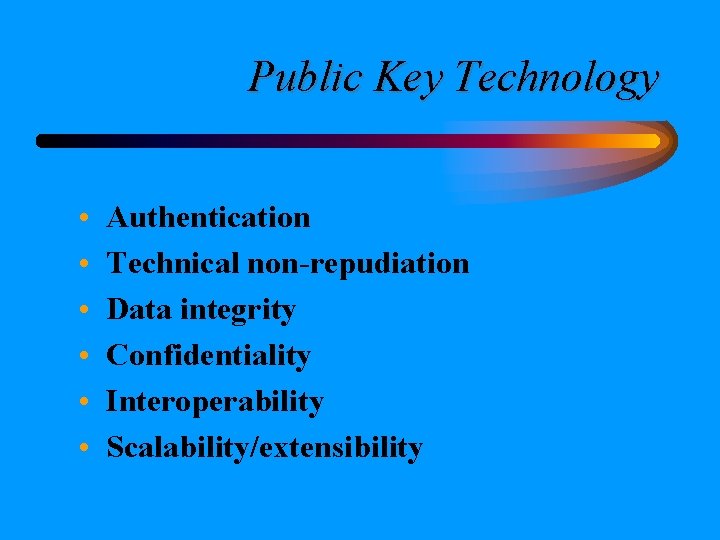

Public Key Technology • • • Authentication Technical non-repudiation Data integrity Confidentiality Interoperability Scalability/extensibility

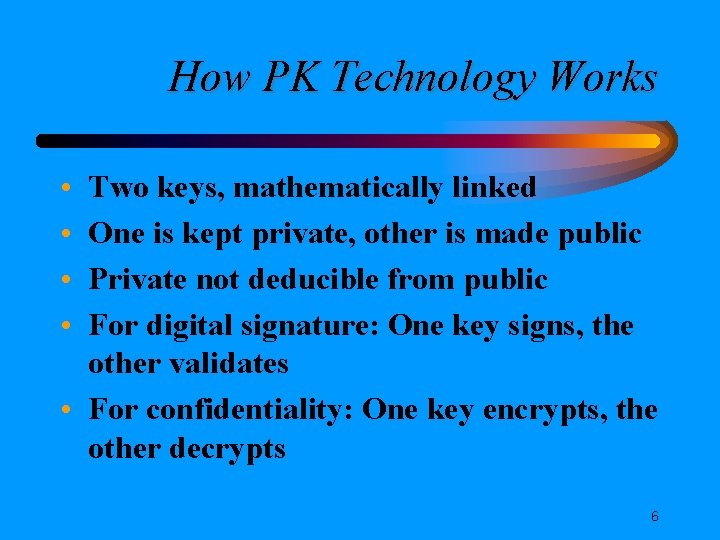

How PK Technology Works • • Two keys, mathematically linked One is kept private, other is made public Private not deducible from public For digital signature: One key signs, the other validates • For confidentiality: One key encrypts, the other decrypts 6

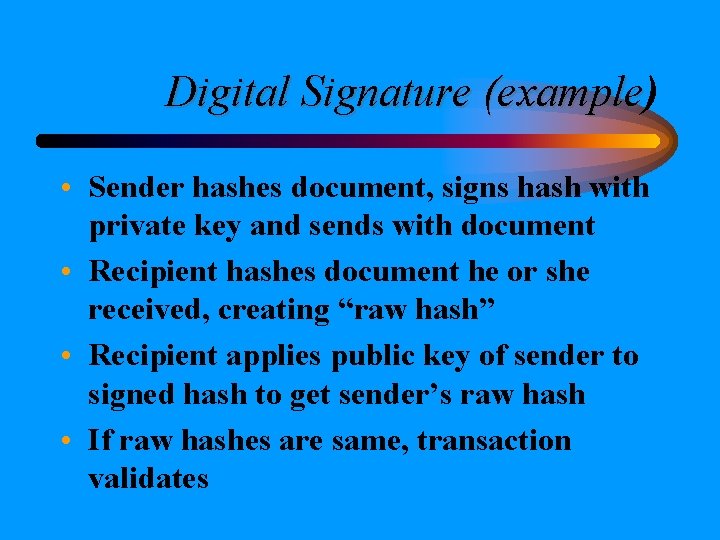

Digital Signature (example) (example • Sender hashes document, signs hash with private key and sends with document • Recipient hashes document he or she received, creating “raw hash” • Recipient applies public key of sender to signed hash to get sender’s raw hash • If raw hashes are same, transaction validates

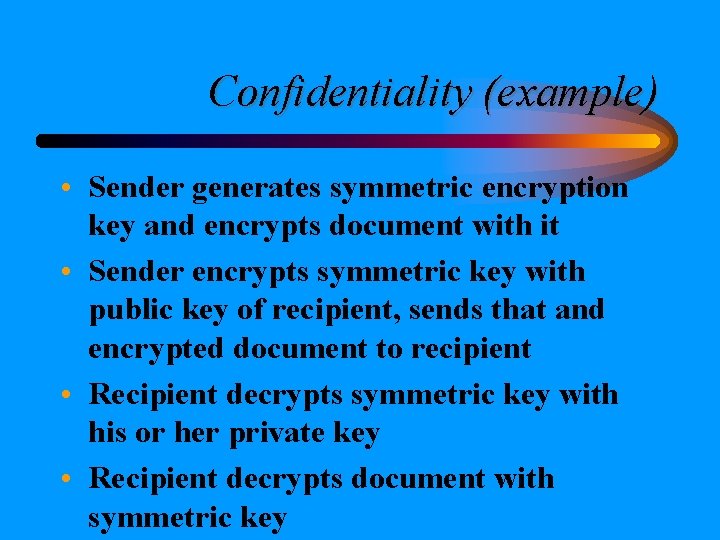

Confidentiality (example) • Sender generates symmetric encryption key and encrypts document with it • Sender encrypts symmetric key with public key of recipient, sends that and encrypted document to recipient • Recipient decrypts symmetric key with his or her private key • Recipient decrypts document with symmetric key

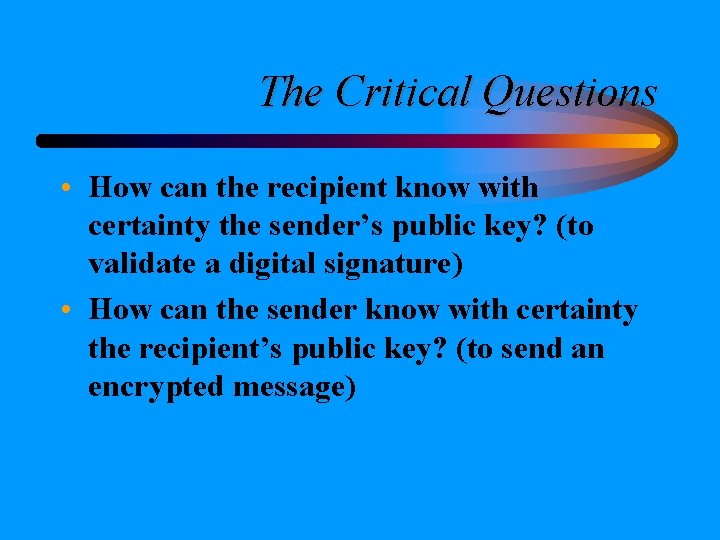

The Critical Questions • How can the recipient know with certainty the sender’s public key? (to validate a digital signature) • How can the sender know with certainty the recipient’s public key? (to send an encrypted message)

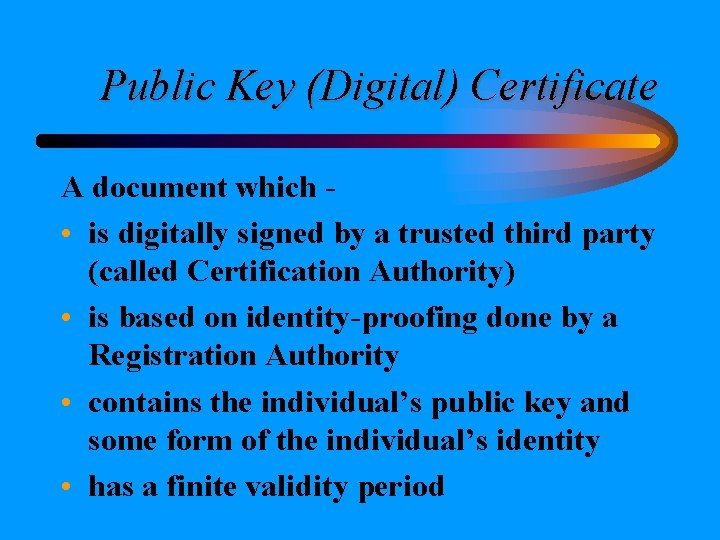

Public Key (Digital) Certificate A document which • is digitally signed by a trusted third party (called Certification Authority) • is based on identity-proofing done by a Registration Authority • contains the individual’s public key and some form of the individual’s identity • has a finite validity period

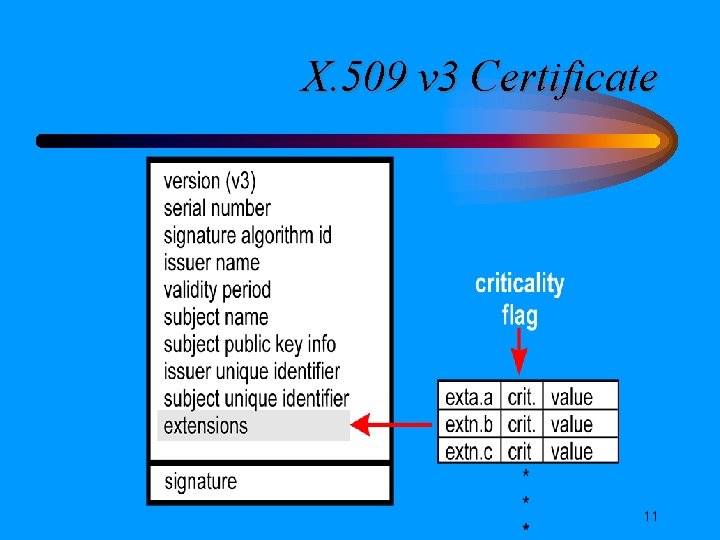

X. 509 v 3 Certificate 11

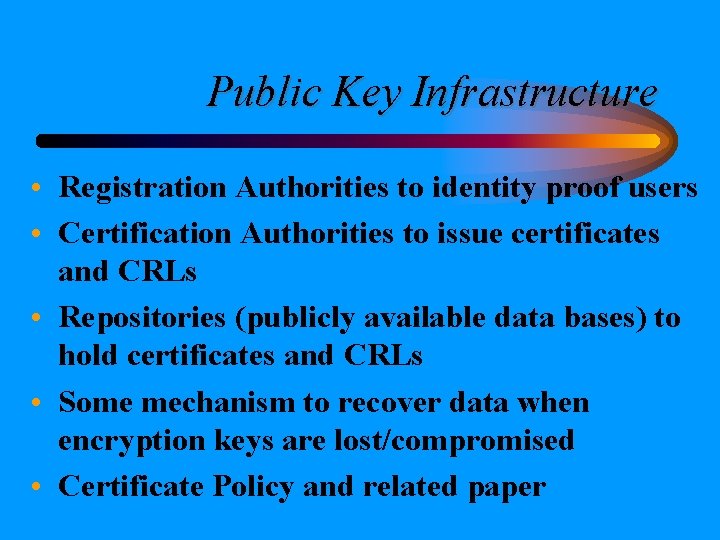

Public Key Infrastructure • Registration Authorities to identity proof users • Certification Authorities to issue certificates and CRLs • Repositories (publicly available data bases) to hold certificates and CRLs • Some mechanism to recover data when encryption keys are lost/compromised • Certificate Policy and related paper

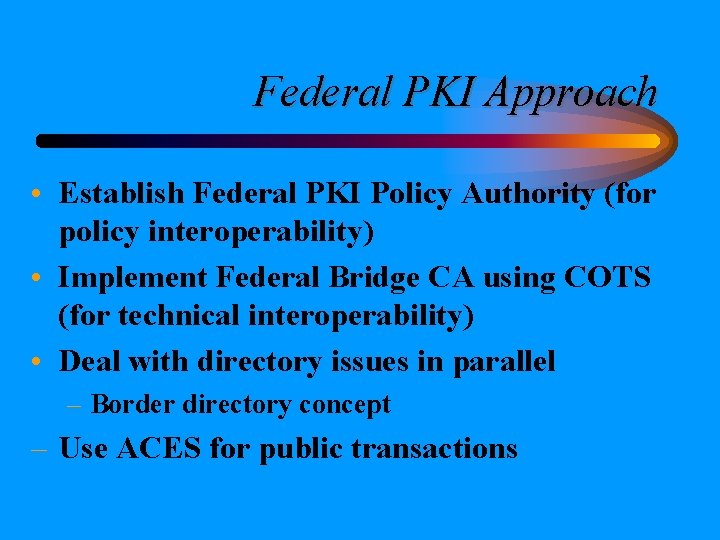

Federal PKI Approach • Establish Federal PKI Policy Authority (for policy interoperability) • Implement Federal Bridge CA using COTS (for technical interoperability) • Deal with directory issues in parallel – Border directory concept – Use ACES for public transactions

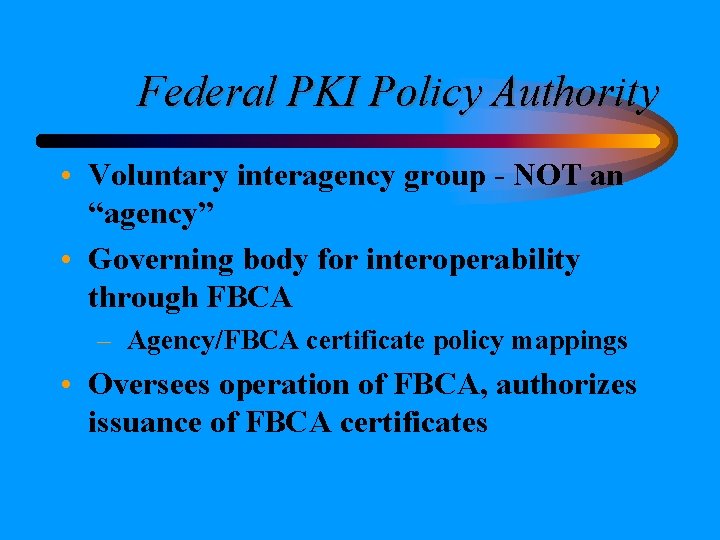

Federal PKI Policy Authority • Voluntary interagency group - NOT an “agency” • Governing body for interoperability through FBCA – Agency/FBCA certificate policy mappings • Oversees operation of FBCA, authorizes issuance of FBCA certificates

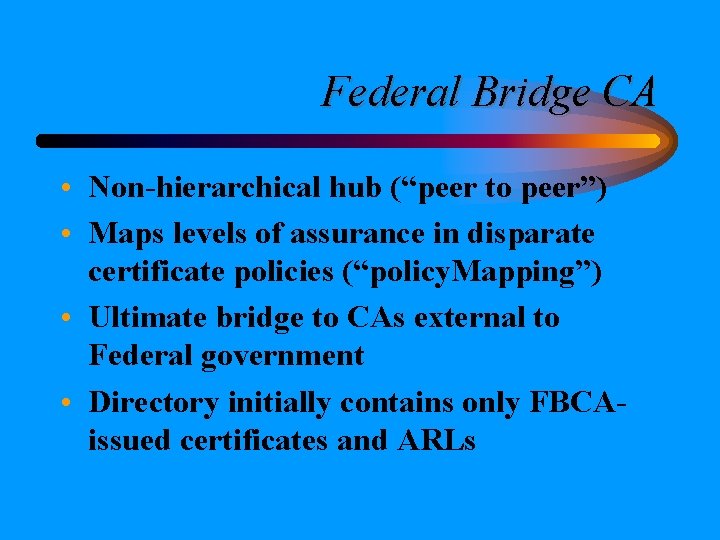

Federal Bridge CA • Non-hierarchical hub (“peer to peer”) • Maps levels of assurance in disparate certificate policies (“policy. Mapping”) • Ultimate bridge to CAs external to Federal government • Directory initially contains only FBCAissued certificates and ARLs

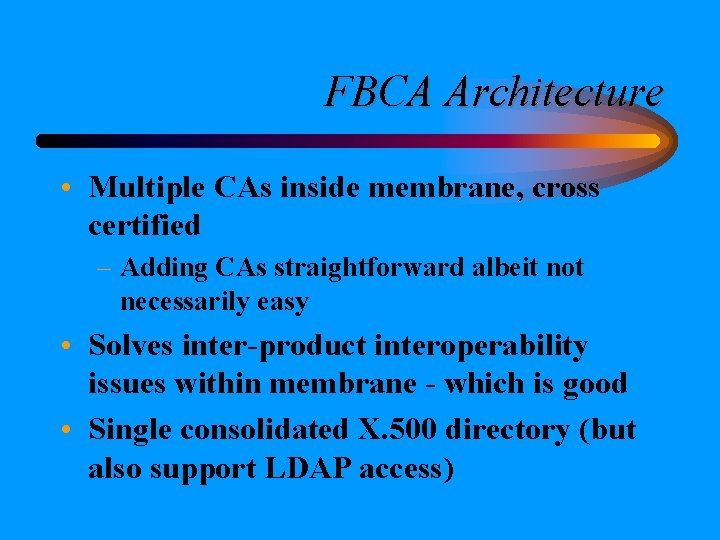

FBCA Architecture • Multiple CAs inside membrane, cross certified – Adding CAs straightforward albeit not necessarily easy • Solves inter-product interoperability issues within membrane - which is good • Single consolidated X. 500 directory (but also support LDAP access)

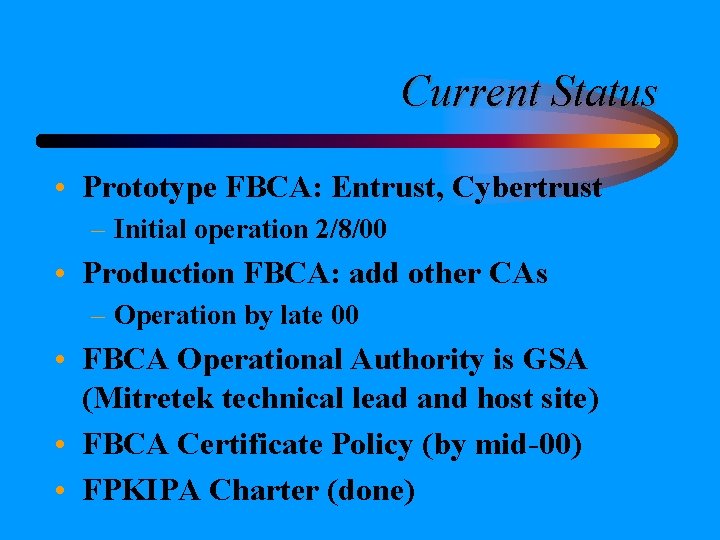

Current Status • Prototype FBCA: Entrust, Cybertrust – Initial operation 2/8/00 • Production FBCA: add other CAs – Operation by late 00 • FBCA Operational Authority is GSA (Mitretek technical lead and host site) • FBCA Certificate Policy (by mid-00) • FPKIPA Charter (done)

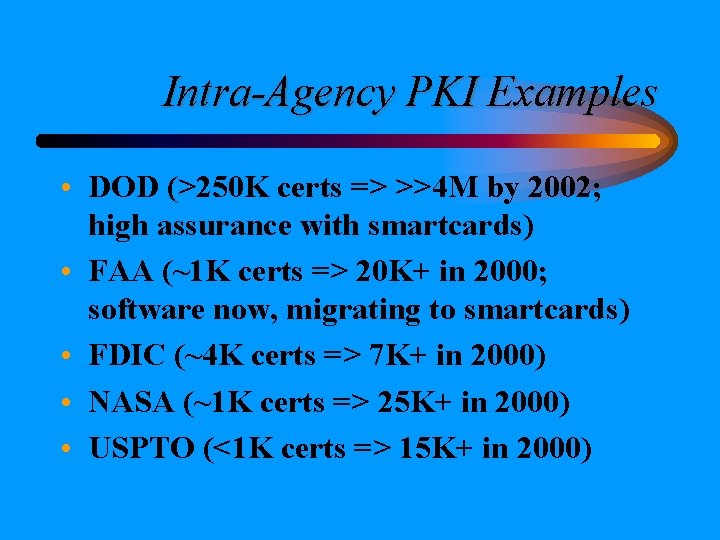

Intra-Agency PKI Examples • DOD (>250 K certs => >>4 M by 2002; high assurance with smartcards) • FAA (~1 K certs => 20 K+ in 2000; software now, migrating to smartcards) • FDIC (~4 K certs => 7 K+ in 2000) • NASA (~1 K certs => 25 K+ in 2000) • USPTO (<1 K certs => 15 K+ in 2000)

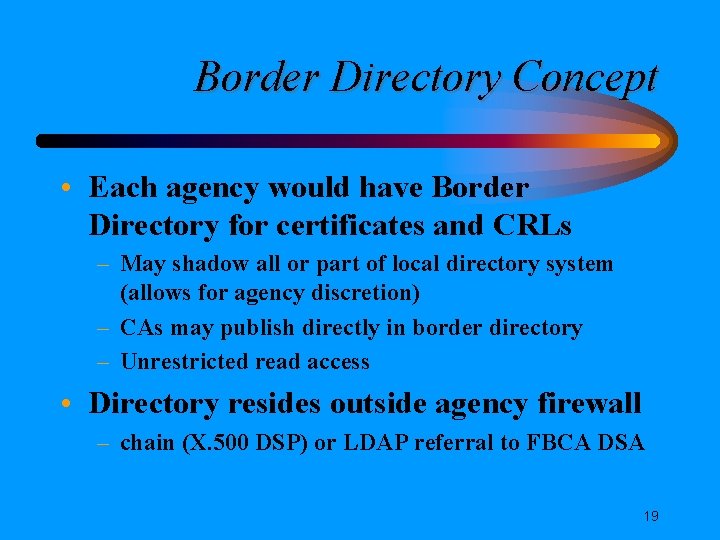

Border Directory Concept • Each agency would have Border Directory for certificates and CRLs – May shadow all or part of local directory system (allows for agency discretion) – CAs may publish directly in border directory – Unrestricted read access • Directory resides outside agency firewall – chain (X. 500 DSP) or LDAP referral to FBCA DSA 19

Border Directory Concept PCA 1 Internal Directory Infrastructure Agency 3 PCA 2 FBCA Respon LDAP Query- Internal Directory Infrastructure Border DSA 1 LDAP Server SP 0 -D X. 50 ing n chai Agency 1 se FBCA DSA Border DSA 2 X. 500 DSA Agency 2 Internal Directory Infrastructure

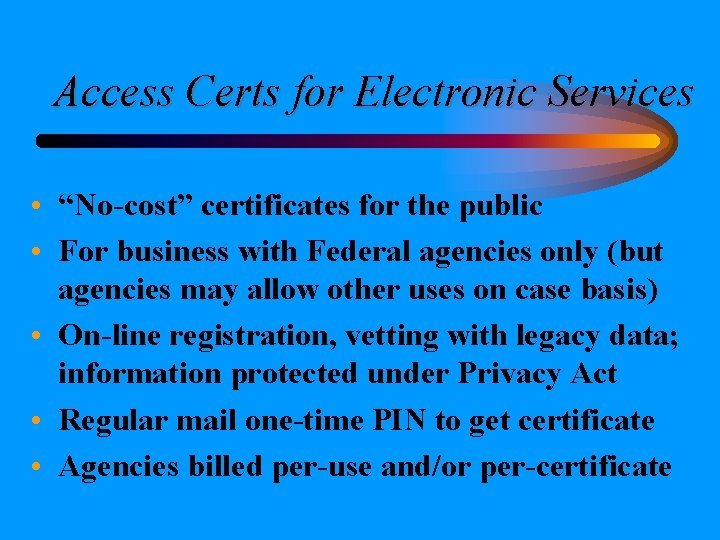

Access Certs for Electronic Services • “No-cost” certificates for the public • For business with Federal agencies only (but agencies may allow other uses on case basis) • On-line registration, vetting with legacy data; information protected under Privacy Act • Regular mail one-time PIN to get certificate • Agencies billed per-use and/or per-certificate

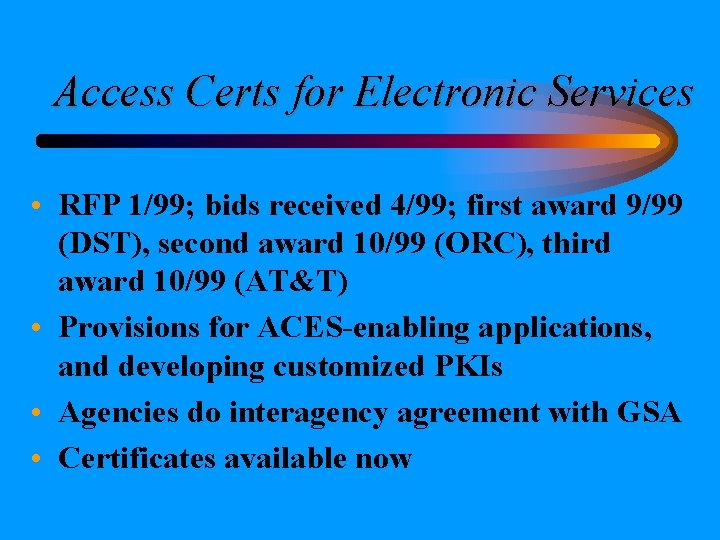

Access Certs for Electronic Services • RFP 1/99; bids received 4/99; first award 9/99 (DST), second award 10/99 (ORC), third award 10/99 (AT&T) • Provisions for ACES-enabling applications, and developing customized PKIs • Agencies do interagency agreement with GSA • Certificates available now

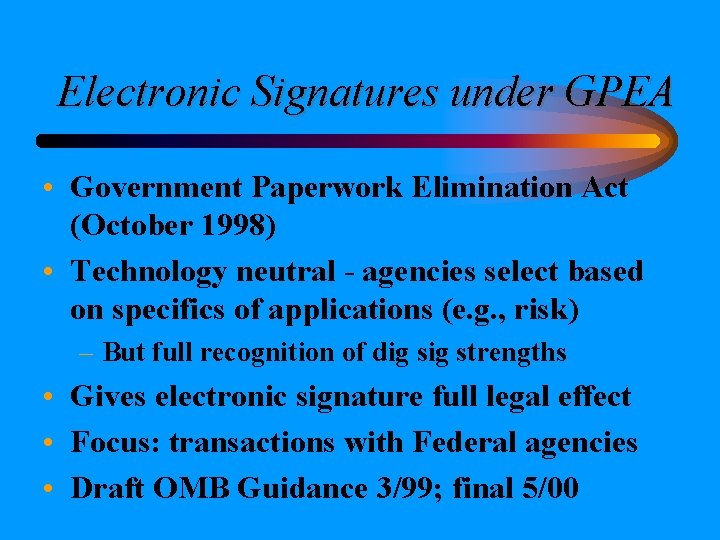

Electronic Signatures under GPEA • Government Paperwork Elimination Act (October 1998) • Technology neutral - agencies select based on specifics of applications (e. g. , risk) – But full recognition of dig strengths • Gives electronic signature full legal effect • Focus: transactions with Federal agencies • Draft OMB Guidance 3/99; final 5/00

Organization

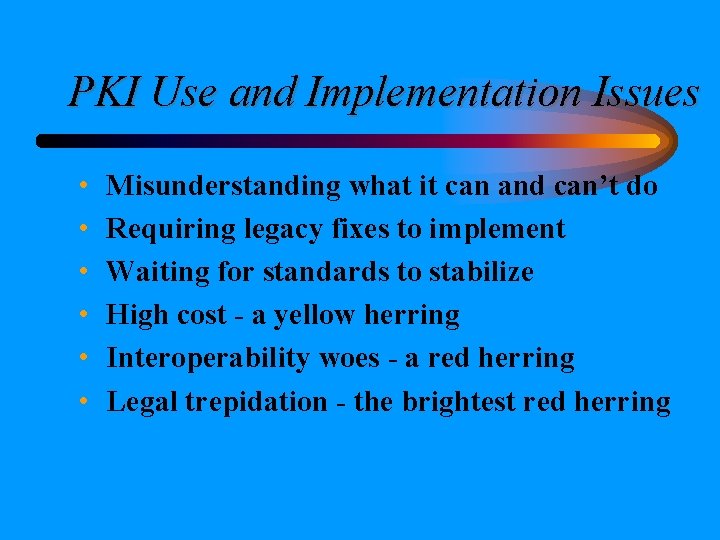

PKI Use and Implementation Issues • • • Misunderstanding what it can and can’t do Requiring legacy fixes to implement Waiting for standards to stabilize High cost - a yellow herring Interoperability woes - a red herring Legal trepidation - the brightest red herring

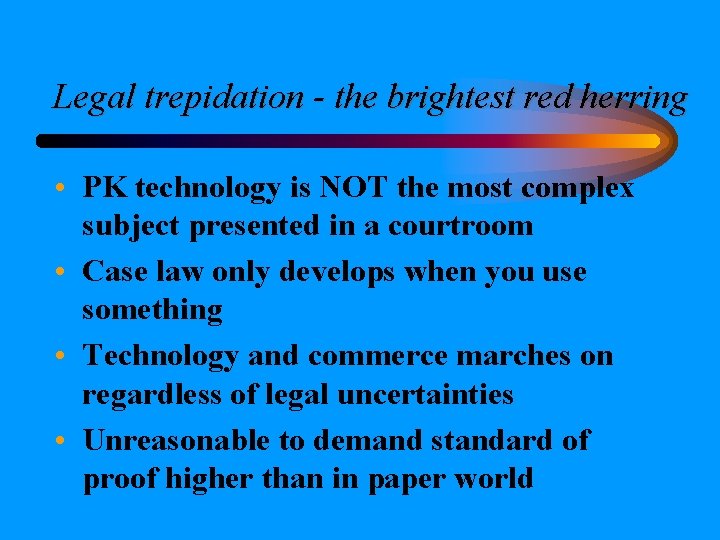

Legal trepidation - the brightest red herring • PK technology is NOT the most complex subject presented in a courtroom • Case law only develops when you use something • Technology and commerce marches on regardless of legal uncertainties • Unreasonable to demand standard of proof higher than in paper world
