The European Manufacturer Group Directly from the factories

The European Manufacturer Group

Directly from the factories, a complete range of interventional and radiological units available - Worldwide PRIMAX INTERNATIONAL was founded on 1 st October 2001 by major European X-ray equipment manufacturers as their global sales channel with the aim to create their own marketing structure and to control the entire distribution process of their products. PRIMAX INTERNATIONAL is a modern, industrial, human, and competitive alternative due to its international network, its efficient after-sales service, full integrated systems and last not least due to the excellent price-quality ratio of its product range. MANAGEMENT Managing Director Sales Manager : Ms Mattia GERINI Ruth LECLERCQ The European Manufacturer Group

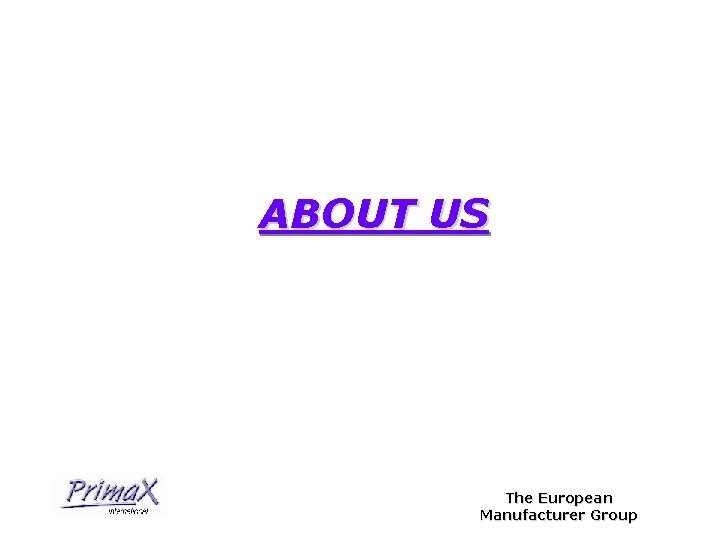

ABOUT US The European Manufacturer Group

ABOUT US The quality of the products from the Prima. X Group is the result of many years of work in partnership with the biggest medical imaging companies PRIMAX INTERNATIONAL proposes a very complete range coming from 2 specialist factories fully integrated to its distributors. Table and stand production site: More than 40 years of experience in the manufacturing of radiographic stands, remote controlled tables, multipurpose remote controlled tables, vascular C-arms and integrated radiological diagnostic systems. The factory has a quality control department that ensures products of the highest standard and is a leader in its capacity to offer solutions in the field of radiological examinations. Production: More than 900 remote controlled tables More than 2000 various stands (bucky tables, ceiling suspension, etc) The European Manufacturer Group

Digital imaging systems production site More than 20 years of experience in designing, manufacturing and integrating digital imaging systems with radiological equipment. Creativity and technological innovation, flexibility and dedication to its customers: these are the qualities that Prima. X International offers You on the digital diagnostic medical equipment market. The factory has a quality control system that encourages innovation and continuous evolution so as to deliver the highest standards both of the products and of the service to the customers. Production: More than 2000 digital imaging systems installed worldwide Big production range of mobile C-Arm Units Prima. X factories are ISO 9001, EN 46001 and ISO 13485 certified. All products are CE-marked. The European Manufacturer Group

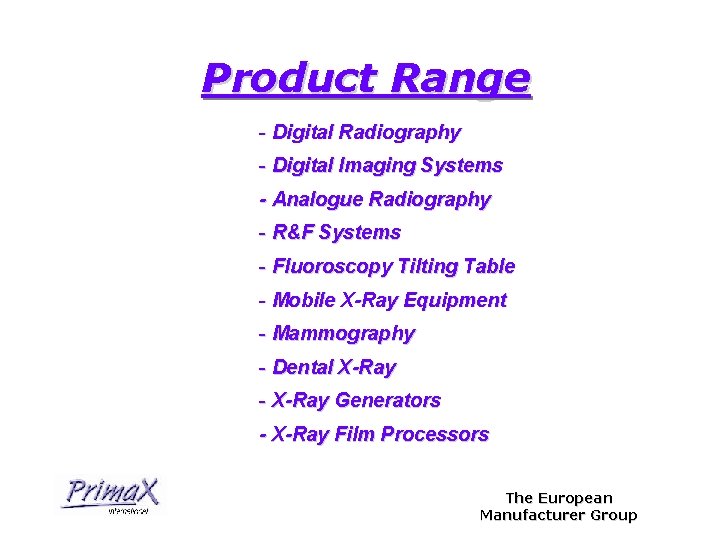

Product Range - Digital Radiography - Digital Imaging Systems - Analogue Radiography - R&F Systems - Fluoroscopy Tilting Table - Mobile X-Ray Equipment - Mammography - Dental X-Ray - X-Ray Generators - X-Ray Film Processors The European Manufacturer Group

Digital Radiographic Equipment with Flat-Panel Detector - EIDOS 3000 CHEST - PLURIMAT D - TELE NT / NO D The European Manufacturer Group

EIDOS 3000 Single detector multipurpose radiography system The EIDOS 3000 features automatic positioning of the detector and x-ray tube assembly, maintaining the beam alignment and thus leaving only finepositioning as a task to the operator. Swapping grids is eliminated through the patented autofocusing device. Thanks to its detector technology the EIDOS 3000 is a filmless solution. No more unnecessary developings or repeated exposures. EIDOS 3000 - the timesaving high-productivity solution The European Manufacturer Group

EIDOS 3000 Single detector multipurpose radiography system Other features: - Ceiling suspended x-ray unit - Elevating table with suspended & rotating carbon-fibre tabletop - Anatomical programming - Manual mode - Image processing through sophisticated software tools on the operator console - 43 x 43 active area on the detector (3000 x 3000 pixels - 14 bit) - DICOM 3 interface - Immediate image availability and many more. . . The European Manufacturer Group

EIDOS 3000 CHEST Digital chest screening system with flat panel detector The EIDOS 3000 CHEST is composed of an ARGOSTAT ceiling suspension coupled with a TELE NO/D chest stand a HIRIS RAD Flat Panel Detector Imaging System. It features automatic positioning of the detector and x-ray tube assembly, maintaining the beam alignment and thus leaving only finepositioning as a task to the operator. The patented auto-focusing device is available as an option. EIDOS 3000 CHEST - the timesaving high-productivity solution The European Manufacturer Group

PLURIMAT D General purpose single detector radiography system For exposures of standing patients, patients lying on a table or sitting on a chair. The long vertical travel of the tube arm together with its arm, tube and bucky assembly rotation allow a wide range of examinations. The low inherent filtration of the carbon fibre cover makes it also ideal for paediatric applications. Additional dose reduction through removable grid. If combined with a mobile stretcher the PLURIMAT D is a very efficient solution for emergency or general purpose rooms. A film-less solution with possibility for DICOM 3 networking. The European Manufacturer Group

TELE NT / NO D Digital flat panel wall stands (add-on) suited for chest, spine pelvis, shoulder examinations and small emergency (NO/D) The low inherent filtration of the carbon fibre cover makes it also ideal for paediatric applications. Additional dose reduction through removable grid. A film-less solution with possibility for DICOM 3 networking. TELE NT 43 D TELE NO/D +90/-20 tilting stand The European Manufacturer Group

Digital Imaging Systems The European Manufacturer Group

Digital radiography processing: HIRIS RAD 2 Direct digital radiography processing system based on a TRIXELL 4600 Flat Panel detector for Skeleton and Chest X-ray examinations, in general radiography and emergency room. High resolution and high image quality on a large 43 x 43 cm useful area. Up to 80% dose reduction with regard to conventional film-cassettes or CR High productivity - full image processing in less than 5 seconds System features include: - Patient data management - DICOM 3 connectivity: (Store, Print, Worklist, MPPS) and many more… - Windowing, spatial filtering, contrasting - Anatomic tissue harmonisation - Image stitching The European Manufacturer Group

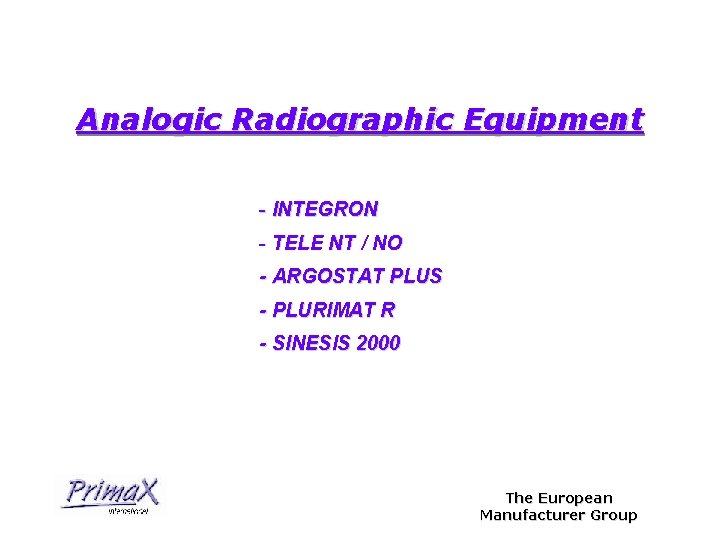

Analogic Radiographic Equipment - INTEGRON - TELE NT / NO - ARGOSTAT PLUS - PLURIMAT R - SINESIS 2000 The European Manufacturer Group

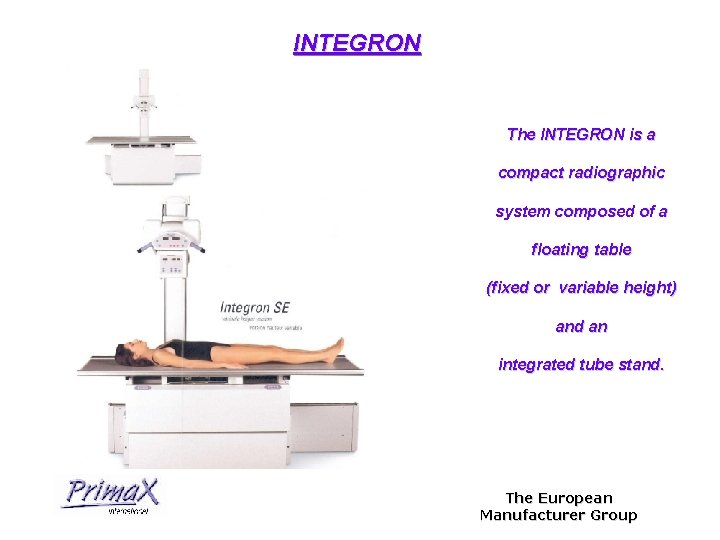

INTEGRON The INTEGRON is a compact radiographic system composed of a floating table (fixed or variable height) and an integrated tube stand. The European Manufacturer Group

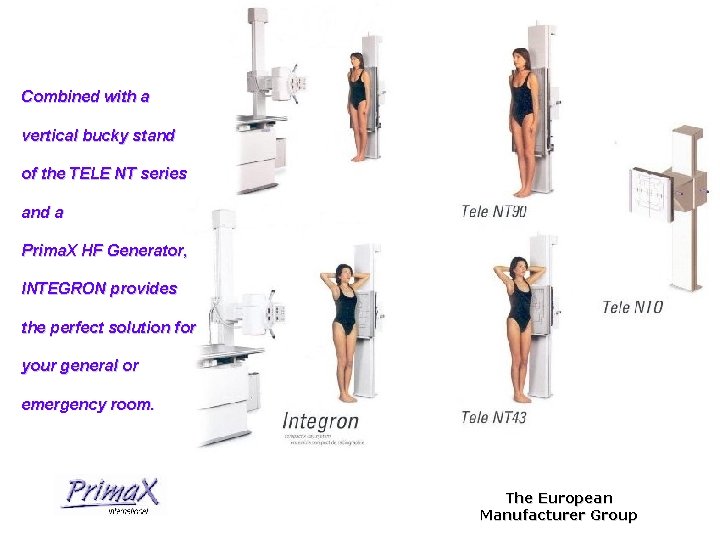

Combined with a vertical bucky stand of the TELE NT series and a Prima. X HF Generator, INTEGRON provides the perfect solution for your general or emergency room. The European Manufacturer Group

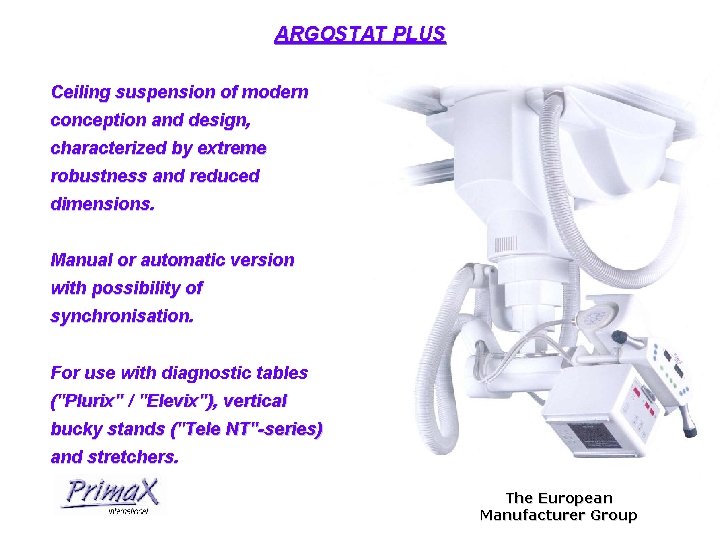

ARGOSTAT PLUS Ceiling suspension of modern conception and design, characterized by extreme robustness and reduced dimensions. Manual or automatic version with possibility of synchronisation. For use with diagnostic tables ("Plurix" / "Elevix"), vertical bucky stands ("Tele NT"-series) and stretchers. The European Manufacturer Group

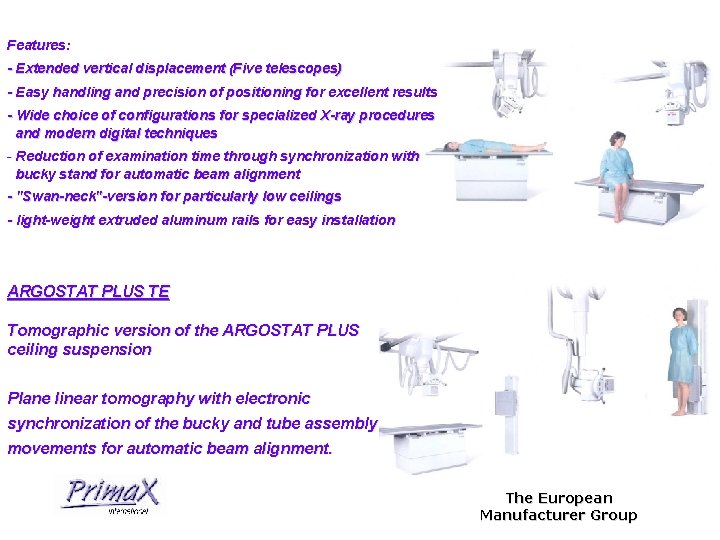

Features: - Extended vertical displacement (Five telescopes) - Easy handling and precision of positioning for excellent results - Wide choice of configurations for specialized X-ray procedures and modern digital techniques - Reduction of examination time through synchronization with bucky stand for automatic beam alignment - "Swan-neck"-version for particularly low ceilings - light-weight extruded aluminum rails for easy installation ARGOSTAT PLUS TE Tomographic version of the ARGOSTAT PLUS ceiling suspension Plane linear tomography with electronic synchronization of the bucky and tube assembly movements for automatic beam alignment. The European Manufacturer Group

PLURIMAT R General purpose stand For exposures of standing patients, patients lying on a table or sitting on a chair. The long vertical travel of the tube arm together with its arm, tube and bucky assembly rotation allow a wide range of examinations. If combined with a mobile stretcher the PLURIMAT R is a very efficient solution for emergency or general purpose rooms. The European Manufacturer Group

SINESIS 2000 Multipurpose Radiography System Innovative fully integrated radiography system with generator integrated in the universal stand. Minimum space requirements and installation cost – Ease of servicing Applications: - X-ray of the skeleton, thorax and for lateral exposures in prone & supine examination - Suitable for use in emergency room Features - 90° Tiltable Bucky - Cassette sizes up to 35 x 43 cm - 90° Tube rotation around its axis. - Laser light localiser The European Manufacturer Group

X-Ray Film Processors The European Manufacturer Group

X-Ray Film Processor “FP” Series Tabletop X-Ray Film Processor for manifold applications Different Versions available: - Standard Version for all films up to 35 x 43 Format - Version for dental application - Version for mammography application The European Manufacturer Group

R & F Systems - CLISIS EXEL - UROMAT 3000 The European Manufacturer Group

CLISIS Classic & CLISIS Access 90/20 Remote control tilting table with fix height tabletop System composition: - 90/20 remote controlled tilting table - Powerful HF Generator - Digital Imaging Systems (I. I. from 9” up to 16”) Field of Application: - Standard Procedures - Interventional Procedures (needle biopsies, aspirations, lumbar punctures) - Special Procedures (Arthography, , chest fluorography, myelography) A modular design and the ingenious accessibility provided by the suspended carbon fiber tabletop of the ACCESS - Version offer greater comfort, both to the patient and the operator. The European Manufacturer Group

• High mechanical and electrical reliability through new redesigned components • Reduction of maintenance cost through better serviceability • Flexibility – You only pay for what you need - Optional tomography function (2 -speed; +/- 40°) - Double support standard tabletop OR Suspended carbon fiber tabletop - Fixed or variable FFD - Different components like collimator, compression device, etc. • Future Upgrading with Dynamic Flat Panel Detector possible • Minimum space requirements • Full patient coverage • Automatic spot film device (for cassette sizes up to 35 x 43) • Improved performances for heavy patients • Real-time display of digital images • Also for Angiography if combined with Imaging System HIRIS T PLUS The European Manufacturer Group

CLISIS EXEL 90/90 Remote control tilting table with elevating tabletop System composition: - 90/90 remote controlled tilting table - Powerful HF Generator (up to 60 img/sec) - Digital Imaging Systems For Standard, interventional, special & vascular procedures. Ideal for Emergency Rooms and traumatized patients. Standardly equipped with: - single support carbon fibre tabletop - variable film-focus distance According to customer needs, the CLISIS Exel can be equipped with a tomography module and with a motorized compression device. The European Manufacturer Group

Features include: -Modular design and perfect accessibility from all sides - Future upgrading with Dynamic Detector is possible - Full patient coverage - Improved performances for heavy patients - Continuous variable SID from 105 to 150 cm - Minimum space requirements - Low maintenance cost through better serviceability - Large spectrum of conventional, digital and special procedures (e. g. hystero-salpinography, tomography, peripheral and abdominal angiography) - Integrated touchscreen console for all system controls CLISIS Exel can be combined with image intensifier sizes from 9 to 16 inches using very high resolution CCD cameras. All with or without digital imaging system. AVAILABLE FROM 2007 ON The European Manufacturer Group

UROMAT 3000 – Urological X-ray system Universal modular system solution from conventional applications up to high-end digital systems that can be adapted to current and future requirements. Cantilevered, continuously adjustable and tiltable patient table - isocentric Free positioning in the room – Free access to the patient Features: Generator: 65 k. W or 80 k. W HF Generator Table: • automatic return to saved positions • longitudinal and transversal movement • low filtration carbon-fibre patient tabletop • Scanning field up to a maximum of 1100 x 660 mm • Control through manual unit or multi-function footswitch Imaging systems: CD 100 (752/582 Sensor Resolution) CD 1000 (1300 x 1030) Esi-CD (1024 x 10 bit) HIRIS A PLUS (1024 x 12 bit) The European Manufacturer Group

Digital Imaging Systems The European Manufacturer Group

Imaging Systems for your basic Fluoroscopic needs CD 100 Imaging System for continuous fluoroscopy: - I. I. sizes from 7" to 12" - Image resolution 576 x 576 - Analogue video processing, A. B. C. , L. I. H. CD 1000 f Imaging System (for add-on or system integration): - I. I. sizes from 9" to 12" - Image resolution 1024 x 1024 - Continuous, Pulsed and One-Shot Fluoroscopy - Digital Video Processing CD 1000 Imaging System (for system integration): Same as "f"-Version but with: - Image memory - Modes: Continuous (2 speed), Pulsed One-Shot, Single snap-shot The European Manufacturer Group

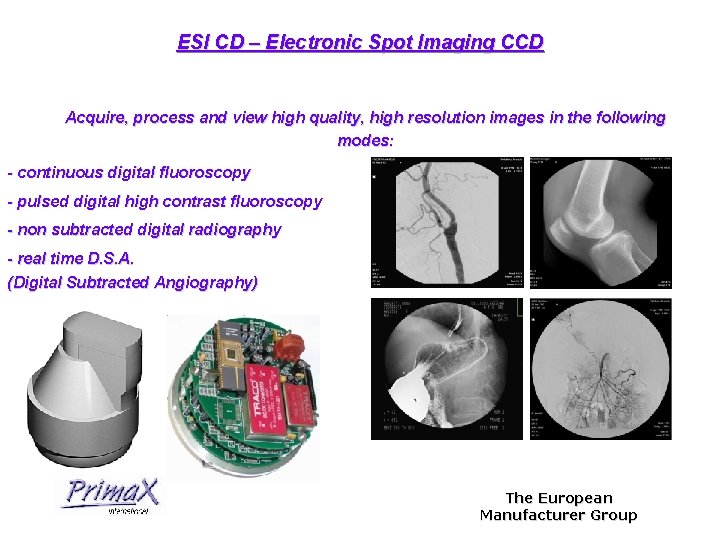

ESI CD – Electronic Spot Imaging CCD Acquire, process and view high quality, high resolution images in the following modes: - continuous digital fluoroscopy - pulsed digital high contrast fluoroscopy - non subtracted digital radiography - real time D. S. A. (Digital Subtracted Angiography) The European Manufacturer Group

HIRIS A PLUS Direct multifunctional digital radiology system based on a high resolution CCD sensor, the latest generation image intensifier, a dedicated optical device and an ultra fast image acquisition and processing computer system. Operating modes: - continuous digital fluoroscopy - pulsed digital fluoroscopy - digital radiography (with optional DSA package) Large choice of post-processing tools: - Image flip, gray scale inversion, zoom - Cine Loop - Remasking, Landmarking (in DSA-mode) - And many more… For Image Intensifiers from 9“ to 16“ The European Manufacturer Group

HIRIS T PLUS - Digital spot imaging Direct multifunctional digital radiology system based on a large area CCD sensor, the latest generation image intensifier, a dedicated optical device and an ultra fast image acquisition and processing computer system. Vascular, cardiovascular digital radiology and interventional procedures. Operating modes: - Digital radiography (with optional DSA package) - Digital Cine - Continuous & pulsed digital fluoroscopy Large choice of post-processing tools: - Image flip, gray scale inversion, zoom - Cine Loop - Remasking, Landmarking (in DSA-mode) - And many more… For Image Intensifiers from 9“ to 16“ The European Manufacturer Group

Digital R&F Dynamic Flat Panel system HIRIS RF 43 A new step in digital radiology… Radiography Continuous Fluoroscopy Pulsed Fluoroscopy 2 in 1 DR system Digital Radiography Digital Fluoroscopy with dynamic flat panel ADVANTAGES: - Ergonomic layout for best patient and operator comfort. - Image Quality: High DQE – Low pixel size 148 µm - Speed: from single (Chest/Skeleton) up to 30 fps (Swallow studies) - Connectivity : integrated Hospital IT management - Dose saving in all R&F operations - Real time images: high patient work flow High resolution and high image quality on a large 43 x 43 cm useful area. The European Manufacturer Group

Fluoroscopy Tilting Table The European Manufacturer Group

RIVIERA Family Motorized Fluoroscopy Tilting Table -15°/+90° - Smooth and silent movements - Anti-collision protections - Motorized and synchronized movements (Table, SFD, Tube) - Variable Focus Film Distance - Easy to use SFD and Table control consoles - Easy cassette load – self centring - Analogue or Digital imaging - Fast Bolus Chasing for examinations with contrast means For Image Intensifiers up to 32 cm (12") The European Manufacturer Group

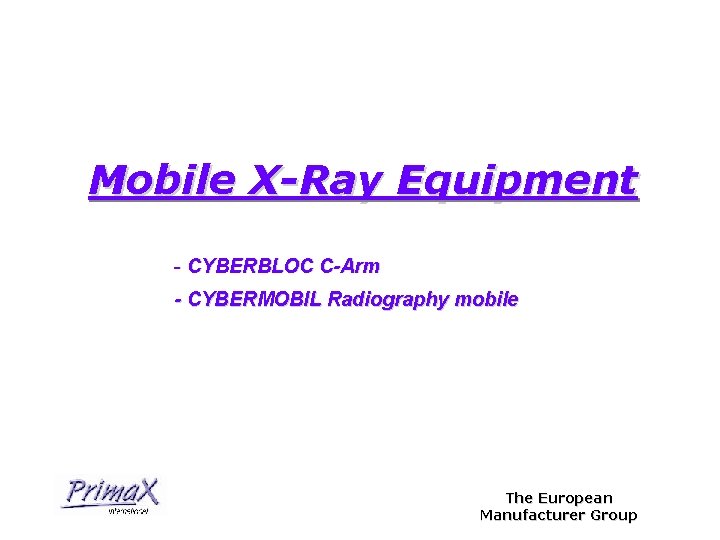

Mobile X-Ray Equipment - CYBERBLOC C-Arm - CYBERMOBIL Radiography mobile The European Manufacturer Group

CYBERBLOC C-Arm for surgical and interventional procedures Fix Anode Versions with 7 inch dual-field and 9 inch triple-field Image Intensifier Rotating Anode Versions with 9 and 12 inch triple-field Image Intensifier Different memory sizes from 1 to 110 (RAM) over 330 & 2700 images on Flash memory up to 40. 000 images on an image processing unit (CPU + Hard Disk) 1 or 2 CRT or LCD displays The European Manufacturer Group

Features: (may vary from model to model) - High frequency monobloc - Integrated dose area meter - Laser centring device - CCD Camera - DICOM 3 Interface - Real-time image processing - Vascular Package (DSA) The European Manufacturer Group

CYBERBLOC RK C-Arm with improved image acquisition features Excellent image quality 1 k x 1 k Rotating Anode Versions with 9 and 12 inch triple-field Image Intensifier Features include: - Acquisition rates up to 25 img / s - Acquisition resolution 1024 x 1024 - Dose-free digital positioning - 2 LCD Monitors Image processing system - HIRIS ACK 128 + 40. 000 img 1 kx 1 k HD capacity: - Enhanced image processing features - DICOM Workstation The European Manufacturer Group

CYBERMOBIL PLUS LATEST TECHNOLOGY PAIRED WITH ERGONOMICS AND DESIGN - 4 k. W – 15 k. W – 30 k. W Versions - stationary or rotating anode - 24 programmed & programmable techniques - micro-processor controlled LCD console - excellent manoeuvrability CONTACT US FOR DETAILS AND AVAILABILITY The European Manufacturer Group

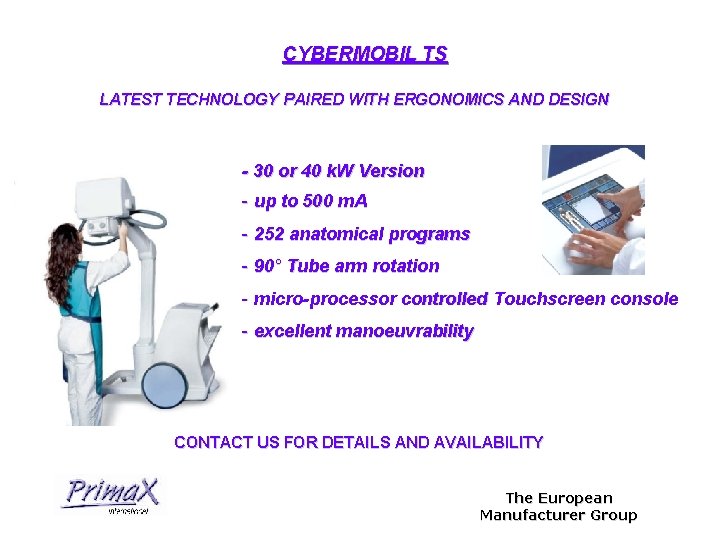

CYBERMOBIL TS LATEST TECHNOLOGY PAIRED WITH ERGONOMICS AND DESIGN - 30 or 40 k. W Version - up to 500 m. A - 252 anatomical programs - 90° Tube arm rotation - micro-processor controlled Touchscreen console - excellent manoeuvrability CONTACT US FOR DETAILS AND AVAILABILITY The European Manufacturer Group

Mammography The European Manufacturer Group

LILYUM – Mammography unit Modern design matched with excellent imaging quality and maximum patient comfort All models are equipped with a fully balanced C-Arm and come with an HF Generator and a microprocessor controlled Operator Console in different versions. Features available according to your needs: • software with numerous exposure techniques • Motorized or Manual compression device • Potter buckies from 18 x 24 cm to 24 x 30 cm • magnification device • Film marking device • Automatic filter changing device • Display for C-Arm rotation angle, applied compression force and compressed breast thickness • Comfort through compression paddles with smooth lines • Upgradeable with flat panel detector (2007) The European Manufacturer Group

Dental X-Ray The European Manufacturer Group

Pant. Os 16 XP State of the Art Extraoral Analogue Radiography unit For analogue panoramic examinations with cephalostat option Features all standard panoramic examinations as well as cephalometric AP/PA, LL with soft tissue filter and Wrist examinations for adults and children Easy to use intuitive pushbutton console Automatic setting of x-ray factors on exam selection (adjustable) The European Manufacturer Group

Pant. Os 16 DG XP High Performance Extraoral Digital Radiography unit For direct digital panoramic examinations with cephalostat option Features: - Large digital cephalometric receptor (2000 x 2000 pixels) - Digital panoramic receptor (3200 x 1600 pixels) - Computer interfacing via USB port - Dedicated Acquisition software The European Manufacturer Group

X-Ray Generators - GX Series - R 306. 3 x Endeavour - Program US HF The European Manufacturer Group

GX - SERIES HF X-ray Generator designed for application in Basic Radiographic Systems. Power Versions: 30 k. W and 40 k. W Three touch screen sizes from 5. 7" basic to color 10. 4" TFT FEATURES: - Extensible two-stages Hand switch - Automatic tube heat calculation - On-Line Operating and Technical Manual - AEC - Anatomical Programming - Tomography - Single-Phase Power Supply version with Capacitors Assembly for Power Buffering The European Manufacturer Group

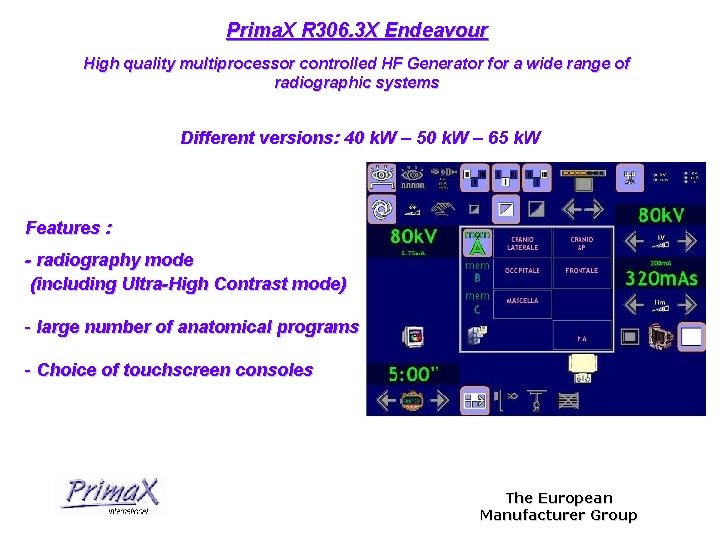

Prima. X R 306. 3 X Endeavour High quality multiprocessor controlled HF Generator for a wide range of radiographic systems Different versions: 40 k. W – 50 k. W – 65 k. W Features : - radiography mode (including Ultra-High Contrast mode) - large number of anatomical programs - Choice of touchscreen consoles The European Manufacturer Group

Prima. X R 306. 3 X Endeavour R&F High quality multiprocessor controlled HF Generator for R&F application Entry level - 65 k. W Version Features : - radiography mode (including Ultra-High Contrast mode) - continuous fluoroscopy mode - large number of anatomical programs - Choice of touchscreen consoles The European Manufacturer Group

Prima. X Program HF US R&F High quality microprocessor controlled HF Generator specifically developed for digital X-ray imaging Different versions: 50 k. W – 65 k. W – 80 k. W Features: - manual and automatic fluoroscopy - pulsed fluoroscopy (including Ultra-High Contrast mode) - High rate radiography mode - large number of anatomical programs - Touchpad or Touchscreen console The European Manufacturer Group

The European Manufacturer Group
