The endocrine system Department of Anatomy Histology and

The endocrine system Department of Anatomy, Histology and Developmental Biology Faculty of Medicine, Semmelweis University 2017. Dr. Csáki Ágnes

The glands of the endocrine system secrete hormones into the bloodstream to maintain homeostasis and regulate metabolism. Hormone: -minute amount of chemical substances (amines, steroids, peptides, proteins ) coordinate metabolic processes in cells and organs by activating enzymes (although each hormone is distributed by the blood , only particular cells with a specific receptor for it react to each individual hormone, membrane or cytoplasmic receptors) -hormones of all chemical types are also produced by neurons of CNS and PNS: neurohormones -are vital substances -hyper or hyposecretion of a hormone leads to typical disease patterns

MECHANISM OF SIGNAL TRANSMISSION cell endocrine neuron capillary neurohormon parakrin cell autokrin

Types of glands exocrine endocrine

Tissues and individual cells secreting hormons Classic endocrine organs Central and autonomic nervous System Parts of the diencephalon (e. g. , hypothalamus) System of gastrointestinal cells Atria of the heart Atrial natriuretic peptide Kidneys Liver Immune organs (thymus) C cells Tissue hormones Ovary placenta

Regulation of Hormone Secretion The hypothalamus and the pituitary gland are the command control centers, directing hormones to other glands and throughout the body The stability of the blood level of a hormone is the result of a complicated regulating mechanism: „feedback „ mechanism A process in which the level of one substance influences the level of another substance. A mechanism or a signal that tends to initiate (or accelerate) or to inhibit (or slow down) a process. Hormon level falls - more of it is released if it rises - less hormone is produced

FEED-BACK MECHANISM ultrashort feedback (neural) hypophyseotroph neurons Other brain areas (limbic system, sensory organs. . ) Hyper or hyposecretion of a hormone leads to typical disease patterns hypothalamus ultrashort feedback (humoral) hypophysis anterior lobe troph hormones short feedback long feedback Béla Halász, in: Handbook of Clinical Endocrinology and Metabolic Diseases glands cells

The hypothalamus and the pituitary gland are part of the diencephalon region of the brain. The hypothalamus connects the nervous system to the endocrine system. It receives and processes signals from other brain regions and pathways and translates them into hormones. These hormones flow to the pituitary gland, which is connected to the hypothalamus by the infundibulum. Some hypothalamic hormones are stored in the pituitary stores for later release; others spur it to secrete its own hormones. Master of endocrine glands: Hypophysis (conductor) but Hypothalamus („real boss”)

MEDIAN SAGITTAL SECTION OF THE BRAIN HYPOTHALAMUS Position of hypothalamus CEREBRAL HEMISPHERE THALAMUS EM ST PITUITARY STALK M U N AI L EL BR EB ER C III. v.

HYPOTHALAMUS INFERIOR VIEW Visual system: optic chiasm hypophyseal stalk optic tract Hypophyseal tumors!! These benign tumors do not spread outside the skull. They usually remain confined to the sella turcica (the tiny space in the skull that the pituitary gland sits in). There is very little room for tumors to grow in this part of the skull. Therefore, if the tumor becomes larger than about a centimeter (about half an inch) across, it may grow upward, where it can compress and damage nearby parts of the brain and the nerves that arise from it. This can lead to symptoms such as vision changes or headaches.

Median sagittal MRI section with the hypophysis hypothalamus Air-filled sphenoidalis sinus (sphenoid bone) nasal cavity tongue cerebellum brain stem

SELLA TURCICA pituitary gland Operation of the hypophysis through the nasal cavity and sphenoidal sinus X-ray film

FUNCTIONS OF THE HYPOTHALAMUS Regulates endocrine functions of the hypophysis Endocrine organ: oxytocyn, vasopressin secretion Other functions: Integrator and modulator of autonomic activity (by zones and regions) - sympathetic and parasympathetic centers (stress) - control the body temperature - regulation of food and water intake Circadian rythm through biological clock (jet leg) Sexual behavior and reproduction

Hypophysis, pituitary gland Known as the "Master Gland", this part of the brain consists of two parts called anterior lobe and posterior lobe. hypothalamus pituitary stalk Optic chiasm 1. Neurohypophysis (posterior part) Nervous tissue 2. Adenohypophysis (Anterior and intermediate part) Only storage of hormones produced by hypothalamus Glandular tissue Producing of hormones sella turcica / fossa hypophysealis

Two groups of the cells in the hypothalamus: magnocellular and parvocellular nuclei, act on different parts of the hypophysis

„magnocellular” nuclei (groups of big neurons): secretion of oxytocyn and vasopressin /antidiuretic hormon (ADH) – axonal transport to the hypophysis and stored in the posterior lobe and later released to the capillaries Hypothalamoneurohypophyseal system

„parvocellular”nuclei (groups of small neurons ) Releasing or inhibiting hormones Parvocellular PORTAL CIRCULATION OF RELEASING HORMONES (factors) LHRH (luteinizing hormone-releasing hormone) TRH (thyreotrop hormone-releasing hormone) CRH (corticotrop hormone-releasing hormone) GRH (growth hormone-releasing hormone) INHIBITING HORMONES (factors) THE ANTERIOR PITUITARY Somatostatin (growth hormone-inhibiting hormone Dopamine (prolactin-inhibiting hormone) pituitary stalk portal vessels Hormones of the adenohypophysis : LH: luteinizing hormone FSH: follicle stimulating hormon ACTH: adrenocorticotropin h TSH: thyroid stimulating h GH: somatotrpic h MSH: melanocyte stimulating h PRL: prolactin (mammotropic) anterior pituitary (adenohypophysis- gland) Béla Halász, in: Handbook of Clinical Endocrinology and Metabolic Diseases

Hystology of the hypophysis Posterior lobe : NEUROHYPOPHYSIS Axons, glial cells and capillaries Anterior and intermediate lobe: Real gland ADENOHYPOPHYSIS Chromophil cells: well stained Basophil and acidophil cells produce hormones Chromophob cells poorly stained unknown function Capillaries, sinusoids

Hormones of the anterior lobe GH (growth hormone) prolactin (luteotrop hormone) LH (luteinizing hormone) FSH (follicle stimulating hormone) TSH (thyroid stimulating hormone) ACTH (adrenocorticotrop hormone) MSH melanocyte stimulating hormone acidophil cells basophil cells intermediate part

Anterior lobe Growth hormon (GH) Acidophil Cell growth hormon induces growth throught insuline like factor produced by hepatocytes. IGF-1 stimulates the growth of long bones by stimulating the hypertrophy of epiphyseal plates

• Inadequate production of somatotropin (GH) maybe Hypo- or Hyperproduction Hypo: Pituitary dwarfism normal size dwarf (neat, proportional)

Overproduction of somatostatin (GH) GIGANTISM ACROMEGALY in adults, after full growth has ceased (Ill-proportioned, normal giant from childhood normal Enlargement of the bones in the jaws and in the front of the skull are typically the most apparent bony changes. Acromegaly may also cause thickening of the soft tissues of the body, including the heart, lips, and tongue.

Anterior lobe: prolactin Acidophil cells

Anterior lobe FSH(folliculus stimulating hormon) LH (luteinizing hormon) Basophil cells Stimulates growth / development of Graafin follicles (= a mature follicle in the ovary prior to ovulation) containing a large fluid-filled cavity that distends the Brings about ovulation and maintains the corpus luteum.

Anterior lobe TSH (thyroid stimulating hormon) Basophil cells Stimulates the thyroid to release thyroxin.

Anterior lobe : ACTH Basophil cell Stimulates the adrenal cortex to produce: Corticosteriods: mineral corticoids glucocorticoids cortisol (natural anti-inflammatory) androgens, e. g. aldosterone

Central endocrine organ: pituitary gland, hypothalamus Peripheral endocrine organs 1. Pituitary-dependent endocrine organs Thyroid gland Adrenal gland Ovary or testis 2. Pituitary-independent endocrine organs and cells Pineal body Parathyroid gland Islets of Langerhans Placenta Enteroendocrine cells – cells in the gastrointestinal tract

Pituitary-dependent endocrine organs Thyroid gland At the trachea (in its capsule there are four parathyroid glands !) Hypothalamic TRH Hypophyseal TSH Trijodthyronin(T 3), thyroxin(T 4) (calcitonin - independent)

Histology of the thyroid gland colloid in follicles T 4, T 3 hematoxylin-eosin staining immunostaining for calcitonin in C-cells Calcitonin lowers the calcium level of the blood and promotes bone formation

Mechanism of Thyroid hormone production SYNTHESIS absorption by endocytosis colloid follicular epithelium lysosome colloid (thyroglobulin) RER Functional phases of the follicular cells: -secretion is being formed -during storage -during the phase of secretion iodine amino acids + iodine Thyroxin (T 4) Triiodothyronin (T 3) capillary

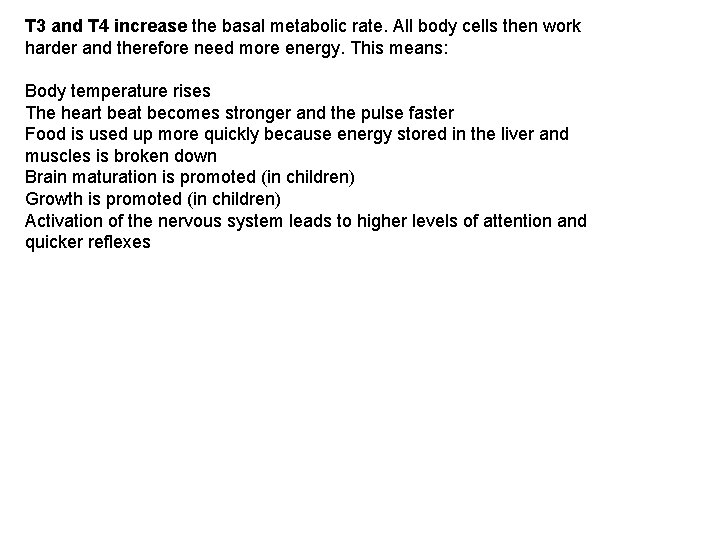

T 3 and T 4 increase the basal metabolic rate. All body cells then work harder and therefore need more energy. This means: Body temperature rises The heart beat becomes stronger and the pulse faster Food is used up more quickly because energy stored in the liver and muscles is broken down Brain maturation is promoted (in children) Growth is promoted (in children) Activation of the nervous system leads to higher levels of attention and quicker reflexes

With an overactive thyroid, also called hyperthyroidism, it produces too many hormones. This speeds up energy metabolism, and the following symptoms can occur: Hot flashes, sweating Trembling Weight loss Diarrhea Hair loss Nervousness, hyperactivity Emotional instability and irritability or fatigue Insomnia and restlessness Potency problems

Thyroid underactivity hypothyroidism in adults often develops gradually, which is why people might notice symptoms for a while. Possible symptoms can include: General loss of energy and power Slowed metabolism Being overweight Tiredness Difficulties concentrating or mental slowness Constipation Sensitivity to cold Slow pulse Waxy skin thickening and swelling (myxedema) Dry skin Deep, hoarse voice Brittle, dry hair Loss of sexual desire or potency problems Sometimes even depression

Hypo- and hyperfunction of the gland: BASEDOW-DISEASE (hyperthyreosis) CRETENISM (hypothyreosis from childhood) Mentally retarded It is particularly important for children and babies to have enough thyroid hormones (jodine!!!), because a lack of these hormones at an early stage of life can have severe effects on physical and emotional development bigger and become visible as a “goiter”, also called “struma. ”

Adrenal gland cortex Adrenal gland medulla kidney Section of the gland vein

Adrenal gland 3 layers of the cortex zona glomerulosa zona fasciculata cortex zona reticularis medulla

Zona reticularis Zona glomerulosa Zona fasciculata Glükocorticoids-cortisol sexual steroids mineralocorticoids MEDULLA: neuronal cells produce EPINEPHRIN, NOREPINEPHRIN sympathetic system!! involved in defense reaction to stress (hypothalamic-pituitary-adrenal (HPA) axis)

Cushing's syndrome is a collection of signs and symptoms due to prolonged exposure to cortisol. Signs and symptoms may include: high blood pressure, abdominal obesity but with thin arms and legs, reddish stretch marks, a round red face, a fat hump between the shoulders, weak muscles, weak bones, acne, and fragile skin that heals poorly. Women may have more hair and irregular menstruation. Occasionally there may be changes in mood, headaches, and a chronic feeling of tiredness. Cushing syndroma Overproduction of zona fasciculata

Pituitary-independent endocrine organs PINEAL BODY LOCALIZATION AND HISTOLOGY brain sand calcified structures Pinealocytes Glial cells capillaries Melatonin: produced from serotonin, restricts the release of gonadotropins, restrains development of gonads, subfunctional pineal body –pubertas precox: early sexual maturation Regulates the day and night rythm,

Parathyroid glands Chief cells Oxyphil cell: unknown function Fat cell (Thyroid gland) Chief cells produce parathormone: controls the concentration of calcium and phosphate ions of blood: elevates the blood Ca level: antagonist of the Calcitonin!!

In the pancreas – Langerhans islets spleen kidney duodenum Inferior vena cava aorta

Exocrine and endocrine

LANGERHANS-islets in the pancreas A-cells: GLUCAGON B-cells: INSULIN regulate glucose levels in the blood D-cells: SOMATOSTATIN P-cells: PANCREAS-POLYPEPTID Exocrin pancreas Tripsine Kimotriipsine Carboxypeptidase Pancreas ami amilase Pancreas lipase DNA-se, RNA-se

Thank for your attention! Szentágothai János, Réthelyi Miklós: Funkcionális anatómia Kiss Ferenc, Szentágothai János: Az ember anatómiájának atlasza Johannes W. Rohen, Chihiro Yokochi, Elke Lütjen-Drecoll: Color atlas of anatomy Röhlich Pál: Szövettan Leövey János: Handbook of clinical endocrinology and metabolic diseases
