The Early Development of Zebrafish Gilbert Chapter 11

The Early Development of Zebrafish Gilbert - Chapter 11

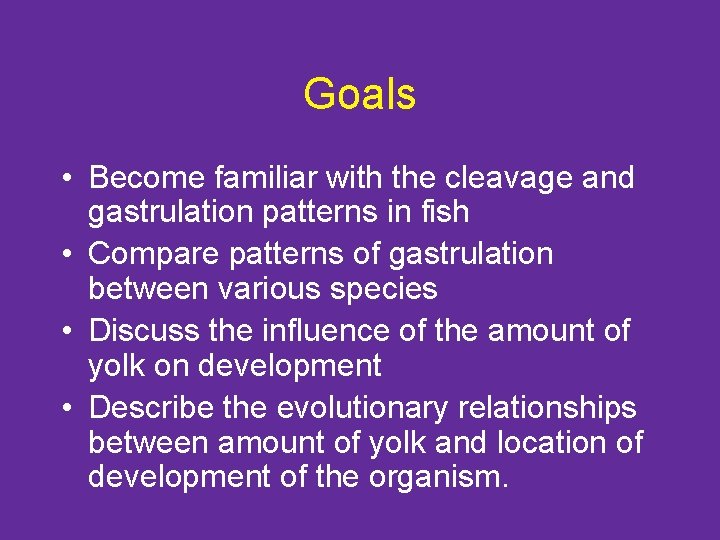

Goals • Become familiar with the cleavage and gastrulation patterns in fish • Compare patterns of gastrulation between various species • Discuss the influence of the amount of yolk on development • Describe the evolutionary relationships between amount of yolk and location of development of the organism.

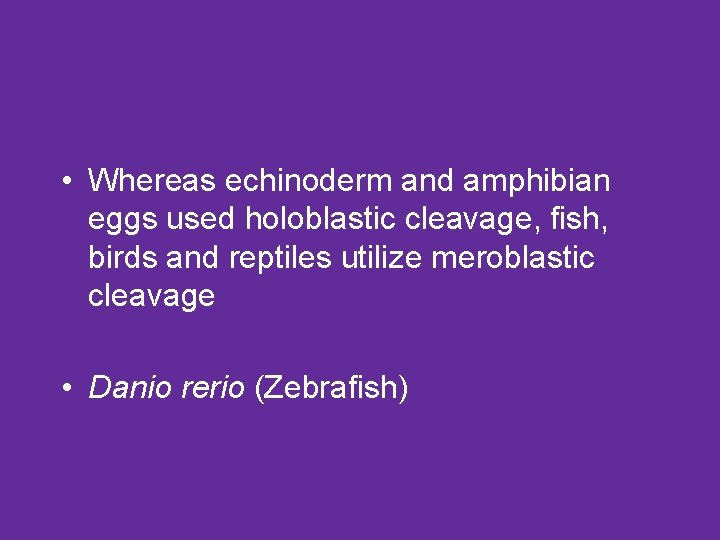

• Whereas echinoderm and amphibian eggs used holoblastic cleavage, fish, birds and reptiles utilize meroblastic cleavage • Danio rerio (Zebrafish)

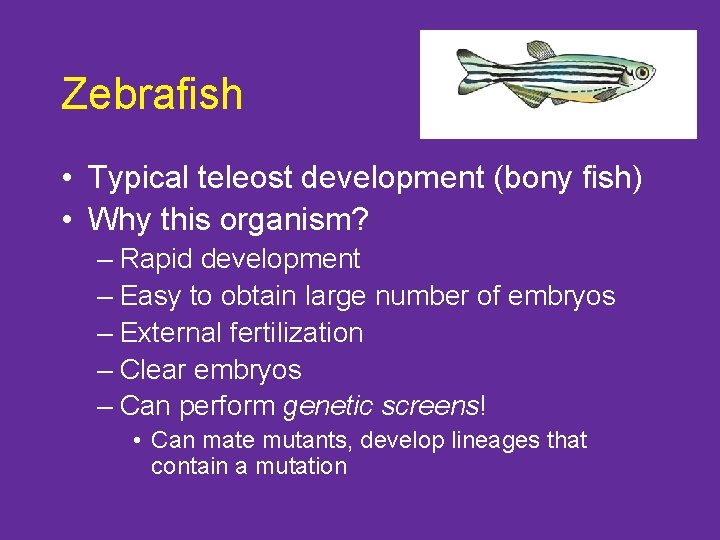

Zebrafish • Typical teleost development (bony fish) • Why this organism? – Rapid development – Easy to obtain large number of embryos – External fertilization – Clear embryos – Can perform genetic screens! • Can mate mutants, develop lineages that contain a mutation

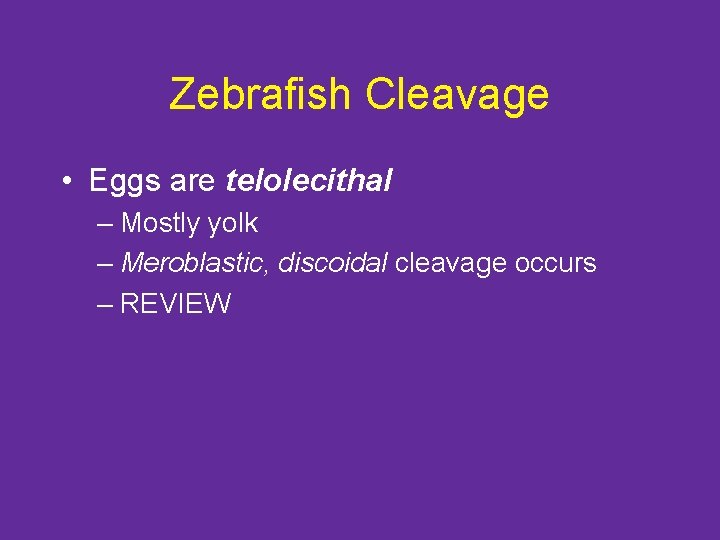

Zebrafish Cleavage • Eggs are telolecithal – Mostly yolk – Meroblastic, discoidal cleavage occurs – REVIEW

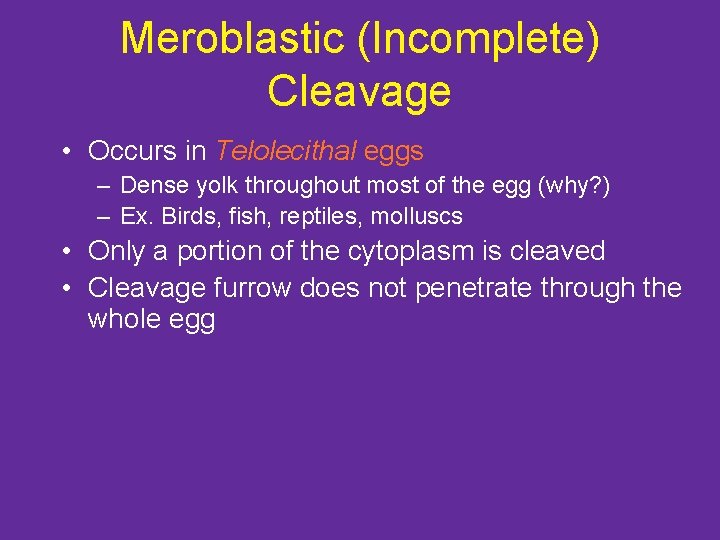

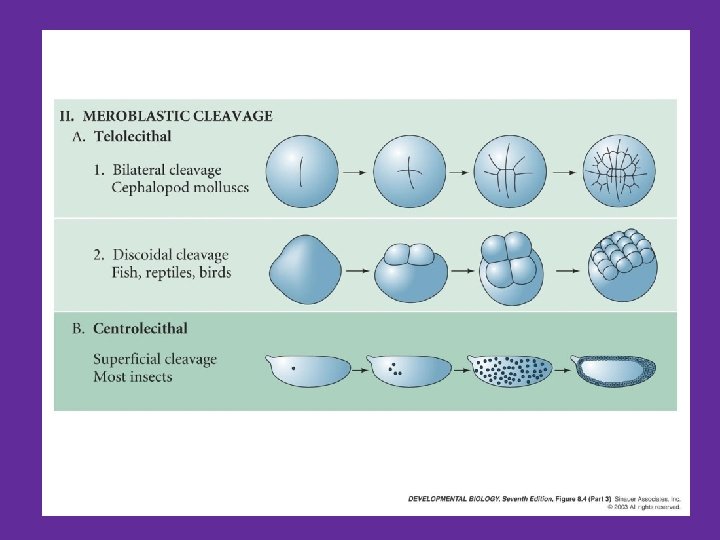

Meroblastic (Incomplete) Cleavage • Occurs in Telolecithal eggs – Dense yolk throughout most of the egg (why? ) – Ex. Birds, fish, reptiles, molluscs • Only a portion of the cytoplasm is cleaved • Cleavage furrow does not penetrate through the whole egg

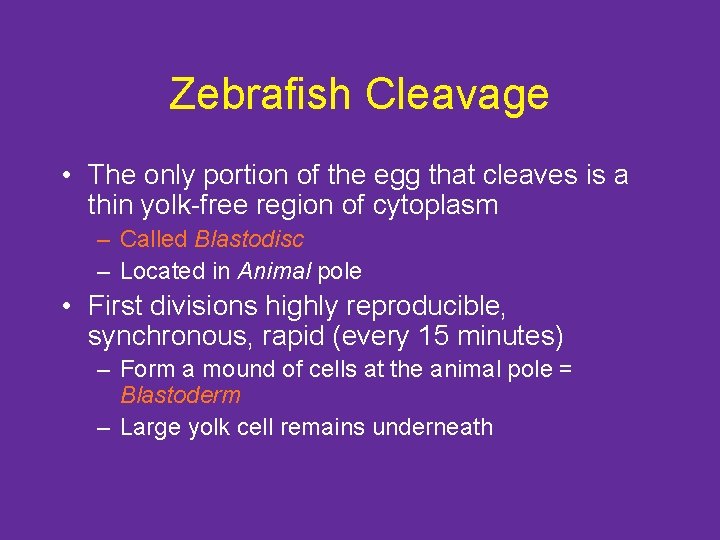

Zebrafish Cleavage • The only portion of the egg that cleaves is a thin yolk-free region of cytoplasm – Called Blastodisc – Located in Animal pole • First divisions highly reproducible, synchronous, rapid (every 15 minutes) – Form a mound of cells at the animal pole = Blastoderm – Large yolk cell remains underneath

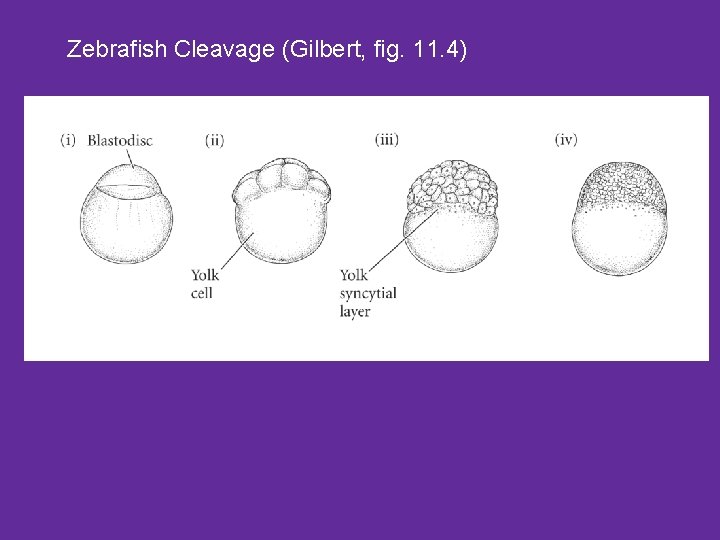

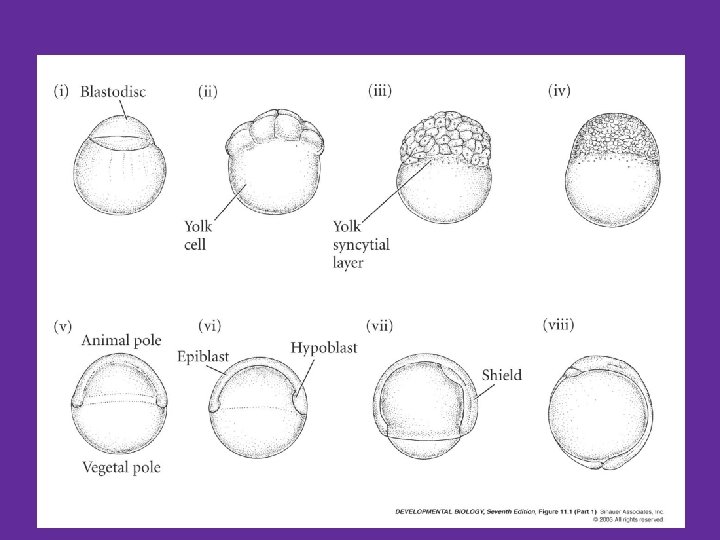

Zebrafish Cleavage (Gilbert, fig. 11. 4)

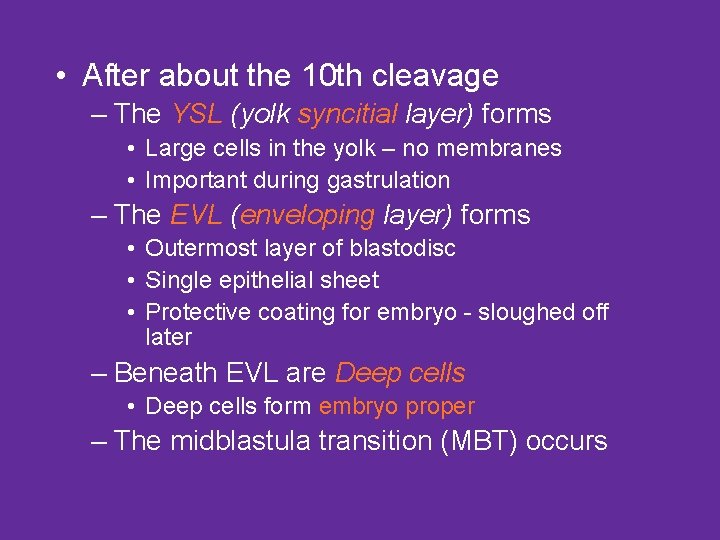

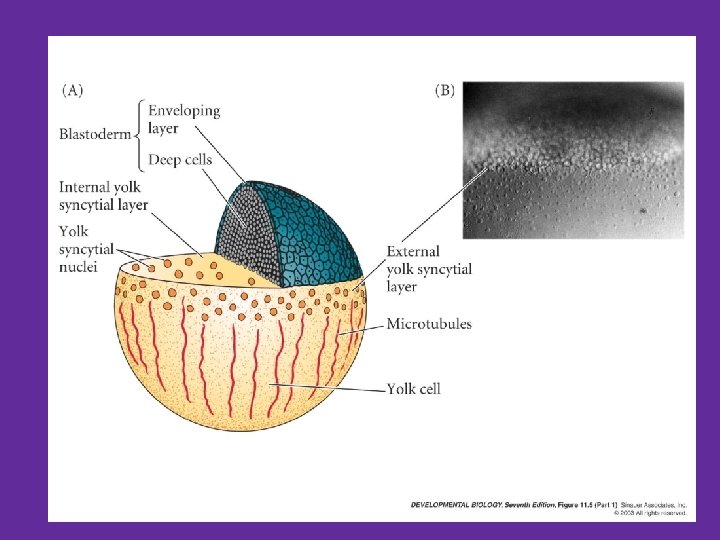

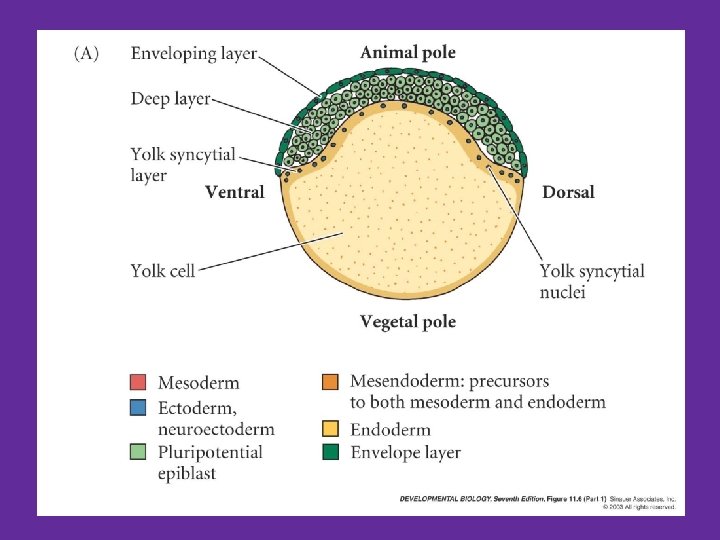

• After about the 10 th cleavage – The YSL (yolk syncitial layer) forms • Large cells in the yolk – no membranes • Important during gastrulation – The EVL (enveloping layer) forms • Outermost layer of blastodisc • Single epithelial sheet • Protective coating for embryo - sloughed off later – Beneath EVL are Deep cells • Deep cells form embryo proper – The midblastula transition (MBT) occurs

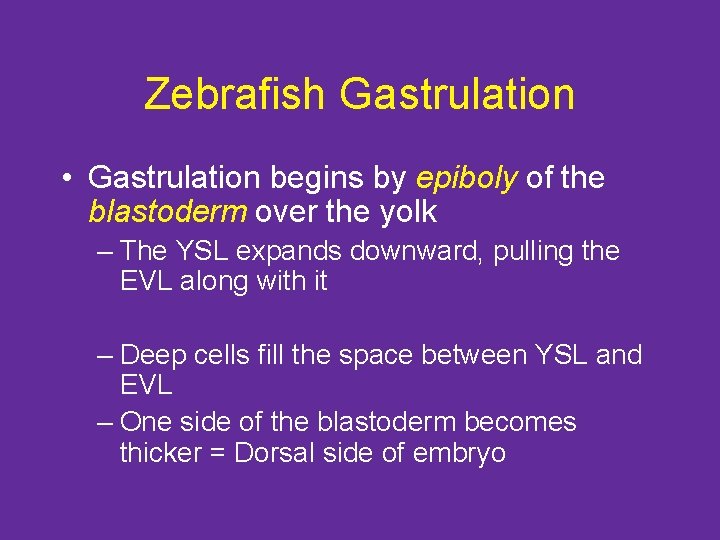

Zebrafish Gastrulation • Gastrulation begins by epiboly of the blastoderm over the yolk – The YSL expands downward, pulling the EVL along with it – Deep cells fill the space between YSL and EVL – One side of the blastoderm becomes thicker = Dorsal side of embryo

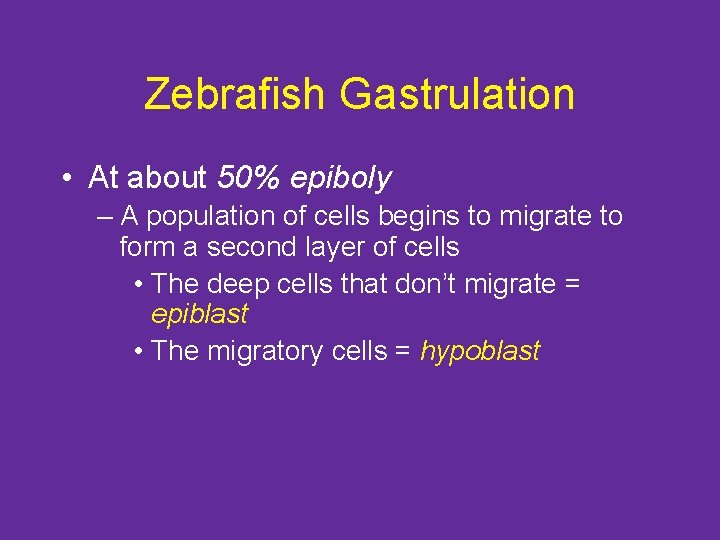

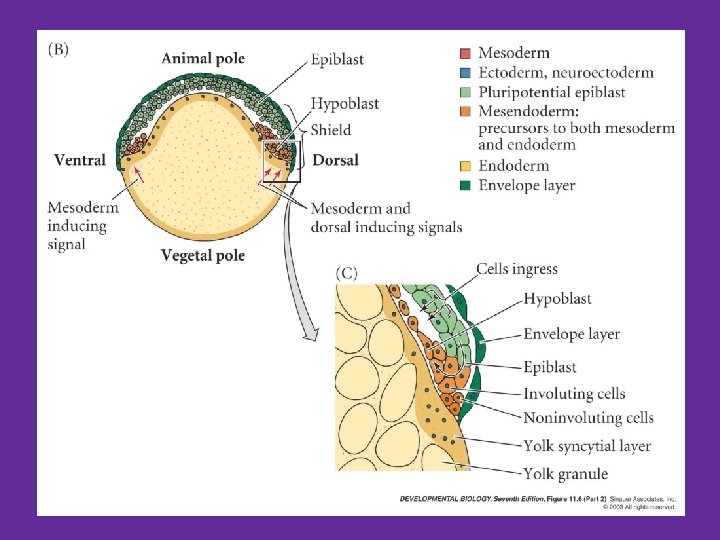

Zebrafish Gastrulation • At about 50% epiboly – A population of cells begins to migrate to form a second layer of cells • The deep cells that don’t migrate = epiblast • The migratory cells = hypoblast

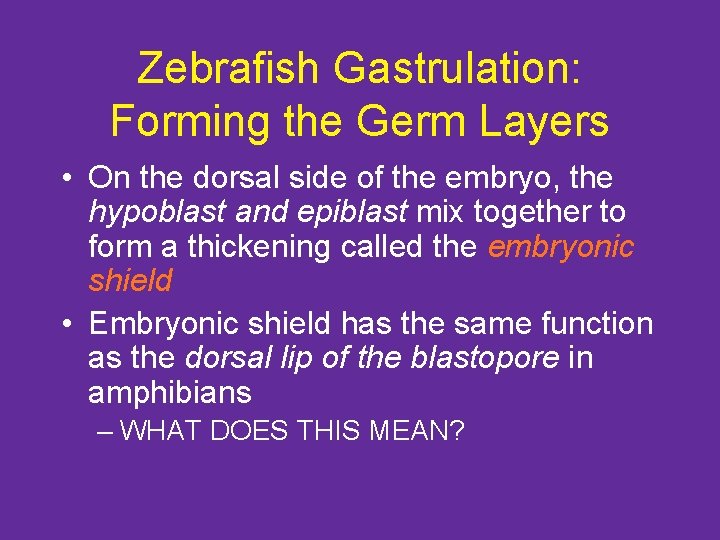

Zebrafish Gastrulation: Forming the Germ Layers • On the dorsal side of the embryo, the hypoblast and epiblast mix together to form a thickening called the embryonic shield • Embryonic shield has the same function as the dorsal lip of the blastopore in amphibians – WHAT DOES THIS MEAN?

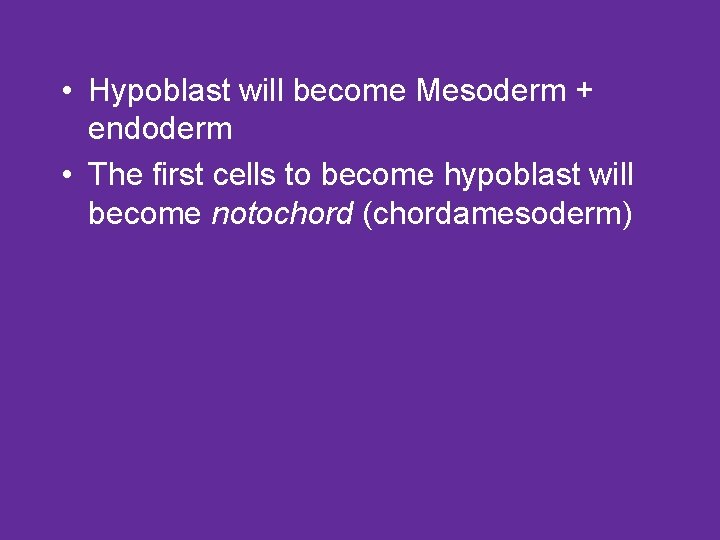

• Hypoblast will become Mesoderm + endoderm • The first cells to become hypoblast will become notochord (chordamesoderm)

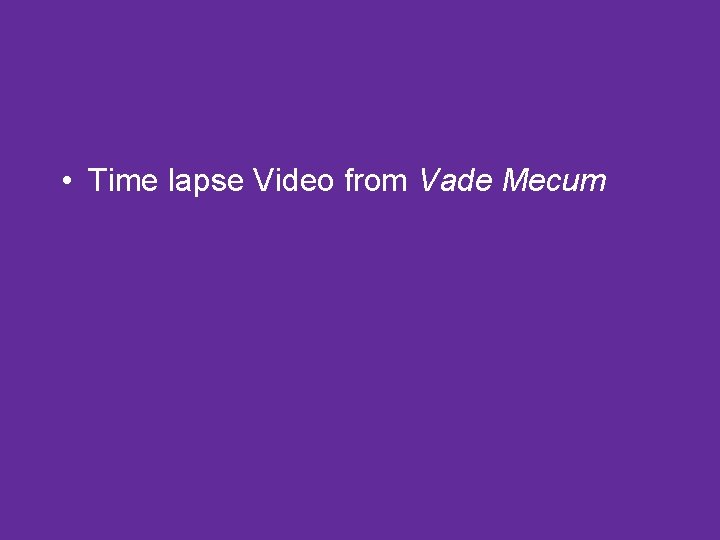

• Time lapse Video from Vade Mecum

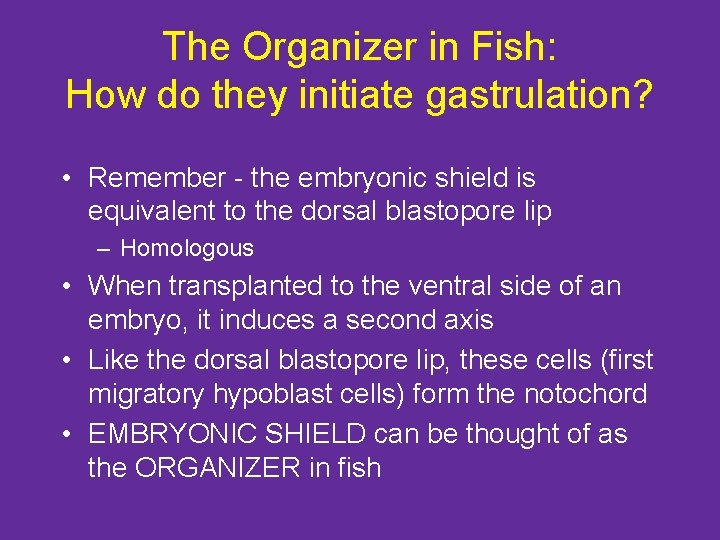

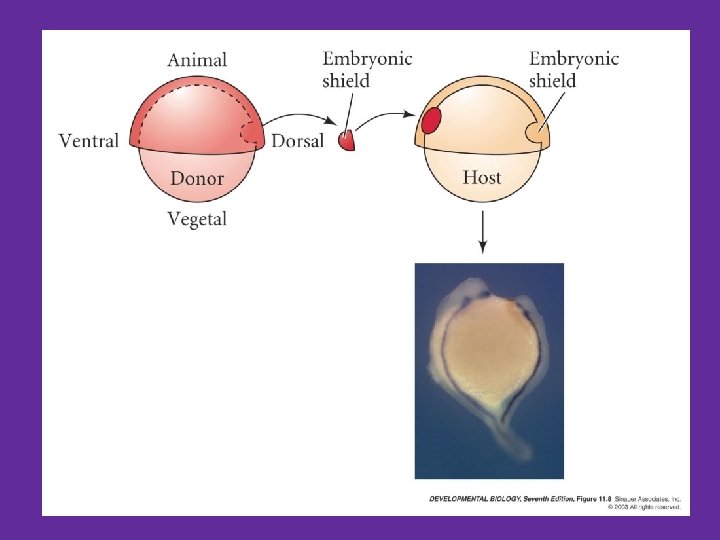

The Organizer in Fish: How do they initiate gastrulation? • Remember - the embryonic shield is equivalent to the dorsal blastopore lip – Homologous • When transplanted to the ventral side of an embryo, it induces a second axis • Like the dorsal blastopore lip, these cells (first migratory hypoblast cells) form the notochord • EMBRYONIC SHIELD can be thought of as the ORGANIZER in fish

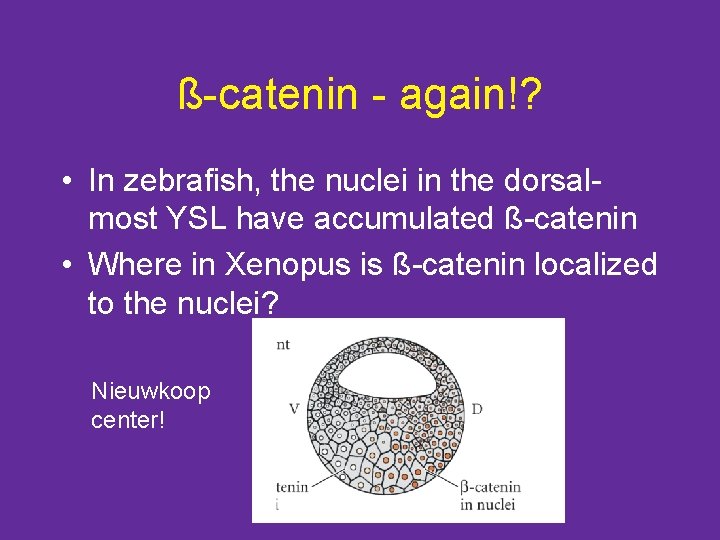

ß-catenin - again!? • In zebrafish, the nuclei in the dorsalmost YSL have accumulated ß-catenin • Where in Xenopus is ß-catenin localized to the nuclei? Nieuwkoop center!

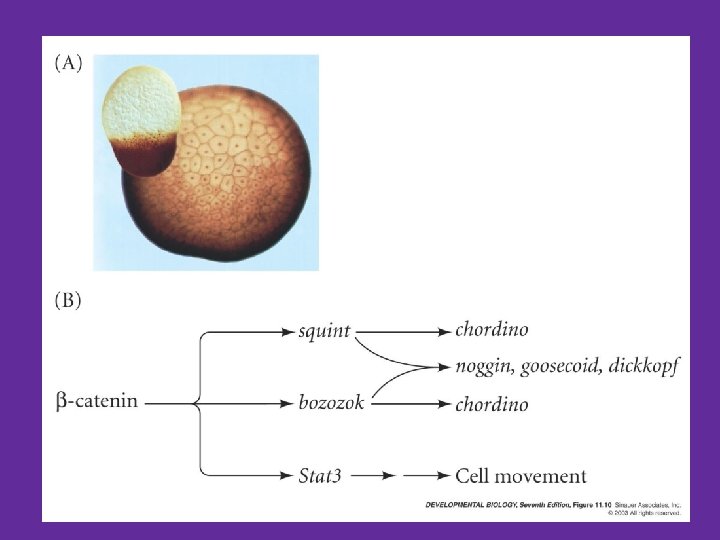

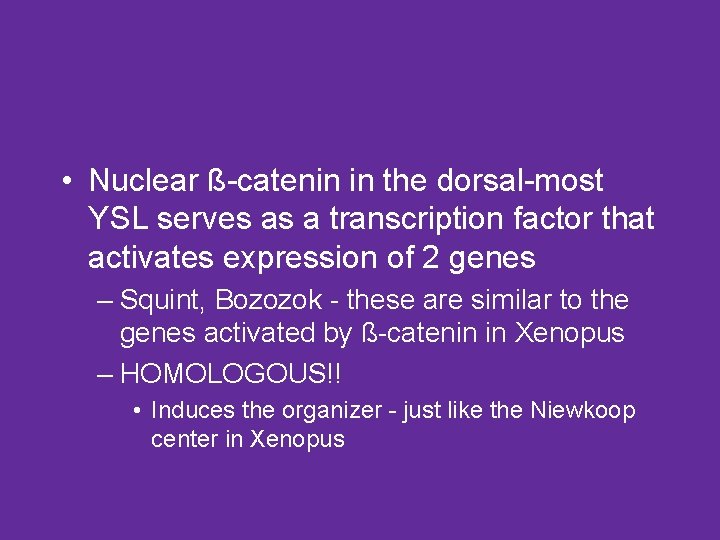

• Nuclear ß-catenin in the dorsal-most YSL serves as a transcription factor that activates expression of 2 genes – Squint, Bozozok - these are similar to the genes activated by ß-catenin in Xenopus – HOMOLOGOUS!! • Induces the organizer - just like the Niewkoop center in Xenopus

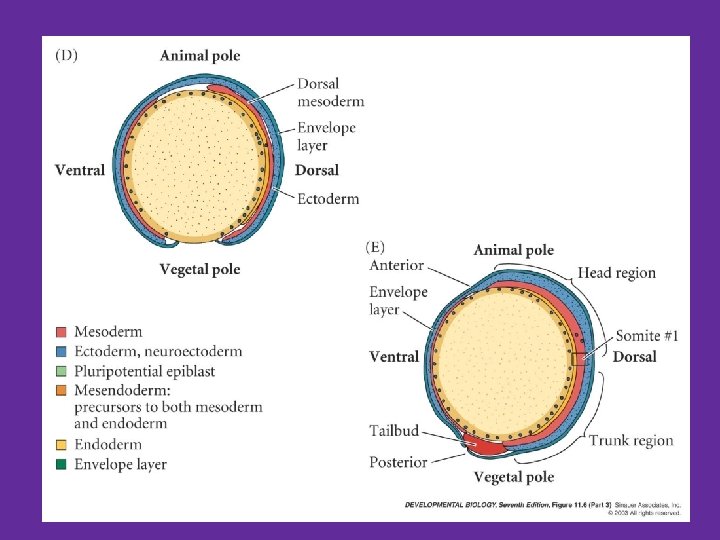

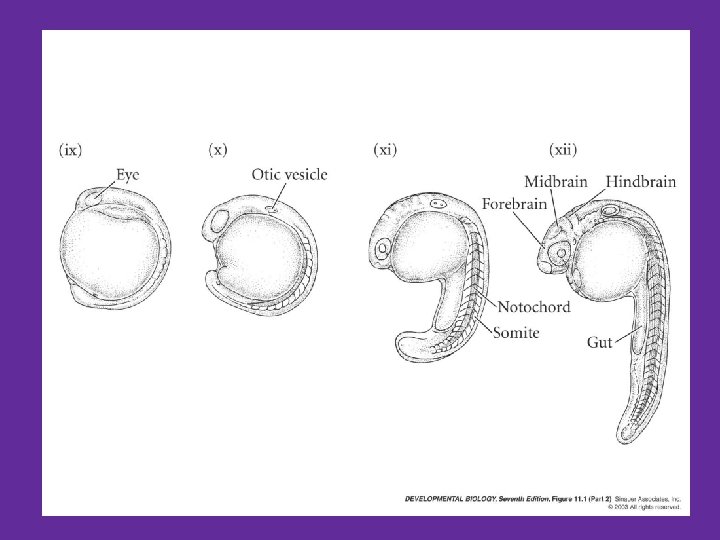

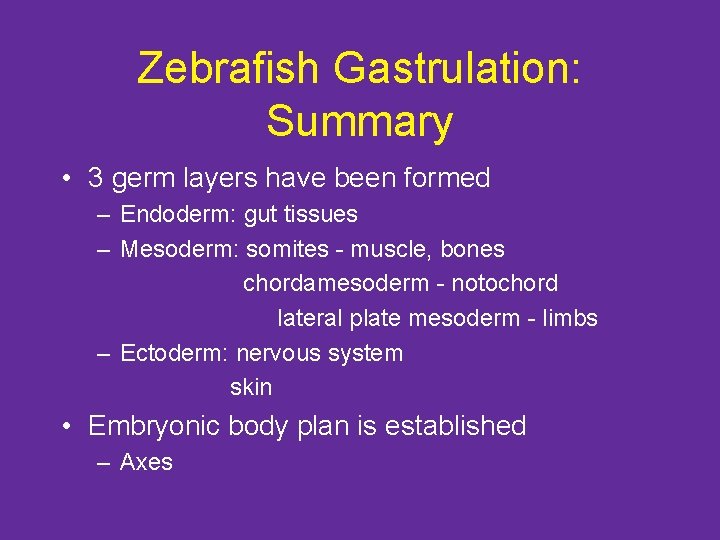

Zebrafish Gastrulation: Summary • 3 germ layers have been formed – Endoderm: gut tissues – Mesoderm: somites - muscle, bones chordamesoderm - notochord lateral plate mesoderm - limbs – Ectoderm: nervous system skin • Embryonic body plan is established – Axes

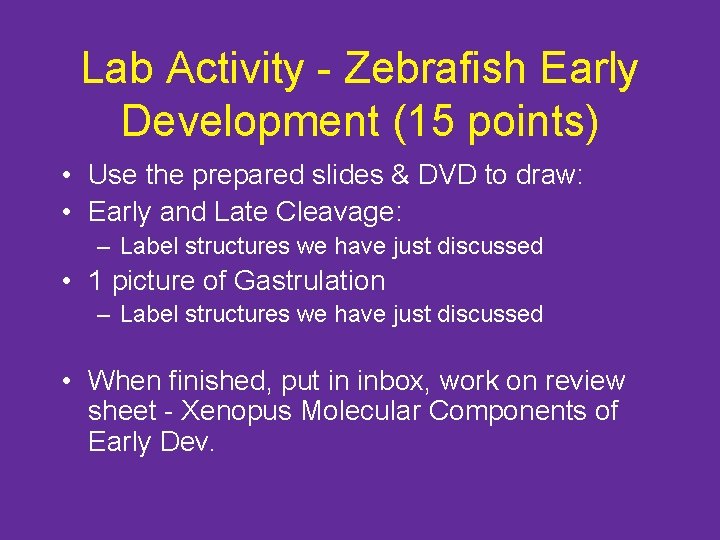

Lab Activity - Zebrafish Early Development (15 points) • Use the prepared slides & DVD to draw: • Early and Late Cleavage: – Label structures we have just discussed • 1 picture of Gastrulation – Label structures we have just discussed • When finished, put in inbox, work on review sheet - Xenopus Molecular Components of Early Dev.

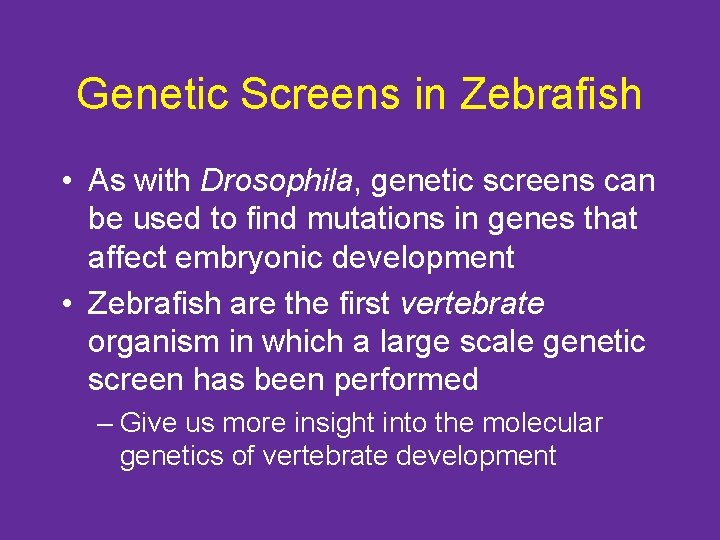

Genetic Screens in Zebrafish • As with Drosophila, genetic screens can be used to find mutations in genes that affect embryonic development • Zebrafish are the first vertebrate organism in which a large scale genetic screen has been performed – Give us more insight into the molecular genetics of vertebrate development

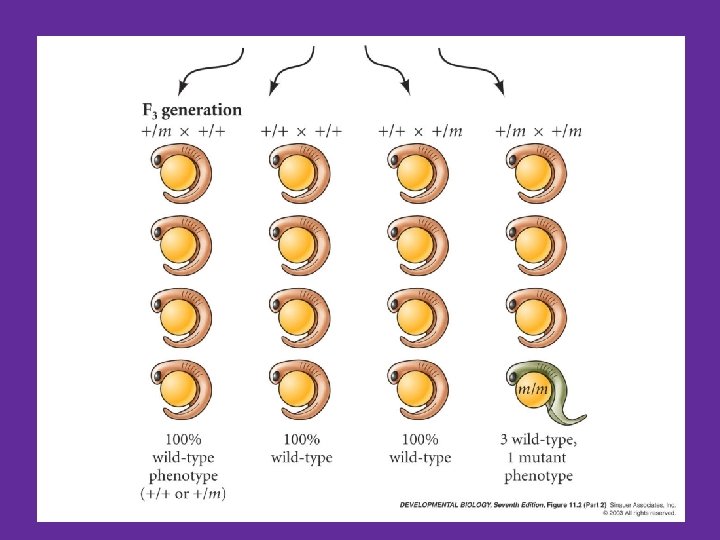

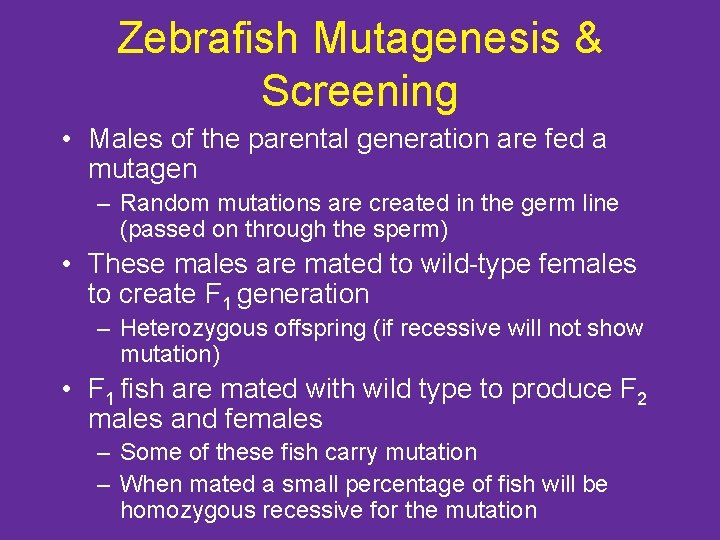

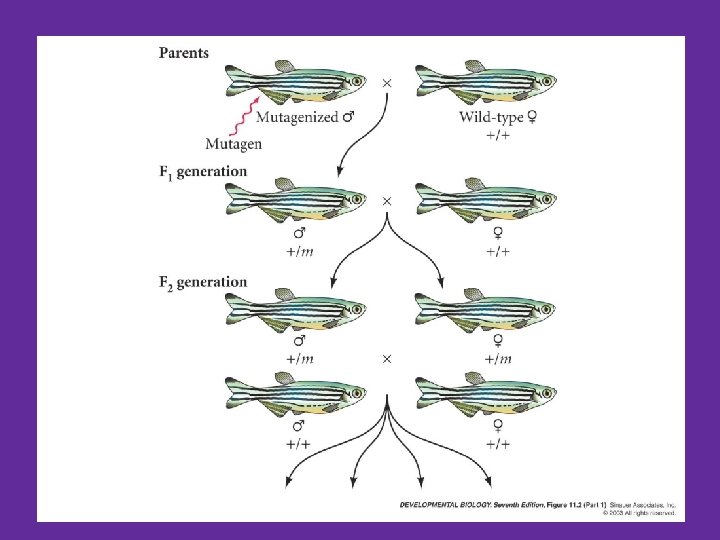

Zebrafish Mutagenesis & Screening • Males of the parental generation are fed a mutagen – Random mutations are created in the germ line (passed on through the sperm) • These males are mated to wild-type females to create F 1 generation – Heterozygous offspring (if recessive will not show mutation) • F 1 fish are mated with wild type to produce F 2 males and females – Some of these fish carry mutation – When mated a small percentage of fish will be homozygous recessive for the mutation

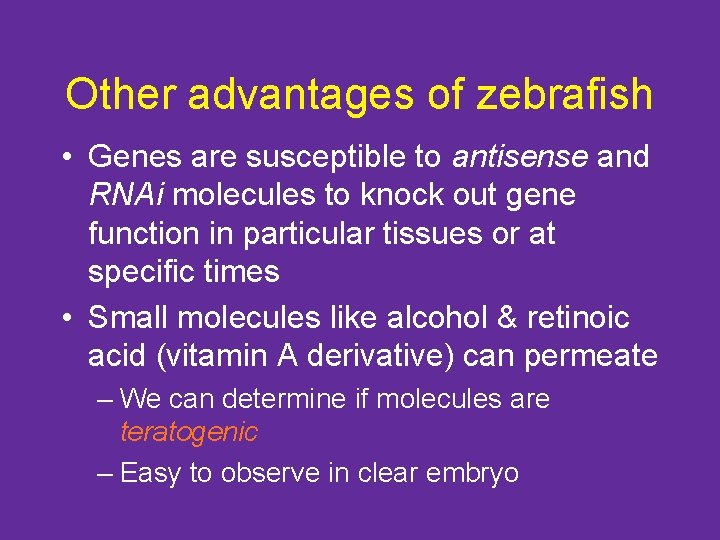

Other advantages of zebrafish • Genes are susceptible to antisense and RNAi molecules to knock out gene function in particular tissues or at specific times • Small molecules like alcohol & retinoic acid (vitamin A derivative) can permeate – We can determine if molecules are teratogenic – Easy to observe in clear embryo
