The Ear Otic; Vestibular; Auditory

The Ear Otic; Vestibular; Auditory

External Ear (contains air); Middle Ear (contains air); Inner Ear (contains fluid) E M

External Ear (contains air); Middle Ear (contains air); Inner Ear (contains fluid) E M I pinna tympanic membrane external auditory canal

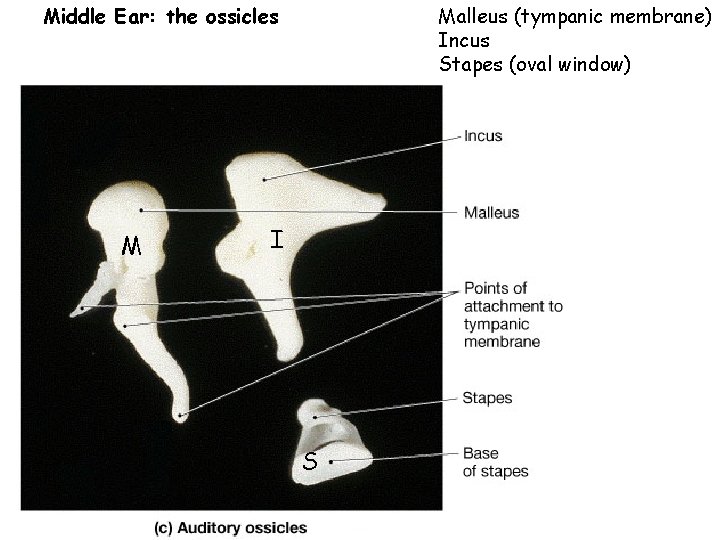

Malleus (tympanic membrane) Incus Stapes (oval window) Middle Ear: the ossicles M I S

Malleus (tympanic membrane) Incus Stapes (oval window) Middle Ear: the ossicles M I S

pharyngotympanic (auditory) tube, connected to nasopharynx region of the throat; functions in equalizing pressure.

pharyngotympanic (auditory) tube, connected to nasopharynx region of the throat; functions in equalizing pressure. Normally this tube is flattened and closed, but swallowing or yawning causes it to open temporarily to equalize the pressure of the middle ear cavity with external air pressure. Middle Ear M I air E. A. TM Canal S air AT air

Inner Ear

Inner Ear

Two layers: Inner Ear Bony labyrinth filled with an aqueous fluid called perilymph. The

Two layers: Inner Ear Bony labyrinth filled with an aqueous fluid called perilymph. The three subdivisions of the bony labyrinth are the 1. 2. 3. semicircular canals vestibule cochlea. Membranous labyrinth filled with endolymph. This is a second membrane-bound system suspended in the perilymph. The three subdivisions of the membranous labyrinth are: (1) the semicircular ducts (2) the Utricle and the Saccule (3) the cochlear duct.

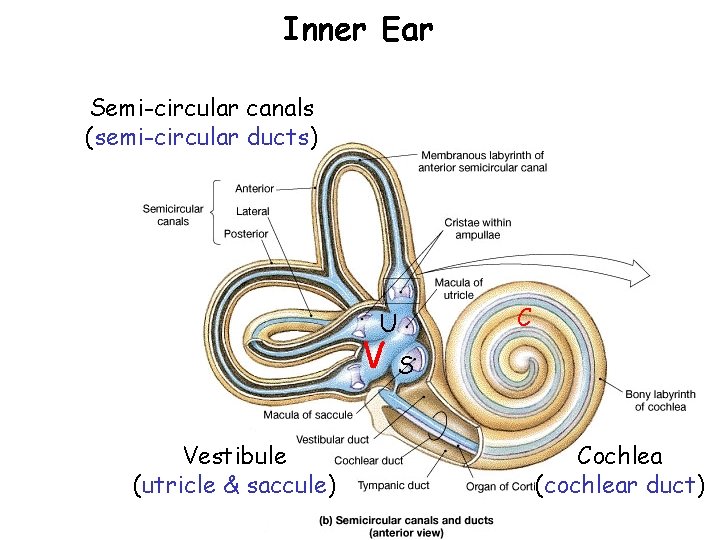

Inner Ear Semi-circular canals (semi-circular ducts) C U V Vestibule (utricle & saccule) S

Inner Ear Semi-circular canals (semi-circular ducts) C U V Vestibule (utricle & saccule) S Cochlea (cochlear duct)

Inner Ear: membranous labyrinth

Inner Ear: membranous labyrinth

Vestibular System: Dynamic Equilibrium • Semicircular canals: (1) lateral (horizontal), (2) posterior (sagittal), and

Vestibular System: Dynamic Equilibrium • Semicircular canals: (1) lateral (horizontal), (2) posterior (sagittal), and (3) anterior or superior (frontal) canals. • Contain membranous semicircular ducts, at the base of which is an enlarged region, the ampulla. • Each ampulla contains a crista, consisting of a tuft of hair cells covered with a gelatinous cap, or cupola. • Circular movements of the head move the endolymph in the semicircular ducts, which pushes the cupola in the ampullae, and causes the hair cells to fire impulses, which travel down the vestibulocochlear cranial nerve VIII to the brain.

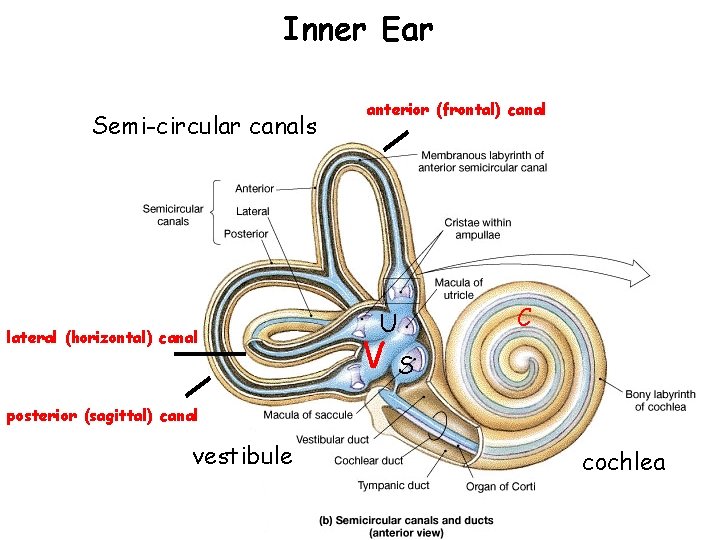

Inner Ear Semi-circular canals lateral (horizontal) canal anterior (frontal) canal C U V S

Inner Ear Semi-circular canals lateral (horizontal) canal anterior (frontal) canal C U V S posterior (sagittal) canal vestibule cochlea

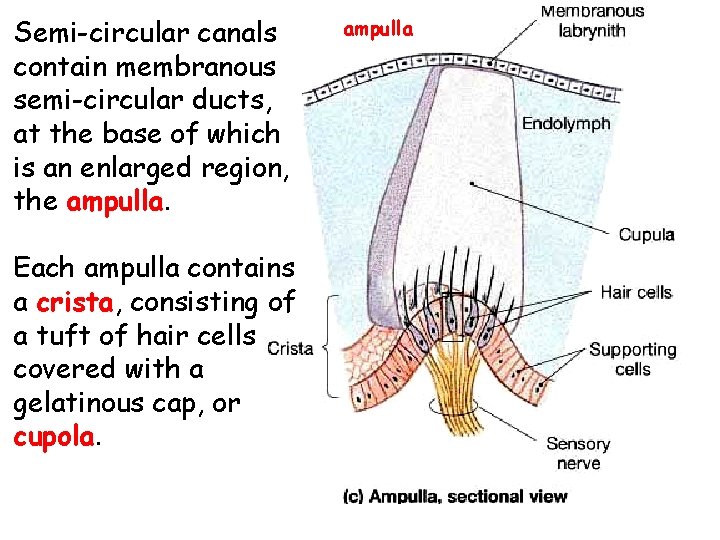

Semi-circular canals contain membranous semi-circular ducts, at the base of which is an enlarged

Semi-circular canals contain membranous semi-circular ducts, at the base of which is an enlarged region, the ampulla. Each ampulla contains a crista, consisting of a tuft of hair cells covered with a gelatinous cap, or cupola. ampulla

Hair cells in ampullae Each ampulla contains a crista (hair cell). Circular movements of

Hair cells in ampullae Each ampulla contains a crista (hair cell). Circular movements of the head move the endolymph in the semicircular ducts, which pushes the cupola in the ampullae, and causes the hair cells to fire impulses, which travel down the vestibulocochlear cranial nerve VIII to the brain.

Semicircular canals Anterior ‘YES’ Lateral ‘NO’ Posterior TILTING HEAD

Semicircular canals Anterior ‘YES’ Lateral ‘NO’ Posterior TILTING HEAD

Vestibular System: Static Equilibrium. • The vestibule contains receptors (maculae) that respond to static

Vestibular System: Static Equilibrium. • The vestibule contains receptors (maculae) that respond to static equilibrium. The maculae respond to gravitational pull, thus providing information on which way is up or down. • The maculae are located in the utricle and saccule. • Maculae consist of hair cells whose cilia project into gelatinous mass containing small grains of calcium carbonate (otoliths). • As the head moves, the otoliths also move, thus triggering nerve impulses in cranial nerve VIII.

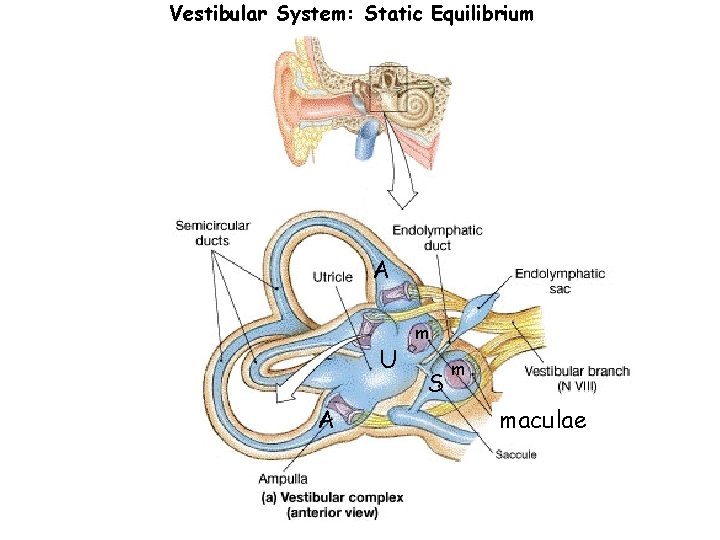

Vestibular System: Static Equilibrium A U A m S m maculae

Vestibular System: Static Equilibrium A U A m S m maculae

Vestibular System: Static Equilibrium. maculae and otoliths

Vestibular System: Static Equilibrium. maculae and otoliths

Vestibular System: Static Equilibrium macular function TILT HEAD BACK

Vestibular System: Static Equilibrium macular function TILT HEAD BACK

Vestibular branch VIII

Vestibular branch VIII

Sense of Hearing • The cochlear duct separates the cochlea into an upper chamber

Sense of Hearing • The cochlear duct separates the cochlea into an upper chamber (scala vestibuli) and a lower chamber (scala tympani). The scala vestibuli terminates at the oval window. The scala tympani terminates at the round window. • The cochlear duct supports the organ of corti, which contains the receptors for hearing. These are sensory hair cells resting on the basilar membrane; the cilia of these hair cells project up into the tectorial membrane, and the nerve endings of the cochlear division of the vestibulocochlear cranial nerve VIII, which sends impulses to the auditory association centre in the temporal lobe of the brain.

cochlea

cochlea

cochlea

cochlea

Cochlear chambers cd td sv cd td

Cochlear chambers cd td sv cd td

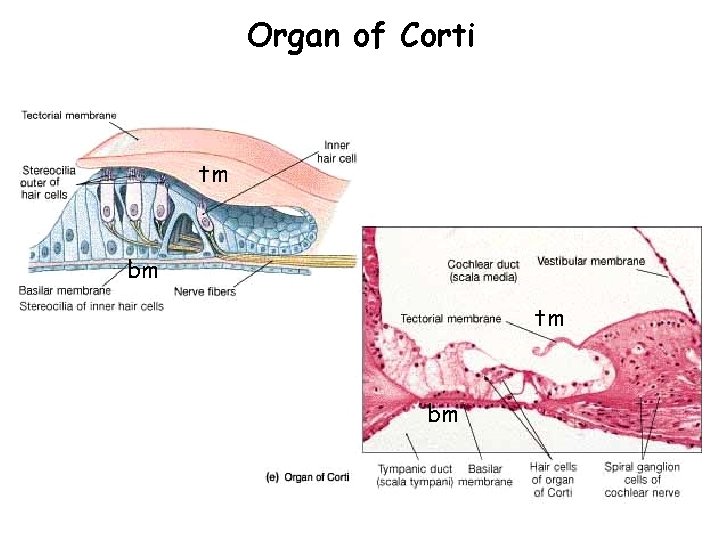

Organ of Corti tm bm

Organ of Corti tm bm

Organ of Corti

Organ of Corti

Auditory Pathway

Auditory Pathway

Summary of the Inner Ear Bony Labryinth (Perilymph) Dynamic Static Hearing Equilibrium Semicircular canals.

Summary of the Inner Ear Bony Labryinth (Perilymph) Dynamic Static Hearing Equilibrium Semicircular canals. Vestibule Cochlea Oval Window: Scala vestibuli Round Window: Scala tympani Semicircular ducts Membranous Labryinth (Endolymph) Utricle & Saccule Cochlear Duct Ampullae with cristae Maculae Organ of Corti Cupola with hair cells Otoliths with hair cells Tectorial membrane, hair cells Basilar membrane
