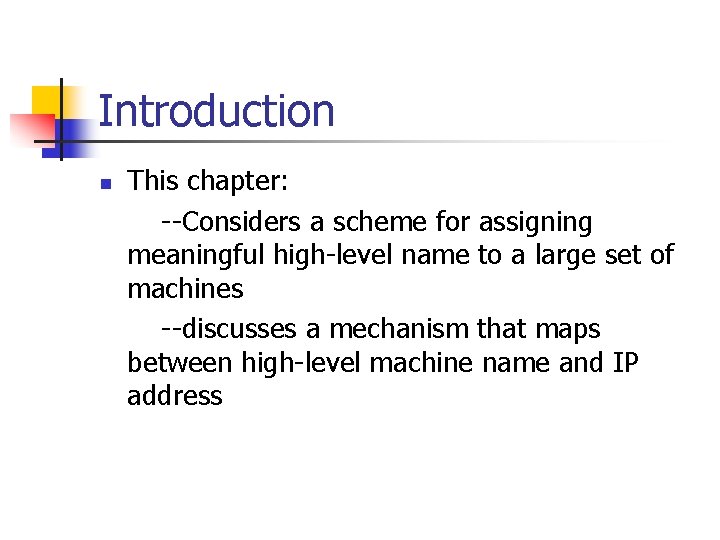

Introduction n This chapter: --Considers a scheme for assigning meaningful high-level name to a large set of machines --discusses a mechanism that maps between high-level machine name and IP address

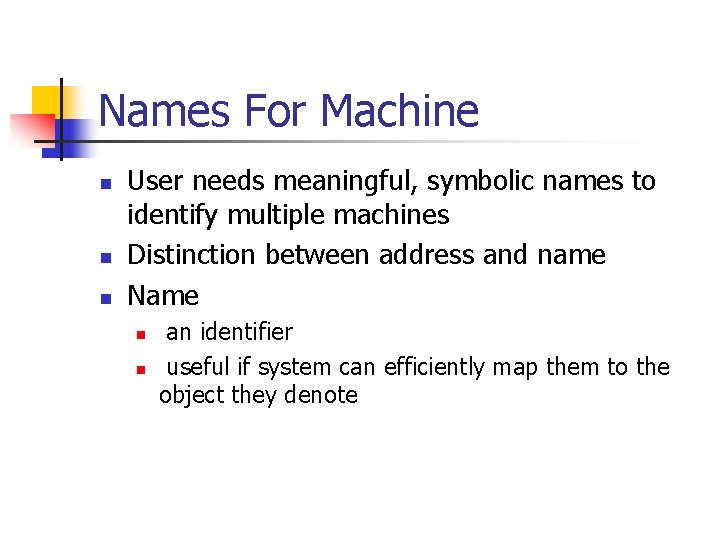

Names For Machine n n n User needs meaningful, symbolic names to identify multiple machines Distinction between address and name Name n n an identifier useful if system can efficiently map them to the object they denote

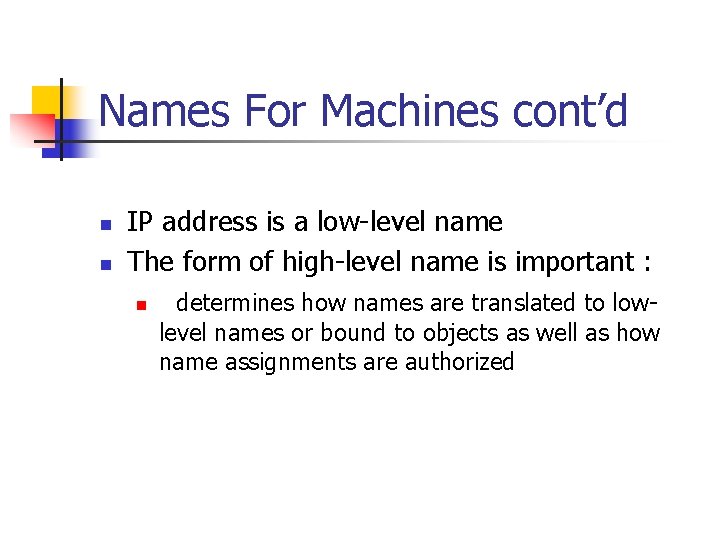

Names For Machines cont’d n n IP address is a low-level name The form of high-level name is important : n determines how names are translated to lowlevel names or bound to objects as well as how name assignments are authorized

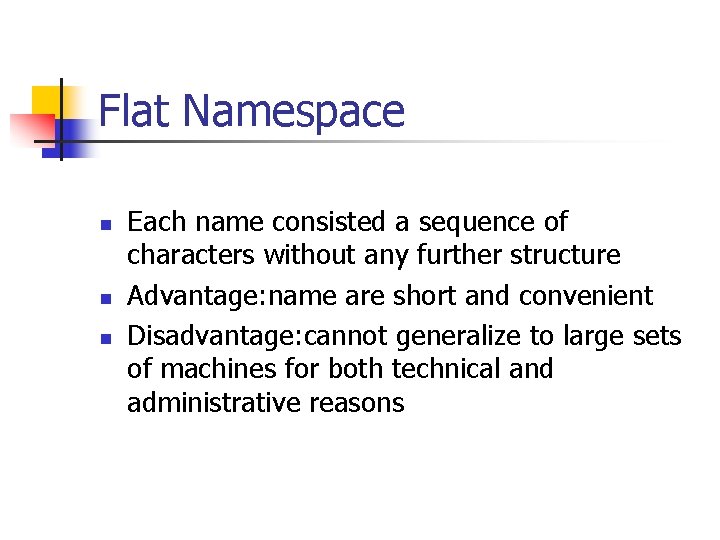

Flat Namespace n n n Each name consisted a sequence of characters without any further structure Advantage: name are short and convenient Disadvantage: cannot generalize to large sets of machines for both technical and administrative reasons

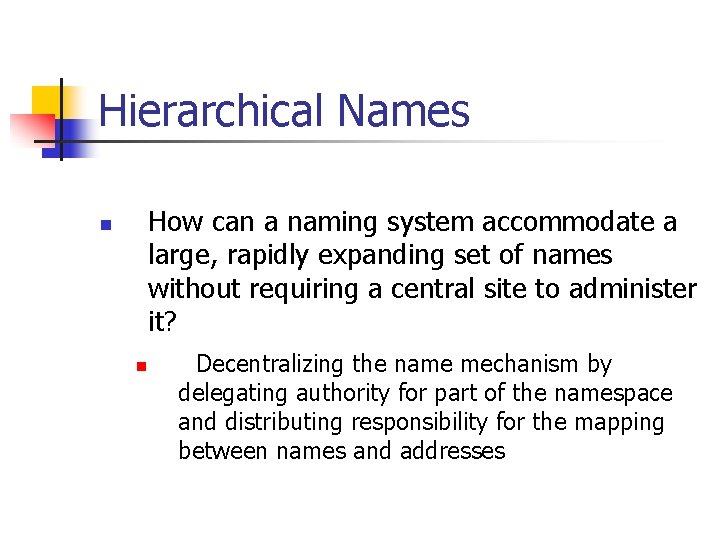

Hierarchical Names How can a naming system accommodate a large, rapidly expanding set of names without requiring a central site to administer it? n n Decentralizing the name mechanism by delegating authority for part of the namespace and distributing responsibility for the mapping between names and addresses

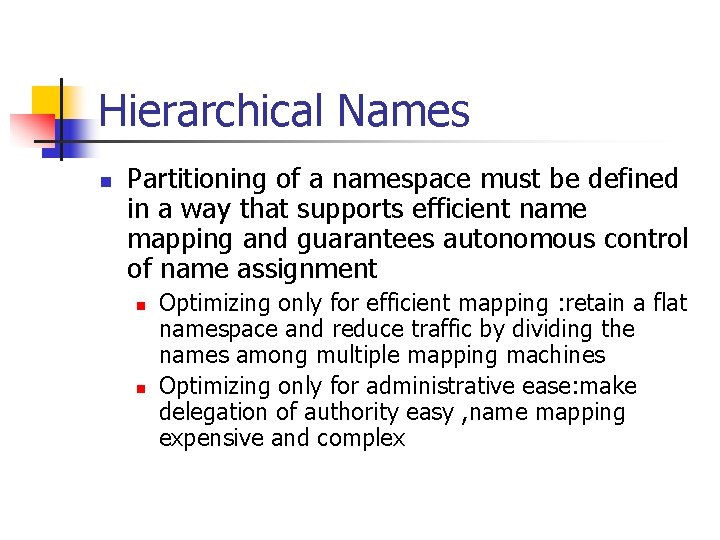

Hierarchical Names n Partitioning of a namespace must be defined in a way that supports efficient name mapping and guarantees autonomous control of name assignment n n Optimizing only for efficient mapping : retain a flat namespace and reduce traffic by dividing the names among multiple mapping machines Optimizing only for administrative ease: make delegation of authority easy , name mapping expensive and complex

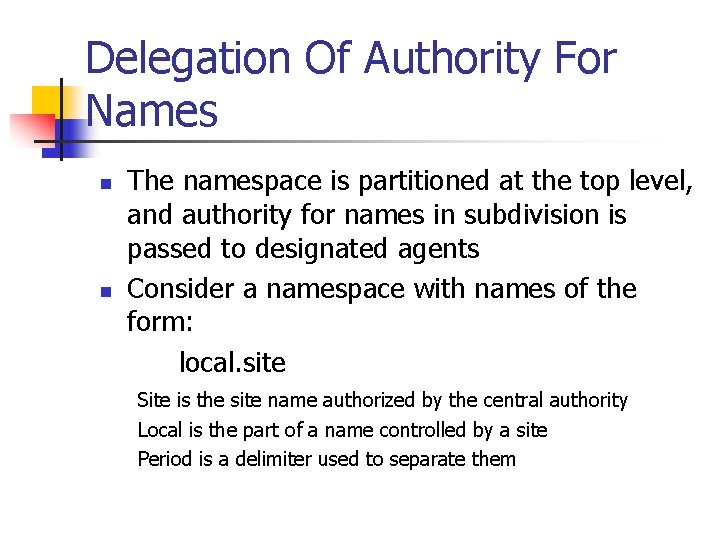

Delegation Of Authority For Names n n The namespace is partitioned at the top level, and authority for names in subdivision is passed to designated agents Consider a namespace with names of the form: local. site Site is the site name authorized by the central authority Local is the part of a name controlled by a site Period is a delimiter used to separate them

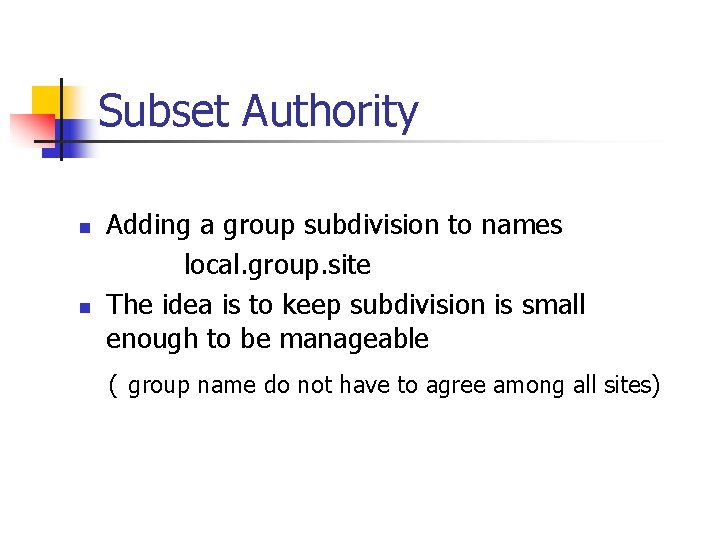

Subset Authority n n Adding a group subdivision to names local. group. site The idea is to keep subdivision is small enough to be manageable ( group name do not have to agree among all sites)

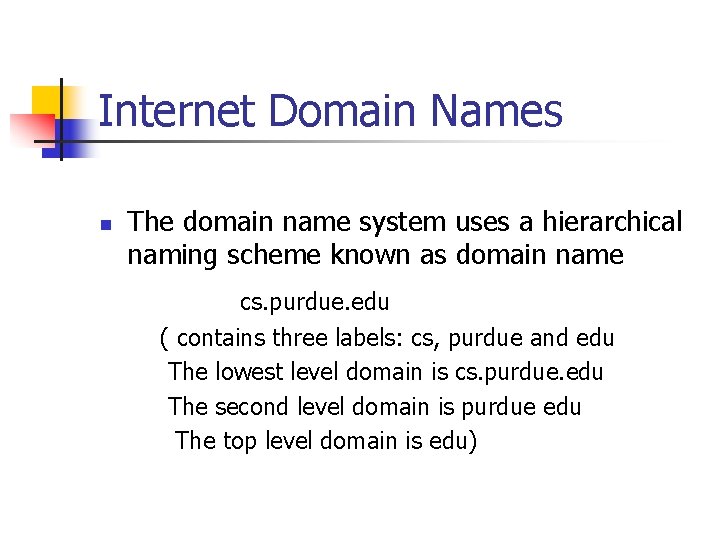

Internet Domain Names n The domain name system uses a hierarchical naming scheme known as domain name cs. purdue. edu ( contains three labels: cs, purdue and edu The lowest level domain is cs. purdue. edu The second level domain is purdue edu The top level domain is edu)

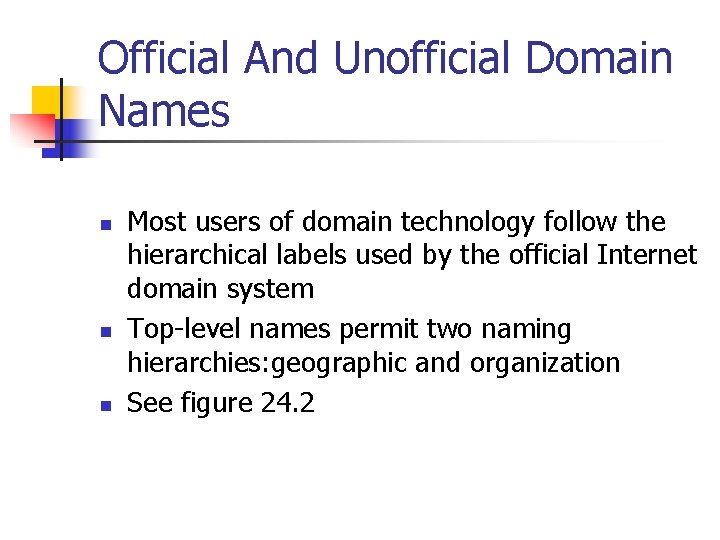

Official And Unofficial Domain Names n n n Most users of domain technology follow the hierarchical labels used by the official Internet domain system Top-level names permit two naming hierarchies: geographic and organization See figure 24. 2

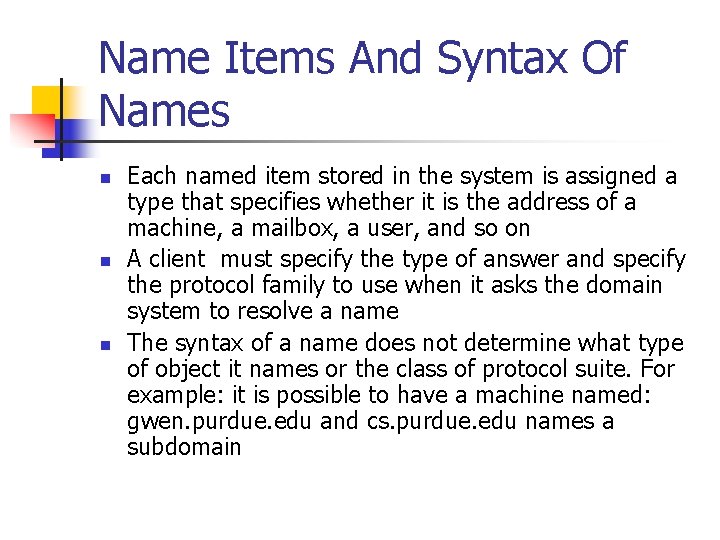

Name Items And Syntax Of Names n n n Each named item stored in the system is assigned a type that specifies whether it is the address of a machine, a mailbox, a user, and so on A client must specify the type of answer and specify the protocol family to use when it asks the domain system to resolve a name The syntax of a name does not determine what type of object it names or the class of protocol suite. For example: it is possible to have a machine named: gwen. purdue. edu and cs. purdue. edu names a subdomain

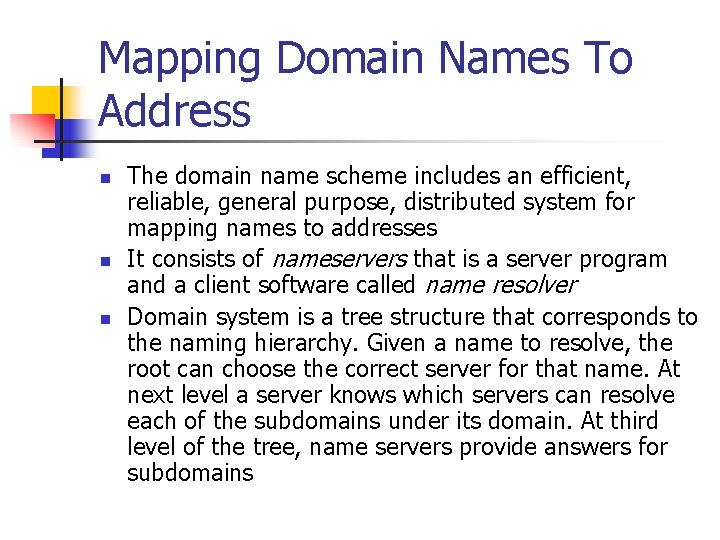

Mapping Domain Names To Address n n n The domain name scheme includes an efficient, reliable, general purpose, distributed system for mapping names to addresses It consists of nameservers that is a server program and a client software called name resolver Domain system is a tree structure that corresponds to the naming hierarchy. Given a name to resolve, the root can choose the correct server for that name. At next level a server knows which servers can resolve each of the subdomains under its domain. At third level of the tree, name servers provide answers for subdomains

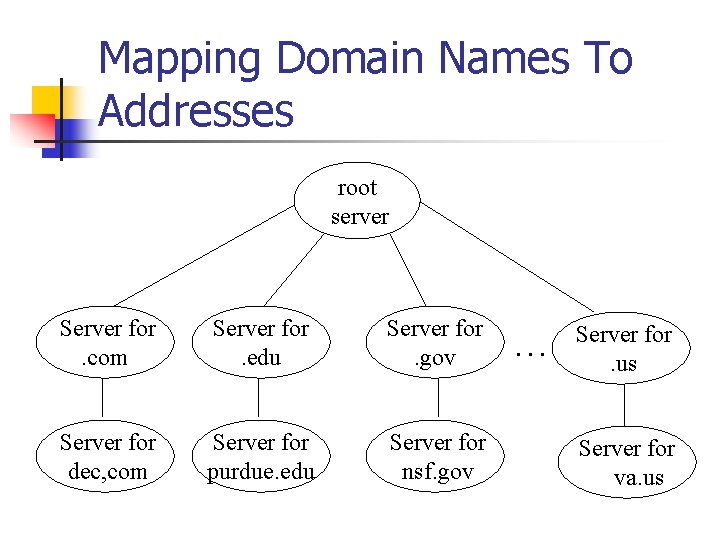

Mapping Domain Names To Addresses root server Server for. com Server for. edu Server for. gov Server for dec, com Server for purdue. edu Server for nsf. gov . . . Server for. us Server for va. us

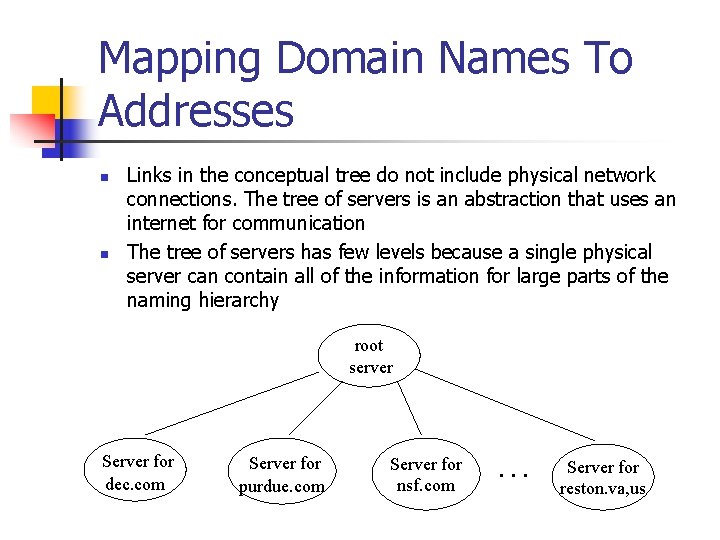

Mapping Domain Names To Addresses n n Links in the conceptual tree do not include physical network connections. The tree of servers is an abstraction that uses an internet for communication The tree of servers has few levels because a single physical server can contain all of the information for large parts of the naming hierarchy root server Server for dec. com Server for purdue. com Server for nsf. com . . . Server for reston. va, us

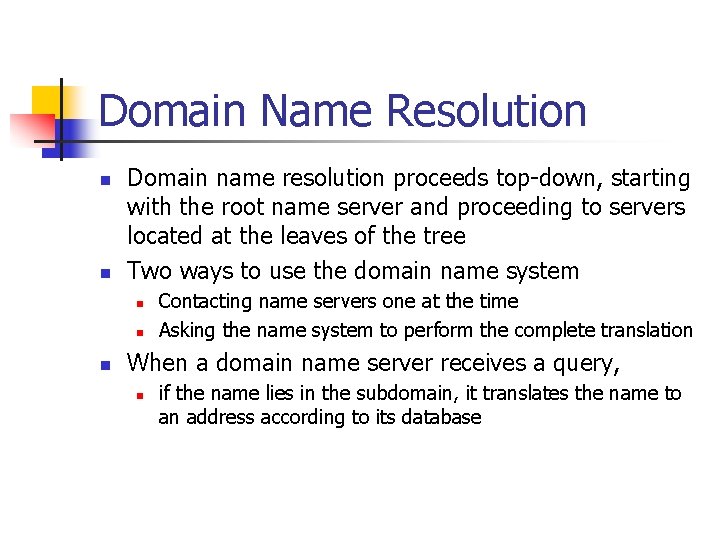

Domain Name Resolution n n Domain name resolution proceeds top-down, starting with the root name server and proceeding to servers located at the leaves of the tree Two ways to use the domain name system n n n Contacting name servers one at the time Asking the name system to perform the complete translation When a domain name server receives a query, n if the name lies in the subdomain, it translates the name to an address according to its database

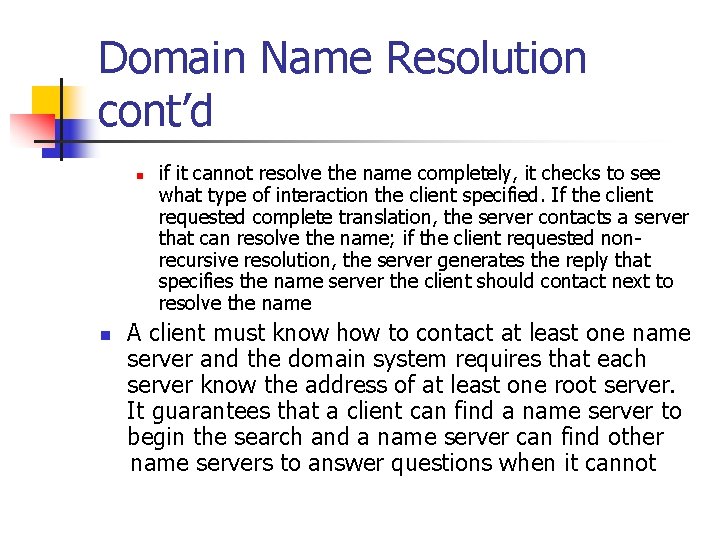

Domain Name Resolution cont’d n n if it cannot resolve the name completely, it checks to see what type of interaction the client specified. If the client requested complete translation, the server contacts a server that can resolve the name; if the client requested nonrecursive resolution, the server generates the reply that specifies the name server the client should contact next to resolve the name A client must know how to contact at least one name server and the domain system requires that each server know the address of at least one root server. It guarantees that a client can find a name server to begin the search and a name server can find other name servers to answer questions when it cannot

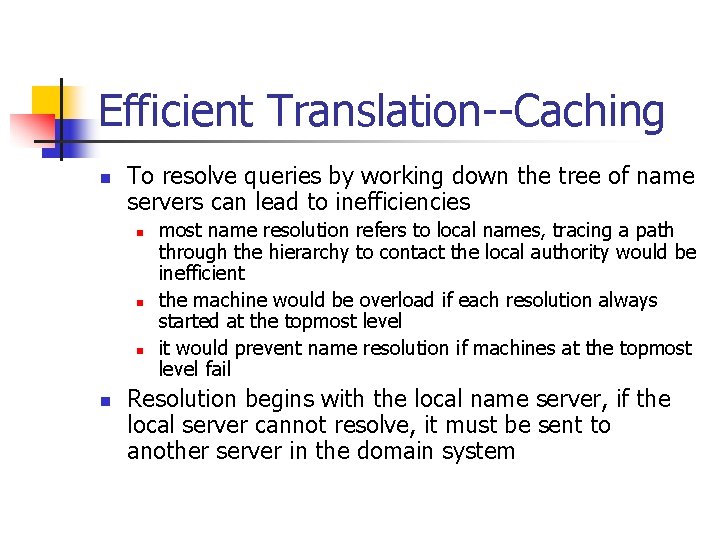

Efficient Translation--Caching n To resolve queries by working down the tree of name servers can lead to inefficiencies n n most name resolution refers to local names, tracing a path through the hierarchy to contact the local authority would be inefficient the machine would be overload if each resolution always started at the topmost level it would prevent name resolution if machines at the topmost level fail Resolution begins with the local name server, if the local server cannot resolve, it must be sent to another server in the domain system

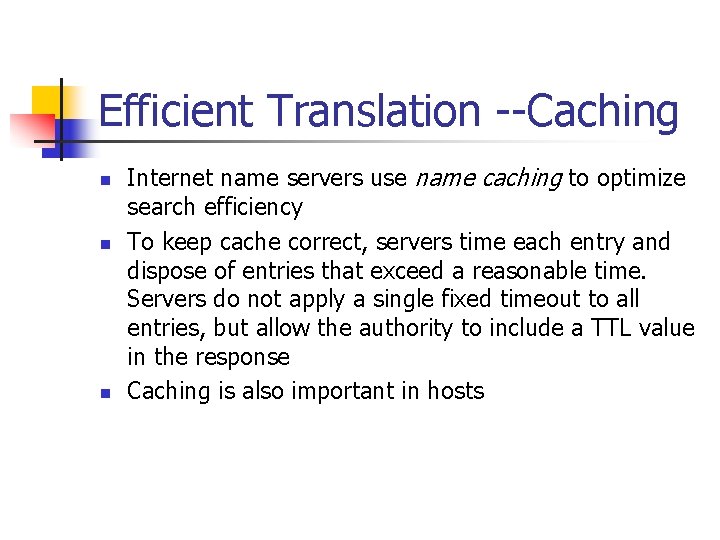

Efficient Translation --Caching n n n Internet name servers use name caching to optimize search efficiency To keep cache correct, servers time each entry and dispose of entries that exceed a reasonable time. Servers do not apply a single fixed timeout to all entries, but allow the authority to include a TTL value in the response Caching is also important in hosts

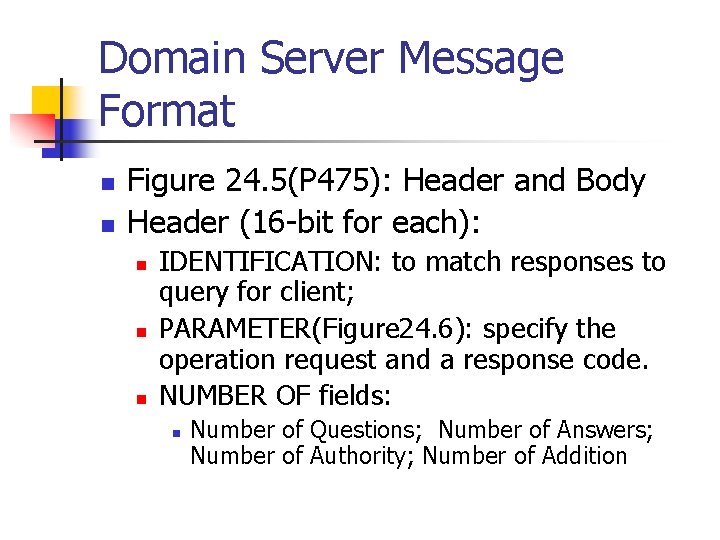

Domain Server Message Format n n Figure 24. 5(P 475): Header and Body Header (16 -bit for each): n n n IDENTIFICATION: to match responses to query for client; PARAMETER(Figure 24. 6): specify the operation request and a response code. NUMBER OF fields: n Number of Questions; Number of Answers; Number of Authority; Number of Addition

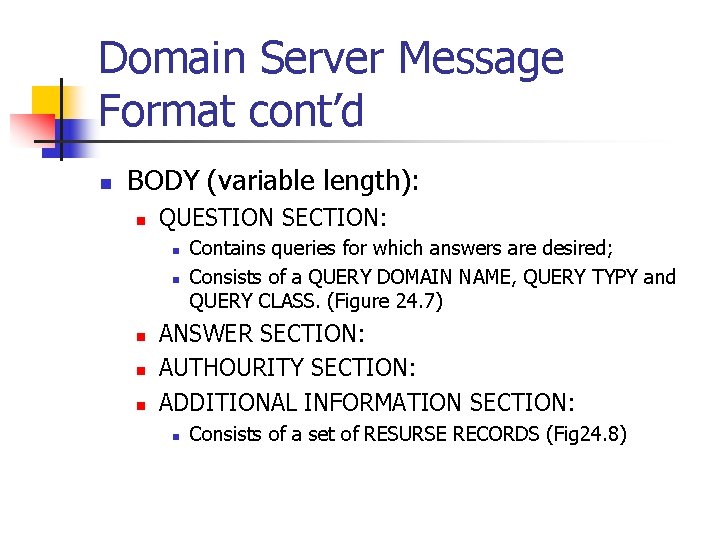

Domain Server Message Format cont’d n BODY (variable length): n QUESTION SECTION: n n n Contains queries for which answers are desired; Consists of a QUERY DOMAIN NAME, QUERY TYPY and QUERY CLASS. (Figure 24. 7) ANSWER SECTION: AUTHOURITY SECTION: ADDITIONAL INFORMATION SECTION: n Consists of a set of RESURSE RECORDS (Fig 24. 8)

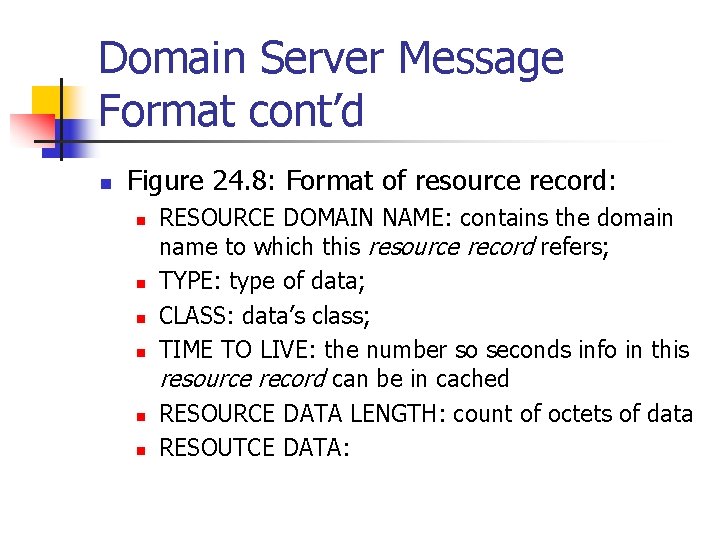

Domain Server Message Format cont’d n Figure 24. 8: Format of resource record: n n n RESOURCE DOMAIN NAME: contains the domain name to which this resource record refers; TYPE: type of data; CLASS: data’s class; TIME TO LIVE: the number so seconds info in this resource record can be in cached RESOURCE DATA LENGTH: count of octets of data RESOUTCE DATA:

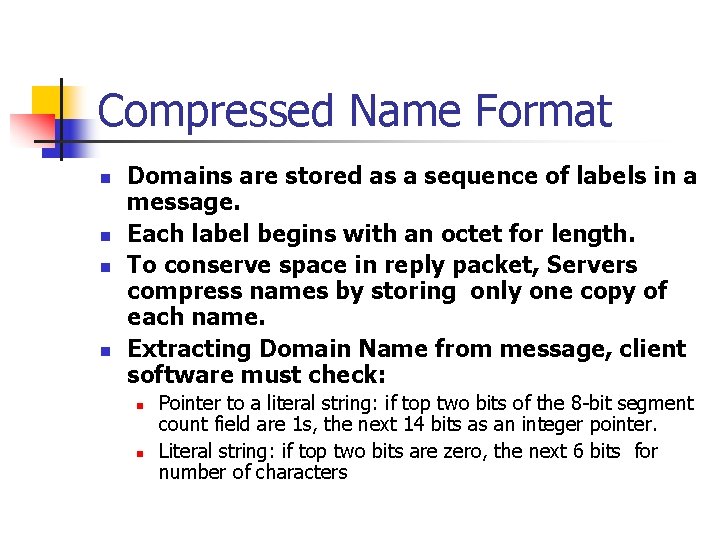

Compressed Name Format n n Domains are stored as a sequence of labels in a message. Each label begins with an octet for length. To conserve space in reply packet, Servers compress names by storing only one copy of each name. Extracting Domain Name from message, client software must check: n n Pointer to a literal string: if top two bits of the 8 -bit segment count field are 1 s, the next 14 bits as an integer pointer. Literal string: if top two bits are zero, the next 6 bits for number of characters

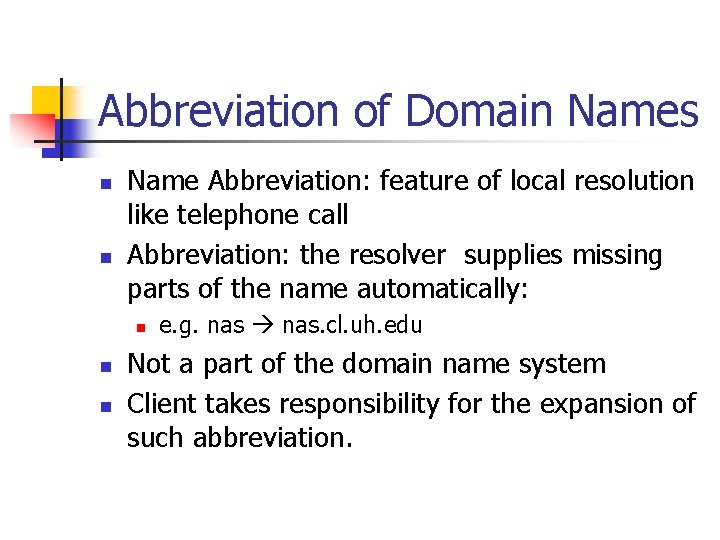

Abbreviation of Domain Names n n Name Abbreviation: feature of local resolution like telephone call Abbreviation: the resolver supplies missing parts of the name automatically: n n n e. g. nas. cl. uh. edu Not a part of the domain name system Client takes responsibility for the expansion of such abbreviation.

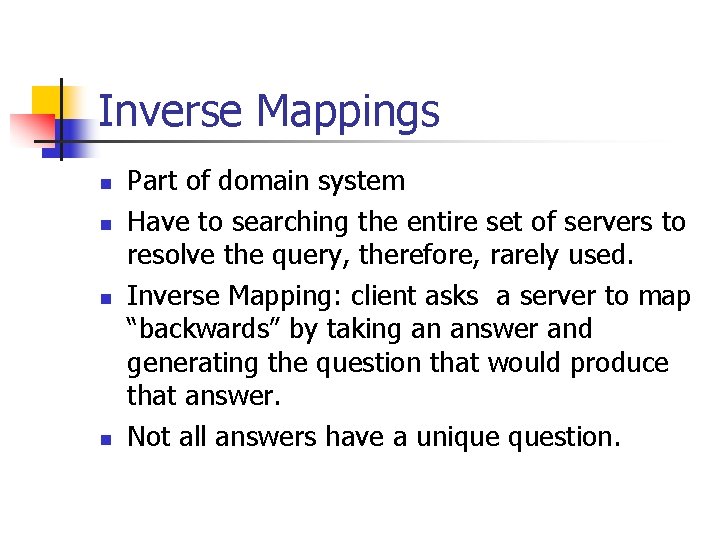

Inverse Mappings n n Part of domain system Have to searching the entire set of servers to resolve the query, therefore, rarely used. Inverse Mapping: client asks a server to map “backwards” by taking an answer and generating the question that would produce that answer. Not all answers have a unique question.

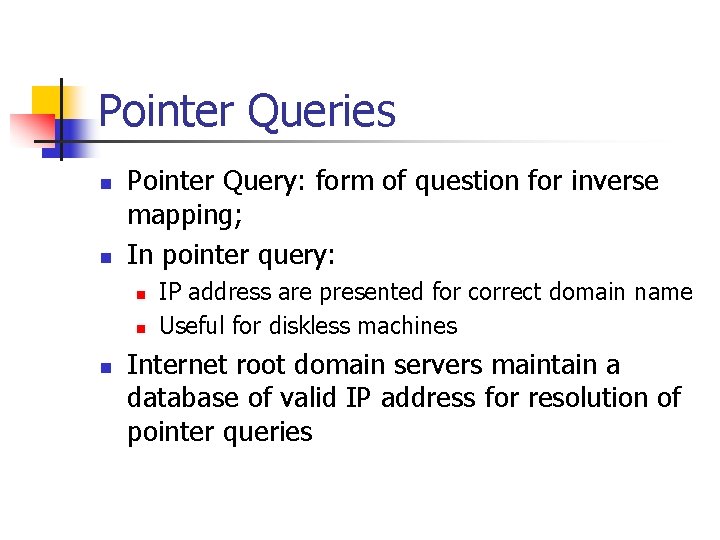

Pointer Queries n n Pointer Query: form of question for inverse mapping; In pointer query: n n n IP address are presented for correct domain name Useful for diskless machines Internet root domain servers maintain a database of valid IP address for resolution of pointer queries

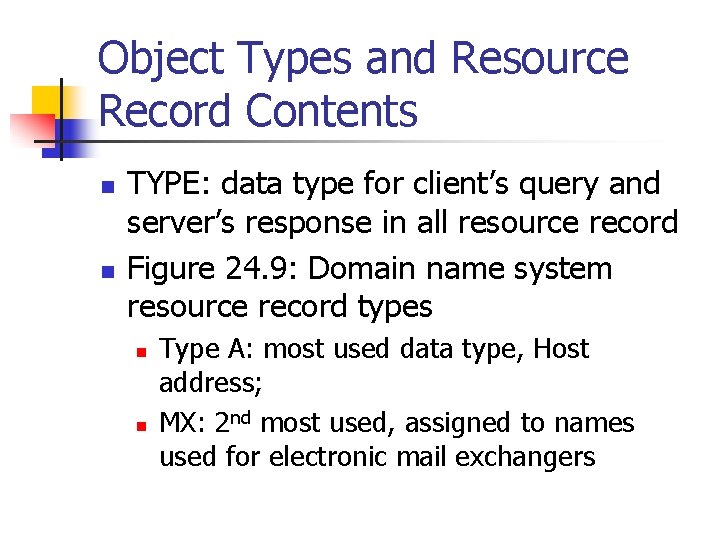

Object Types and Resource Record Contents n n TYPE: data type for client’s query and server’s response in all resource record Figure 24. 9: Domain name system resource record types n n Type A: most used data type, Host address; MX: 2 nd most used, assigned to names used for electronic mail exchangers

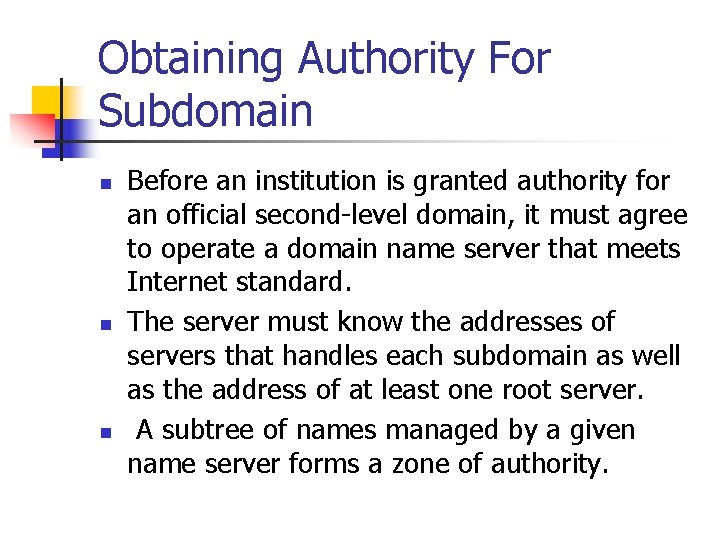

Obtaining Authority For Subdomain n Before an institution is granted authority for an official second-level domain, it must agree to operate a domain name server that meets Internet standard. The server must know the addresses of servers that handles each subdomain as well as the address of at least one root server. A subtree of names managed by a given name server forms a zone of authority.

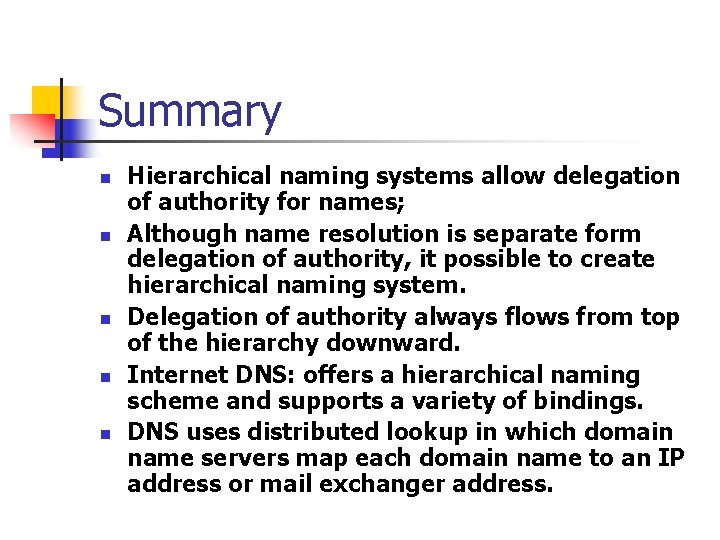

Summary n n n Hierarchical naming systems allow delegation of authority for names; Although name resolution is separate form delegation of authority, it possible to create hierarchical naming system. Delegation of authority always flows from top of the hierarchy downward. Internet DNS: offers a hierarchical naming scheme and supports a variety of bindings. DNS uses distributed lookup in which domain name servers map each domain name to an IP address or mail exchanger address.
