The Distance Scale Ladder

The Distance Scale Ladder

Determining Astronomical Distances Determine the AU (see handout) l Wait 150 years l First

Determining Astronomical Distances Determine the AU (see handout) l Wait 150 years l First parallax done in 1839 (1/3 asec) l Stars are now known to be light years away l What New Problem is suddenly created with this discovery?

Problems with Parallax Measurements Atmospheric motions limit position measurement precision of a single set

Problems with Parallax Measurements Atmospheric motions limit position measurement precision of a single set of measurements l Have to average position measurements over about 20 years to get reliable parallax l Systematic error could be present (and indeed it is) l

D = 15 Parsecs D = 25 Parsecs This feature Not Real

D = 15 Parsecs D = 25 Parsecs This feature Not Real

Hipparrcos Satellite Data 100, 000 stars

Hipparrcos Satellite Data 100, 000 stars

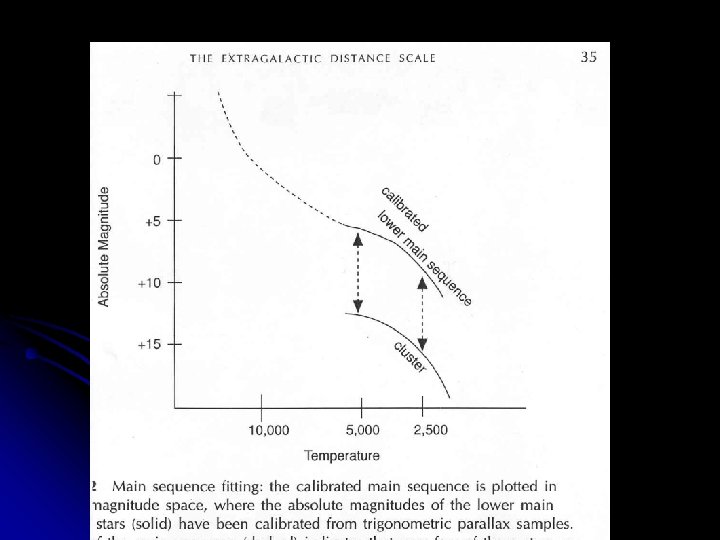

Luminosity Scale of the MS is determined from stellar parallax

Luminosity Scale of the MS is determined from stellar parallax

So Any systematic error in parallax leads to systematic error in the main sequence

So Any systematic error in parallax leads to systematic error in the main sequence l Systematic error in luminosity scale of main sequence leads to systematic error in measuring distances to clusters l

Cluster Distances Stars are all at the same distance l Clusters contain Cepheid Variables

Cluster Distances Stars are all at the same distance l Clusters contain Cepheid Variables l

Cepheid Variables Long Period variables are very bright l Individual ones can be seen

Cepheid Variables Long Period variables are very bright l Individual ones can be seen in nearby galaxies l Can be used to determine Galaxy distances l Hubble Space Telescope greatly extends the range of distances out to which Cepheids are observed l

Cepheid Calibration of Tully Fisher Relation

Cepheid Calibration of Tully Fisher Relation

Tully Fisher Relation n n Can be extended to very large distance because galaxy

Tully Fisher Relation n n Can be extended to very large distance because galaxy rotational velocities are easy to measure Can reach the undisturbed Hubble flow to measure the true expansion parameter. All systematic errors accumulate to this point Expansion parameter tells us expansion age
