The Display Campaign Municipal Buildings as Shining Examples
The Display® Campaign Municipal Buildings as Shining Examples XXX place, date, and speaker XXX
1. 2. 3. What is Display® Why the Campaign Can it be adapted to my country’s certification scheme 4. Why to join 5. How to join XXX place, date, and speaker XXX

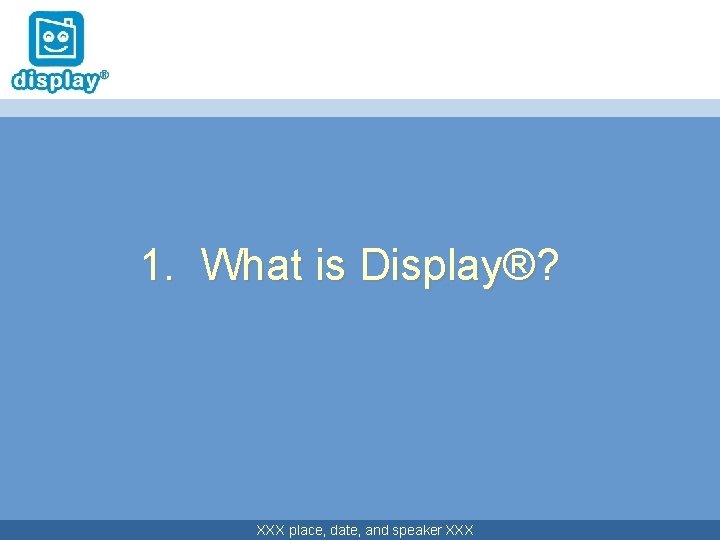

1. What is Display®? XXX place, date, and speaker XXX

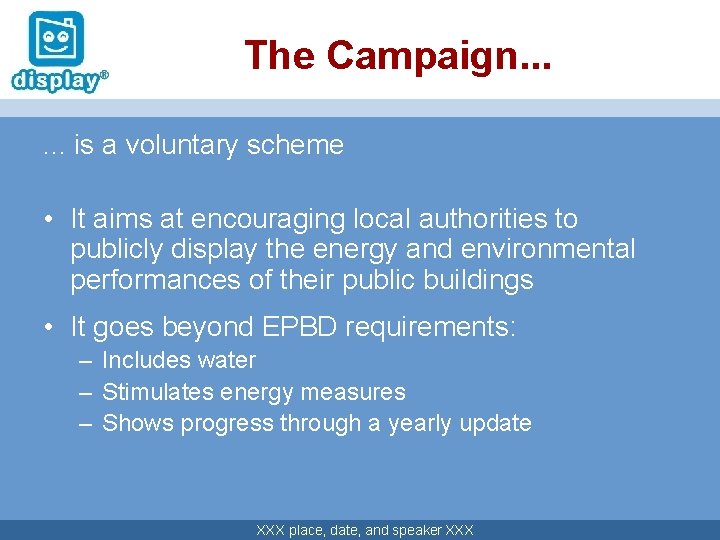

The Campaign. . . is a voluntary scheme • It aims at encouraging local authorities to publicly display the energy and environmental performances of their public buildings • It goes beyond EPBD requirements: – Includes water – Stimulates energy measures – Shows progress through a yearly update XXX place, date, and speaker XXX
Let your buildings talk CALCULATE: Building data and management tool COMMUNICATE: the Display Poster CELEBRATE: “Towards Class A” Award XXX place, date, and speaker XXX

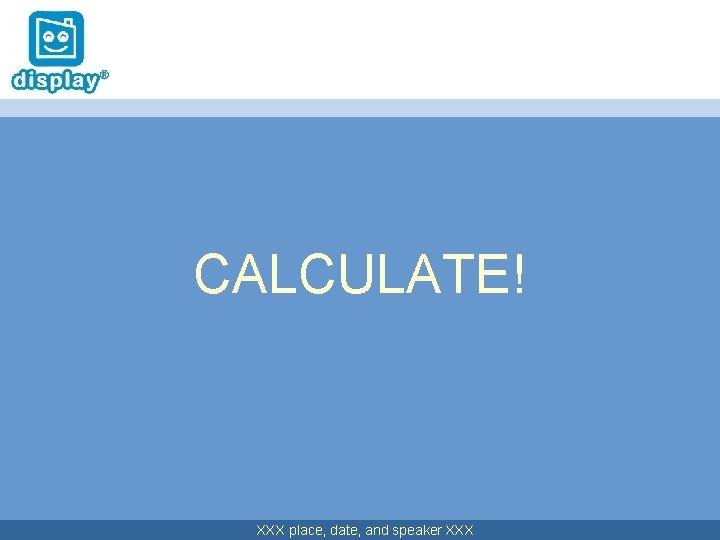

CALCULATE! XXX place, date, and speaker XXX

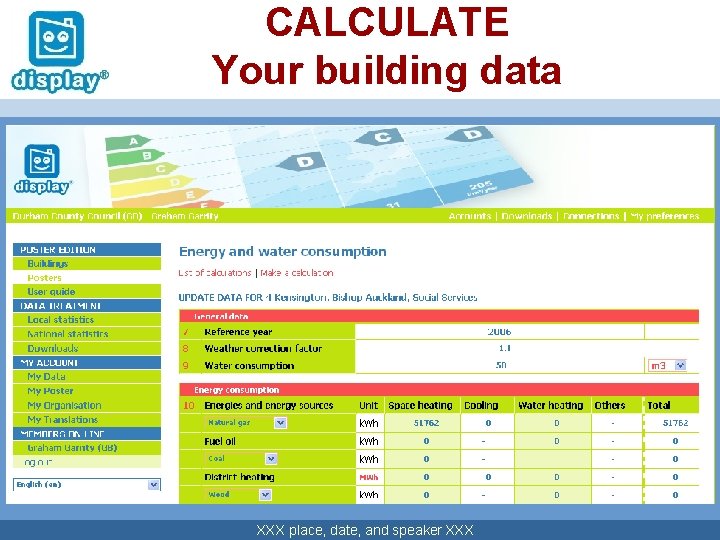

CALCULATE Your building data XXX place, date, and speaker XXX

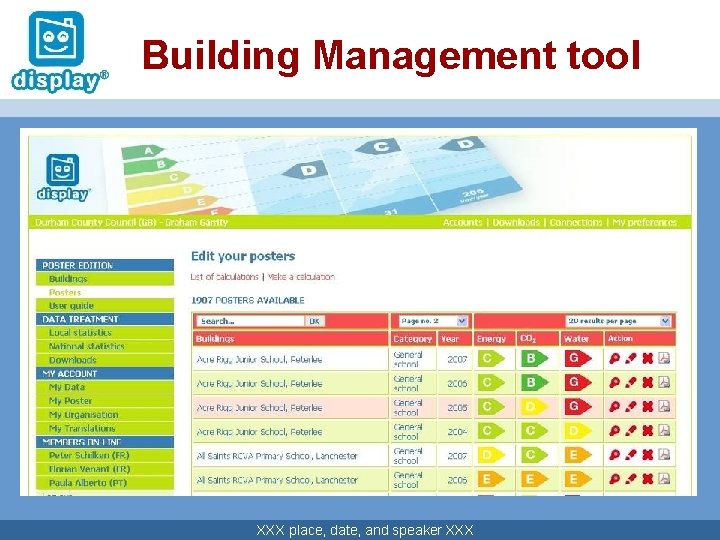

Building Management tool XXX place, date, and speaker XXX
COMMUNICATE! XXX place, date, and speaker XXX

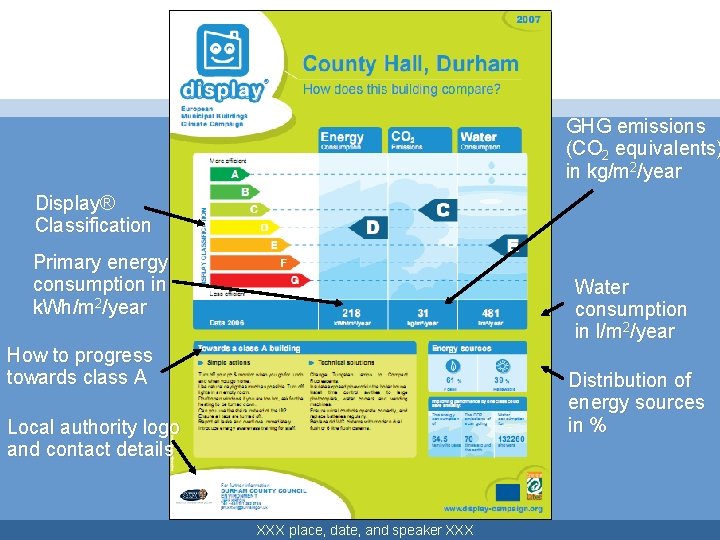

GHG emissions (CO 2 equivalents) in kg/m 2/year Display® Classification Primary energy consumption in k. Wh/m 2/year Water consumption in l/m 2/year How to progress towards class A Distribution of energy sources in % Local authority logo and contact details XXX place, date, and speaker XXX
а р ск и it - italia no lt - liet uvių k alba pt - rom ână por t u guê sk - sl s ove nči na sr p l - po -с рп ски lski uk јез -у ик кр аїн sl сь ка -s мо lo en v ва e -E nš lv ng čin -l lis a at h hr vie - h šu v rv at alo sk da i hu - magyar sv - svenska fr - français nl - Nederlands a in eg t ra eš - č Cym nsk cscy - a - da eutsch d de - D ά ληνικ λ ε l e pañol s e i keel et - eest fi - suomi In 25 European languages г - бъ л bg XXX place, date, and speaker XXX
A creative and participative process The first poster… XXX place, date, and speaker XXX
CELEBRATE! XXX place, date, and speaker XXX
“Towards Class A” Awards XXX place, date, and speaker XXX
2. Why the Campaign? XXX place, date, and speaker XXX
Campaign objectives • Communication and awareness at local authority level • Networking of municipalities • Accelerate the implementation of the Building Directive in municipal buildings XXX place, date, and speaker XXX

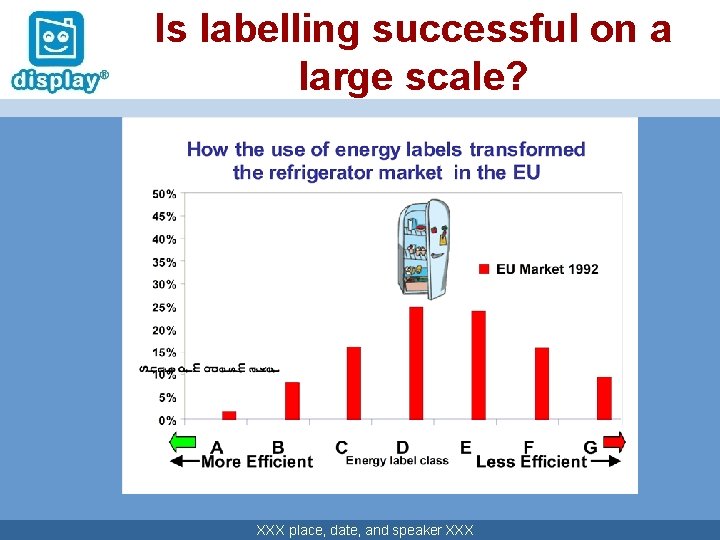

Is labelling successful on a large scale? XXX place, date, and speaker XXX

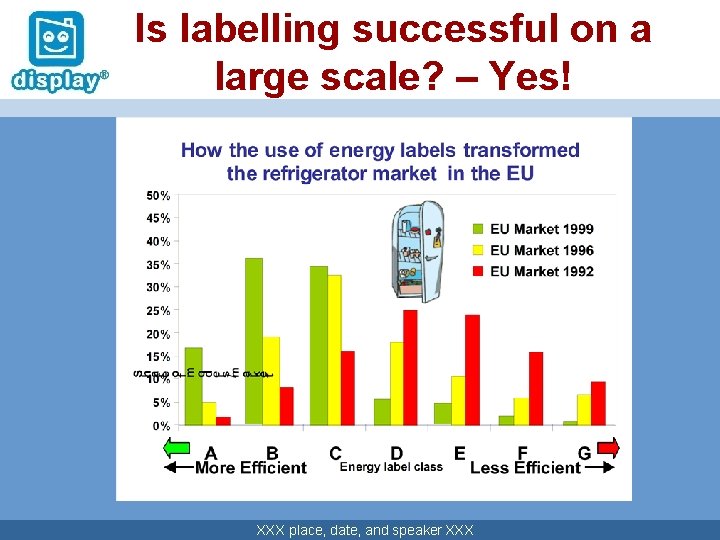

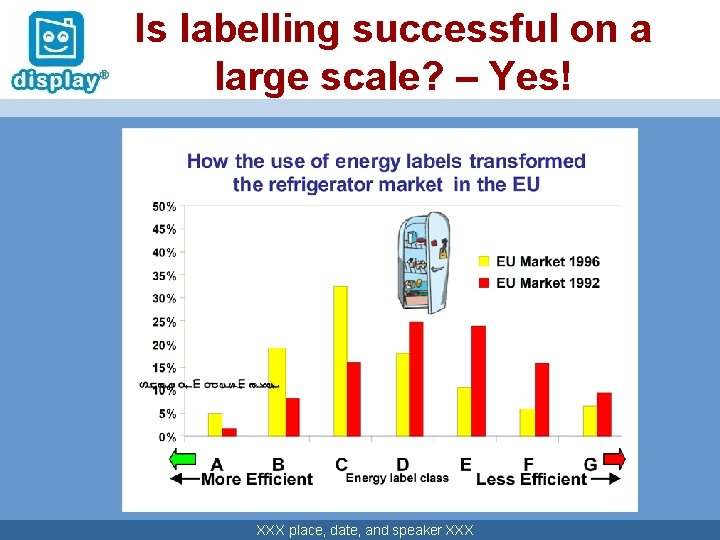

Is labelling successful on a large scale? – Yes! XXX place, date, and speaker XXX
Is labelling successful on a large scale? – Yes! XXX place, date, and speaker XXX
Is labelling successful on a large scale? – Yes! XXX place, date, and speaker XXX
Powerful partnerships • • • > 300 local authorities > 9000 buildings 27 countries 24 Relay Cities > 20 associated partners European Commission XXX place, date, and speaker XXX

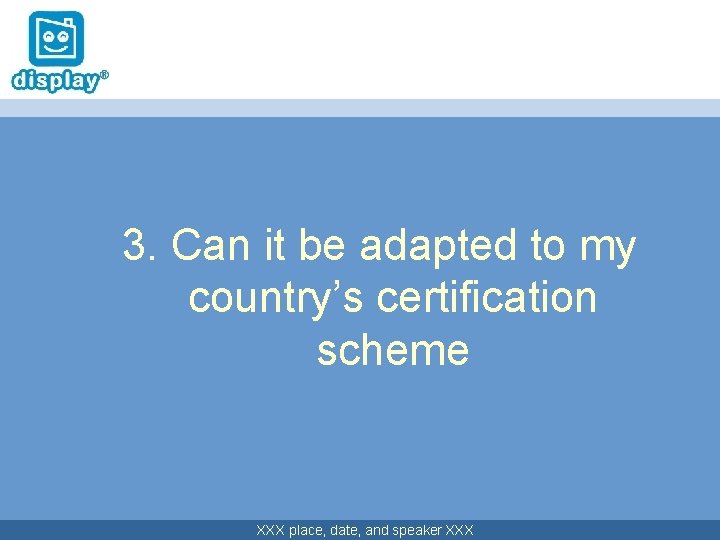

3. Can it be adapted to my country’s certification scheme XXX place, date, and speaker XXX

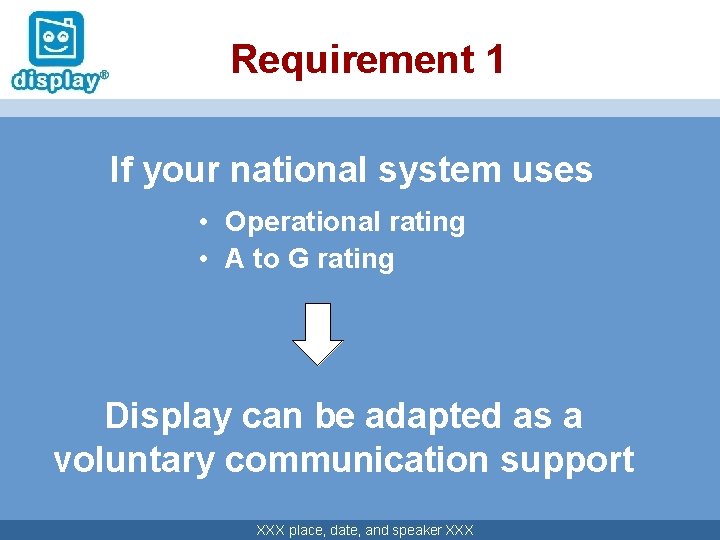

Requirement 1 If your national system uses • Operational rating • A to G rating Display can be adapted as a voluntary communication support XXX place, date, and speaker XXX

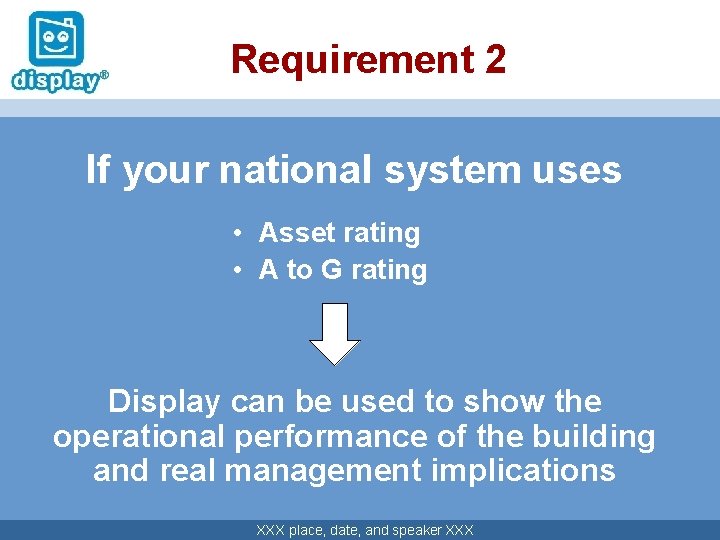

Requirement 2 If your national system uses • Asset rating • A to G rating Display can be used to show the operational performance of the building and real management implications XXX place, date, and speaker XXX
Example France • > 120 Display participants • French Display users Club since 2006 10 -15 local authorities French National Agency (ADEME) French ministry (MEEDDAT-DHUP) Energie-Cités • Open and interactive discussions XXX place, date, and speaker XXX

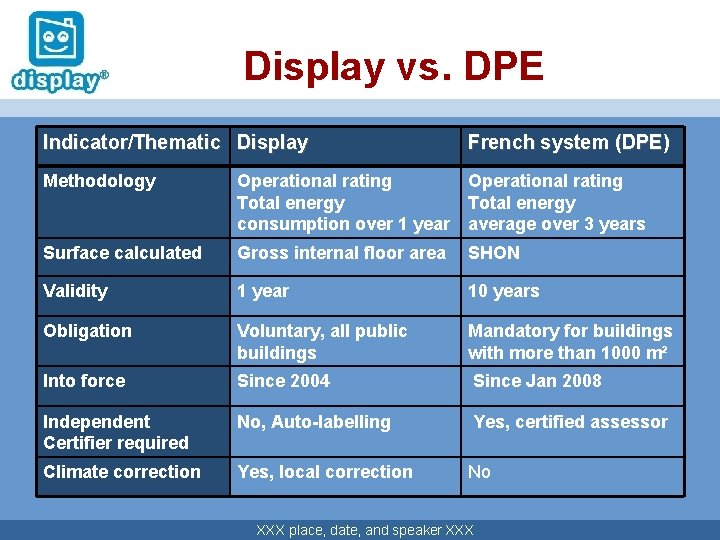

Display vs. DPE Indicator/Thematic Display French system (DPE) Methodology Operational rating Total energy consumption over 1 year Operational rating Total energy average over 3 years Surface calculated Gross internal floor area SHON Validity 1 year 10 years Obligation Voluntary, all public buildings Mandatory for buildings with more than 1000 m² Into force Since 2004 Since Jan 2008 Independent Certifier required No, Auto-labelling Yes, certified assessor Climate correction Yes, local correction No XXX place, date, and speaker XXX

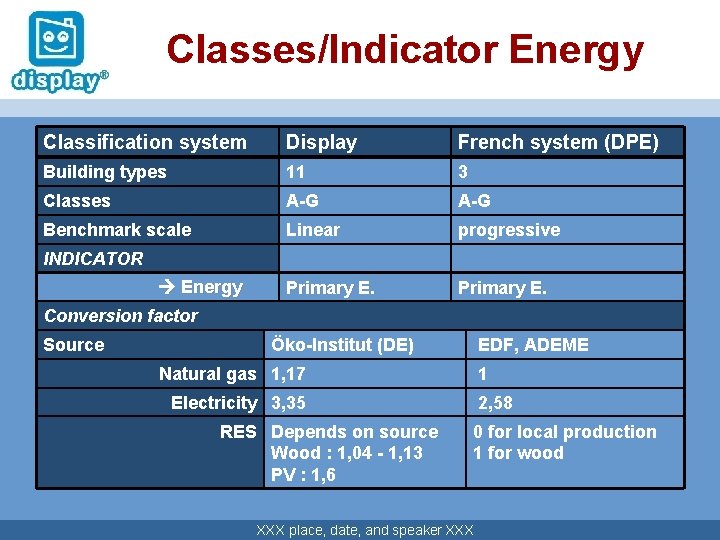

Classes/Indicator Energy Classification system Display French system (DPE) Building types 11 3 Classes A-G Benchmark scale Linear progressive Primary E. INDICATOR Energy Conversion factor Source Öko-Institut (DE) EDF, ADEME Natural gas 1, 17 1 Electricity 3, 35 RES Depends on source Wood : 1, 04 - 1, 13 PV : 1, 6 2, 58 0 for local production 1 for wood XXX place, date, and speaker XXX
CO 2 Emissions and others Indicator/thematic Display French system (DPE) - CO 2 emissions yes Conversion factor Natural gas 0, 253 0, 205 Electricity 0, 108 0, 084 RES 0, 021 – 0, 034 0 - Water yes No - Costs No, but can be indicated in the Towards class A section Yes, but on supporting data Recommendations for improvement of building performance yes Technical solutions Simple actions on communication poster Yes, but on supporting data pages of DPE XXX place, date, and speaker XXX

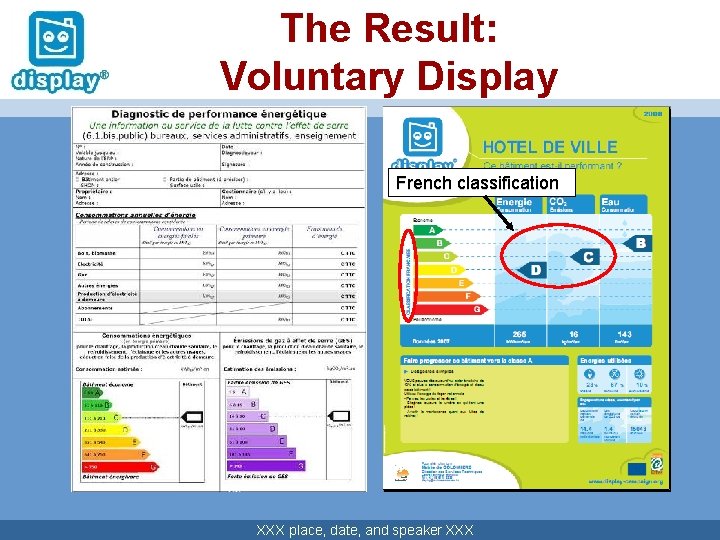

The Result: Voluntary Display French classification XXX place, date, and speaker XXX
4. What are the benefits of joining? XXX place, date, and speaker XXX

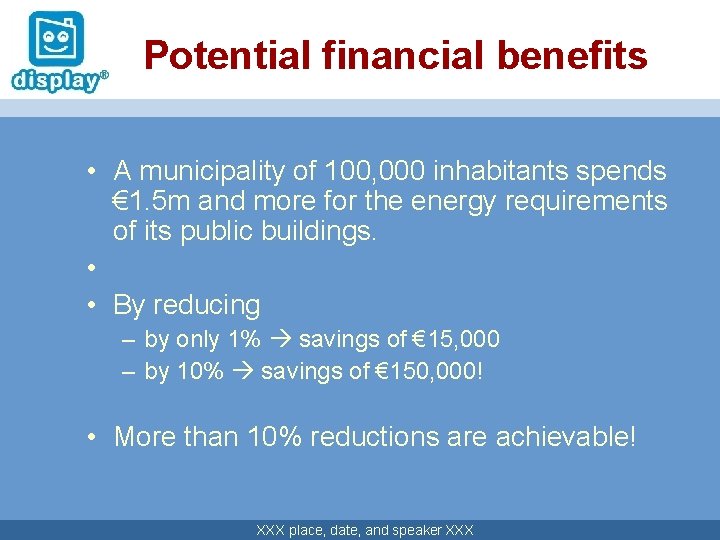

Potential financial benefits • A municipality of 100, 000 inhabitants spends € 1. 5 m and more for the energy requirements of its public buildings. • • By reducing – by only 1% savings of € 15, 000 – by 10% savings of € 150, 000! • More than 10% reductions are achievable! XXX place, date, and speaker XXX

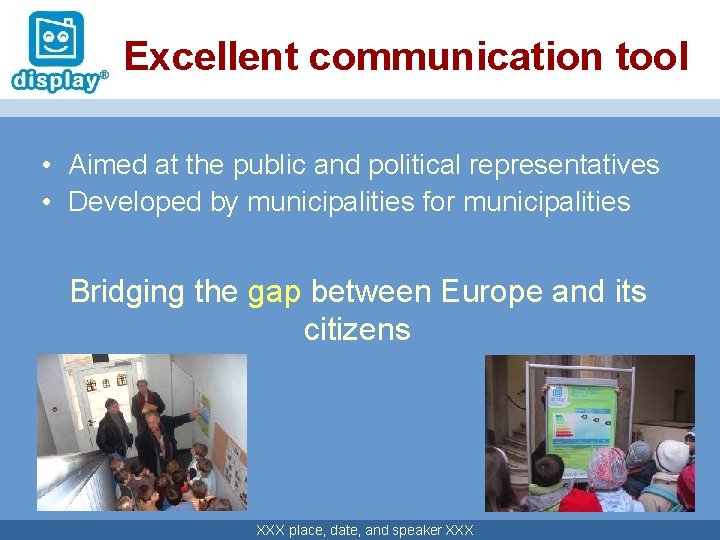

Excellent communication tool • Aimed at the public and political representatives • Developed by municipalities for municipalities Bridging the gap between Europe and its citizens XXX place, date, and speaker XXX
Boosts your city’s image • XXX place, date, and speaker XXX
Excellent building management tool XXX place, date, and speaker XXX
5. How to join? XXX place, date, and speaker XXX
Who can join? • Any European municipality may participate regardless of: • its size • the existing building stock • its level of knowledge regarding its buildings’ performance • Companies from the private sector (offices and multi-residential buildings) XXX place, date, and speaker XXX
www. display-campaign. org XXX place, date, and speaker XXX

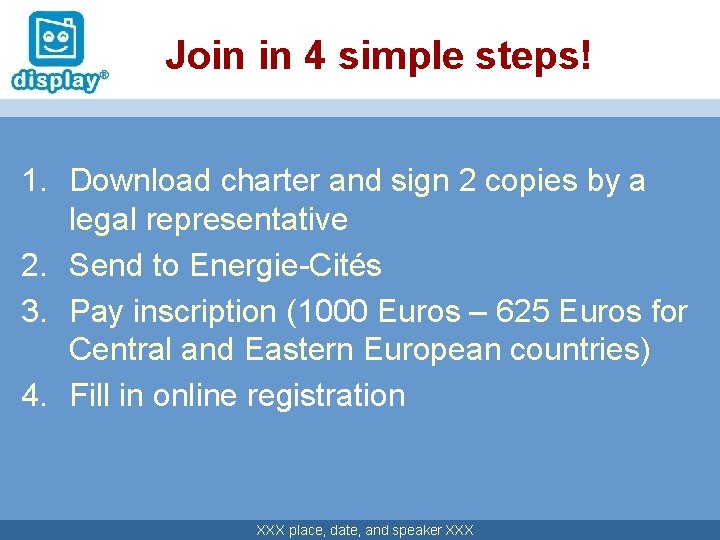

Join in 4 simple steps! 1. Download charter and sign 2 copies by a legal representative 2. Send to Energie-Cités 3. Pay inscription (1000 Euros – 625 Euros for Central and Eastern European countries) 4. Fill in online registration XXX place, date, and speaker XXX

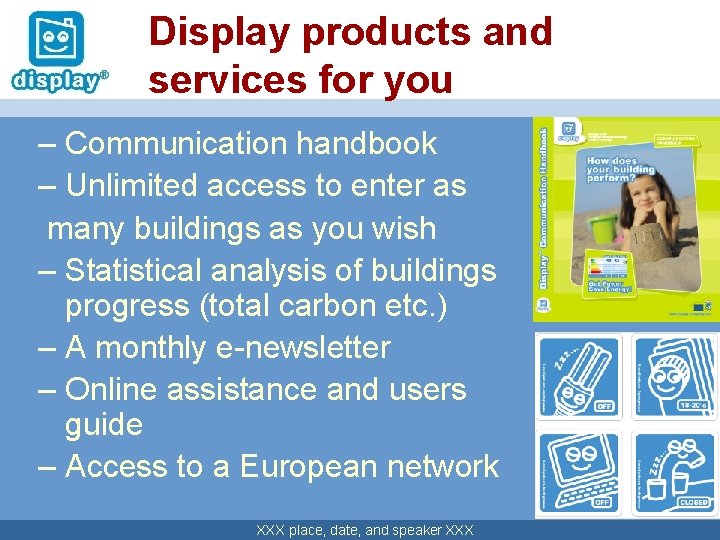

Display products and services for you – Communication handbook – Unlimited access to enter as many buildings as you wish – Statistical analysis of buildings progress (total carbon etc. ) – A monthly e-newsletter – Online assistance and users guide – Access to a European network XXX place, date, and speaker XXX

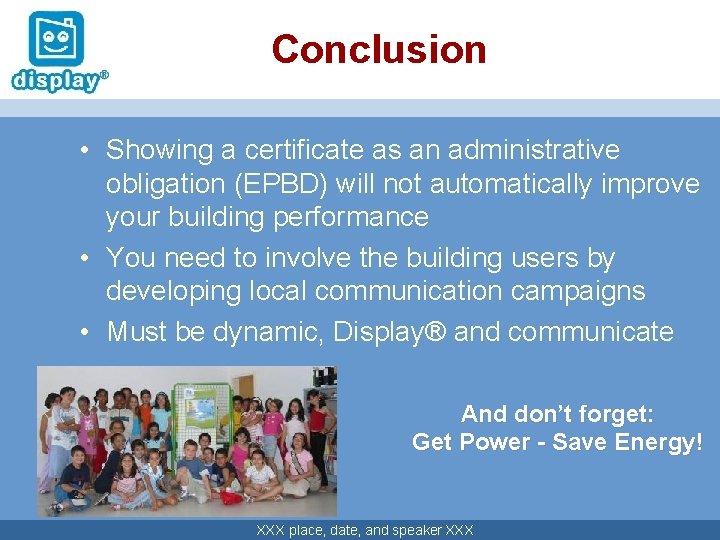

Conclusion • Showing a certificate as an administrative obligation (EPBD) will not automatically improve your building performance • You need to involve the building users by developing local communication campaigns • Must be dynamic, Display® and communicate And don’t forget: Get Power - Save Energy! XXX place, date, and speaker XXX
Thank you for your time! www. display-campaign. org Contact Ian Turner: www. energie-cites. eu/ian XXX place, date, and speaker XXX
