The diagram below shows the Moon in different

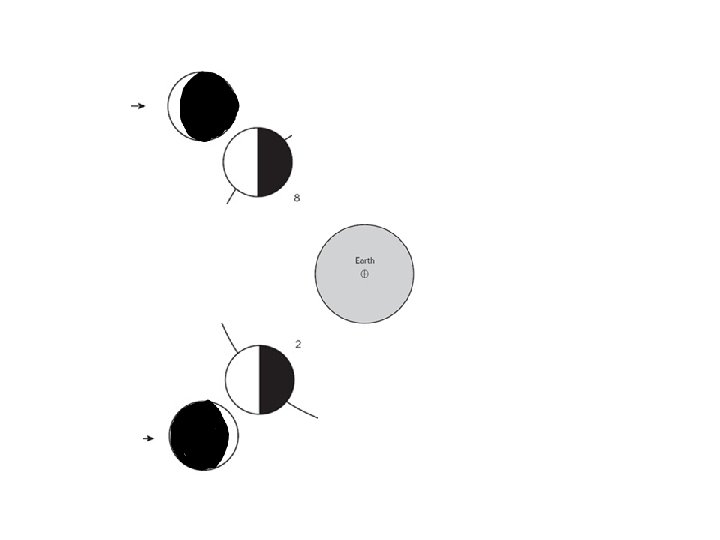

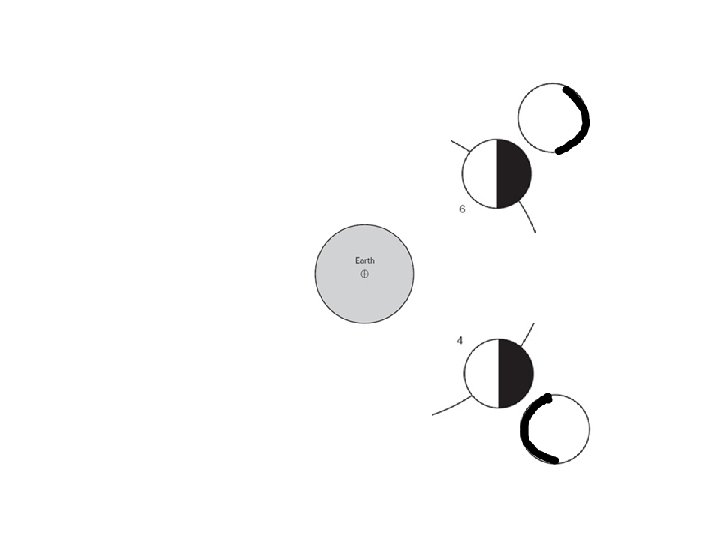

The diagram below shows the Moon in different positions as it revolves around Earth, as observed from above the North Pole (NP). Which image correctly represents the Moon at position 1, as observed from Earth?

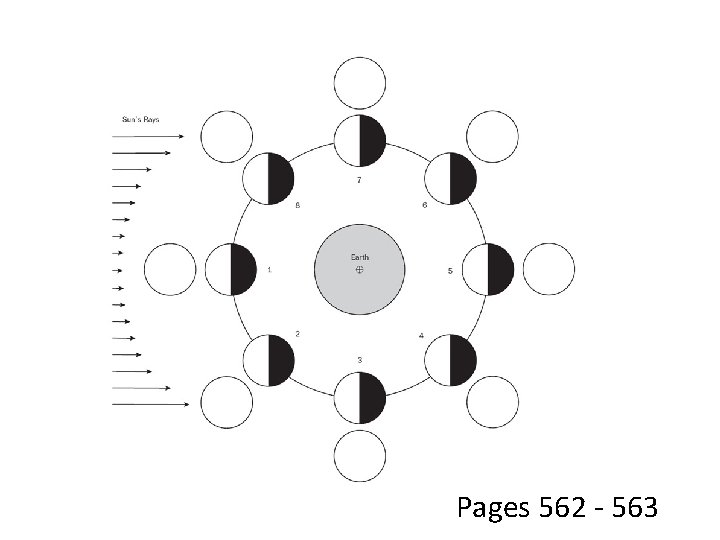

Pages 562 - 563

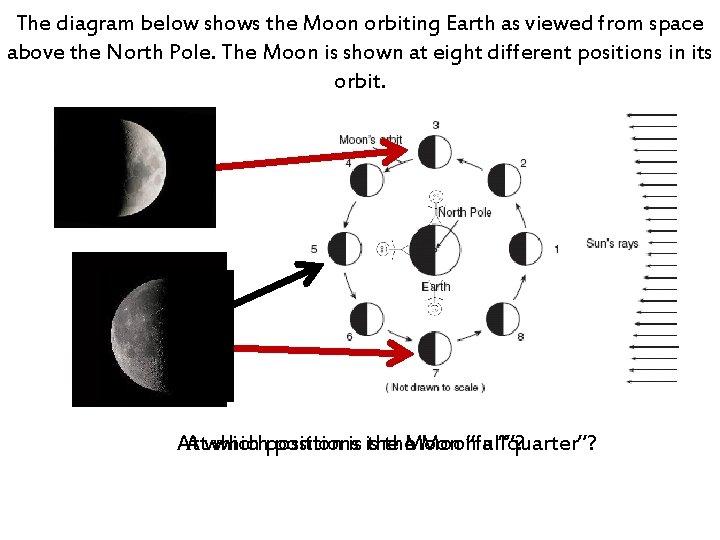

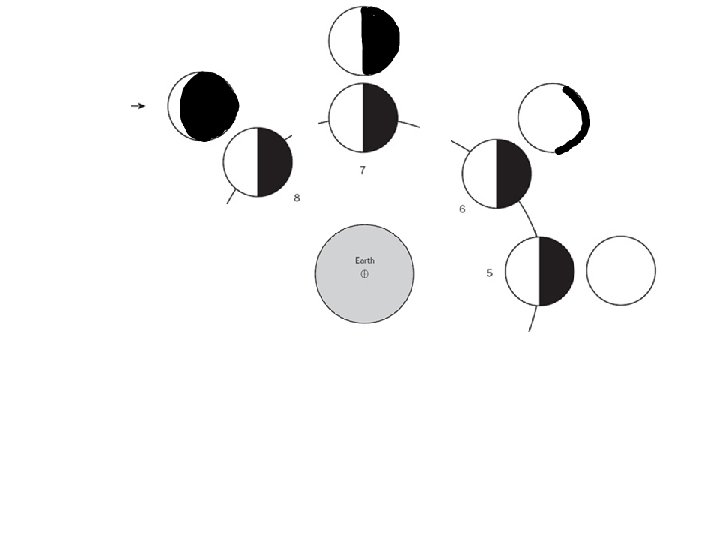

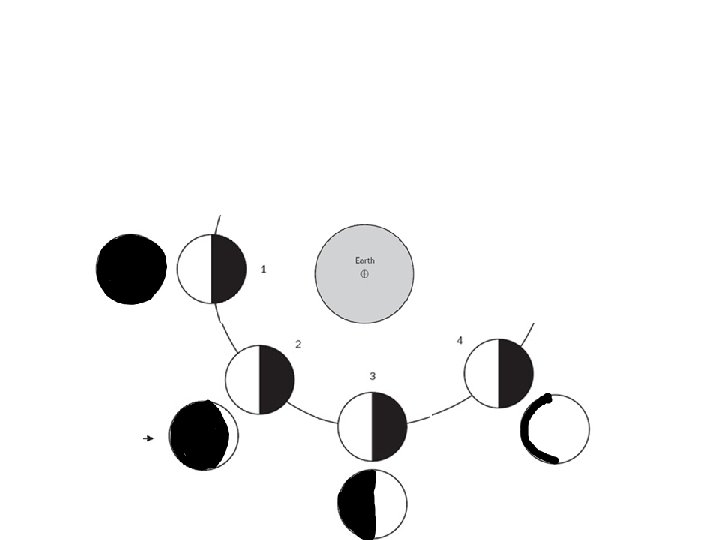

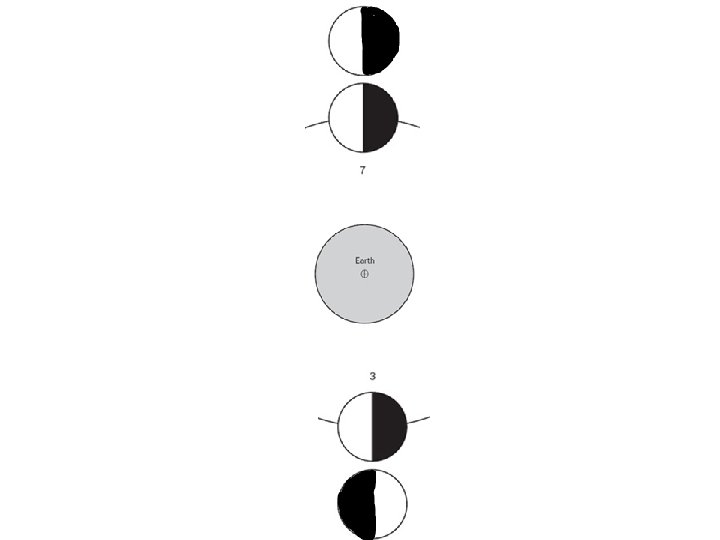

The diagram below shows the Moon orbiting Earth as viewed from space above the North Pole. The Moon is shown at eight different positions in its orbit. At Atwhichpositionsis isthe the. Moon“full”? a “quarter”?

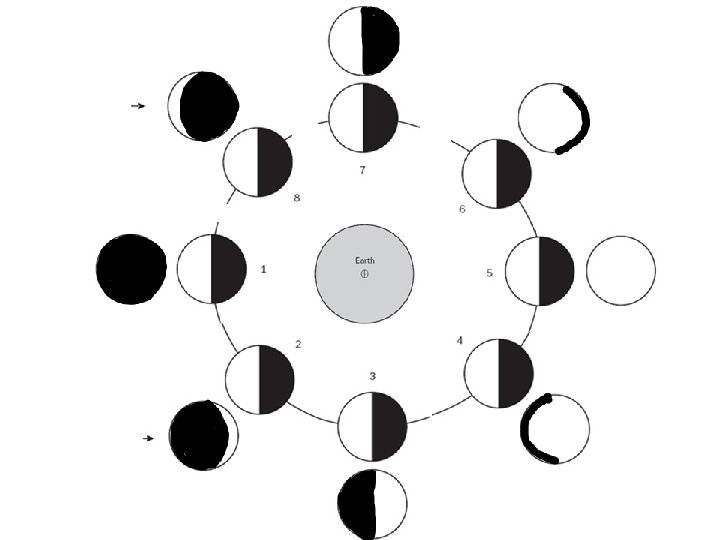

The diagram below shows the Moon orbiting Earth as viewed from space above the North Pole. The Moon is shown at eight different positions in its orbit.

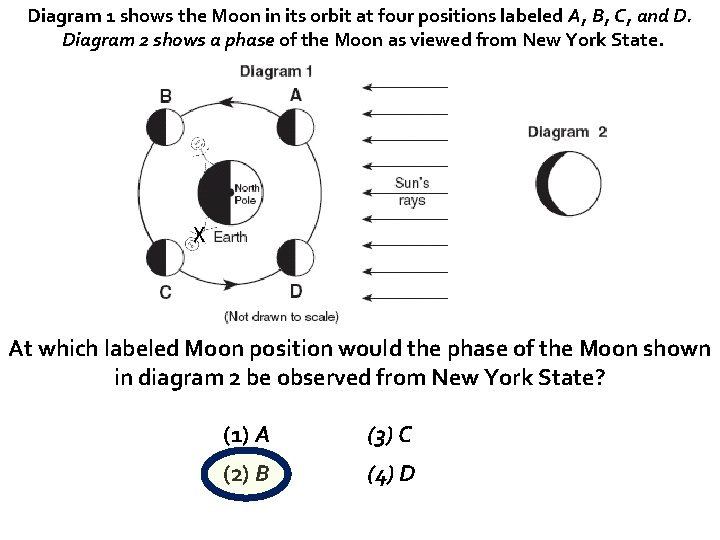

Diagram 1 shows the Moon in its orbit at four positions labeled A, B, C, and D. Diagram 2 shows a phase of the Moon as viewed from New York State. X At which labeled Moon position would the phase of the Moon shown in diagram 2 be observed from New York State? (1) A (3) C (2) B (4) D

The moon takes 27. 3 days to revolve but the phases take closer to 30 days! b a l l a It’s … s n o i t o m e h out t

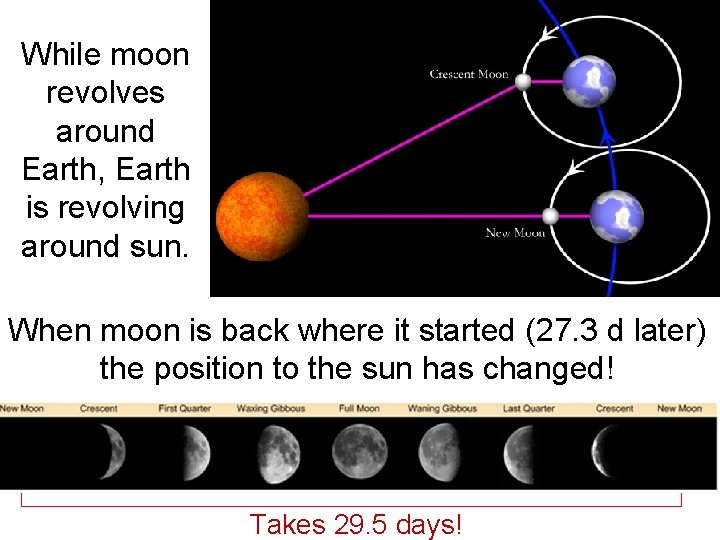

While moon revolves around Earth, Earth is revolving around sun. When moon is back where it started (27. 3 d later) the position to the sun has changed! Takes 29. 5 days!

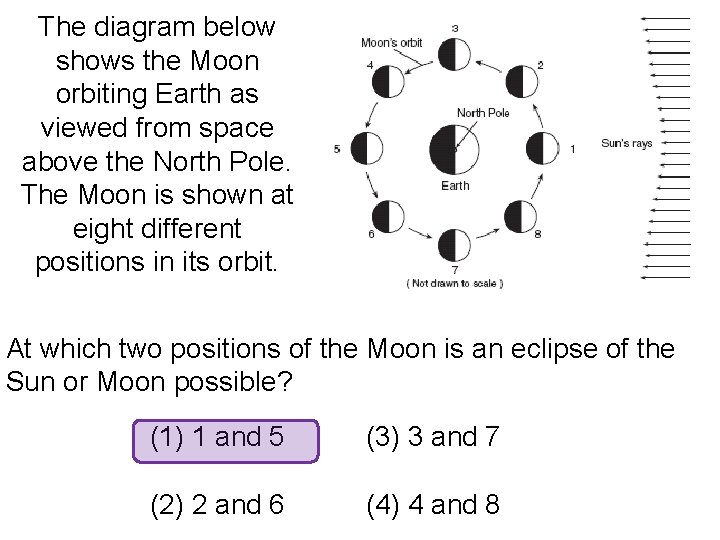

The diagram below shows the Moon orbiting Earth as viewed from space above the North Pole. The Moon is shown at eight different positions in its orbit. At which two positions of the Moon is an eclipse of the Sun or Moon possible? (1) 1 and 5 (3) 3 and 7 (2) 2 and 6 (4) 4 and 8

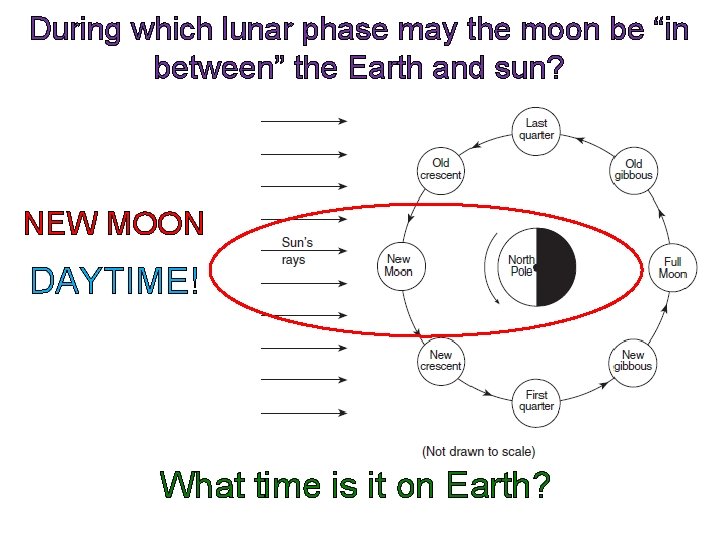

During which lunar phase may the moon be “in between” the Earth and sun? NEW MOON DAYTIME! What time is it on Earth?

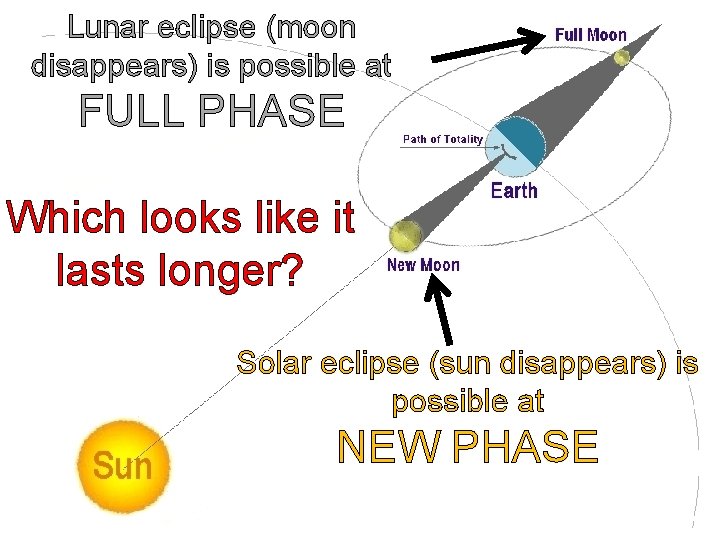

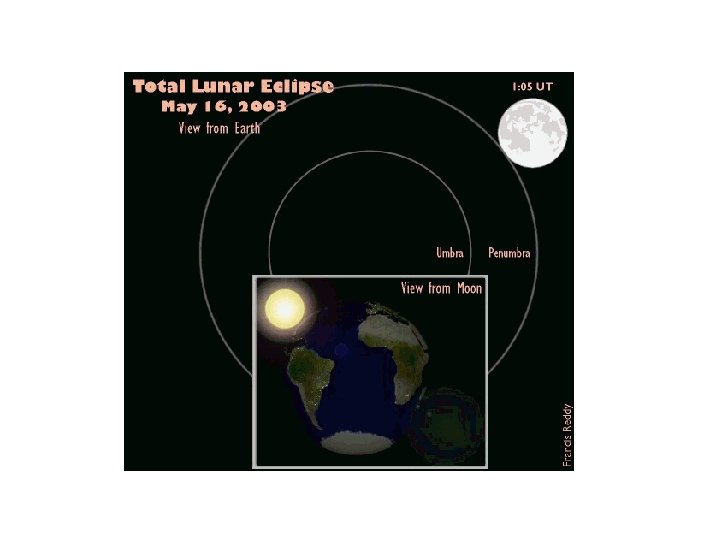

Lunar eclipse (moon disappears) is possible at FULL PHASE Which looks like it lasts longer? Solar eclipse (sun disappears) is possible at NEW PHASE

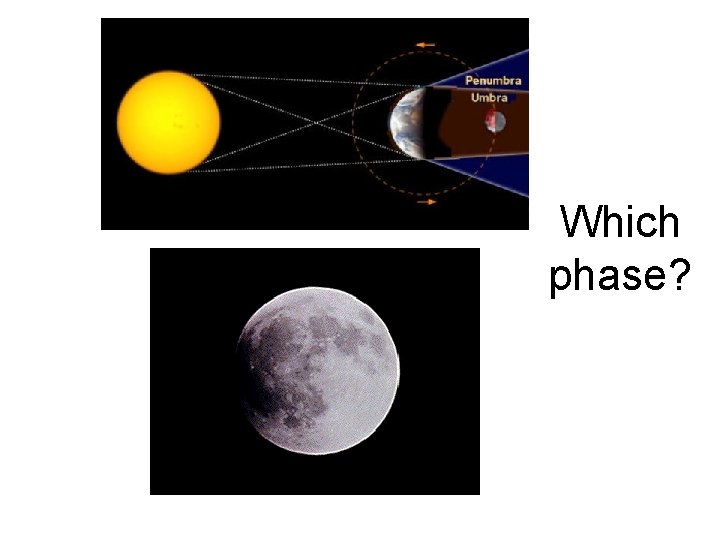

Which phase?

Which phase?

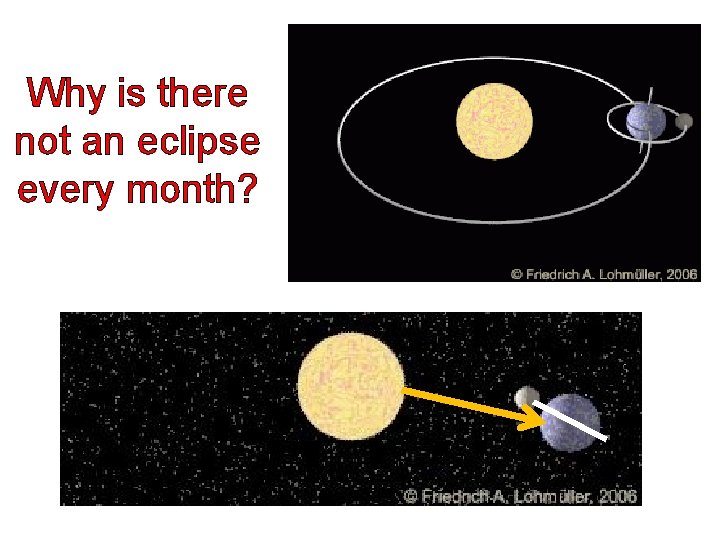

Why is there not an eclipse every month?

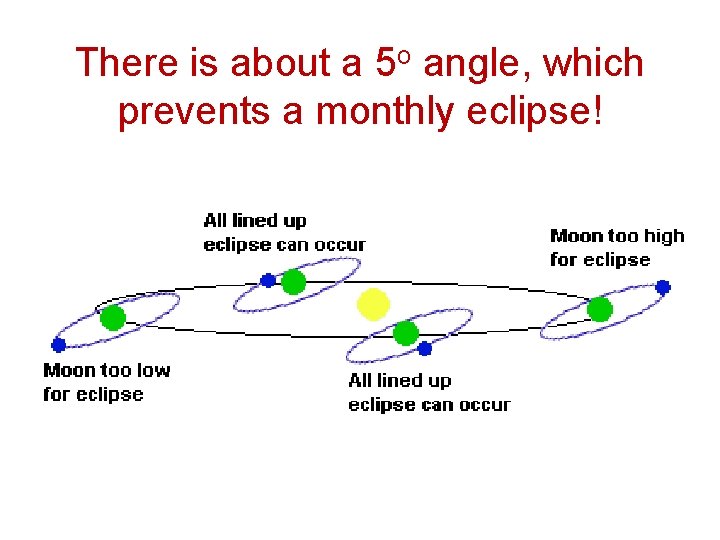

There is about a 5 o angle, which prevents a monthly eclipse!
