The Development of Process Migration and Dynamic Load Balancing in Cluster Middleware Developer: Advisor: E-mail: Thadpong Pongthawornkamol Asst. Prof. Dr. Putchong Uthayopas Department of Computer Engineering Faculty of Engineering Kasetsart University b 4205091@prg. cpe. ku. ac. th

Outline • • • Goal Migration Library Load Balancing Module Performance Measurement Problems Future Work

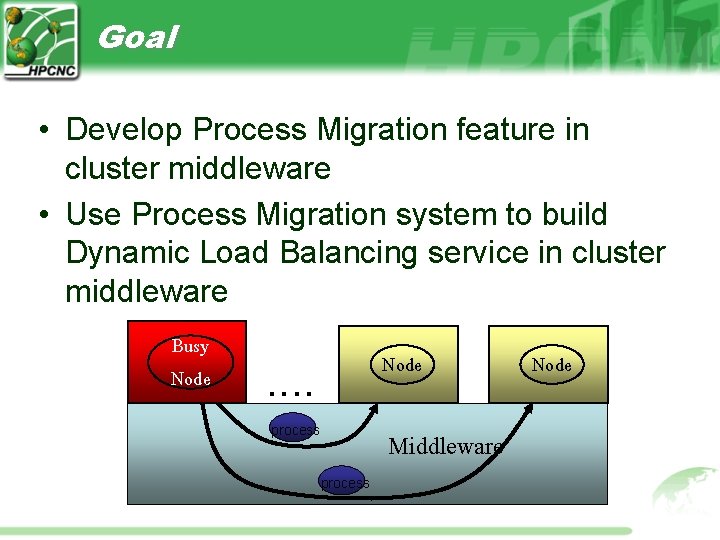

Goal • Develop Process Migration feature in cluster middleware • Use Process Migration system to build Dynamic Load Balancing service in cluster middleware Busy Node . . process Middleware process Node

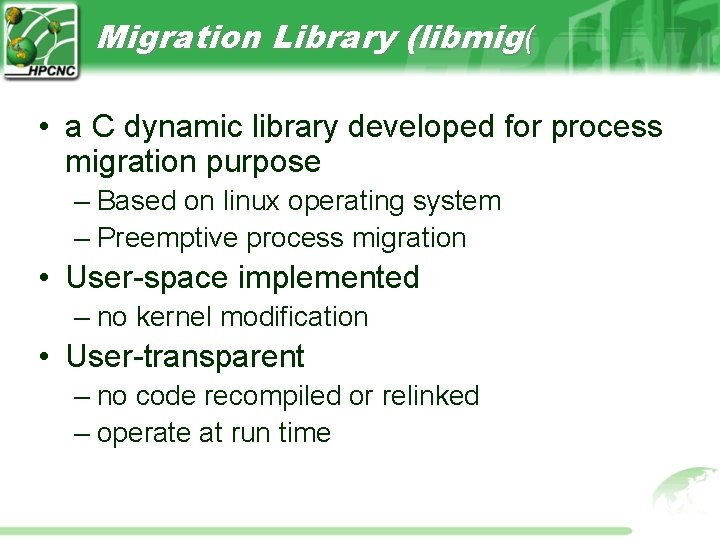

Migration Library (libmig( • a C dynamic library developed for process migration purpose – Based on linux operating system – Preemptive process migration • User-space implemented – no kernel modification • User-transparent – no code recompiled or relinked – operate at run time

Libmig : mechanism signal Process checkpoint restore libmig machine libmig. sck file machine

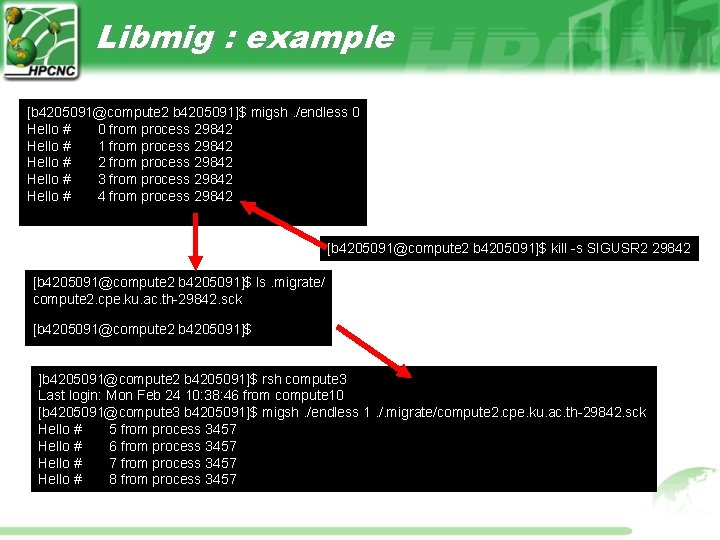

Libmig : example [b 4205091@compute 2 b 4205091]$ migsh. /endless 0 Hello # 0 from process 29842 Hello # 1 from process 29842 Hello # 2 from process 29842 Hello # 3 from process 29842 Hello # 4 from process 29842 [b 4205091@compute 2 b 4205091]$ kill -s SIGUSR 2 29842 [b 4205091@compute 2 b 4205091]$ ls. migrate/ compute 2. cpe. ku. ac. th-29842. sck [b 4205091@compute 2 b 4205091]$ ]b 4205091@compute 2 b 4205091]$ rsh compute 3 Last login: Mon Feb 24 10: 38: 46 from compute 10 [b 4205091@compute 3 b 4205091]$ migsh. /endless 1. /. migrate/compute 2. cpe. ku. ac. th-29842. sck Hello # 5 from process 3457 Hello # 6 from process 3457 Hello # 7 from process 3457 Hello # 8 from process 3457

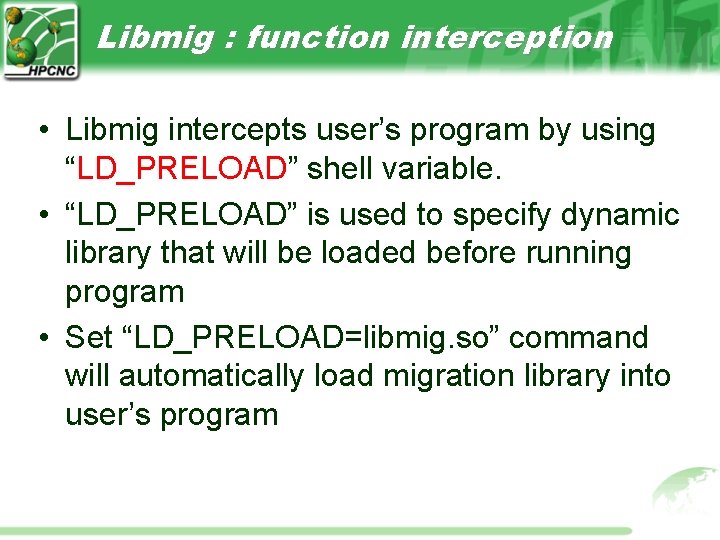

Libmig : function interception • Libmig intercepts user’s program by using “LD_PRELOAD” shell variable. • “LD_PRELOAD” is used to specify dynamic library that will be loaded before running program • Set “LD_PRELOAD=libmig. so” command will automatically load migration library into user’s program

Libmig : function interception (cont. ) Hey, Mr. OS Where’s __libc_start_main() ? __libc_start_main() is in me!! User program libmig. so Ouch!!! libc. so. 6 • Migration library inject itself into user’s program via __libc_start_main().

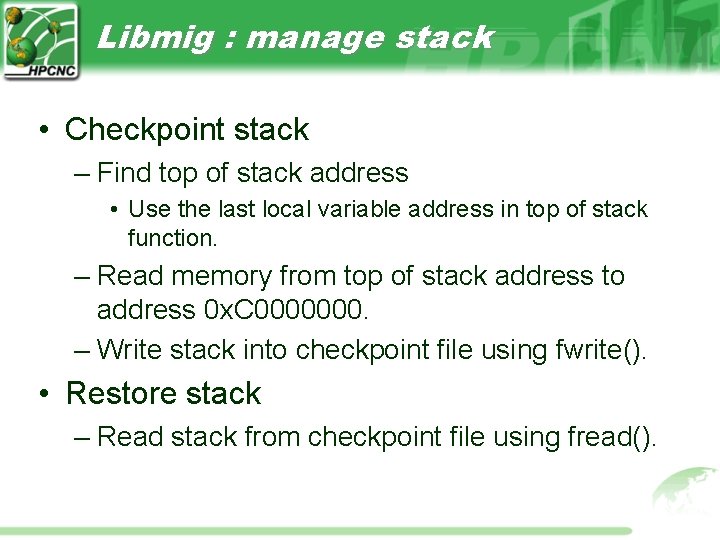

Libmig : manage stack • Checkpoint stack – Find top of stack address • Use the last local variable address in top of stack function. – Read memory from top of stack address to address 0 x. C 0000000. – Write stack into checkpoint file using fwrite(). • Restore stack – Read stack from checkpoint file using fread().

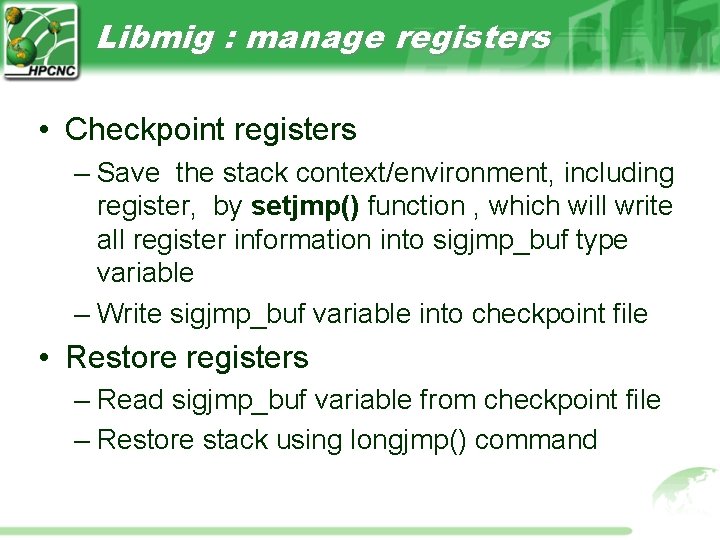

Libmig : manage registers • Checkpoint registers – Save the stack context/environment, including register, by setjmp() function , which will write all register information into sigjmp_buf type variable – Write sigjmp_buf variable into checkpoint file • Restore registers – Read sigjmp_buf variable from checkpoint file – Restore stack using longjmp() command

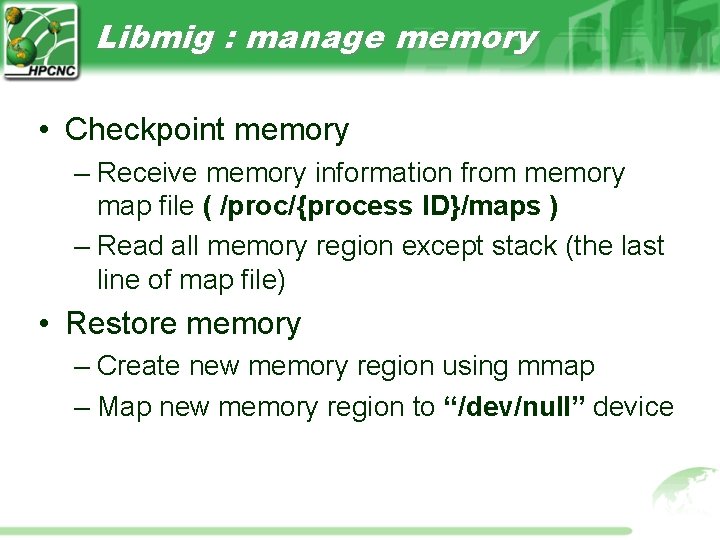

Libmig : manage memory • Checkpoint memory – Receive memory information from memory map file ( /proc/{process ID}/maps ) – Read all memory region except stack (the last line of map file) • Restore memory – Create new memory region using mmap – Map new memory region to “/dev/null” device

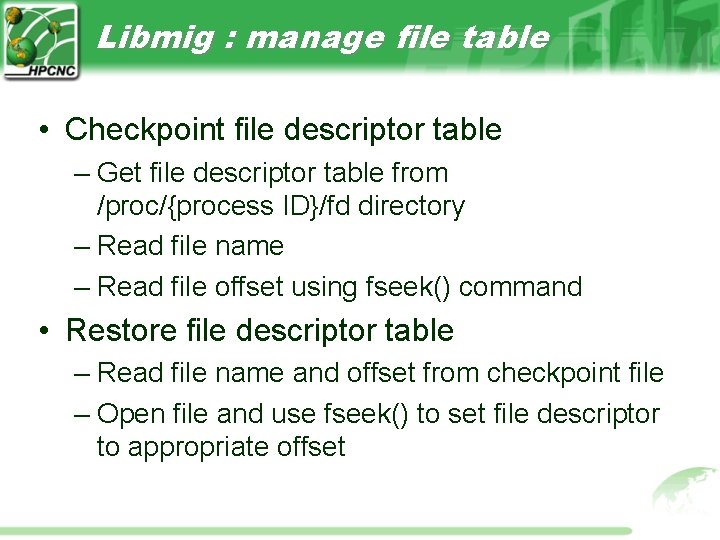

Libmig : manage file table • Checkpoint file descriptor table – Get file descriptor table from /proc/{process ID}/fd directory – Read file name – Read file offset using fseek() command • Restore file descriptor table – Read file name and offset from checkpoint file – Open file and use fseek() to set file descriptor to appropriate offset

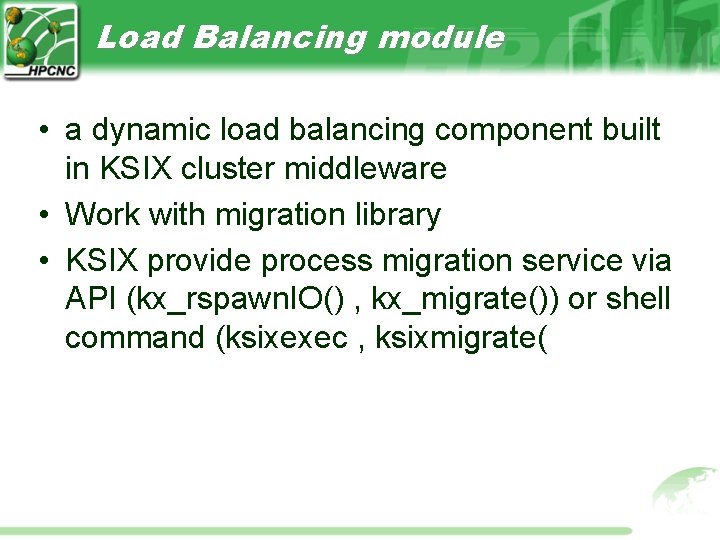

Load Balancing module • a dynamic load balancing component built in KSIX cluster middleware • Work with migration library • KSIX provide process migration service via API (kx_rspawn. IO() , kx_migrate()) or shell command (ksixexec , ksixmigrate(

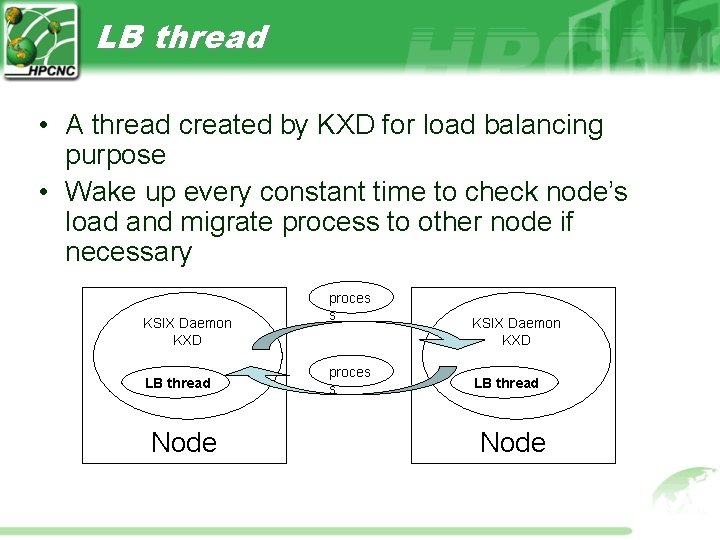

LB thread • A thread created by KXD for load balancing purpose • Wake up every constant time to check node’s load and migrate process to other node if necessary KSIX Daemon KXD LB thread Node proces s KSIX Daemon KXD LB thread Node

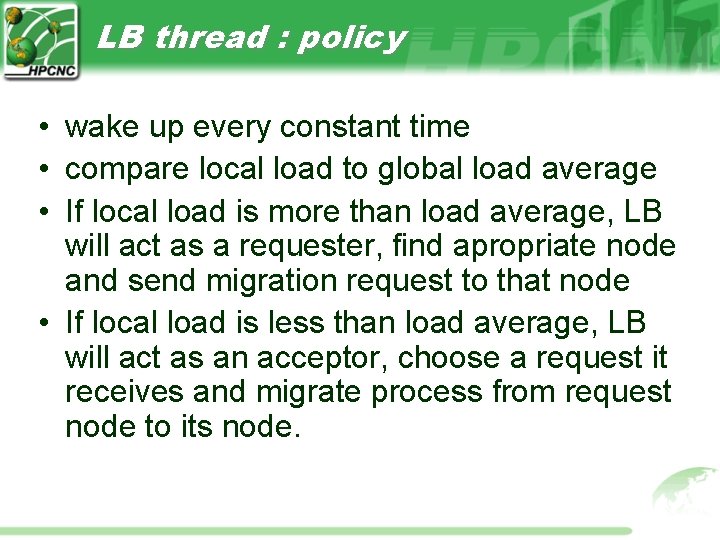

LB thread : policy • wake up every constant time • compare local load to global load average • If local load is more than load average, LB will act as a requester, find apropriate node and send migration request to that node • If local load is less than load average, LB will act as an acceptor, choose a request it receives and migrate process from request node to its node.

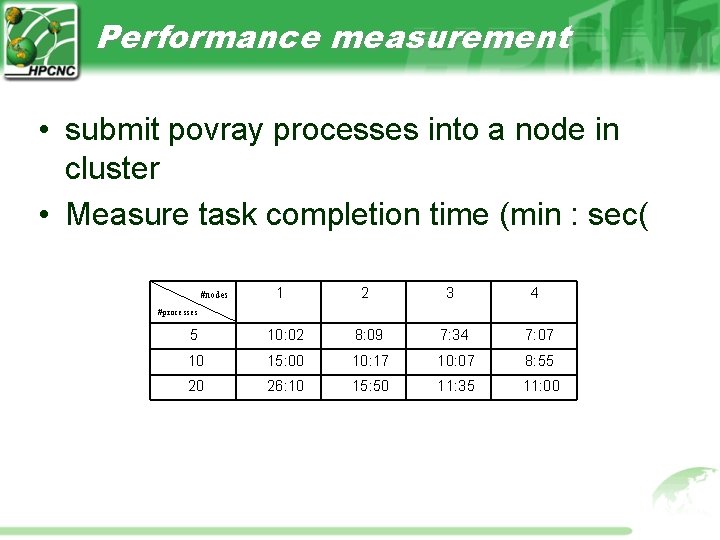

Performance measurement • submit povray processes into a node in cluster • Measure task completion time (min : sec( #processes #nodes 1 2 3 4 5 10: 02 8: 09 7: 34 7: 07 10 15: 00 10: 17 10: 07 8: 55 20 26: 10 15: 50 11: 35 11: 00

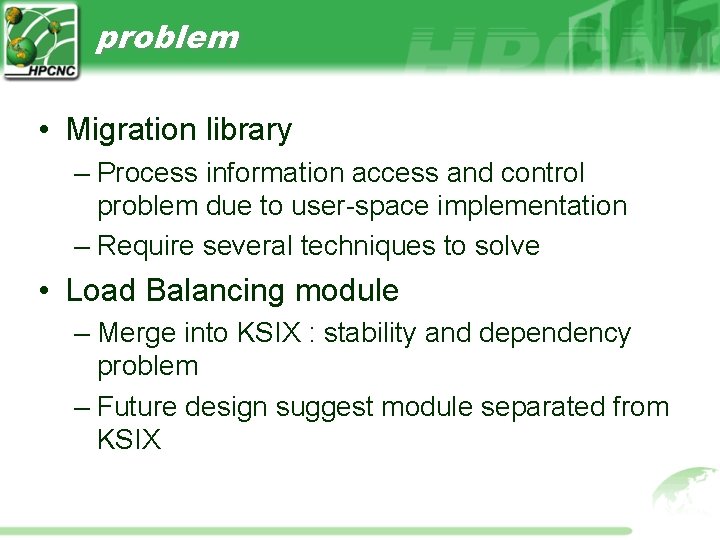

problem • Migration library – Process information access and control problem due to user-space implementation – Require several techniques to solve • Load Balancing module – Merge into KSIX : stability and dependency problem – Future design suggest module separated from KSIX

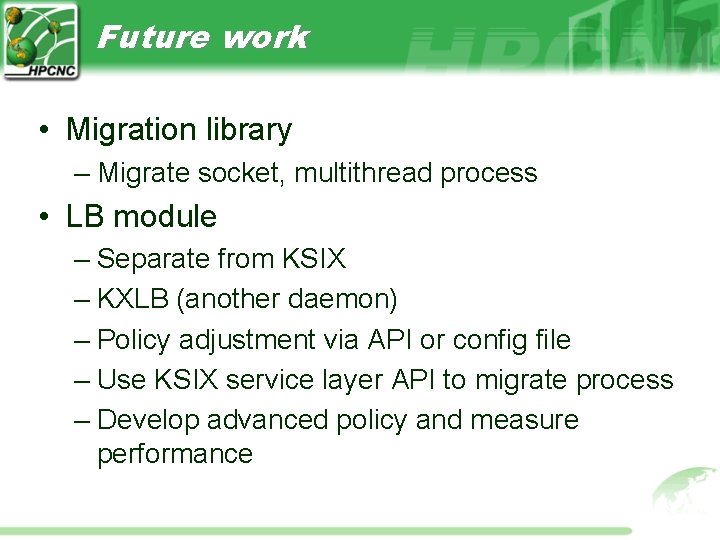

Future work • Migration library – Migrate socket, multithread process • LB module – Separate from KSIX – KXLB (another daemon) – Policy adjustment via API or config file – Use KSIX service layer API to migrate process – Develop advanced policy and measure performance

The End Any Question ?

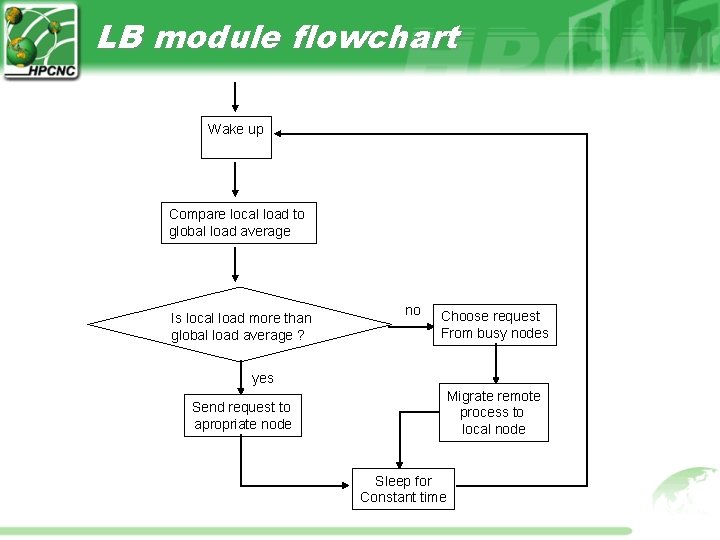

LB module flowchart Wake up Compare local load to global load average Is local load more than global load average ? no Choose request From busy nodes yes Migrate remote process to local node Send request to apropriate node Sleep for Constant time
