The Dangers and Benefits of Volcanoes video 9

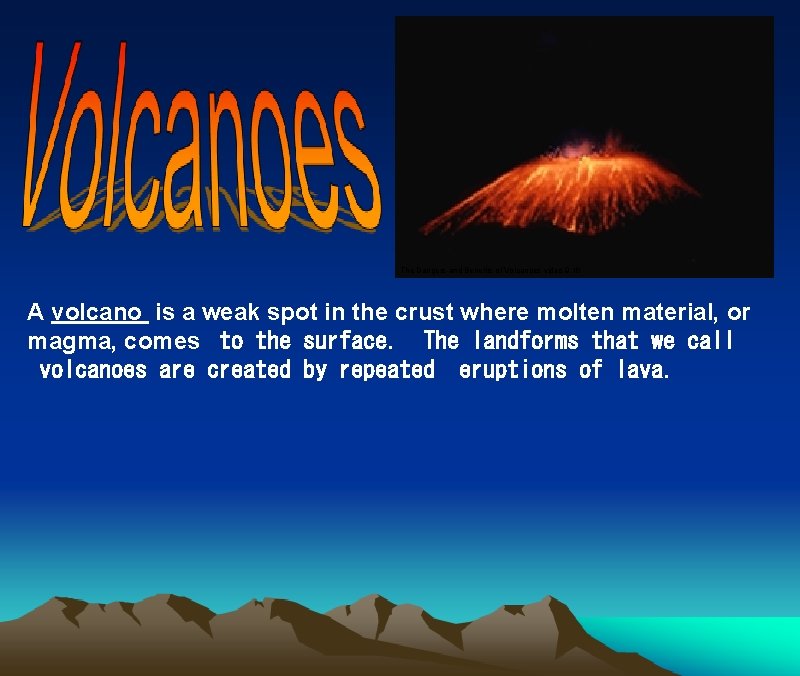

The Dangers and Benefits of Volcanoes video 9. 16 A volcano is a weak spot in the crust where molten material, or magma, comes
to the surface. The landforms that we call
volcanoes are created by repeated
eruptions of lava.

Magma is the
molten mixture of
rock-forming
substances, gases,
and water that
makes up part of
Earth's mantle. video Most volcanoes occur along diverging
plate boundaries, such as the midocean
ridge, or in subduction zones around the
edges of oceans.

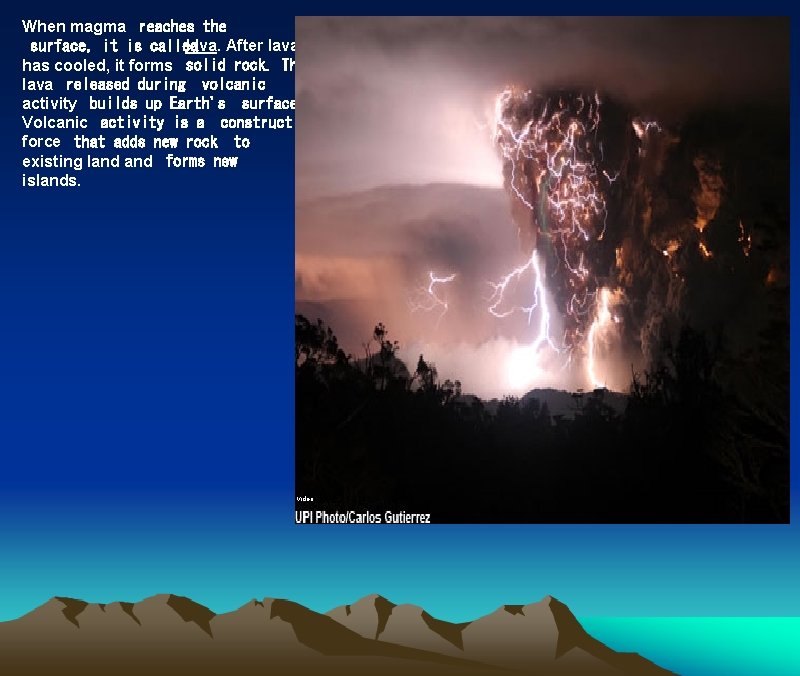

When magma
reaches the
surface, it is called lava.
 After lava has cooled, it forms
solid rock. The lava
released during
volcanic activity
builds up Earth's
surface. Volcanic
activity is a
constructive force
that adds new rock
to existing land
forms new islands. video

Volcanic Eruptions During volcanic eruptions, many rock
fragments are blown into the air. The smallest
particles are called volcanic dust. (less than 0. 25 mm) Volcanic Ash ( 0. 25 -5 mm) falls to the Earth
and forms small rocks. Volcanic bombs (a few cm to several meters)
are molten and harden as they travel through
the air.

Parts of a Volcano pipe - a long tube in the ground that connects the
 agma chamber to Earth's surface crust - the crust is Earth's outermost, rocky layer. lava - lava is molten rock; it usually comes out of
 rupting volcanoes. magma chamber - a magma chamber contains
 agma (molten rock) deep within the Earth's crust. vent - a vent is an opening in the Earth's surface
 hrough which volcanic materials erupt. caldera - the depression created when the roof of a
 agma chamber collapses. Subduction, Magma Chambers Volcanic Mountains 5. 46

Label a Volcano ash vent lava pipe crust magma
chamber

Parts of a Volcano ash side vent lava pipe crust magma chamber Magma Inside the Earth 4. 45

Types of Volcanoes Different types of volcanic eruptions form
different types of volcanoes.  inder cones  hield volcanoes  omposite volcanoes

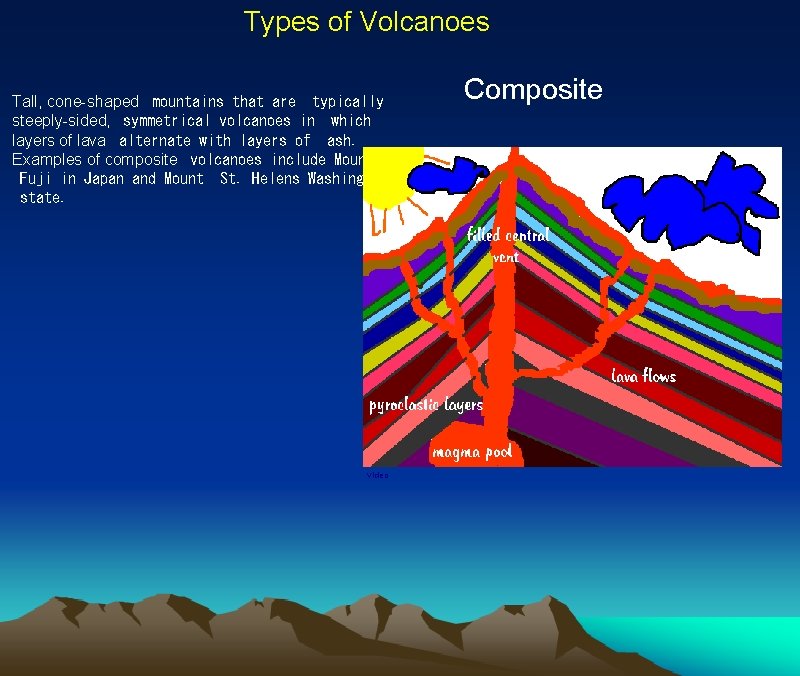

Types of Volcanoes Tall, cone-shaped
mountains that are
typically steeply-sided,
symmetrical volcanoes in
which layers of lava
alternate with layers of
ash. Examples of composite
volcanoes include Mount
Fuji in Japan and Mount
St. Helens Washington
state. video Composite

Composite

Mt. Vesuvius

Mount Vesuvius Images of
victims in
eruption of
Vesuvius in
 79 AD. Most
died as a
result of
suffocation
from the ash. video

Types of Volcanoes Cinder Cone Cinder cone volcanoes
are the most common kind
of volcanoes. They are
steep sided cones.
Streaming gases carry
liquid lava blobs into the
atmosphere that fall backto earth around a single
vent to form the cone. The
volcano forms when ash,
cinders and bombs pile up
around the vent to form a
circular or oval cone. video

Cinder Cone

Types of Volcanoes At some places on
Earth's surface, thin
layers of lava pour out of
a vent and harden on
top of previous layers.
Such lava flows
gradually build a wide,
gently sloping mountain
called ashield volcano. Shield volcanoes rising
from a hot spot on the
ocean floor created the
Hawaiian Islands. video Shield Volcano

Shield

Crater/Caldera There is often a funnel-shaped pit or
depression at the top of a volcani cone.
This pit is called crater. a If the crater becomes very large as a result of the
collapse of its walls, it is called caldera. a
A caldera may also form when the top of a volcano explodes or when
the magma chamber collapses.

Volcanic Crater

Caldera

Volcanic Activity Volcanoes are rather unpredictable. Some erupt
regularly, others have not erupted modern history.
Scientists classify them as active, dormant or
extinct.

Active Volcanoes An active volcano is one that
erupts continually or periodically
such as Mount Katmai in Alaska
and Mount St Helens in the
Cascade Range. active = constant

Dormant Volcano A volcano that has been known
to erupt within modern time but
is now inactive is classified as a
dormant volcano. Mount Rainier in
Washington state is an example of
a dormant volcano in the United
States. dormant = sleeping

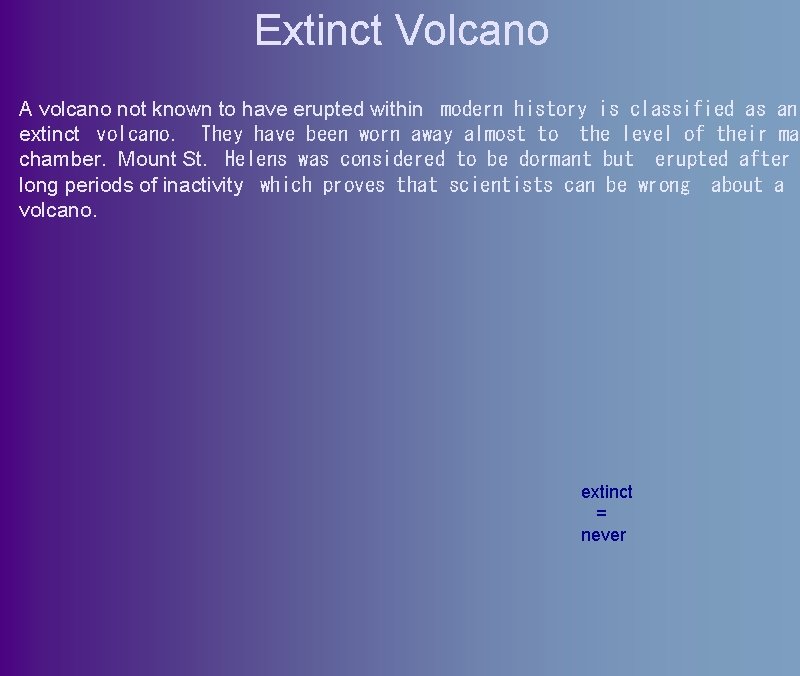

Extinct Volcano A volcano not known to have erupted within
modern history is classified as an extinct
volcano. They have been worn away almost to
the level of their mag chamber. Mount St.
Helens was considered to be dormant but
erupted after long periods of inactivity
which proves that scientists can be wrong
about a volcano. extinct = never

Where are the Volcanoes? Count the
total
amount of
active
volcanoes.

The Ring of Fire Most volcanoes
occur along
diverging plate
boundaries, such
as the mid-ocean
ridge, or in
subduction zones
around the edges
of oceans. video

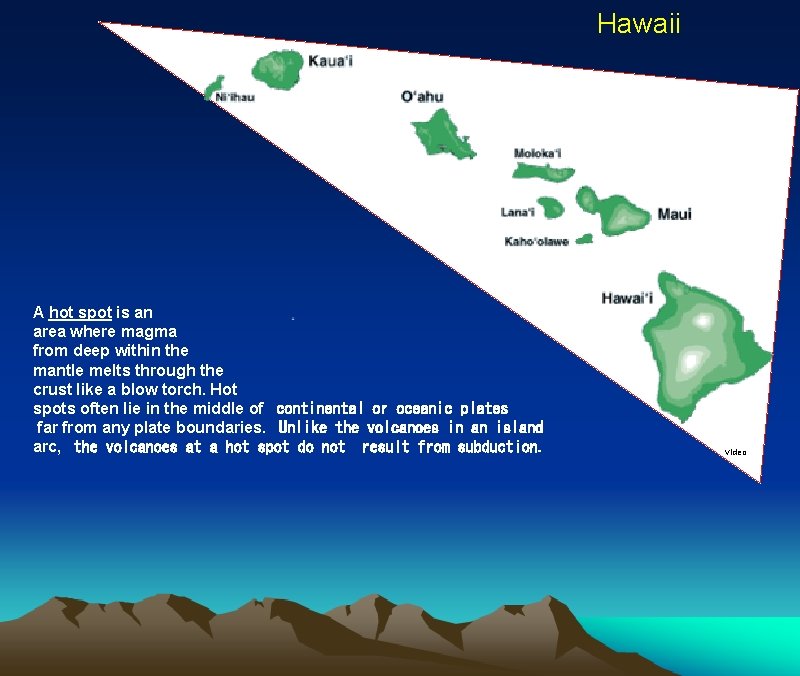

Hawaii A hot spot is an area where magma from deep within the mantle melts through the crust like a blow torch. Hot spots often lie in the middle of
continental or oceanic plates far from any plate boundaries.
Unlike the volcanoes in an island arc,
the volcanoes at a hot spot do not
result from subduction. video

References Plate map and labeling diagram: World Book Encyclopedia Volcanoes Interfact Animated Volcano: http: //www. nsa. naples. navy. mil/disasterprep/art/volcano 2. gif Types of Volcano images:
http: //dknet. lineone. net/reference/encyclopaedia/hutchinson/images/c 02745. jpg Total active volcanoes:
http: //volcano. und. edu/vwdocs/frequent_questions/grp 8/question 63. html NA total: http: //www. pbs. org/wnet/savageearth/volcanoes/html/sidebar 1. html Ring of Fire total:
http: //volcano. und. nodak. edu/vwdocs/frequent_questions/grp 8/question 4361. html Country totals:
http: //volcano. und. nodak. edu/vwdocs/kids/volcano_project/world. html SA Total: http: //www. hrw. com/science/si-
science/earth/tectonics/volcano/region 15/index. html Ring of Fire Image:
http: //www. eia. doe. gov/kids/energyfacts/sources/renewable/images/RINGOFFIRE 1. gif Hawaii image: biology. usgs. gov/. . . / Pacific. Island. PIERC. htm

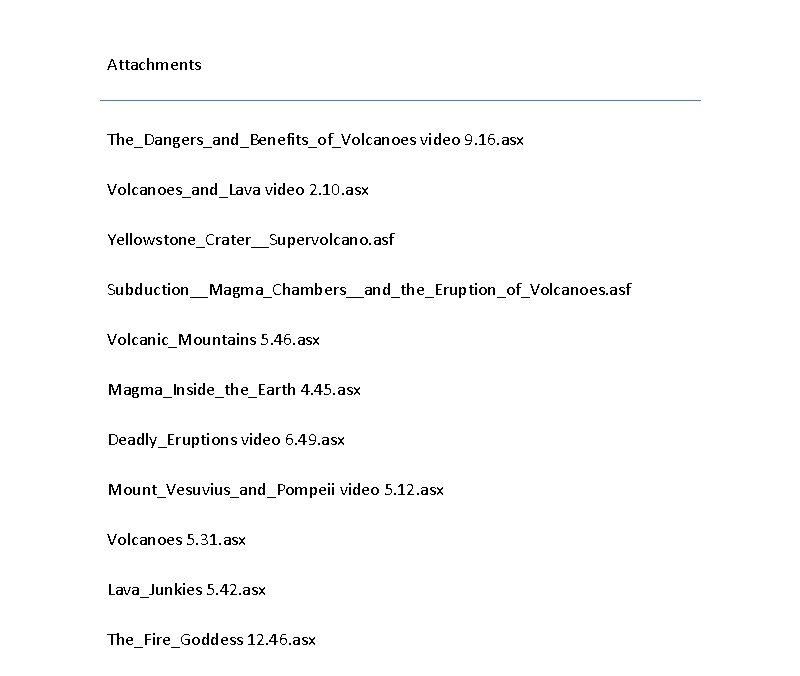

Attachments The_Dangers_and_Benefits_of_Volcanoes video 9. 16. asx Volcanoes_and_Lava video 2. 10. asx Yellowstone_Crater__Supervolcano. asf Subduction__Magma_Chambers__and_the_Eruption_of_Volcanoes. asf Volcanic_Mountains 5. 46. asx Magma_Inside_the_Earth 4. 45. asx Deadly_Eruptions video 6. 49. asx Mount_Vesuvius_and_Pompeii video 5. 12. asx Volcanoes 5. 31. asx Lava_Junkies 5. 42. asx The_Fire_Goddess 12. 46. asx
