The Cyprus Institute PIs Jean SCIARE George BISKOS
The Cyprus Institute - PIs Jean SCIARE, George BISKOS, Evris STEPHANOU The Cyprus Institute -Participants List Michael Pikridas 1, Minas Iakovides 1, Eleni Marinou 2, Kostas Barmpounis 1 and Anne , Meisser 1, Marios Argyrides* 1, Christos Keleshis 1 and Panos Vouterakos 1 The Cyprus Institute, Cyprus National Observatory of Athens, Greece *During till the first stop only
APS and SMPS Measuring particle size distributions • Aerodynamic Particle Sizer (APS) Particle size range: 300 nm up to a few tens of μm • Scanning Mobility Particle Sizer (SMPS) Particle size range: 7 -600 nm
Nano-SMPS
Nano-SMPS
HTDMA-CCNC combo
HTDMA-CCNC combo
Specifications Instrument Power (W) SMPS APS 450 250 HTDMA CCNC (Combo with the HTDMA) 1200 chiller nano SMPS 400 Dimensions (m) Volume (m^3) 0. 65 x 0. 45 (Hx. Wx. L) CPC on top or CPC next to TSI 3080 (0. 4 x 0. 5 x 0. 45) + (0. 4 x 0. 3) 0. 15 or 0. 13 0. 2 x 0. 35 x 0. 4 (Hx. Wx. L) 0. 03 3 racks setup: Each floor (0. 4 x 0. 8 x 0. 5) or floor+table (0. 4 x 1 x 0. 5) + (0. 5 x 1. 2 x 0. 5) approx. 0. 6 0. 5 x 0. 3 x 0. 2 0. 7 x 0. 35 x 0. 25 1600 (Hx. Wx. L) DMA, CPC, Computer+DAC, ESS, Blower, EM, Tubing, Lab PS for EM pump, 1. 1 x 1600 (1100 W, Blower SMPS) 0. 8 x 0. 4 (Lx. Wx. H) 0. 03 0. 062 0. 355
Other toys • 3 D printed SMPS system • Particle sampler on TEM grids
MARGA Instrumentation - Aerosol Dimensions H-W-D: 1. 8 -1. 2 -0. 6 m Consumption: 700 VA ≈ 560 W Weighs 200 kg, requires 3 d water Requires regular 3 d water supply. Cannot be housed outdoors Is space in one of the containers available?
Instrumentation – Filter Samplers Leckel – 2. 3 m 3/h × 2 Dimensions H-W-D: 158 -48 -31 cm Consumption 240 w PM 10 – PM 1 (6 h) A suite of custom made samplers, that consist of Ø 4 pumps consuming 13 A Ø 2 Hi Vol sampling heads (Cascade impactor and TSP with PUF sampling media for gases) ØA suite of PM 2. 5 and PM 10 low volume samplers (Harvard impactors) The high volume pumps require housing. They do not have to be close to the sampling area. They are noisy.
Instrumentation – Remote Sensing Raymetrics Lidar Dimensions H-W-D: 1. 8 -1 -1 m Consumption Operates with single phase domestic power supply Tentative suggestion: Clear front view but as far away from sea spray as possible
Aerosol optical properties Aerosol absorption properties of submicron (Black Carbon) and supermicron (dust) aerosols Ambient air (100 LPM) Aerosol Concentrator (AC) Aerosols > 1 µm (2 LPM) Concentrated x 50 Aerosols < 1 µm (98 LPM) PM 1 inlet Aerosols < 1 µm (5 LPM) Handheld Sunphotometer Aethalometer AE 33 New model of sunphotometer by LOA (CNRS, Lille, France) Should be similar compared to a sunphotometer
Ecotech Aurora 4000 Polar Nephelometer • Measurement: Aerosol light scattering coefficient (σsp) at (450, 525 and 635 nm) over 2 to 18 angular sectors • Power consumption: 12 VDC (incl 110 -240 VAC 50/60 Hz power converter) 13 watts nominal, 45 watts with heater active • Dimensions: 170 mm x 700 mm x 215 mm (L x W x H) • Weight: 11. 2 kgs • Additional equipment: FM 200 gas or CO 2 gas for calibration • Personnel required for operation: Nephelometer can be controlled remotely 23 Jan 2017 AQABA Campaign 14
Ecotech Serinus 60 direct NO 2 analyser • Measurement: NO 2 in the range of 0 -1 ppm using Cavity Attenuated Phase Shift (CAPS) technique • Power consumption: 88 VA max (typical at start up). 65 VA after warm up • Dimensions: 3. 5 RU, 429 x 175 x 638 mm • Weight: 19. 4 kgs • Additional equipment: NO 2 cylinder and calibrator to calibrate the instrument once installed, and again at the end of the campaign. • Personnel required for operation: Operator to change sample filter each 23 Jan 2017 AQABA Campaign month. 15
Ecotech Congrego data logger • Measurement: Data logger for recording measurements (from Serinus 60 and Aurora 4000 in this application) • Power consumption: 12 V 10 W • Dimensions: 150 mmx 50 mm • Additional equipment: Internet connection and cabling to instruments to log data from. 240 V to 12 V plug pack. • Personnel required for operation: None – can be remotely controlled. 23 Jan 2017 AQABA Campaign 16
Skywalker 1680 Small Size: 4 Kg Payload: 1. 5 Kg Endurance: 1. 5 hours Ceiling: 3 Km All UAV T – RH OPC On-Screen-Display Video Autopilot - ADC

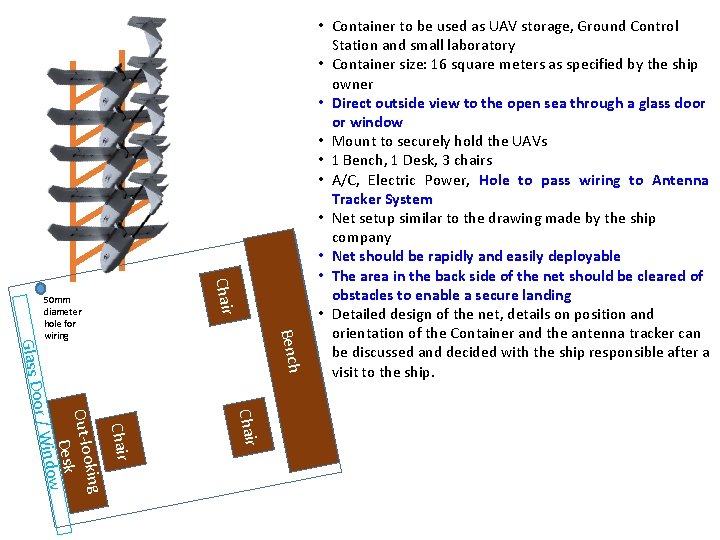

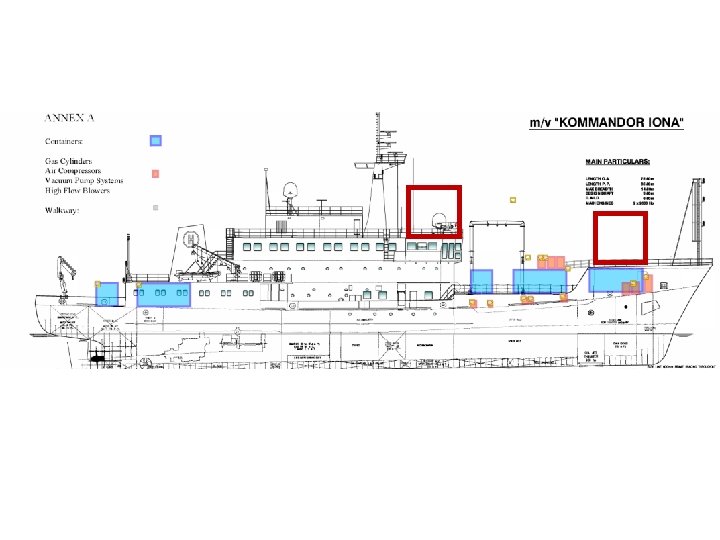

Chair Bench Chair oking Out-lo Desk indow oor / W Glass D 50 mm diameter hole for wiring • Container to be used as UAV storage, Ground Control Station and small laboratory • Container size: 16 square meters as specified by the ship owner • Direct outside view to the open sea through a glass door or window • Mount to securely hold the UAVs • 1 Bench, 1 Desk, 3 chairs • A/C, Electric Power, Hole to pass wiring to Antenna Tracker System • Net setup similar to the drawing made by the ship company • Net should be rapidly and easily deployable • The area in the back side of the net should be cleared of obstacles to enable a secure landing • Detailed design of the net, details on position and orientation of the Container and the antenna tracker can be discussed and decided with the ship responsible after a visit to the ship.
