The Control System For LHC Hardware Commissioning The

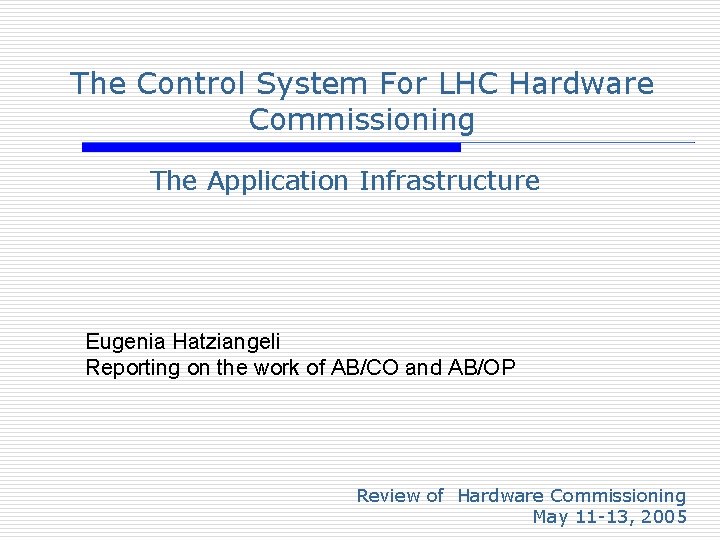

The Control System For LHC Hardware Commissioning The Application Infrastructure Eugenia Hatziangeli Reporting on the work of AB/CO and AB/OP Review of Hardware Commissioning May 11 -13, 2005

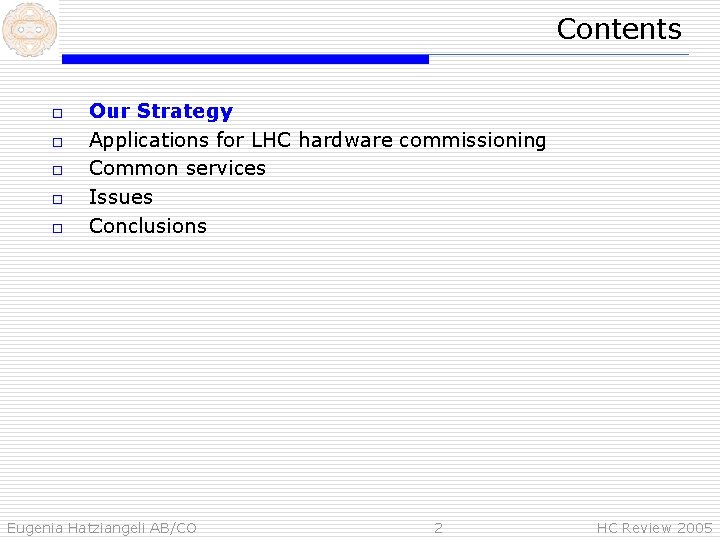

Contents o o o Our Strategy Applications for LHC hardware commissioning Common services Issues Conclusions Eugenia Hatziangeli AB/CO 2 HC Review 2005

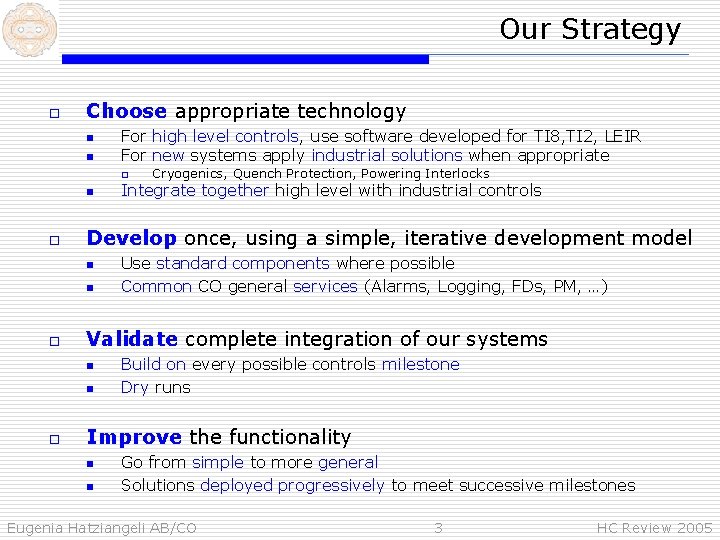

Our Strategy o Choose appropriate technology n n For high level controls, use software developed for TI 8, TI 2, LEIR For new systems apply industrial solutions when appropriate o n Use standard components where possible Common CO general services (Alarms, Logging, FDs, PM, …) Validate complete integration of our systems n n o Integrate together high level with industrial controls Develop once, using a simple, iterative development model n o Cryogenics, Quench Protection, Powering Interlocks Build on every possible controls milestone Dry runs Improve the functionality n n Go from simple to more general Solutions deployed progressively to meet successive milestones Eugenia Hatziangeli AB/CO 3 HC Review 2005

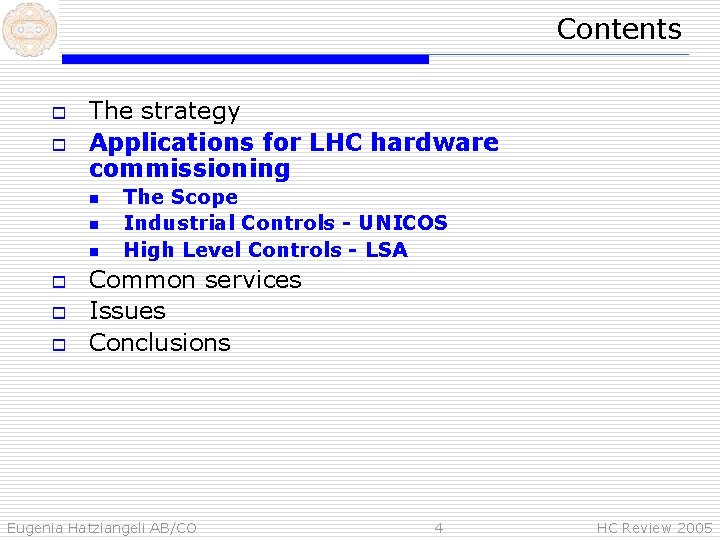

Contents o o The strategy Applications for LHC hardware commissioning n n n o o o The Scope Industrial Controls - UNICOS High Level Controls - LSA Common services Issues Conclusions Eugenia Hatziangeli AB/CO 4 HC Review 2005

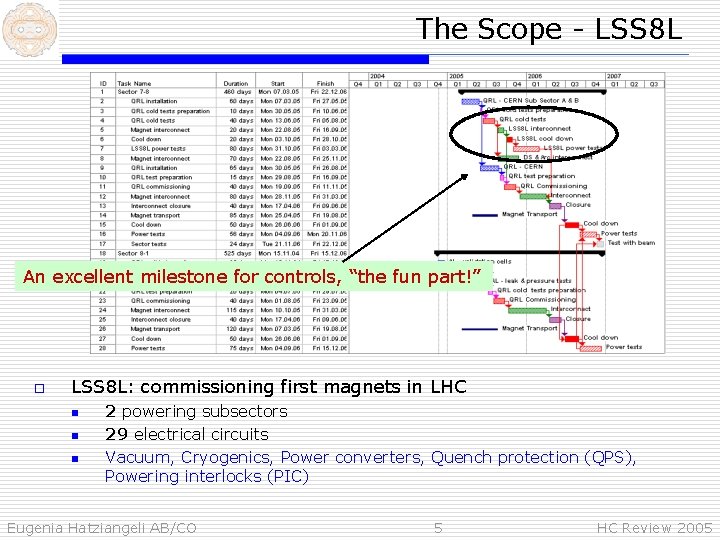

The Scope - LSS 8 L An excellent milestone for controls, “the fun part!” o LSS 8 L: commissioning first magnets in LHC n n n 2 powering subsectors 29 electrical circuits Vacuum, Cryogenics, Power converters, Quench protection (QPS), Powering interlocks (PIC) Eugenia Hatziangeli AB/CO 5 HC Review 2005

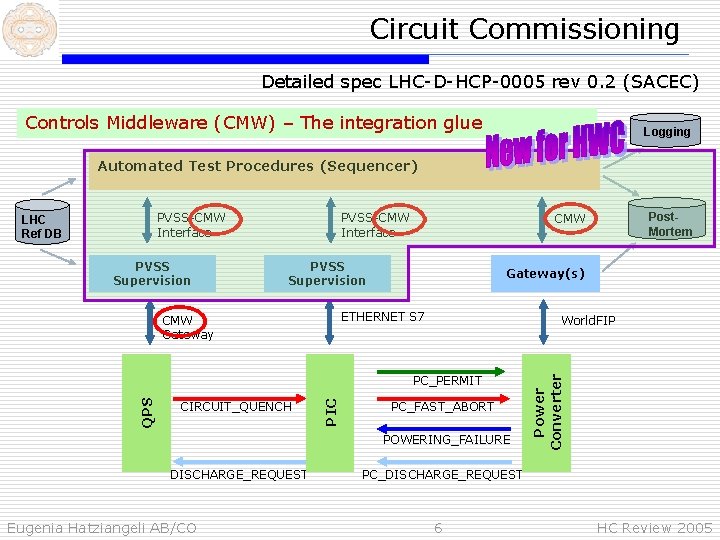

Circuit Commissioning Detailed spec LHC-D-HCP-0005 rev 0. 2 (SACEC) Controls Middleware (CMW) – The integration glue Logging Automated Test Procedures (Sequencer) PVSS Supervision PVSS-CMW Interface PVSS Supervision Gateway(s) ETHERNET S 7 CMW Gateway World. FIP PIC QPS PC_PERMIT CIRCUIT_QUENCH PC_FAST_ABORT POWERING_FAILURE DISCHARGE_REQUEST Eugenia Hatziangeli AB/CO Post. Mortem CMW Power Converter PVSS-CMW Interface LHC Ref DB PC_DISCHARGE_REQUEST 6 HC Review 2005

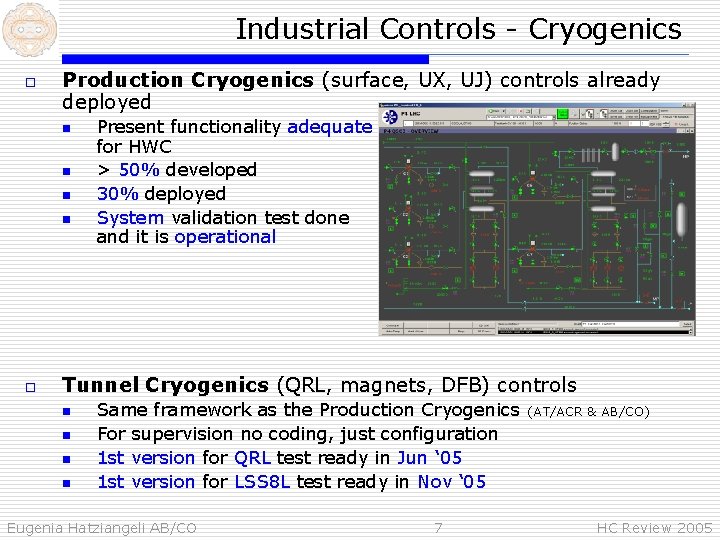

Industrial Controls - Cryogenics o Production Cryogenics (surface, UX, UJ) controls already deployed n n o Present functionality adequate for HWC > 50% developed 30% deployed System validation test done and it is operational Tunnel Cryogenics (QRL, magnets, DFB) controls n n Same framework as the Production Cryogenics For supervision no coding, just configuration 1 st version for QRL test ready in Jun ‘ 05 1 st version for LSS 8 L test ready in Nov ‘ 05 Eugenia Hatziangeli AB/CO 7 (AT/ACR & AB/CO) HC Review 2005

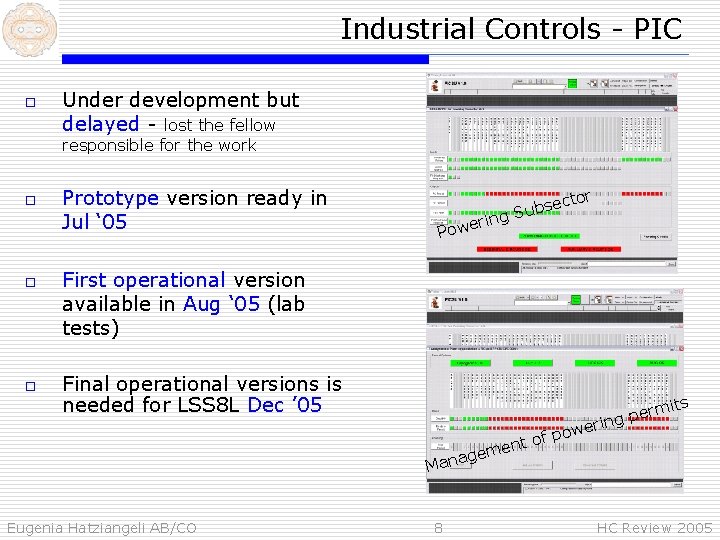

Industrial Controls - PIC o Under development but delayed - lost the fellow responsible for the work o o o Prototype version ready in Jul ‘ 05 ing r Powe tor ec Subs First operational version available in Aug ‘ 05 (lab tests) Final operational versions is needed for LSS 8 L Dec ’ 05 Eugenia Hatziangeli AB/CO rmits e p ring e w o t of p n e agem n a M 8 HC Review 2005

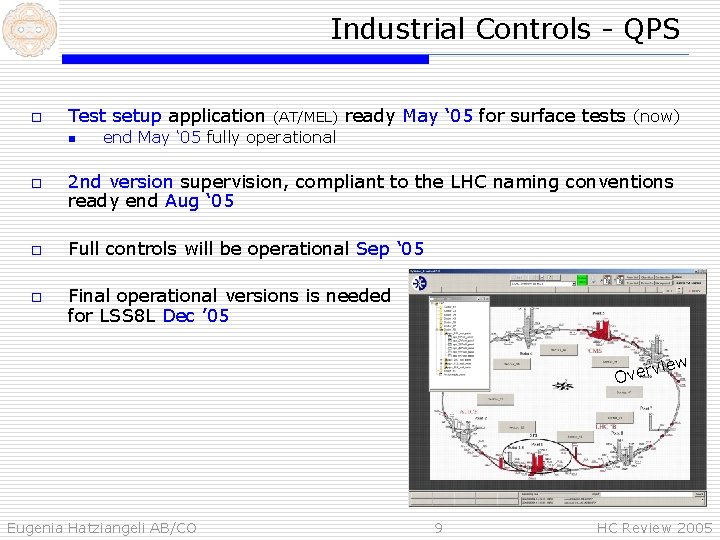

Industrial Controls - QPS o Test setup application n o o o (AT/MEL) ready May ‘ 05 for surface tests (now) end May ‘ 05 fully operational 2 nd version supervision, compliant to the LHC naming conventions ready end Aug ‘ 05 Full controls will be operational Sep ‘ 05 Final operational versions is needed for LSS 8 L Dec ’ 05 w vie Over Eugenia Hatziangeli AB/CO 9 HC Review 2005

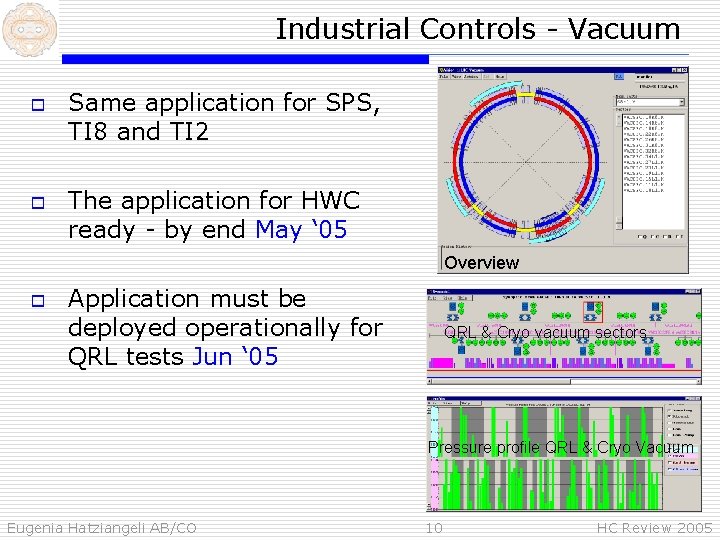

Industrial Controls - Vacuum o o Same application for SPS, TI 8 and TI 2 The application for HWC ready - by end May ‘ 05 Overview o Application must be deployed operationally for QRL tests Jun ‘ 05 QRL & Cryo vacuum sectors Pressure profile QRL & Cryo Vacuum Eugenia Hatziangeli AB/CO 10 HC Review 2005

High Level Controls - LSA o o tro n o C ent m p qui E c i er Gen On-line control database n o n Vi Generation of the commissioning functions based on the S optics Functions or values for all parameters (physics to hardware) All modification recorded, roll-back possible Hardware Exploitation n o gs ettin on ati z i l a su Settings Management n o Layout, configuration, settings, equipment description Settings Generation n o l What is available for the control of electrical circuits Equipment Control, Measurements, Interface to PC Successfully deployed in TT 40, TI 8, LEIR Eugenia Hatziangeli AB/CO 11 PCs f o ent m e sur Mea HC Review 2005

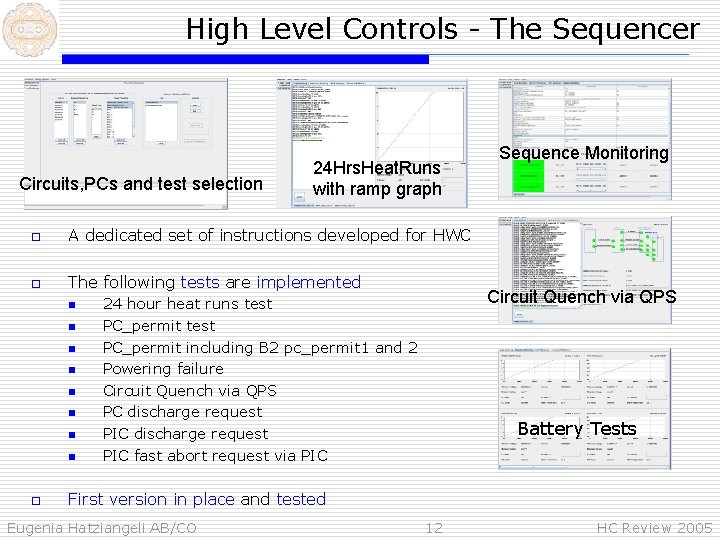

High Level Controls - The Sequencer Circuits, PCs and test selection 24 Hrs. Heat. Runs with ramp graph o A dedicated set of instructions developed for HWC o The following tests are implemented n n n n o Sequence Monitoring Circuit Quench via QPS 24 hour heat runs test PC_permit including B 2 pc_permit 1 and 2 Powering failure Circuit Quench via QPS PC discharge request PIC fast abort request via PIC Battery Tests First version in place and tested Eugenia Hatziangeli AB/CO 12 HC Review 2005

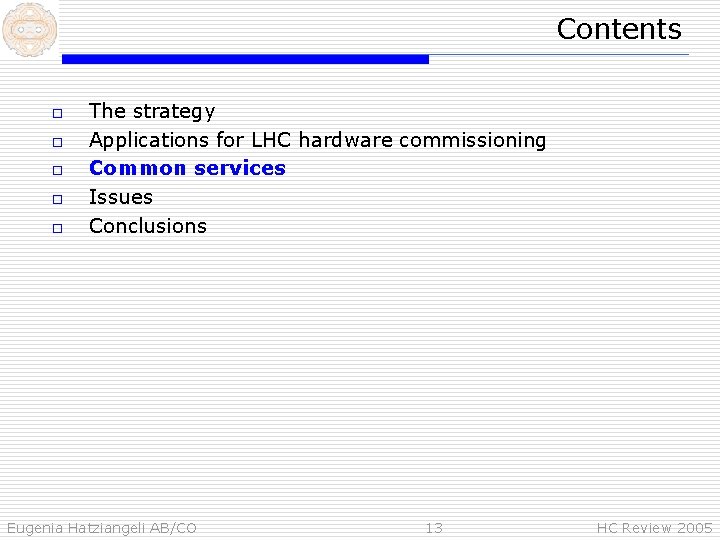

Contents o o o The strategy Applications for LHC hardware commissioning Common services Issues Conclusions Eugenia Hatziangeli AB/CO 13 HC Review 2005

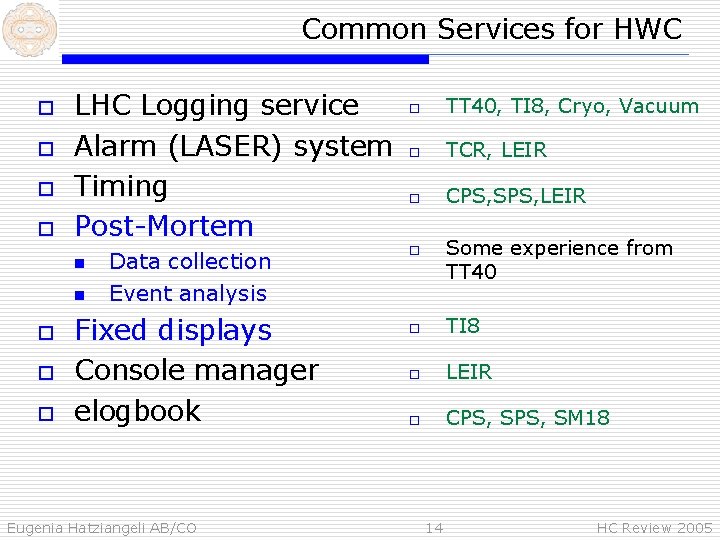

Common Services for HWC o o LHC Logging service Alarm (LASER) system Timing Post-Mortem n n o o o Data collection Event analysis Fixed displays Console manager elogbook Eugenia Hatziangeli AB/CO o TT 40, TI 8, Cryo, Vacuum o TCR, LEIR o CPS, SPS, LEIR Some experience from TT 40 o o TI 8 o LEIR o CPS, SM 18 14 HC Review 2005

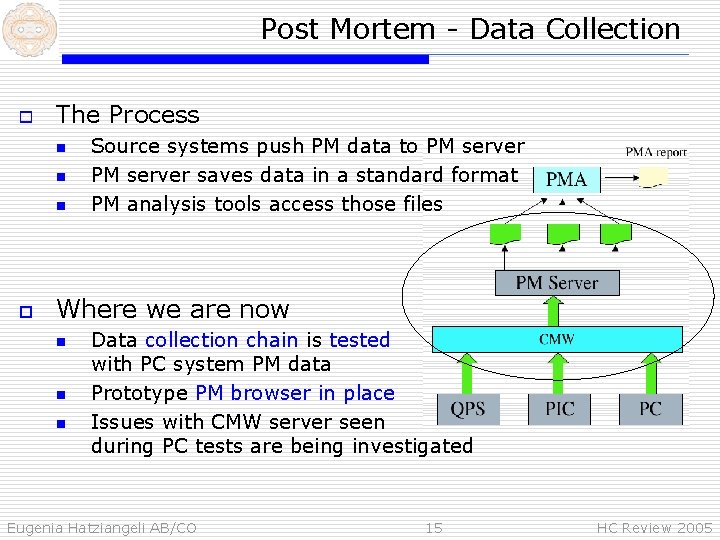

Post Mortem - Data Collection o The Process n n n o Source systems push PM data to PM server saves data in a standard format PM analysis tools access those files Where we are now n n n Data collection chain is tested with PC system PM data Prototype PM browser in place Issues with CMW server seen during PC tests are being investigated Eugenia Hatziangeli AB/CO 15 HC Review 2005

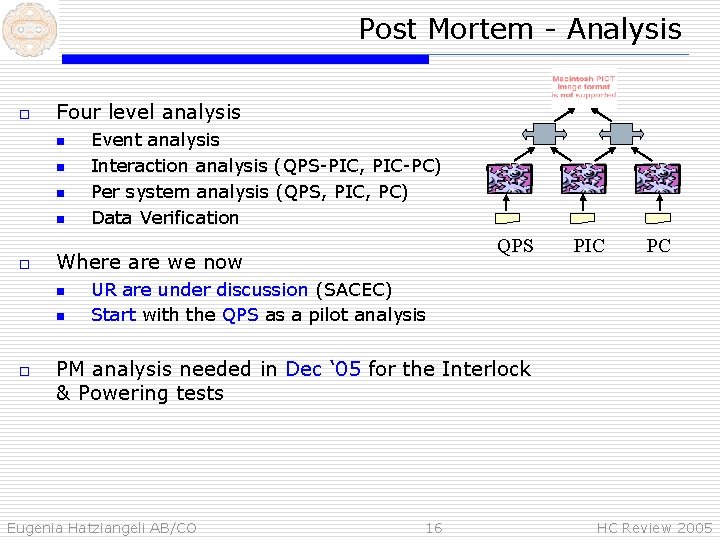

Post Mortem - Analysis o Four level analysis n n o QPS Where are we now n n o Event analysis Interaction analysis (QPS-PIC, PIC-PC) Per system analysis (QPS, PIC, PC) Data Verification PIC PC UR are under discussion (SACEC) Start with the QPS as a pilot analysis PM analysis needed in Dec ‘ 05 for the Interlock & Powering tests Eugenia Hatziangeli AB/CO 16 HC Review 2005

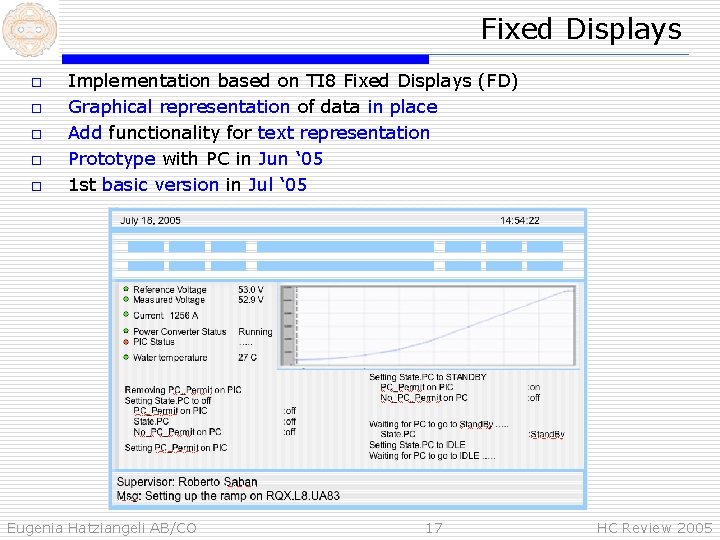

Fixed Displays o o o Implementation based on TI 8 Fixed Displays (FD) Graphical representation of data in place Add functionality for text representation Prototype with PC in Jun ‘ 05 1 st basic version in Jul ‘ 05 Eugenia Hatziangeli AB/CO 17 HC Review 2005

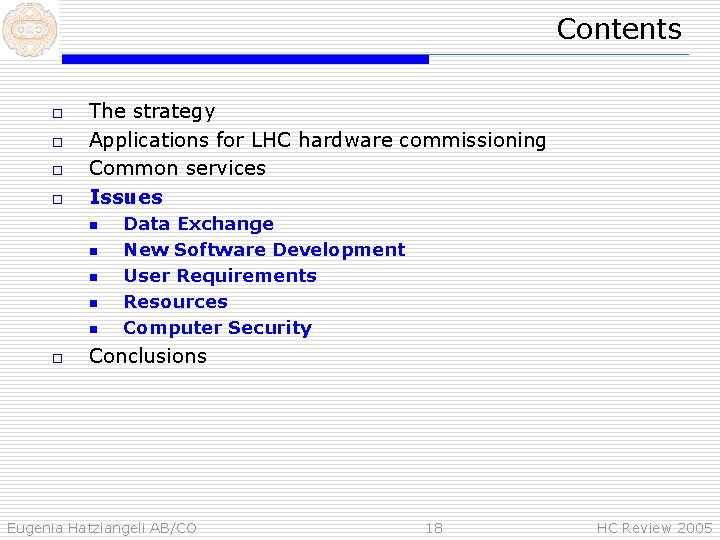

Contents o o The strategy Applications for LHC hardware commissioning Common services Issues n n n o Data Exchange New Software Development User Requirements Resources Computer Security Conclusions Eugenia Hatziangeli AB/CO 18 HC Review 2005

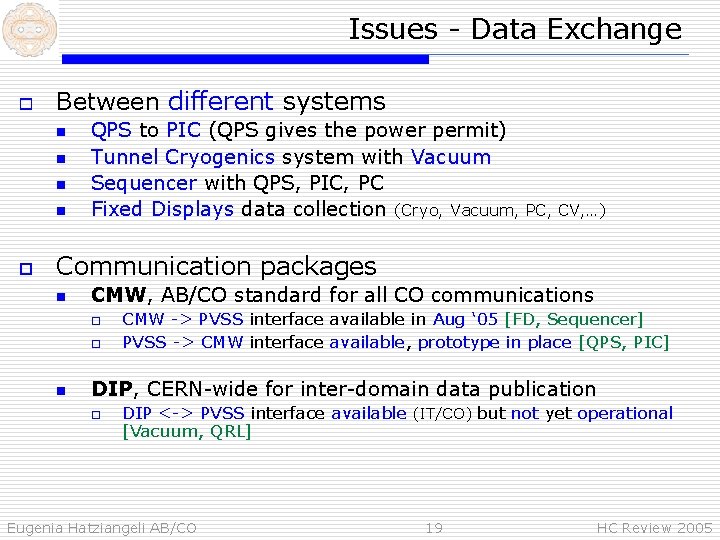

Issues - Data Exchange o Between different systems n n o QPS to PIC (QPS gives the power permit) Tunnel Cryogenics system with Vacuum Sequencer with QPS, PIC, PC Fixed Displays data collection (Cryo, Vacuum, PC, CV, …) Communication packages n CMW, AB/CO standard for all CO communications o o n CMW -> PVSS interface available in Aug ‘ 05 [FD, Sequencer] PVSS -> CMW interface available, prototype in place [QPS, PIC] DIP, CERN-wide for inter-domain data publication o DIP <-> PVSS interface available (IT/CO) but not yet operational [Vacuum, QRL] Eugenia Hatziangeli AB/CO 19 HC Review 2005

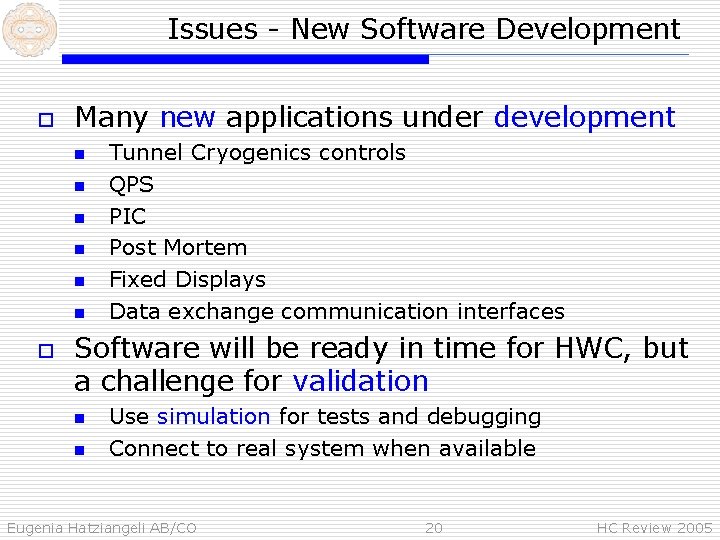

Issues - New Software Development o Many new applications under development n n n o Tunnel Cryogenics controls QPS PIC Post Mortem Fixed Displays Data exchange communication interfaces Software will be ready in time for HWC, but a challenge for validation n n Use simulation for tests and debugging Connect to real system when available Eugenia Hatziangeli AB/CO 20 HC Review 2005

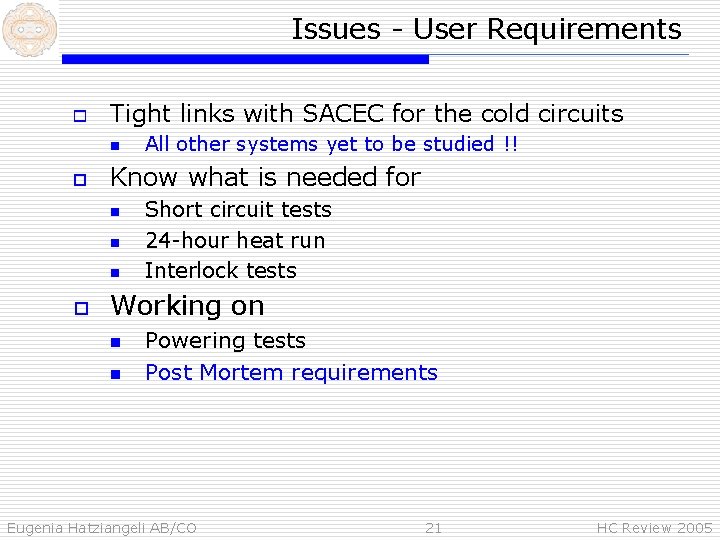

Issues - User Requirements o Tight links with SACEC for the cold circuits n o Know what is needed for n n n o All other systems yet to be studied !! Short circuit tests 24 -hour heat run Interlock tests Working on n n Powering tests Post Mortem requirements Eugenia Hatziangeli AB/CO 21 HC Review 2005

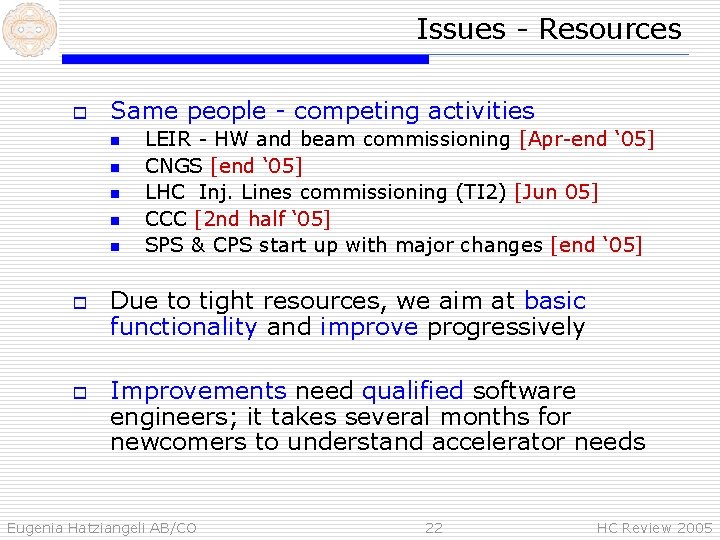

Issues - Resources o Same people - competing activities n n n o o LEIR - HW and beam commissioning [Apr-end ‘ 05] CNGS [end ‘ 05] LHC Inj. Lines commissioning (TI 2) [Jun 05] CCC [2 nd half ‘ 05] SPS & CPS start up with major changes [end ‘ 05] Due to tight resources, we aim at basic functionality and improve progressively Improvements need qualified software engineers; it takes several months for newcomers to understand accelerator needs Eugenia Hatziangeli AB/CO 22 HC Review 2005

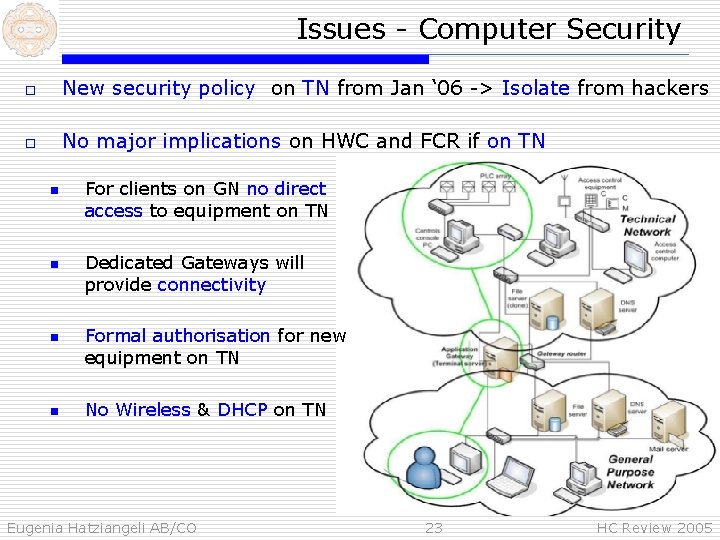

Issues - Computer Security o New security policy on TN from Jan ‘ 06 -> Isolate from hackers o No major implications on HWC and FCR if on TN n n For clients on GN no direct access to equipment on TN Dedicated Gateways will provide connectivity Formal authorisation for new equipment on TN No Wireless & DHCP on TN Eugenia Hatziangeli AB/CO 23 HC Review 2005

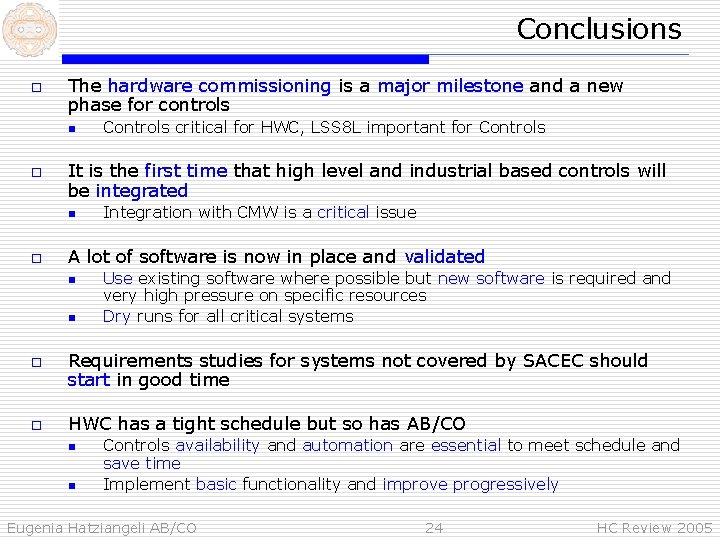

Conclusions o The hardware commissioning is a major milestone and a new phase for controls n o It is the first time that high level and industrial based controls will be integrated n o Integration with CMW is a critical issue A lot of software is now in place and validated n o Controls critical for HWC, LSS 8 L important for Controls Use existing software where possible but new software is required and very high pressure on specific resources Dry runs for all critical systems Requirements studies for systems not covered by SACEC should start in good time HWC has a tight schedule but so has AB/CO n n Controls availability and automation are essential to meet schedule and save time Implement basic functionality and improve progressively Eugenia Hatziangeli AB/CO 24 HC Review 2005

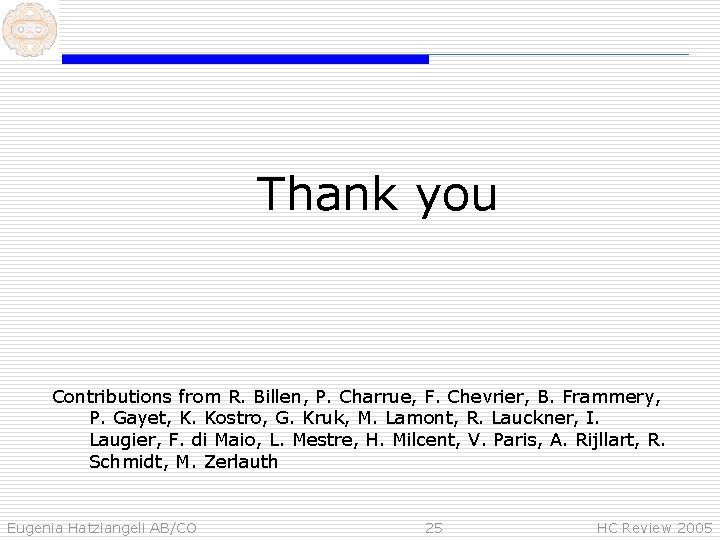

Thank you Contributions from R. Billen, P. Charrue, F. Chevrier, B. Frammery, P. Gayet, K. Kostro, G. Kruk, M. Lamont, R. Lauckner, I. Laugier, F. di Maio, L. Mestre, H. Milcent, V. Paris, A. Rijllart, R. Schmidt, M. Zerlauth Eugenia Hatziangeli AB/CO 25 HC Review 2005

FCR in UA 83 - Consoles and Fixed Displays Pre-configured laptops Cryogenics Eugenia Hatziangeli AB/CO Powering tests Interlocks 26 Post-Mortem HC Review 2005
