The complexity and correctness of algorithms (with binary trees as an example)

An algorithm is an unambiguous sequence of simple, mechanically executable instructions. 3

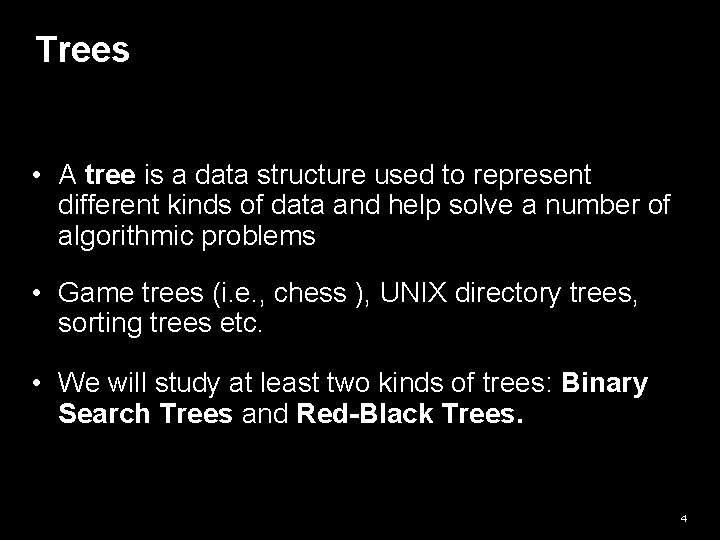

Trees • A tree is a data structure used to represent different kinds of data and help solve a number of algorithmic problems • Game trees (i. e. , chess ), UNIX directory trees, sorting trees etc. • We will study at least two kinds of trees: Binary Search Trees and Red-Black Trees. 4

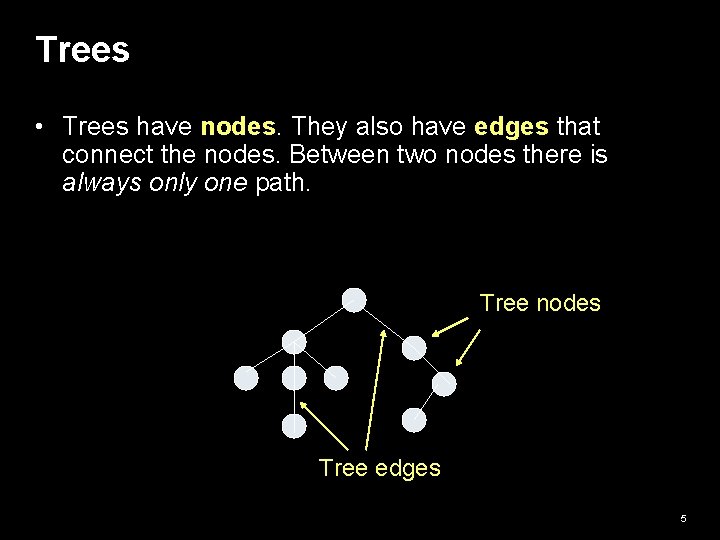

Trees • Trees have nodes. They also have edges that connect the nodes. Between two nodes there is always only one path. Tree nodes Tree edges 5

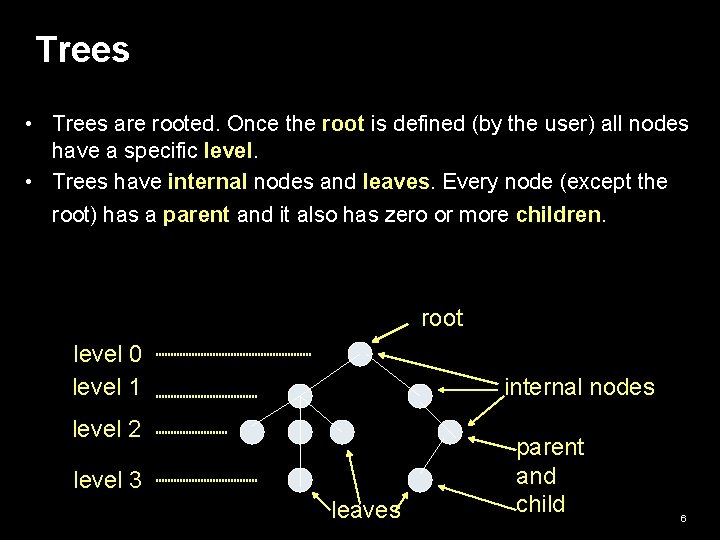

Trees • Trees are rooted. Once the root is defined (by the user) all nodes have a specific level. • Trees have internal nodes and leaves. Every node (except the root) has a parent and it also has zero or more children. root level 0 level 1 internal nodes level 2 level 3 leaves parent and child 6

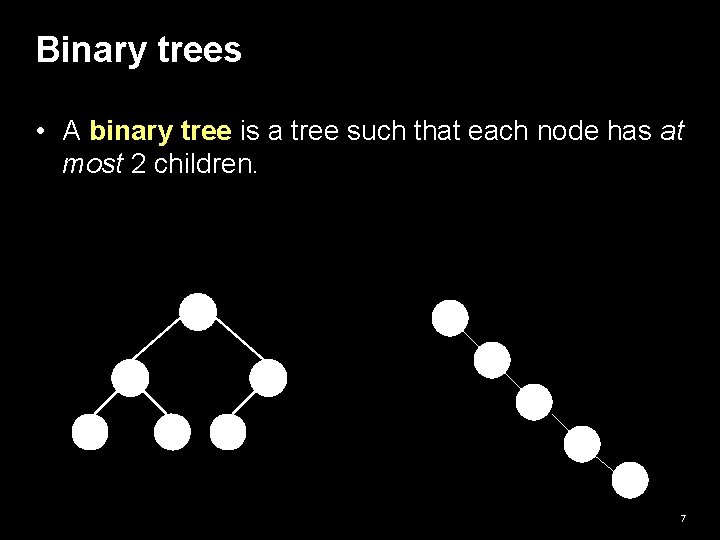

Binary trees • A binary tree is a tree such that each node has at most 2 children. 7

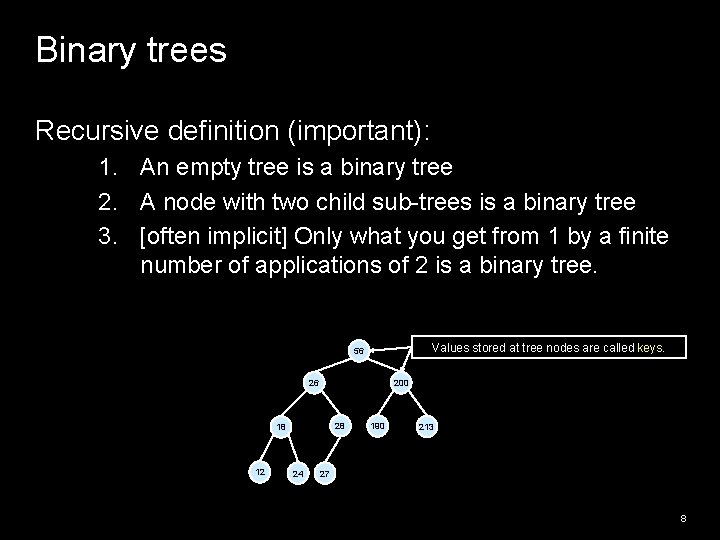

Binary trees Recursive definition (important): 1. An empty tree is a binary tree 2. A node with two child sub-trees is a binary tree 3. [often implicit] Only what you get from 1 by a finite number of applications of 2 is a binary tree. Values stored at tree nodes are called keys. 56 26 200 28 18 12 24 190 213 27 8

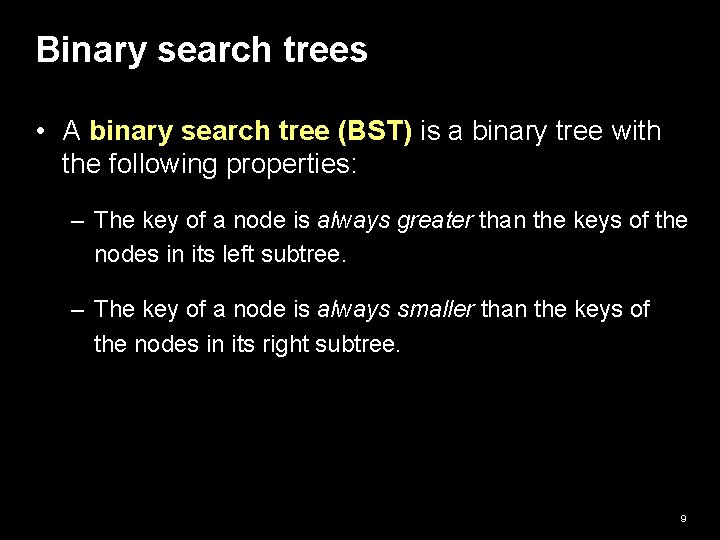

Binary search trees • A binary search tree (BST) is a binary tree with the following properties: – The key of a node is always greater than the keys of the nodes in its left subtree. – The key of a node is always smaller than the keys of the nodes in its right subtree. 9

Binary search trees • Stored keys must satisfy the binary search tree property. 56 – y in left subtree of x, then key[y] key[x]. – y in right subtree of x, then key[y] key[x]. 26 200 28 18 12 24 190 213 27 10

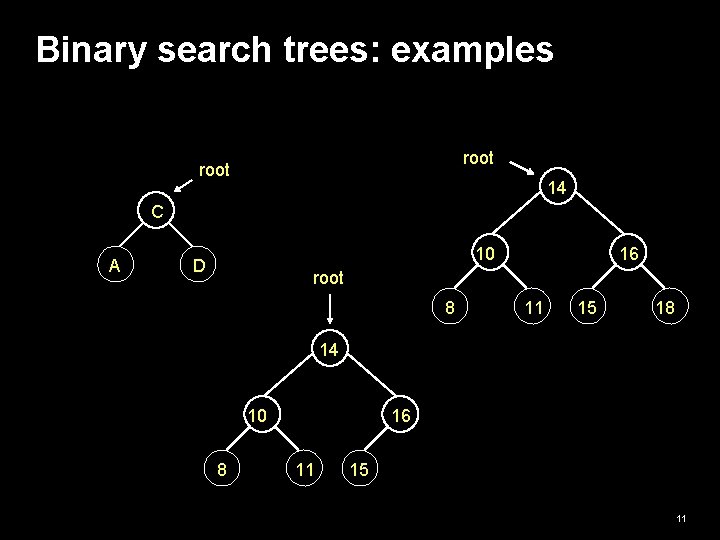

Binary search trees: examples root 14 C A 10 D 16 root 8 11 15 18 14 10 8 16 11 15 11

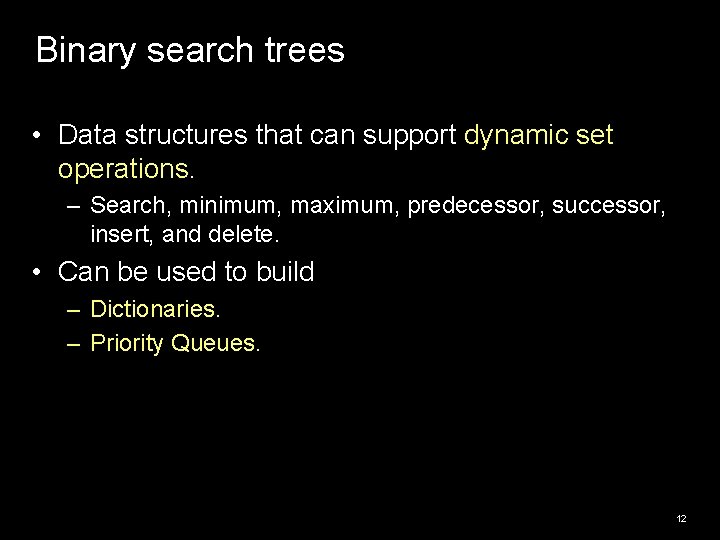

Binary search trees • Data structures that can support dynamic set operations. – Search, minimum, maximum, predecessor, successor, insert, and delete. • Can be used to build – Dictionaries. – Priority Queues. 12

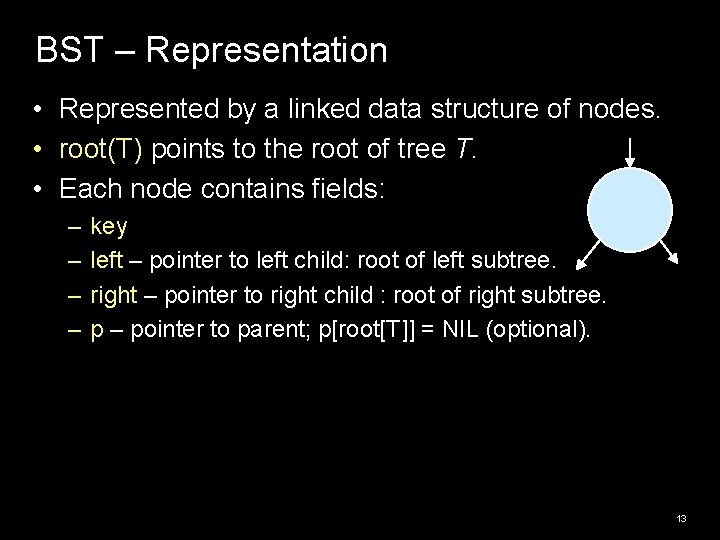

BST – Representation • Represented by a linked data structure of nodes. • root(T) points to the root of tree T. • Each node contains fields: – – key left – pointer to left child: root of left subtree. right – pointer to right child : root of right subtree. p – pointer to parent; p[root[T]] = NIL (optional). 13

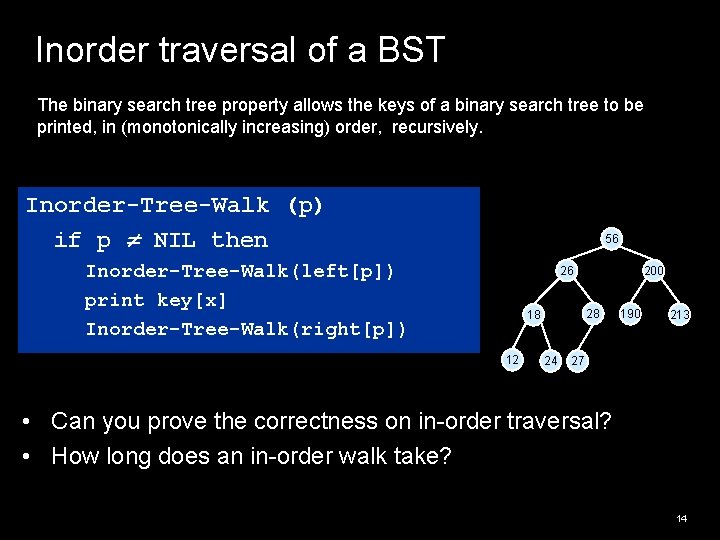

Inorder traversal of a BST The binary search tree property allows the keys of a binary search tree to be printed, in (monotonically increasing) order, recursively. Inorder-Tree-Walk (p) if p NIL then 56 Inorder-Tree-Walk(left[p]) print key[x] Inorder-Tree-Walk(right[p]) 26 28 18 12 200 24 190 213 27 • Can you prove the correctness on in-order traversal? • How long does an in-order walk take? 14

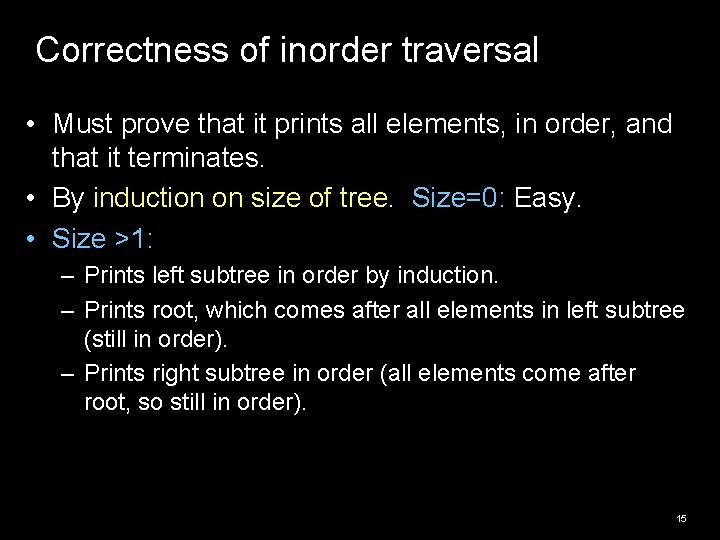

Correctness of inorder traversal • Must prove that it prints all elements, in order, and that it terminates. • By induction on size of tree. Size=0: Easy. • Size >1: – Prints left subtree in order by induction. – Prints root, which comes after all elements in left subtree (still in order). – Prints right subtree in order (all elements come after root, so still in order). 15

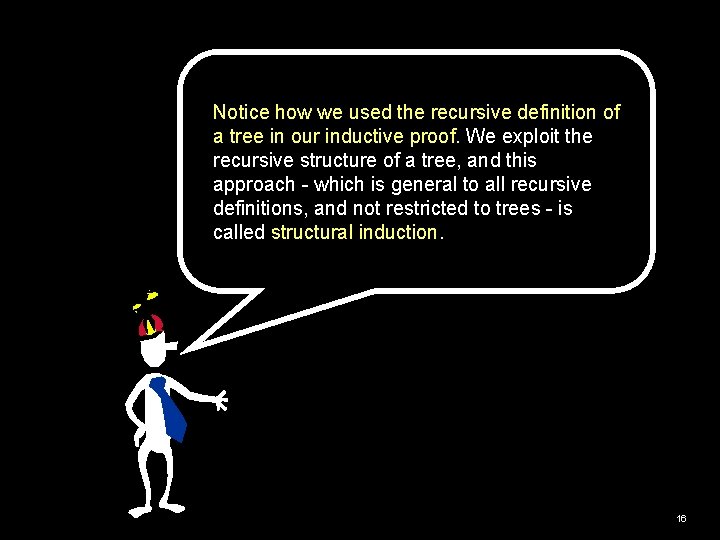

Notice how we used the recursive definition of a tree in our inductive proof. We exploit the recursive structure of a tree, and this approach - which is general to all recursive definitions, and not restricted to trees - is called structural induction. 16

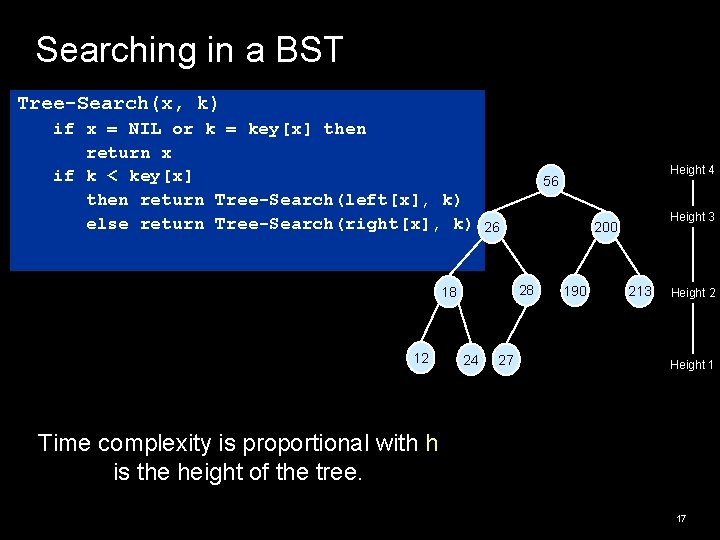

Searching in a BST Tree-Search(x, k) if x = NIL or k = key[x] then return x if k < key[x] then return Tree-Search(left[x], k) else return Tree-Search(right[x], k) 26 24 27 Height 3 200 28 18 12 Height 4 56 190 213 Height 2 Height 1 Time complexity is proportional with h is the height of the tree. 17

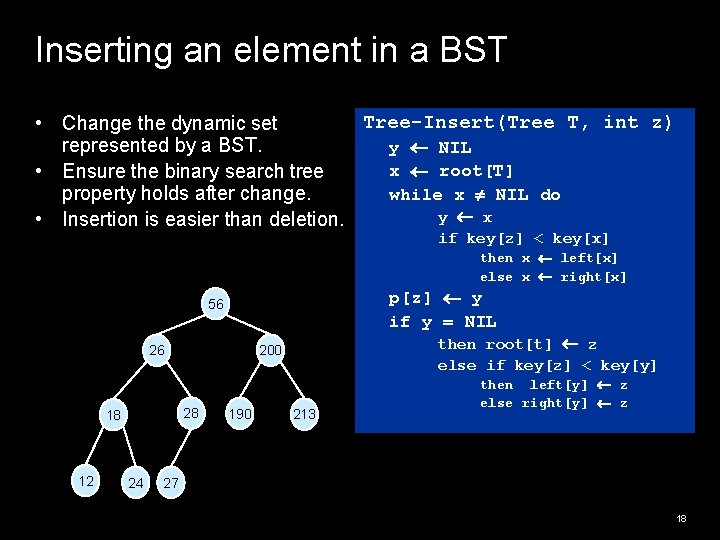

Inserting an element in a BST Tree-Insert(Tree T, int z) • Change the dynamic set represented by a BST. y NIL x root[T] • Ensure the binary search tree property holds after change. while x NIL do y x • Insertion is easier than deletion. if key[z] < key[x] then x left[x] else x right[x] p[z] y if y = NIL 56 26 28 18 12 24 then root[t] z else if key[z] < key[y] 200 190 213 then left[y] z else right[y] z 27 18

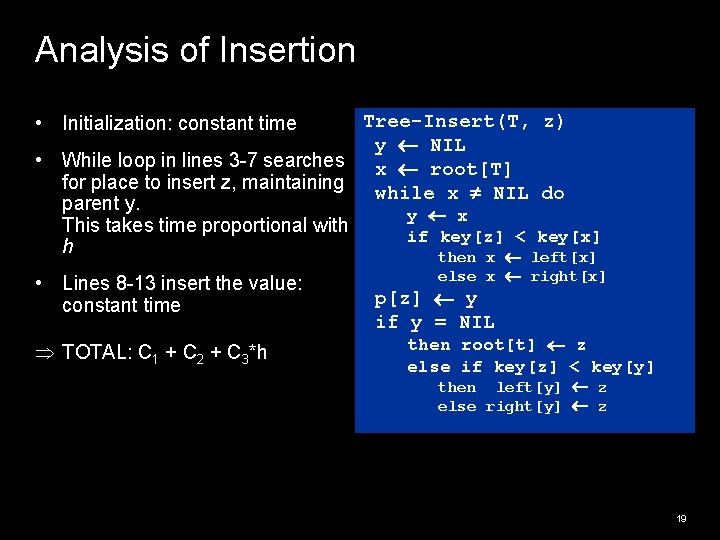

Analysis of Insertion Tree-Insert(T, z) y NIL • While loop in lines 3 -7 searches x root[T] for place to insert z, maintaining while x NIL do parent y. y x This takes time proportional with if key[z] < key[x] h then x left[x] • Initialization: constant time • Lines 8 -13 insert the value: constant time Þ TOTAL: C 1 + C 2 + C 3*h else x right[x] p[z] y if y = NIL then root[t] z else if key[z] < key[y] then left[y] z else right[y] z 19

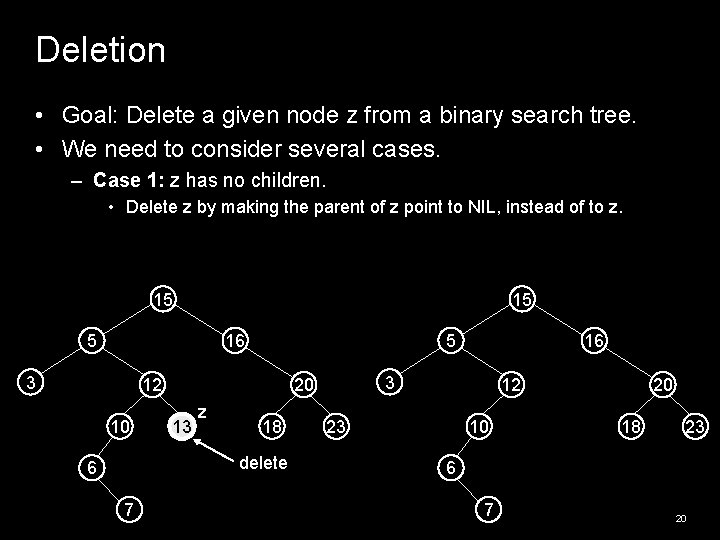

Deletion • Goal: Delete a given node z from a binary search tree. • We need to consider several cases. – Case 1: z has no children. • Delete z by making the parent of z point to NIL, instead of to z. 15 15 5 16 3 12 10 13 18 delete 6 7 3 20 z 16 5 12 23 10 20 18 23 6 7 20

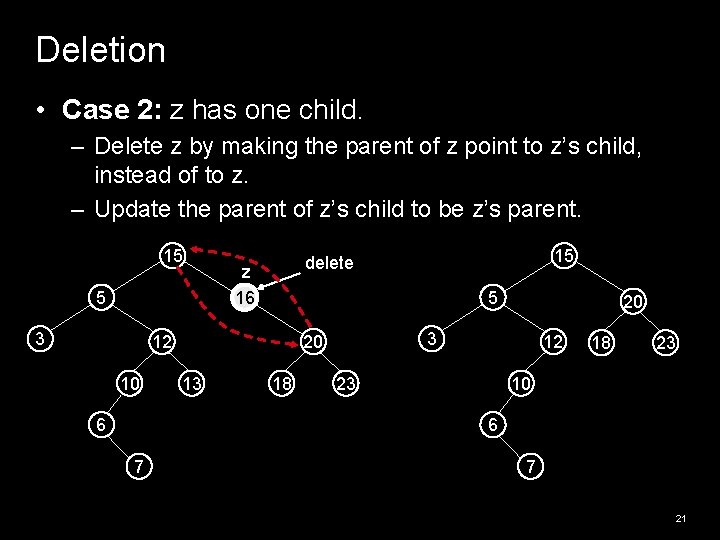

Deletion • Case 2: z has one child. – Delete z by making the parent of z point to z’s child, instead of to z. – Update the parent of z’s child to be z’s parent. 15 5 3 z 16 5 12 10 6 18 20 3 20 13 15 delete 12 18 23 10 23 6 7 7 21

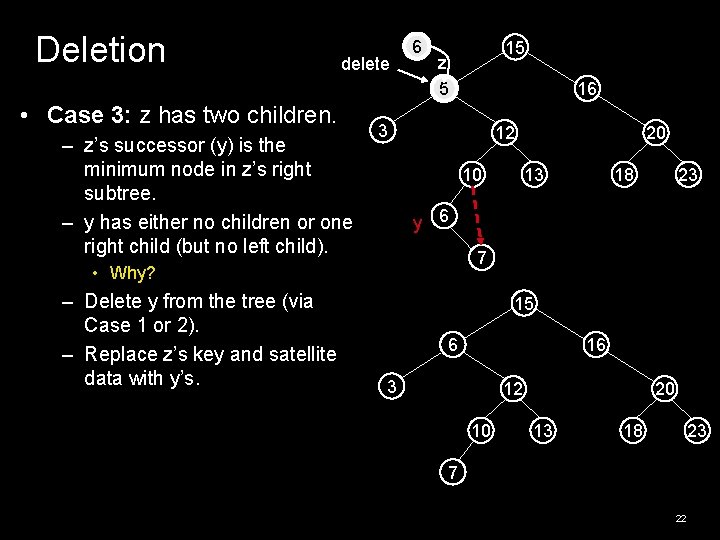

Deletion delete • Case 3: z has two children. – z’s successor (y) is the minimum node in z’s right subtree. – y has either no children or one right child (but no left child). 6 z 5 16 3 20 12 10 13 18 23 y 6 7 • Why? – Delete y from the tree (via Case 1 or 2). – Replace z’s key and satellite data with y’s. 15 15 6 16 3 20 12 10 13 18 23 7 22

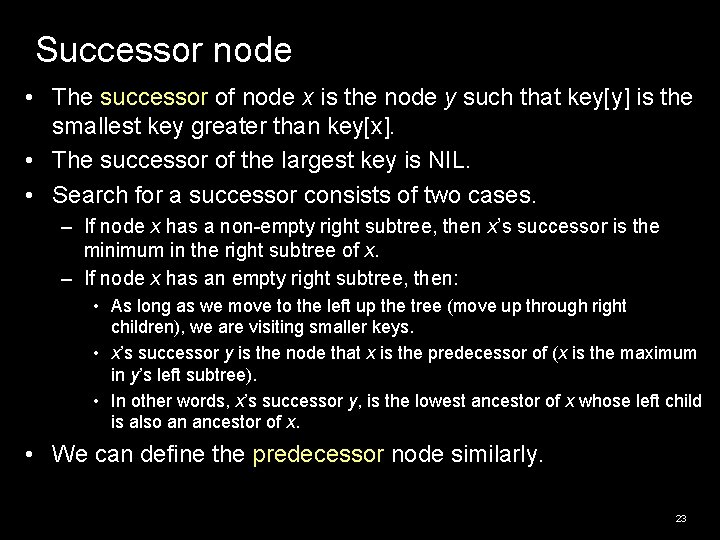

Successor node • The successor of node x is the node y such that key[y] is the smallest key greater than key[x]. • The successor of the largest key is NIL. • Search for a successor consists of two cases. – If node x has a non-empty right subtree, then x’s successor is the minimum in the right subtree of x. – If node x has an empty right subtree, then: • As long as we move to the left up the tree (move up through right children), we are visiting smaller keys. • x’s successor y is the node that x is the predecessor of (x is the maximum in y’s left subtree). • In other words, x’s successor y, is the lowest ancestor of x whose left child is also an ancestor of x. • We can define the predecessor node similarly. 23

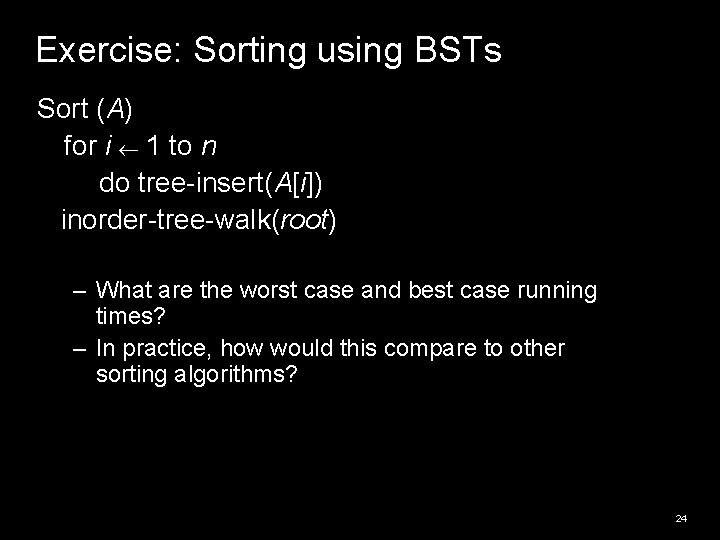

Exercise: Sorting using BSTs Sort (A) for i 1 to n do tree-insert(A[i]) inorder-tree-walk(root) – What are the worst case and best case running times? – In practice, how would this compare to other sorting algorithms? 24

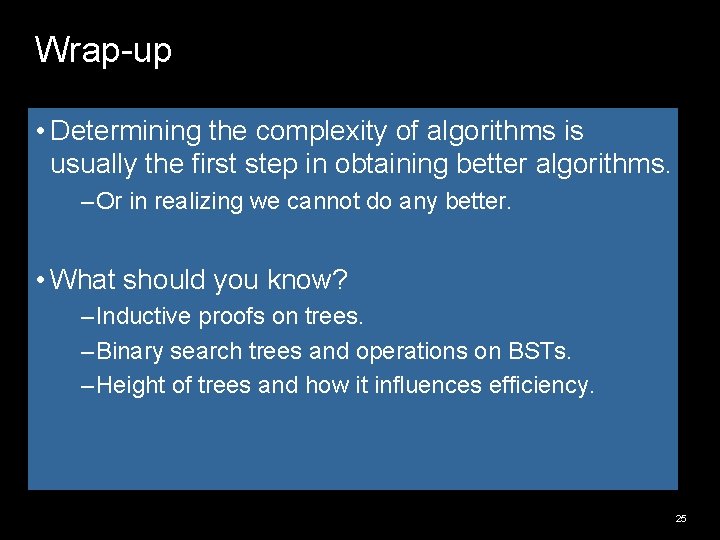

Wrap-up • Determining the complexity of algorithms is usually the first step in obtaining better algorithms. – Or in realizing we cannot do any better. • What should you know? – Inductive proofs on trees. – Binary search trees and operations on BSTs. – Height of trees and how it influences efficiency. 25
