The Compatibility 6 Full-Adder Topologies with VDD Stacking By Wenlu Sun & Jiyati Verma Thursday, December 1, 2011 ECE 6332 – VLSI Design Final Project Presentation

Overview § § § Purpose Full Adders Cadence Implementation Simulation Results Takeaways

VDD Stacking ¶ Noise Reduction attenuates Power Dissipated …Application of Stacked-VDD to adders

Purpose § To minimize the fluctuation of Vmiddle § Which full adder topology does this the best? Static Transmission Gates Dynamic Can we make any generalizations in those decisions?

Static Full Adders Static CMOS Mirror Adder

Transmission Logic Adders Transmission Function Adder Transmission Gate Adder

Dynamic NP CMOS Adders Standard Fare (#1) Suggested From a Paper(#2)

Cadence Implementation (1 0) (0 1) A 0 B 0 Cin, 0 = A 0 + – FA 0 S 0 Cout, 0 Vmiddle VDD (0 1) (1 0) A 1 B 1 Cin, 1 = A 1 FA 1 S 1 Cout, 1 Claim: When inputs of FA 0 and FA 1 swing in opposite directions, then the greatest amount of noise occurs at the output causing the most imbalanced Vmiddle conditions.

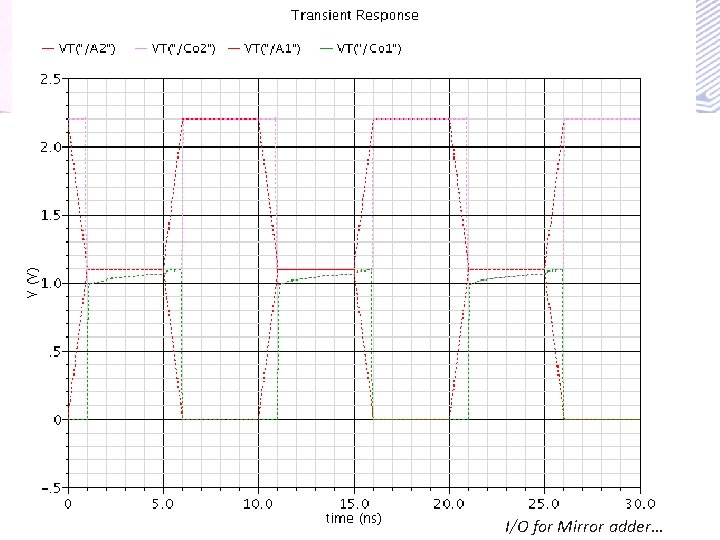

I/O for Mirror adder…

Simulation Results

Static CMOS Adder § 1. 205 to 1. 050 V. § Percents: 9. 55% above and 4. 55% below.

Mirror Full Adder (MFA) § 1. 148 to 0. 985 V. § Percents: 4. 36% above and 10. 5% below.

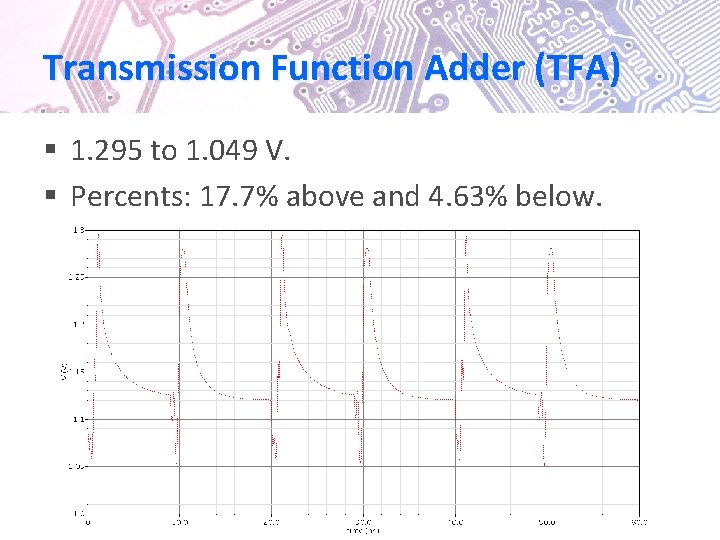

Transmission Function Adder (TFA) § 1. 295 to 1. 049 V. § Percents: 17. 7% above and 4. 63% below.

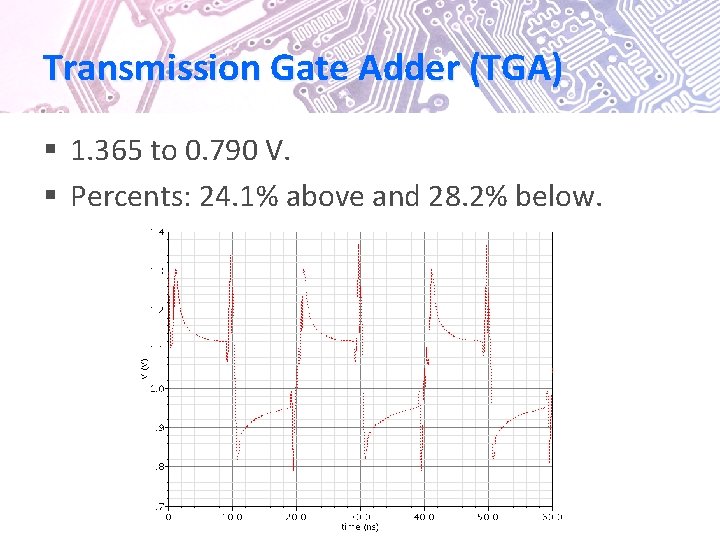

Transmission Gate Adder (TGA) § 1. 365 to 0. 790 V. § Percents: 24. 1% above and 28. 2% below.

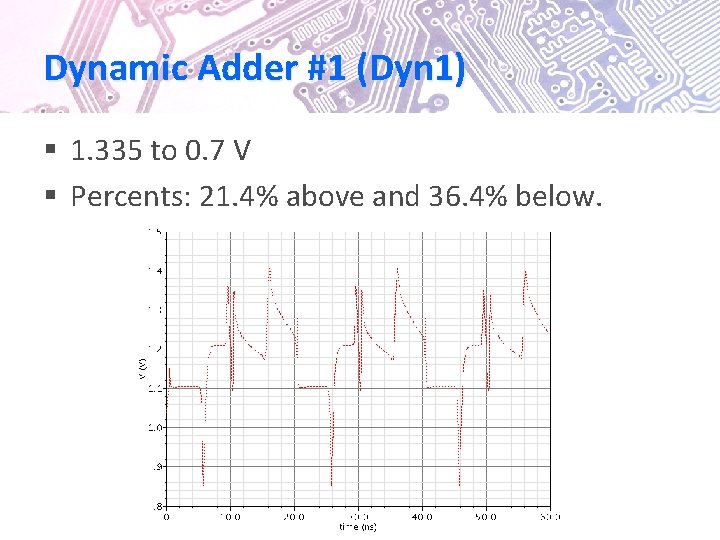

Dynamic Adder #1 (Dyn 1) § 1. 335 to 0. 7 V § Percents: 21. 4% above and 36. 4% below.

Dynamic Adder #2 (Dyn 2) § 1. 406 to 0. 861 V § Percents: 27. 8% above and 21. 7% below.

All together now… 1. 2. 3. 4. 5. 6. Static CMOS: +9. 55%/-4. 55% (Avg: 7. 05%) MFA: +4. 36%/-10. 5% (Avg: 7. 43%) TFA: +17. 7%/-4. 63% (Avg: 11. 2%) Dyn 2: +27. 8%/-21. 7% (Avg: 24. 8%) TGA: +24. 1%/-28. 2% (Avg: 26. 2%) Dyn 1: +21. 4%/-36. 4% (Avg: 28. 9%)

Takeaways / Conclusion § Static adders are the best! § Dynamic adders compromise stability for speed, which is needed in Stacked-VDD designs § Out of transmission logic adders, TFA does the best balancing of current
