The Company Internal Gear Pumps External Gear Pumps

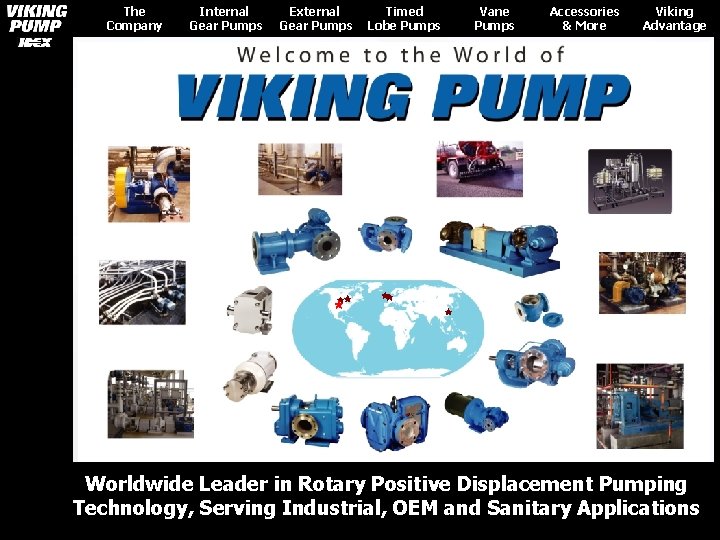

The Company Internal Gear Pumps External Gear Pumps Timed Lobe Pumps Vane Pumps Accessories & More Viking Advantage Worldwide Leader in Rotary Positive Displacement Pumping Technology, Serving Industrial, OEM and Sanitary Applications

The Company Product Overview Internal Gear Pumps External Gear Pumps • Internal Gear Pumps Corporate Structure • External Gear Pumps Manufacturing Certifications History Vane Pumps Rotary Positive Displacement Pumps: Custom Solutions Global Support Timed Lobe Pumps • Timed Lobe Pumps • Vane Pumps Pump accessories: • Gear Reducers • Strainers • Controllers Engineered Pump Systems Custom OEM Pumps Accessories & More Viking Advantage

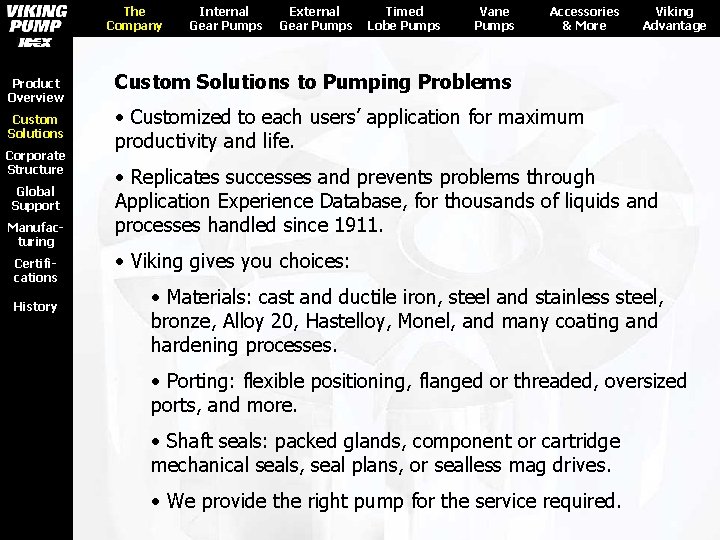

The Company Product Overview Custom Solutions Corporate Structure Global Support Manufacturing Certifications History Internal Gear Pumps External Gear Pumps Timed Lobe Pumps Vane Pumps Accessories & More Viking Advantage Custom Solutions to Pumping Problems • Customized to each users’ application for maximum productivity and life. • Replicates successes and prevents problems through Application Experience Database, for thousands of liquids and processes handled since 1911. • Viking gives you choices: • Materials: cast and ductile iron, steel and stainless steel, bronze, Alloy 20, Hastelloy, Monel, and many coating and hardening processes. • Porting: flexible positioning, flanged or threaded, oversized ports, and more. • Shaft seals: packed glands, component or cartridge mechanical seals, seal plans, or sealless mag drives. • We provide the right pump for the service required.

The Company Product Overview Internal Gear Pumps IDEX Corp. Custom Solutions External Gear Pumps Timed Lobe Pumps Vane Pumps Accessories & More Viking Advantage Dispensing Equipment Fire & Safety / Diversified Products Health & Science Technologies Fluid and Metering Technologies Corporate Structure Global Support Manufacturing Certifications History Sales & Support Outside N. America Manufacturing / North American Sales & Support • Pulsafeeder • Classic Engineering • Halox Technologies • Knight Equipment • AODD Group • Warren Rupp • Versa-Matic • Blagdon Pump • Pumper Parts • Liquid Controls • Europe / Africa Pump Group (EPG) • Sponsler • Viking Pump • Johnson Pump (UK) • Wright Pump • Viking Pump Europe • Asia Pacific Pump Group (APG) • Latin America Pump Group (LAPG) • Viking Pump Canada Synergies between the IDEX companies make us all stronger!

The Company Product Overview Custom Solutions Corporate Structure Global Support Manufacturing Internal Gear Pumps External Gear Pumps Timed Lobe Pumps Vane Pumps Accessories & More Global Support Network for Viking Pump Users Products, Services Tech Support Training Local Authorized Viking Pump Stocking Distributor (more than 280 Distributors Worldwide) Certifications Tech Support History Training Region Manager (employee of Viking Pump or of IDEX EPG, APG or LAPG) Products, Services Tech Support Training Viking Pump Application Engineers, Design Engineers, Customer Service and Manufacturing Personnel Worldwide Viking Advantage

The Company Internal Gear Pumps External Gear Pumps Timed Lobe Pumps Vane Pumps Accessories & More Viking Advantage Product Overview Custom Solutions Manufacturing, Muskego, WI USA Corporate Structure Global Support Manufacturing, Windsor, ONT, CANADA Headquarters, Cedar Falls, IA USA Manufacturing Alloy Foundry, Waukesha, WI USA Certifications Manufacturing, Shannon, IRELAND Vertically Integrated and Geographically Located for Customer Service Worldwide History Manufacturing, Cedar Falls, IA USA Iron Foundry, Cedar Falls, IA USA Manufacturing, Eastbourne, UK Alloys Foundry, Cedar Falls, IA USA IDEX Manufacturing, Suzhou, CHINA

The Company Product Overview Custom Solutions Corporate Structure Internal Gear Pumps External Gear Pumps Timed Lobe Pumps Vane Pumps Accessories & More Viking Advantage Viking Industrial Certifications Certified to the ISO – 9001 quality standard. Viking uses Six Sigma and Lean Manufacturing business processes for continuous quality improvement. UL-listed pumps for fuel oil, petroleum products and LP Gas. Certified to ISO-14001 environmental management system standard. CE marked pumps from Viking Europe. ATEX compliant pumps for hazardous locations. Global Support Manufacturing Certifications History

The Company Product Overview Custom Solutions Internal Gear Pumps External Gear Pumps Timed Lobe Pumps Vane Pumps Accessories & More Viking Advantage History • Founded in 1911, Viking Pump is the originator of the internal gear pumping principle. Corporate Structure Global Support Manufacturing 1906 Original Prototype Testing Certifications History 1904 Patent Illustrations • Viking Europe (Shannon, Ireland) established 1985 • Viking Acquires Johnson Pump (UK) 1992 • Viking Acquires Viking Canada 1992 • Viking Acquires Wright Pump 2002 • IDEX Opens Suzhou China Facility 2004 1912 Manufacturing

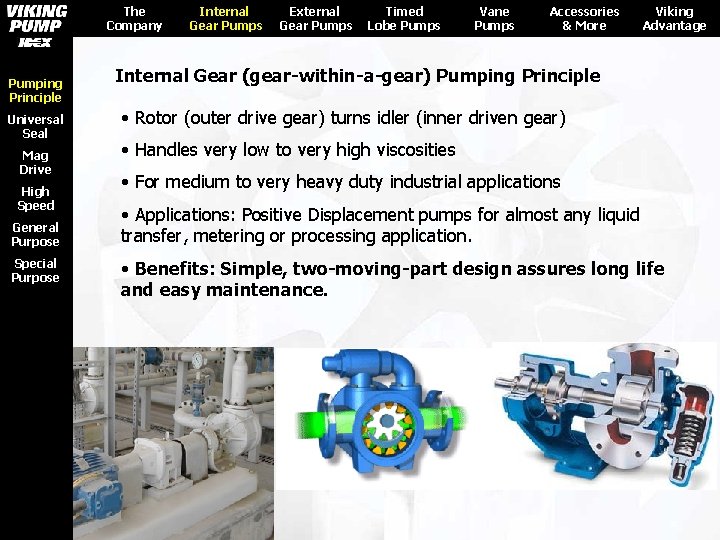

The Company Pumping Principle Universal Seal Mag Drive High Speed General Purpose Special Purpose Internal Gear Pumps External Gear Pumps Timed Lobe Pumps Vane Pumps Accessories & More Viking Advantage Internal Gear (gear-within-a-gear) Pumping Principle • Rotor (outer drive gear) turns idler (inner driven gear) • Handles very low to very high viscosities • For medium to very heavy duty industrial applications • Applications: Positive Displacement pumps for almost any liquid transfer, metering or processing application. • Benefits: Simple, two-moving-part design assures long life and easy maintenance.

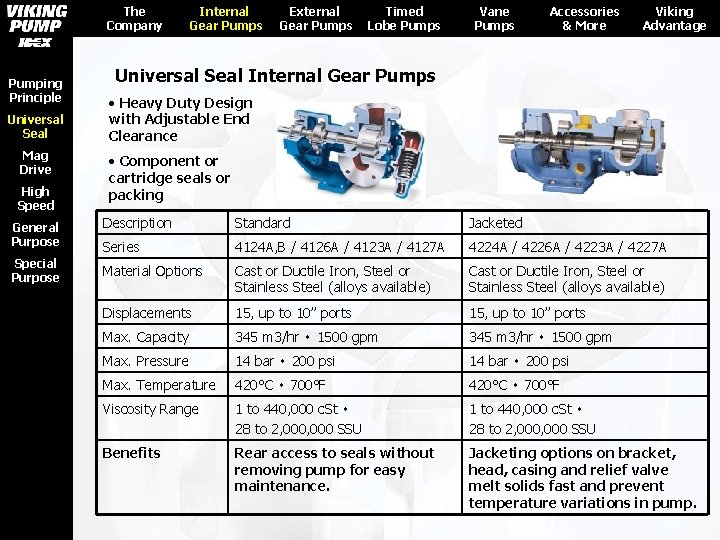

The Company Pumping Principle Universal Seal Mag Drive High Speed General Purpose Special Purpose Internal Gear Pumps External Gear Pumps Timed Lobe Pumps Vane Pumps Accessories & More Viking Advantage Universal Seal Internal Gear Pumps • Heavy Duty Design with Adjustable End Clearance • Component or cartridge seals or packing Description Standard Jacketed Series 4124 A, B / 4126 A / 4123 A / 4127 A 4224 A / 4226 A / 4223 A / 4227 A Material Options Cast or Ductile Iron, Steel or Stainless Steel (alloys available) Displacements 15, up to 10” ports Max. Capacity 345 m 3/hr ٠ 1500 gpm Max. Pressure 14 bar ٠ 200 psi Max. Temperature 420°C ٠ 700°F Viscosity Range 1 to 440, 000 c. St ٠ 28 to 2, 000, 000 SSU Benefits Rear access to seals without removing pump for easy maintenance. Jacketing options on bracket, head, casing and relief valve melt solids fast and prevent temperature variations in pump.

The Company Pumping Principle Universal Seal Mag Drive Internal Gear Pumps External Gear Pumps Timed Lobe Pumps Vane Pumps Accessories & More Viking Advantage Mag Drive Internal Gear Pumps • No shaft seals • Rigid Shaft Support High Speed General Purpose Special Purpose Series 895/893/897 855 825/823/827 Material Options Cast Iron, Steel, Stainless Steel Displacements 6, up to 3” ports 9, up to 3” (80 mm) ports 6, up to 6” ports Max. Capacity 17 m 3/hr ٠ 75 gpm 29. 5 m 3/hr ٠ 130 gpm 114 m 3/hr ٠ 500 gpm Max. Pressure 8. 5 bar ٠ 125 psi 14 bar ٠ 200 psi 8. 5 bar ٠ 125 psi Max. Temperature 260°C ٠ 500°F Viscosity Range 1 to 5, 500 c. St ٠ 28 to 25, 000 SSU 1 to 55, 000 c. St ٠ 28 to 250, 000 SSU Benefits Material options Bi-directional flow; suitable for most adjustable clearances hazardous liquids. compensate for wear; close-coupled option; DIN or ANSI flanges. Extremely heavy duty design for maximum reliability.

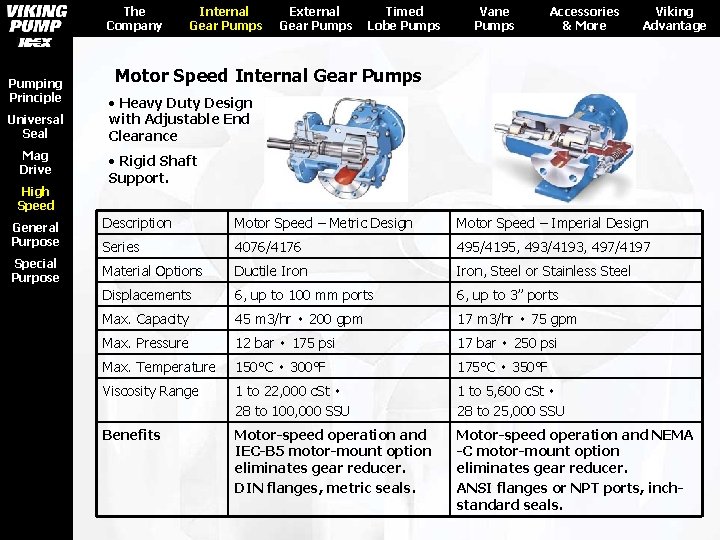

The Company Pumping Principle Universal Seal Mag Drive High Speed General Purpose Special Purpose Internal Gear Pumps External Gear Pumps Timed Lobe Pumps Vane Pumps Accessories & More Viking Advantage Motor Speed Internal Gear Pumps • Heavy Duty Design with Adjustable End Clearance • Rigid Shaft Support. Description Motor Speed – Metric Design Motor Speed – Imperial Design Series 4076/4176 495/4195, 493/4193, 497/4197 Material Options Ductile Iron, Steel or Stainless Steel Displacements 6, up to 100 mm ports 6, up to 3” ports Max. Capacity 45 m 3/hr ٠ 200 gpm 17 m 3/hr ٠ 75 gpm Max. Pressure 12 bar ٠ 175 psi 17 bar ٠ 250 psi Max. Temperature 150°C ٠ 300°F 175°C ٠ 350°F Viscosity Range 1 to 22, 000 c. St ٠ 28 to 100, 000 SSU 1 to 5, 600 c. St ٠ 28 to 25, 000 SSU Benefits Motor-speed operation and IEC-B 5 motor-mount option eliminates gear reducer. DIN flanges, metric seals. Motor-speed operation and NEMA -C motor-mount option eliminates gear reducer. ANSI flanges or NPT ports, inchstandard seals.

The Company Pumping Principle Universal Seal Mag Drive High Speed General Purpose Special Purpose Internal Gear Pumps External Gear Pumps Timed Lobe Pumps Vane Pumps Accessories & More Viking Advantage General Purpose Internal Gear Pumps • Bearing support behind the rotor • Mechanical seals or packing Description Flange Mount Foot Mount Jacketed Foot Mount Series 75/475 32/34 432/434 Material Options Cast Iron Displacements 8, up to 1. 5” ports 14, up to 5” ports Max. Capacity 6. 8 m 3/hr ٠ 30 gpm 102 m 3/hr ٠ 450 gpm Max. Pressure 7 bar ٠ 100 psi 17 bar ٠ 250 psi Max. Temperature 175°C ٠ 350°F 230°C ٠ 450°F Viscosity Range 1 to 550 c. St ٠ 28 to 2, 500 SSU 1 to 55, 000 c. St ٠ 28 to 250, 000 SSU Benefits Lower cost, compact design. Lower cost design. World’s largest installed base pumping bitumen.

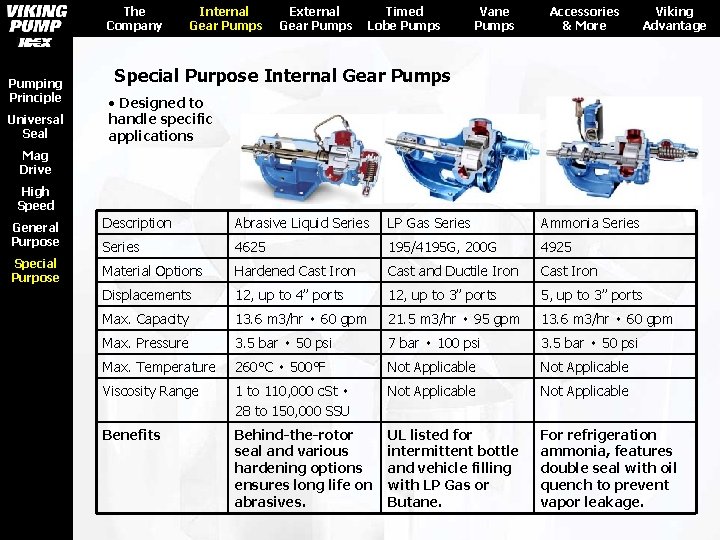

The Company Pumping Principle Universal Seal Internal Gear Pumps External Gear Pumps Timed Lobe Pumps Vane Pumps Accessories & More Viking Advantage Special Purpose Internal Gear Pumps • Designed to handle specific applications Mag Drive High Speed General Purpose Special Purpose Description Abrasive Liquid Series LP Gas Series Ammonia Series 4625 195/4195 G, 200 G 4925 Material Options Hardened Cast Iron Cast and Ductile Iron Cast Iron Displacements 12, up to 4” ports 12, up to 3” ports 5, up to 3” ports Max. Capacity 13. 6 m 3/hr ٠ 60 gpm 21. 5 m 3/hr ٠ 95 gpm 13. 6 m 3/hr ٠ 60 gpm Max. Pressure 3. 5 bar ٠ 50 psi 7 bar ٠ 100 psi 3. 5 bar ٠ 50 psi Max. Temperature 260°C ٠ 500°F Not Applicable Viscosity Range 1 to 110, 000 c. St ٠ 28 to 150, 000 SSU Not Applicable Benefits Behind-the-rotor seal and various hardening options ensures long life on abrasives. UL listed for intermittent bottle and vehicle filling with LP Gas or Butane. For refrigeration ammonia, features double seal with oil quench to prevent vapor leakage.

The Company Pumping Principle Spur Gear Mag Drive Internal Gear Pumps External Gear Pumps Timed Lobe Pumps Vane Pumps Accessories & More External Gear Pumping Principle • Drive gear turns identical driven gear • Handles low to medium viscosities • For medium duty, low flow industrial and OEM applications • Applications: lubricating oils and chemicals • Benefits: Economical design for low-cost, high performance capability. Viking Advantage

The Company Pumping Principle Internal Gear Pumps External Gear Pumps Timed Lobe Pumps Vane Pumps Accessories & More Spur Gear External Gear Pumps Spur Gear Mag Drive Description SG Series VI-CORR Series SG/SGN 04, 05, 07 RP 05, 07 Material Options Cast or Ductile Iron PPO Composite Displacements 20, up to 1. 5” ports 8, up to 2” ports Max. Capacity 7. 2 m 3/hr ٠ 32 gpm Max. Pressure 34 bar ٠ 500 psi 14 bar ٠ 200 psi Max. Temperature 230°C ٠ 450°F 90°C ٠ 200°F Viscosity Range 1 to 16, 500 c. St ٠ 28 to 75, 000 SSU 1 to 5, 500 c. St ٠ 28 to 25, 000 SSU Benefits Foot or motor-mount. Double pump options for lube and scavenge. 40% flow increments ensure models available within 20% of any flow requirement. Corrosion resistant for chemical metering. Viking Advantage

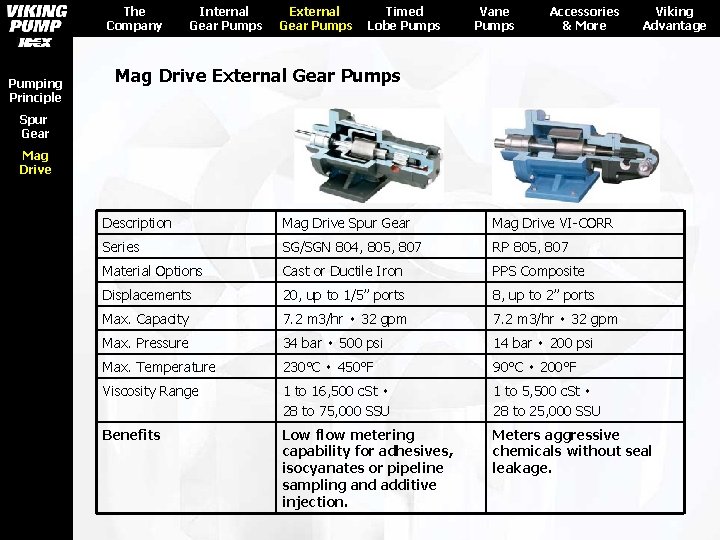

The Company Pumping Principle Internal Gear Pumps External Gear Pumps Timed Lobe Pumps Vane Pumps Accessories & More Viking Advantage Mag Drive External Gear Pumps Spur Gear Mag Drive Description Mag Drive Spur Gear Mag Drive VI-CORR Series SG/SGN 804, 805, 807 RP 805, 807 Material Options Cast or Ductile Iron PPS Composite Displacements 20, up to 1/5” ports 8, up to 2” ports Max. Capacity 7. 2 m 3/hr ٠ 32 gpm Max. Pressure 34 bar ٠ 500 psi 14 bar ٠ 200 psi Max. Temperature 230°C ٠ 450°F 90°C ٠ 200°F Viscosity Range 1 to 16, 500 c. St ٠ 28 to 75, 000 SSU 1 to 5, 500 c. St ٠ 28 to 25, 000 SSU Benefits Low flow metering capability for adhesives, isocyanates or pipeline sampling and additive injection. Meters aggressive chemicals without seal leakage.

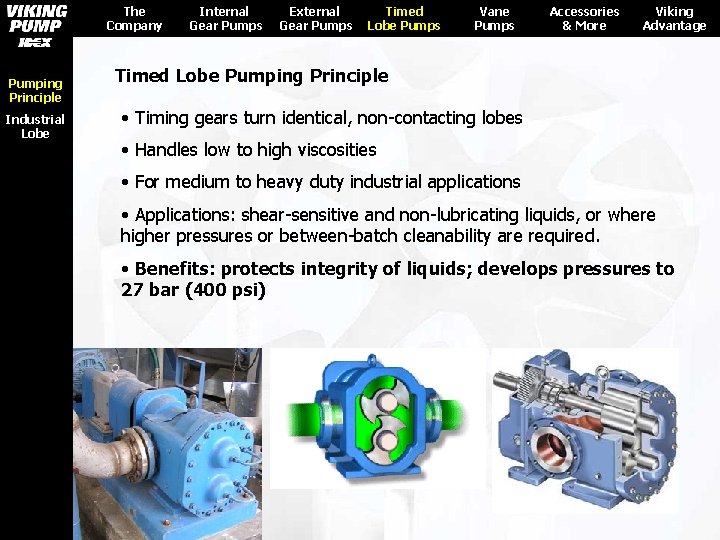

The Company Pumping Principle Industrial Lobe Internal Gear Pumps External Gear Pumps Timed Lobe Pumps Vane Pumps Accessories & More Viking Advantage Timed Lobe Pumping Principle • Timing gears turn identical, non-contacting lobes • Handles low to high viscosities • For medium to heavy duty industrial applications • Applications: shear-sensitive and non-lubricating liquids, or where higher pressures or between-batch cleanability are required. • Benefits: protects integrity of liquids; develops pressures to 27 bar (400 psi)

The Company Pumping Principle Internal Gear Pumps External Gear Pumps Timed Lobe Pumps Vane Pumps Accessories & More Industrial Lobe Pumps Industrial Lobe Description Industrial Lobe Series RL Material Options Stainless Steel Displacements 3, up to 10” ports Max. Capacity 184 m 3/hr ٠ 820 gpm Max. Pressure 27 bar ٠ 400 psi Max. Temperature 205°C ٠ 400°F Viscosity Range 1 to 440, 000 c. St ٠ 28 to 2, 000 SSU Benefits Universal seal design accepts packing, component seals or cartridge seals from most major seal suppliers. Improved porting design for superior suction performance and reduced pulsation. Viking Advantage

The Company Pumping Principle Vane Internal Gear Pumps External Gear Pumps Timed Lobe Pumps Vane Pumps Accessories & More Viking Advantage Vane Pumping Principle • Round rotor turns in cam-shaped cavity • Vanes extend to sweep fluid through cam area, with help from push rods, hydraulic force, centrifugal force and gravity • For heavy duty industrial process or transfer applications • Applications: on thin, flammable or corrosive liquids where higher pressures are required • Benefits: Develops pressures to 14 bar (200 psi) even on the thinnest liquids

The Company Pumping Principle Internal Gear Pumps External Gear Pumps Timed Lobe Pumps Vane Pumps Accessories & More Vane Pumps LVP Vane Description Thin Liquids Vane Pump Series LVP Material Options Stainless Steel Displacements 6, up to 3” ports Max. Capacity 36 m 3/hr ٠ 160 gpm Max. Pressure 14 bar ٠ 200 psi Max. Temperature 260°C ٠ 500°F Viscosity Range 0. 1 to 500 c. St ٠ 28 to 2, 300 SSU Benefits Hardened casing, silicon carbide bushings and chrome oxide coated shafts for tough, industrial applications. US (inch) or metric (mm) porting, shaft seals and motor mount options. Universal seal design accepts most component or cartridge seals. Viking Advantage

The Company Gear Reducers Internal Gear Pumps External Gear Pumps Timed Lobe Pumps Vane Pumps Accessories & More Viking Advantage Gear Reducers Strainers Power Load Monitors Pump Systems OEM Pumps Description Parallel Offset Shaft In-Line Shaft Gear Ratio Range 1. 87: 1 to 7. 95: 1 2. 6: 1 to 35: 1 Output Speed Range 775 to 182 RPM (1450 RPM Input) 950 to 220 RPM (1750 RPM Input) 557 to 41 RPM (1450 RPM Input) 673 to 50 RPM (1750 RPM Input) Power Range 1. 0 to 37. 2 k. W ٠ 1. 4 to 49. 8 HP 0. 37 to 112 k. W ٠ 0. 5 to 350 HP Benefits Output shaft matches Viking Pump shaft heights, input shaft rotates to match motor shaft height for easy installation and alignment. Optional IEC B 5 or NEMA-C input side motor adapter simplifies installation and eliminates one shaft alignment.

The Company Gear Reducers Internal Gear Pumps External Gear Pumps Timed Lobe Pumps Vane Pumps Accessories & More Strainers Power Load Monitors Pump Systems OEM Pumps Description Lid-Ease® Strainers Port Sizes ¾” to 8” Material Options Aluminum, Cast or Ductile Iron, Stainless Steel (Basket and mesh are Stainless Steel on all) Capacity Range 4. 5 to 340 m 3/hr ٠ 20 to 1500 gpm Basket Mesh Opening Options 4870 to 140 microns ٠ 0. 188 to 0. 0055 inches ٠ 0 to 100 mesh ٠ Magnetic insert option Max. Temperature 205°C ٠ 400°F Max. Pressure 14 bar ٠ 200 psi Port Options Groove, NPT, Flange Benefits Simple breech lock lid allows easy cleaning. Protects pump and system from contaminants. Optional differential pressure gauge alerts user to empty basket. Viking Advantage

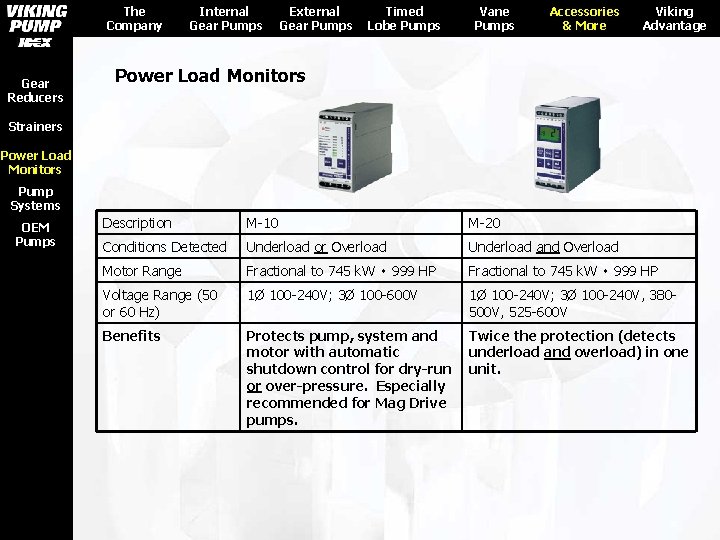

The Company Gear Reducers Internal Gear Pumps External Gear Pumps Timed Lobe Pumps Vane Pumps Accessories & More Viking Advantage Power Load Monitors Strainers Power Load Monitors Pump Systems OEM Pumps Description M-10 M-20 Conditions Detected Underload or Overload Underload and Overload Motor Range Fractional to 745 k. W ٠ 999 HP Voltage Range (50 or 60 Hz) 1Ø 100 -240 V; 3Ø 100 -600 V 1Ø 100 -240 V; 3Ø 100 -240 V, 380500 V, 525 -600 V Benefits Protects pump, system and motor with automatic shutdown control for dry-run or over-pressure. Especially recommended for Mag Drive pumps. Twice the protection (detects underload and overload) in one unit.

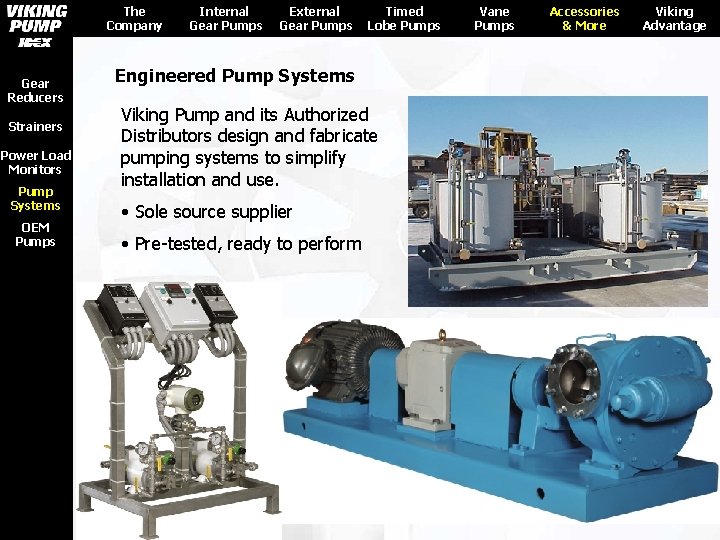

The Company Gear Reducers Strainers Power Load Monitors Pump Systems OEM Pumps Internal Gear Pumps External Gear Pumps Timed Lobe Pumps Engineered Pump Systems Viking Pump and its Authorized Distributors design and fabricate pumping systems to simplify installation and use. • Sole source supplier • Pre-tested, ready to perform Vane Pumps Accessories & More Viking Advantage

The Company Gear Reducers Strainers Power Load Monitors Pump Systems Internal Gear Pumps External Gear Pumps Timed Lobe Pumps Vane Pumps Accessories & More Viking Advantage Custom OEM Pumps • Custom pumps and pump kits for Original Equipment Manufacturers • Vertical integration for fast prototype and development • Engineering expertise for simplified designs and lower overall costs OEM Pumps Wind turbine gearbox lube pump with flow in one direction, regardless of direction of drive shaft rotation. Stepper-motor driven pump for metering colorants into paint.

The Company Gear Reducers Strainers Power Load Monitors Pump Systems OEM Pumps Internal Gear Pumps External Gear Pumps Timed Lobe Pumps Vane Pumps Accessories & More Viking Advantage Typical OEM Applications • Hot oil filtration (fryers) • Ink metering (printing presses) • Heat transfer fluids • Bitumen metering (hot mix) • Compressor / turbine lube • Automotive fluid systems • Adhesive dispensing • Fluid power (hydraulics) • Chemical metering • Flow dividers and hydraulic motors Three-section transmission pump for heavy-duty off-road vehicles (lube, scavenge, fluid power for hydraulic radiator fan) Kit-type gerotor pump for small compressor lubrication

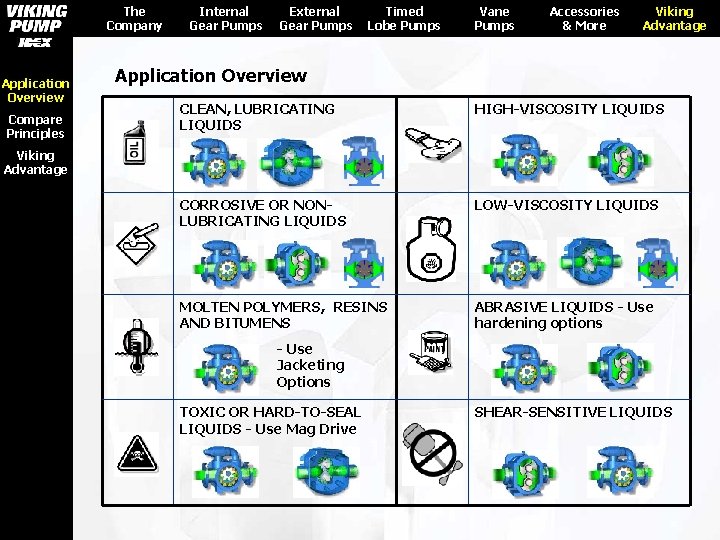

The Company Application Overview Compare Principles Internal Gear Pumps External Gear Pumps Timed Lobe Pumps Vane Pumps Accessories & More Viking Advantage Application Overview CLEAN, LUBRICATING LIQUIDS HIGH-VISCOSITY LIQUIDS CORROSIVE OR NONLUBRICATING LIQUIDS LOW-VISCOSITY LIQUIDS MOLTEN POLYMERS, RESINS AND BITUMENS ABRASIVE LIQUIDS - Use hardening options Viking Advantage - Use Jacketing Options TOXIC OR HARD-TO-SEAL LIQUIDS - Use Mag Drive SHEAR-SENSITIVE LIQUIDS

The Company Application Overview Compare Principles Viking Advantage Internal Gear Pumps External Gear Pumps Timed Lobe Pumps Vane Pumps Accessories & More Viking Advantage Compare Pumping Principles Rotary Positive Displacement Capabilities or Characteristics Reciprocating P. D. Kinetic Vane Progressive Cavity Screw Peristaltic Piston / Plunger AOD Centrifugal Yes Yes Yes No No No Short term Yes Short term No Short term Yes No Yes Low Medium Low Low High Low Solids & Abrasives Good Poor Good Good Poor Good Max. Viscosity High Low High Medium Low Low Max Capacity High Medium High Low High Low Very High Max Pressure Medium High Medium Low per stage High Low Low/stage Fluid Shear Low Medium Low Low High Medium High Sealless Option Yes No Yes Internal Gear External Gear Timed Lobe Reversible Flow Yes Can Run Dry w/seal flush Short term Pulsation Viking’s Internal Gear, External Gear, Timed Lobe and Vane pumps offer flexibility, efficiency and operating characteristics that make them the preferred choice for many process applications.

The Company Application Overview Compare Principles Viking Advantage Internal Gear Pumps External Gear Pumps Timed Lobe Pumps Vane Pumps The Viking Advantage • Almost universal applicability of Viking’s internal gear pumps on thin or thick liquids allows user standardization on one pump design. • Vertically integrated, globally produced pumping solutions with local service and support. • Customization based on extensive application experience ensures long service life with minimal maintenance. • Manufacturing expertise and modularity minimize customization costs, ensuring superior customer value. Accessories & More Viking Advantage
