The Common Information Model (CIM) accepted/implemented Globally- for operations, planning, markets, and throughout the Enterprise David Becker, EPRI Presented at the “ 2005 EMS Users Group Meeting” Providence, R. I. September 13, 2005

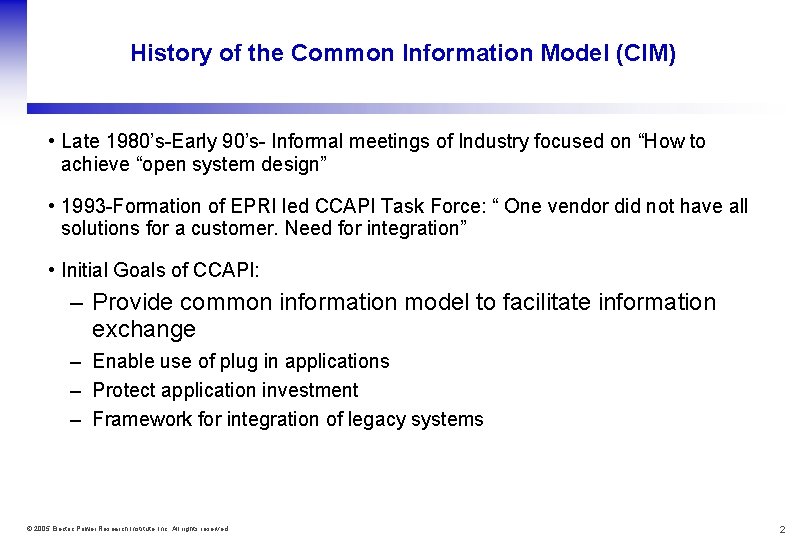

History of the Common Information Model (CIM) • Late 1980’s-Early 90’s- Informal meetings of Industry focused on “How to achieve “open system design” • 1993 -Formation of EPRI led CCAPI Task Force: “ One vendor did not have all solutions for a customer. Need for integration” • Initial Goals of CCAPI: – Provide common information model to facilitate information exchange – Enable use of plug in applications – Protect application investment – Framework for integration of legacy systems © 2005 Electric Power Research Institute, Inc. All rights reserved. 2

The Common Information Model Defines Power System Resources, Attributes and Relationships Company Generator Control Area Operates Provides Transmission for Busbar AC Line Company Controls Connects to Supplies Energy for Load Connects to Owns © 2005 Electric Power Research Institute, Inc. All rights reserved. 3

ENTERPRISE © 2005 Electric Power Research Institute, Inc. All rights reserved. 4

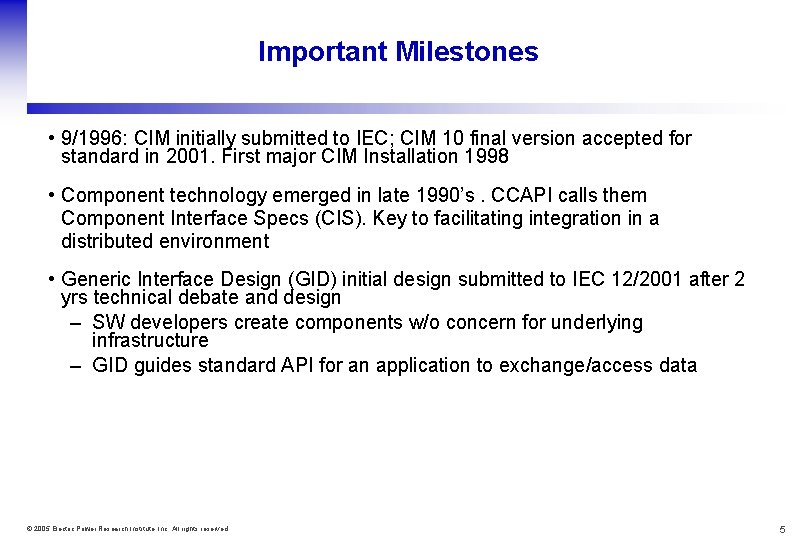

Important Milestones • 9/1996: CIM initially submitted to IEC; CIM 10 final version accepted for standard in 2001. First major CIM Installation 1998 • Component technology emerged in late 1990’s. CCAPI calls them Component Interface Specs (CIS). Key to facilitating integration in a distributed environment • Generic Interface Design (GID) initial design submitted to IEC 12/2001 after 2 yrs technical debate and design – SW developers create components w/o concern for underlying infrastructure – GID guides standard API for an application to exchange/access data © 2005 Electric Power Research Institute, Inc. All rights reserved. 5

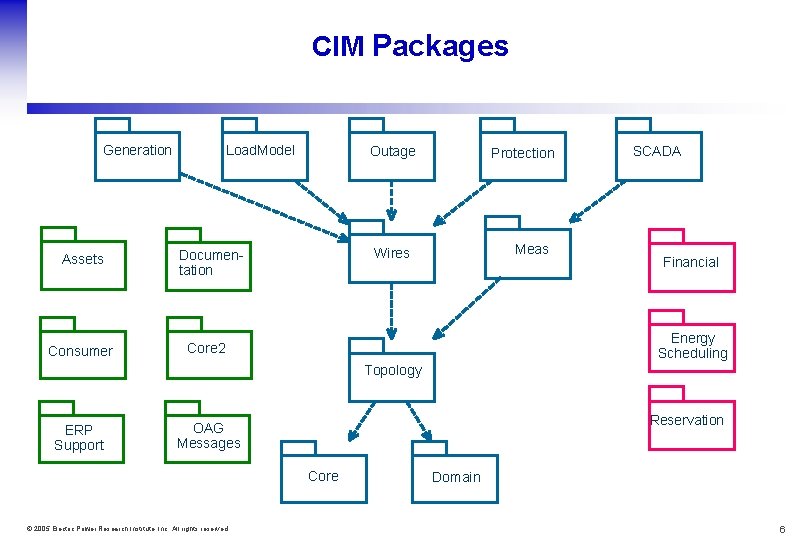

CIM Packages Generation Assets Consumer Load. Model Outage Protection Meas Wires Documentation SCADA Financial Energy Scheduling Core 2 Topology ERP Support Reservation OAG Messages Core © 2005 Electric Power Research Institute, Inc. All rights reserved. Domain 6

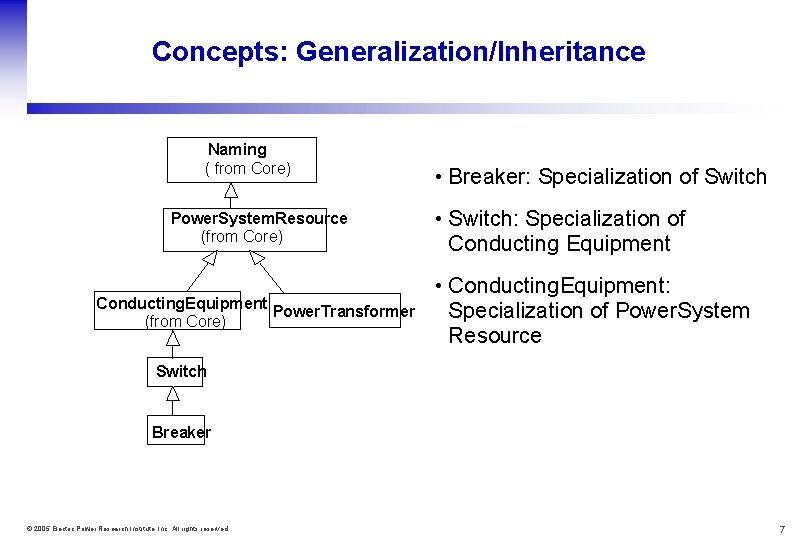

Concepts: Generalization/Inheritance Naming ( from Core) Power. System. Resource (from Core) Conducting. Equipment Power. Transformer (from Core) • Breaker: Specialization of Switch • Switch: Specialization of Conducting Equipment • Conducting. Equipment: Specialization of Power. System Resource Switch Breaker © 2005 Electric Power Research Institute, Inc. All rights reserved. 7

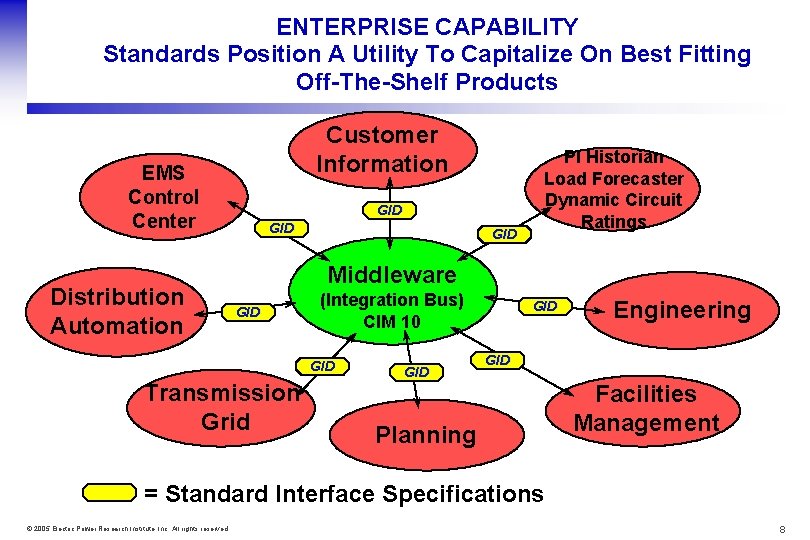

ENTERPRISE CAPABILITY Standards Position A Utility To Capitalize On Best Fitting Off-The-Shelf Products Customer Information EMS Control Center Distribution Automation GID GID PI Historian Load Forecaster Dynamic Circuit Ratings Middleware GID (Integration Bus) CIM 10 GID Transmission Grid GID Engineering GID Planning Facilities Management = Standard Interface Specifications © 2005 Electric Power Research Institute, Inc. All rights reserved. 8

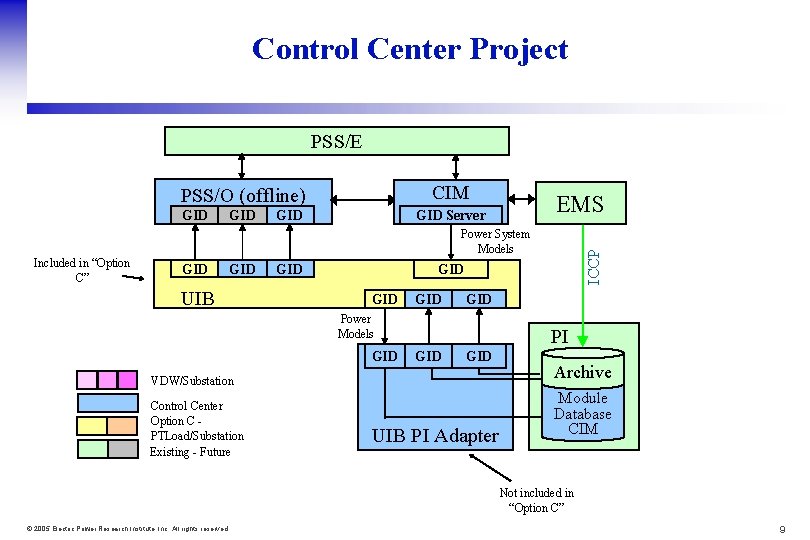

Control Center Project PSS/E CIM PSS/O (offline) GID GID EMS GID Server Included in “Option C” GID UIB GID GID GID Power Models GID PI GID VDW/Substation Control Center Option C PTLoad/Substation Existing - Future ICCP Power System Models UIB PI Adapter Archive Module Database CIM Not included in “Option C” © 2005 Electric Power Research Institute, Inc. All rights reserved. 9

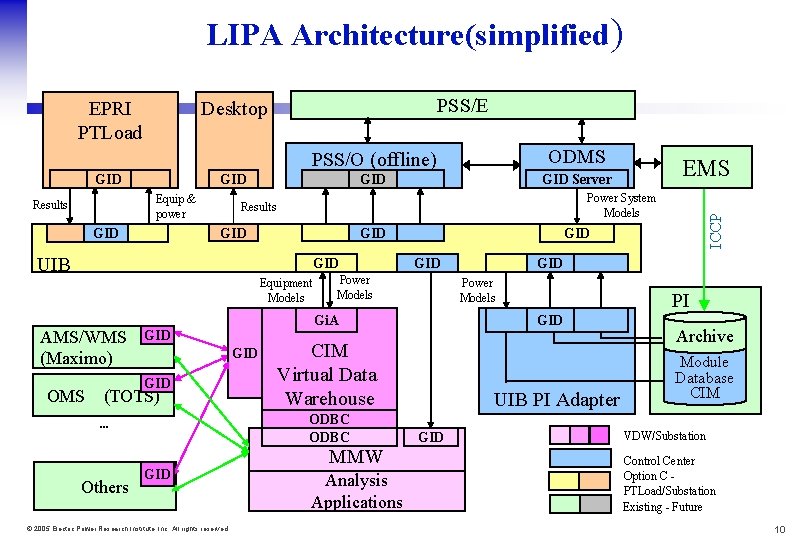

LIPA Architecture(simplified) GID PSS/O (offline) ODMS GID Server GID Equip & power Results PSS/E Desktop Power System Models Results GID GID UIB GID Equipment Models AMS/WMS (Maximo) OMS GID (TOTS) Others GID © 2005 Electric Power Research Institute, Inc. All rights reserved. GID Power Models MMW Analysis Applications GID Power Models PI GID CIM Virtual Data Warehouse ODBC . . . GID Gi. A GID EMS ICCP EPRI PTLoad UIB PI Adapter GID Archive Module Database CIM VDW/Substation Control Center Option C PTLoad/Substation Existing - Future 10

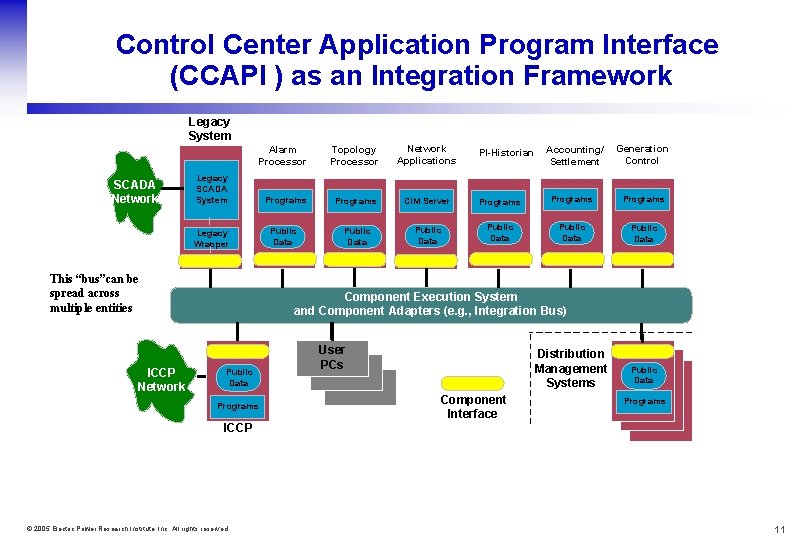

Control Center Application Program Interface (CCAPI ) as an Integration Framework Legacy System SCADA Network Alarm Processor Topology Processor Network Applications Legacy SCADA System Programs CIM Server Programs Legacy Wrapper Public Data Public Data This “bus”can be spread across multiple entities ICCP Network PI-Historian Accounting/ Settlement Generation Control Component Execution System and Component Adapters (e. g. , Integration Bus) Public Data Programs User PCs Distribution Management Systems Component Interface Public Data Programs ICCP © 2005 Electric Power Research Institute, Inc. All rights reserved. 11

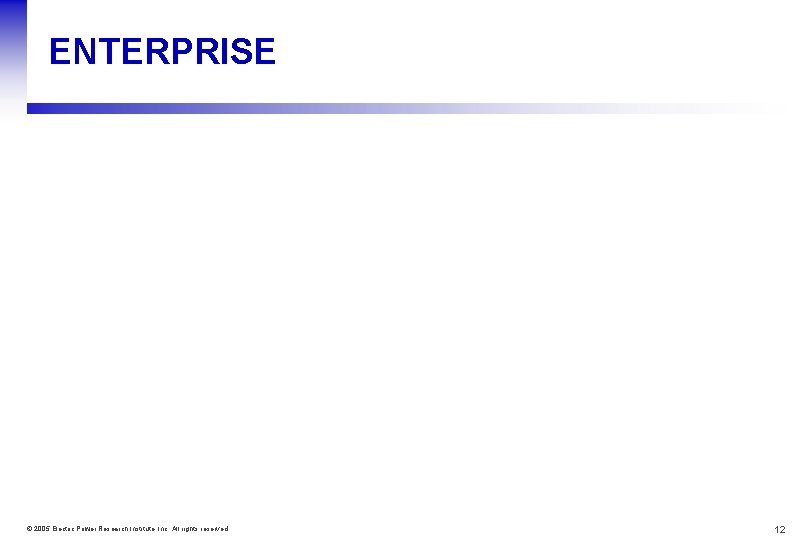

ENTERPRISE © 2005 Electric Power Research Institute, Inc. All rights reserved. 12

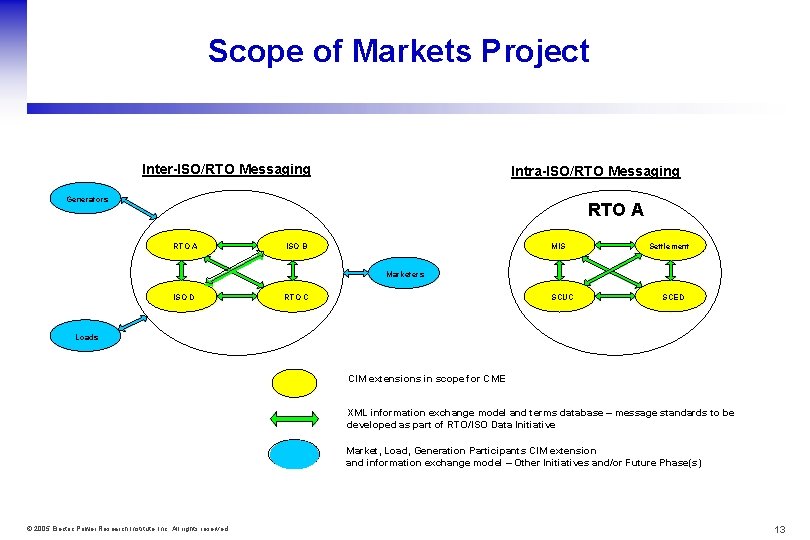

Scope of Markets Project Inter-ISO/RTO Messaging Intra-ISO/RTO Messaging Generators RTO A MIS ISO B Settlement Marketers ISO D SCUC RTO C SCED Loads CIM extensions in scope for CME XML information exchange model and terms database – message standards to be developed as part of RTO/ISO Data Initiative Market, Load, Generation Participants CIM extension and information exchange model – Other Initiatives and/or Future Phase(s) © 2005 Electric Power Research Institute, Inc. All rights reserved. 13

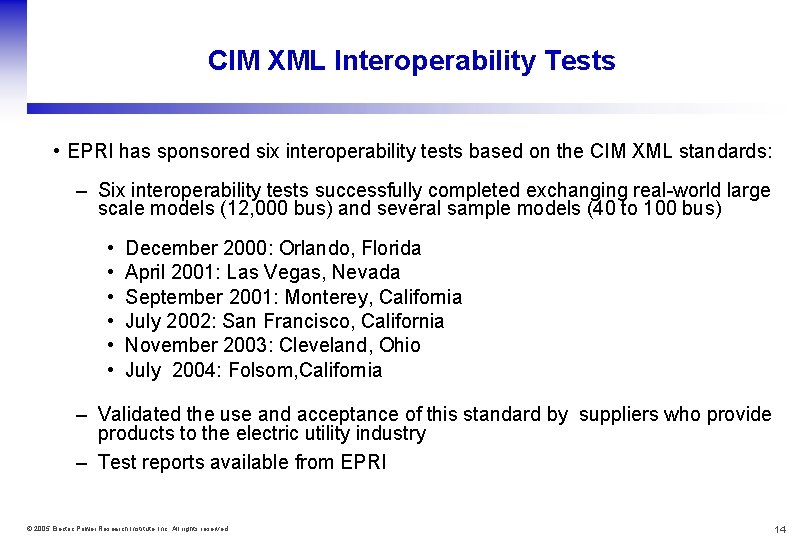

CIM XML Interoperability Tests • EPRI has sponsored six interoperability tests based on the CIM XML standards: – Six interoperability tests successfully completed exchanging real-world large scale models (12, 000 bus) and several sample models (40 to 100 bus) • • • December 2000: Orlando, Florida April 2001: Las Vegas, Nevada September 2001: Monterey, California July 2002: San Francisco, California November 2003: Cleveland, Ohio July 2004: Folsom, California – Validated the use and acceptance of this standard by suppliers who provide products to the electric utility industry – Test reports available from EPRI © 2005 Electric Power Research Institute, Inc. All rights reserved. 14

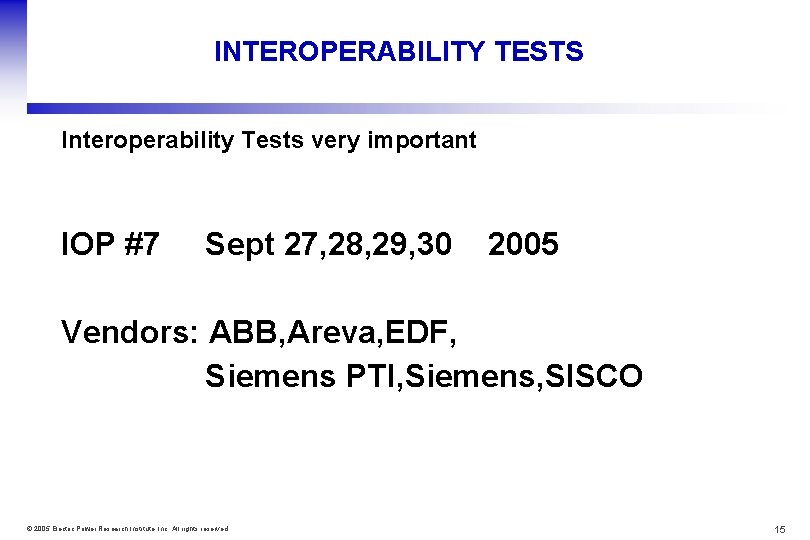

INTEROPERABILITY TESTS Interoperability Tests very important IOP #7 Sept 27, 28, 29, 30 2005 Vendors: ABB, Areva, EDF, Siemens PTI, Siemens, SISCO © 2005 Electric Power Research Institute, Inc. All rights reserved. 15

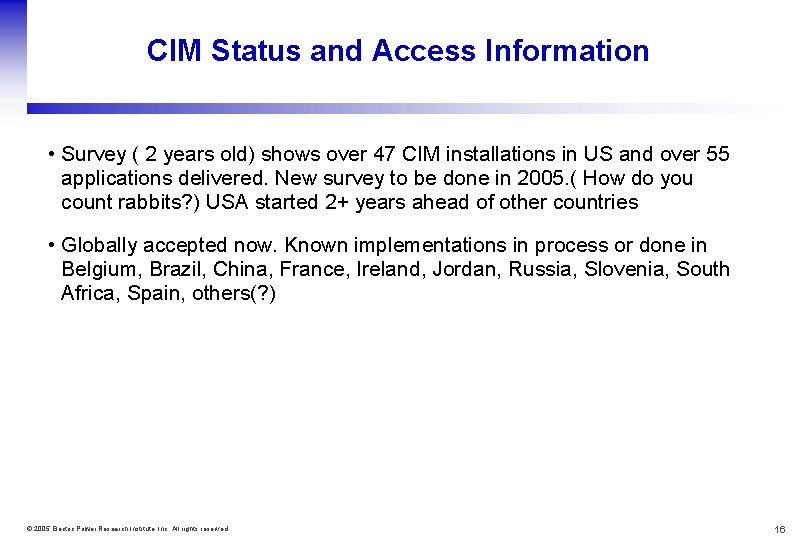

CIM Status and Access Information • Survey ( 2 years old) shows over 47 CIM installations in US and over 55 applications delivered. New survey to be done in 2005. ( How do you count rabbits? ) USA started 2+ years ahead of other countries • Globally accepted now. Known implementations in process or done in Belgium, Brazil, China, France, Ireland, Jordan, Russia, Slovenia, South Africa, Spain, others(? ) © 2005 Electric Power Research Institute, Inc. All rights reserved. 16

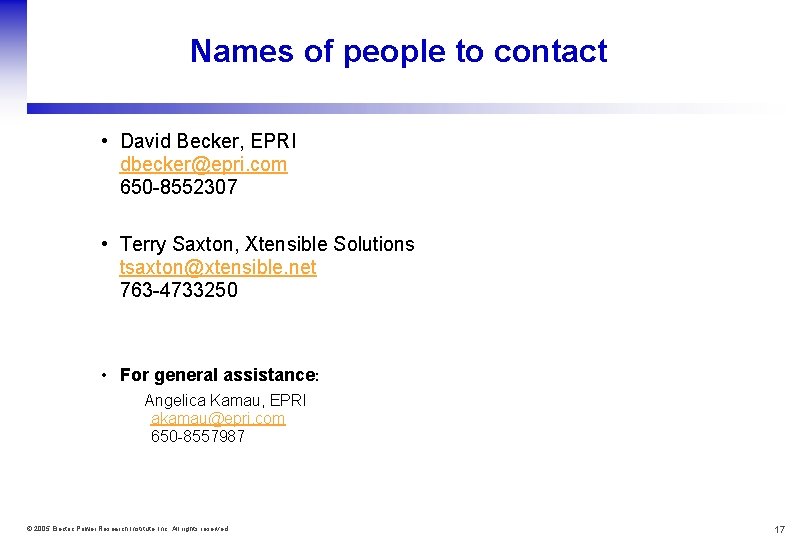

Names of people to contact • David Becker, EPRI dbecker@epri. com 650 -8552307 • Terry Saxton, Xtensible Solutions tsaxton@xtensible. net 763 -4733250 • For general assistance: Angelica Kamau, EPRI akamau@epri. com 650 -8557987 © 2005 Electric Power Research Institute, Inc. All rights reserved. 17

ENTERPRISE © 2005 Electric Power Research Institute, Inc. All rights reserved. 18

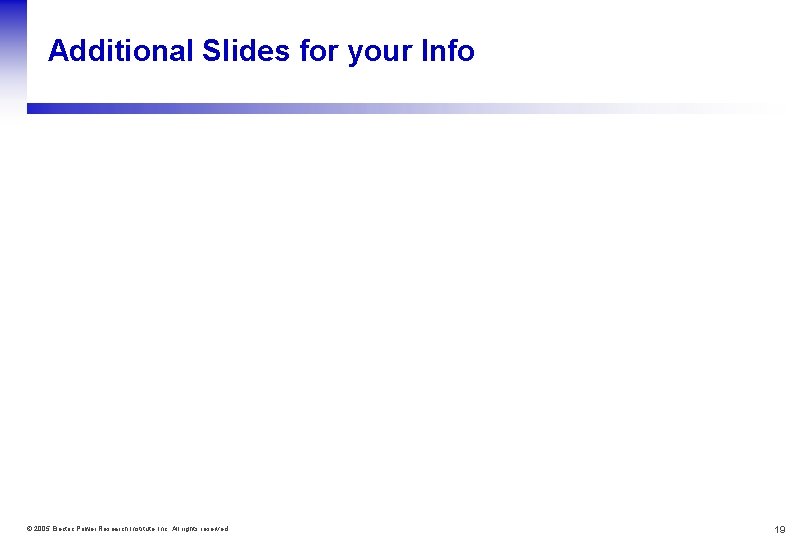

Additional Slides for your Info © 2005 Electric Power Research Institute, Inc. All rights reserved. 19

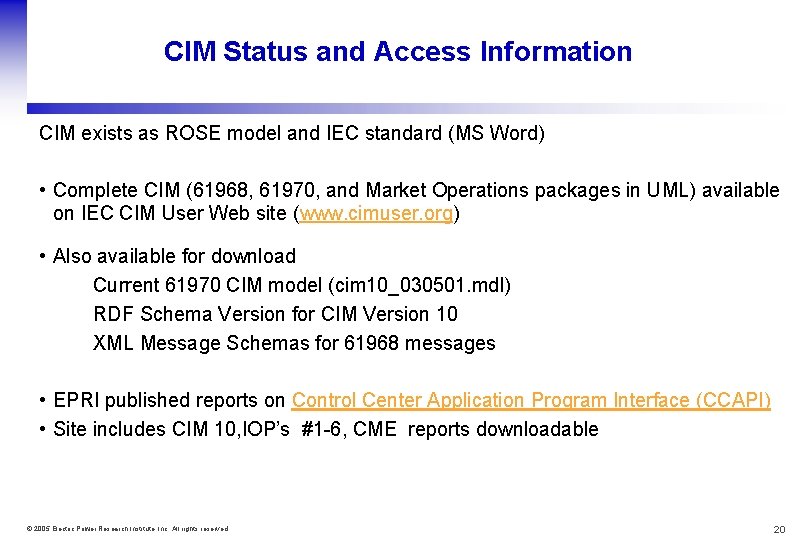

CIM Status and Access Information CIM exists as ROSE model and IEC standard (MS Word) • Complete CIM (61968, 61970, and Market Operations packages in UML) available on IEC CIM User Web site (www. cimuser. org) • Also available for download Current 61970 CIM model (cim 10_030501. mdl) RDF Schema Version for CIM Version 10 XML Message Schemas for 61968 messages • EPRI published reports on Control Center Application Program Interface (CCAPI) • Site includes CIM 10, IOP’s #1 -6, CME reports downloadable © 2005 Electric Power Research Institute, Inc. All rights reserved. 20
