The CLIC decelerator (one sector) The objective of the decelerator: Produce the correct power for accelerating structures, timely and uniformly along the decelerator, while achieving a high extraction efficiency Uniform power production implies that the beam must be transported to the end with very small losses

Lattice n 24 decelerator sectors per main linac n Varying sector length due to number and size of main linac quadrupoles n Baseline for PETS: longest sector (1050 meter) with a PETS fill-factor of 71% ("worst case for beam dynamics") n Tight FODO focusing (large energy acceptance, low beta) n Lowest energy particles see phase-advance m 90 (higher energy sees weaker focussing)

Baseline parameters for this study n Baseline parameters from [CLIC paramaters 2008] n E 0 2. 4 Ge. V n n n n E=0 in most simulations (because E of few % is insignificant wrt. the energy spread due to deceleration) I 100 A d = 25 mm (bunch spacing, fb = 12 GHz) t 240 ns (2900 bunches) Gaussian bunch, z 1 mm e. N 150 mm x, y 0. 3 mm (at bmax) Simulation tool: PLACET (D. Schulte)

Longitudinal dynamics

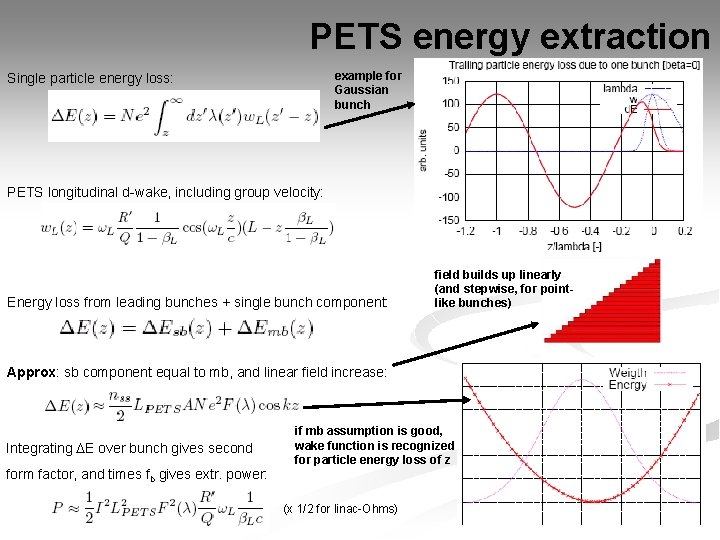

PETS energy extraction example for Gaussian bunch Single particle energy loss: PETS longitudinal d-wake, including group velocity: Energy loss from leading bunches + single bunch component: field builds up linearly (and stepwise, for pointlike bunches) Approx: sb component equal to mb, and linear field increase: Integrating DE over bunch gives second form factor, and times fb gives extr. power: if mb assumption is good, wake function is recognized for particle energy loss of z (x 1/2 for linac-Ohms)

The effect of deceleration l(z) E S=(E-Ě) / E = 90% Ě Ě = E(1 -S) =E-NPETSDÊ = 24 Me. V tb = 83 ps tfill = (LPETS/vg)(1 -bg) g = 1 ns sz = 1 mm tz = 3 ps Power extracted from beam (ss) : P (1/4) I 2 Lpets 2 FF 2 (R’/Q) wb / vg = 135 MW Power extraction efficiency (ss) : h = Ein/Eext = S FF hdist = 84% Transport of the decelerator beam becomes more challenging with increasing S and decreasing Ě – in this study S=90% used

Transverse dynamics How to keep the entire beam (particles of all energies) within the vacuum chamber, along all the decelerator

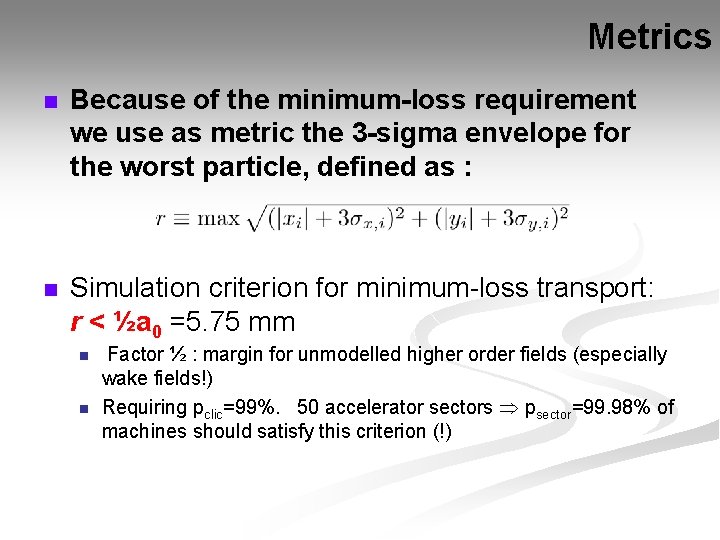

Metrics n Because of the minimum-loss requirement we use as metric the 3 -sigma envelope for the worst particle, defined as : n Simulation criterion for minimum-loss transport: r < ½a 0 =5. 75 mm n n Factor ½ : margin for unmodelled higher order fields (especially wake fields!) Requiring pclic=99%. 50 accelerator sectors psector=99. 98% of machines should satisfy this criterion (!)

Simulation overview n The following effects are included in the transverse dynamics studies n PETS model (baseline) n n Lattice component misalignment (baseline) n n Transverse wakes (long and short range) RF-kicks Adiabatic undamping PETS misalignment (offset, angle) Quadrupole misalignment (offset, angle) BPM misalignment (offset, angle) BEAM perturbations (studied separately) n n Beam offset Beam jitter

Results: baseline n Beam envelope, r, for baseline (incl. component misalignment) : n In order to improve the situation we first disentangle the contributions to the beam envelope

Minimum final envelope n Initial beam: modelled as slices with given energy and transverse distribution n Ad. undamping in a perfect machine n Relative orientation of distribution: irrelevant for r n we don't care about "chromaticity" n not necessarily useful to study emittance growth n To study increase fo beam envelope it is useful to work with a "pencil beam" of centroid only, where centroid envelope is den. rc

The effect of quadrupole kicks n Thus: quadrupole kicks alone drives the beam envelope above our limit (perhaps a bit surprinsingly)

Results: baseline n Base + case w/o transverse wakes n Quadrupole kicks alone + undamping already leads to unacceptable beam envelope

Transverse dynamics - PETS

PLACET input: dipole wake function n PETS Impedance simulated and a set of discrete dipole modes are extracted to represent the impedance (I. Syratchev) n Each mode implemented in PLACET (f. T, w. T, QT, b. T) and included in the PETS element (D. Schulte) Slide: I. Syratchev

Input to PETS design n During the 12 GHz PETS design, beam dynamics simulations were done in an iterative process with the PETS design to ensure small amplification due to transverse wakes

Origin of wake amplification n n Further investigation shows the amplification of the envelope occurs towards the end of the bunch -> mainly the single bunch wake that drives the amplification Collorary: since single bunch wake is sine-like, shorter bunch-length might reduce wake amplification significantly

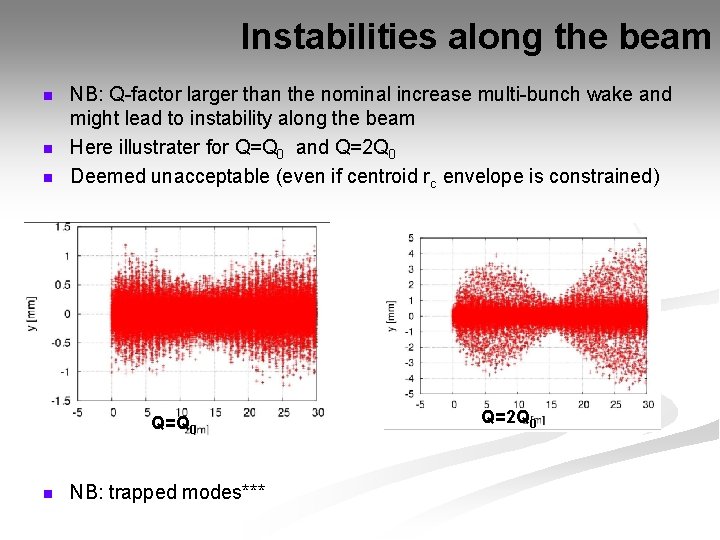

Instabilities along the beam n n n NB: Q-factor larger than the nominal increase multi-bunch wake and might lead to instability along the beam Here illustrater for Q=Q 0 and Q=2 Q 0 Deemed unacceptable (even if centroid rc envelope is constrained) Q=Q 0 n NB: trapped modes*** Q=2 Q 0

Conclusion: PETS design n n Effect PETS transverse wakes mitigated efficiently for nominal PETS parameters Stability sensitive to higher Q values

Alignment tolerances

Procedure n n (the rest of presentation: baseline parameters) We want to specify lattice element alignment tolerances We require that no single misalignment should drive our centroid (pencil beam) envelope more than 1 mm, rc < 1 mm (max. of 100 machines)

Limits

Quadrupoles n n effect limit of static alignment Update table ***

Beam-based alignment

1 -to-1 steering n Using simple 1 -to-1 steering (SC) forces the beam centroid through the center of each BPM n We assume a BPM accuracy of 20 um (limited mainly by static alignment? ) n As result the centroid also passed in the order of *** um from each quad

Results 1 -2 -1 steering n n Even if *** [plot of distribution over machines]

Dispersion-free steering n n 1 -to-1 correction does not give an adequate steering due to the large variation of dispersive trajectories We therefore seek to minimize the dispersive trajectories by applying Dispersion-Free Steering (DFS, [Raubenheim** and Ruth, ***] Our implementation minimized We want a difference trajectory with large leverage

DFS: test-beam generation n Advantages with this method n n n quadrupole strengths are kept constant main-beam and test-beam can be combined in one pulse Large energy-leverage

Results: DFS n Start of lattice: DFS not effective, due to the small energy difference of the test-beam, but does not matter since ***

Current jitter n Dispersion-free steering: n Dependence on current, versus bins n Lowest energy particles: XX phase-space revolutions Highest energy partices: YY phase-space revolutions n n DFS technique will be performed in bins, with a max. size depending on the current difference n need to perform DFS technique in bins

Decelerator: discussion and conclusion

Not included in the simulations n Resistive-wall wake n n Higher-order wakes n n Effect should be limited within r < ½a 0 (but probably worth looking further into) Longitudinal effects and phase jitter n n n The following estimate Some work in [D. Schulte] On-going work Halo simulations n On-going work by I. Ahmed

Failure modes Selected topics

Quadrupole failure

PETS: estimation of accepted break down voltage

PETS: effect of inhibition n "Petsonov" n Simulated as R/Q=0, QT=2 QT 0 (worst-case) n the lack of deceleration leads to higher minimum beam energy and thus less adiabatic undamping and less energy spread dipole wake kicks increase; for a steered trajectory the change of kicks will in addition spoil the steering the coherence of the beam energy will increase, and thus also the coherent build up of tranverse wakes n n

TBL versus the decelerator

TBL From Model to Reality 1: The Test Beam Line (TBL) is under construction as part of the CLIC Test Facility 3 (CTF 3). TBL will be a first prototype for the CLIC decelerator. The targets are, among others, to investigate beam stability and minimum-loss transport during deceleration with high power extraction efficiency. In addition the TBL will serve as test-bed for Beam-Based Alignment of a decelerated beam, and as a general benchmarking of the simulation codes.

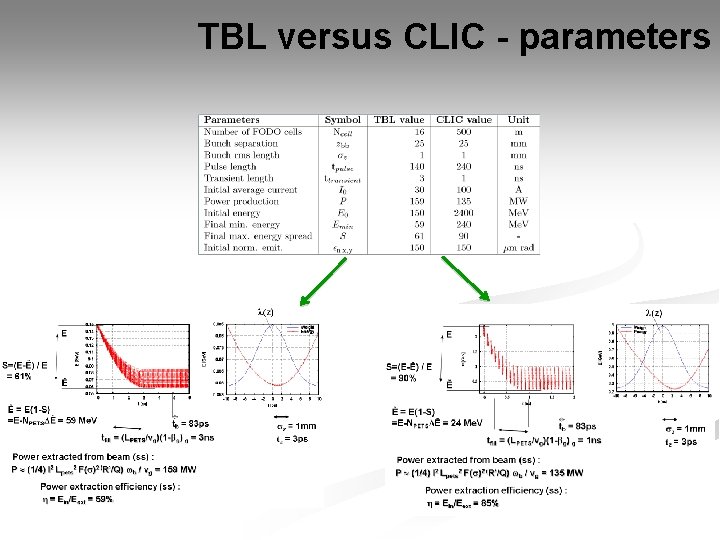

TBL versus CLIC - parameters

Effect of quadrupole kicks

Wake amplification
