THE CIRCULATORY SYSTEM Exercise Science Bell Work Vocabulary

THE CIRCULATORY SYSTEM Exercise Science

Bell Work Vocabulary: Define using the red book Blood vessels Artery Vein Capillary Heart Lungs Circulatory system

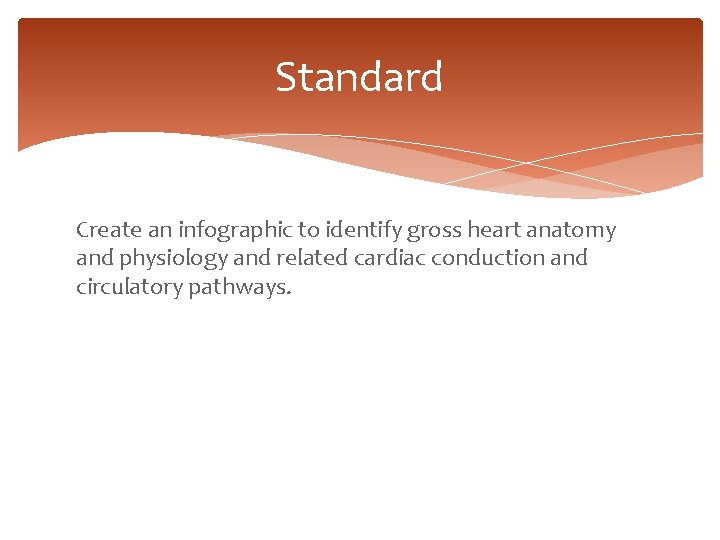

Standard Create an infographic to identify gross heart anatomy and physiology and related cardiac conduction and circulatory pathways.

Objective By the end of class, student will be able to Recognize main functions of the heart Identify the 4 chambers of the heart and the 4 heart valves Interpret the meaning of heart sounds and blood pressure

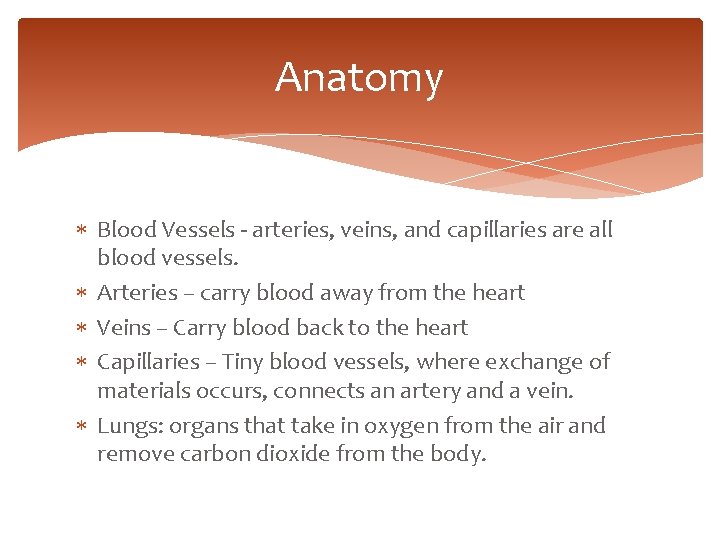

Anatomy Blood Vessels - arteries, veins, and capillaries are all blood vessels. Arteries – carry blood away from the heart Veins – Carry blood back to the heart Capillaries – Tiny blood vessels, where exchange of materials occurs, connects an artery and a vein. Lungs: organs that take in oxygen from the air and remove carbon dioxide from the body.

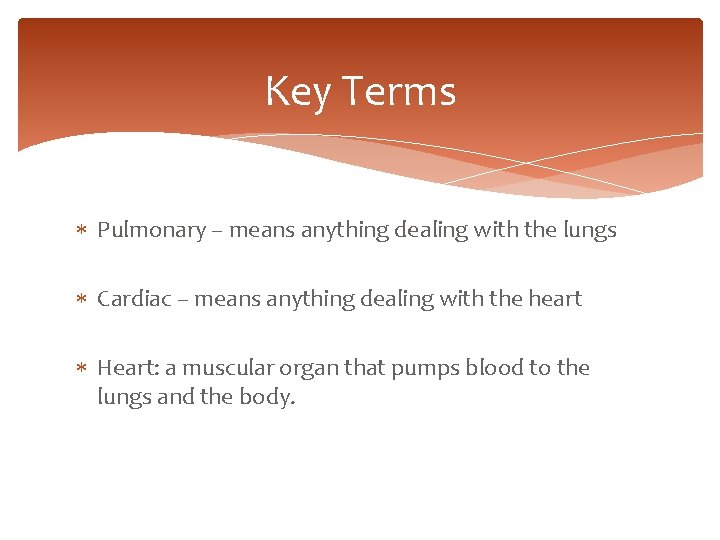

Key Terms Pulmonary – means anything dealing with the lungs Cardiac – means anything dealing with the heart Heart: a muscular organ that pumps blood to the lungs and the body.

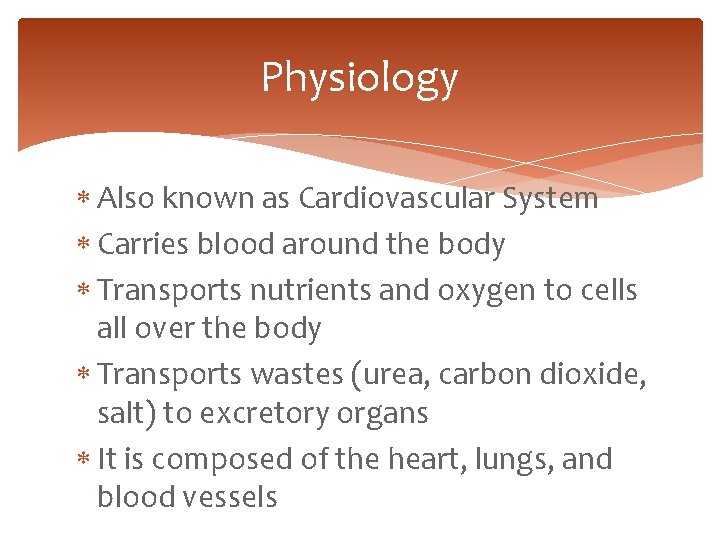

Physiology Also known as Cardiovascular System Carries blood around the body Transports nutrients and oxygen to cells all over the body Transports wastes (urea, carbon dioxide, salt) to excretory organs It is composed of the heart, lungs, and blood vessels

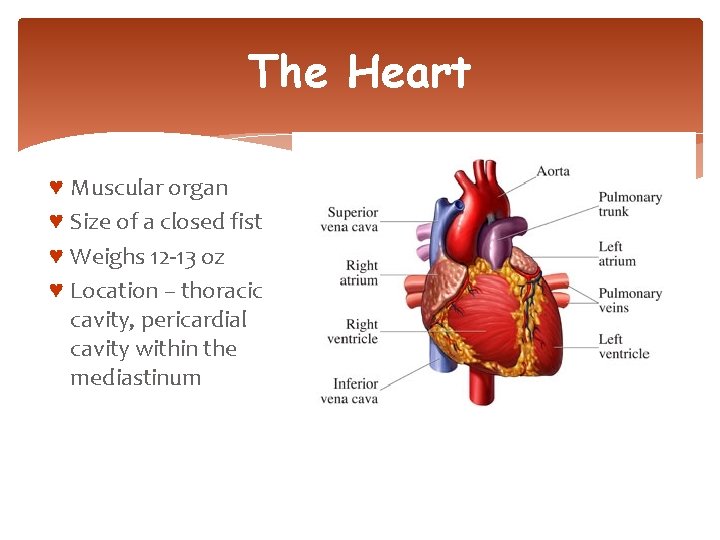

The Heart ♥ Muscular organ ♥ Size of a closed fist ♥ Weighs 12 -13 oz ♥ Location – thoracic cavity, pericardial cavity within the mediastinum

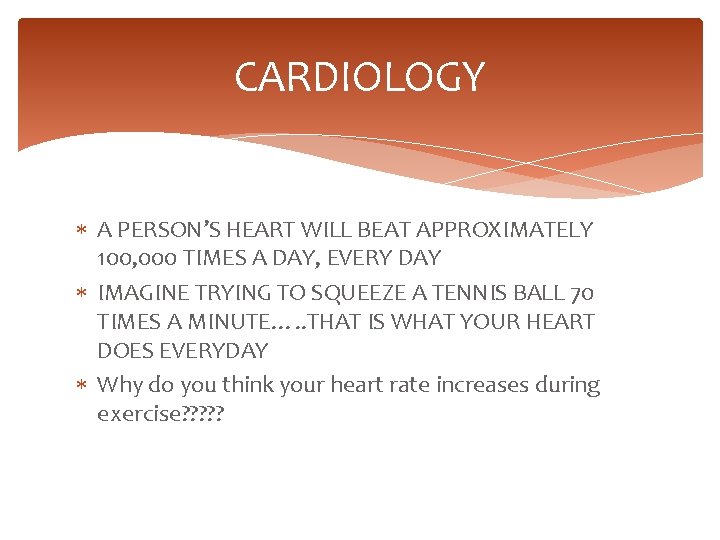

CARDIOLOGY A PERSON’S HEART WILL BEAT APPROXIMATELY 100, 000 TIMES A DAY, EVERY DAY IMAGINE TRYING TO SQUEEZE A TENNIS BALL 70 TIMES A MINUTE…. . THAT IS WHAT YOUR HEART DOES EVERYDAY Why do you think your heart rate increases during exercise? ? ?

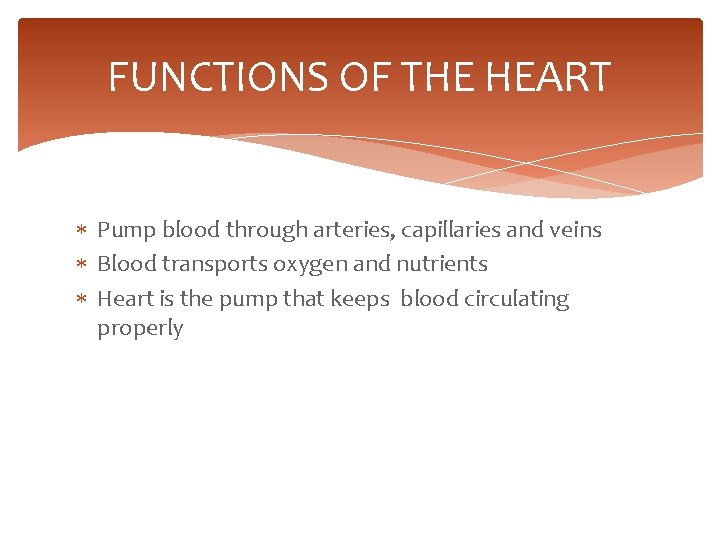

FUNCTIONS OF THE HEART Pump blood through arteries, capillaries and veins Blood transports oxygen and nutrients Heart is the pump that keeps blood circulating properly

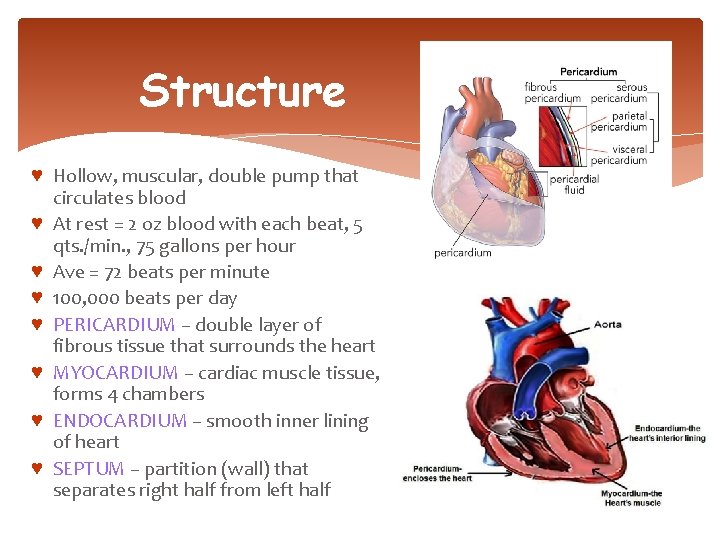

Structure ♥ Hollow, muscular, double pump that circulates blood ♥ At rest = 2 oz blood with each beat, 5 qts. /min. , 75 gallons per hour ♥ Ave = 72 beats per minute ♥ 100, 000 beats per day ♥ PERICARDIUM – double layer of fibrous tissue that surrounds the heart ♥ MYOCARDIUM – cardiac muscle tissue, forms 4 chambers ♥ ENDOCARDIUM – smooth inner lining of heart ♥ SEPTUM – partition (wall) that separates right half from left half

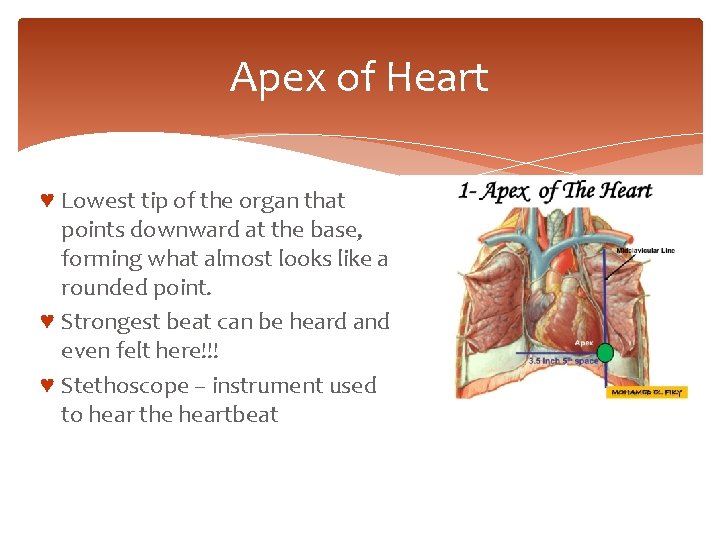

Apex of Heart ♥ Lowest tip of the organ that points downward at the base, forming what almost looks like a rounded point. ♥ Strongest beat can be heard and even felt here!!! ♥ Stethoscope – instrument used to hear the heartbeat

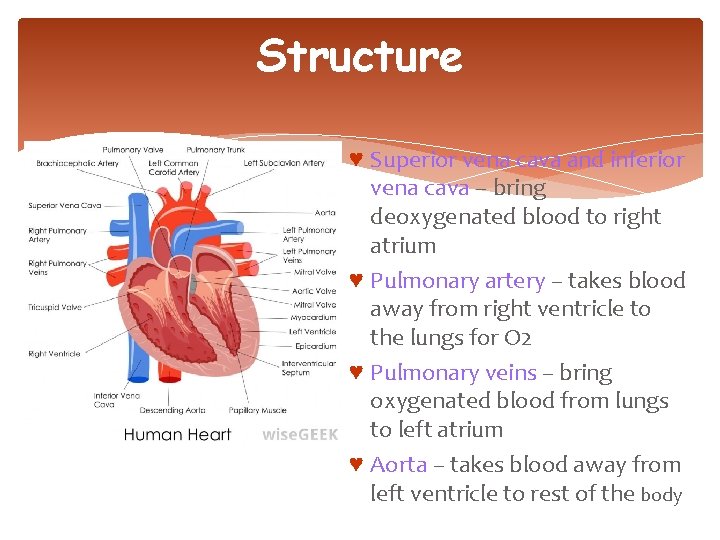

Structure ♥ Superior vena cava and inferior vena cava – bring deoxygenated blood to right atrium ♥ Pulmonary artery – takes blood away from right ventricle to the lungs for O 2 ♥ Pulmonary veins – bring oxygenated blood from lungs to left atrium ♥ Aorta – takes blood away from left ventricle to rest of the body

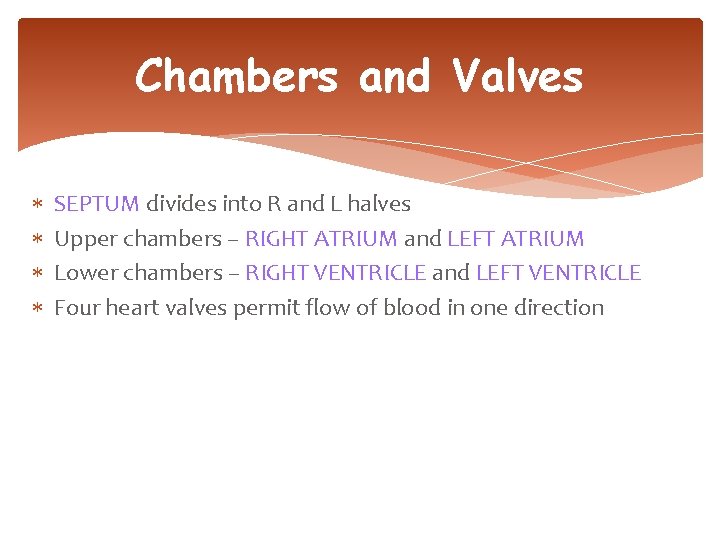

Chambers and Valves SEPTUM divides into R and L halves Upper chambers – RIGHT ATRIUM and LEFT ATRIUM Lower chambers – RIGHT VENTRICLE and LEFT VENTRICLE Four heart valves permit flow of blood in one direction

VALVES Tricuspid – 3 flaps or cusps – prevents backflow into R atrium Pulmonary – 3 flaps – prevents backflow into R ventricle Mitral (bicuspid) – 2 flaps – prevents backflow into L atrium Aortic – prevents backflow into L ventricle

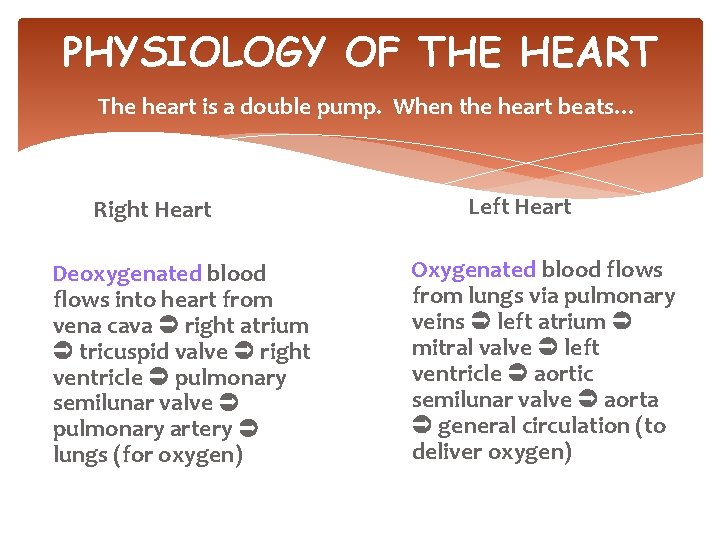

PHYSIOLOGY OF THE HEART The heart is a double pump. When the heart beats… Right Heart Deoxygenated blood flows into heart from vena cava right atrium tricuspid valve right ventricle pulmonary semilunar valve pulmonary artery lungs (for oxygen) Left Heart Oxygenated blood flows from lungs via pulmonary veins left atrium mitral valve left ventricle aortic semilunar valve aorta general circulation (to deliver oxygen)

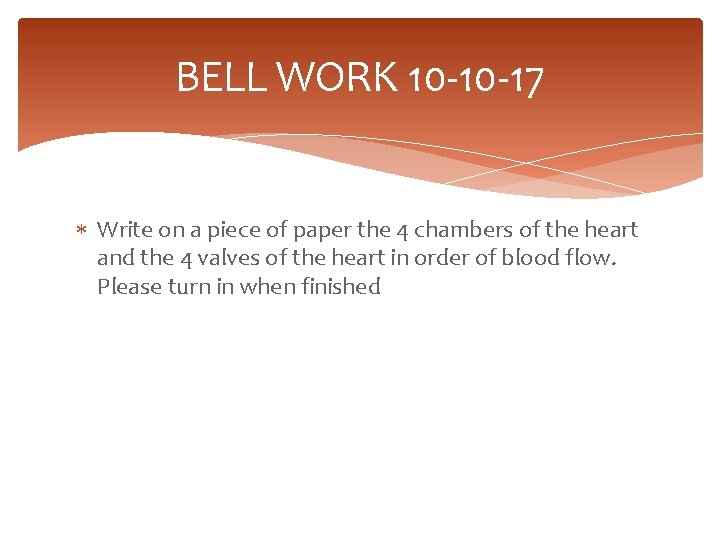

BELL WORK 10 -10 -17 Write on a piece of paper the 4 chambers of the heart and the 4 valves of the heart in order of blood flow. Please turn in when finished

4

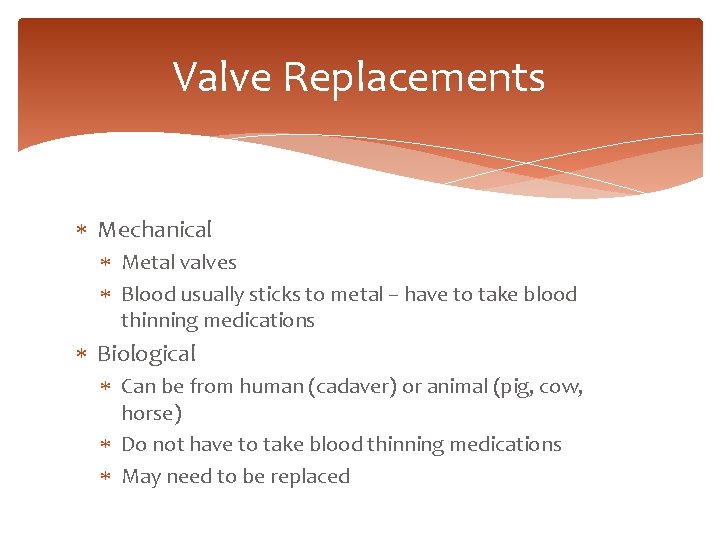

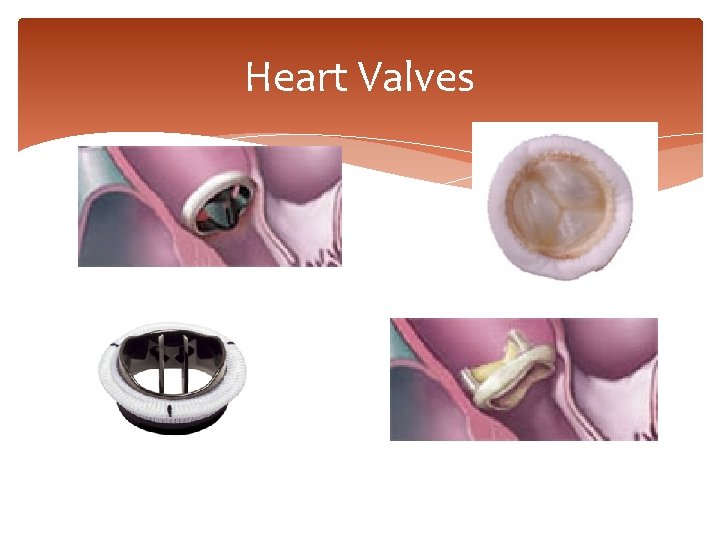

Valve Replacements Mechanical Metal valves Blood usually sticks to metal – have to take blood thinning medications Biological Can be from human (cadaver) or animal (pig, cow, horse) Do not have to take blood thinning medications May need to be replaced

Heart Valves

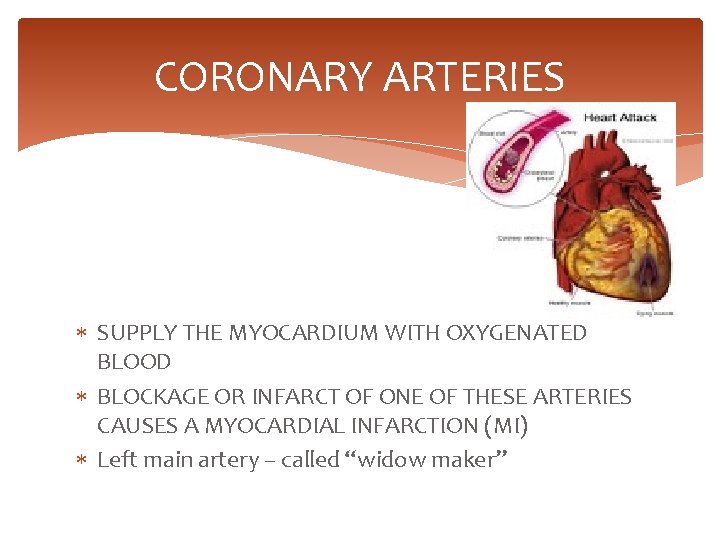

CORONARY ARTERIES SUPPLY THE MYOCARDIUM WITH OXYGENATED BLOOD BLOCKAGE OR INFARCT OF ONE OF THESE ARTERIES CAUSES A MYOCARDIAL INFARCTION (MI) Left main artery – called “widow maker”

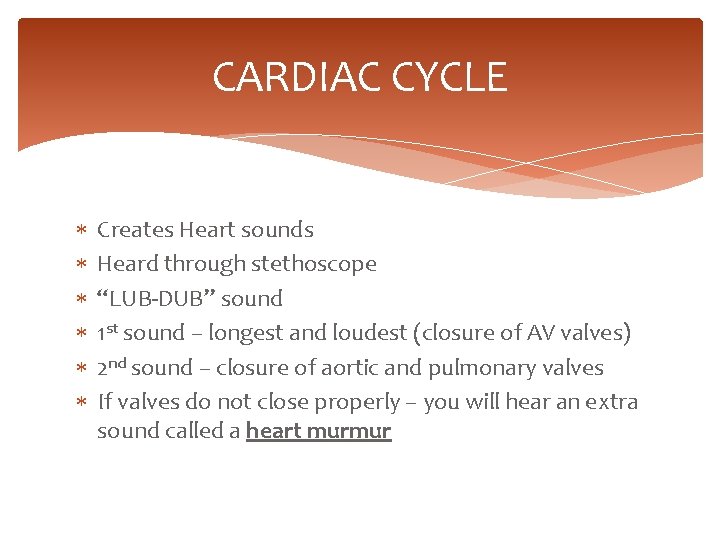

CARDIAC CYCLE Creates Heart sounds Heard through stethoscope “LUB-DUB” sound 1 st sound – longest and loudest (closure of AV valves) 2 nd sound – closure of aortic and pulmonary valves If valves do not close properly – you will hear an extra sound called a heart murmur

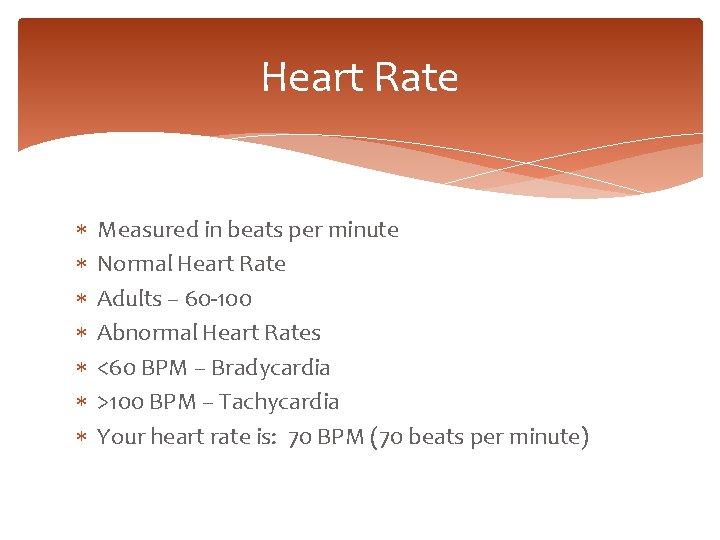

Heart Rate Measured in beats per minute Normal Heart Rate Adults – 60 -100 Abnormal Heart Rates <60 BPM – Bradycardia >100 BPM – Tachycardia Your heart rate is: 70 BPM (70 beats per minute)

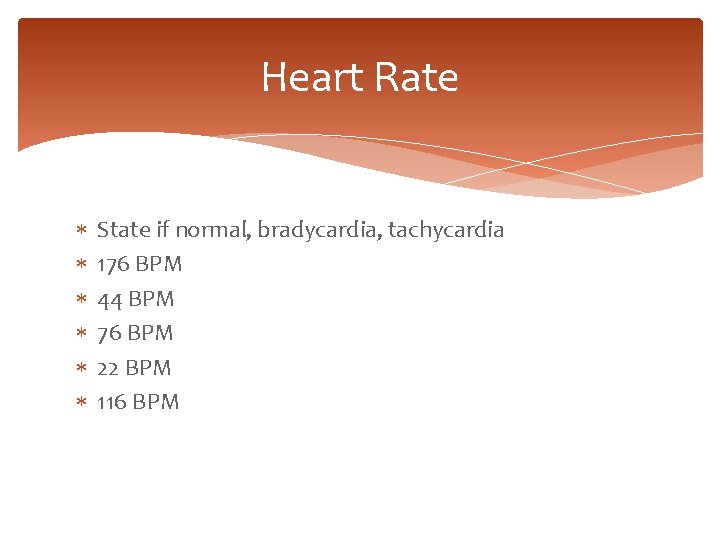

Heart Rate State if normal, bradycardia, tachycardia 176 BPM 44 BPM 76 BPM 22 BPM 116 BPM

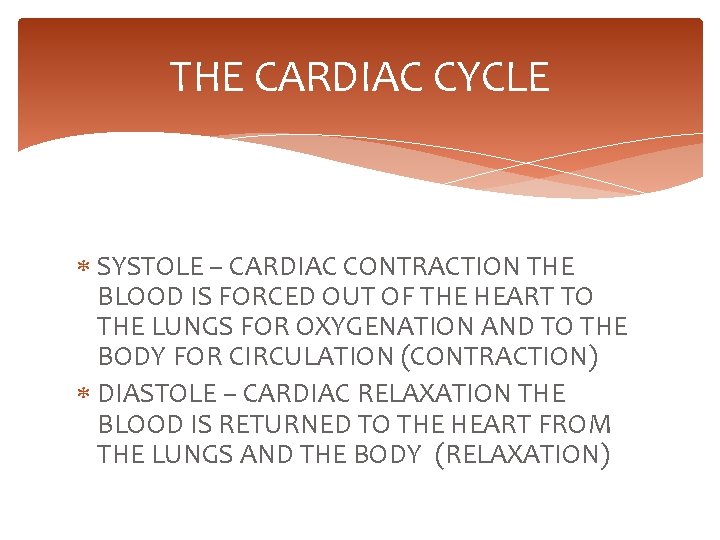

THE CARDIAC CYCLE SYSTOLE – CARDIAC CONTRACTION THE BLOOD IS FORCED OUT OF THE HEART TO THE LUNGS FOR OXYGENATION AND TO THE BODY FOR CIRCULATION (CONTRACTION) DIASTOLE – CARDIAC RELAXATION THE BLOOD IS RETURNED TO THE HEART FROM THE LUNGS AND THE BODY (RELAXATION)

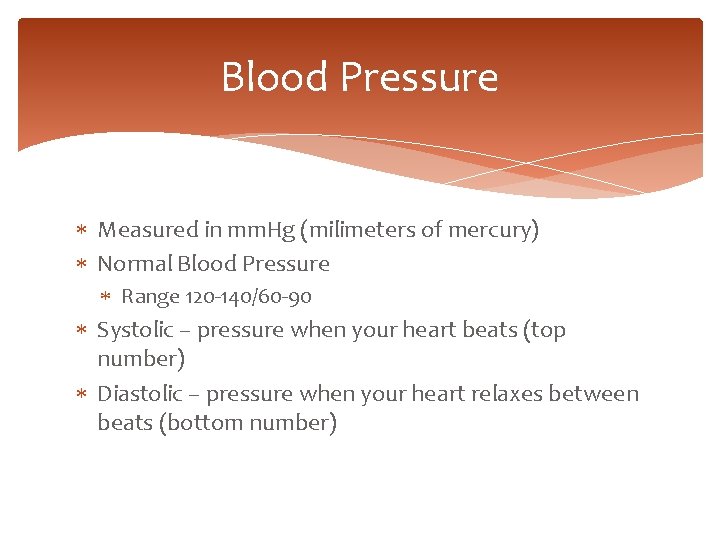

Blood Pressure Measured in mm. Hg (milimeters of mercury) Normal Blood Pressure Range 120 -140/60 -90 Systolic – pressure when your heart beats (top number) Diastolic – pressure when your heart relaxes between beats (bottom number)

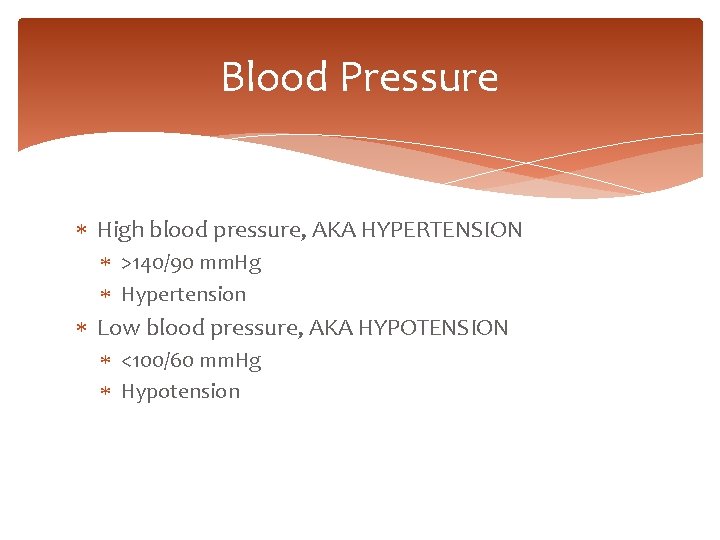

Blood Pressure High blood pressure, AKA HYPERTENSION >140/90 mm. Hg Hypertension Low blood pressure, AKA HYPOTENSION <100/60 mm. Hg Hypotension

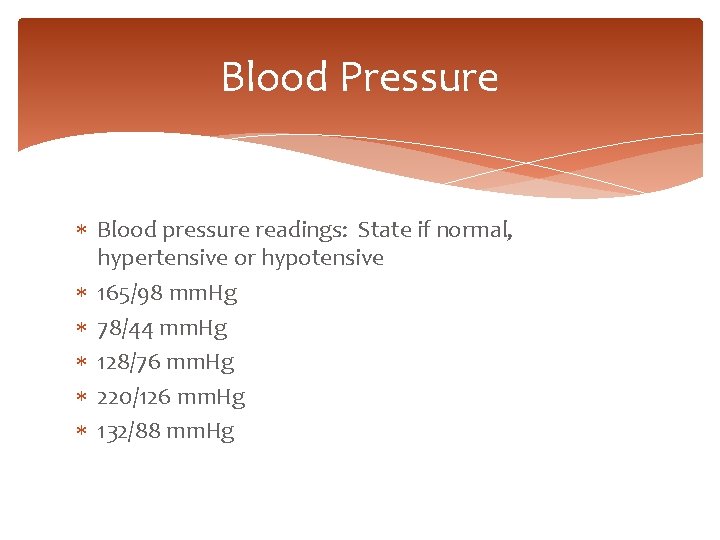

Blood Pressure Blood pressure readings: State if normal, hypertensive or hypotensive 165/98 mm. Hg 78/44 mm. Hg 128/76 mm. Hg 220/126 mm. Hg 132/88 mm. Hg

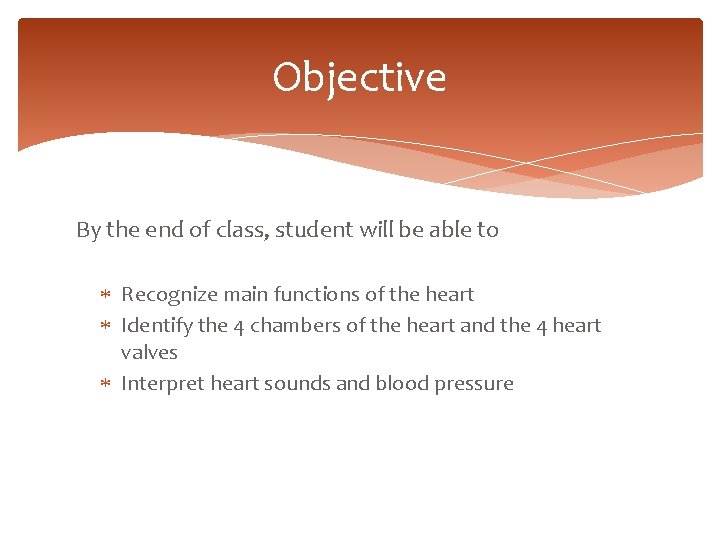

Objective By the end of class, student will be able to Recognize main functions of the heart Identify the 4 chambers of the heart and the 4 heart valves Interpret heart sounds and blood pressure
